Image cartoonization incorporating attention mechanism and structural line extraction
Canlin LI1(),Xinyue WANG1,Lizhuang MA2,Zhiwen SHAO2,3,Wenjiao ZHANG1
1. School of Computer and Communication Engineering, Zhengzhou University of Light Industry, Zhengzhou 450000, China
2. Department of Computer Science and Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
3. School of Computer Science and Technology, China University of Mining and Technology, Xuzhou 221116, China
 全文: PDF(5408 KB)   HTML
摘要：

为了解决图像卡通化没有突出表达图像中的重要特征信息及边缘处理不足的问题，提出融合注意力机制和结构线提取的图像卡通化方法. 构建融合注意力机制的生成器网络，通过空间和通道融合特征间的联系，从不同的特征中提取更加重要和丰富的图像信息. 为了更好地实现对卡通纹理的学习，设计与全局并行的线提取区域处理模块（LERM），以便对卡通纹理的边缘区域进行对抗性训练. 该方法不仅在重要区域和细节方面生成了高感知质量的卡通化图像，而且避免了内容和颜色的损失. 大量的实验结果表明，利用该方法取得了更好的卡通风格化效果，验证了该方法的有效性，.
关键词： 生成式对抗网络;  图像卡通化;  注意力机制;  结构线提取;  边缘检测
Abstract:

An image cartoonization method that incorporated attention mechanism and structural line extraction was proposed in order to address the problem that image cartoonization does not highlight important feature information in the image and insufficient edge processing. The generator network with fused attention mechanism was constructed, which extracted more important and richer image information from different features by fusing the connections between features in space and channels. A line extraction region processing module (LERM) in parallel with the global one was designed to perform adversarial training on the edge regions of cartoon textures in order to better learn cartoon textures. This method not only generates cartoonish images with high perceptual quality in terms of important areas and details, but also avoids the loss of content and color. The extensive experimental results showed that the proposed method achieved better cartoonization, which validated the effectiveness of the method.
Key words: generative adversarial network    image cartoonization    attention mechanism    structural line extraction    edge detection
收稿日期: 2023-07-01 出版日期: 2024-07-23
CLC:  TP 391
基金资助: 国家自然科学基金资助项目(61972157，62106268)；河南省科技攻关项目(242102211003)；上海市科技创新行动计划人工智能科技支撑项目(21511101200)；江苏省“双创博士”人才资助项目(JSSCBS20211220).
作者简介: 李灿林（1976— ），男，副教授，从事图像处理和计算机视觉的研究. orcid.org/0000-0003-0307-3910. E-mail：lcl_zju@aliyun.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
李灿林
王新玥
马利庄
邵志文
张文娇

引用本文:

李灿林,王新玥,马利庄,邵志文,张文娇. 融合注意力机制和结构线提取的图像卡通化[J]. 浙江大学学报(工学版), 2024, 58(8): 1728-1737.

Canlin LI,Xinyue WANG,Lizhuang MA,Zhiwen SHAO,Wenjiao ZHANG. Image cartoonization incorporating attention mechanism and structural line extraction. Journal of ZheJiang University (Engineering Science), 2024, 58(8): 1728-1737.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.08.019    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I8/1728

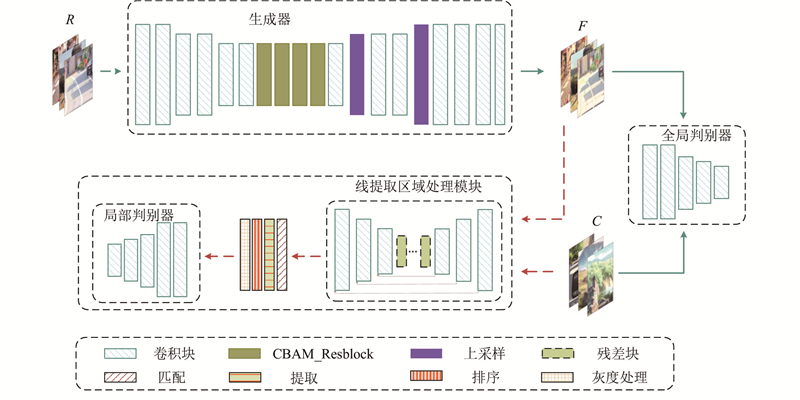

图 1  提出方法的总体架构

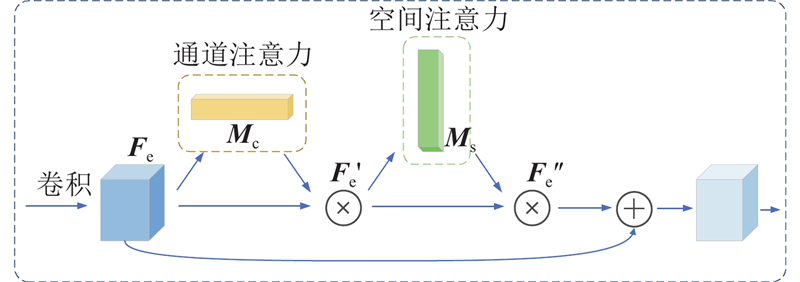

图 2  通道空间注意力残差块

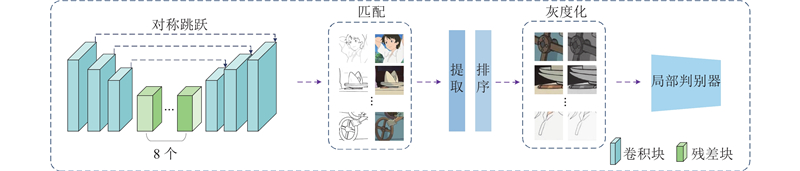

图 3  线提取区域处理模块

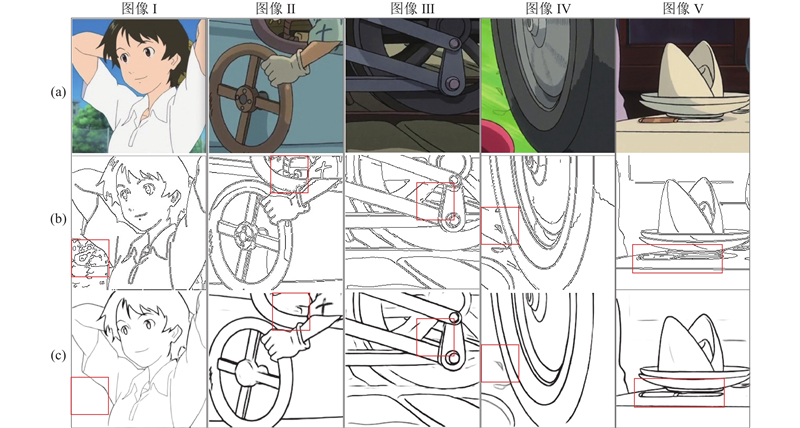

图 4  线条提取的比较

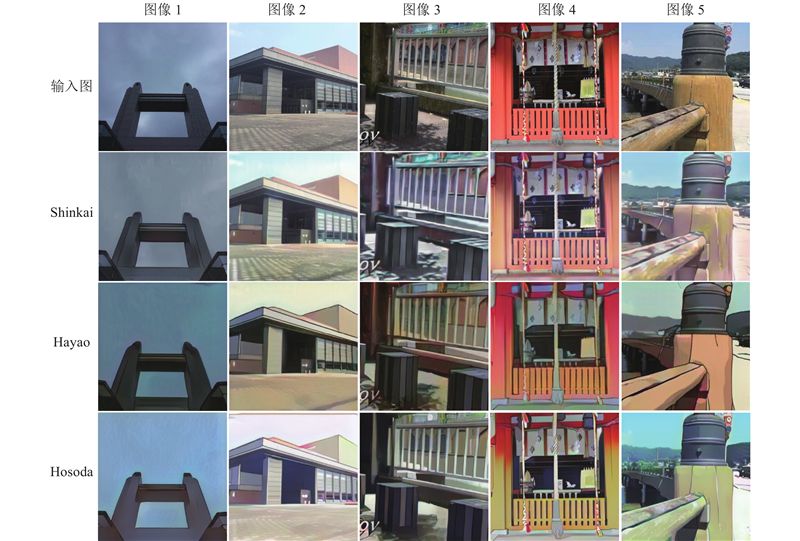

图 5  3种不同风格的转换

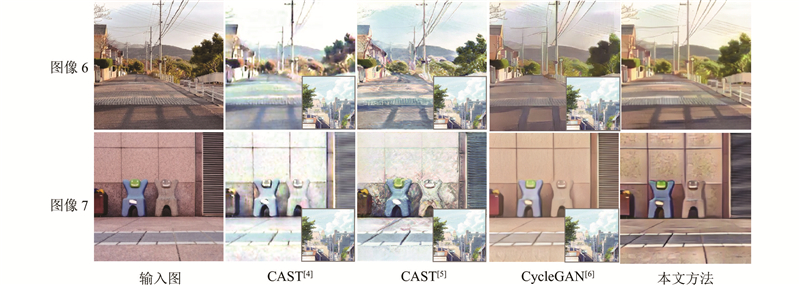

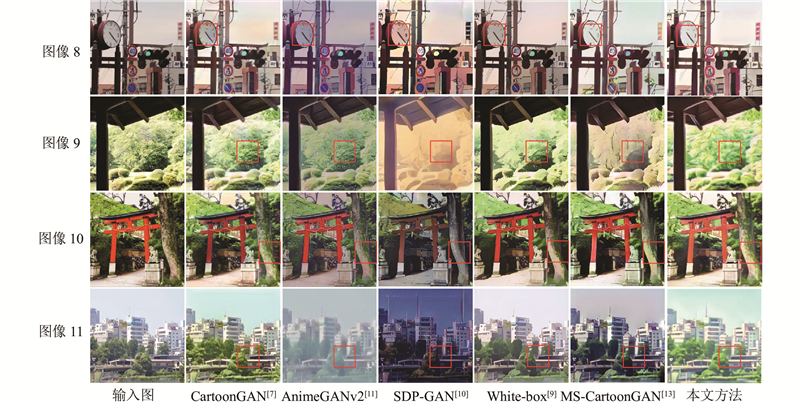

图 6  图像风格化的对比
图 7  同一种风格的对比图
风格FID
CartoonGANWhite-boxSDP-GANAnimeGANv2MS-CartoonGAN本文方法
Shinkai140.5126.8122.7121.3146.3120.2
Hayao166.6154.6125.6144.4140.8123.0
Hosoda163.2155.3136.6141.5160.1133.7
表 1  生成图像和目标图像的FID值

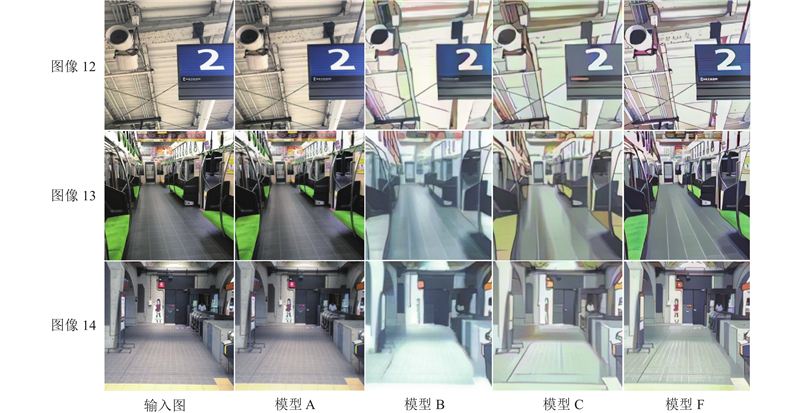

图 8  损失函数消融实验的对比图

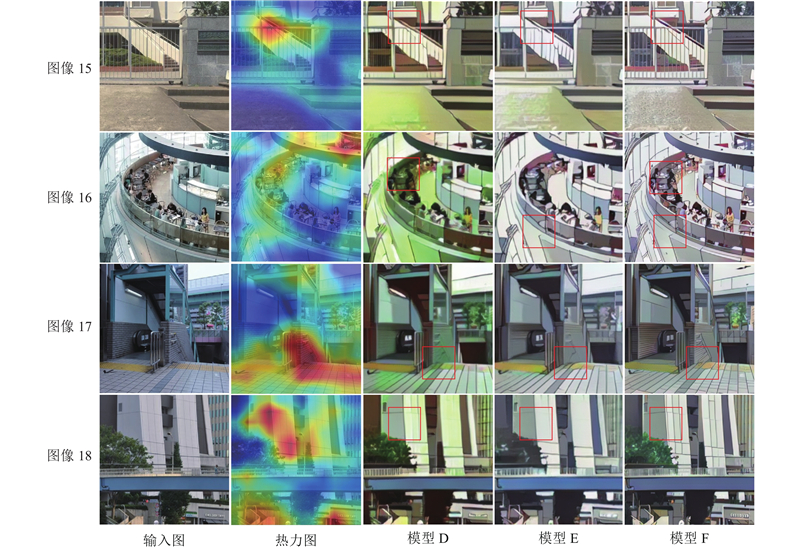

图 9  组件消融实验的对比图
