浙江大学学报(工学版)
浙江大学学报(工学版)  2024, Vol. 58 Issue (7): 1326-1335    DOI: 10.3785/j.issn.1008-973X.2024.07.002
计算机与控制工程
融合注意力的滤波器组双视图图卷积运动想象脑电分类
吴书晗1(),王丹1,*(),陈远方2,贾子钰3,张越棋1,许萌1
1. 北京工业大学 信息学部，北京 100124
2. 北京机械设备研究所，北京 100854
3. 中国科学院自动化研究所脑网络组研究中心，北京 100190
Attention-fused filter bank dual-view graph convolution motor imagery EEG classification
Shuhan WU1(),Dan WANG1,*(),Yuanfang CHEN2,Ziyu JIA3,Yueqi ZHANG1,Meng XU1
1. Faculty of Information Technology, Beijing University of Technology, Beijing 100124, China
2. Beijing Institute of Machinery and Equipment, Beijing 100854, China
3. Brainnetome Center, Institute of Automation, Chinese Academy of Sciences, Beijing 100190, China
 全文: PDF(2102 KB)   HTML
摘要：

在运动想象任务中，传统卷积神经网络难以准确表达大脑多区域协同神经活动；图卷积网络（GCN）能够在图数据中考虑节点（脑区）间的连接和关系，适于表示不同脑区的协同任务，为此提出融合注意力的滤波器组双视图GCN（AFB-DVGCN）. 由滤波器组构建双分支网络，提取不同频段的时域和空域信息；采用双视图图卷积空间特征提取方法实现信息互补；利用有效通道注意力机制增强特征和捕捉不同特征图的交互信息，以提高分类准确率. 在公开数据集BCI Competition IV-2a和OpenBMI上的验证结果表明，AFB-DVGCN的分类性能良好，其分类准确率显著高于对比网络的分类准确率.
关键词： 脑机接口;  运动想象;  深度学习;  图卷积网络;  注意力机制
Abstract:

In motor imagery tasks, the brain often involves simultaneous activation of multiple regions, and traditional convolutional neural networks struggle to accurately represent the coordinated neural activity across these regions. Graph convolutional network GCN is suitable for representing the collaborative tasks of different brain regions by considering the connections and relationships between nodes (brain regions) in graph data. Attention-fused filter bank dual-view GCN（AFB-DVGCN）was proposed. A dual-branch network was constructed using filter banks to extract temporal and spatial information from different frequency bands. Information complementarity was achieved by a convolutional spatial feature extraction method for dual-view graphs. In order to improve the classification accuracy, the effective channel attention mechanism was utilized to enhance features and capture the interaction information between different feature maps. Validation results in the publicly available datasets BCI Competition IV-2a and OpenBMI show that AFB-DVGCN has achieved good classification performance, and the classification accuracy is significantly higher than that of the comparison networks.
Key words: brain-computer interface    motor imagery    deep learning    graph convolutional network    attention mechanism
收稿日期: 2023-08-20 出版日期: 2024-07-01
CLC:  TN 911.7
基金资助: 国家自然科学基金资助项目（12275295）；中国博士后科学基金面上项目（2023M740171）.
通讯作者: 王丹     E-mail: wush@emails.bjut.edu.cn;wangdan@bjut.edu.cn
作者简介: 吴书晗（1999—），男，硕士生，从事脑机接口、运动想象研究. orcid.org/0009-0005-7709-6893. E-mail：wush@emails.bjut.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
吴书晗
王丹
陈远方
贾子钰
张越棋
许萌

引用本文:

吴书晗,王丹,陈远方,贾子钰,张越棋,许萌. 融合注意力的滤波器组双视图图卷积运动想象脑电分类[J]. 浙江大学学报(工学版), 2024, 58(7): 1326-1335.

Shuhan WU,Dan WANG,Yuanfang CHEN,Ziyu JIA,Yueqi ZHANG,Meng XU. Attention-fused filter bank dual-view graph convolution motor imagery EEG classification. Journal of ZheJiang University (Engineering Science), 2024, 58(7): 1326-1335.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.07.002    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I7/1326

图 1  融合注意力的滤波器组双视图图卷积网络的整体架构图
模块网络层F1核大小层可训练参数输出尺寸激活函数备注
1输入———$ \text{(}\text{1}\text{,}{{N}}_{\text{e}}\text{,}{{F}}_{\text{t}}\text{)} $——
DVGCN——$ {{F}}_{\text{t}}\text{+}\text{2?}{{N}}_{\text{e}}\text{?}{{N}}_{\text{e}} $$ \text{(1}\text{,}{{N}}_{\text{e}}\text{,}{{F}}_{\text{t}}\text{)} $——
二维卷积50$ \text{(1,}\text{25}\text{)} $$ {{F}}_{\text{1}}\text{?}{25}\text{+}{{F}}_{\text{1}} $$ ({{F}}_{\text{1}},{N}_{{\mathrm{e}}},{F}_{{\mathrm{t}}}-24) $—$ c\text{=1} $
2合并———$ ({2\cdot F}_{1},{N}_{{\mathrm{e}}},{{F}}_{\text{t}}-24) $——
二维卷积50($ {N}_{{\mathrm{e}}} $,1)$ \text{2?}{{F}}_{\text{1}}\text{?}{{F}}_{\text{1}}\text{?}{{N}}_{\text{e}} $$ ({F}_{1},1,{{F}}_{\text{t}}-24) $—$c\text{=1} $
批归一化——$ 2{\cdot F}_{1} $$ ({F}_{1},1,{{F}}_{\text{t}}-24) $平方激活—
平均池化—$ \left(\mathrm{1,75}\right) $—$ ({F}_{1},1,({{F}}_{\text{t}}-99)//15+1) $——
3丢弃层—————$ {p}\text{=0.5} $
ECA——$ 3 $$ ({{F}}_{\text{1}},1,({{F}}_{\text{t}}-99)//15+1) $——
分类压平———$ ({{F}}_{\text{1}}\cdot (({{F}}_{\text{t}}-99)//15+1\left)\right) $——
全连接层——$ {{F}}_{\text{1}}\text{?}\text{((}{{F}}_{\text{t}}-\text{99)//15+1)}\text{?}{N}_{{\mathrm{c}}}+{N}_{{\mathrm{c}}} $$ {N}_{{\mathrm{c}}} $—c=0.5
表 1  融合注意力的滤波器组双视图图卷积网络架构
图 2  有效通道注意力的结构
分类方法BCI Competition IV-2aOpenBMI
acc/%kapstdacc/%kapstd
ShallowConvNet72.8010.6370.10868.9070.3780.153
EEGNet66.1270.5480.15169.6390.3930.154
MSFBCNN73.6880.6490.11569.7130.3940.166
FBCNet71.1030.6150.14665.9630.3170.144
Sinc-ShallowNet73.3410.6450.13068.0280.3610.156
FB-Sinc-ShallowNet73.1100.6410.12668.3700.3670.156
AFB-DVGCN77.3920.6990.10372.6570.4530.142
表 2  跨会话实验对比分类结果
图 3  所提网络在2个公开数据集上的混淆矩阵
图 4  融合注意力的滤波器组双视图图卷积网络在数据集BCI Competition IV-2a上的可视化结果

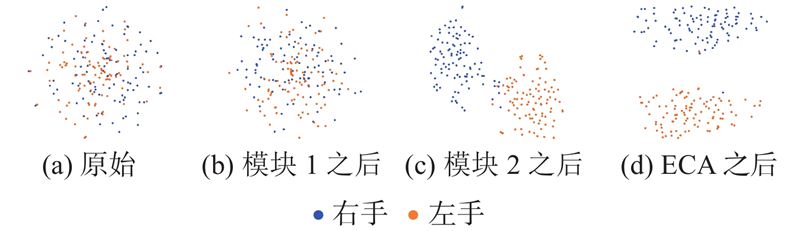

图 5  融合注意力的滤波器组双视图图卷积网络在数据集OpenBMI上的可视化结果
变体网络acc/%
BCI Competition IV-2aOpenBMI
无FB多分支74.30668.315
无距离脑视图74.57668.935
无功能脑视图74.82669.611
无ECA76.27371.889
AFB-DVGCN 77.392* 72.657*
表 3  消融实验结果
图 6  数据集BCI Competition IV-2a中被试4的左手试次的地形图

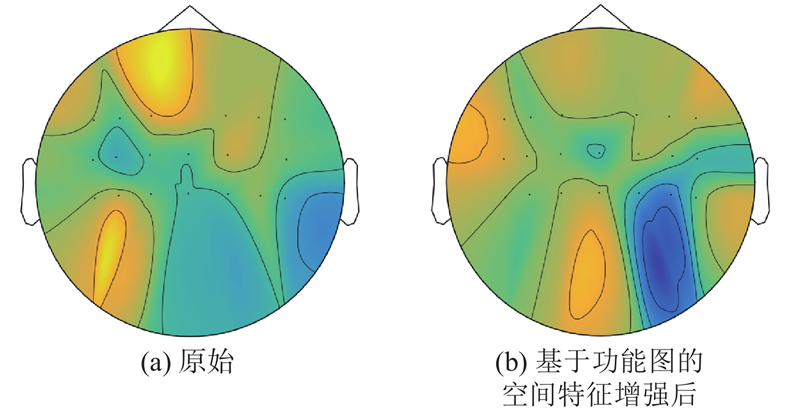

图 7  数据集OpenBMI中被试33的左手试次的地形图

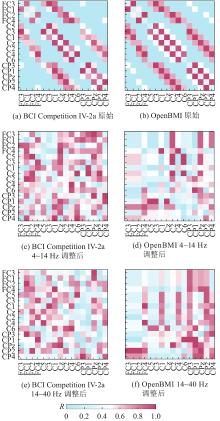

图 8  2个公开数据集在不同频段下的距离邻接矩阵可视化

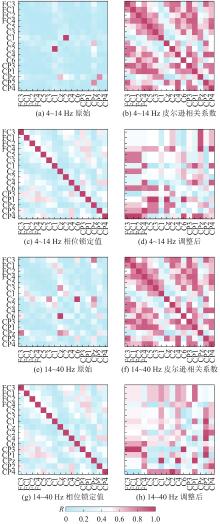

图 9  数据集BCI Competition IV-2a的功能邻接矩阵可视化

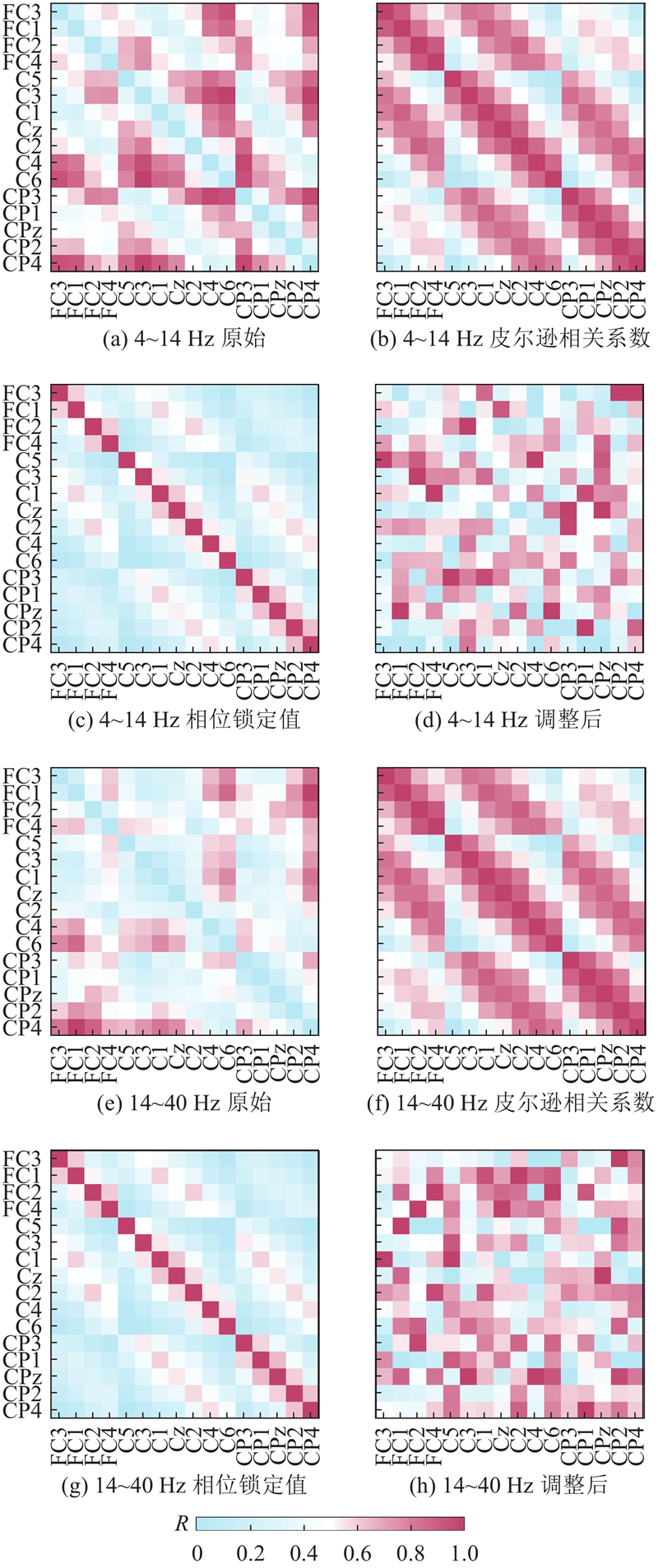

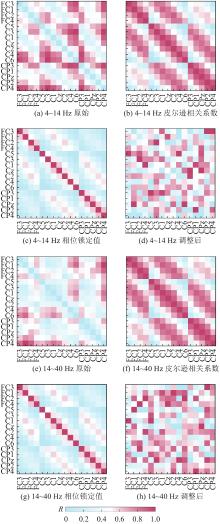

图 10  数据集OpenBMI的功能邻接矩阵可视化
Nfbacc/%
BCI Competition IV-2aOpenBMI
174.30668.315
2 77.392 72.658
473.07168.704
表 4  不同滤波器数量下融合注意力的滤波器组双视图图卷积网络的分类准确率
注意力机制BCI Competition IV-2aOpenBMI
acc/%kapstdNTPacc/%kapstdNTP
Triplet Attention[30]72.9550.6550.156129 14070.0650.4010.167112 702
NAM[31]74.6530.6620.108128 94069.5830.3921.660112 502
SimAM[32]72.7620.6370.116128 84067.3430.3470.142112 402
ECA[9] 77.392*0.6990.103128 843 72.657*0.4530.142112 405
表 5  不同注意力机制在2个公开数据集上的性能对比
