浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (4): 814-823    DOI: 10.3785/j.issn.1008-973X.2023.04.019

Refined finite element analysis of tensile property of grout sleeve splicing of rebars
Jia-wen BAO1,2(),Qiang GAO3,Lin TANG4,Wei-jian ZHAO1,2,*()
1. College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
2. Center for Balance Architecture, Zhejiang University, Hangzhou 310058, China
3. School of Civil Engineering, Shenyang Jianzhu University, Shenyang 110168, China
4. Shanghai Baoye Group Corporation, Shanghai 201900, China
Download: HTML     PDF(3279KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The rib-scale refined finite element (FE) model of the spliced specimen was established by using the FE software DIANA 10.3 to analyze the connection performance under the uniaxial tensile load in order to reveal the micro-working mechanism of the grouted sleeve connection, as well as the cracking development and failure mechanism of the inner grout material. Results show that the refined FE models can reflect the failure modes, the ultimate capacities, the load-displacement relationship, the strain distribution of the spliced bar and the sleeve. The captured cracks are conical cracks in the rebar anchorage zone, which are distributed at an angle between 35°~45° with the axial of the sleeve. The shear failure of the grout keys leads to the failure of rebar interlocking, resulting in the inward transfer of the effective confining surface of the sleeve. The sleeve rib, arranged at the free end of the anchored bar, cannot fulfill its resistant effect on the grout. The stress transfer mechanism with conical-compressive struts is not formed in the pure grouted zone.

Key words： grouted sleeve connection      whole grout sleeve      refined finite element model      finite element analysis      strain distribution      crack propagation
Received: 06 April 2022      Published: 21 April 2023
CLC:  TU 317
Fund:  中央大学基础研究基金资助项目（2020QNA4029）；浙江大学平衡建筑研究中心资助项目
Corresponding Authors: Wei-jian ZHAO     E-mail: 21912040@zju.edu.cn;zhaoweijian@zju.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jia-wen BAO
Qiang GAO
Lin TANG
Wei-jian ZHAO
Cite this article:

Jia-wen BAO,Qiang GAO,Lin TANG,Wei-jian ZHAO. Refined finite element analysis of tensile property of grout sleeve splicing of rebars. Journal of ZheJiang University (Engineering Science), 2023, 57(4): 814-823.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.04.019     OR     https://www.zjujournals.com/eng/Y2023/V57/I4/814


钢筋套筒灌浆连接拉伸性能的精细有限元分析

为了揭示钢筋套筒灌浆连接接头的细观工作机理和内部灌浆料的开裂、破坏过程，利用DIANA 10.3有限元软件建立接头试件的肋尺度精细化有限元模型，研究轴向拉伸荷载下接头的连接性能. 结果表明，利用该模型能够准确地反映接头试件的破坏模式、极限承载力、荷载-位移曲线及钢筋和套筒的轴向应变分布规律；钢筋锚固区灌浆料中的圆锥状裂缝与接头轴向呈35°~45°夹角分布；灌浆键的剪切破坏会导致钢筋的机械咬合作用失效，造成套筒有效约束面内移；布置在钢筋自由端的套筒肋无法充分发挥对灌浆料的止推作用；纯灌浆段无法形成锥面斜压杆应力传递机制.


关键词： 钢筋套筒灌浆连接,  全灌浆套筒,  精细有限元模型,  有限元分析,  应变分布,  裂缝开展
编号 钢筋 灌浆套筒 破坏模式
d/mm la/mm ls/mm N dr/mm ds/mm ts/mm
A1 25 100 380 5 25 43 4 拔出破坏
A2 25 150 380 5 25 43 4 拉断破坏
B1 25 125 430 5 30 43 4 拔出破坏
B2 25 175 430 5 30 43 4 拉断破坏
C1 25 150 480 6 30 43 4 拔出破坏
C2 25 200 480 6 30 43 4 拉断破坏
Tab.1 Geometric parameters of spliced specimens

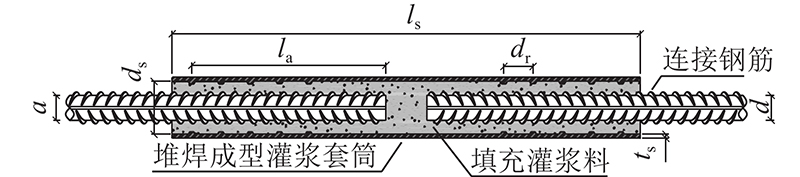

Fig.1 Geometric structure of grouted-sleeve connection
类别 Es/MPa fy/MPa fu/MPa A/%
钢筋-I 2.00×105 435 585 22.3
钢筋-II 2.00×105 435 625 26.4
套筒 2.06×105 390 505 21.0
Tab.2 Material properties of rebar and sleeve
Fig.2 Layout of strain gauge

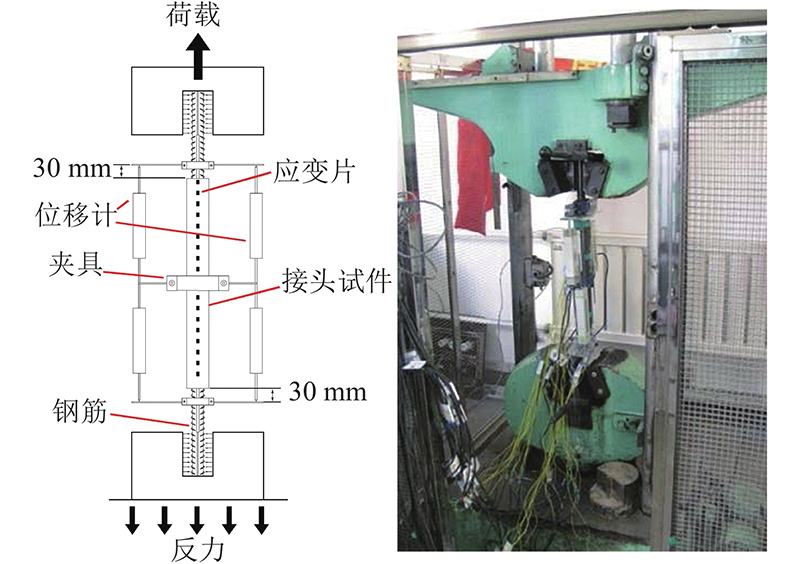

Fig.3 Arrangement of displacement meters and test setup

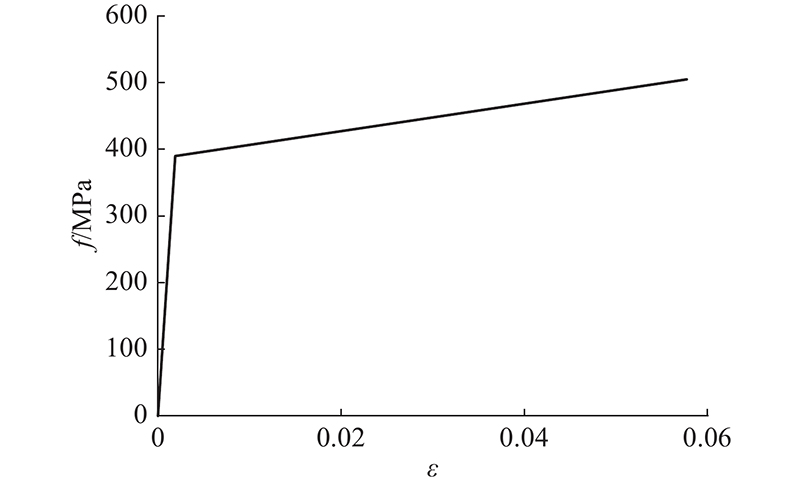

Fig.4 Constitutive curve of sleeve

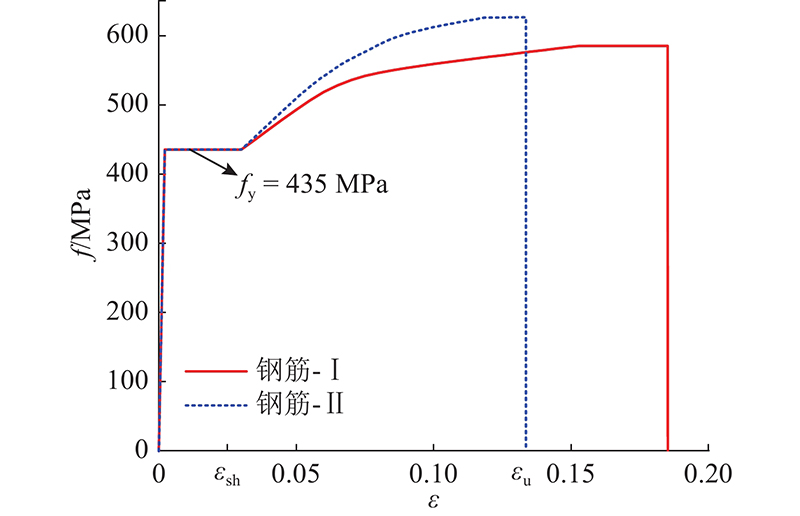

Fig.5 Constitutive curves of rebars
参数 数值
弹性模量Ec 23 GPa
泊松比ν 0.2
抗压强度fcm 80.2 MPa
抗拉强度ftm 4 MPa
断裂能Gf 0.161 N/mm
Tab.3 Constitutive-model parameters of grout material

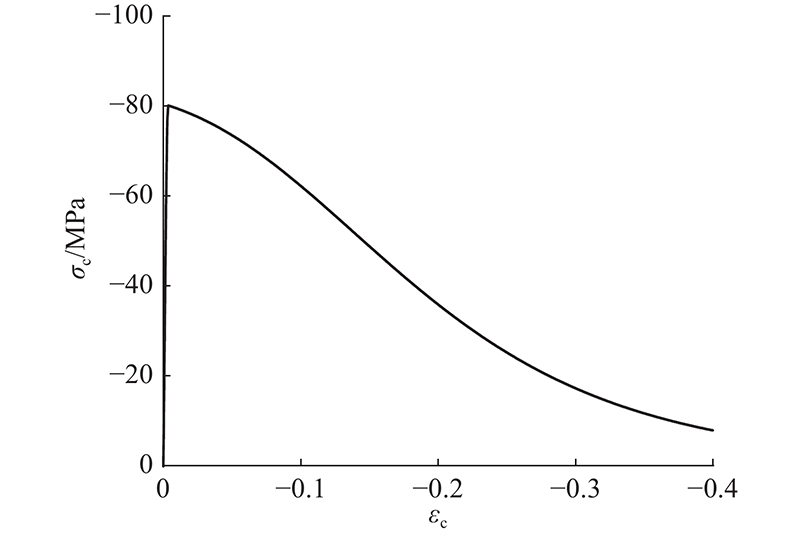

Fig.6 Compressive constitutive curve of grout material

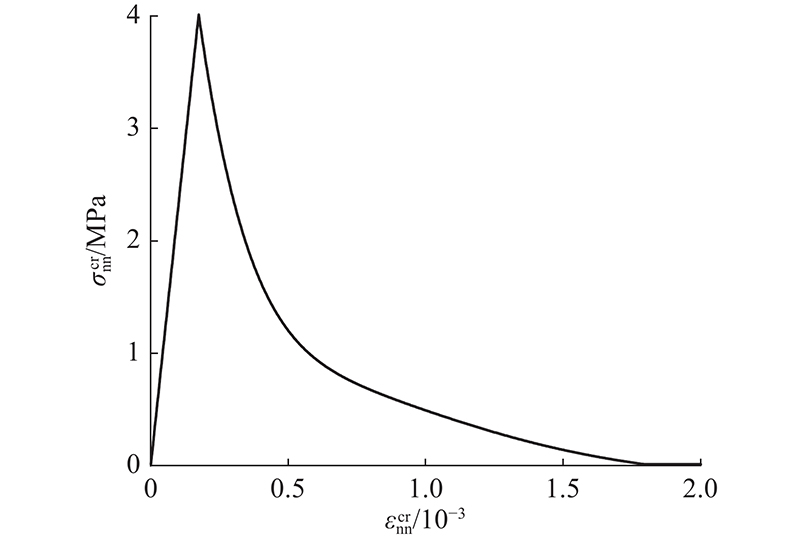

Fig.7 Tensile constitutive curve of grout material

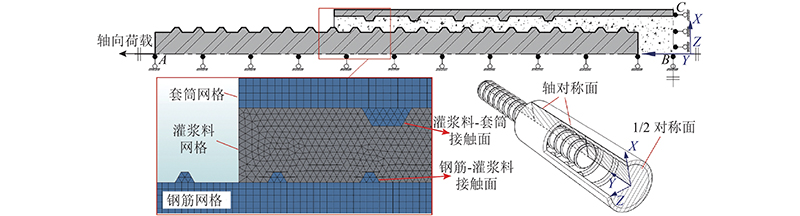

Fig.8 Meshed FE model with boundary condition
试件 $P_{\rm{u}}^{'} $/kN $P_{\rm{u}}^{'} $/Pu δ′/mm δ′/δ 破坏模式
A1 233.16 1.03 7.61 1.23 拔出破坏（√）
A2 241.55 0.99 10.94 0.78 拉断破坏（√）
B1 241.09 0.99 11.98 0.96 拔出破坏（√）
B2 241.30 0.98 10.22 0.74 拉断破坏（√）
C1 241.74 0.98 11.66 1.03 拉断破坏（×）
C2 256.57 0.97 12.46 0.76 拉断破坏（√）
Tab.4 Comparison between results of finite element analysis and experimental results of spliced specimens

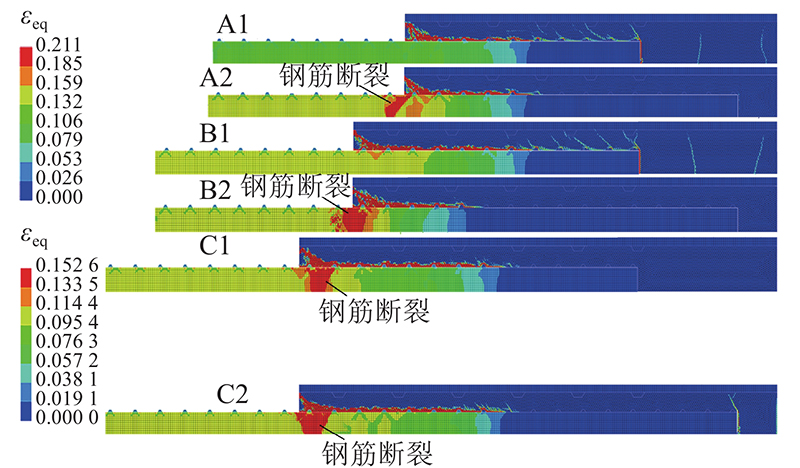

Fig.9 Nephograms of rebar Von Mises strain at failure moment

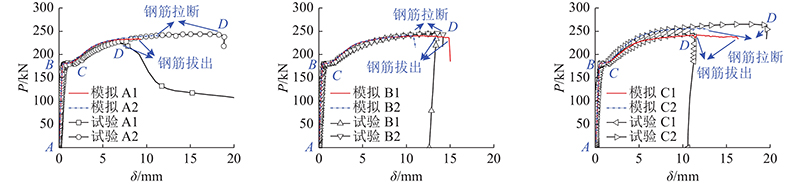

Fig.10 Comparison of load-displacement curves between results of FE analyses and experiments

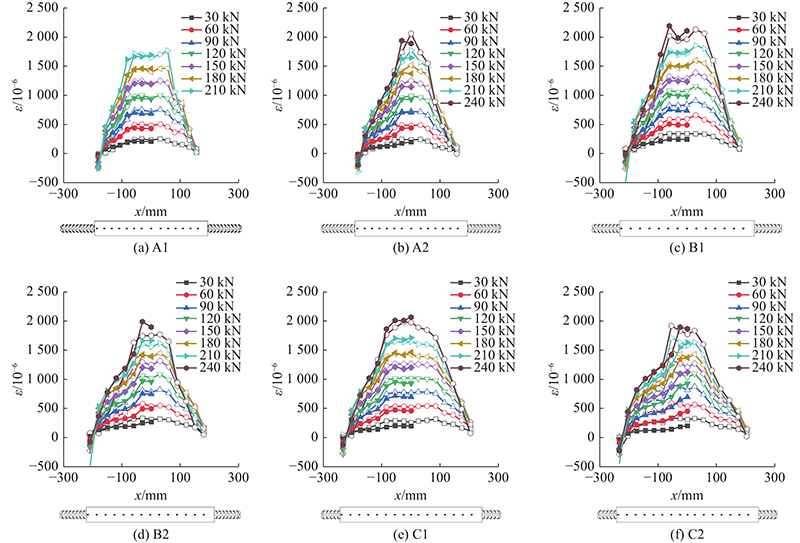

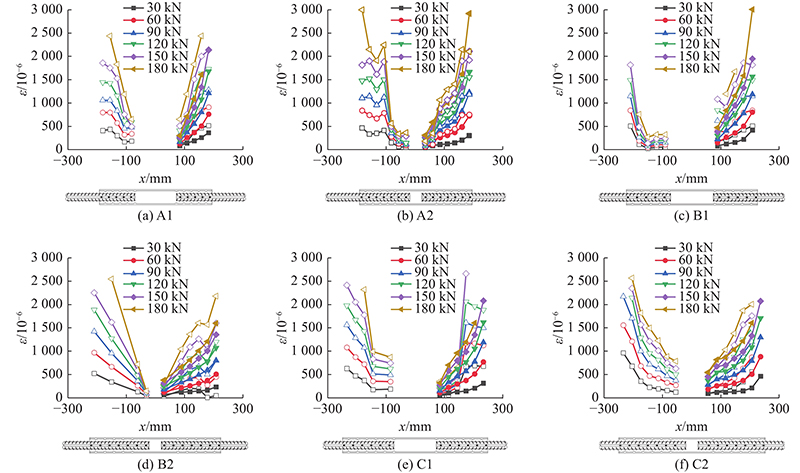

Fig.11 Comparison of rebar axial strain distribution between results of FE analysis and experiments

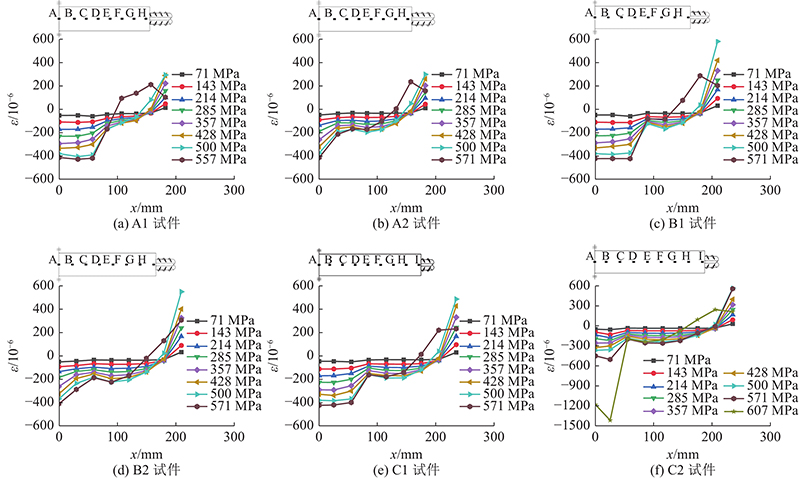

Fig.12 Comparison of sleeve axial strain distribution between results of FE analysis and experiments

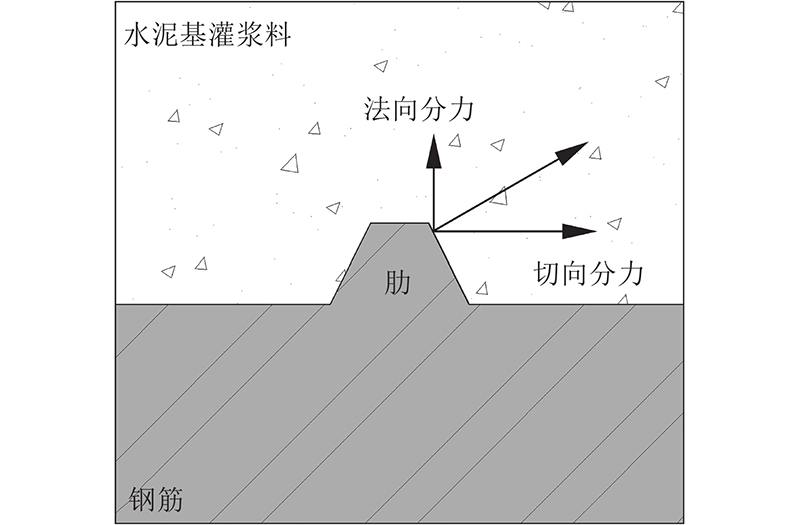

Fig.13 Diagram of rebar mechanical interlocking effect

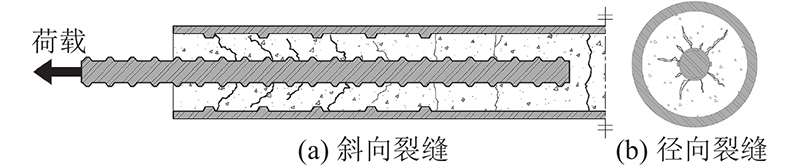

Fig.14 Cracking pattern of grout material
Fig.15 Principal strain nephogram of grout in specimen A1
Fig.16 Principal strain nephogram of grout in specimen A2

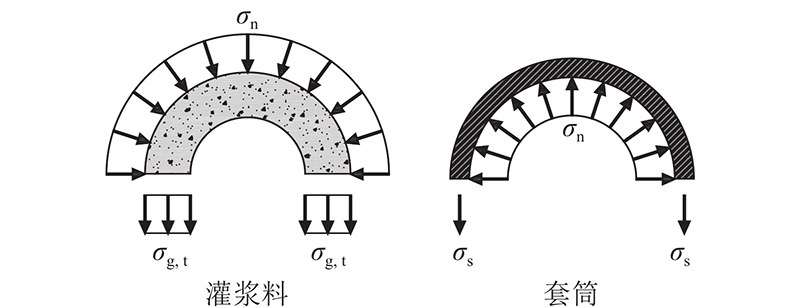

Fig.17 Free body diagram for radial confinement of sleeve
Fig.18 Transverse strain distribution of sleeve
