Journal of ZheJiang University (Engineering Science)  2021, Vol. 55 Issue (10): 1948-1959    DOI: 10.3785/j.issn.1008-973X.2021.10.017

Stiffness modeling and structure optimization of heavy-duty intelligent stacking equipment
Jun-xia JIANG(),Hai-peng LIAO
School of Mechanical Engineering, Zhejiang University, Hangzhou 310027, China
Download: HTML     PDF(2282KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The structure scheme of heavy-duty intelligent stacking equipment was proposed aiming at the goods handling requirements of heavy duty, high precision, high reliability and long distance. The calculation method of the comprehensive stiffness of stacking equipment based on the calculation method of the contact force of V-type roller was proposed through the analysis of working principle and bearing force of stacking equipment. A calculation example of stacking equipment was given. The finite element method was used to solve contact stiffness of V-type guide rail and comprehensive deformation of stacking equipment compared with the theoretical calculation results. The accuracy of the theoretical method was verified. The structure of the gantry column and the three-level cargo fork was optimized by establishing optimization models for maximizing stiffness as optimization objective. The optimal structure of the column and the optimal section parameters of fork were obtained. The actual operation of stacking equipment was conducted, and its comprehensive deflections under static loads were tested. Results show that the optimized stacking equipment can meet the requirements of engineering applications.

Key words： stacking equipment      V-type guide rail      stiffness modeling      finite element analysis (FEA)      structure optimization
Received: 05 December 2020      Published: 27 October 2021
CLC:  TH 246
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jun-xia JIANG
Hai-peng LIAO
Cite this article:

Jun-xia JIANG,Hai-peng LIAO. Stiffness modeling and structure optimization of heavy-duty intelligent stacking equipment. Journal of ZheJiang University (Engineering Science), 2021, 55(10): 1948-1959.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.10.017     OR     https://www.zjujournals.com/eng/Y2021/V55/I10/1948


重载智能堆垛装备刚度建模与结构优化

针对重载、高精度、高可靠性、长距离等货物搬运要求，提出重载智能堆垛装备的结构方案.通过对堆垛装备的工作原理及承载受力分析，提出基于V型滚轮接触力计算法的堆垛装备综合刚度求解方法，给出计算实例. 利用有限元方法求解V型导轨的接触刚度及堆垛装备的综合变形量，与理论计算结果进行对比，验证了理论方法的准确性. 通过建立基于刚度最大为优化目标的优化模型，对龙门立柱与三级货叉进行结构优化，得到立柱优化结构以及货叉最优的截面参数. 对堆垛装备进行实机运行及静态承载下的综合挠度检测. 结果表明，优化后的堆垛装备能够满足工程应用的要求.


关键词： 堆垛装备,  V型导轨,  刚度建模,  有限元分析（FEA）,  结构优化

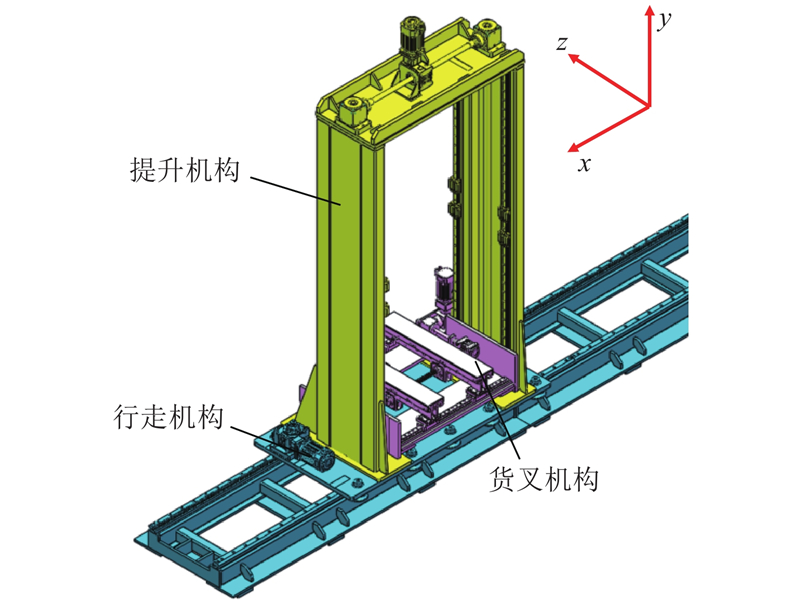

Fig.1 Overall structure of stacking equipment

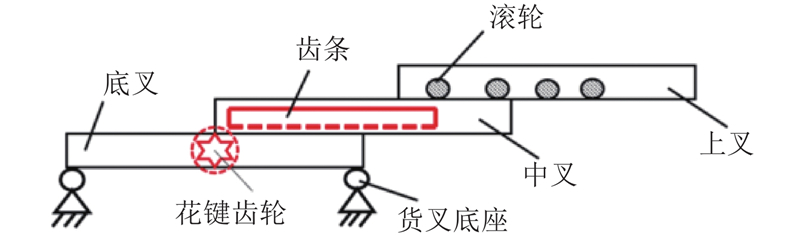

Fig.2 Stretching principle diagram of three-stage fork

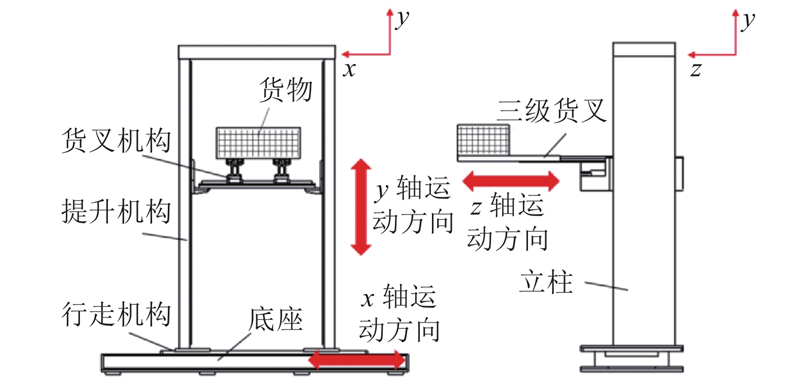

Fig.3 Working principle of stacking equipment

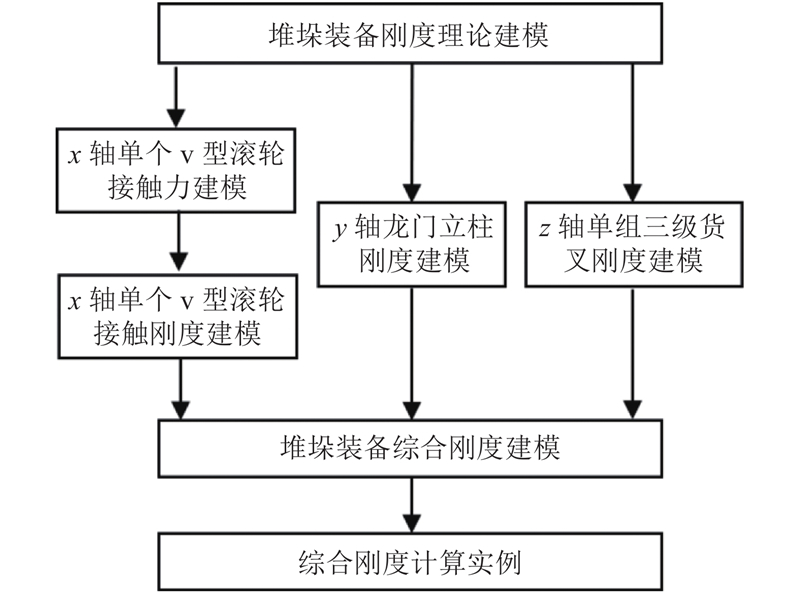

Fig.4 Flowchart of stiffness modeling

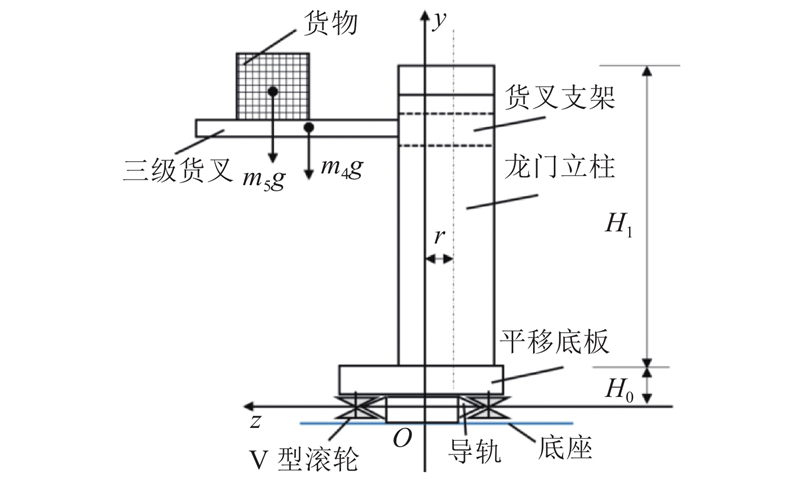

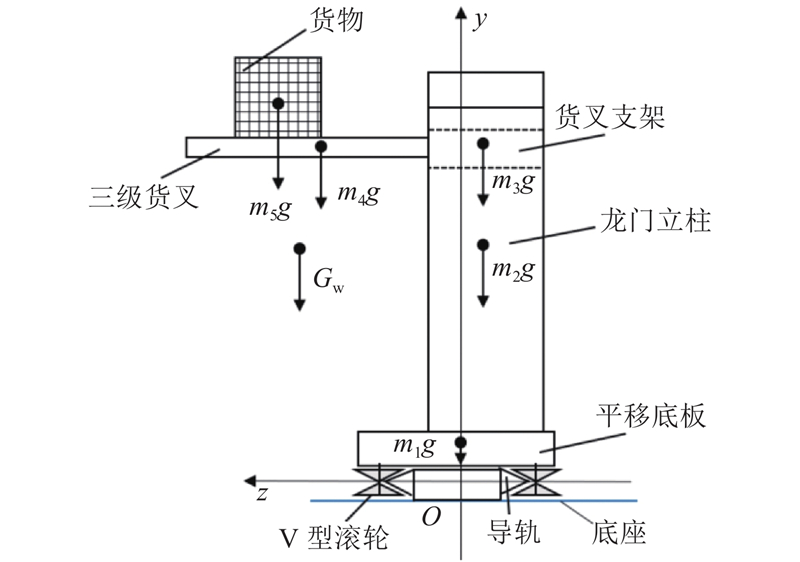

Fig.5 Mechanical model of stacking equipment

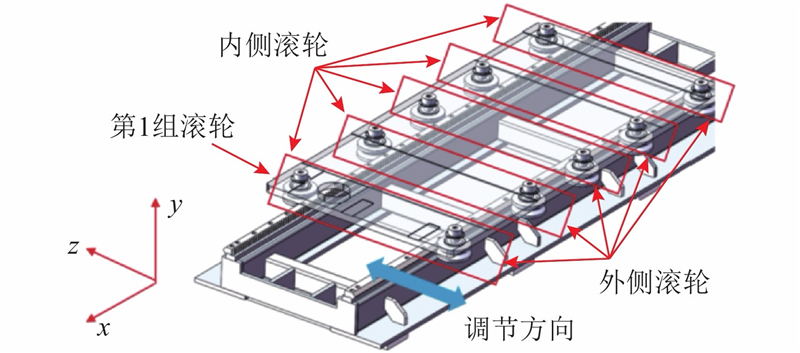

Fig.6 Installation diagram of V-type roller groups

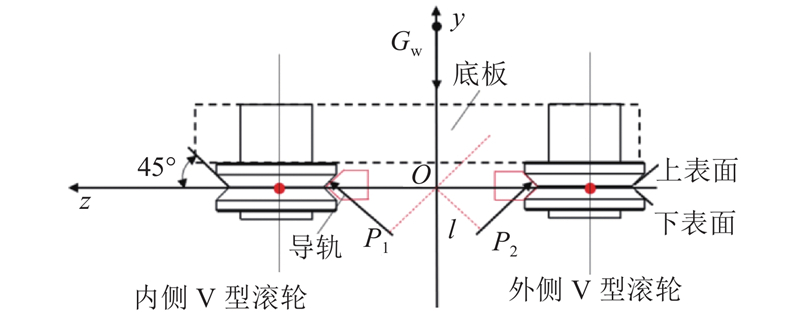

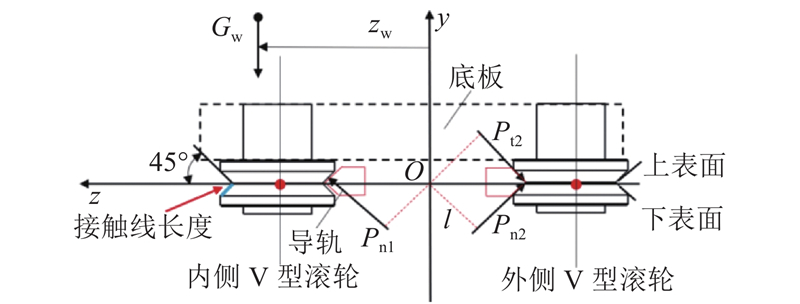

Fig.7 Stress of V-type rollers in steady state
Fig.8 Stress of V-type rollers in overturning state
Fig.9 Stress analysis of gantry column

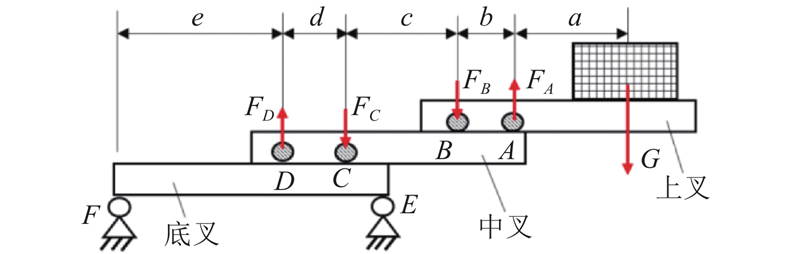

Fig.10 Stress analysis of three-stage cargo fork

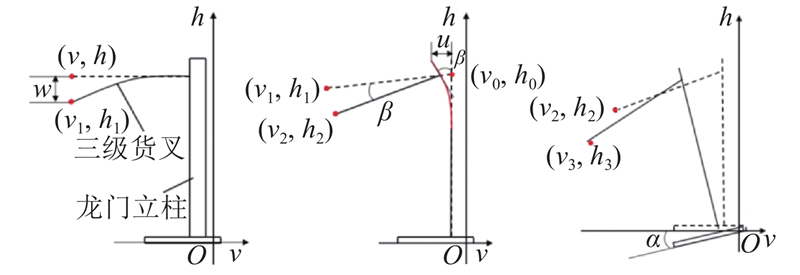

Fig.11 Calculation of comprehensive deflection
组件 材料 ρ /（g·cm?3） E /GPa ν
货叉、底座 不锈钢 7.75 193 0.31
立柱、底板 Q345 7.85 206 0.28
滚轮、导轨 轴承钢 7.81 206 0.30
Tab.1 Material properties of stacking equipment
部件 i mi /kg zi /mm
底板 1 630 0
龙门立柱 2 1040 ?130
货叉支架 3 350 ?200
货叉 4 180 850
货物 5 800 1700
Tab.2 Component parameters of stacking equipment
参数 数值 参数 数值
I1 9.45×105 mm4 b 400
I2 1.71×106 mm4 c 200
I3 5.21×105 mm4 d 400
a 600 e 600
Tab.3 Structural parameters of three-stage cargo fork
V型导轨 龙门立柱 三级货叉
α/rad δq/mm β/rad u/mm θ/rad w/mm
5.25×10?6 0.005 2.6×10?4 0.416 1.5×10?2 12.818
Tab.4 Calculation results of deflection and angle

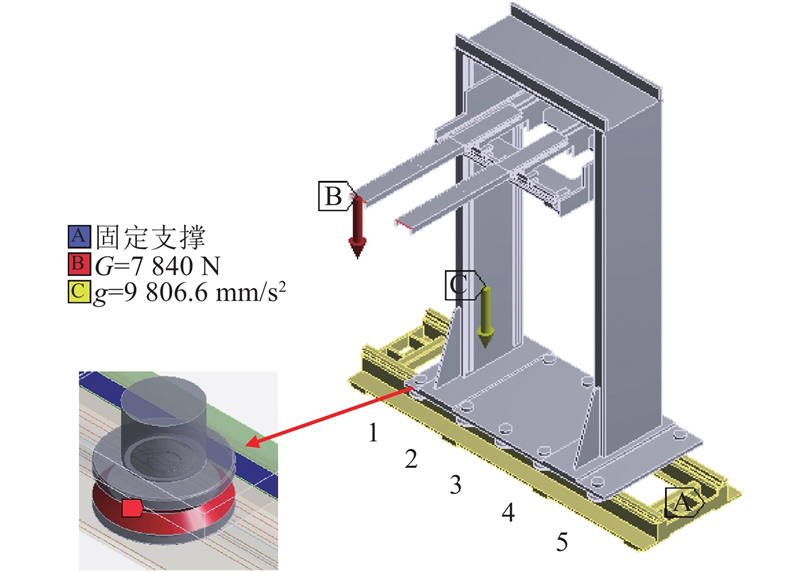

Fig.12 Calculation model of V-type rollers
滚轮编号 Fx /N Fy /N Fz /N F /N
1 2 148 5 431 1 397 6 005
2 1 253 4 385 ?850 4 639
3 ?2 752 3 579 1 509 4 760
4 2 038 6 143 967 6 544
5 1 351 6 854 3 530 7 827
Tab.5 Calculation results of inner rollers

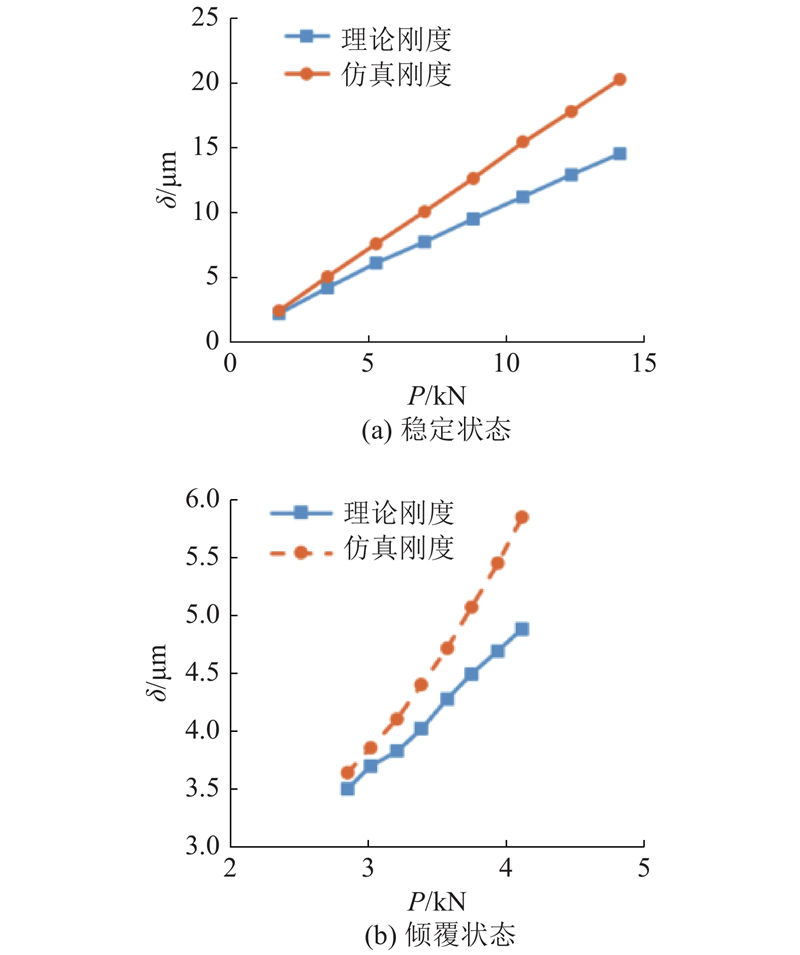

Fig.13 Rigidness curves under stable and overturning state

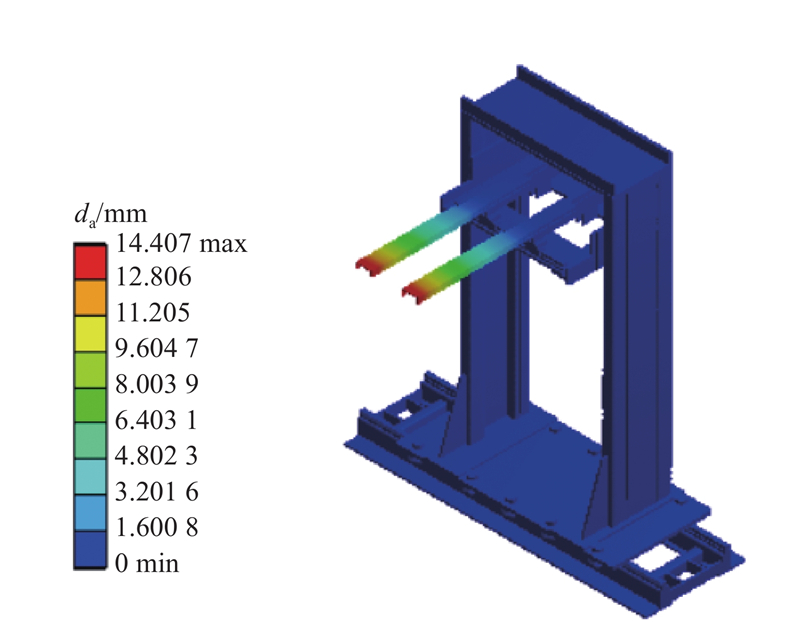

Fig.14 Calculation result of total deformation of equipment
方向 dT /mm dF /mm Ed /%
y 13.297 13.924 4.7
z 0.426 0.463 8.7
Tab.6 Comparison of comprehensive stiffness of stacking equipment under 800 kg cargo weight

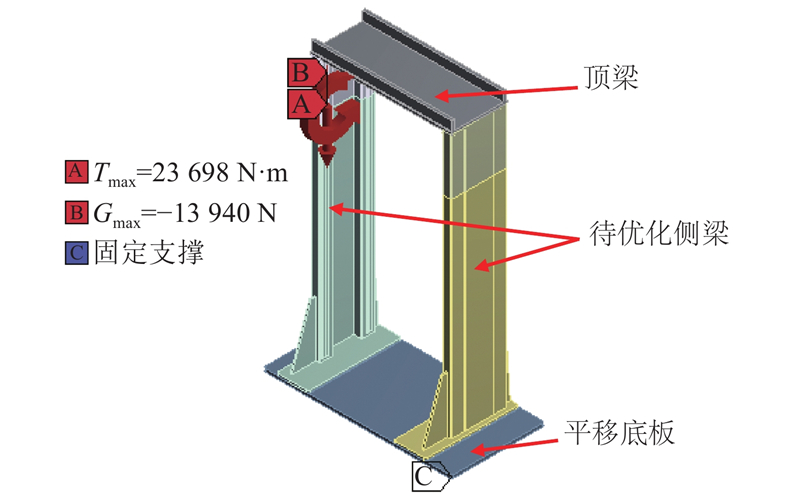

Fig.15 Preliminary structure of gantry columns

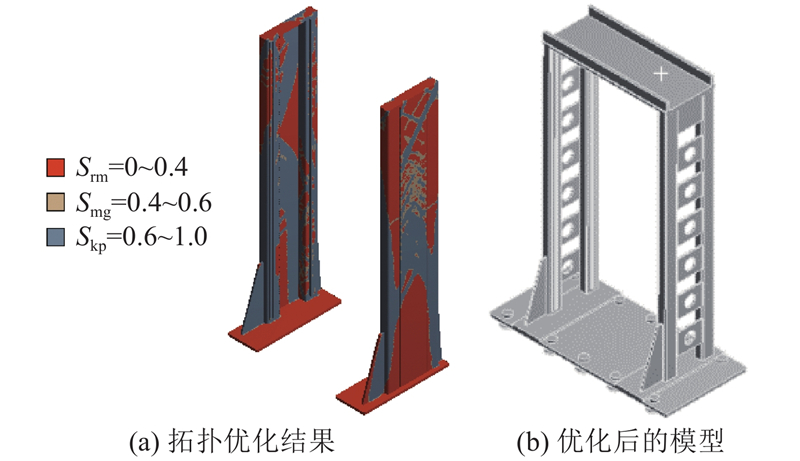

Fig.16 Topology optimization result and optimized model
状态 dco /mm σco /MPa mco /kg
优化前 0.765 104.682 856.4
优化后 0.794 117.406 749.4
Tab.7 Comparisons of calculation results before and after optimization of column

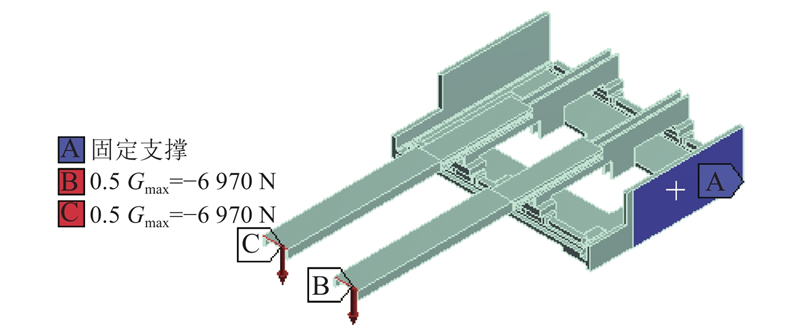

Fig.17 Parameters optimization of cargo fork

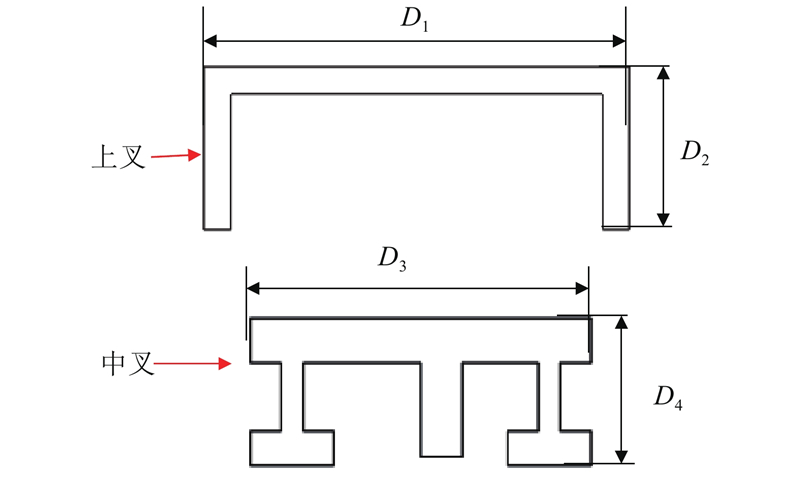

Fig.18 Preliminary structure of cargo fork
变量 名称 当前取值 取值下限 取值上限
D1 上叉宽 160 150 170
D2 上叉高 55 50 60
D3 中叉宽 140 130 150
D4 中叉高 55 50 60
Tab.8 Parameter setting of design variables mm
Fig.19 Sensitivity analysis of cargo fork parameters
方案序号 D1/mm D2/mm D3/mm D4/mm da/mm σre/MPa mf1/kg mf2/kg
1 160 55 140 55 20.18 196.59 19.63 34.77
2 150.26 54.09 130.55 58.44 18.88 178.45 18.72 33.96
3 151.24 56.97 131.27 59.85 17.21 182.97 19.25 34.25
4 151.49 57.21 130.37 52.82 18.27 179.27 19.30 33.14
5 151 57 131 60 17.43 189.26 19.21 34.51
Tab.9 Comparison of calculation results of reference points
步骤 dy /mm dz /mm da /mm
优化前 24.859 0.965 24.934
优化后 18.860 0.841 18.968
Tab.10 Comparisons of comprehensive stiffness before and after optimization of stacking equipment

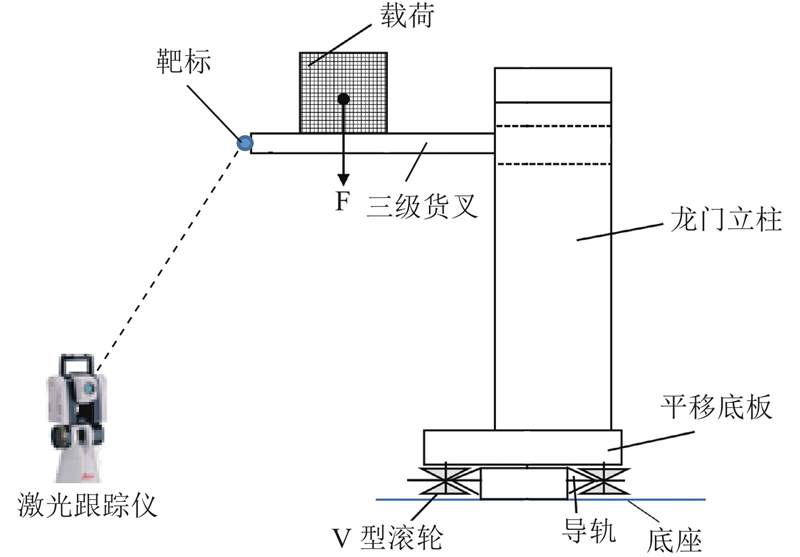

Fig.20 Testing principles of stacking equipment
Fig.21 Leica laser tracker and target
m5 /kg dvt /mm dvf /mm dte /mm
100 1.351 1.404 1.712
300 4.053 4.211 4.441
500 6.754 7.020 7.227
800 10.805 11.231 11.335
Tab.11 Comparisons of vertical deflections of cargo fork

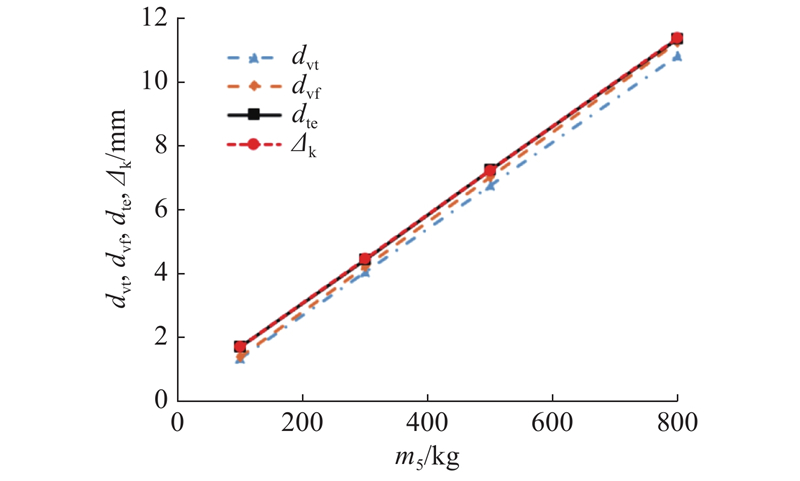

Fig.22 Comparison of vertical comprehensive deflections
[1]   蔡安江, 应嘉奇, 王坚, 等 分散式立体仓库堆垛机调度模型[J]. 计算机集成制造系统, 2016, 22 (3): 793- 799
CAI An-jiang, YING Jia-qi, WANG Jian, et al Scheduling model of crane in distributed automated warehouse[J]. Computer Integrated Manufacturing Systems, 2016, 22 (3): 793- 799
[2]   柳赛男, 柯映林, 李江雄, 等 基于调度策略的自动化仓库系统优化问题研究[J]. 计算机集成制造系统, 2006, 12 (9): 1438- 1443
LIU Sai-nan, KE Ying-lin, LI Jiang-xiong, et al Optimization for automated warehouse based on scheduling policy[J]. Computer Integrated Manufacturing Systems, 2006, 12 (9): 1438- 1443
doi: 10.3969/j.issn.1006-5911.2006.09.015
[3]   章真雄. 40m高单立柱巷道堆垛机结构设计与分析[D]. 苏州: 苏州大学, 2014: 2-3.
ZHANG Zhen-xiong. Structural design and analysis of 40m high single column roadway stacker [D]. Suzhou: Suzhou University, 2014: 2-3.
[4]   李杲. 有轨巷道式堆垛机机械结构的研究[D]. 兰州: 兰州交通大学, 2016: 10-20.
LI Gao. Research on the mechanical structure of railroad laneway-stacker [D]. Lanzhou: Lanzhou Jiaotong University, 2016: 10-20.
[5]   宁波, 吕志军, 娄文斌 基于ANSYS Workbench的堆垛机结构分析与优化[J]. 机械设计与制造, 2012, 33 (6): 77- 79
NING Bo, LV Zhi-jun, LOU Wen-bin Analysis and optimization of stacker structure based on ANSYS Workbench[J]. Machinery Design and Manufacture, 2012, 33 (6): 77- 79
doi: 10.3969/j.issn.1001-3997.2012.06.029
[6]   马维金, 熊诗波, 熊晓燕 基于模态理论的振动结构声辐射信号特征提取方法及其应用[J]. 机械工程学报, 2005, 41 (5): 15- 20
MA Wei-jin, XIONG Shi-bo, XIONG Xiao-yan Method for sound signal characteristic extraction based on modal analysis and its application[J]. Journal of Mechanical Engineering, 2005, 41 (5): 15- 20
doi: 10.3321/j.issn:0577-6686.2005.05.003
[7]   TAKAHASHI M, KINOSHITA S, KATO H, et al Positioning control of a stacker crane using a robust simple adaptive control method[J]. IFAC Proceedings Volumes, 2004, 37 (12): 161- 166
doi: 10.1016/S1474-6670(17)31461-1
[8]   HAJDU S, GASPAR P Reducing the mast vibration of single-mast stacker cranes by gain-scheduled control[J]. International Journal of Applied Mathematics and Computer Science, 2016, 26 (4): 791- 802
doi: 10.1515/amcs-2016-0056
[9]   欧阳永强, 张新艳 考虑堆垛机加减速的节能自动立库设计[J]. 浙江大学学报: 工学版, 2019, 53 (9): 1681- 1688
OUYANG Yong-qiang, ZHANG Xin-yan Design of energy-saving automated storage and retrieval system considering acceleration and deceleration of storage and retrieval machine[J]. Journal of Zhejiang University: Engineering Science, 2019, 53 (9): 1681- 1688
[10]   ROUWENHORST B, REUTER B, STOCKRAHM V, et al Warehouse design and control: framework and literature review[J]. Europe Journal of Operation Research, 2000, 122 (3): 515- 533
[11]   LIU D B, MOU S D, LU M X, et al Travel time model of a new compact storage system[J]. International Journal of Control and Automation, 2014, 7 (7): 447- 460
doi: 10.14257/ijca.2014.7.7.37
[12]   侯瑞, 吕志军, 杨光辉, 等 立体仓库堆垛机取货装置研究[J]. 物流技术, 2016, 35 (11): 50- 54
HOU Rui, LV Zhi-jun, YANG Guang-hui, et al Study on retrieving mechanism of stackers in AS/RS[J]. Logistics Technology, 2016, 35 (11): 50- 54
doi: 10.3969/j.issn.1005-152X.2016.11.012
[13]   田红亮, 郑金华, 陈甜敏, 等 直线运动滚动导轨副的法向接触力学模型[J]. 西安交通大学学报, 2016, 50 (5): 1- 11
TIAN Hong-liang, ZHENG Jin-hua, CHEN Tian-min, et al Normal contact mechanics model of linear motion rolling guideway pair[J]. Journal of Xi’an Jiaotong University, 2016, 50 (5): 1- 11
doi: 10.7652/xjtuxb201605001
[14]   冯健文, 赵美玲, 陈伟就, 等 滚柱直线导轨副的刚度计算及验证[J]. 机电工程技术, 2013, 42 (8): 159- 162
FENG Jian-wen, ZHAO Mei-ling, CHEN Wei-jiu, et al The calculation and verification for the rigidity of the roller linear guide[J]. Mechanical and Electrical Engineering Technology, 2013, 42 (8): 159- 162
doi: 10.3969/j.issn.1009-9492.2013.08.042
[15]   贾维新, 郝志勇, 徐红梅 基于结构优化方法的单缸机机体轻量化设计[J]. 浙江大学学报: 工学版, 2008, 42 (2): 224- 228
JIA Wei-xin, HAO Zhi-yong, XU Hong-mei Light-weight design of single cylinder engine block based on structure optimization[J]. Journal of Zhejiang University: Engineering Science, 2008, 42 (2): 224- 228
[16]   丁渊明, 王宣银 串联机械臂结构优化方法[J]. 浙江大学学报: 工学版, 2010, 44 (12): 2360- 2364
DING Yuan-ming, WANG Xuan-yin Optimization method of serial manipulator structure[J]. Journal of Zhejiang University: Engineering Science, 2010, 44 (12): 2360- 2364
[17]   董琛. 卧式双机联合钻铆系统综合刚度场建模和实验[D]. 杭州: 浙江大学, 2019: 63-65.
DONG Chen. Modeling and experiment of the general end stiffness of automatic horizontal dual-machine cooperative drilling and riveting system [D]. Hangzhou: Zhejiang University, 2019: 63-65.
