Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (10): 2027-2037    DOI: 10.3785/j.issn.1008-973X.2020.10.021

Performance of steel-ultrathin UHPC composite bridge deck based on ultra-short headed studs
Li-guo WANG1,2(),Xu-dong SHAO1,2,*(),Jun-hui CAO1,2,Yu-bao CHEN1,2,Guang HE1,2,Yang WANG1,2
1. School of Civil Engineering, Hunan University, Changsha 410082, China
2. Hunan Provincial Laboratory for Wind Engineering and Bridge Engineering, Hunan University, Changsha 410082, China
Download: HTML     PDF(1877KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A new steel-ultrathin UHPC lightweight composite deck (named as new LWCD for short) was proposed by using ultra-short headed studs in order to meet the demanding requirements in retrofitting and strengthening steel deck systems for long-span flexible bridges. The experimental tests were performed for the new LWCD via steel-ultrathin UHPC composite slab specimens, and the influence of key design parameters on the anti-cracking behavior of the specimens was analyzed. The test results show that the cracks widened approximately linearly with the increasing load when the maximum crack width was less than 0.15 mm. The maximum crack width in UHPC rapidly increased when the steel reinforcement yielded. The nominal cracking stress of UHPC was significantly affected by the reinforcement ratio and rebar diameter. Different methods of predicting the crack width in UHPC were compared based on the test results, and the proposed formula for calculating the crack width of steel-ultrathin UHPC composite slab was determined. Global and local finite element (FE) analyses were performed based on a long-span suspension bridge to validate the feasibility of the proposed new LWCD. The analysis results show that the self-weight of the new LWCD is comparable to that of the original 60 mm asphalt overlay. The internal forces in main cables and suspenders are increased less than 3.0%. The stress ranges in typical fatigue-prone details of the orthotropic steel deck (OSD) are reduced by 10.1%-52.0%, and the stress ranges in the OSD are all below the corresponding fatigue strengths (under 2 million cycles). The maximum tensile stress in UHPC caused by design loads was 8.4 MPa, much less than the nominal cracking strength obtained in the experimental test.



Key wordsbridge engineering      ultra-thin system      finite element analysis      light-weight composite bridge deck      fatigue
Received: 30 December 2019      Published: 28 October 2020
CLC:  U 443
Corresponding Authors: Xu-dong SHAO     E-mail: wlg120524@163.com;shaoxd@vip.163.com
Cite this article:

Li-guo WANG,Xu-dong SHAO,Jun-hui CAO,Yu-bao CHEN,Guang HE,Yang WANG. Performance of steel-ultrathin UHPC composite bridge deck based on ultra-short headed studs. Journal of ZheJiang University (Engineering Science), 2020, 54(10): 2027-2037.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.10.021     OR     http://www.zjujournals.com/eng/Y2020/V54/I10/2027


基于超短栓钉的钢-超薄UHPC组合桥面性能

为了满足对自重敏感的大跨桥梁钢桥面的翻修与加固需求,提出采用超短栓钉作为连接件的钢-超薄UHPC轻型组合桥面结构(简称“新超薄体系”). 通过钢-超薄UHPC组合板负弯矩试验,研究关键设计参数对超薄UHPC层抗裂性能的影响. 试验结果表明:当UHPC最大裂缝宽度小于0.15 mm时,裂缝宽度的增长近似呈线性,在钢筋屈服以后,裂缝宽度迅速增大;配筋率和钢筋直径对名义开裂应力的影响较大. 基于试验结果,分析已有的裂缝宽度计算公式,确定钢-超薄UHPC组合板裂缝宽度的建议计算公式. 以某特大跨径悬索桥为工程背景,进行整体和局部有限元分析,论证了方案应用于实际工程的可行性. 计算结果表明:钢-超薄UHPC组合桥面的自重与常规60 mm厚的钢桥面铺装基本持平,主缆和吊索内力变化小于3.0%;钢桥面(OSD)各典型疲劳细节的应力幅值降低了10.1%~52.0%,且均小于200万次疲劳强度;UHPC层中最大拉应力为8.4 MPa,远小于试验得到的名义开裂应力.


关键词: 桥梁工程,  超薄体系,  有限元分析,  轻型组合桥面,  疲劳
构件编号 ${h_{\rm{s}}}$/mm $\phi $/mm $d$/mm $\rho $/%
S12-33-6 12 6 33 2.4
S12-33-8 12 8 33 4.3
S12-50-8 12 8 50 2.9
S12-50-10 12 10 50 4.5
S20-33-6 20 6 33 2.4
S20-33-8 20 8 33 4.3
S20-50-8 20 8 50 2.9
Tab.1 Design parameters of steel-ultrathin UHPC composite slabs

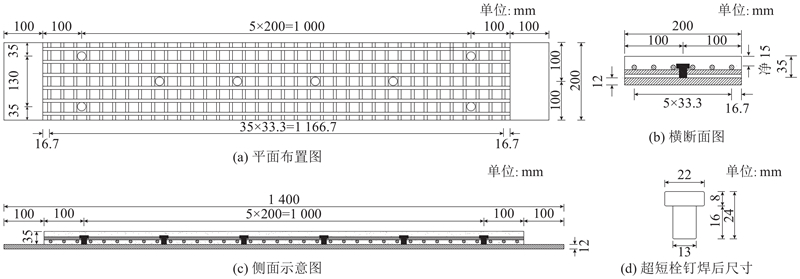

Fig.1 Structural diagram of S12-33-8
Fig.2 Diagram of steel strain gauge arrangement
Fig.3 Loading diagram for bending test of composite slabs
Fig.4 Load-deflection curve of composite slabs
构件编号 ${F_{\rm{e}}}$/kN ${F_{{\rm{cr}}}}$/kN ${F_{\rm{u}}}$/kN
S12-33-6 7.3 16.1 37.7
S12-33-8 7.8 19.4 47.9
S12-50-8 7.6 16.1 39.0
S12-50-10 8.3 17.2 47.2
S20-33-6 8.0 23.5 88.0
S20-33-8 9.4 29.1 97.8
S20-50-8 8.7 23.4 88.8
Tab.2 Bending test results of composite slabs

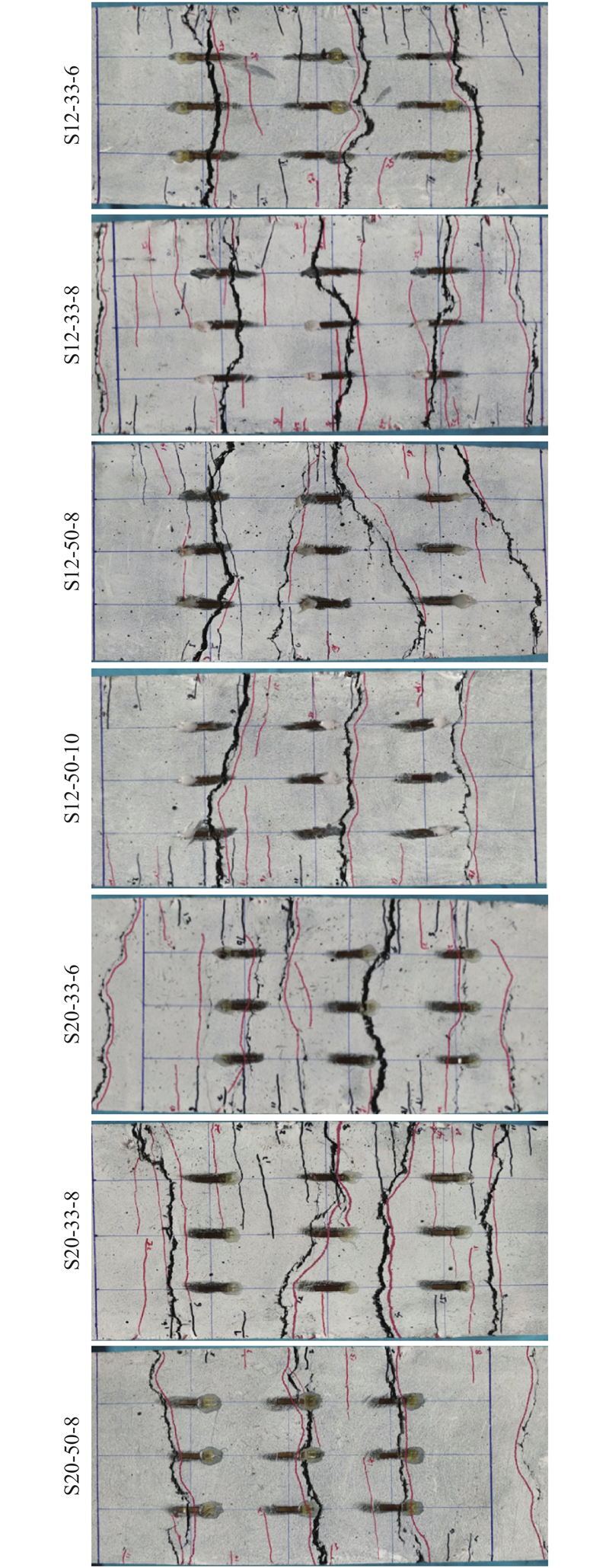

Fig.5 Final cracks distribution of composite slabs

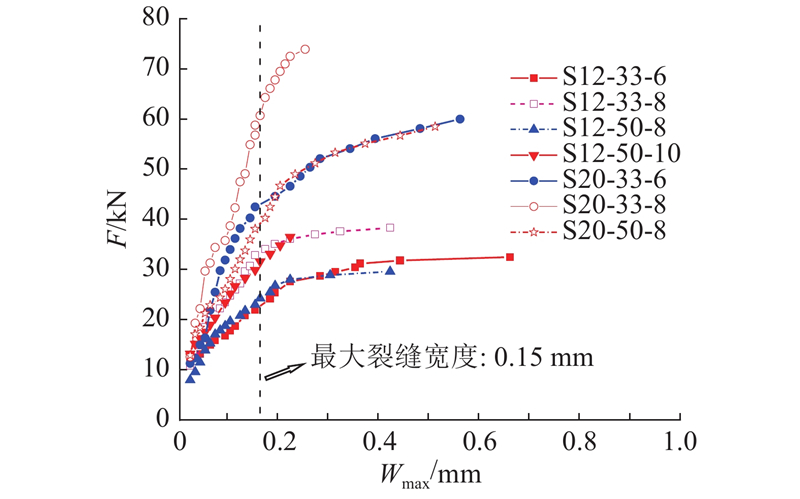

Fig.6 Load-maximum crack width curve of composite slabs

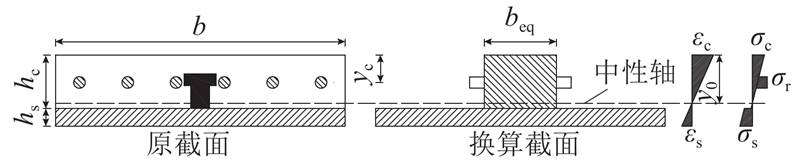

Fig.7 Conversion diagram of cross section
试件编号 ${F_{{\rm{cr}}}}$/kN ${\sigma _{\rm{c}}}$/MPa
S12-33-6 16.1 25.3
S12-33-8 19.4 30.5
S12-50-8 16.1 25.9
S12-50-10 17.2 27.2
S20-33-6 23.5 27.5
S20-33-8 29.1 33.0
S20-50-8 23.4 27.3
Tab.3 Calculation results of nominal cracking stress
Fig.8 Steel stress of partial components
Fig.9

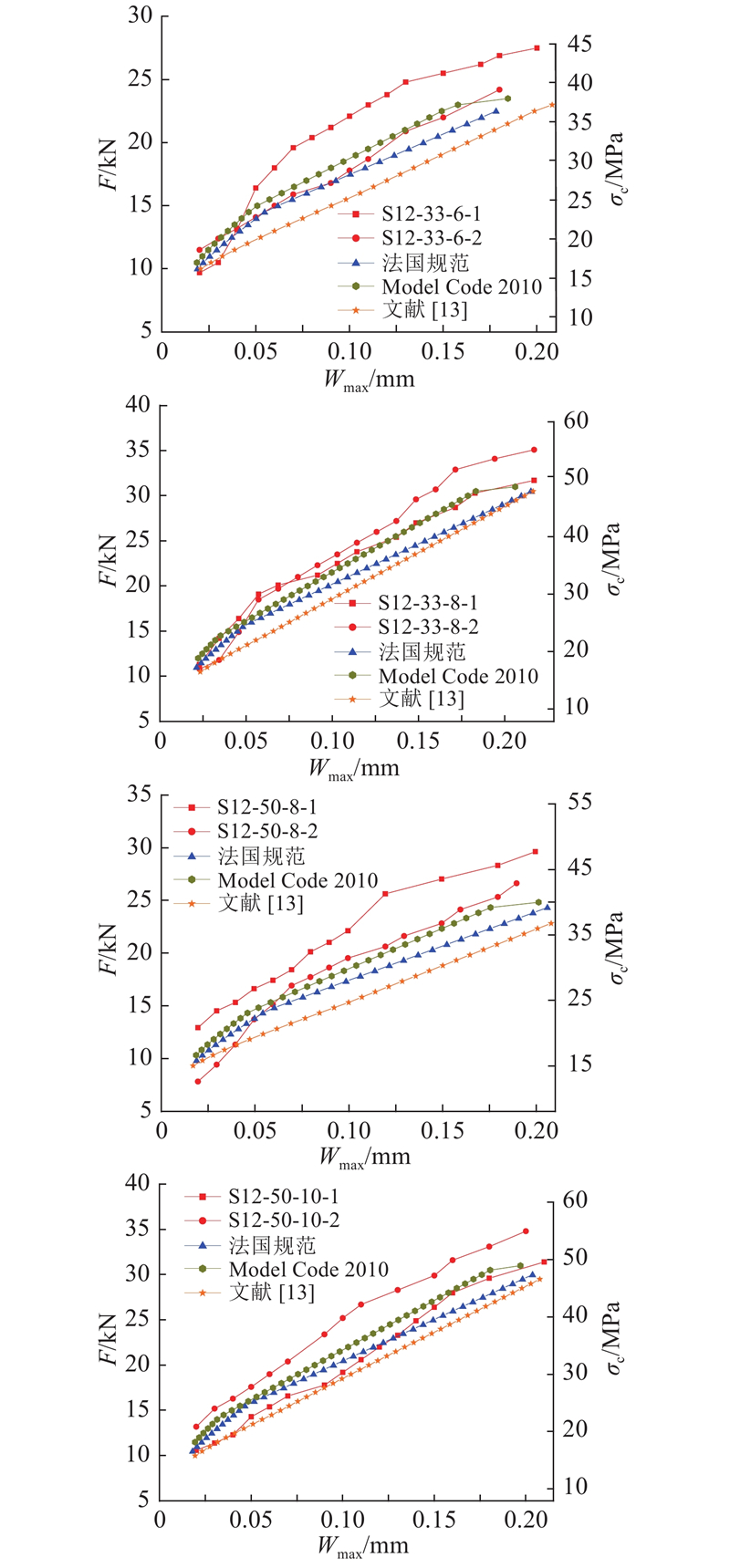

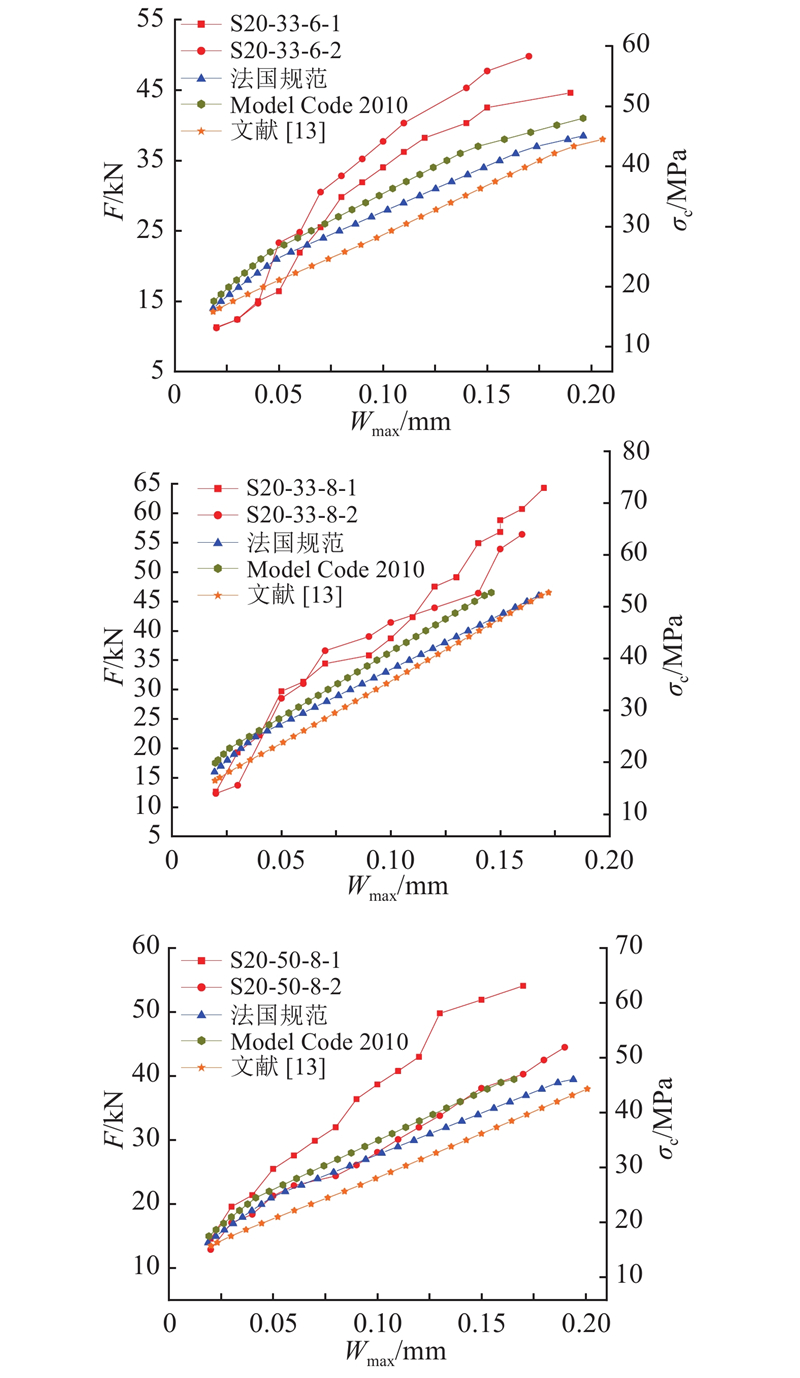

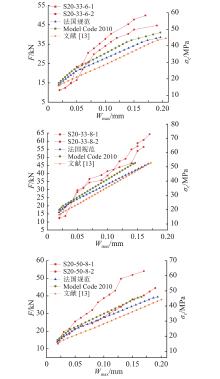

Fig.9 Contrast diagram of measured and calculated crack width
铺装方案 铺装结构 $\gamma_{\rm{c} }$/(kN·m?3
方案1(原铺装) 60 mm 环氧沥青铺装层 环氧沥青:24
方案2-1 35 mm UHPC+15 mm TPO TPO:20
方案2-2 35 mm UHPC+30 mm SMA SMA:24
方案3 45 mm UHPC+30 mm SMA UHPC:27
Tab.4 Pavement scheme of global calculation

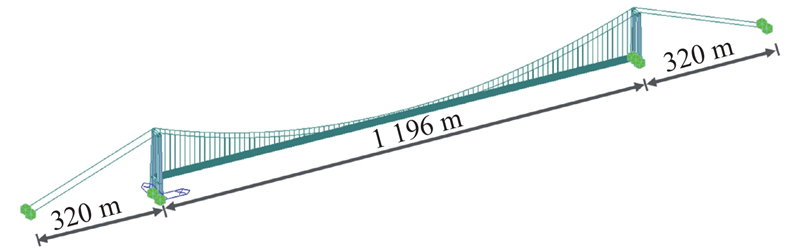

Fig.10 Midas global finite element model
铺装方案 ${F_{\rm{C}}}$/kN $P_{F_{\rm{C}} }$/% ${F_{\rm{S}}}$/kN $P_{F_{\rm{S}} }$/%
方案1 187696.6 ? 1030.7 ?
方案2-1 184338.7 ?1.8 1003.5 ?2.6
方案2-2 191561.9 2.1 1062.1 3.0
方案3 196179.7 4.5 1099.7 6.7
Tab.5 Midas global calculation results

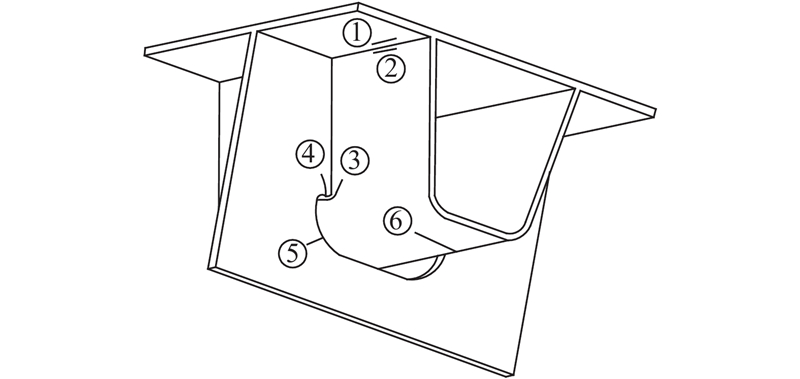

Fig.11 Typical fatigue damage of steel deck
细节编号 $\Delta6_{\rm{c} }$1)/MPa 评定方法
注:1)表中的疲劳强度已考虑疲劳抗力分项系数.
细节① 60.9 名义应力法
细节② 60.9 名义应力法
细节③ 69.6 名义应力法
细节④ 69.6 名义应力法
细节⑤ 60.9 名义应力法
细节⑥ 95.7 名义应力法
Tab.6 Fatigue strength of steel deck joint
Fig.12 Segmental model of steel box girder

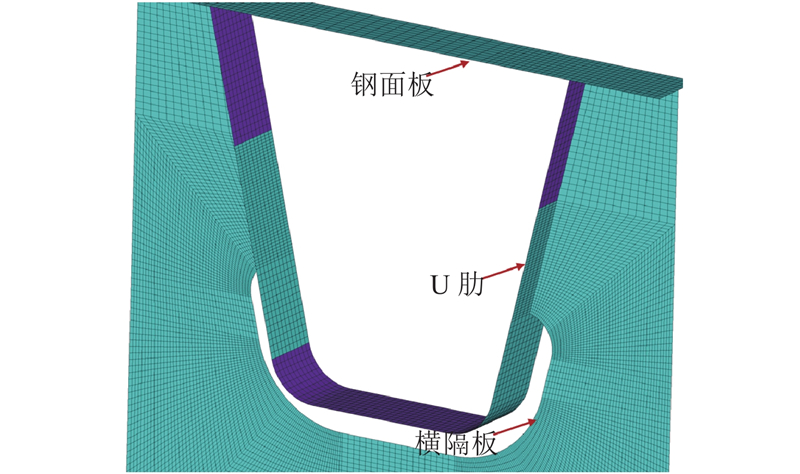

Fig.13 Key location mesh refinement in finite element model

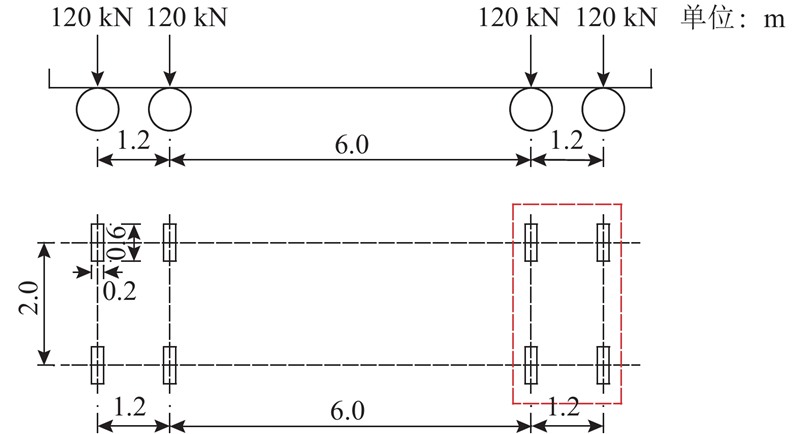

Fig.14 Fatigue load——standard fatigue model Ⅲ
Fig.15 Static load——standard static model

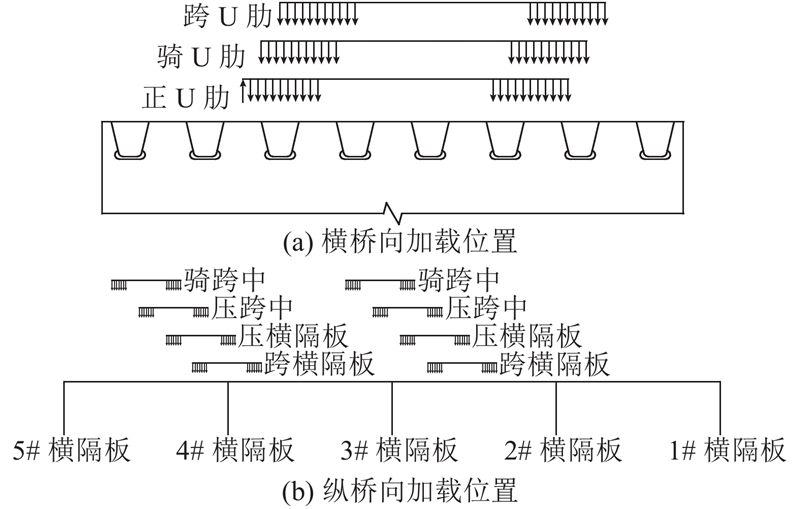

Fig.16 Loading mode of local calculation
细节编号 $\sigma_{{\rm{max}}}^{\rm{s}}$/MPa $\Delta\sigma_{\rm{c} }$/
MPa
$P_{\rm{\sigma}}$/
%
纯钢梁 超薄体系
细节① 65.2 31.3 60.9 52.0
细节② 62.0 40.8 60.9 34.2
细节③ 83.3 64.7 69.6 22.3
细节④ 49.0 38.81 69.6 20.8
细节⑤ 43.7 39.3 60.9 10.1
细节⑥ 43.4 36.7 95.7 15.4
Tab.7 Stress amplitude of fatigue details
应力方向 ${\sigma _{\rm{g}}}$/MPa ${\sigma _{\rm{L}}}$/MPa $\sigma_{{\rm{max}}} $/MPa
顺桥向 2.8 6.6 9.4
横桥向 ? 8.4 8.4
Tab.8 Calculation results of UHPC stress
