Identification of switch rail brakeage in high speed railway turnout based on elastic wave propagation
Ping WANG1,2,Le LIU1,2,Chen-yang HU1,2,Zheng GONG1,2,Jing-mang XU1,2,*(),Zhi-xin WANG3
1. Key Laboratory of High-speed Railway Engineering, Ministry of Education, Southwest Jiaotong University, Chengdu 610031, China
2. College of Civil Engineering, Southwest Jiaotong University, Chengdu 610031, China
3. CRSC Research and Design Institute Group Limited Company, Beijing 100073, China
Download: HTML     PDF(1314KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The identification of high-speed switch rail break based on elastic wave propagation was analyzed aiming at the monitoring problem of high-speed switch rail break. The explicit finite element method was used to establish an analytical model for the elastic wave propagation characteristics of high-speed turnouts, in which the constraints such as switch closure and the support of the sliding bed platform were considered. The model was verified by experiment. The effects of different excitation frequency, fracture position of switch rail and the close-contact state on the elastic wave propagation characteristics of the high-speed turnout were analyzed. Results showed that the elastic wave energy of 2 kHz and 4 kHz was concentrated in the healthy rail, and the signal propagation was basically not affected by the constraints of stock rail and slide bed platen. In the process of broken rail identification, the signal transmitted by slide bed platen attenuated to above 109, and the signal transmitted by switch closure had significant influence of elastic waves of various frequencies. Broken rail position was related to the signal of elastic wave propagation under close contact.

Key words： high-speed turnout      switch rail fracture      elastic wave propagation      broken rail detection      time-frequency analysis
Received: 21 December 2019      Published: 28 October 2020
CLC:  U 216
Corresponding Authors: Jing-mang XU     E-mail: mang080887@163.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Ping WANG
Le LIU
Chen-yang HU
Zheng GONG
Jing-mang XU
Zhi-xin WANG
Cite this article:

Ping WANG,Le LIU,Chen-yang HU,Zheng GONG,Jing-mang XU,Zhi-xin WANG. Identification of switch rail brakeage in high speed railway turnout based on elastic wave propagation. Journal of ZheJiang University (Engineering Science), 2020, 54(10): 2038-2046.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.10.022     OR     http://www.zjujournals.com/eng/Y2020/V54/I10/2038


基于弹性波传播的高速道岔尖轨断轨识别

针对高速道岔尖轨断轨监测问题，开展基于弹性波传播的高速道岔尖轨断轨识别研究. 采用显式有限元方法建立高速道岔弹性波传播特性分析模型，模型中考虑尖轨与基本轨密贴状态、滑床台板支承等约束条件，结合试验对该模型进行验证. 研究不同激励频率、尖轨断轨位置及密贴状态等因素对高速道岔尖轨弹性波传播特性的影响. 研究表明：在健康尖轨中，2 kHz和4 kHz弹性波能量集中，传播信号基本不受基本轨和滑床台等约束条件的影响；在断轨识别中，通过滑床台传播的信号衰减倍数大于109，通过尖/基轨密贴传播的信号对各个频率弹性波的断轨识别均存在显著影响；在密贴状况下，断轨位置与弹性波传播信号存在一定的关联.


关键词： 高速道岔,  尖轨断轨,  弹性波传播,  断轨识别,  时频分析

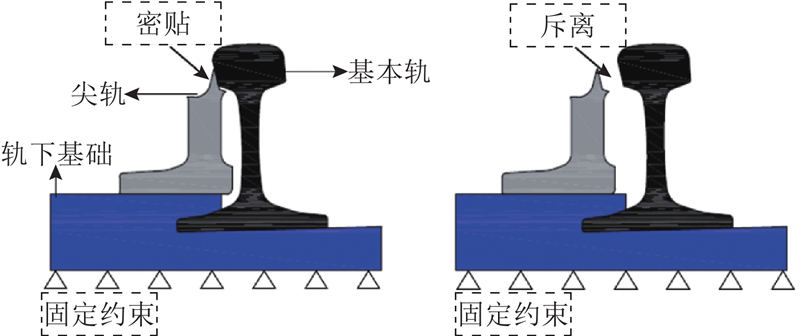

Fig.1 Switch model figure

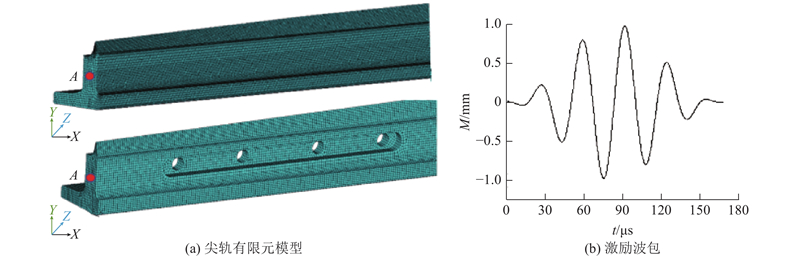

Fig.2 Switch rail model and excitation signal figure

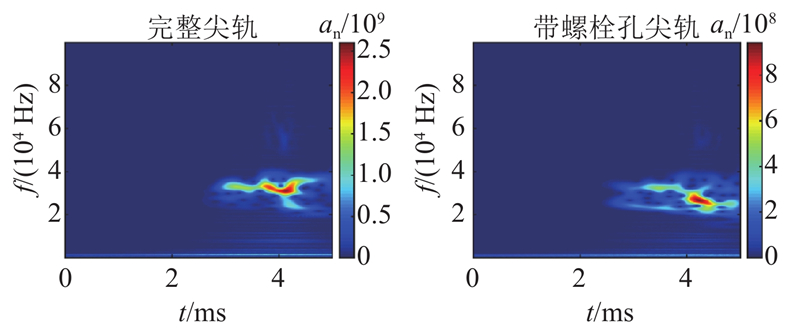

Fig.3 Signal comparison of switch rail model
f/kHz d/mm
2 160
4 80
10 32
30 10.6
Tab.1 Mesh size of elastic waves with different frequencies

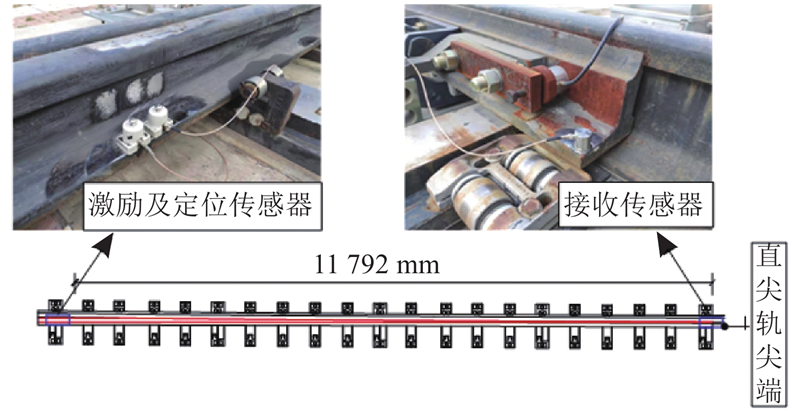

Fig.4 Layout of measuring points and sensors

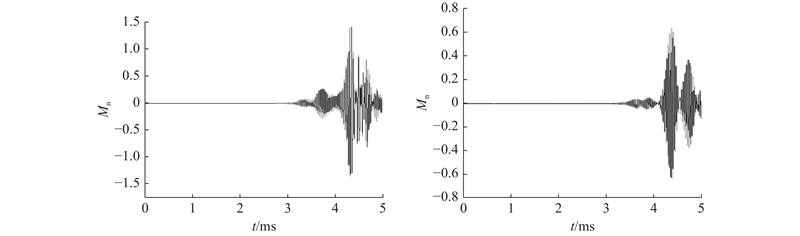

Fig.5 Time domain comparison chart of model simulation and field test for elastic wave propagation analysis

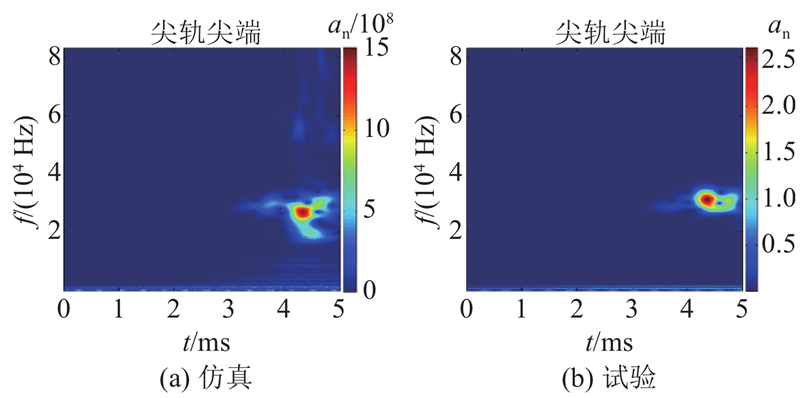

Fig.6 Time-frequency diagram of model simulation and field test for elastic wave propagation analysis

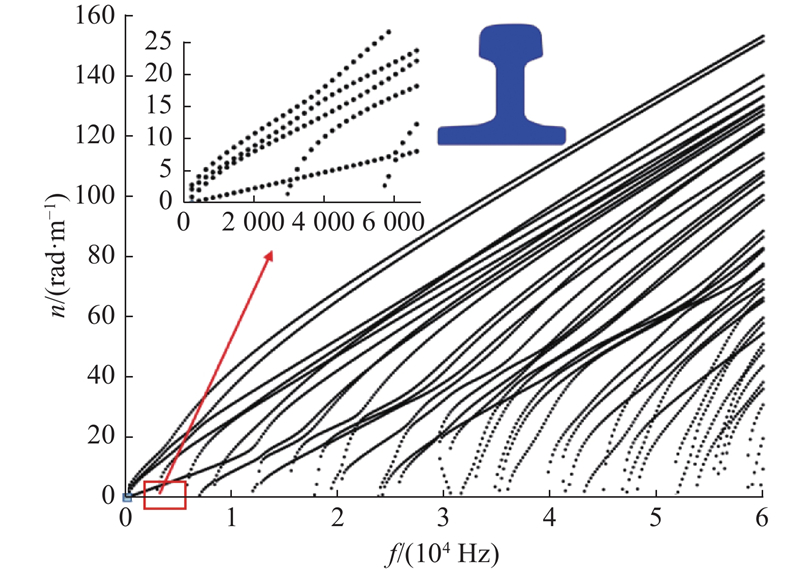

Fig.7 Section and dispersion characteristic curve of 60D40 rail

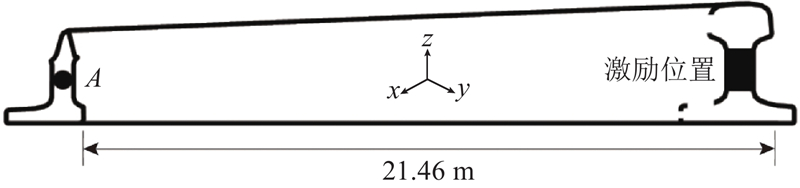

Fig.8 Layout of switch rail excitation position and receiving position

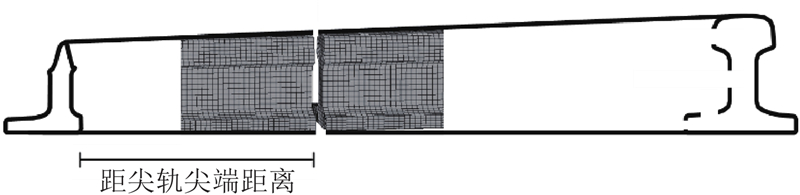

Fig.9 Broken rail figure

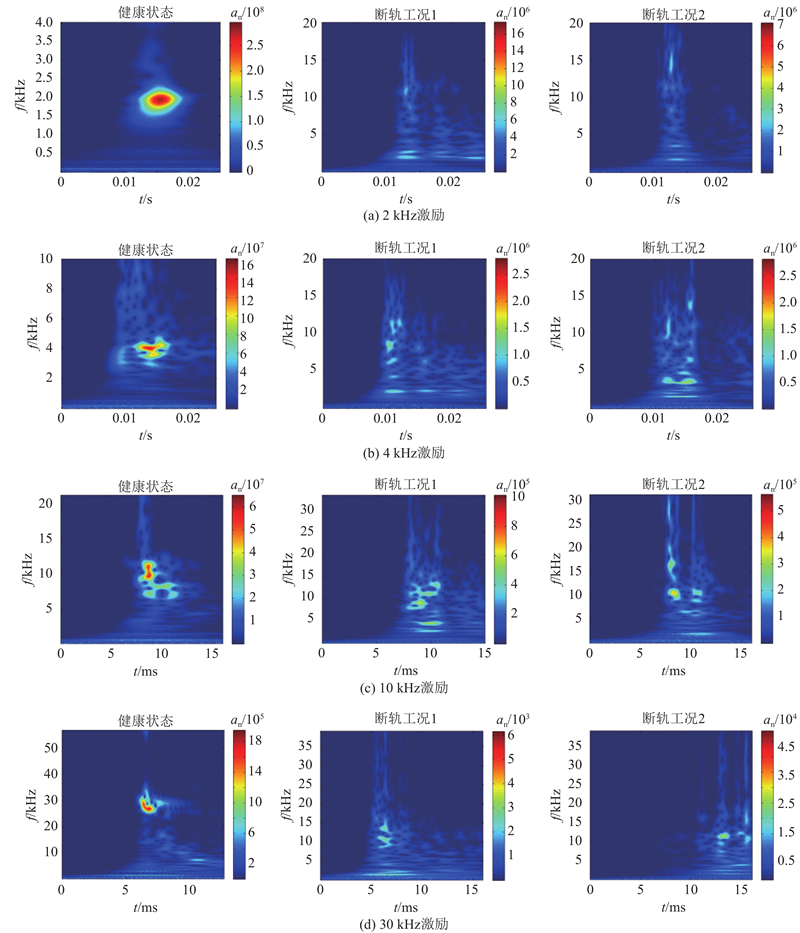

Fig.10 Time-frequency diagram of point A in different frequency and different working condition under repulsion state
f/kHz A1 A2 A3
2 1.92 1.98×109 1.89×109
4 15 1.03×109 2.37×109
10 22 1.43×1010 1.37×1010
30 8.03×103 1.04×1011 4.63×1012
Tab.2 Attenuation multiple of signal under repulsion state
Fig.11 Time-frequency diagram of point A in different frequency and working condition under close contact
f/kHz A1 A2 A3
2 1.78 21 47
4 12 5.56×102 5.98×102
10 45 3.05×103 5.98×102
30 1.08×104 7.50×106 1.12×107
Tab.3 Attenuation multiple of signal under closely contact
f/kHz B1 B2
2 1.92 1.78
4 15 12
10 22 45
30 8.03×103 1.08×104
Tab.4 Attenuation multiple of health switch rail signal
