Fatigue crack growth prediction method under variable amplitude load based on dynamic Bayesian network

doi:10.3785/j.issn.1008-973X.2021.02.008

Journal of ZheJiang University (Engineering Science)

2021, Vol. 55

Issue (2): 280-288 DOI: 10.3785/j.issn.1008-973X.2021.02.008

Fatigue crack growth prediction method under variable amplitude load based on dynamic Bayesian network

Hong-hui WANG1(

),Xin FANG1,De-jiang LI2,Gui-jie LIU1

1. College of Engineering, Ocean University of China, Qingdao 266100, China
2. Yantai CIMC-Raffles Offshore Co. Ltd, Yantai 264000, China

Download:

HTML

PDF(1436KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A method of fatigue crack growth prediction based on dynamic Bayesian network (DBN) was proposed to address the problem of large deviation of prediction results due to less consideration of uncertainties in the current study of fatigue crack growth prediction. The physical state equation of fatigue crack expansion was constructed using the unified fatigue life prediction (UFLP) model using the fatigue crack expansion under variable amplitude load as the specific object. The link between typical uncertainties in the fatigue crack growth process was analyzed, and the degradation model of fatigue crack growth was built based on the DBN. Finally, the particle filter (PF) algorithm was used to input the crack observation data into the dynamic degradation model, and the prediction results were corrected to reduce the influence of uncertainties. A simulation example with uncertainty factor fatigue crack expansion prediction was given based on the existing experimental data on crack growth, and results show that the DBN-based method for fatigue crack growth prediction can achieve better prediction accuracy than existing methods.

Key words： fatigue crack growth uncertainty factor dynamic Bayesian network variable amplitude load particle filter

Received: 16 March 2020 Published: 09 March 2021

CLC:

U 661

Fund: 国家重点研发计划资助项目（2019YFE0105100）；The National Key Research and Development Program of China (2019YFE0105100)

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Hong-hui WANG
	Xin FANG
	De-jiang LI
	Gui-jie LIU

Cite this article:

Hong-hui WANG,Xin FANG,De-jiang LI,Gui-jie LIU. Fatigue crack growth prediction method under variable amplitude load based on dynamic Bayesian network. Journal of ZheJiang University (Engineering Science), 2021, 55(2): 280-288.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.02.008 OR http://www.zjujournals.com/eng/Y2021/V55/I2/280

基于动态贝叶斯网络的变幅载荷下疲劳裂纹扩展预测方法

针对当前疲劳裂纹扩展预测研究中较少考虑不确定因素而导致预测结果偏差大的问题，提出基于动态贝叶斯网络（DBN）的疲劳裂纹扩展预测方法. 以变幅载荷作用下的疲劳裂纹扩展为具体对象，利用统一疲劳寿命预测（UFLP）模型构建疲劳裂纹扩展的物理状态方程；分析疲劳裂纹扩展过程典型不确定因素之间的联系，基于动态贝叶斯网络建立疲劳裂纹扩展动态性能退化模型；采用粒子滤波（PF）推断算法，向动态性能退化模型输入裂纹观测数据，修正预测结果，降低不确定因素的影响. 根据已有的裂纹扩展实验数据，给出具有不确定因素疲劳裂纹扩展预测的仿真算例，结果表明，所提出的基于动态贝叶斯网络的变幅载荷作下疲劳裂纹扩展预测方法较现有方法能够取得更好的预测精度.

关键词： 疲劳裂纹扩展, 不确定性因素, 动态贝叶斯网络, 变幅载荷, 粒子滤波

Fig.1 Classification of uncertainty factors

Tab.1 Parameter values of central crack growth model for D16Cz alloy

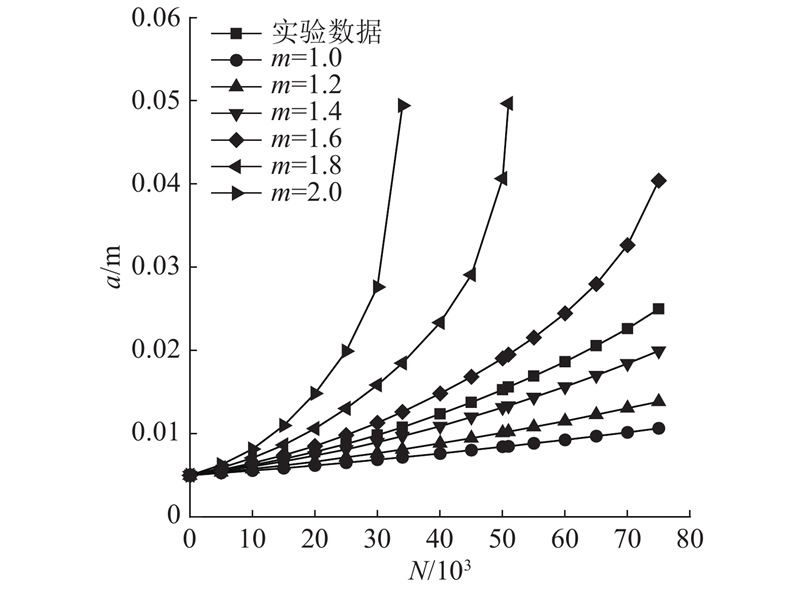

Fig.2 Effect of parameters m on crack growth

Fig.3 Effect of parameters

$\gamma $

on crack growth

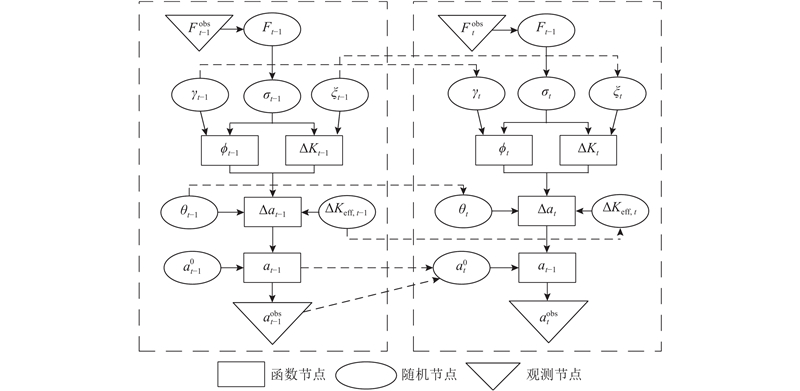

Fig.4 DBN fatigue crack growth model

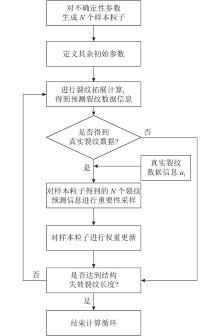

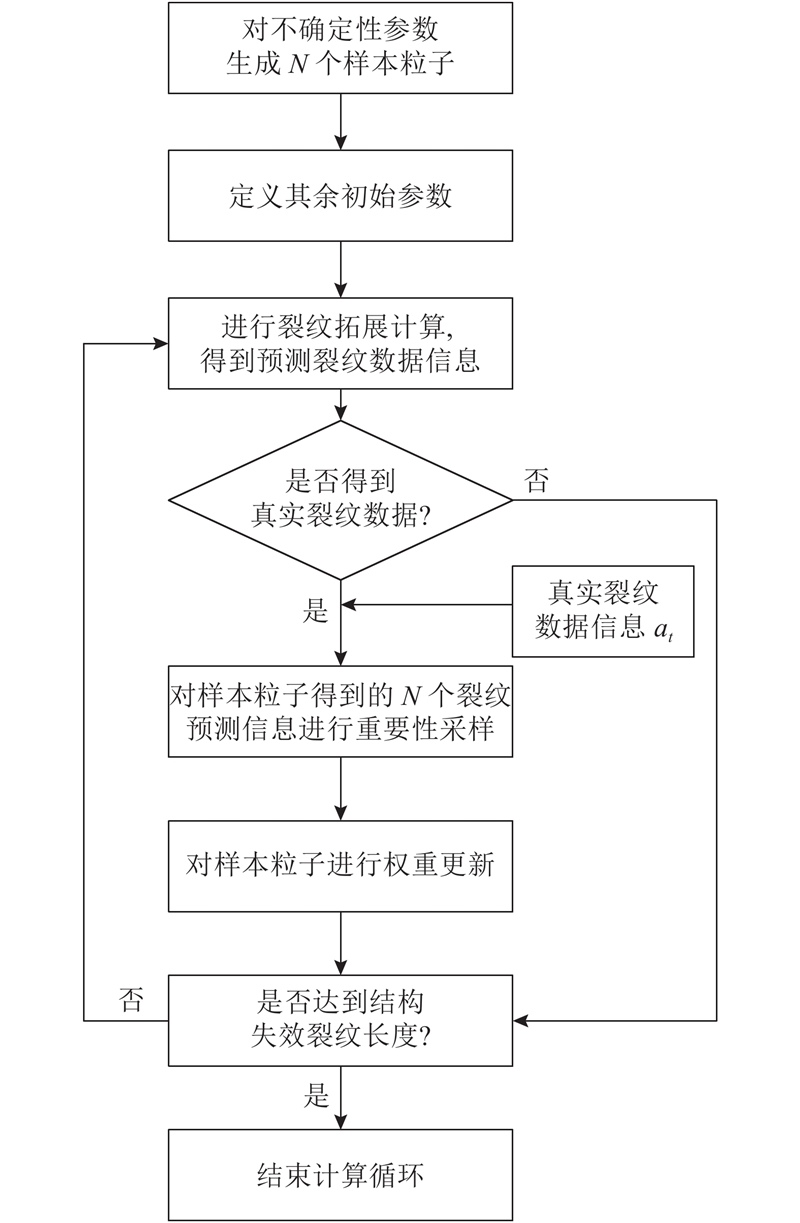

Fig.5 Flow chart of particle filtering

Tab.2 Chemical composition of AlMgSi1-T6 aluminum alloy

Tab.3 Physical properties of AlMgSi1-T6 aluminum alloy

Tab.4 Load size of cyclic high-load fatigue test

Fig.6 PDF of parameters

$A$

after each checkpoint

Fig.7 PDF of parameters

$m$

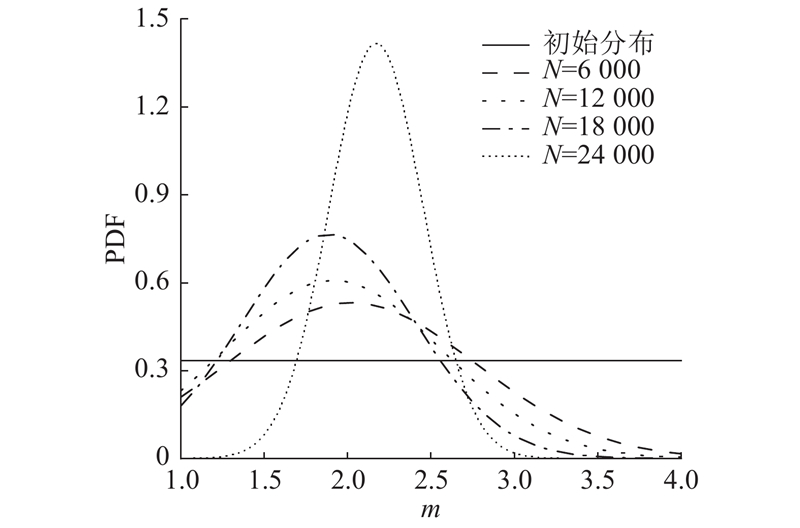

after each checkpoint

Fig.8 PDF of parameters

$\Delta {K_{{\rm{eff}}}}$

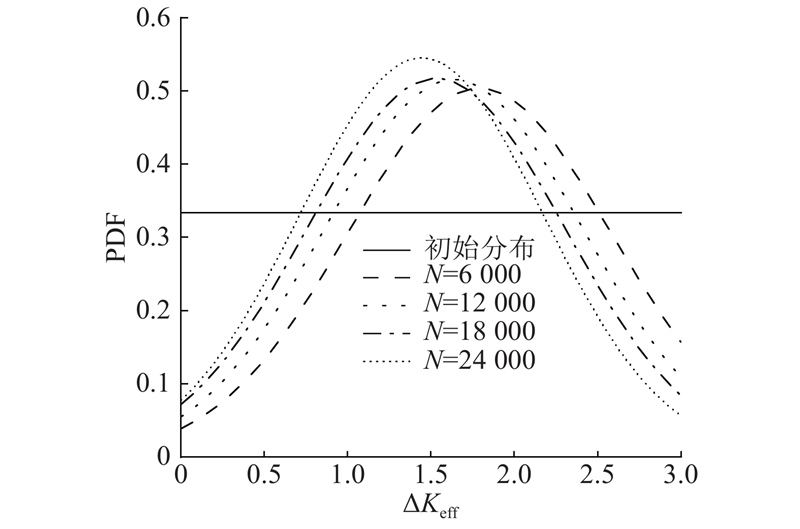

after each checkpoint

Fig.9 PDF of parameters

$\gamma $

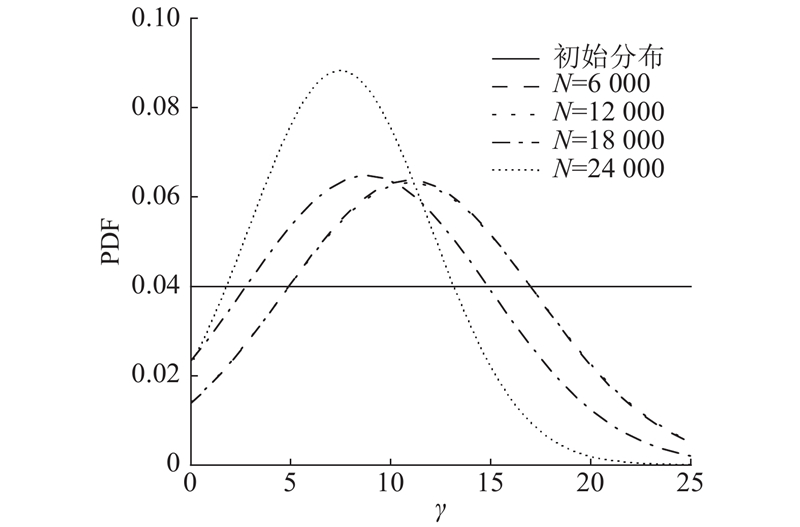

after each checkpoint

Fig.10 PDF of parameters

$\xi $

after each checkpoint

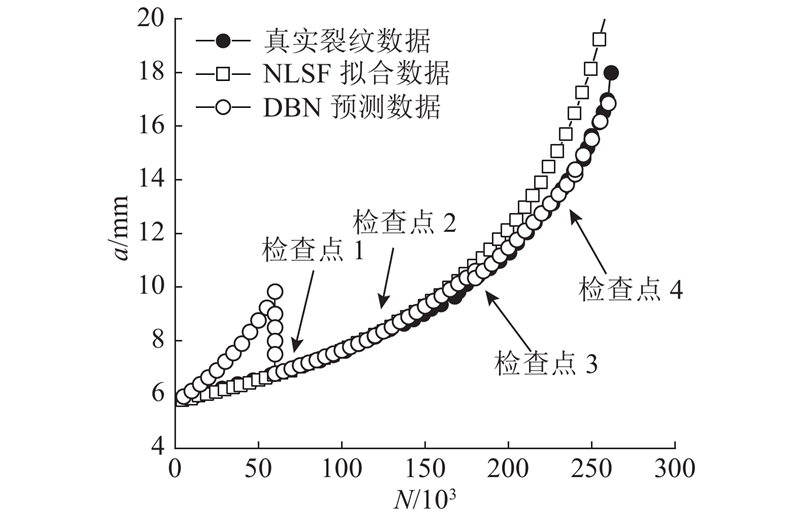

Fig.11 Comparison of crack growth prediction
