Journal of ZheJiang University (Engineering Science)  2021, Vol. 55 Issue (9): 1615-1624    DOI: 10.3785/j.issn.1008-973X.2021.09.002

Research on tread wear behavior of all steel radial truck tire
Jie WANG1(),Zhao LI1,2,Zi-ran LI1,*()
1. CAS Key Laboratory of Mechanical Behavior and Design of Materials, Department of Modern Mechanics, University of Science and Technology of China, Hefei 230027, China
2. Wuhan Second Ship Design and Research Institute, Wuhan 430205, China
Download: HTML     PDF(2231KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The tire tread wear behavior was simulated through a wear post processing method, based on the finite element model of 12R22.5 all steel truck radial tire with longitudinal patterns. Comparing the calculated results of groove depth with the road wear test results under braking conditions, the relative error of the two is 10.2% which shows the reliability of the method. The tire tread wear in four different conditions was analyzed. Results show that the tire wear in free rolling conditions mainly occurs on the side of grooves. The maximum wear depth appears in the shoulder block under braking conditions, while the maximum wear depth of driving conditions appears in the middle block of the tread. The tread wear rate under cornering conditions is the greatest. The influence of inflation pressure and load on tread wear was investigated. The lower inflation pressure and the higher load lead to the increased unevenness of tread wear profile. Numerical results show that the quality of rubber wear in the overpressure-overload condition is 1.56 times that of the rated inflation and load condition after 5×104 km of free rolling.



Key wordsall steel radial truck tire      road wear test      rolling condition      overpressure-overload condition      finite element analysis
Received: 28 September 2020      Published: 20 October 2021
CLC:  TB 115
Fund:  中国科学院战略性先导科技专项(C类)(XDC06030200);国家自然科学基金资助项目(11902229)
Corresponding Authors: Zi-ran LI     E-mail: wj9@mail.ustc.edu.cn;lzr@ustc.edu.cn
Cite this article:

Jie WANG,Zhao LI,Zi-ran LI. Research on tread wear behavior of all steel radial truck tire. Journal of ZheJiang University (Engineering Science), 2021, 55(9): 1615-1624.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.09.002     OR     https://www.zjujournals.com/eng/Y2021/V55/I9/1615


全钢载重子午线轮胎胎面磨耗行为研究

以12R22.5全钢载重子午线轮胎为研究对象,建立含纵向花纹的轮胎有限元模型,采用磨耗后处理法模拟胎面磨耗行为. 将制动条件下计算得到的沟深磨耗量与道路实测结果进行对比,两者相对误差为10.2%,验证了该处理方法的可靠性. 对4种不同行驶工况的轮胎胎面进行磨耗仿真分析. 结果表明,自由滚动工况磨耗主要发生在花纹沟边,制动工况胎肩部花纹块磨耗深度较大,驱动工况磨耗主要发生在胎中部花纹块,侧偏工况胎面橡胶磨耗速率最快. 考察充气压力和载荷对胎面磨耗的影响. 结果表明,载荷增大、充气压力减小使胎面磨耗的不均匀性增加. 对于超压超载工况,仿真得出自由滚动5×104 km后胎面橡胶磨耗质量是额定工况的1.56倍.


关键词: 全钢载重子午线轮胎,  道路磨耗试验,  行驶工况,  超压超载工况,  有限元分析

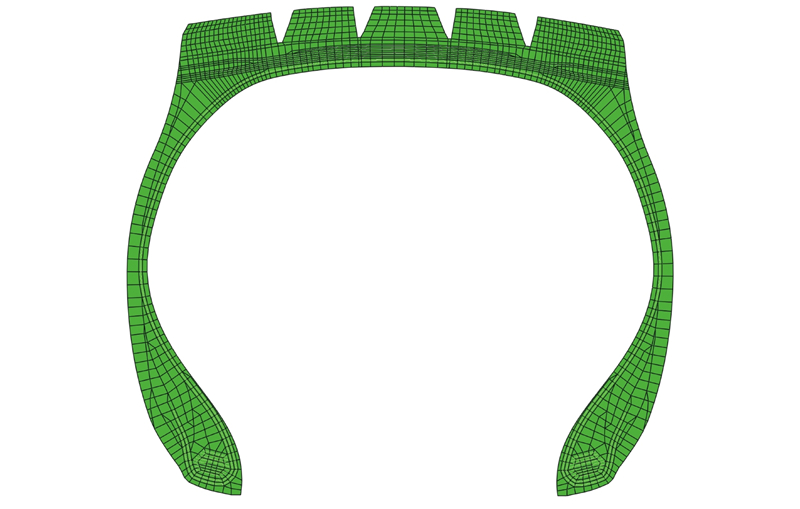

Fig.1 2D finite element model of 12R22.5 all steel radial truck tire
Fig.2 Total finite element model
Fig.3 Comparison of experimental and simulated tire deflection results
状态 D/mm B/mm S/cm2
试验 1 083.00 295.00 487.44
仿真 1 084.30 293.11 501.94
Tab.1 Comparison of tire model test and simulation results

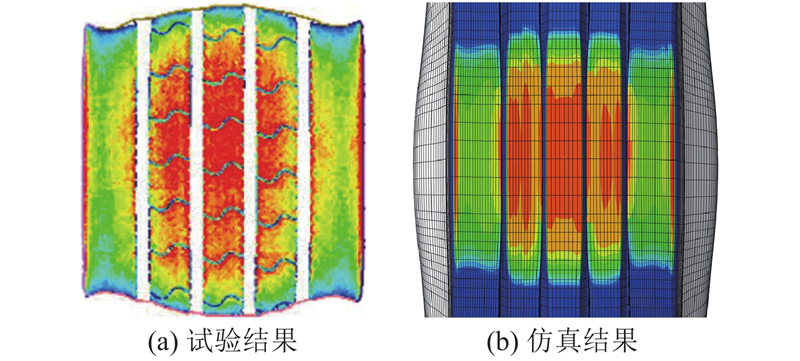

Fig.4 Comparison of tire footprints

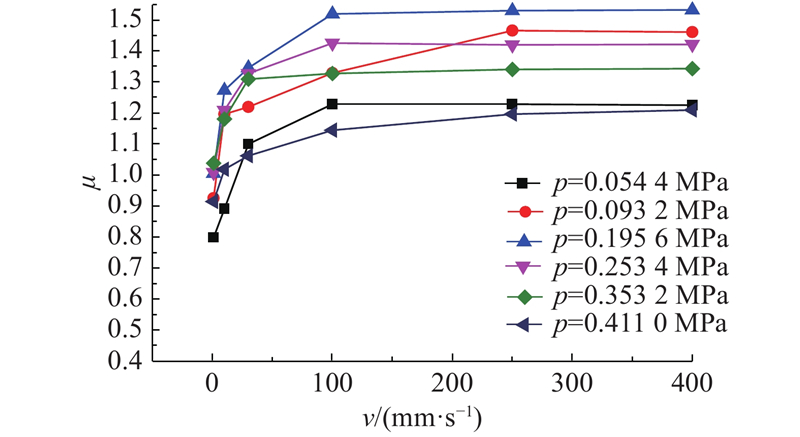

Fig.5 Friction coefficient test results of rubber wheel on 60 mesh corundum disc

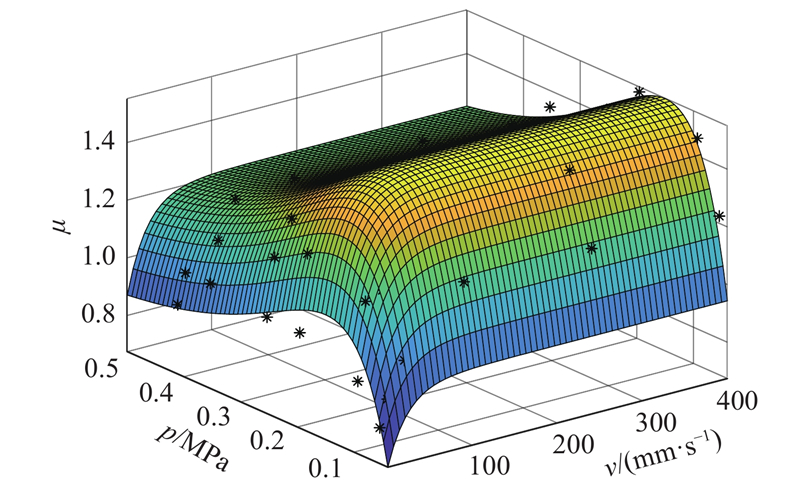

Fig.6 Fitting surface of friction coefficient of tread rubber on 60 mesh corundum disc
测试工况 F/N α/(°) Vd/(km·h?1) Ld/m
1 75 5.5 6 100 0
2 75 5.5 20 170 0
3 75 9 6 300
4 75 9 20 400
5 75 16 6 100
6 75 16 20 170
Tab.2 Tread rubber abrasion test plan

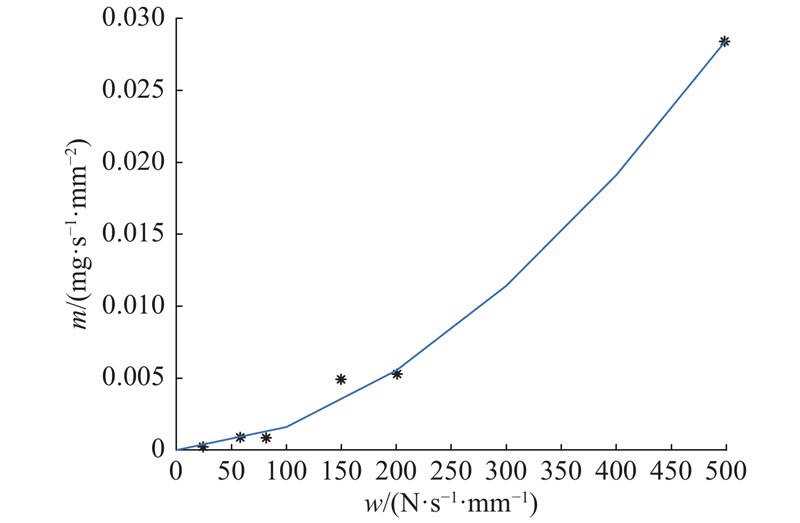

Fig.7 Fitting results of tread rubber wear rate

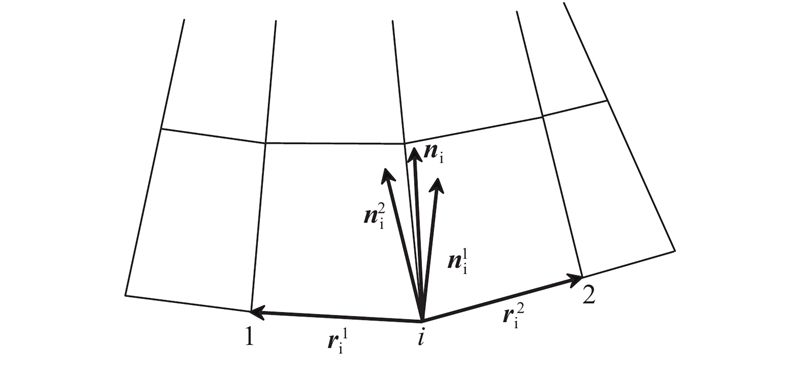

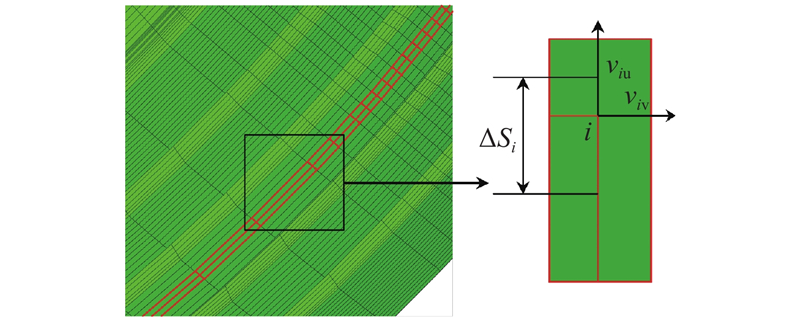

Fig.8 Micro-element of tread node i

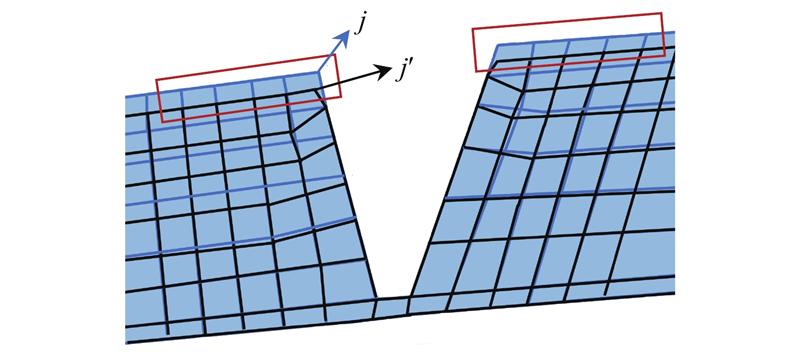

Fig.9 Wear direction of tread node i
Fig.10 Calculation process of tread wear solution
Fig.11 Wear depth of grooves
工况 FN/N P/MPa V/(km·h?1) s/% β/(°) L/104 km
自由滚动 19 600 0.93 80 0 0 5.00
制动 19 600 0.93 80 1 0 0.30
驱动 19 600 0.93 80 1 0 0.30
侧偏 19 600 0.93 80 0 1 0.08
Tab.3 Parameters of 12R22.5 all steel steel truck radial tire in four rolling conditions

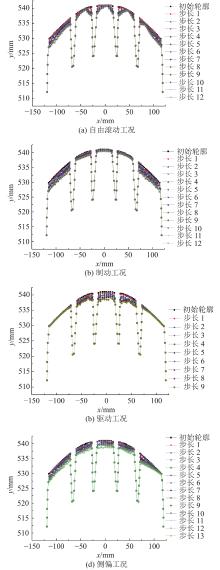

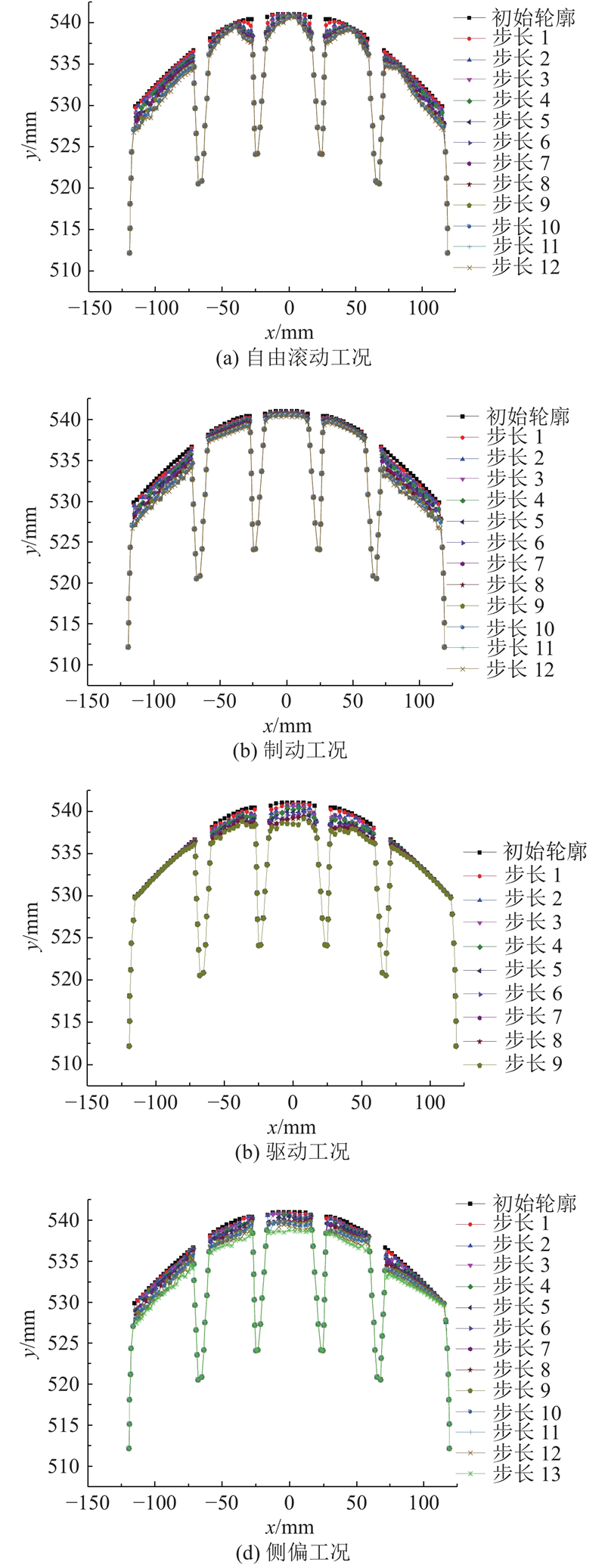

Fig.12 Evolution of tread wear profile under four rolling conditions

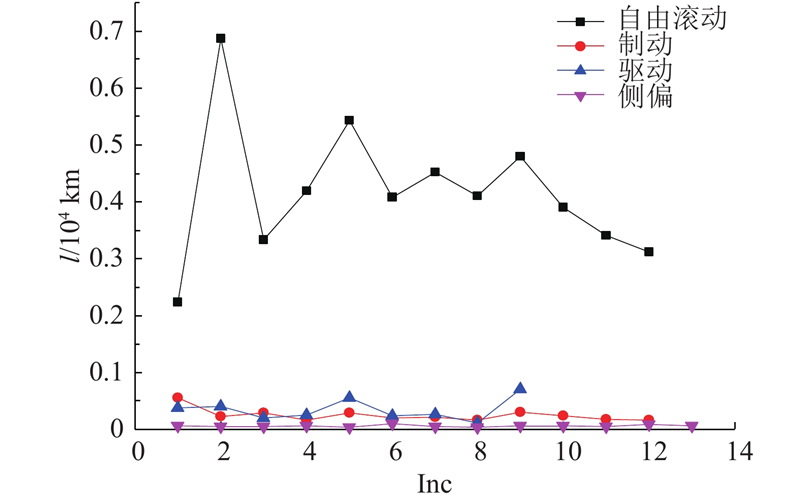

Fig.13 Distance of tires in each increment under four rolling conditions

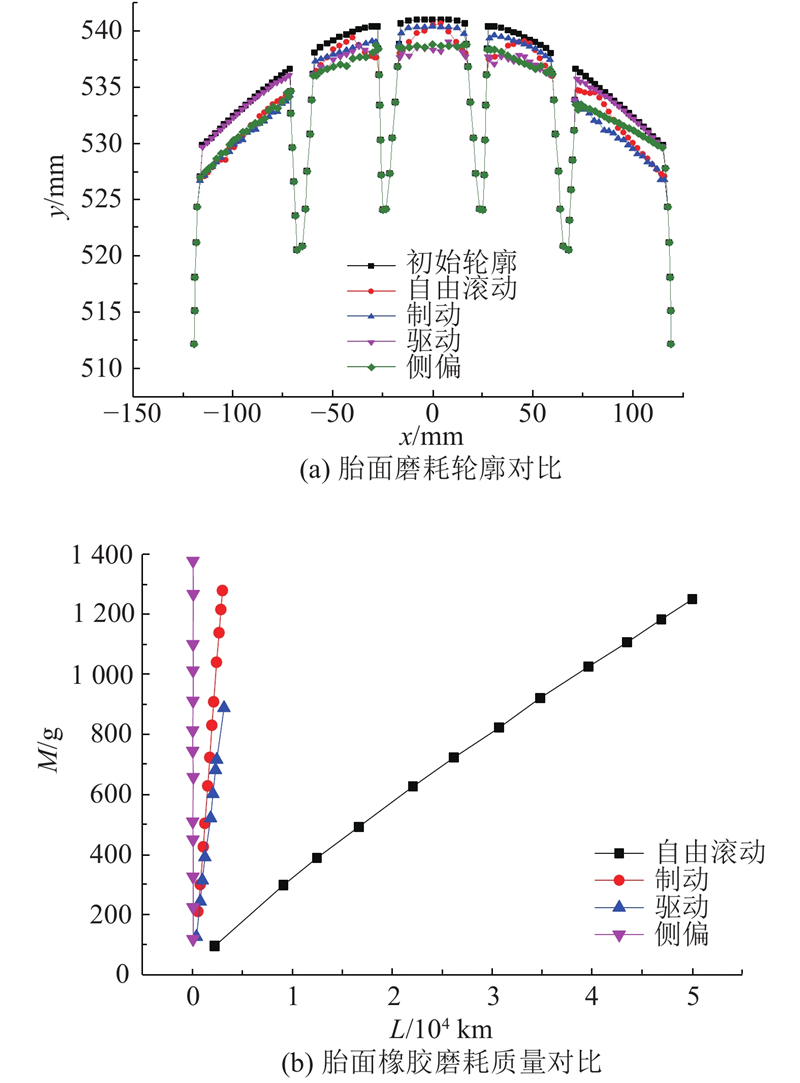

Fig.14 Comparison of wear under four rolling conditions

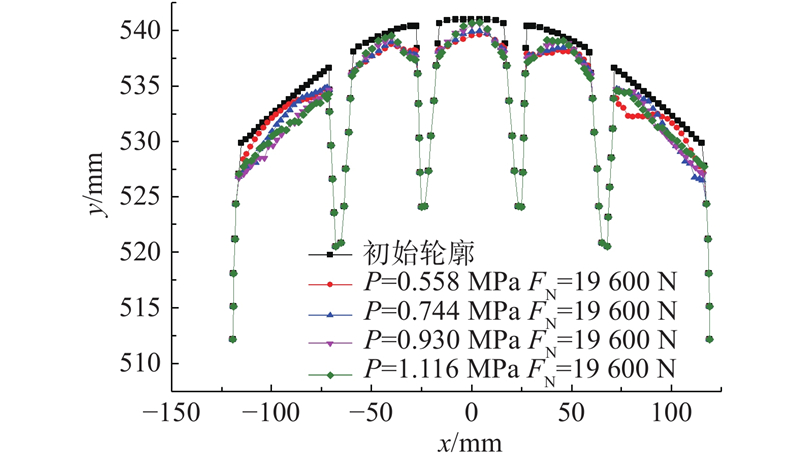

Fig.15 Comparison of wear under different pressure
Fig.16 Contact pressure under different pressure

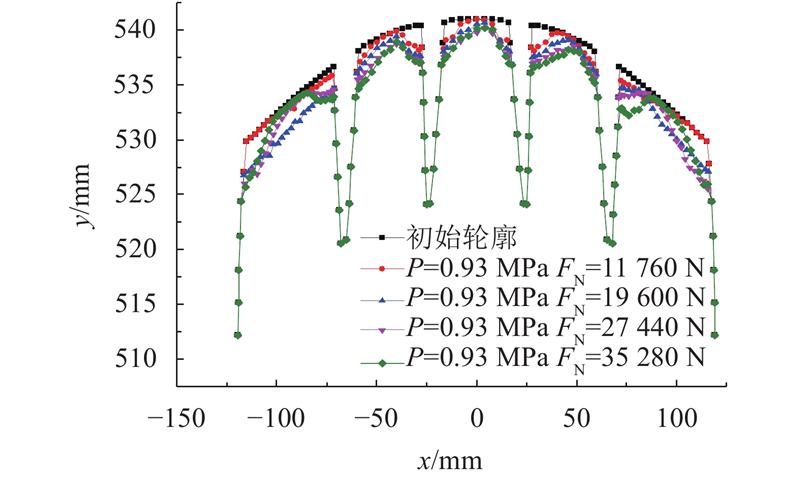

Fig.17 Comparison of wear under different load

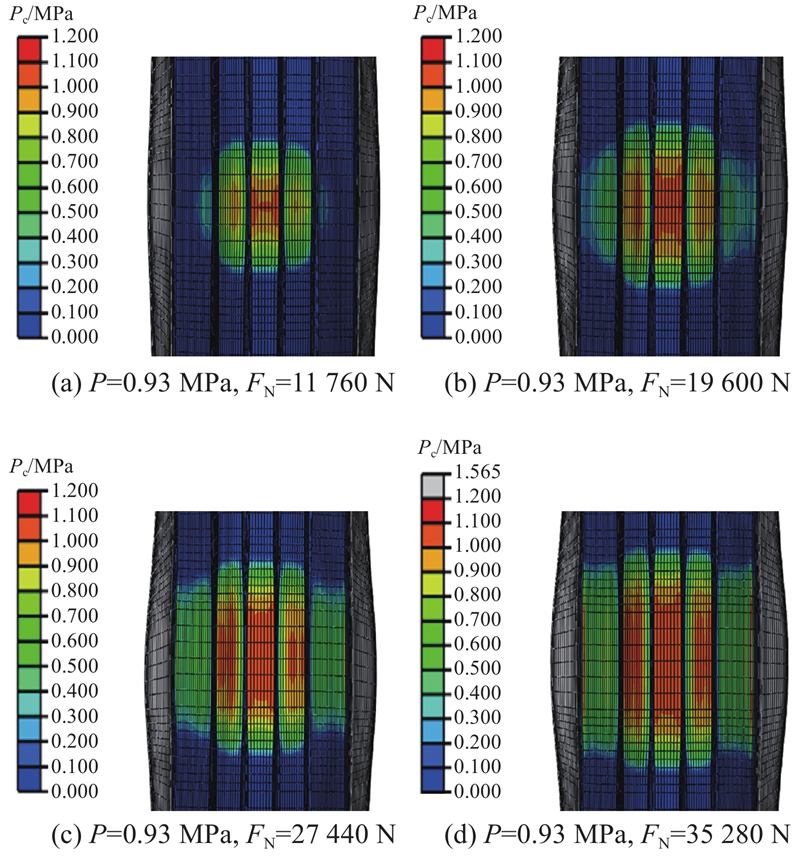

Fig.18 Contact pressure under different load

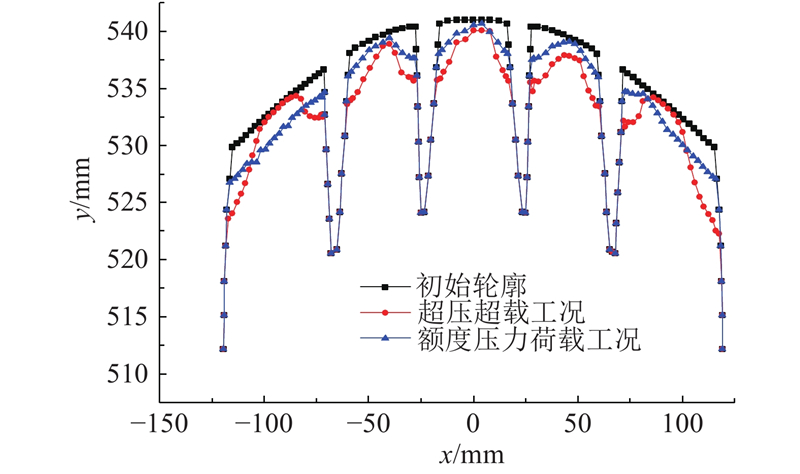

Fig.19 Comparison of tread wear under overpressure- overload and rated pressure load

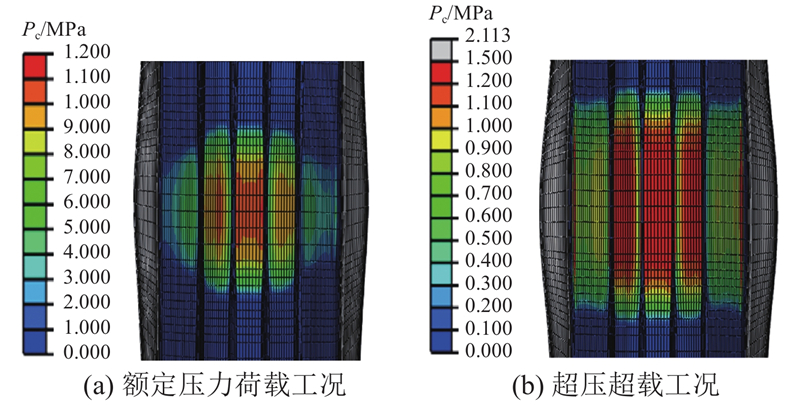

Fig.20 Comparison of Ground imprint under overpressure- overload and rated pressure load
Fig.21 Comparison of rubber quality under overpressure-overload and rated pressure load
