Fatigue performance of non-load-carrying cruciform fillet-welded joints at low ambient temperature

doi:10.3785/j.issn.1008-973X.2020.10.020

Journal of ZheJiang University (Engineering Science)

2020, Vol. 54

Issue (10): 2018-2026 DOI: 10.3785/j.issn.1008-973X.2020.10.020

Fatigue performance of non-load-carrying cruciform fillet-welded joints at low ambient temperature

Xiao-wei LIAO1,2(

),Yuan-qing WANG2,*(

),Jian-guo WU1,Yong-jiu SHI2

1. College of Civil Engineering and Architecture, Zhejiang University of Technology, Hangzhou 310023, China
2. Key Laboratory of Civil Engineering Safety and Durability of China Education Ministry, Tsinghua University, Beijing 100084, China

Download:

HTML

PDF(1536KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A series of the high-cycle constant-amplitude fatigue tests on the non-load-carrying cruciform fillet-welded joints were conducted at room temperature and ?60 °C in order to analyze the fatigue behavior and performance of the welded joints in the steel bridges. The effect mechanism of the low temperature on the fatigue crack propagation life of those joints was analyzed through three-dimensional crack propagation simulation. The experimental results show the marginal effect due to the low temperatures on the S-N fatigue of the cruciform fillet-welded joints. The initial crack-like defects always propagate simultaneously at several sites along the weld toes. The fatigue crack propagation life is affected negligibly by the deteriorated fracture toughness in steel materials induced by the decreasing temperature. Although the resistance to fatigue crack propagation in steel materials is enhanced by the decreasing temperature, the fatigue life of those fillet-welded joints is still dominated by the diverse initial defects produced during the welding processes. Adopting the three-dimensional multi-crack coupled propagation analysis was recommended to predict more accurately the fatigue life of welded joints in the further research.

Key words： bridge steel cruciform fillet-welded joint low–temperature fatigue crack propagation fracture mechanics

Received: 14 October 2019 Published: 28 October 2020

CLC:

U 441

Corresponding Authors: Yuan-qing WANG E-mail: liaoxiaowei@zjut.edu.cn;wang-yq@mail.tsinghua.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiao-wei LIAO
	Yuan-qing WANG
	Jian-guo WU
	Yong-jiu SHI

Cite this article:

Xiao-wei LIAO,Yuan-qing WANG,Jian-guo WU,Yong-jiu SHI. Fatigue performance of non-load-carrying cruciform fillet-welded joints at low ambient temperature. Journal of ZheJiang University (Engineering Science), 2020, 54(10): 2018-2026.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.10.020 OR http://www.zjujournals.com/eng/Y2020/V54/I10/2018

低温环境下十字形非传力角焊缝接头的疲劳性能

为了研究低温环境下钢桥焊接细节的疲劳行为和性能，以典型的十字形非传力角焊缝接头为对象，开展室温和?60 °C下的高周常幅疲劳试验；基于三维裂纹扩展数值模拟，分析低温对该焊接细节疲劳裂纹扩展寿命的影响机理. 结果表明，该焊接细节的室温和?60 °C条件下试验S-N疲劳寿命未表现出显著区别，初始焊接缺陷裂纹会在细节焊趾处的多个位置同时扩展；由低温环境导致的钢材断裂韧性的降低不会对该焊接细节的疲劳寿命产生明显影响. 虽然低温会增强钢材抵抗疲劳裂纹扩展的能力，但是该焊接细节的疲劳寿命主要受焊接过程产生的多样化初始裂纹缺陷因素控制；建议采用考虑多裂纹耦合扩展的三维裂纹扩展数值模拟来更加精确地预测疲劳裂纹扩展寿命.

关键词： 桥梁钢材, 十字形焊接接头, 低温疲劳, 裂纹扩展, 断裂力学

Fig.1 Schematic diagram of non-load-carrying cruciform fillet-welded joints

Fig.2 Mean values and standard deviation of fillet weld sizes of cruciform joints

Tab.1 Fatigue test results of non-load-carrying cruciform fillet-welded joints

Fig.3 Test set-up for low-temperature fatigue tests

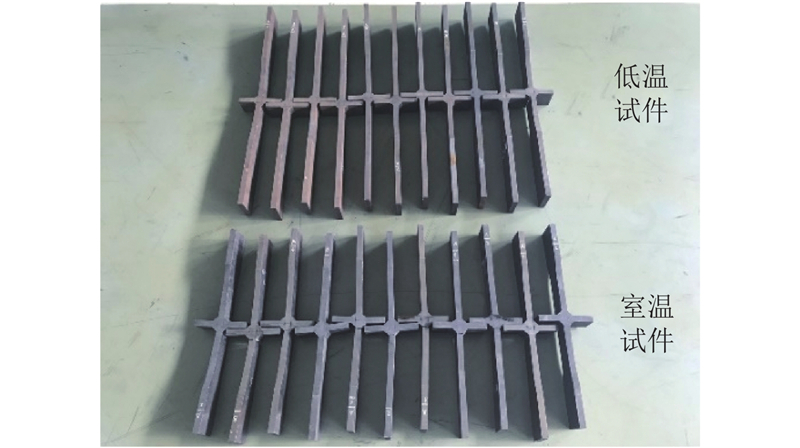

Fig.4 Fatigued specimens at room and low temperatures

Fig.5 Crack growth morphology of fatigued specimens at room and low temperature

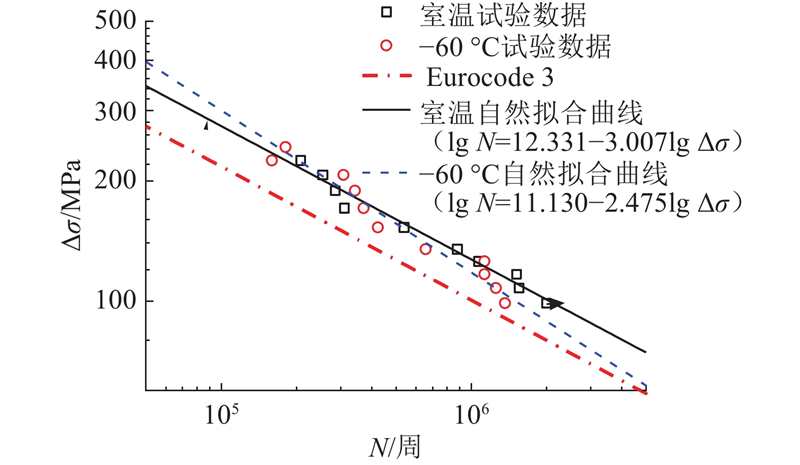

Fig.6 S-N results at room temperature and −60 °C

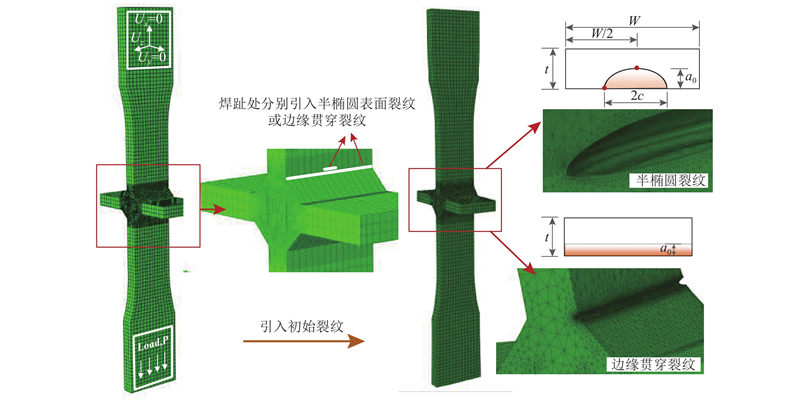

Fig.7 Three-dimensional crack propagation finite element model for non-load-carrying cruciform fillet-welded joints

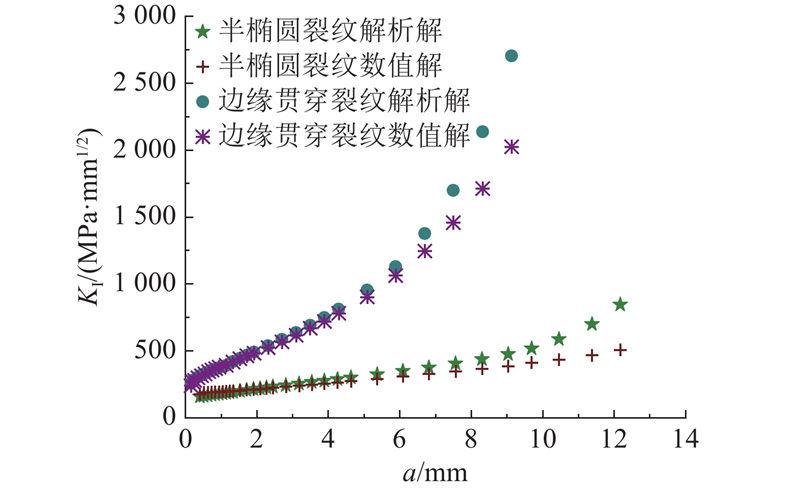

Fig.8 Comparison of numerical and analytic values of I-mode stress intensity factors

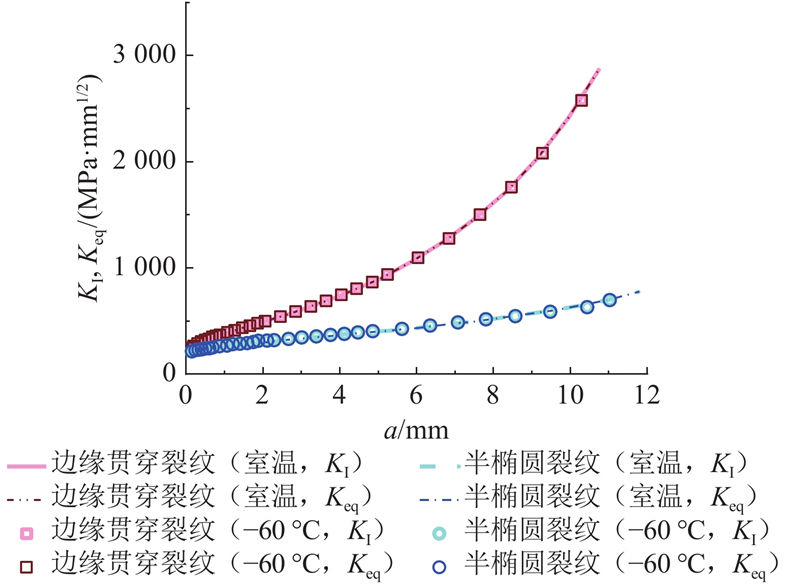

Fig.9 Calculation of stress intensity factors for different cracks

Fig.10 Comparison of predicted fatigue crack propagation life and test results for cruciform fillet-welded joints

Fig.11 Effect of fracture toughness on fatigue crack propagation life of cruciform fillet-welded joints

Fig.12 Effect of temperature-depended Paris parameters on fatigue life of cruciform fillet-welded joints


[1]	YE X W, SU Y H, HAN J P A state-of-the-art review on fatigue life assessment of steel bridges[J]. Mathematic Problems in Engineering, 2014, 3: 1- 13

[2]	王元清, 廖小伟, 贾单锋, 等钢结构的低温疲劳性能研究进展综述[J]. 钢结构研究进展, 2018, 20 (1): 1- 11 WANG Yuan-qing, LIAO Xiao-wei, JIA Dan-feng, et al Overview of research progress for the low-temperature fatigue performance of steel structures[J]. Progress in Steel Building Structures, 2018, 20 (1): 1- 11

[3]	刘晓光铁路钢桥疲劳研究进展[J]. 铁道建筑, 2015, 10: 19- 25 LIU Xiao-guang Development of fatigue research on railway steel bridges[J]. Railway Engineering, 2015, 10: 19- 25

[4]	廖小伟, 王元清, 宗亮, 等基于有效缺口应力法的钢桥焊接细节疲劳分析[J]. 浙江大学学报: 工学版, 2017, 50 (1): 1- 8 LIAO Xiao-wei, WANG Yuan-qing, ZONG Liang, et al Fatigue analysis of typical welded joints of steel bridges using effective notch stress approach[J]. Journal of Zhejiang University: Engineering Science, 2017, 50 (1): 1- 8

[5]	郭宏超, 毛宽宏, 万金怀, 等高强度钢材疲劳性能研究进展[J]. 建筑结构学报, 2019, 40 (4): 17- 28 GUO Hong-chao, MAO Kuan-hong, WAN Jin-huai, et al Research progress on fatigue properties of high strength steels[J]. Journal of Building Structures, 2019, 40 (4): 17- 28

[6]	王元清钢结构在低温下脆性破坏研究概述[J]. 钢结构, 1994, 9 (4): 217- 221 WANG Yuan-qing Survey of investigation about brittle fracture of steel structure under low temperature[J]. Steel Construction, 1994, 9 (4): 217- 221

[7]	STEPHENS R I, CHUNG J H, GLINKA G. Low temperature fatigue behavior of steels: a review [C]// 39th Annual Earthmoving Industry Conference. Iowa: SAE, 1979: 1892-1904.

[8]	王元清, 廖小伟, 张子富, 等输电线铁塔钢材的低温力学和冲击韧性试验[J]. 哈尔滨工业大学学报, 2015, 47 (12): 70- 74 WANG Yuan-qing, LIAO Xiao-wei, ZHANG Zi-fu, et al Experimental study on mechanical properties and impact toughness of steel for transmission line towers at low temperatures[J]. Journal of Harbin Institute of Technology, 2015, 47 (12): 70- 74

[9]	LIAO X W, WANG Y Q, QIAN X D, et al Fatigue crack propagation for Q345qD bridge steel and its butt welds at low temperatures[J]. Fatigue and Fracture of Engineering Materials and Structures, 2018, 41: 675- 687 doi: 10.1111/ffe.12727

[10]	SHUL’GINOV B S, MATVEYEV V V Impact fatigue of low-alloy steels and their welded joints at low temperature[J]. International Journal of Fatigue, 1997, 19 (8/9): 621- 627

[11]	KANG K W, GOO B C, KIM J H, et al Experimental investigation on static and fatigue behavior of welded SM490A steel under low temperature[J]. Steel Structures, 2009, 9 (1): 85- 91 doi: 10.1007/BF03249483

[12]	BRIDGES R, ZHANG S, SHAPOSHNIKOV V Experimental investigation on the effect of low temperatures on the fatigue strength of welded steel joints[J]. Ships and Offshore Structures, 2012, 7 (3): 311- 319 doi: 10.1080/17445302.2011.563550

[13]	JEONG D, PARK T, LEE J, et al Ambient and cryogenic S-N fatigue behavior of Fe15Mn steel and its weld[J]. Metals and Materials International, 2015, 21 (3): 453- 460 doi: 10.1007/s12540-015-4397-7

[14]	LI Z R, ZHANG D C, WU H Y, et al Fatigue properties of welded Q420 high strength steel at room and low temperatures[J]. Construction and Building Materials, 2018, 189: 955- 966 doi: 10.1016/j.conbuildmat.2018.07.231

[15]	钢结构焊接规范: GB50661-2011 [S]. 北京: 中国建筑工业出版社, 2011.

[16]	Eurocode 3: Design of steel structures - Part 1-9: Fatigue: BS EN 1993-1-9: 2005 [S]. London: British Standards Institution, 2005.

[17]	WALTERS C L, ALVARO A, MALJAARS J The effect of low temperatures on the fatigue crack growth of S460 structural steel[J]. International Journal of Fatigue, 2016, 82: 110- 118 doi: 10.1016/j.ijfatigue.2015.03.007

[18]	AYGüL M, AL-EMRANI M, BARSOUM Z, et al Investigation of distortion-induced fatigue cracked welded details using 3D crack propagation analysis[J]. International Journal of Fatigue, 2014, 64: 54- 66 doi: 10.1016/j.ijfatigue.2014.02.014

[19]	ZONG L, SHI G, WANG Y Q, et al Investigation on fatigue behaviour of load-carrying fillet welded joints based on mix-mode crack propagation analysis[J]. Archives of Civil and Mechanical Engineering, 2017, 17: 677- 686 doi: 10.1016/j.acme.2017.01.009

[20]	刘益铭, 张清华, 崔闯, 等正交异性钢桥面板三维疲劳裂纹扩展数值模拟方法[J]. 中国公路学报, 2016, 29 (7): 89- 95 LIU Yi-ming, ZHANG Qing-hua, CUI Chuang, et al Numerical simulation method for 3D fatigue crack propagation of orthotropic steel bridge deck[J]. China Journal of Highway and Transport, 2016, 29 (7): 89- 95

[21]	王春生, 翟慕赛, 唐友明, 等钢桥面板疲劳裂纹耦合扩展机理的数值断裂力学模拟[J]. 中国公路学报, 2017, 30 (3): 82- 95 WANG Chun-sheng, ZHAI Mu-sai, TANG You-ming, et al Numerical fracture mechanical simulation of fatigue crack coupled propagation mechanism for steel bridge deck[J]. China Journal of Highway and Transport, 2017, 30 (3): 82- 95

[22]	PARIS P, ERDOGAN F A critical analysis of crack propagation laws[J]. Journal of Basic Engineering, 1963, 85 (4): 528- 533 doi: 10.1115/1.3656900

[23]	Franc3D, Reference manual for version 7 [R]. New York: Fracture Analysis Consultants, Inc., 2016.

[24]	TANAKA K Fatigue crack propagation from a crack inclined to the cyclic tensile axis[J]. Engineering Fracture Mechanics, 1974, 6 (3): 493- 498 doi: 10.1016/0013-7944(74)90007-1

[25]	ERDOGAN F, SIH G C On the crack extension in plates under plane loading and transverse shear[J]. Journal of Basic Engineering, 1963, 85 (4): 519- 525 doi: 10.1115/1.3656897

[26]	RADAJ D, SONSINO C M, FRICKE W. Fatigue assessment of welded joints by local approaches [M]. Cambridge: Woodhead Publishing, 2006.

[27]	CHAPETTI M D, JAUREGUIZAHAR L F Fatigue behavior prediction of welded joints by using an integrated fracture mechanics approach[J]. International Journal of Fatigue, 2012, 43: 43- 53 doi: 10.1016/j.ijfatigue.2012.02.004

[28]	LASSEN T, RECHO N Proposal for a more accurate physically based S-N curve for welded steel joints[J]. International Journal of Fatigue, 2009, 31 (1): 70- 78 doi: 10.1016/j.ijfatigue.2008.03.032

[29]	王元清, 廖小伟, 周晖, 等基于SINTAP-FAD方法的含裂纹缺陷钢结构构件安全性评定研究[J]. 工程力学, 2017, 34 (5): 42- 51 WANG Yuan-qing, LIAO Xiao-wei, ZHOU Hui, et al Safety assessment of steel structure component with crack defects using SINTAP-FAD method[J]. Engineering Mechanics, 2017, 34 (5): 42- 51

[30]	LIAO X W, WANG Y Q, WANG Z Y, et al Effect of low temperatures on constant amplitude fatigue properties of Q345qD steel butt-welded joints[J]. Engineering Failure Analysis, 2019, 105: 597- 609 doi: 10.1016/j.engfailanal.2019.07.006

[31]	LEANDER J, AYGüL M, NORLIN B Refined fatigue assessment of joints with welded in-plane attachments by LEFM[J]. International Journal of Fatigue, 2013, 56: 25- 32 doi: 10.1016/j.ijfatigue.2013.07.013

[32]	Guide to methods for assessing the acceptability of flaws in metallic structures: BS7910 [S]. London: British Standards Institution, 2005.
