基于单目RGB图像的三维手部姿态估计方法

杨冰1,2(

),徐楚阳1,2,姚金良1,2,向学勤3

1. 杭州电子科技大学计算机学院，浙江杭州 310018
2. 杭州电子科技大学浙江省脑机协同智能重点实验室，浙江杭州 310018
3. 杭州灵伴科技有限公司，浙江杭州 311121

3D hand pose estimation method based on monocular RGB images

Bing YANG1,2(

),Chuyang XU1,2,Jinliang YAO1,2,Xueqin XIANG3

1. School of Computer Science, Hangzhou Dianzi University, Hangzhou 310018, China
2. Key Laboratory of Brain Machine Collaborative Intelligence of Zhejiang Province, Hangzhou Dianzi University, Hangzhou 310018, China
3. Hangzhou Lingban Technology Limited Company, Hangzhou 311121, China

全文: PDF(1337 KB) HTML

摘要：

现有的三维手部姿态估计方法大多基于Transformer技术，未充分利用高分辨率下的局部空间信息，为此提出基于改进FastMETRO的三维手部姿态估计方法. 引入可变形注意力机制，使得编码器的设计不再受限于图像特征序列长度；引入交错更新多尺度特征编码器来融合多尺度特征，强化生成手部姿态；引入图卷积残差模块来挖掘网格顶点间的显式语义联系. 为了验证所提方法的有效性，在数据集FreiHAND、HO3D V2和HO3D V3上开展训练及评估实验. 结果表明，所提方法的回归精度优于现有先进方法，在FreiHAND、HO3D V2、HO3D V3上的普鲁克对齐-平均关节点误差分别为5.8、10.0、10.5 mm.

关键词： 三维手部姿态估计; Transformer; 可变形注意力机制; 交错更新多尺度特征编码器; 神经网络

Abstract:

A 3D hand pose estimation method based on improved FastMETRO was proposed for most of the existing 3D hand pose estimation methods are based on Transformer technology and do not fully consider the local spatial information at high resolution. By introducing deformable attention, the design of the encoder was not limited by the length of the image feature sequence. The interleaved update multi-scale feature encoder was employed to fuse multi-scale features and enhance the generation of hand pose, and the graph convolution residual module was employed to exploit the explicit semantic connections between mesh vertices. To validate the effectiveness of the proposed method, the training and experiments were conducted in the datasets FreiHAND, HO3D V2 and HO3D V3. Results showed that the regression accuracy of the proposed method was better than existing advanced methods with Procrustes aligned - average joints error of 5.8, 10.0, and 10.5 mm in FreiHAND, HO3D V2, and HO3D V3, respectively.

Key words: 3D hand poses estimation Transformer deformable attention interleaved update multi-scale feature encoder neural network

收稿日期: 2024-01-22 出版日期: 2025-01-18

CLC:

TP 391

基金资助: 浙江省基础公益研究计划（LGG22F020027）.

作者简介: 杨冰（1985—），女，副教授，博士，从事计算机视觉、机器学习研究. orcid.org/0000-0002-0585-0579. E-mail：yb@hdu.edu.cn

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	作者相关文章
	杨冰
	徐楚阳
	姚金良
	向学勤

引用本文:

杨冰,徐楚阳,姚金良,向学勤. 基于单目RGB图像的三维手部姿态估计方法[J]. 浙江大学学报(工学版), 2025, 59(1): 18-26.

Bing YANG,Chuyang XU,Jinliang YAO,Xueqin XIANG. 3D hand pose estimation method based on monocular RGB images. Journal of ZheJiang University (Engineering Science), 2025, 59(1): 18-26.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2025.01.002 或 https://www.zjujournals.com/eng/CN/Y2025/V59/I1/18

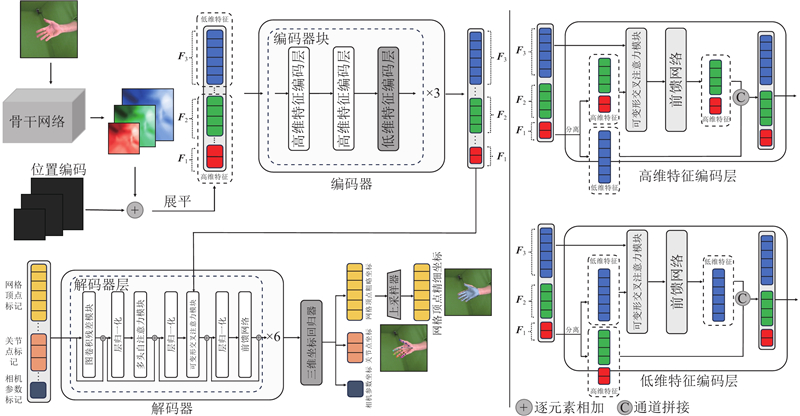

图 1 三维手部姿态估计方法的模型结构

图 2 可变形注意力的计算流程

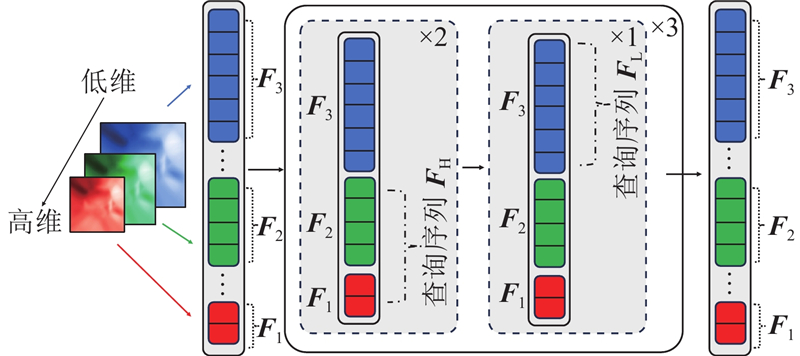

图 3 交错更新多尺度特征

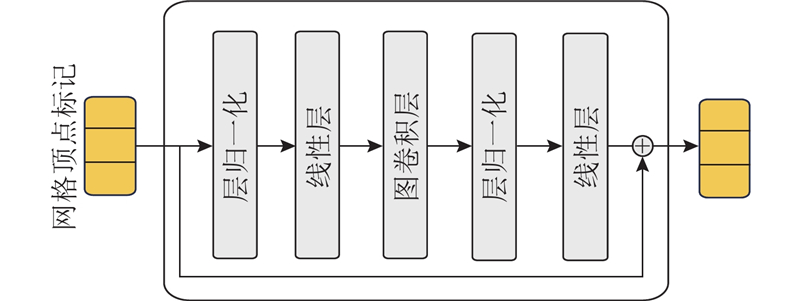

图 4 图卷积残差模块
