Improved GRU landslide displacement prediction model based on multifractal
Man XU1(),Dongmei ZHANG1,Xiang YU1,Jiang LI2,*(),Yiping WU3
1. School of Computer Science, China University of Geosciences (Wuhan), Wuhan 430074, China
2. Information Center, Department of Natural Resources of Hubei Province, Wuhan 430071, China
3. Faculty of Engineering, China University of Geosciences (Wuhan), Wuhan 430074, China
 全文: PDF(2282 KB)   HTML
摘要:

门控机制设计难以学习序列变化趋势,导致传统记忆网络模型对滑坡位移非平稳跃变段预测效果较差. 基于多重分形改进门控循环单元(GRU),通过量化序列的变化特征来动态更新门控权重,引入循环神经网络单元的状态融合策略以学习数据的长程相关性特征. 采用变分模态分解算法将滑坡累积位移分解成趋势项、周期项及随机项,利用改进GRU进行位移分量的训练和预测. 选取三峡库区白水河滑坡监测点ZG93、ZG118进行仿真实验. 实验结果表明,相比传统预测模型,新模型的滑坡位移形变趋势特征学习能力更强,预测精度更高.

关键词: 滑坡累积位移多重分形门控循环单元(GRU)变分模态分解循环神经网络
Abstract:

The traditional memory network model has poor prediction accuracy on a non-stationary mutation data segment due to the gate mechanism has difficulty in learning sequence change trends. A multifractal algorithm was introduced to improve the gating control of the gated recurrent unit (GRU), and dynamically update the gating weight by quantifying the change characteristics of the sequence. The state fusion of the recurrent neural network unit was introduced to learn the long-range correlation of data. The landslide cumulative displacement was decomposed into trend term, periodic term and random term through the variational mode decomposition algorithm. The decomposed terms were trained and predicted by using the improved GRU. The monitoring points ZG93 and ZG118 of the Baishuihe landslide in the Three Gorges Reservoir area were selected for simulation experiments. Experimental results show that compared with traditional models, the new model learns the characteristics of the landslide displacement deformation trend better and has a higher prediction accuracy.

Key words: landslide cumulative displacement    multifractal    gated recurrent unit (GRU)    variational mode decomposition    recurrent neural network
收稿日期: 2023-06-26 出版日期: 2024-07-01
CLC:  P 642
基金资助: 国家自然科学基金联合基金重点支持项目(U1911205);湖北省自然资源厅科技项目(ZRZY2024KJ22).
通讯作者: 李江     E-mail: xuman@cug.edu.cn;johnlee1124@126.com
作者简介: 徐满(2001—),男,硕士生,从事时序预测研究. orcid.org/0009-0002-9741-8181. E-mail:xuman@cug.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
徐满
张冬梅
余想
李江
吴益平

引用本文:

徐满,张冬梅,余想,李江,吴益平. 基于多重分形的改进GRU滑坡位移预测模型[J]. 浙江大学学报(工学版), 2024, 58(7): 1407-1416.

Man XU,Dongmei ZHANG,Xiang YU,Jiang LI,Yiping WU. Improved GRU landslide displacement prediction model based on multifractal. Journal of ZheJiang University (Engineering Science), 2024, 58(7): 1407-1416.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.07.010        https://www.zjujournals.com/eng/CN/Y2024/V58/I7/1407

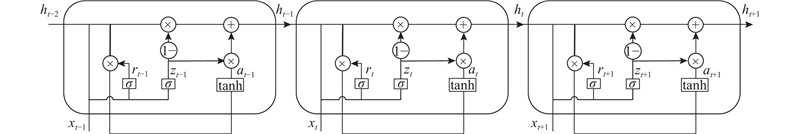

图 1  门控循环单元的原理图

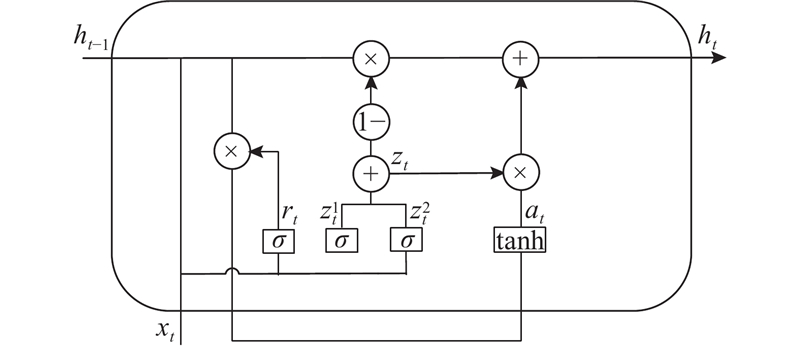

图 2  基于多重分形的改进门控循环单元结构图

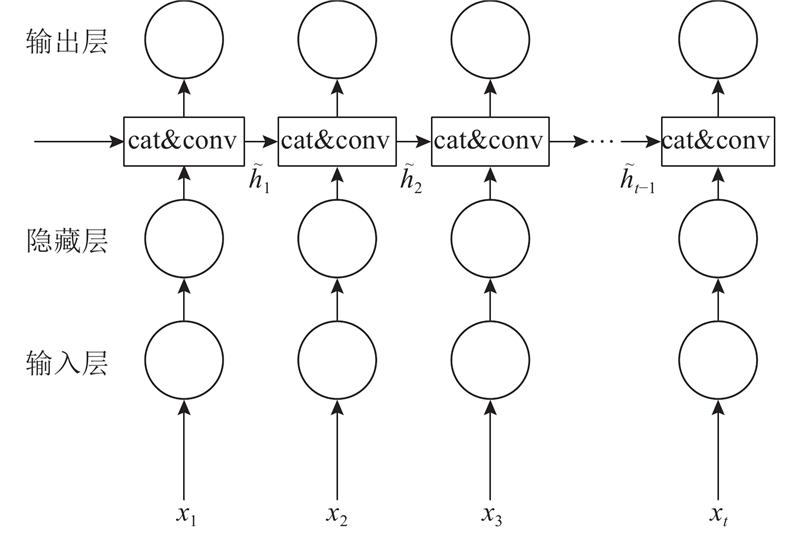

图 3  循环神经网络状态融合

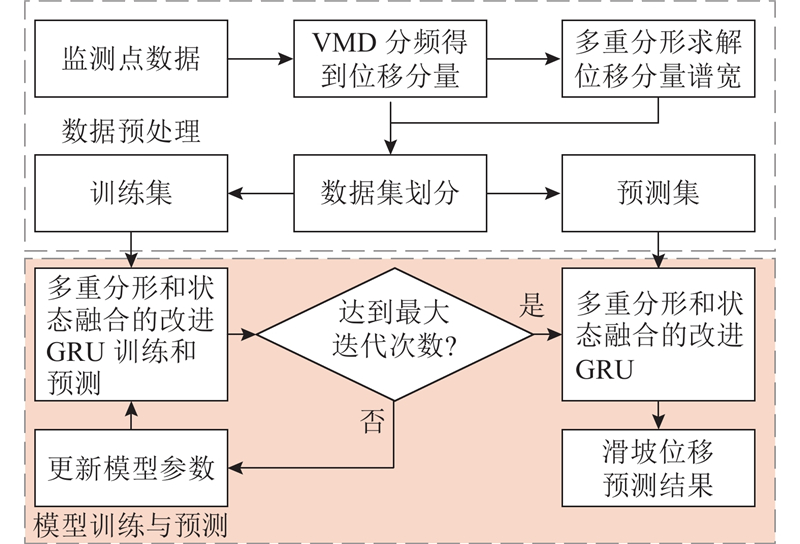

图 4  滑坡位移预测流程图
图 5  白水河滑坡地质概况图[4]
序列长度RMSE/mm序列长度RMSE/mm
60.0896140.1346
80.0844160.0852
100.0836180.0885
120.0809
表 1  不同输入窗口设置下预测结果的均方根误差
参数取值参数取值
VMD分量数k3迭代次数1200
批处理数量256学习率0.001
隐藏层节点数64隐藏层层数1
表 2  对比试验参数设置
图 6  不同监测点的累积位移-时间曲线图

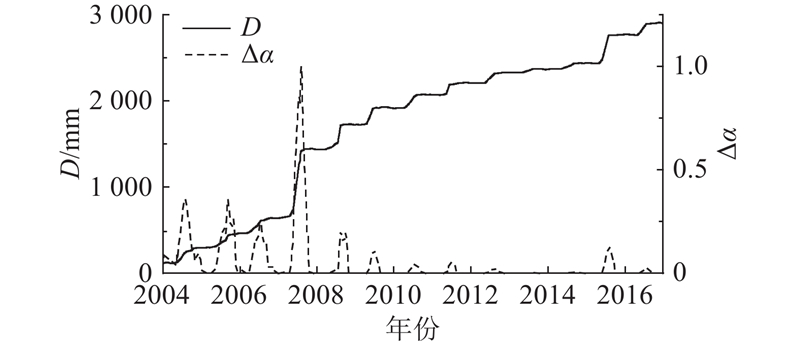

图 7  监测点ZG118的累积位移-时间曲线、谱宽-时间曲线

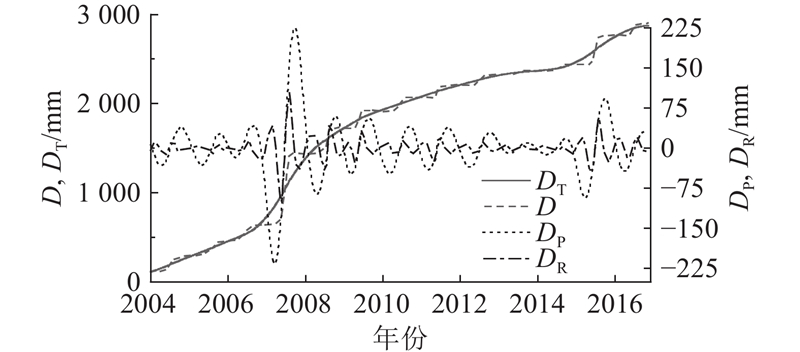

图 8  监测点ZG118的滑坡位移分量-时间曲线
图 9  监测点ZG118的库水位-时间曲线、周期项-时间曲线

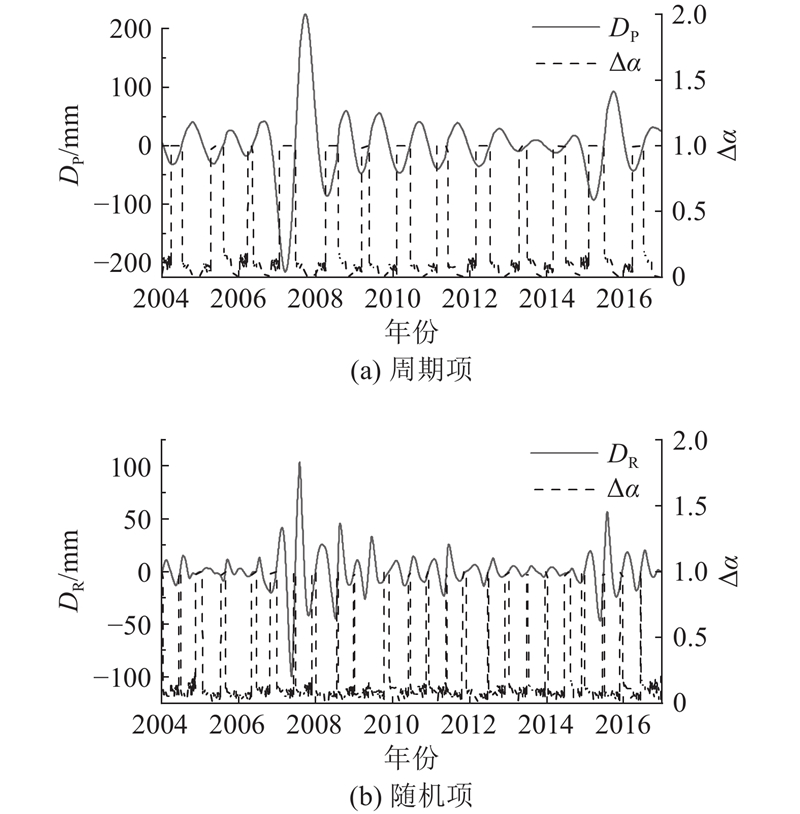

图 10  监测点ZG118周期项、随机项及对应谱宽随时间变化的曲线

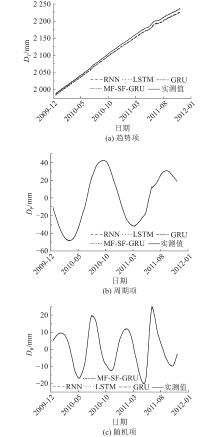

图 11  不同模型滑坡位移分量的预测曲线

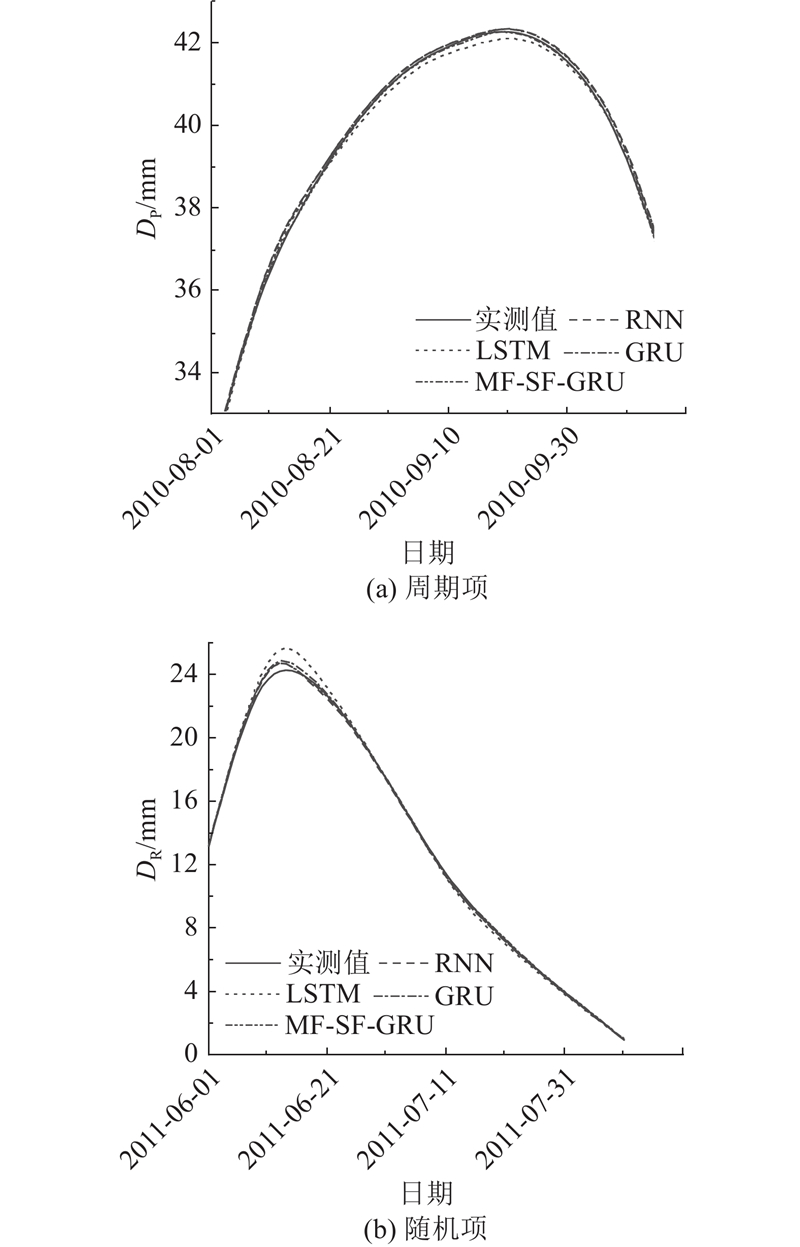

图 12  不同模型在突变数据段的周期项、随机项预测曲线
