工程设计学报  2023, Vol. 30 Issue (1): 73-81    DOI: 10.3785/j.issn.1006-754X.2023.00.007
建模、仿真、分析与决策
两栖仿海龟机器人动力学建模与运动控制研究
芮宏斌(),李路路,王天赐,段凯文
西安理工大学 机械与精密仪器工程学院,陕西 西安 710048
Research on dynamic modeling and motion control of amphibious turtle inspired robot
Hong-bin RUI(),Lu-lu LI,Tian-ci WANG,Kai-wen DUAN
College of Mechanical and Precision Instrument Engineering, Xi’an University of Technology, Xi’an 710048, China
 全文: PDF(4081 KB)   HTML
摘要:

为了提高两栖仿海龟机器人行走的稳定性,对其进行动力学建模,并基于PID(proportional integral derivative,比例积分微分)反馈控制策略提出了一种力/位控制模型。首先,根据机器人的运动学模型,得到了支腿的变换矩阵和雅可比矩阵,并利用虚功原理建立了足端与液压缸之间的力传递模型。然后,利用拉格朗日法对机器人进行动力学建模,推导了支腿的动力学方程,同时进行了动力学仿真,并将实时的足端受力导入动力学方程进行计算,验证了动力学模型的正确性。最后,搭建了液压仿真模型,并在ADAMS?AMESim?MATLAB联合仿真环境中开展了机器人运动仿真。仿真结果显示:与纯位置控制模式相比,力/位控制模式下机器人膝关节的转动更加平稳,液压缸的动力输出更稳定且功耗更小。研究结果对提高机器人运动的稳定性、增强运动控制系统的鲁棒性和提高液压系统的总效率具有借鉴意义。

关键词: 机器人动力学力/位控制联合仿真
Abstract:

In order to improve the walking stability of amphibious turtle inspired robot, a dynamics model was established, and a force/position control model was proposed based on the PID (proportional integral derivative) feedback control strategy. Firstly, according to the kinematics model of the robot, the transformation matrix and Jacobian matrix of the outrigger were obtained, and a force transfer model between foot end and hydraulic cylinder was established by the virtual work principle. Then, the Lagrange method was used to model the dynamics of the robot, and the dynamics equation of the outrigger was derived. At the same time, the dynamics simulation was carried out, and the real-time force on the foot end was introduced into the dynamics equation for calculation, which verified the correctness of the dynamics model. Finally, a hydraulic simulation model was built, and the robot motion simulation was carried out in the ADAMS?AMESim?MATLAB co-simulation environment. The simulation results showed that compared with the pure position control mode, the rotation of the robot knee joint under the force/position control mode was more stable, and the power output of the hydraulic cylinder was more stable and the power consumption was less. The research results have reference significance for improving the stability of robot motion, enhancing the robustness of motion control system and improving the overall efficiency of hydraulic system.

Key words: robot    dynamics    force/position control    co-simulation
收稿日期: 2022-05-17 出版日期: 2023-03-06
CLC:  TH 113
基金资助: 国家自然科学基金面上项目(51775432);陕西省技术创新引导专项(2018ZKC-160);陕西省教育厅重点科研计划项目(22JY051);陕西省科技计划重点研发项目(2023-YBGY-357)
作者简介: 芮宏斌(1978—),男,陕西西安人,副教授,博士,从事车辆系统动力学与控制技术、特种移动机器人设计研究,E-mail: Hongbin.rui@126.com,https://orcid.org/0000-0002-2718-831X
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
芮宏斌
李路路
王天赐
段凯文

引用本文:

芮宏斌,李路路,王天赐,段凯文. 两栖仿海龟机器人动力学建模与运动控制研究[J]. 工程设计学报, 2023, 30(1): 73-81.

Hong-bin RUI,Lu-lu LI,Tian-ci WANG,Kai-wen DUAN. Research on dynamic modeling and motion control of amphibious turtle inspired robot[J]. Chinese Journal of Engineering Design, 2023, 30(1): 73-81.

链接本文:

https://www.zjujournals.com/gcsjxb/CN/10.3785/j.issn.1006-754X.2023.00.007        https://www.zjujournals.com/gcsjxb/CN/Y2023/V30/I1/73

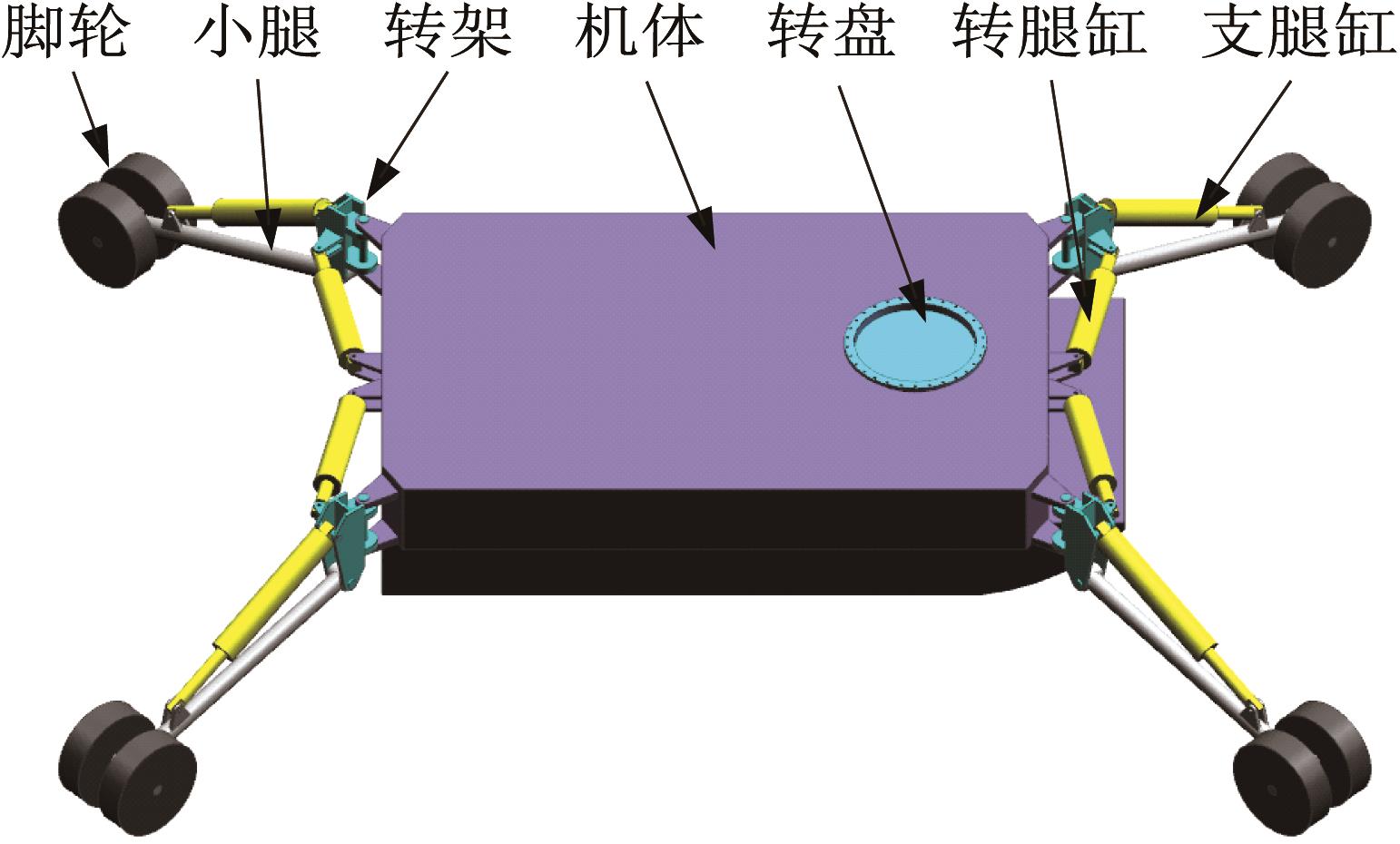

图1  两栖仿海龟机器人三维模型
参数数值
机体(长×宽×高)1 006×620×245
转架长度42
小腿长度430
脚轮直径150
表1  两栖仿海龟机器人的主要尺寸参数 (mm)
参数转腿缸支腿缸
工作压力/MPa1010
缸径/mm1625
杆径/mm810
最小安装距/mm210250
最大行程/mm110150
最大推力/N2 0104 906
最大拉力/N1 5074 121
表2  液压缸的主要技术性能参数

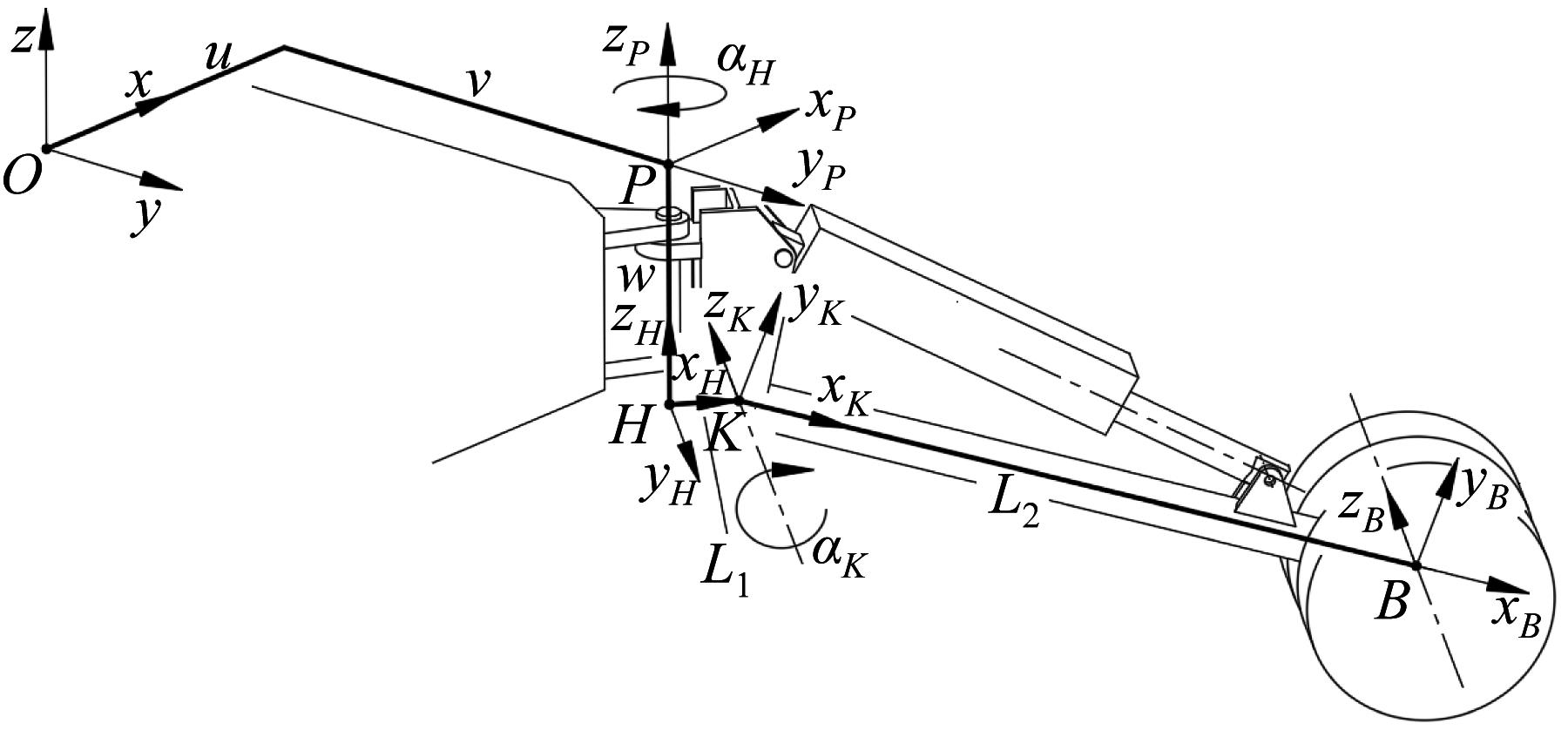

图2  支腿运动坐标系

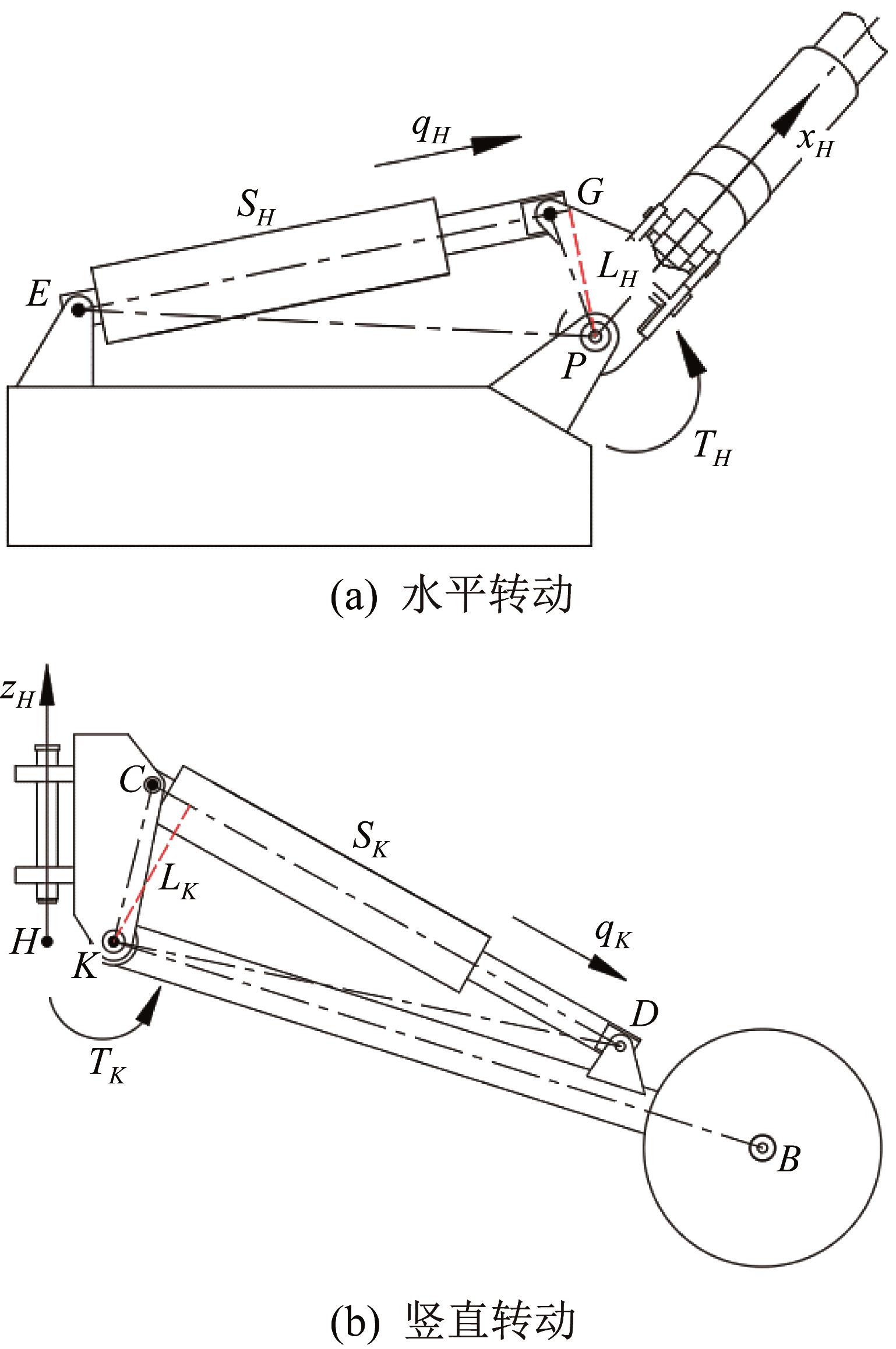

图3  支腿的运动图解

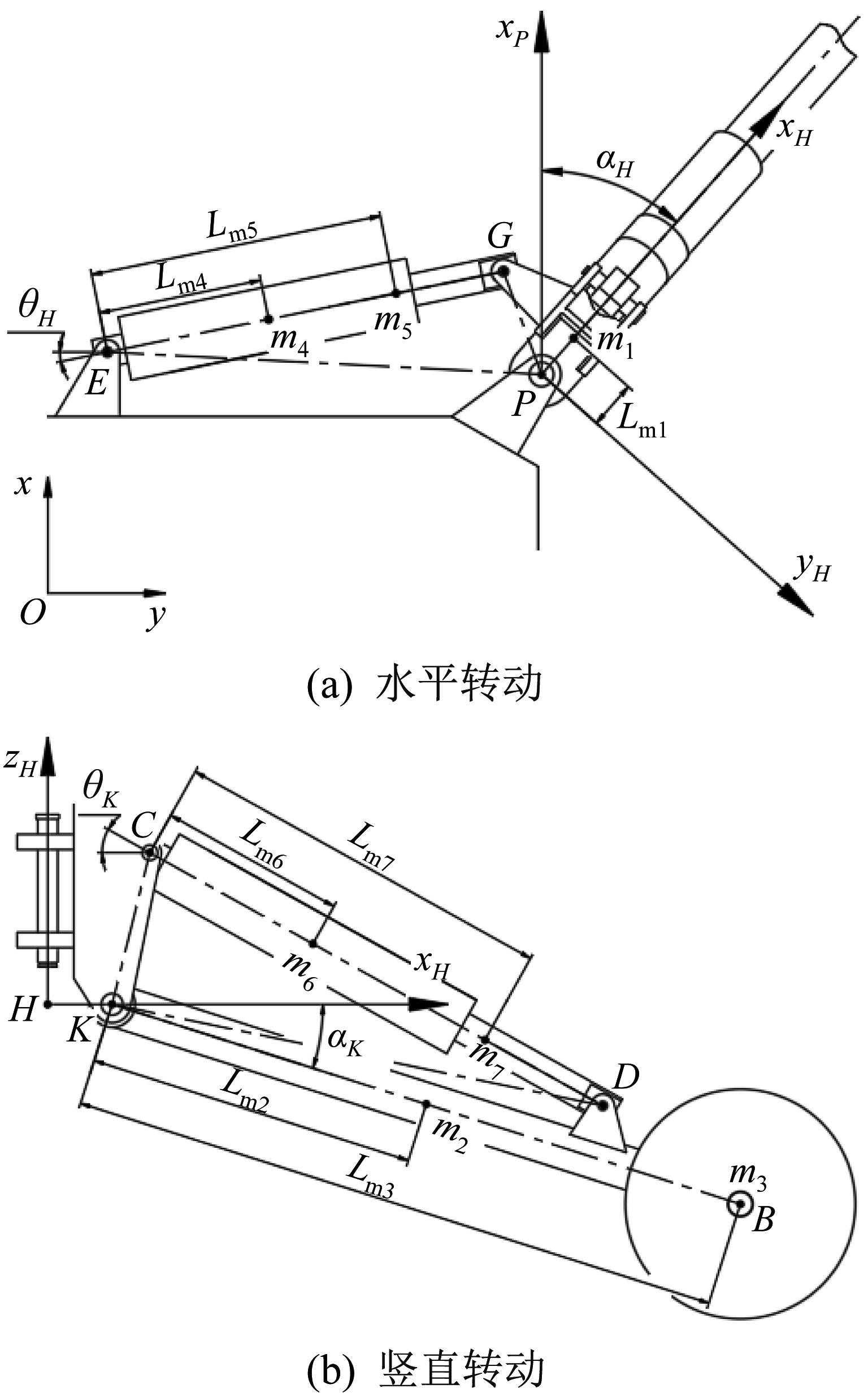

图4  支腿各部件质心位置示意
部件j质量mj /kg质心位置Lmj /mm
10.530
21.5215
31.0430
40.8102
50.4
61.0122
70.5
表3  支腿各部件的质量及质心位置

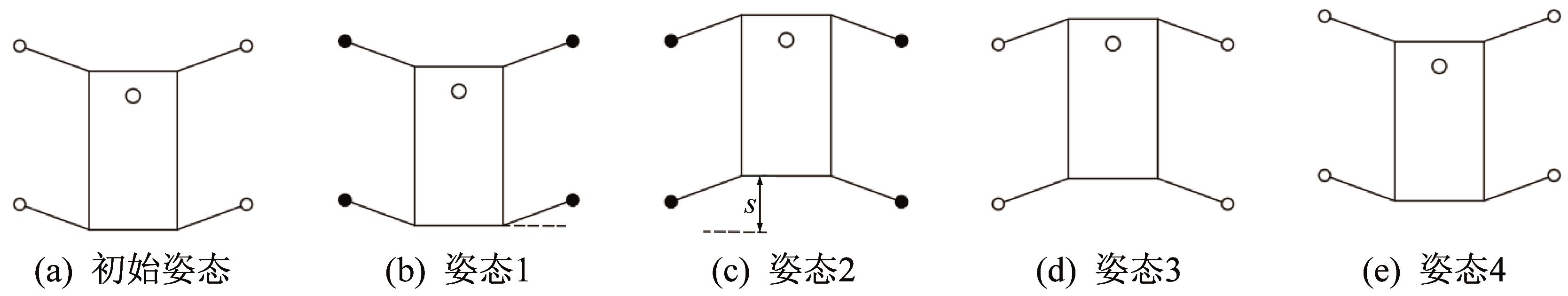

图5  仿海龟爬行步态示意

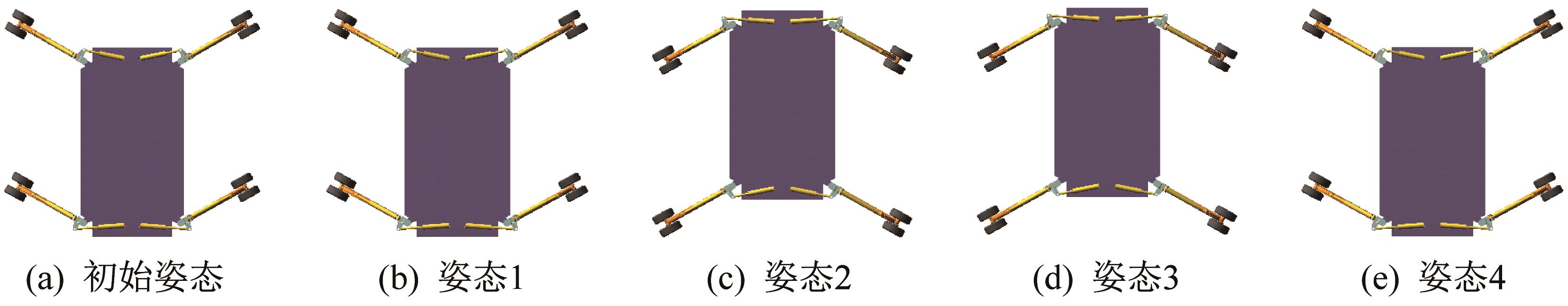

图6  仿海龟爬行步态仿真结果

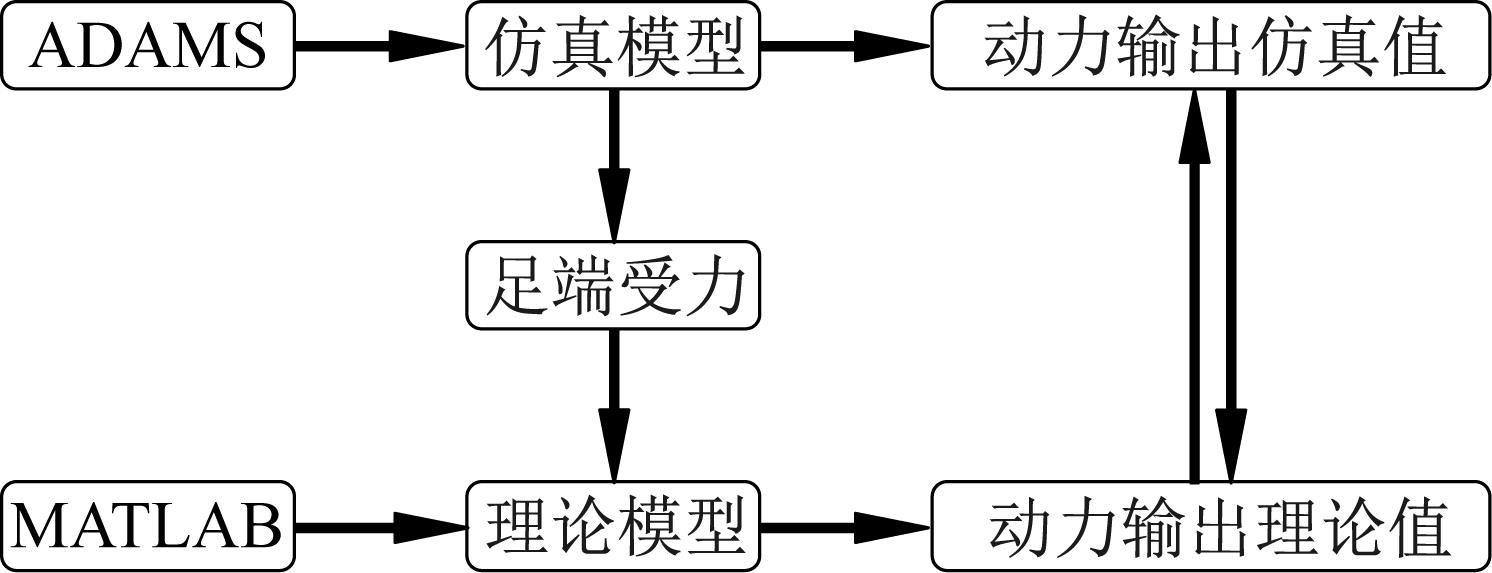

图7  机器人动力学模型仿真验证技术路线

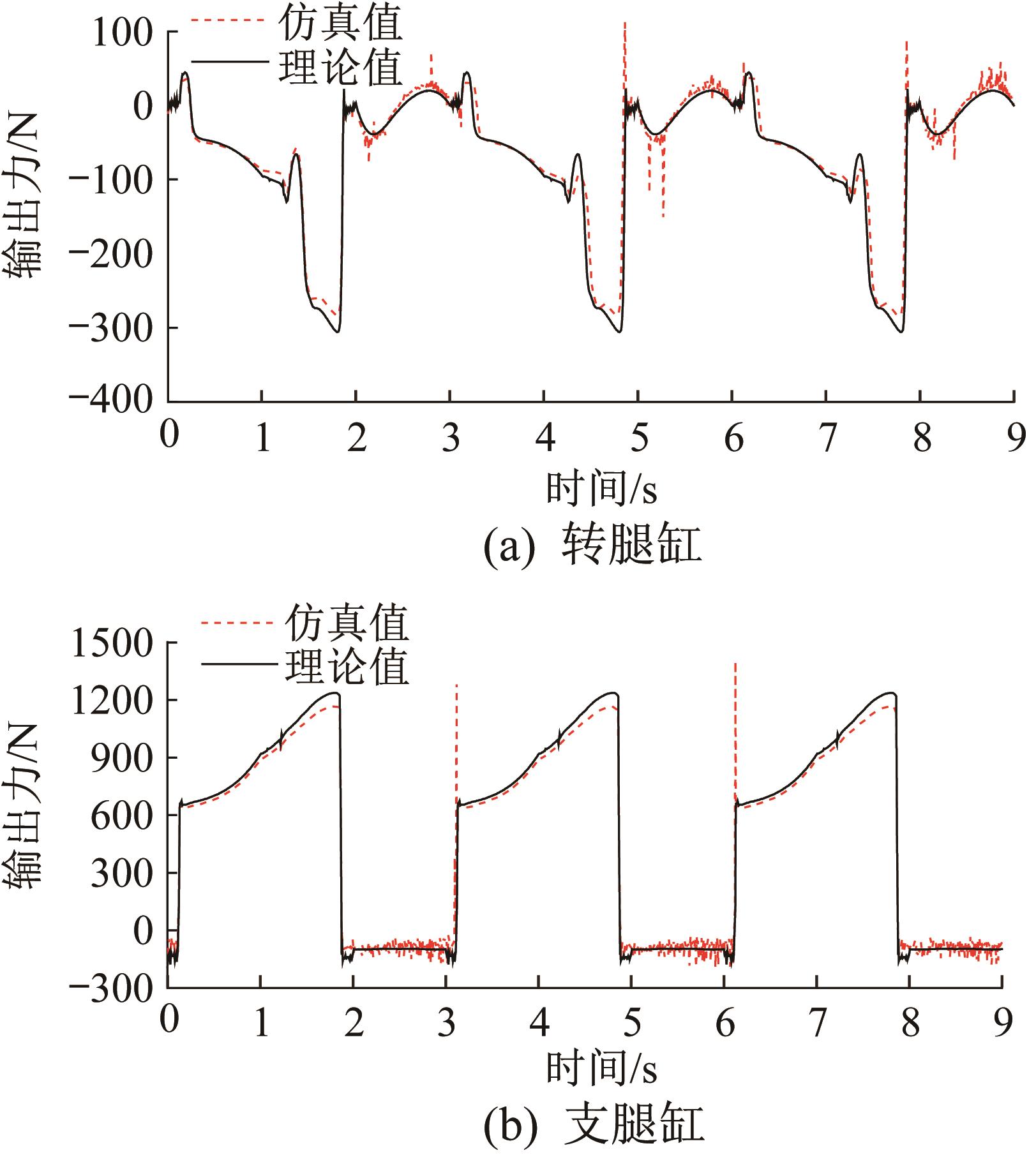

图8  液压缸动力输出曲线对比

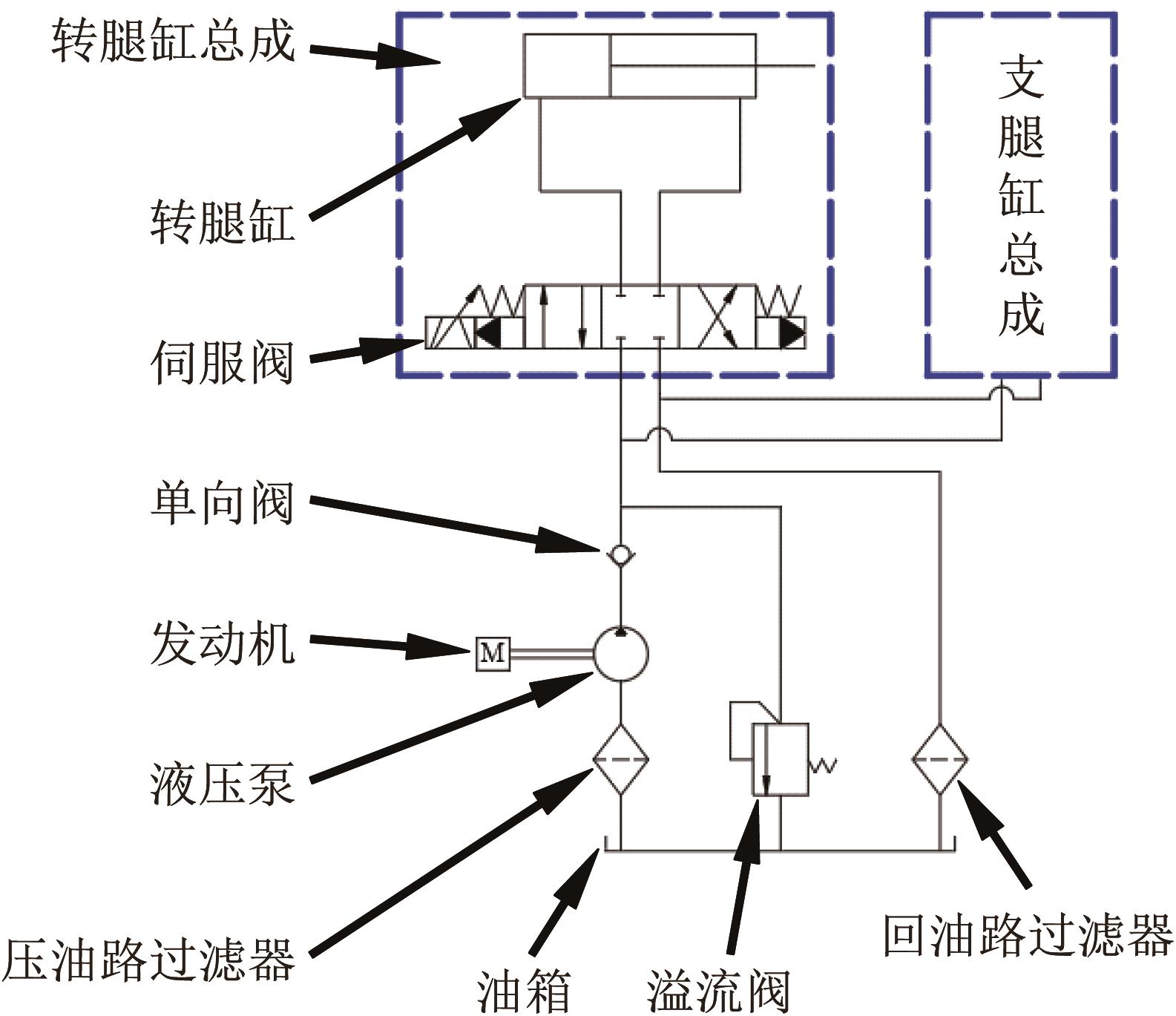

图9  单支腿的液压原理

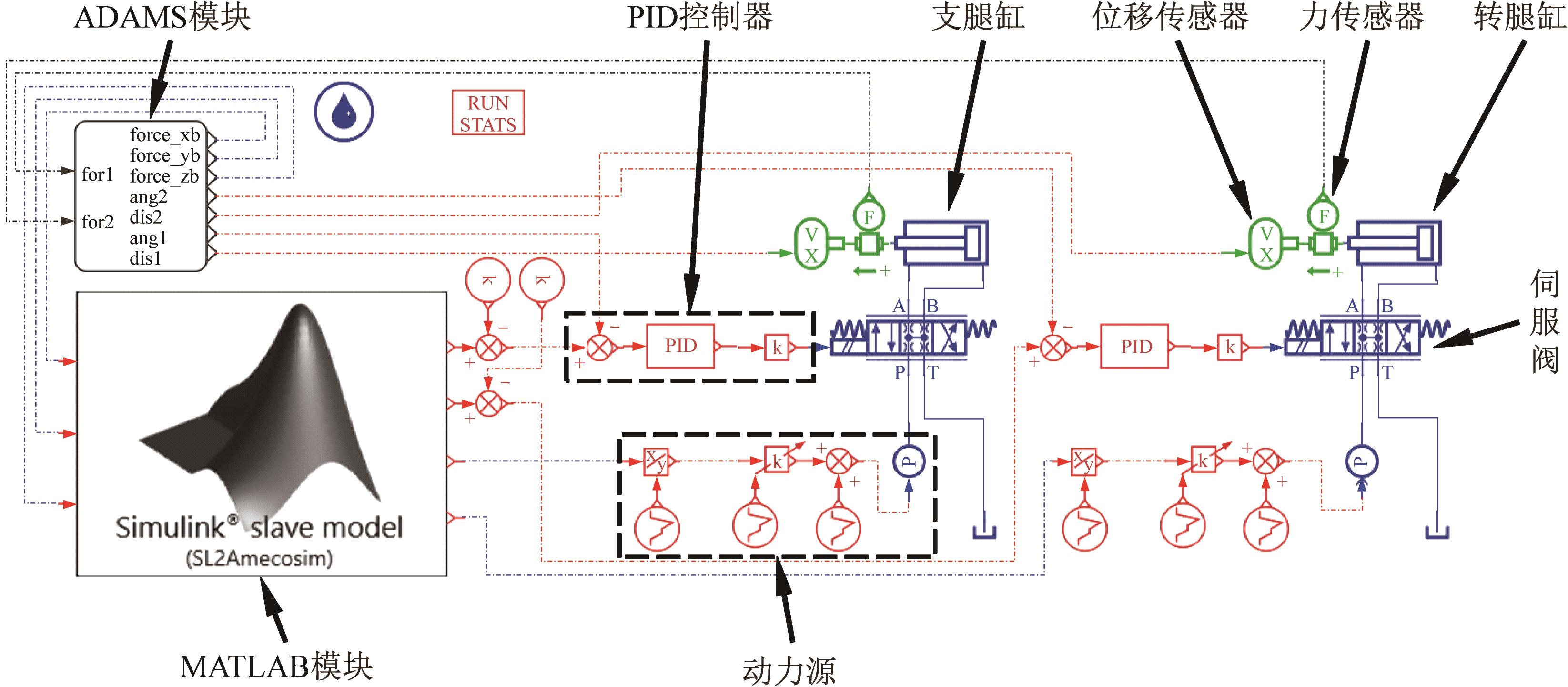

图10  单支腿液压系统仿真模型

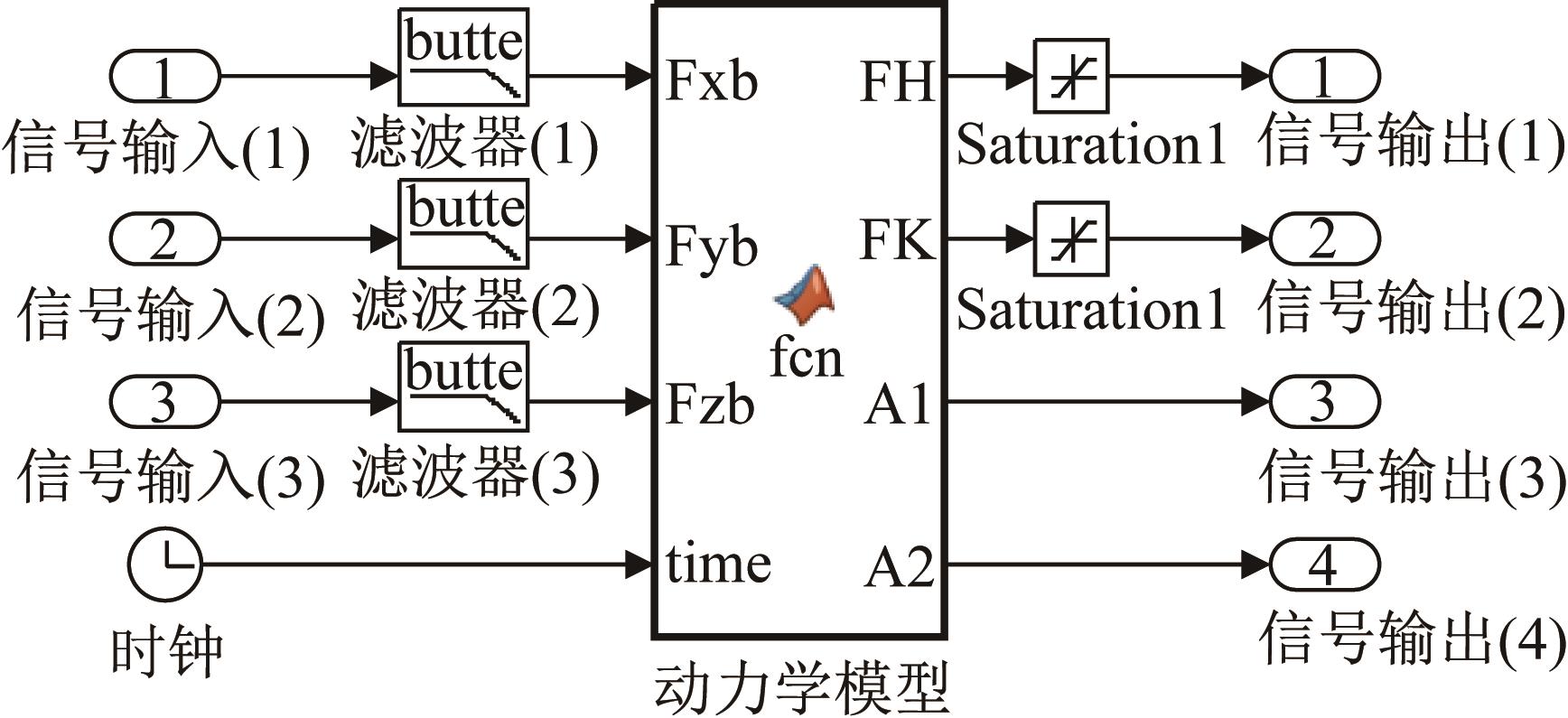

图11  基于机器人动力学方程的MATLAB计算模型

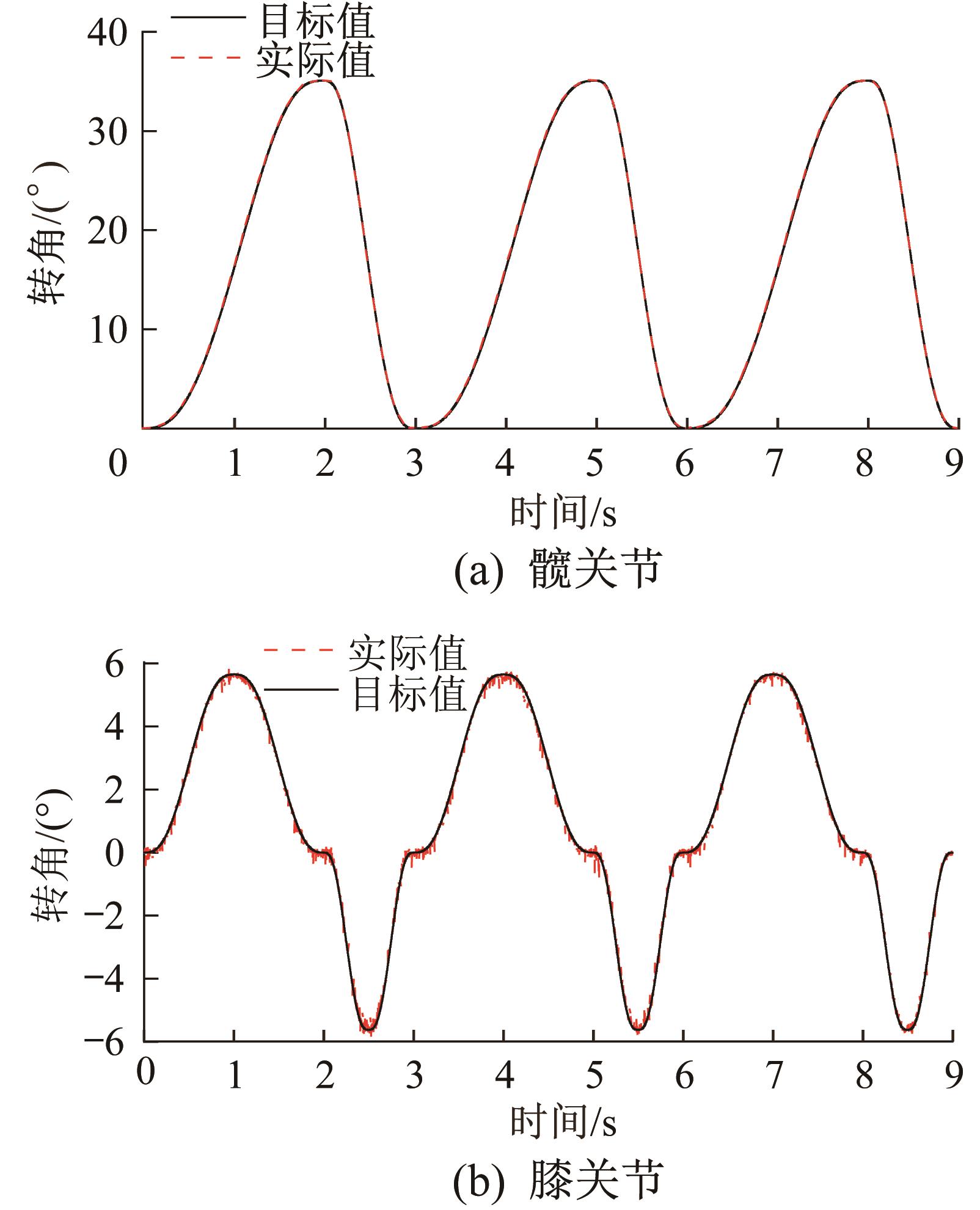

图12  纯位置控制模式下支腿关节转角的变化曲线

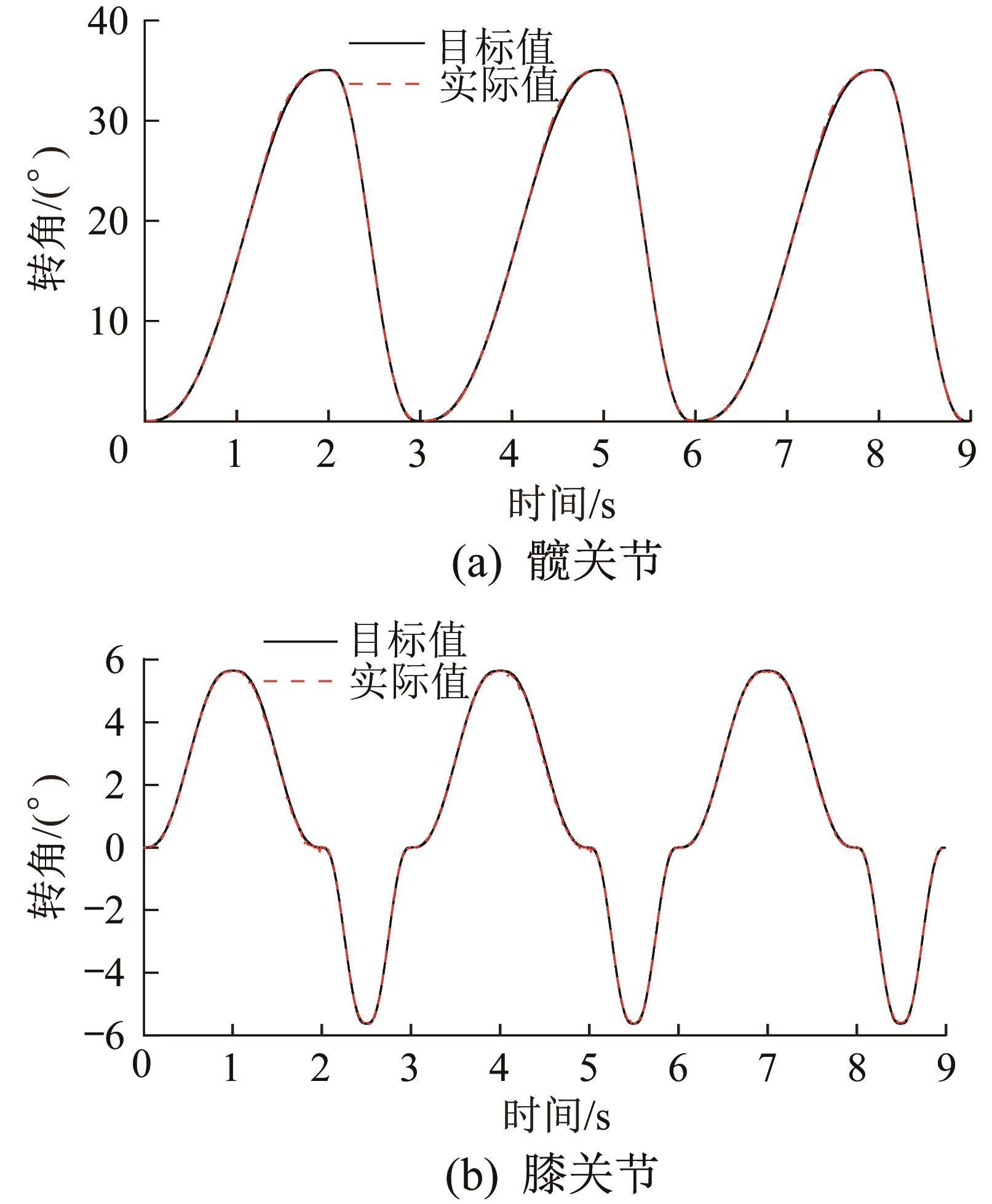

图13  力/位控制模式下支腿关节转角的变化曲线

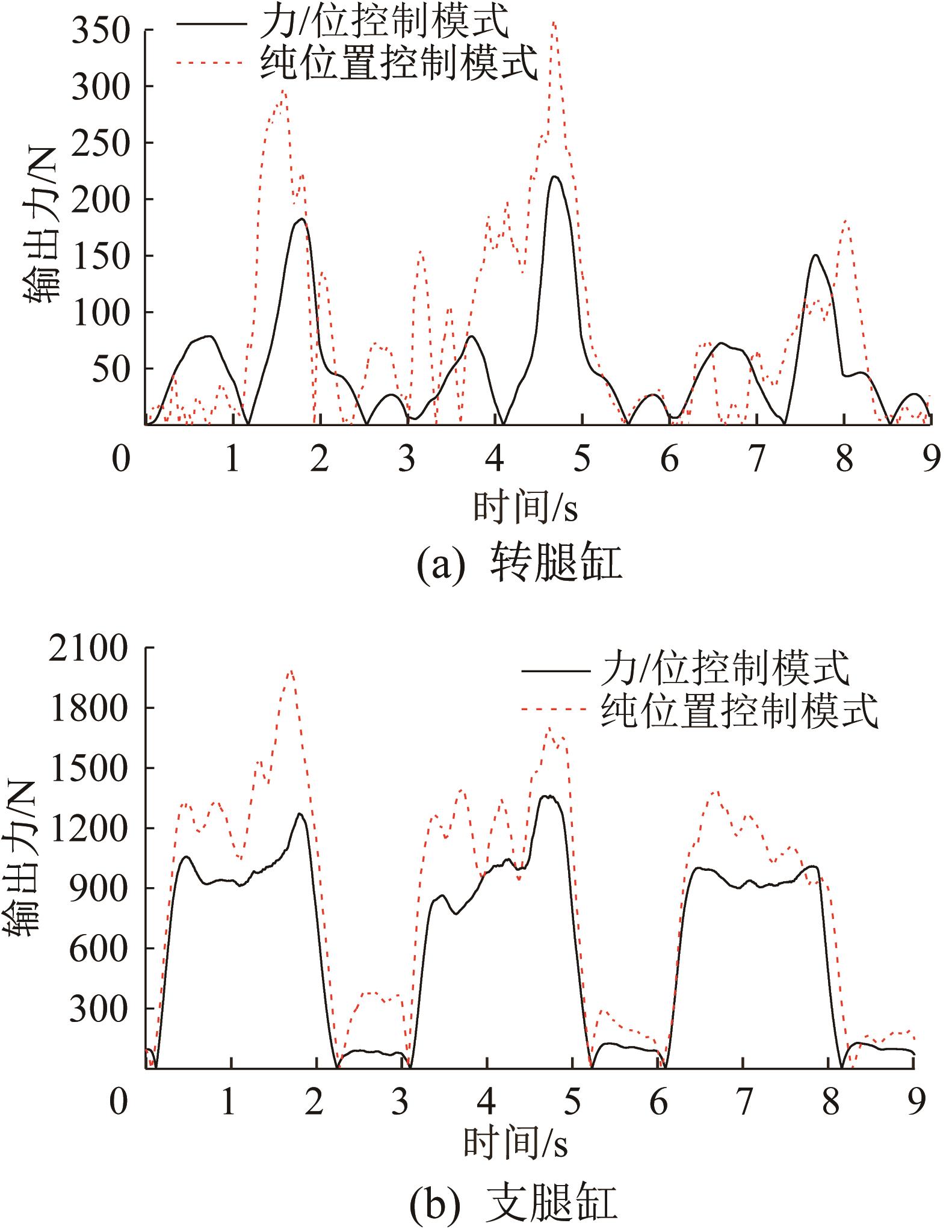

图14  不同控制模式下液压缸动力输出曲线对比
