浙江大学学报(工学版)  2024, Vol. 58 Issue (12): 2447-2458    DOI: 10.3785/j.issn.1008-973X.2024.12.004
计算机技术
基于改进YOLOv7的复杂环境下苹果目标检测
莫恒辉(),魏霖静*()
甘肃农业大学 信息科学技术学院,甘肃 兰州 730070
Improved YOLOv7 based apple target detection in complex environment
Henghui MO(),linjing WEI*()
College of Information Science and Technology, Gansu Agricultural University, Lanzhou 730070, China
 全文: PDF(1927 KB)   HTML
摘要:

采摘机器人在不稳定光照、果实多样性和树叶遮挡等复杂自然环境下识别苹果时,检测模型难以捕获关键特征,导致采摘效率和准确性较低. 提出基于YOLOv7模型的针对复杂场景下苹果目标检测的改进算法. 通过限制对比度自适应直方图均衡化算法增强苹果图像对比度,以减少背景干扰,增强目标轮廓清晰度;提出多尺度混合自适应注意力机制,通过特征解构与重构,协同整合空间和通道维度的注意力导向,优化多层次特征的长短距离建模,增强模型对苹果特征的提取能力与抗背景干扰能力;引入全维度动态卷积,通过精细化的注意力机制优化特征选择过程;增加检测头个数,解决小目标检测问题;采用Meta-ACON激活函数,优化特征提取过程中的关注度分配. 结果表明,改进后的YOLOv7模型对苹果的平均检测准确率和召回率分别为85.7%、87.0%,相比于Faster R-CNN、SSD、YOLOv5、YOLOv7,平均检测精度分别提高了15.2、7.5、4.5、2.5个百分比,平均召回率分别提高了13.7、6.5、3.6、1.3个百分比. 模型效果表现优异,为苹果生长监测及机械摘果研究提供了坚实的技术支撑.

关键词: 苹果目标检测YOLOv7注意力机制小目标检测激活函数Grad-CAM
Abstract:

Robotic harvesters face challenges in identifying apples under complex natural conditions such as unstable lighting, high fruit diversity, and severe leaf occlusion, which impedes the capture of key features, reducing harvesting efficiency and accuracy. An enhanced apple detection algorithm based on the YOLOv7 model for complex scenarios was proposed. A limited contrast adaptive histogram equalization technique was employed to enhance the contrast of apple images, reducing the background interference and clarifying the target contours. A multi-scale hybrid adaptive attention mechanism was introduced. The features were decomposed and reconstructed, and the spatial and channel attention directives were synergistically integrated to optimize multi-layer feature modeling over various distances, thereby boosting the model’s capability to extract apple features and resist background noise. Full-dimensional dynamic convolution was implemented to refine the feature selection process through a meticulous attention mechanism. The number of detection heads was increased to address the challenges of detecting small targets. The Meta-ACON activation function was used to optimize the attention allocation during feature extraction process. Experimental results demonstrated that the improved YOLOv7 model, achieved average accuracy and recall rates of 85.7% and 87.0%, respectively. Compared to Faster R-CNN, SSD, YOLOv5, and the original YOLOv7, the average detection precision was improved by 15.2, 7.5, 4.5, and 2.5 percentage points, and the average recall was improved by 13.7, 6.5, 3.6, and 1.3 percentage points, respectively. The model exhibits exceptional performance, providing robust technical support for apple growth monitoring and mechanical harvesting research.

Key words: apple target detection    YOLOv7    attention mechanism    small target detection    activation function    Grad-CAM
收稿日期: 2023-11-09 出版日期: 2024-11-25
CLC:  TP 391.4
基金资助: 科技部国家外专资助项目(G2022042005L);甘肃省高等学校产业支撑资助项目(2023CYZC-54);甘肃省重点研发计划资助项目(23YFWA0013);兰州市人才创新创业资助项目(2021-RC-47);2020年甘肃农业大学研究生教育研究资助项目(2020-19);2021年甘肃农业大学校级“三全育人”试点推广教学研究资助项目(2022-9);2022年甘肃农业大学校级专业综合改革项目(2021-4).
通讯作者: 魏霖静     E-mail: 973733507@qq.com;wlj@gsau.edu.cn
作者简介: 莫恒辉(2000—),男,硕士生,从事农业工程与信息技术研究. orcid.org/0009-0000-6815-2738. E-mail:973733507@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
莫恒辉
魏霖静

引用本文:

莫恒辉,魏霖静. 基于改进YOLOv7的复杂环境下苹果目标检测[J]. 浙江大学学报(工学版), 2024, 58(12): 2447-2458.

Henghui MO,linjing WEI. Improved YOLOv7 based apple target detection in complex environment. Journal of ZheJiang University (Engineering Science), 2024, 58(12): 2447-2458.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.12.004        https://www.zjujournals.com/eng/CN/Y2024/V58/I12/2447

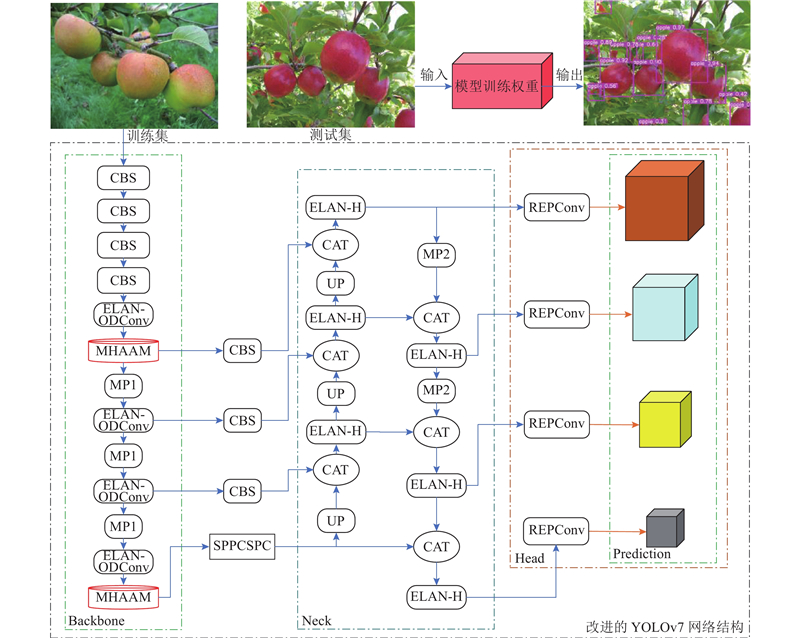

图 1  改进YOLOv7结构

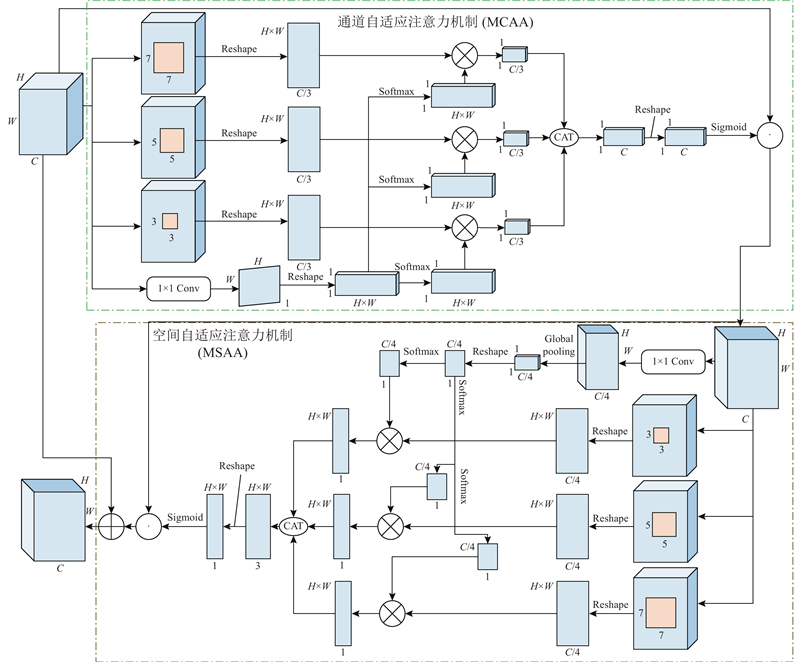

图 2  多尺度混合自适应注意力模块结构

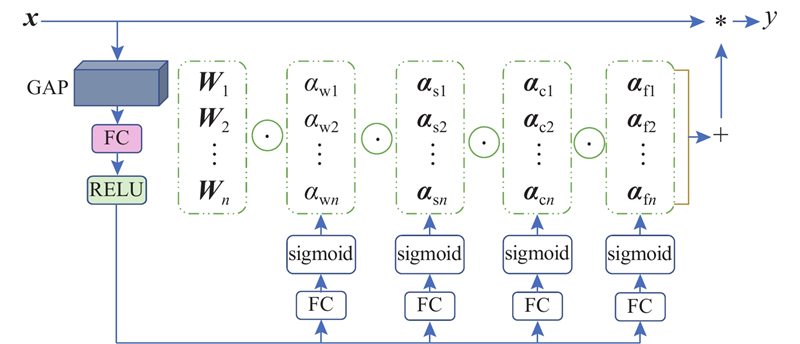

图 3  ODConv模块结构

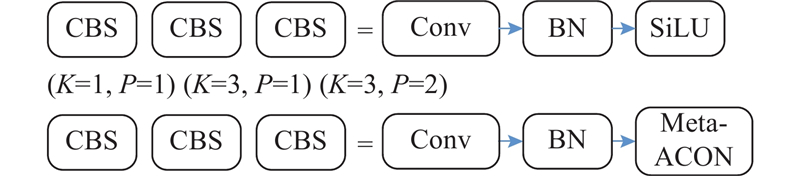

图 4  改进CBS模块结构
图 5  图像增强前后对比

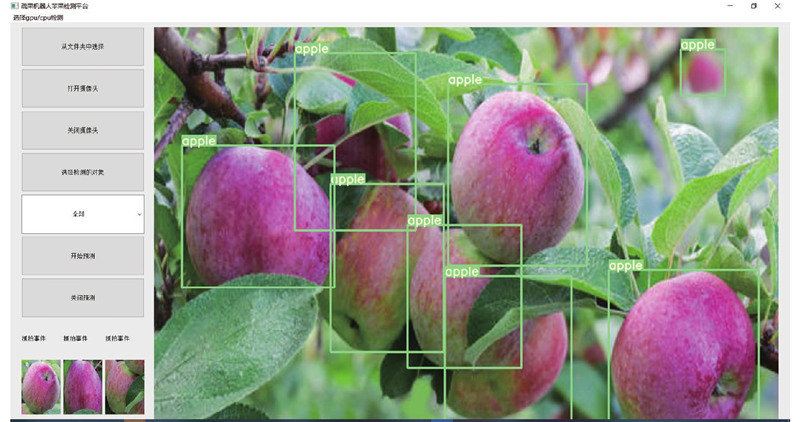

图 6  检测系统界面
影响因素图像类别Ns
幼果顺光317
逆光233
成熟期顺光675
逆光775
树枝遮挡顺光472
逆光491
远距离872
光照不均517
光照低372
表 1  数据集拍摄信息
图 7  不同时期光照与遮挡情况
图 8  图像增强示例

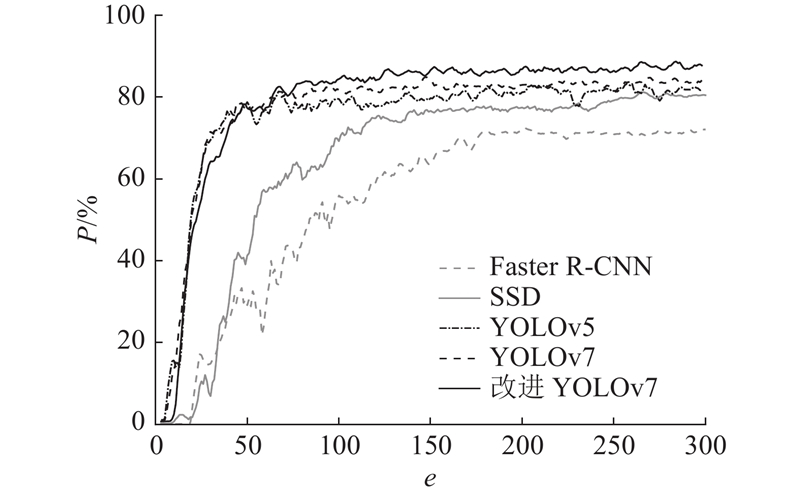

图 9  平均准确度对比图

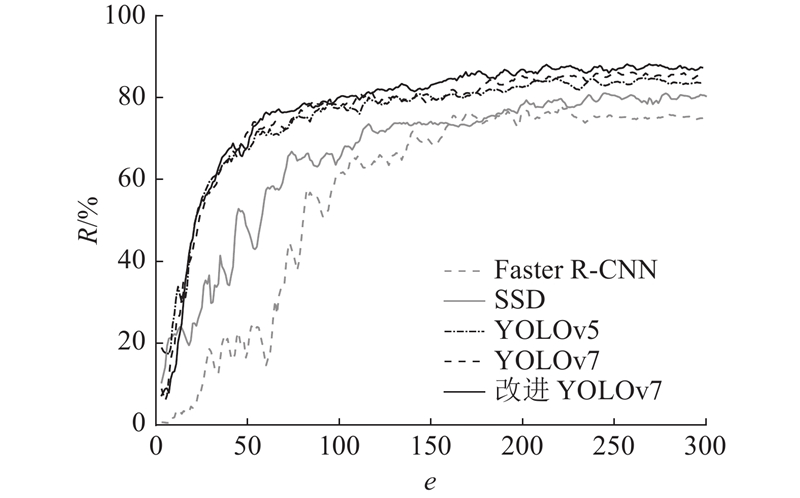

图 10  平均召回率对比图
模型P/%R/%WS/MBt/s
Faster R-CNN
(voc_resnet.pth)
70.273.3108.00.154
SSD(voc_vgg.pth)78.180.590.60.079
YOLOv5(yolov5l.pt)81.283.489.30.045
YOLOv7(yolov7.pt)83.285.773.80.040
改进YOLOv785.787.080.60.047
表 2  不同模型的指标对比
CLAHEMHAAMODConv四检测头激活函数P/%R/%t/s
83.285.70.040
84.085.90.041
84.686.20.044
84.486.10.042
84.386.00.042
84.185.80.040
85.787.00.047
表 3  改进模型消融实验结果

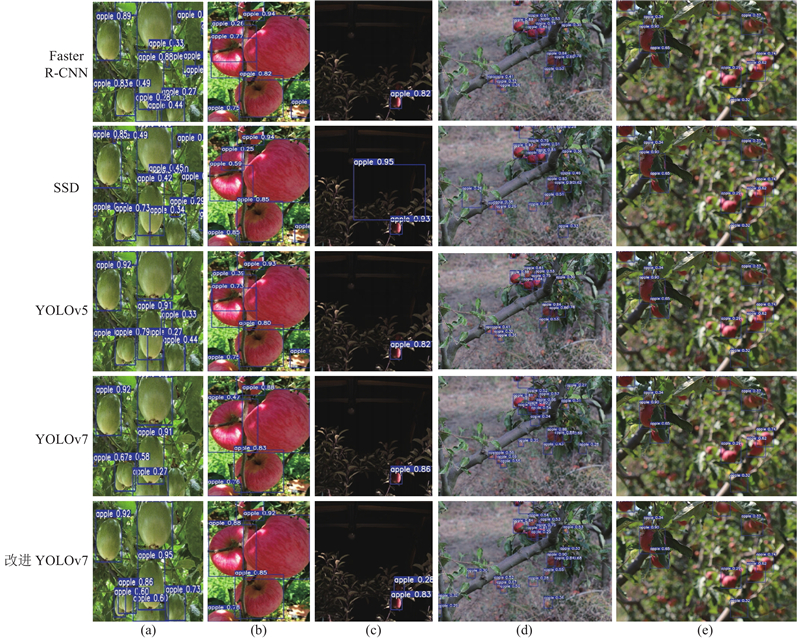

图 11  不同模型检测结果对比图
模型P/%R/%WS/MBt/s
YOLOv783.285.773.80.040
YOLOv7+SE83.385.775.10.043
YOLOv7+CA83.185.674.90.042
YOLOv7+CBAM83.585.875.20.043
YOLOv7+MHAAM183.986.075.00.042
YOLOv7+MHAAM283.685.874.70.041
YOLOv7+MHAAM84.686.276.30.044
表 4  注意力机制在YOLOv7中的应用消融实验结果
模型P/%R/%WS/MBt/s
YOLOv783.285.773.80.040
ODConv_neck83.685.974.70.042
ODConv_backbone183.485.974.40.041
ODConv_backbone283.385.874.20.041
ODConv_backbone383.385.774.10.040
ODConv_backbone483.285.774.10.040
ODConv_backbone84.486.174.90.042
ODConv_all84.386.275.60.047
表 5  ODConv在YOLOv7中的应用消融实验结果

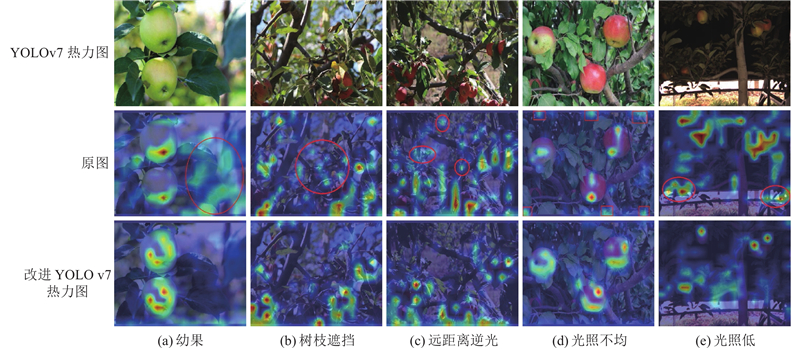

图 12  不同模型检测热力图分析
