基于改进遗传算法的临时转播塔结构优化设计方法

doi:10.3785/j.issn.1008-973X.2025.03.004

浙江大学学报(工学版)

2025, Vol. 59

Issue (3): 469-479 DOI: 10.3785/j.issn.1008-973X.2025.03.004

交通工程、土木工程

基于改进遗传算法的临时转播塔结构优化设计方法

邢国华(

),陆勇健,苗鹏勇*(

),陈思锦

长安大学建筑工程学院，陕西西安 710061

Optimal design method of temporary broadcasting tower structure based on improved genetic algorithm

Guohua XING(

),Yongjian LU,Pengyong MIAO*(

),Sijin CHEN

School of Civil Engineering, Chang’an University, Xi’an 710061, China

全文: PDF(1957 KB) HTML

摘要：

针对临时转播塔结构用钢质量较大且设计过程精细化程度低的问题，提出模块化临时转播塔结构及其优化设计方法. 所提设计方法将参数化建模与综合优化相结合，利用ANSYS建立结构参数化有限元模型，考虑结构设计参数在寻优过程中引起的风荷载变化；采用初始替换、差异化、自适应遗传等5种策略提升浮点数编码遗传算法(FGA)的搜索能力和收敛性能，提出改进浮点数编码遗传算法(IFGA)，综合优化临时转播塔结构的尺寸、形状和杆件布置形式，实现结构轻量化设计. 工程实例的应用表明，模块化临时转播塔结构的力学性能良好；在结构轻量化方面，IFGA算法相较于FGA算法优化结果在用钢质量上降低18.9%，相较于学校算法、鲸鱼算法及改进灰狼算法具有更高的计算效率和寻优能力；建议的优化设计方法高效、可靠，能在确保结构安全的前提下较初始方案在用钢质量上降低33.2%.

关键词： 结构优化; 遗传算法; 有限元; 轻量化设计; 临时转播塔

Abstract:

A modular temporary broadcasting tower structure and its optimal design method were proposed to address the issues of excessive steel usage and low design refinement in temporary broadcast tower structures. The optimal design method combined parametric modeling and comprehensive optimization. Parametric finite element model was achieved using ANSYS to consider wind load fluctuations caused by structural design parameters during the optimization process. Five strategies including initial replacement, differentiation and adaptive genetics were used to enhance the search capability and convergence performance of the float-encoded genetic algorithm (FGA), leading to the proposal of an improved float-encoded genetic algorithm (IFGA). The IFGA was then utilized to comprehensively optimize the cross-section, shape, and members’ arrangement for the temporary broadcasting tower structure to achieve a lightweight plan. Validating in practical engineering revealed that the modular temporary broadcasting tower structure had excellent mechanical performance. In terms of structural lightweighting, the IFGA reduced the quality of steel used by 18.9% compared with the FGA, and it surpassed the school algorithm, whale algorithm and improved grey wolf algorithm in computational efficiency and optimization prowess. As a result, the proposed optimal design method was efficient and reliable, could save 33.2% of the quality of steel used compared with the original plan while ensuring structural safety.

Key words: structural optimization genetic algorithm finite element lightweight design temporary broadcasting tower

收稿日期: 2023-12-26 出版日期: 2025-03-10

CLC:

TU 311.41

基金资助: 陕西省重点研发计划“两链”融合企业（院所）联合重点专项(2022LL-JB-13).

通讯作者: 苗鹏勇 E-mail: ghxing@chd.edu.cn;p.y.miao@outlook.com

作者简介: 邢国华（1983—），男，教授，从事结构设计与防灾减灾研究. orcid.org/0000-0003-3725-5704. E-mail：ghxing@chd.edu.cn

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	作者相关文章
	邢国华
	陆勇健
	苗鹏勇
	陈思锦

引用本文:

邢国华,陆勇健,苗鹏勇,陈思锦. 基于改进遗传算法的临时转播塔结构优化设计方法[J]. 浙江大学学报(工学版), 2025, 59(3): 469-479.

Guohua XING,Yongjian LU,Pengyong MIAO,Sijin CHEN. Optimal design method of temporary broadcasting tower structure based on improved genetic algorithm. Journal of ZheJiang University (Engineering Science), 2025, 59(3): 469-479.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2025.03.004 或 https://www.zjujournals.com/eng/CN/Y2025/V59/I3/469

图 1 塔架标准节

图 2 模块化临时转播塔结构

表 1 临时转播塔结构设计变量

表 2 有限元模型计算结果对比

图 3 斜杆布置形式

图 4 适应度计算流程

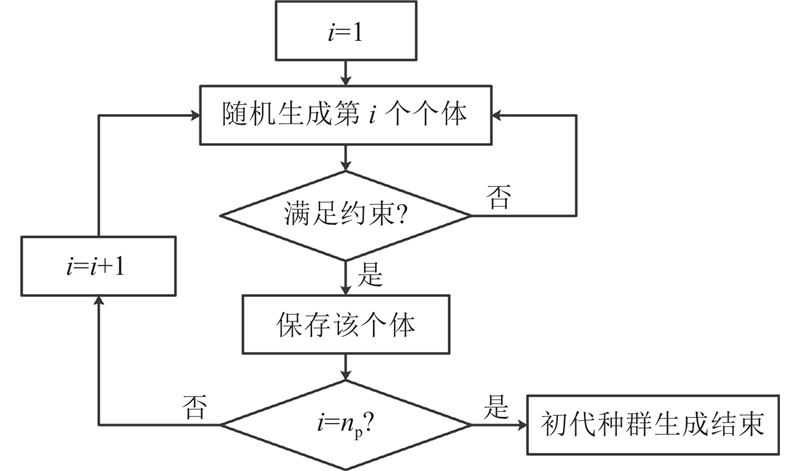

图 5 种群初始化流程

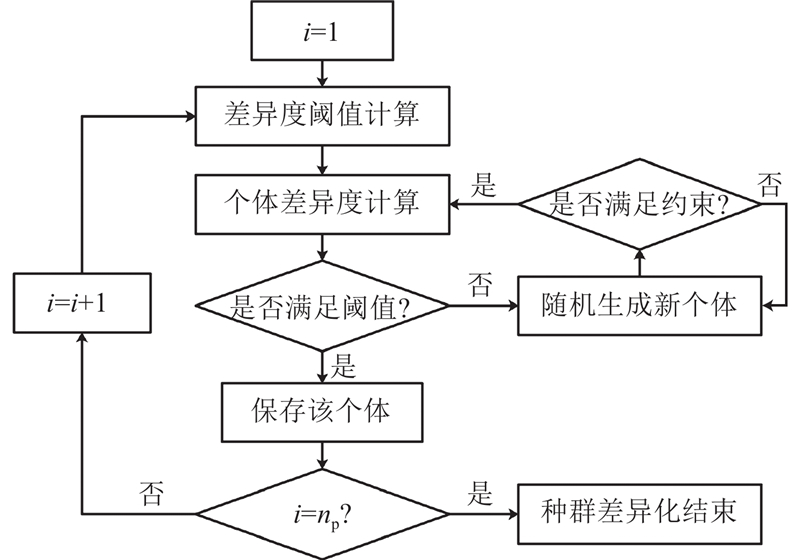

图 6 种群差异化流程

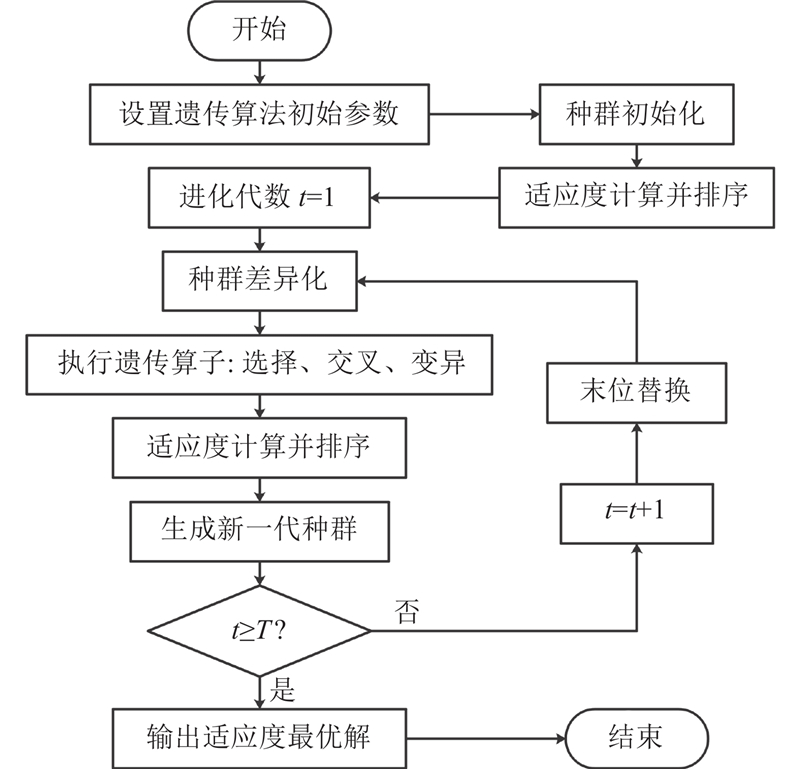

图 7 IFGA算法的计算流程

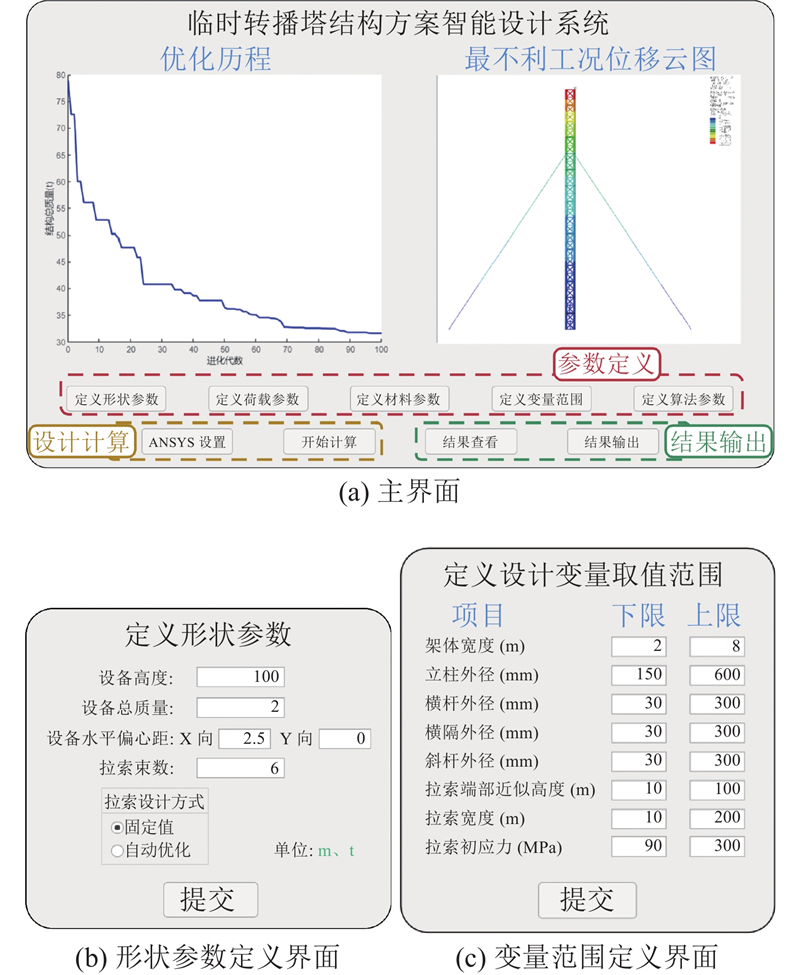

图 8 优化设计系统的部分交互界面

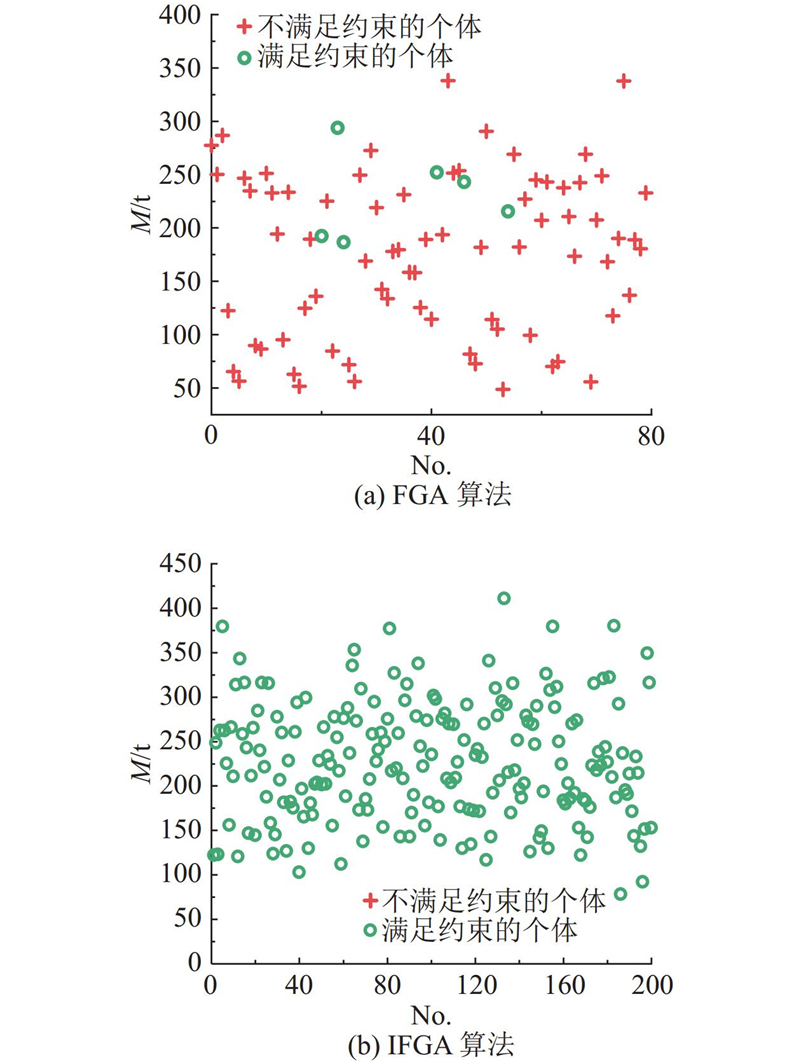

图 9 改进前后遗传算法的初始种群

表 3 不同策略遗传算法的优化结果与计算成本

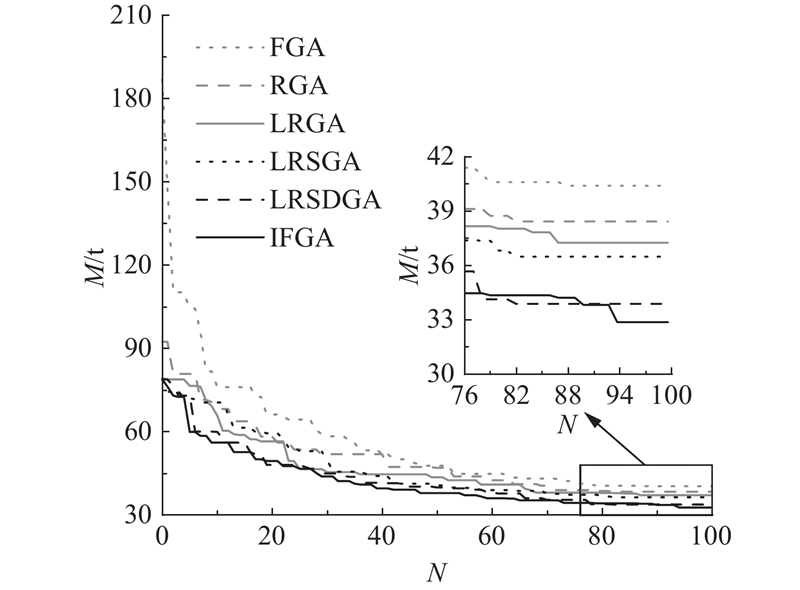

图 10 不同策略遗传算法的进化历程

表 4 不同算法的优化结果与计算成本

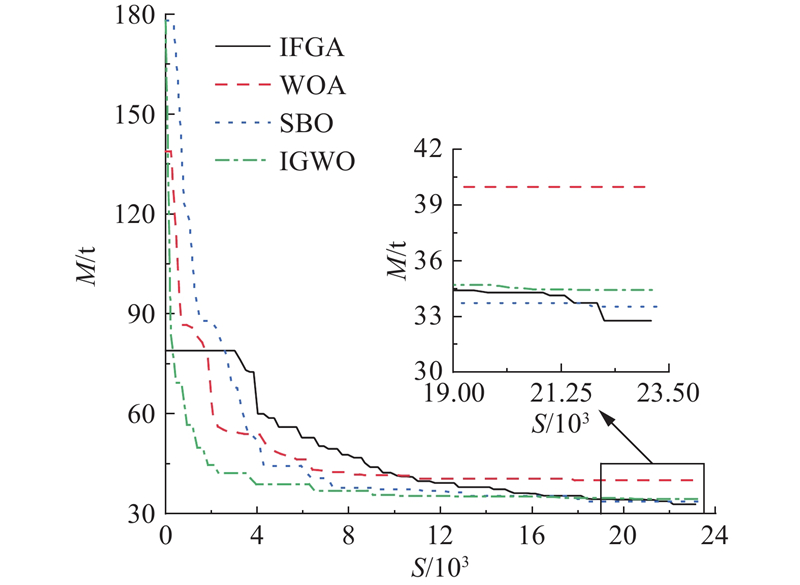

图 11 不同算法的进化历程

图 12 结构总质量的进化历程

表 5 优化前后设计方案的质量变化

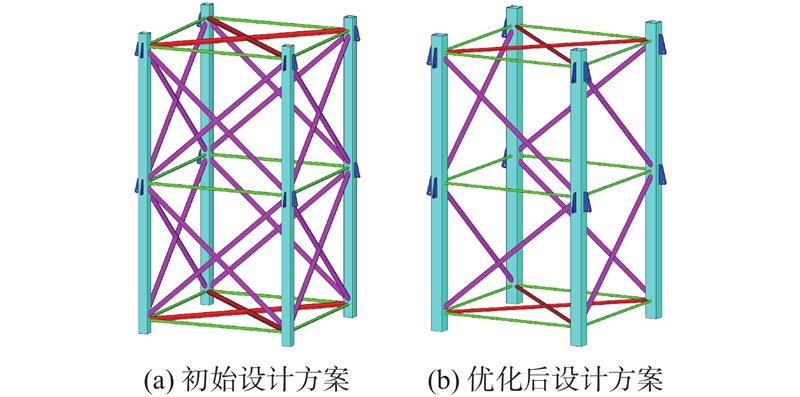

图 13 优化前后临时转播塔的标准节

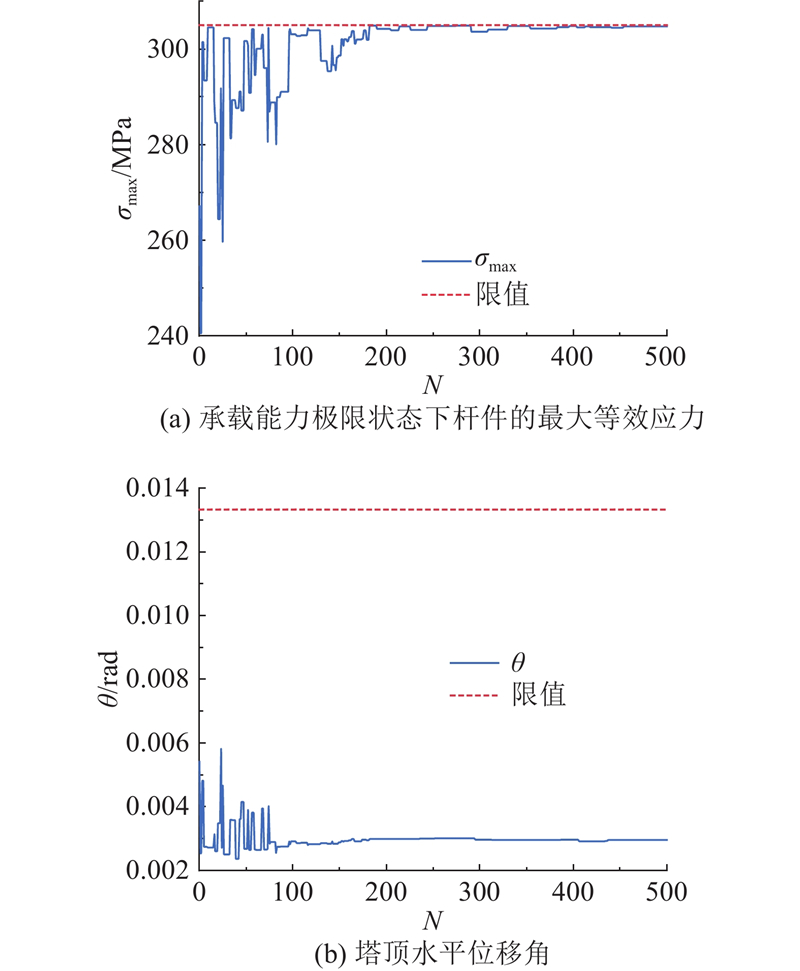

图 14 部分约束变量的进化历程

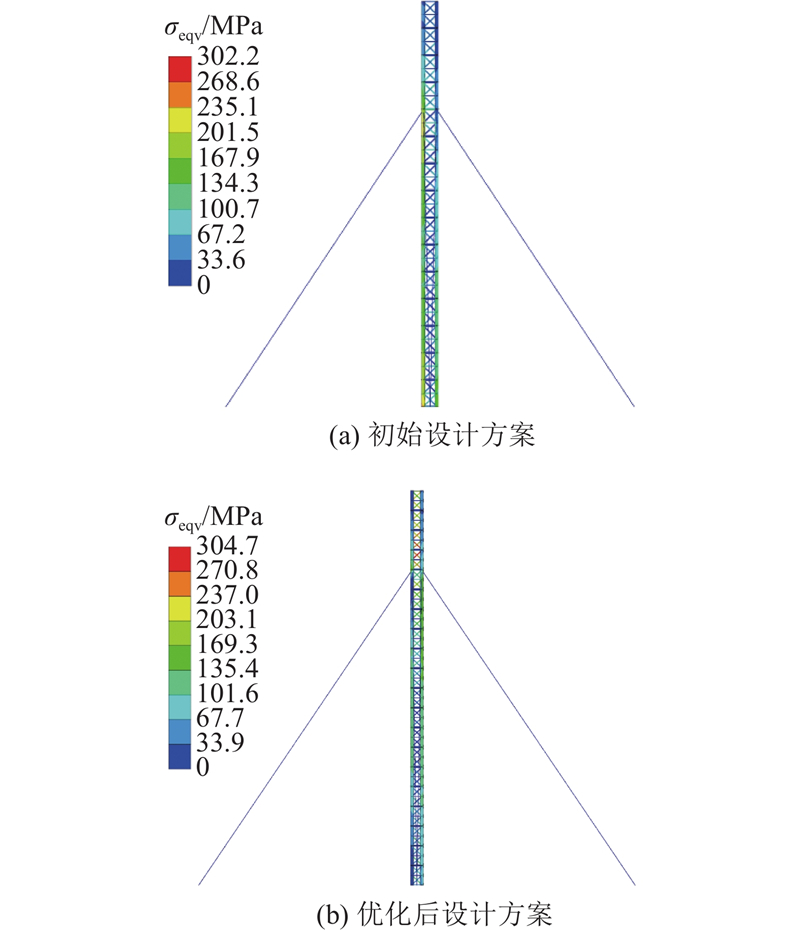

图 15 优化前后杆件的等效应力

表 6 优化前后结构设计变量的对比

1	HERNANDEZ-ESTRADA E, LASTRES-DANGUILLECOURT O, ROBLES-OCAMPO J B, et al Considerations for the structural analysis and design of wind turbine towers: a review[J]. Renewable and Sustainable Energy Reviews, 2021, 137: 110447 doi: 10.1016/j.rser.2020.110447
2	GKANTOU M, MARTINEZ-VAZQUEZ P, BANIOTOPOULOS C On the structural response of a tall hybrid onshore wind turbine tower[J]. Procedia Engineering, 2017, 199: 3200- 3205 doi: 10.1016/j.proeng.2017.09.535
3	CHEN J, YANG R, MA R, et al Design optimization of wind turbine tower with lattice-tubular hybrid structure using particle swarm algorithm[J]. The Structural Design of Tall and Special Buildings, 2008, 25: 743- 758 doi: 10.1002/tal.1281
4	郑瑞杰, 马人乐变截面构架式风力发电塔架 GA 优化[J]. 土木建筑与环境工程, 2009, 31 (6): 1- 6 ZHENG Ruijie, MA Renle GA optimization for variable cross section frame wind turbine[J]. Journal of Civil and Environmental Engineering, 2009, 31 (6): 1- 6
5	HU X, ZHANG Z, ZHU Z, et al. Structure Design and Optimization of Self-standing Modular Temporary Tower of 110kV Overhead Transmission Lines [C]// 5th International Conference on Machinery, Materials and Computing Technology . Beijing: Atlantis Press, 2017.
6	RENKAVIESKI C, PARPINELLI R S Meta-heuristic algorithms to truss optimization: Literature mapping and application[J]. Expert Systems with Applications, 2021, 182: 115197 doi: 10.1016/j.eswa.2021.115197
7	MORTAZAVI A, TOĞAN V, MOLOODPOOR M Solution of structural and mathematical optimization problems using a new hybrid swarm intelligence optimization algorithm[J]. Advances in Engineering Software, 2019, 127: 106- 123 doi: 10.1016/j.advengsoft.2018.11.004
8	SIVAKUMAR P, RAJARAMAN A, SAMUEL KNIGHT G, et al Object-oriented optimization approach using genetic algorithms for lattice towers[J]. Journal of Computing in Civil Engineering, 2004, 18 (2): 162- 171 doi: 10.1061/(ASCE)0887-3801(2004)18:2(162)
9	ARTAR M A comparative study on optimum design of multi-element truss structures[J]. Steel and Composite Structures, 2016, 22 (3): 521- 535 doi: 10.12989/scs.2016.22.3.521
10	KAVEH A, ZAKIAN P Improved GWO algorithm for optimal design of truss structures[J]. Engineering with Computers, 2018, 34 (4): 685- 707 doi: 10.1007/s00366-017-0567-1
11	JAWAD F K, OZTURK C, WANG D, et al Sizing and layout optimization of truss structures with artificial bee colony algorithm[J]. Structures, 2021, 30: 546- 559 doi: 10.1016/j.istruc.2021.01.016
12	COUCEIRO I, PARÍS J, MARTÍNEZ S, et al Structural optimization of lattice steel transmission towers[J]. Engineering Structures, 2016, 117: 274- 286 doi: 10.1016/j.engstruct.2016.03.005
13	COUCEIRO I, PARíS J, MARTíNEZ S, et al Computer software for analysis and design optimization of power transmission structures by simulated annealing and sensitivity analysis[J]. Engineering with Computers, 2021, 37 (4): 3649- 3663 doi: 10.1007/s00366-020-01022-x
14	HUANG X, LI B, ZHOU X, et al Geometric optimisation analysis of steel–concrete hybrid wind turbine towers[J]. Structures, 2022, 35: 1125- 1137 doi: 10.1016/j.istruc.2021.08.036
15	TSAVDARIDIS K D, NICOLAOU A, MISTRY A D, et al Topology optimisation of lattice telecommunication tower and performance-based design considering wind and ice loads[J]. Structures, 2020, 27: 2379- 2399 doi: 10.1016/j.istruc.2020.08.010
16	DE SOUZA R R, FADEL MIGUEL L F, LOPEZ R H, et al A procedure for the size, shape and topology optimization of transmission line tower structures[J]. Engineering Structures, 2016, 111: 162- 184 doi: 10.1016/j.engstruct.2015.12.005
17	DEGERTEKIN S O, LAMBERTI L, UGUR I B Sizing, layout and topology design optimization of truss structures using the Jaya algorithm[J]. Applied soft computing, 2018, 70: 903- 928 doi: 10.1016/j.asoc.2017.10.001
18	KHODZHAIEV M, REUTER U Structural optimization of transmission towers using a novel genetic algorithm approach with a variable length genome[J]. Engineering Structures, 2021, 240: 112306 doi: 10.1016/j.engstruct.2021.112306
19	金树, 任宗栋, 李宏男, 等输电塔结构离散变量优化设计方法[J]. 工程力学, 2016, 33 (11): 84- 94 JIN Shu, REN Zongdong, LI Hongnan, et al Discrete variable optimal design method of transmission tower structure[J]. Engineering Mechanics, 2016, 33 (11): 84- 94 doi: 10.6052/j.issn.1000-4750.2015.02.0102
20	LAGAROS N D, PLEVRIS V, KALLIORAS N A The mosaic of metaheuristic algorithms in structural optimization[J]. Archives of Computational Methods in Engineering, 2022, 29 (7): 5457- 5492 doi: 10.1007/s11831-022-09773-0
21	KAVEH A, HOSSEINI S M, ZAERREZA A Improved Shuffled Jaya algorithm for sizing optimization of skeletal structures with discrete variables[J]. Structures, 2021, 29: 107- 128 doi: 10.1016/j.istruc.2020.11.008
22	KAVEH A, KAMALINEJAD M, BIABANI HAMEDANI K, et al Quantum teaching-learning-based optimization algorithm for sizing optimization of skeletal structures with discrete variables[J]. Structures, 2021, 32: 1798- 1819 doi: 10.1016/j.istruc.2021.03.046
23	中华人民共和国住房和城乡建设部. 高耸结构设计标准: GB 50135—2019 [S]. 北京: 中国计划出版社, 2019.
24	中华人民共和国住房和城乡建设部. 建筑结构荷载规范: GB 50009—2012 [S]. 北京: 中国建筑工业出版社, 2012.
25	中国电力企业联合会. 110kV~750kV架空输电线路设计规范: GB 50545—2010 [S]. 北京: 中国计划出版社, 2010.
26	中华人民共和国住房和城乡建设部. 钢结构设计标准: GB 50017—2017 [S]. 北京: 中国建筑工业出版社, 2017.
27	GENTILS T, WANG L, KOLIOS A Integrated structural optimisation of offshore wind turbine support structures based on finite element analysis and genetic algorithm[J]. Applied Energy, 2017, 199: 187- 204 doi: 10.1016/j.apenergy.2017.05.009
28	陈俊岭, 何欣恒, 丛欧基于改进遗传算法的钢-混组合式风电机组塔架优化设计研究[J]. 太阳能学报, 2021, 42 (7): 359- 365 CHEN Junling, HE Xinheng, CONG Ou Design optimization of steel-concrete hybrid wind turbine tower based on improved genetic algorithm[J]. Acta Energiae Solaris Sinica, 2021, 42 (7): 359- 365
29	ALETI A, MOSER I A systematic literature review of adaptive parameter control methods for evolutionary algorithms[J]. ACM Computing Surveys, 2016, 49 (3): 1- 35
30	HERRERA F, LOZANO M Gradual distributed real-coded genetic algorithms[J]. IEEE transactions on evolutionary computation, 2000, 4 (1): 43- 63 doi: 10.1109/4235.843494
31	陈昆, 石国桢浮点数编码遗传算法变异概率的选取[J]. 武汉理工大学学报: 交通科学与工程版, 2001, 25 (4): 496- 499 CHEN Kun, SHI Guozhen Selection of mutation probability of floating-point number code genetic algorithm[J]. Journal of Wuhan University of Technology: Transportation Science and Engineering, 2001, 25 (4): 496- 499
32	MIRJALILI S, LEWIS A The whale optimization algorithm[J]. Advances in Engineering Software, 2016, 95: 51- 67 doi: 10.1016/j.advengsoft.2016.01.008
