基于改进遗传算法的倾转旋翼无人机区域覆盖路径规划
吴越安(),杜昌平*(),杨睿,俞佳浩,方天睿,郑耀
浙江大学 航空航天学院,浙江 杭州 310027
Area coverage path planning for tilt-rotor unmanned aerial vehicle based on enhanced genetic algorithm
Yue’an WU(),Changping DU*(),Rui YANG,Jiahao YU,Tianrui FANG,Yao ZHENG
School of Aeronautics and Astronautics, Zhejiang University, Hangzhou 310027, China
 全文: PDF(2211 KB)   HTML
摘要:

基于改进遗传算法研究倾转旋翼无人机(TRUAV)在多障碍物约束下的区域覆盖路径规划问题. 运用最小跨度算法和往返路径生成算法进行任务区域内的覆盖路径初规划,将区域覆盖问题转化为旅行商问题以优化覆盖路径顺序. 为了避开区域内的障碍物,提出鱼尾形避障策略. 引入最近邻算法,生成比传统遗传算法质量更高的初始种群,设计三点式交叉算子和动态区间变异算子进行遗传操作以提高所提算法的全局搜索能力,避免算法陷入局部最优. 在含多个障碍物的多边形区域算例内仿真验证所提算法的性能. 结果表明,相比于逐行路径覆盖算法和传统遗传算法,所提算法的覆盖路径长度减少了7.80%,TRUAV的任务区域覆盖效率显著提升.

关键词: 倾转旋翼无人机区域覆盖遗传算法局部避障杜宾斯曲线
Abstract:

An enhanced genetic algorithm was proposed to address the challenge of area coverage path planning for a tilt-rotor unmanned aerial vehicle (TRUAV) amidst multiple obstacles. A preliminary coverage path plan for the designated task area was devised, utilizing the minimum spanning and back-and-forth path generation algorithms. The area coverage dilemma was transformed into a traveling salesman problem to optimize the sequence of the coverage path. A fishtail-shaped obstacle avoidance strategy was proposed to circumvent obstacles within the region. The nearest neighbor algorithm was introduced to generate a superior initial population than a genetic algorithm. A three-point crossover operator and a dynamic interval mutation operator were adopted in the genetic processes to improve the proposed algorithm's global search capacity and prevent the algorithm from falling into local optima. The efficacy of the proposed algorithm was rigorously tested through simulations in polygonal areas with multiple obstacles. Results showed that, compared to the sequential path coverage algorithm and the genetic algorithm, the proposed algorithm reduced the length of the coverage path by 7.80%, significantly enhancing the coverage efficiency of TRUAV in the given task areas.

Key words: tilt-rotor unmanned aerial vehicle    area coverage    genetic algorithm    local obstacle avoidance    Dubins curve
收稿日期: 2023-09-14 出版日期: 2024-09-27
CLC:  TP 249
通讯作者: 杜昌平     E-mail: yawu@zju.edu.cn;duchangping@zju.edu.cn
作者简介: 吴越安(1999—),男,硕士生,从事无人机轨迹规划研究. orcid.org/0009-0007-3503-420X. E-mail:yawu@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
吴越安
杜昌平
杨睿
俞佳浩
方天睿
郑耀

引用本文:

吴越安,杜昌平,杨睿,俞佳浩,方天睿,郑耀. 基于改进遗传算法的倾转旋翼无人机区域覆盖路径规划[J]. 浙江大学学报(工学版), 2024, 58(10): 2031-2039.

Yue’an WU,Changping DU,Rui YANG,Jiahao YU,Tianrui FANG,Yao ZHENG. Area coverage path planning for tilt-rotor unmanned aerial vehicle based on enhanced genetic algorithm. Journal of ZheJiang University (Engineering Science), 2024, 58(10): 2031-2039.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.10.006        https://www.zjujournals.com/eng/CN/Y2024/V58/I10/2031

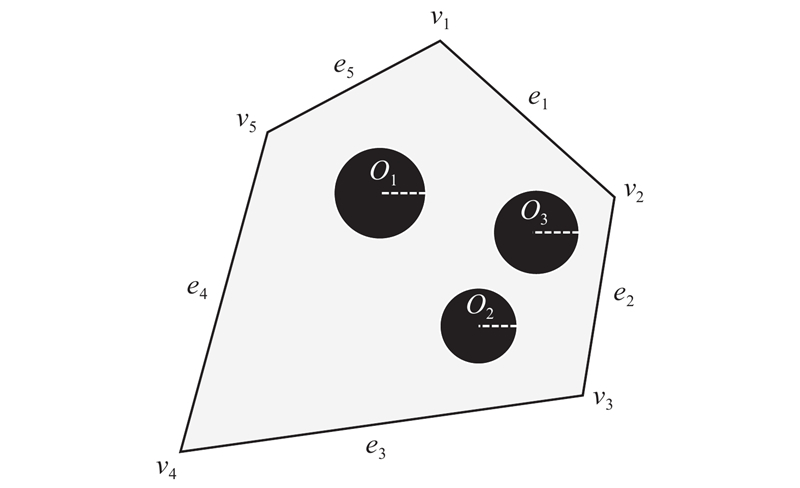

图 1  覆盖路径规划的任务区域

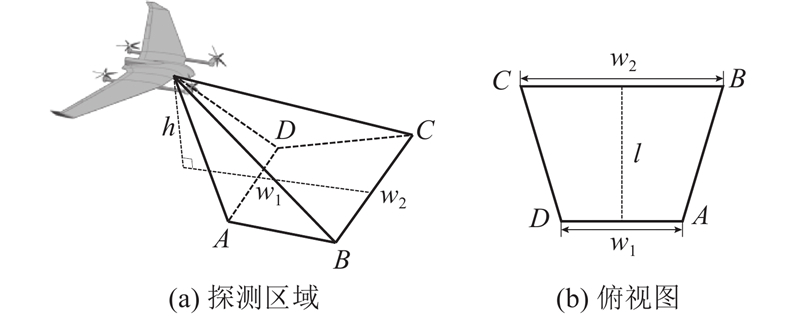

图 2  倾转旋翼无人机的相机视场

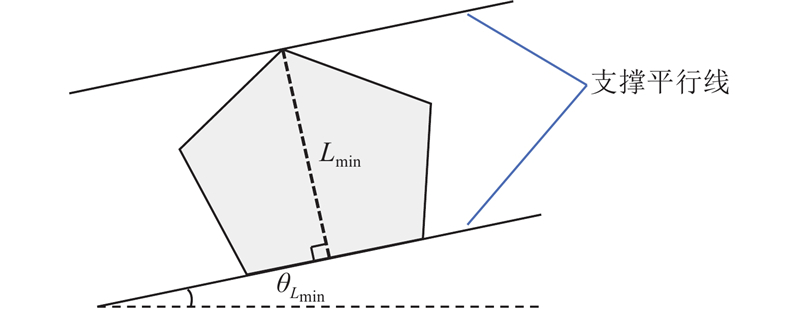

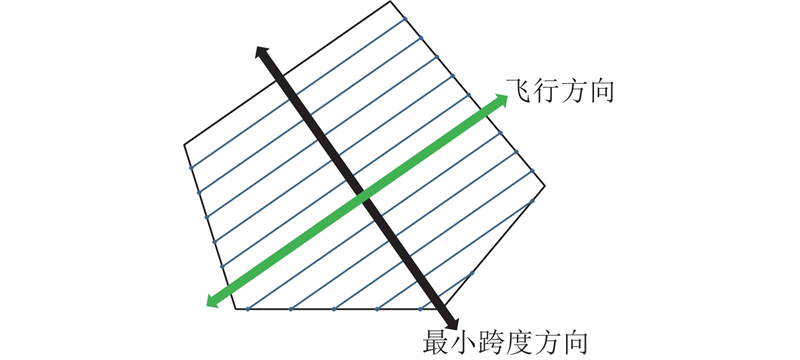

图 3  任务区域的支撑平行线
图 4  倾转旋翼无人机的飞行方向

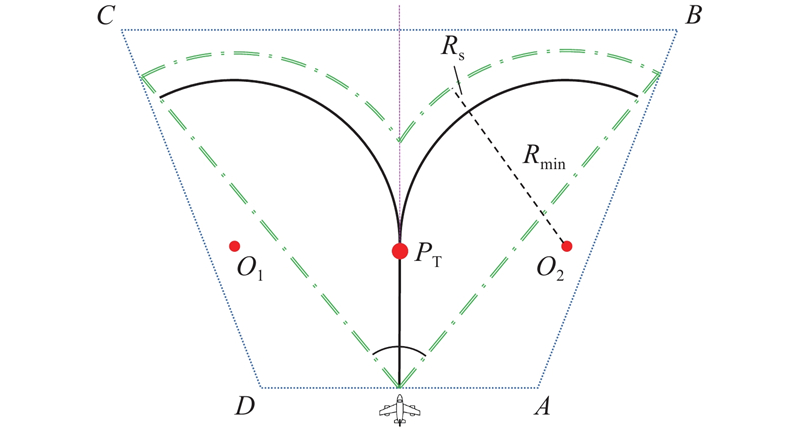

图 5  鱼尾形避障策略的探测范围

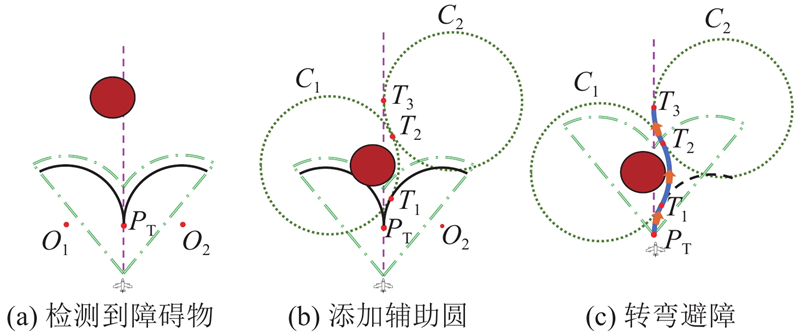

图 6  鱼尾形避障策略的工作流程

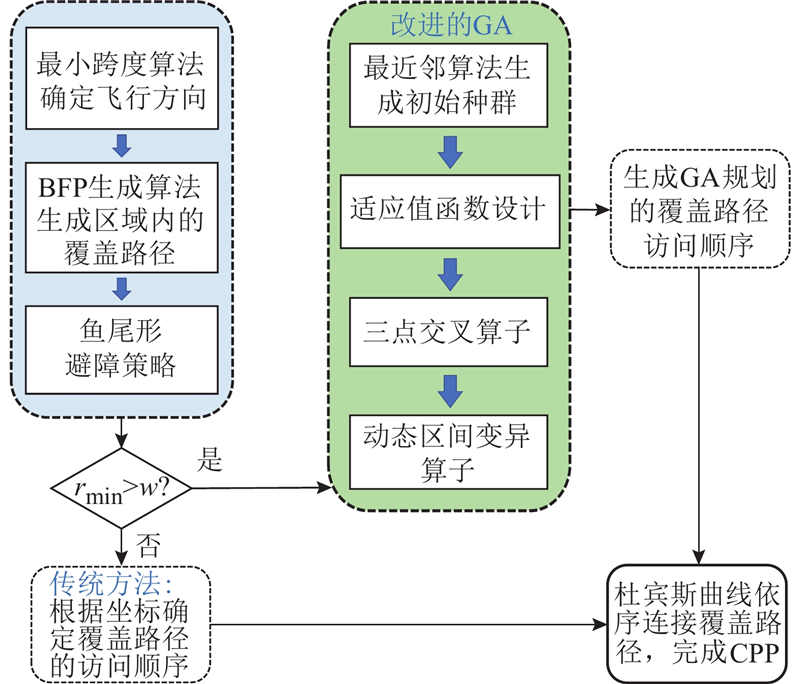

图 7  基于杜宾斯曲线的改进遗传算法流程

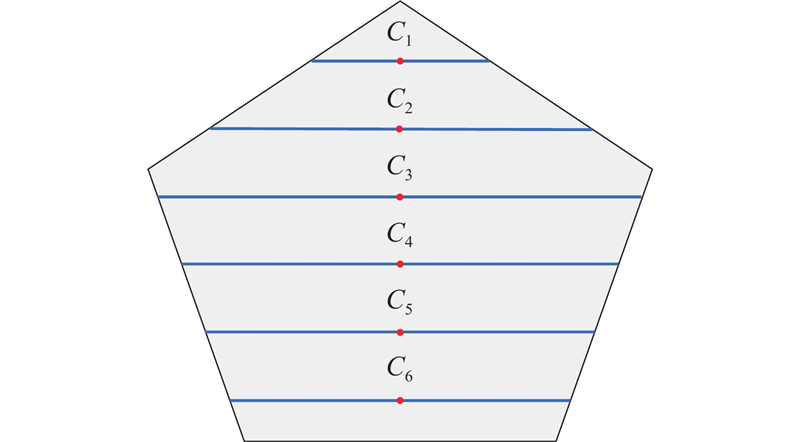

图 8  覆盖路径顺序编号

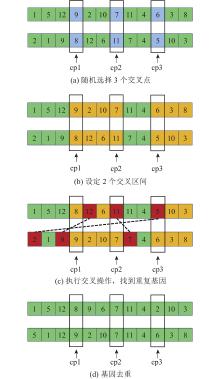

图 9  三点式交叉算子

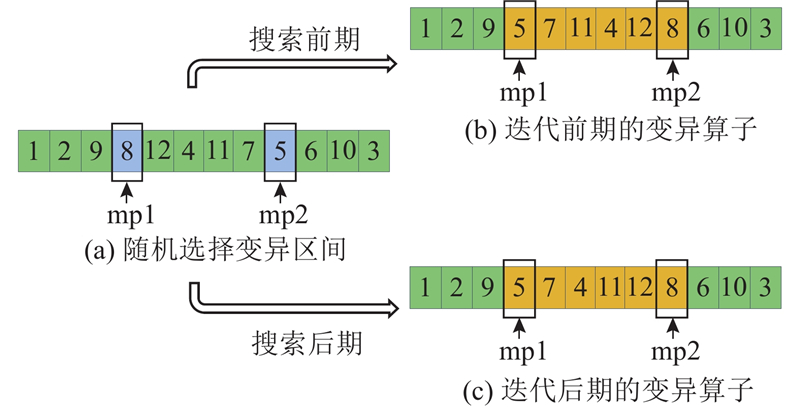

图 10  动态区间变异算子

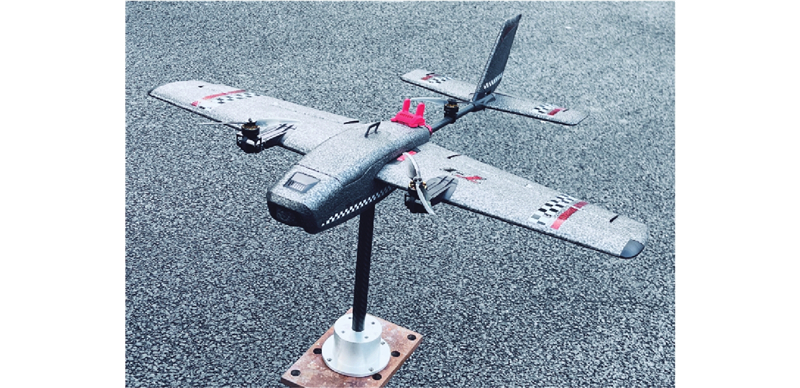

图 11  倾转旋翼无人机样机
图 12  基于杜宾斯曲线的改进遗传算法的转弯策略

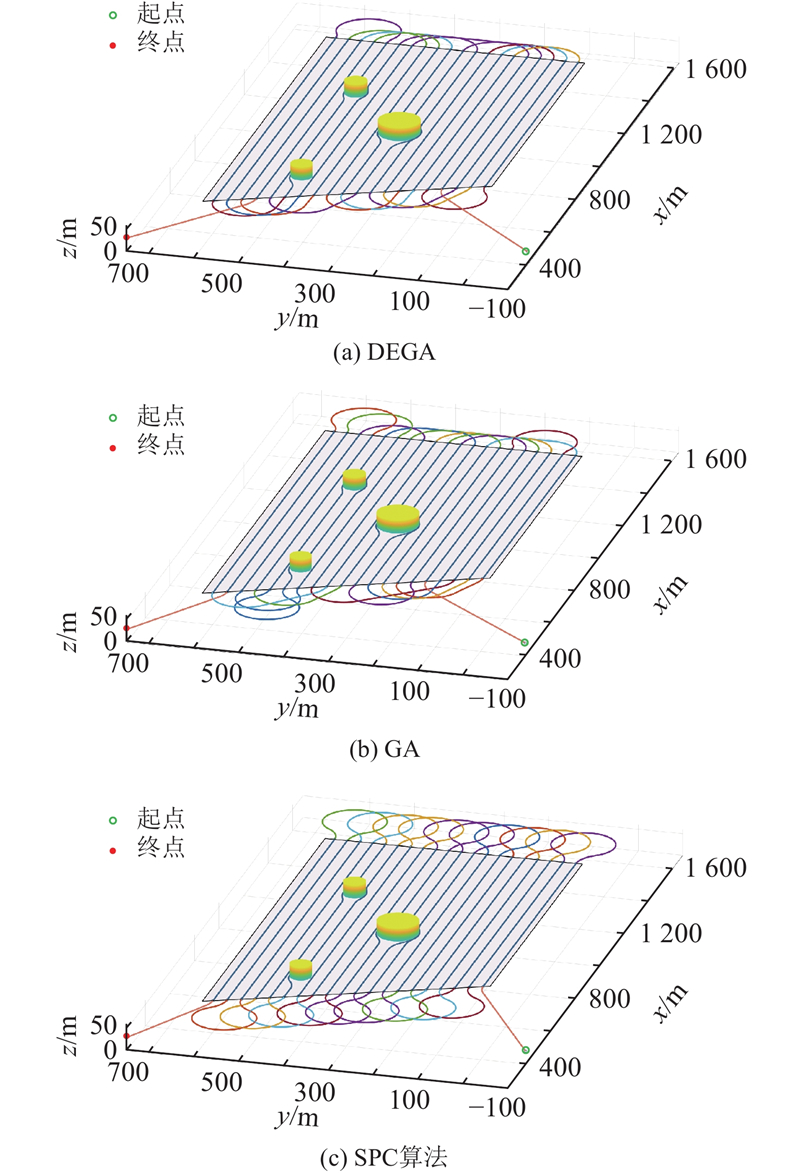

图 13  不同算法的四边形区域覆盖路径规划

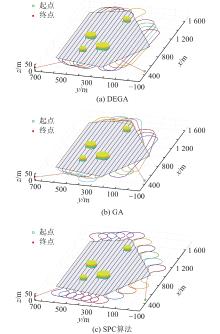

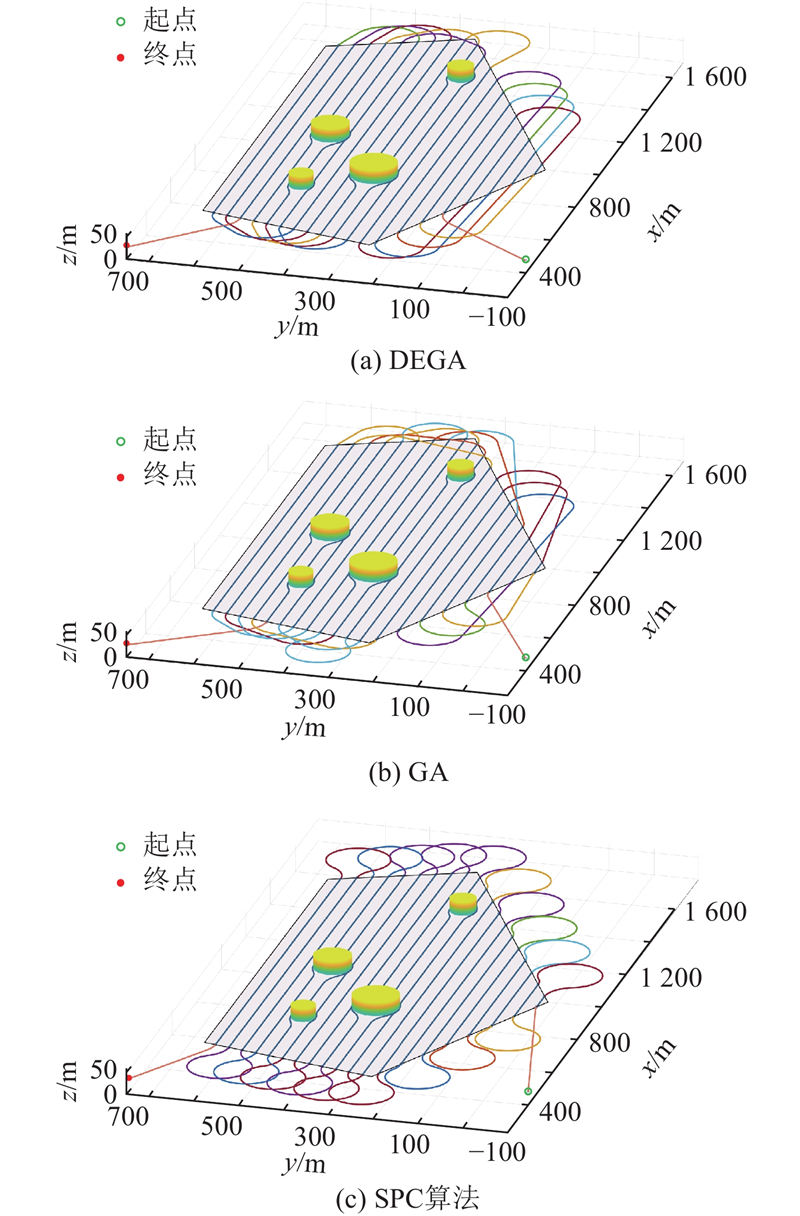

图 14  不同算法的五边形区域覆盖路径规划
算法lt/kmte/s
n=10n=20n=50n=10n=20n=50
DEGA3.91356.368014.55618.49118.92480.665
GA4.32267.453417.92348.35618.70877.156
SPC5.279310.405325.79811.2392.0334.562
表 1  区域覆盖路径算法的性能对比(四边形区域)
算法lt/kmte/s
n=10n=20n=50n=10n=20n=50
DEGA4.59407.948119.63949.11719.91280.386
GA4.98298.972722.58918.94819.58878.633
SPC5.037810.320225.80041.4181.9984.567
表 2  区域覆盖路径算法的性能对比(五边形区域)
