基于EKM-PSA算法的卷烟自提点选址和配送路径规划
邵益平1(),王苗1,季鑫1,朱立明2,*(),鲁建厦1,徐培军3
1. 浙江工业大学 机械工程学院,浙江 杭州 310023
2. 浙江中烟工业有限责任公司,浙江 杭州 310024
3. 浙江工商大学 工商管理学院,浙江 杭州 310012

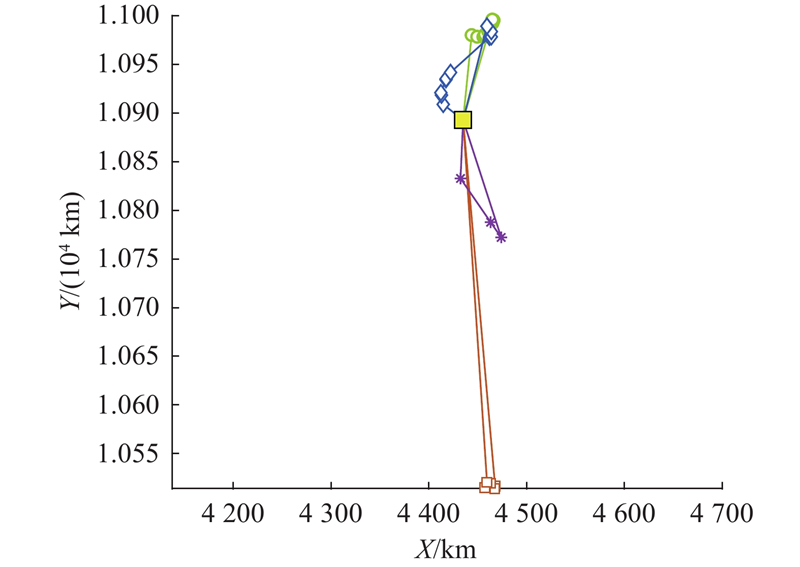

Site selection of pick-up points and distribution route planning of cigarette based on EKM-PSA algorithm
Yiping SHAO1(),Miao WANG1,Xin JI1,Liming ZHU2,*(),Jiansha LU1,Peijun XU3
1. College of Mechanical Engineering, Zhejiang University of Technology, Hangzhou 310023, China
2. China Tobacco Zhejiang Industrial Co. Ltd, Hangzhou 310024, China
3. School of Business Administration, Zhejiang Gongshang University, Hangzhou 310012, China
 全文: PDF(1486 KB)   HTML
摘要:

针对传统配送模式在地广人稀区域存在成本高昂、路径重复率高、低效率及零售户服务时效性差等问题,提出基于EKM-PSA算法的卷烟自提点选址和配送路径规划方法. 对于卷烟自提点选址问题,提出融合经济效益指标的改进 K 均值聚类算法,构建自提零售户补贴机制,建立自提点选址模型. 对于卷烟配送路径规划问题,建立包含时间窗约束的多目标卷烟配送路径规划模型,目标函数包括零售户服务优先级成本、车辆固定成本、车辆运输成本、自提点补贴成本、自提点建设及运营成本,提出优先级模拟退火算法进行求解. 以 Z 地市区域烟草配送为例,进行实例研究和算法对比,结果表明总成本较原方案减少20%,运输距离较原方案减少19%,验证了所提模型的有效性及算法的优越性.

关键词: 自提点选址K-means聚类卷烟配送路径规划零售户优先级多目标优化
Abstract:

An EKM-PSA-based method for cigarette pick-up point site selection and distribution route planning was proposed, in order to address the problems of high costs, high path repetition rates, low efficiency and poor timeliness of retailer services in the traditional distribution mode for sparsely populated areas. For the problem of cigarette pick-up point site selection, an improved K-means clustering algorithm integrated with economic benefit indicators was proposed, a subsidy mechanism for pick-up retailers was constructed, and a site selection model for pick-up points was established. For the problem of cigarette distribution route planning, a multi-objective cigarette distribution route planning model with time window constraints was built, where the objective function included retailer service priority cost, vehicle fixed cost, vehicle transportation cost, pick-up point subsidy cost, as well as pick-up point construction and operation costs, and a priority simulated annealing algorithm was proposed for solving the model. Taking the cigarette distribution of Z city as an example, a case study and algorithm comparisons were conducted. The results indicated that the total cost was reduced by 20%, and the transportation distance was reduced by 19% compared with the original scheme, thereby verifying the effectiveness of the proposed model and the superiority of the proposed algorithm.

Key words: site selection of pick-up points    K-means clustering    cigarette distribution route planning    retailer priority    multi-objective optimization
收稿日期: 2025-02-19 出版日期: 2026-03-19
CLC:  TH 166
基金资助: 国家自然科学基金资助项目(52405565);浙江省尖兵领雁科技计划资助项目(2024C01208).
通讯作者: 朱立明     E-mail: syp123gh@zjut.edu.cn;zlm@zjtobacco.com
作者简介: 邵益平(1991—),男,讲师,博士,从事智能制造、运筹优化研究. orcid.org/0000-0002-8721-9755. E-mail:syp123gh@zjut.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
邵益平
王苗
季鑫
朱立明
鲁建厦
徐培军

引用本文:

邵益平,王苗,季鑫,朱立明,鲁建厦,徐培军. 基于EKM-PSA算法的卷烟自提点选址和配送路径规划[J]. 浙江大学学报(工学版), 2026, 60(4): 690-701.

Yiping SHAO,Miao WANG,Xin JI,Liming ZHU,Jiansha LU,Peijun XU. Site selection of pick-up points and distribution route planning of cigarette based on EKM-PSA algorithm. Journal of ZheJiang University (Engineering Science), 2026, 60(4): 690-701.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.04.002        https://www.zjujournals.com/eng/CN/Y2026/V60/I4/690

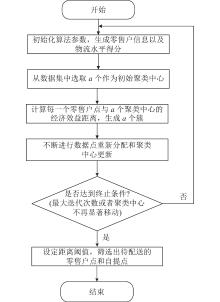

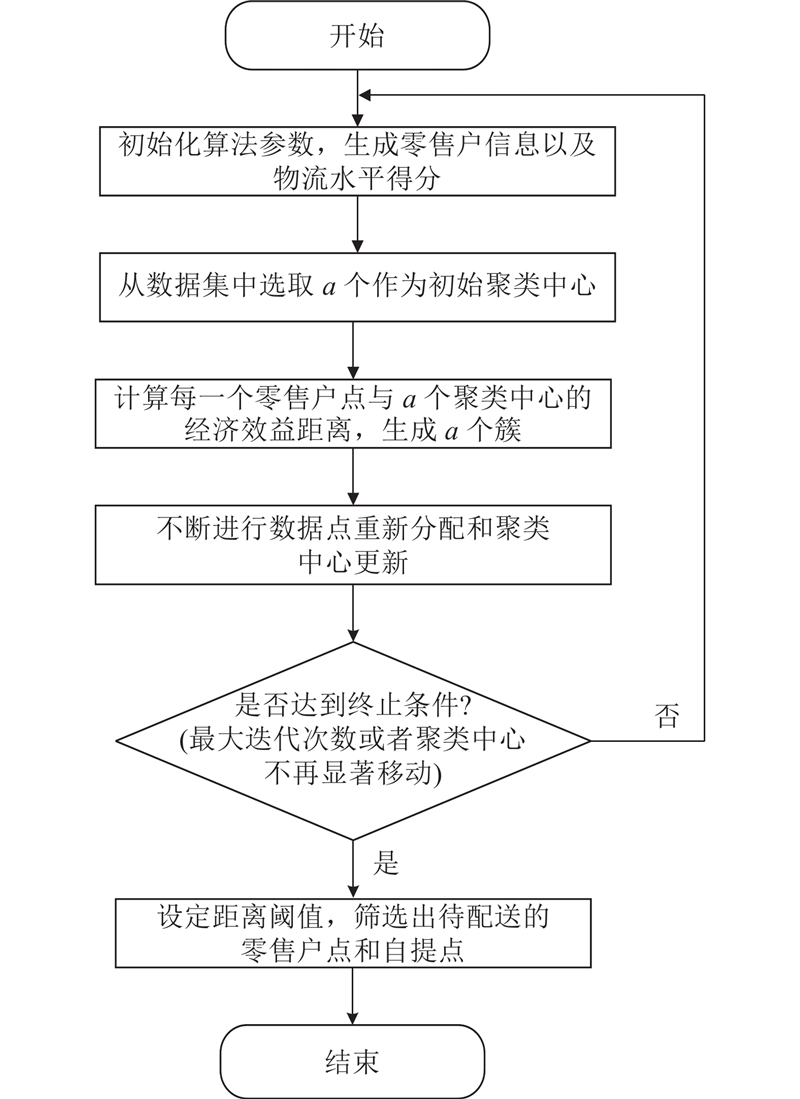

图 1  经济K均值聚类(EKM)算法流程图
聚类簇数轮廓系数
K-means算法EKM算法
20.89170.9233
30.80580.8376
40.74010.7821
50.71590.7645
表 1  K-means算法与EKM算法对比

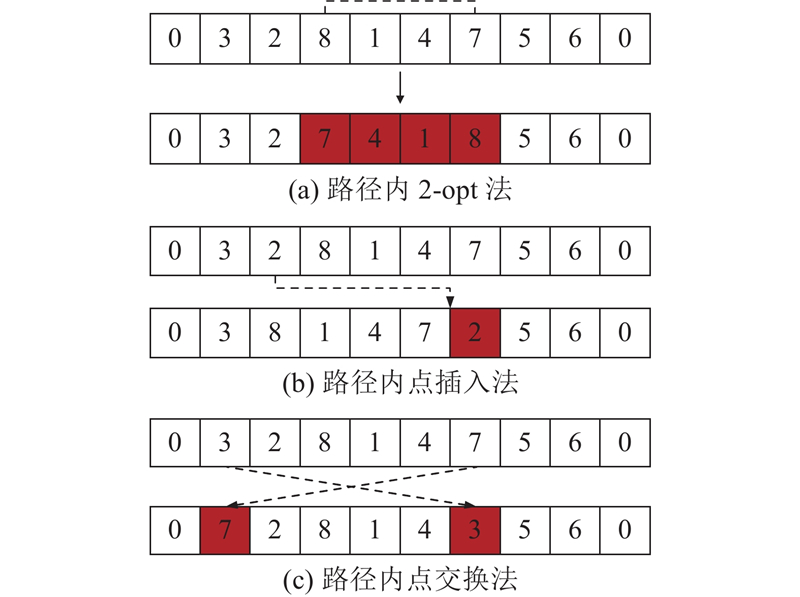

图 2  路径内邻域构造

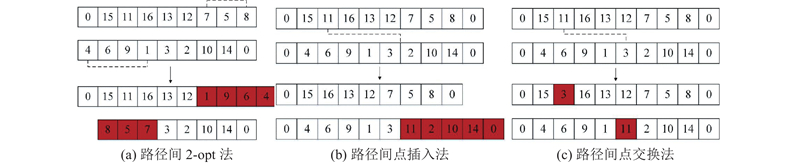

图 3  路径间邻域构造

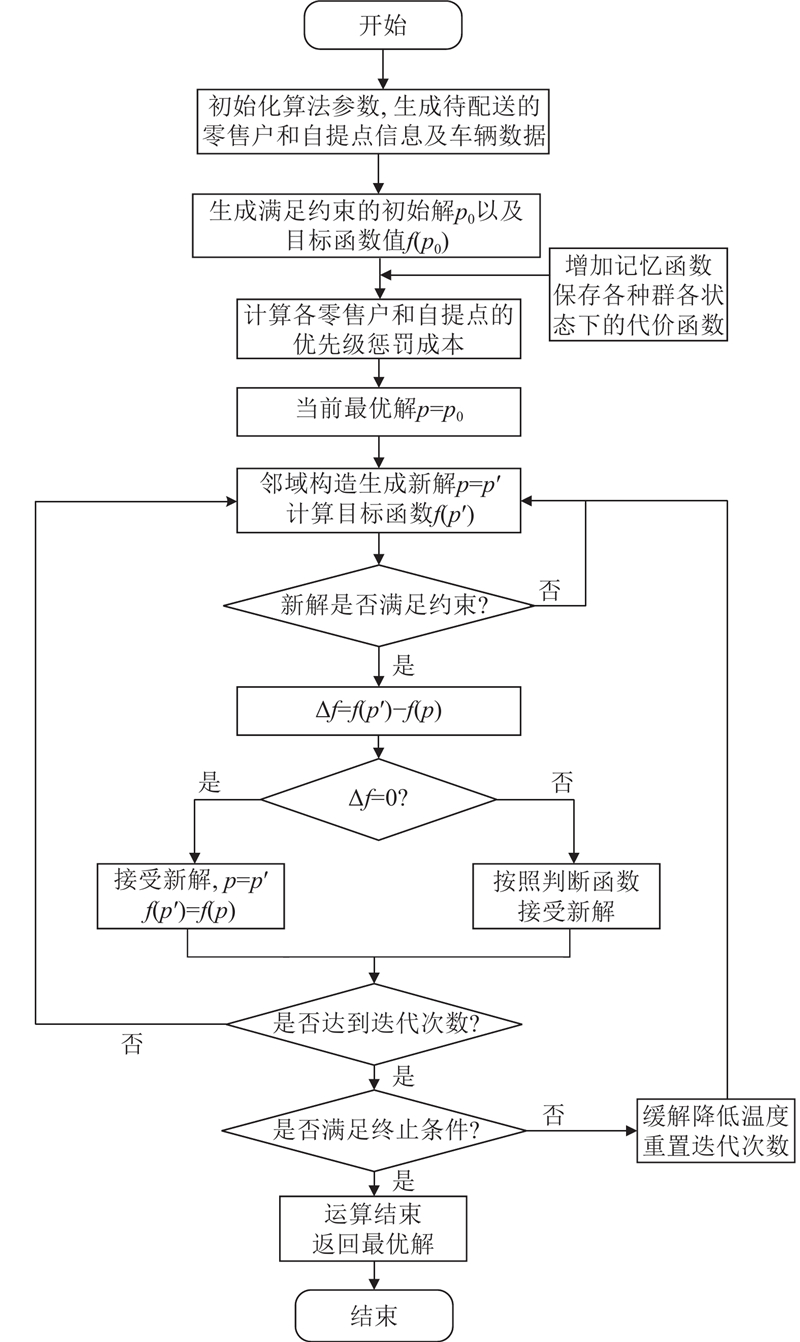

图 4  PSA算法流程图
实验编号因子级别最低成本
$ {T}_{0} $$ {V}_{0} $RC101
13000.995604
23000.997611
33000.999609
45000.995574
55000.997598
65000.999601
78000.995596
88000.997604
98000.999599
表 2  正交实验表
算例PSASATSGA
CRCRCRCR
RC101574513680607693620682620
RC102624520688573723628694714
RC103579483882735863594732649
RC201582485671559812597713572
RC2025804341033861732662722639
RC203575493629524698592685585
表 3  基于Solomon标准算例的实验结果
编号X/kmY/km卷烟配送时间订单需求量
14422.1210941.79:003.0
24460.8910983.710:1045.5
34467.6810516.512:2020.0
44408.4910932.714.207.5
表 4  实际算例数据示例

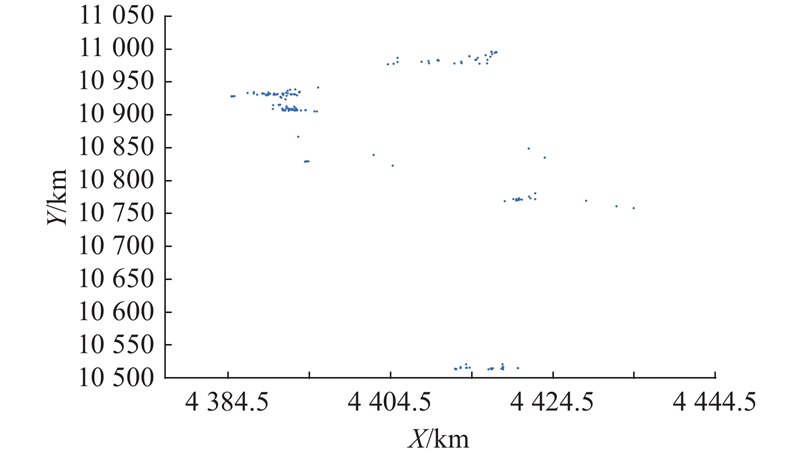

图 5  零售户分布情况图
图 6  自提点选址结果图
编号X/kmY/km$ {Z}_{i} $
14412.0210923.12.337
24412.2010920.93.336
34412.8510918.42.154
44414.6410908.92.699
54457.3110983.24.158
64443.6810980.15.215
74473.9410772.25.221
84432.3310832.84.112
94463.1310787.86.123
104468.1210517.95.158
114459.4210520.58.332
124463.1710519.46.215
134468.1210517.96.213
表 5  自提点位置
编号X/kmY/km$ {G}_{i} $编号X/kmY/km$ {G}_{i} $
14463.4110990.815224460.8910983.737
24467.3010514.030234457.3610980.6110
34466.9110995.425244464.9210996.029
44455.7210978.2118254461.1010983.921
54417.6910935.221264466.0610995.329
64460.9410983.735274461.4610986.735
74457.5010978.6113284457.3710980.743
84465.6610994.420294465.6610994.425
94422.1210941.712304412.0210923.198
104417.6110935.317314412.2010920.9155
114461.0410983.910324412.8510918.4207
124457.1210515.24334414.6410908.9236
134463.7710978.324344457.3110983.2101
144457.2310515.049354443.6810980.1127
154460.9010983.718364432.3310832.8223
164464.8010995.918374463.1310787.8207
174463.8510983.736384473.9410772.2102
184417.4410935.312394459.4210520.5197
194459.3910989.231404463.1310519.4335
204461.8910977.97414463.1710519.4320
214417.6210935.130424468.1210517.9299
表 6  待配送到户的零售户和自提点
图 7  历史单位时间优先级成本
图 8  现有单位时间优先级成本
图 9  最优配送路线图
路径编号路径R/kmC/元
10-z4-z3-z2-z1-18-16-10-
5-21-9-20-13-17-19-0
141.95158
20-z6-4-7-23-z5-28-22-15-29-
11-25-27-1-6-8-26-3-16-24-0
147.32165
30-z8-z9-z7-0202.68227
40-z12-z13-z10-2-z11-12-11-0725.00812
表 7  最优配送方案

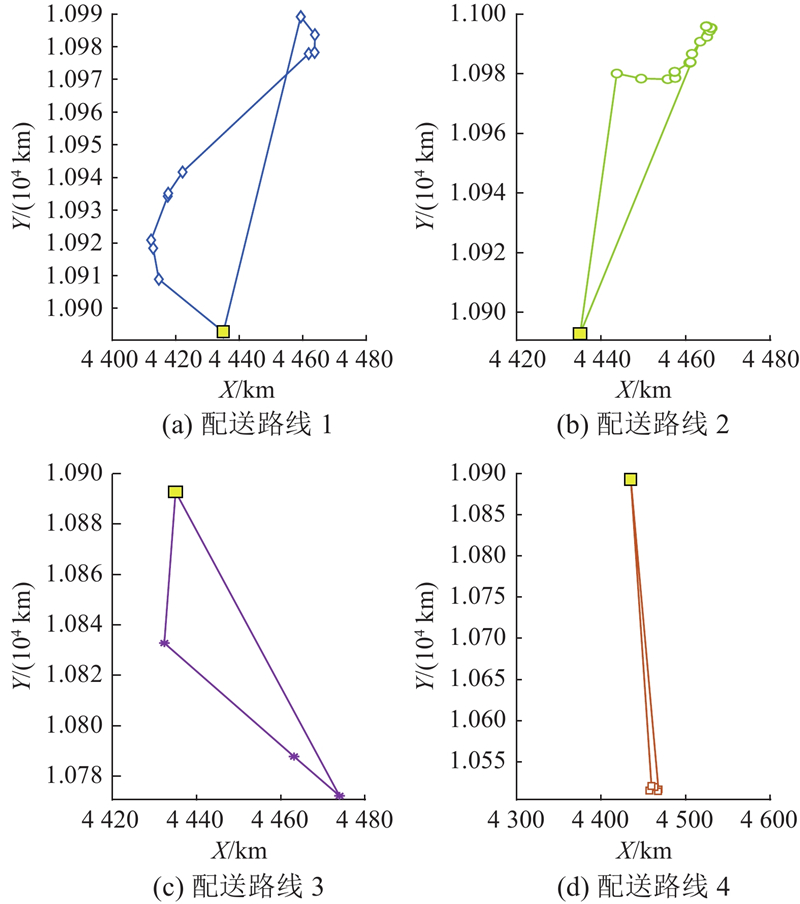

图 10  配送路线汇总图
路径编号路径R/kmC/元
10-20-13-17-z5-28-22-26-3-
16-24-z4-z3-0
219.64245
20-4-7-23-15-29-11-25-27-1-6-8-
18-16-10-5-21-9-z6-19-z2-z1-0
315.17353
30-z8 -z13-11-z7-0901.251010
40-z9-z12-12-z10-2-z11-0673.21754
表 8  SA路径结果
路径编号路径R/kmC/元
10-20-13-17-19-1-6-8-26-
3-16-24-z4-18-16-10-5-21-9-0
212.68238
20-z3-z2-z1-4-7-23-28-
22-15-29-11-25-27-0
245.54275
30-z6 -z5-z8-0290.18325
40-z9-z7-z12-2-z13-z10-12-
11-z11-0
900.901009
表 9  TS路径结果
算法R/kmC/元G/次T/s
PSA1216.9513621500341.0
SA2109.2723621150410.4
TS1649.318471450388.0
表 10  多算法性能指标对比

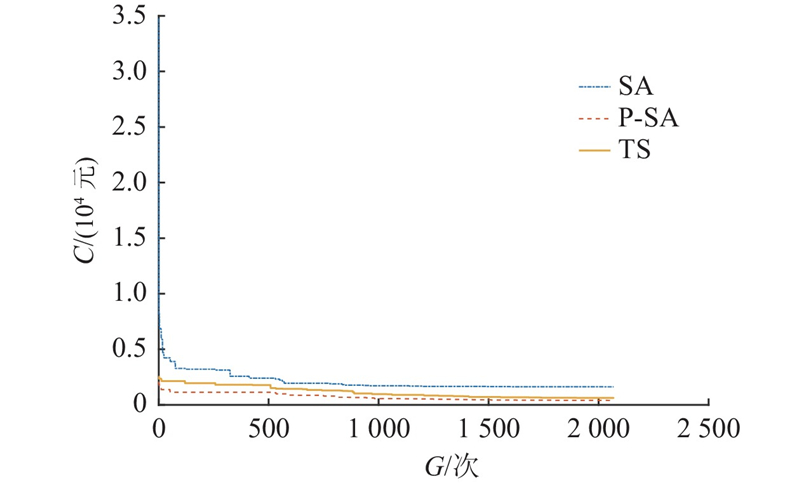

图 11  SA、PSA、TS算法收敛效果图
1 ARCHETTI C, SPERANZA M G Vehicle routing problems with split deliveries[J]. International Transactions in Operational Research, 2012, 19 (1/2): 3- 22
2 范文兵, 冯文 混合遗传算法的带时间窗卷烟物流车辆路径优化[J]. 现代电子技术, 2018, 41 (11): 119- 123,128
FAN Wenbing, FENG Wen Hybrid genetic algorithm based cigarette logistics vehicle routing optimization with time window[J]. Modern Electronics Technique, 2018, 41 (11): 119- 123,128
doi: 10.16652/j.issn.1004-373x.2018.11.027
3 方文婷, 艾时钟, 王晴, 等 基于混合蚁群算法的冷链物流配送路径优化研究[J]. 中国管理科学, 2019, 27 (11): 107- 115
FANG Wenting, AI Shizhong, WANG Qing, et al Research on cold chain logistics distribution path optimization based on hybrid ant colony algorithm[J]. Chinese Journal of Management Science, 2019, 27 (11): 107- 115
doi: 10.16381/j.cnki.issn1003-207x.2019.11.011
4 TAN K C, CHEW Y H, LEE L H A hybrid multiobjective evolutionary algorithm for solving vehicle routing problem with time windows[J]. Computational Optimization and Applications, 2006, 34 (1): 115- 151
doi: 10.1007/s10589-005-3070-3
5 方昕 一种新型启发式PSO算法求解市区最优路径规划研究[J]. 计算机与数字工程, 2018, 46 (2): 270- 275
FANG Xin Plan research on a new heuristic PSO to solving urban optimal path[J]. Computer and Digital Engineering, 2018, 46 (2): 270- 275
doi: 10.3969/j.issn.1672-9722.2018.02.013
6 张思宇. 基于送提一体的生鲜自提点选址问题研究 [D]. 北京: 北京交通大学, 2020.
ZHANG Siyu. Research on the location-selection problem of pick-up points for fresh good based on the integration of self-delivery and home delivery [D]. Beijing: Beijing Jiaotong University, 2020.
7 李谊, 李勇杰, 宋振霄 卷烟配送中心选址优化研究与应用[J]. 中国烟草学报, 2023, 29 (2): 98- 104
LI Yi, LI Yongjie, SONG Zhenxiao Research and application of tobacco distribution center location optimization[J]. Acta Tabacaria Sinica, 2023, 29 (2): 98- 104
doi: 10.16472/j.chinatobacco.2021.t0073
8 ZHU E, MA R An effective partitional clustering algorithm based on new clustering validity index[J]. Applied Soft Computing, 2018, 71: 608- 621
doi: 10.1016/j.asoc.2018.07.026
9 LIN J L, KUO J C, CHUANG H W Improving density peak clustering by automatic peak selection and single linkage clustering[J]. Symmetry, 2020, 12 (7): 1168
doi: 10.3390/sym12071168
10 LI Y, YE C, WANG H, et al A discrete multi-objective grey wolf optimizer for the home health care routing and scheduling problem with priorities and uncertainty[J]. Computers and Industrial Engineering, 2022, 169: 108256
doi: 10.1016/j.cie.2022.108256
11 张平莉. 考虑顾客优先级的B2C个性化物流动态路径规划研究 [D]. 上海: 东华大学, 2018.
ZHANG Pingli. Research on dynamic routing planning of B2C personalized logistics considering customer priorities [D]. Shanghai: Donghua university, 2018.
12 陈刚, 付江月, 何美玲 考虑居民选择行为的应急避难场所选址问题研究[J]. 运筹与管理, 2019, 28 (9): 6- 14
CHEN Gang, FU Jiangyue, HE Meiling Emergency shelter location problem considering residents’ choice behavior[J]. Operations Research and Management Science, 2019, 28 (9): 6- 14
doi: 10.12005/orms.2019.0193
13 SALEHI SARBIJAN M, BEHNAMIAN J Multi-fleet feeder vehicle routing problem using hybrid metaheuristic[J]. Computers and Operations Research, 2022, 141: 105696
doi: 10.1016/j.cor.2022.105696
14 AMINE MASMOUDI M, MANCINI S, BALDACCI R, et al Vehicle routing problems with drones equipped with multi-package payload compartments[J]. Transportation Research Part E: Logistics and Transportation Review, 2022, 164: 102757
doi: 10.1016/j.tre.2022.102757
