基于改进生成对抗网络的书法字生成算法
李云红(),段姣姣,苏雪平,张蕾涛,于惠康,刘杏瑞
西安工程大学 电子信息学院,陕西 西安 710048
Calligraphy generation algorithm based on improved generative adversarial network
Yun-hong LI(),Jiao-jiao DUAN,Xue-ping SU,Lei-tao ZHANG,Hui-kang YU,Xing-rui LIU
School of Electronics and Information, Xi’an Polytechnic University, Xi’an 710048, China
 全文: PDF(2087 KB)   HTML
摘要:

针对生成对抗网络生成字体存在笔画缺失、字形结构错乱、图像模糊与质量差的问题,提出改进zi2zi生成对抗网络的书法字生成算法. 在编码器中引入卷积核为1的残差块,提高生成器提取书法字体细节特征的能力,通过增加上下文感知注意力结构提取书法字体的风格特征. 在判别器中利用谱归一化增强模型的稳定性,避免因模型训练不稳定而带来的模式崩塌. 采用最小绝对误差L1范数约束生成字体边缘特征,使得字体轮廓更加清晰,最终生成2种风格的书法字. 颜真卿楷书与赵孟頫行书目标风格数据集的测试结果表明,提出算法的主观客观评价结果均优于对比算法,与zi2zi相比,峰值信噪比分别提高了1.58、1.76 dB,结构相似性分别提高了5.66%、6.91%,感知相似性分别降低了4.21%、6.20%.

关键词: 书法字生成深度学习生成对抗网络上下文感知注意力边缘损失
Abstract:

An improved zi2zi generative adversarial network for generating calligraphic characters was proposed to solve the problems of missing strokes, wrong glyph structure, blurred images and poor quality in generating fonts by generative adversarial networks. The residual block with a convolution kernel of 1 was introduced into the encoder to improve the ability of the generator to extract detailed features of calligraphic fonts. The context-aware attention structure was increased to extract the stylistic features of calligraphic fonts. The spectral normalization was used in the discriminator to enhance model’s stability, which avoided pattern collapse due to unstable model training. The minimum absolute error L1 norm was used to constraint the font edge features, which made the font outline clearer. Then two styles of calligraphy characters were generated. The test results of the target style datasets of Yan Zhenqing Regular Script and Zhao Mengfu Running Script showed that the subjective and objective evaluation results of the proposed algorithm were better than the comparison algorithm compared with zi2zi. The peak signal-to-noise ratio was increased by 1.58 and 1.76 dB respectively, the structural similarity was increased by 5.66% and 6.91% respectively, and the perceptual similarity was reduced by 4.21% and 6.20% respectively.

Key words: calligraphy generation    deep learning    generative adversarial network    context-aware attention    edge loss
收稿日期: 2022-08-02 出版日期: 2023-07-17
CLC:  TP 391
基金资助: 国家自然科学基金资助项目(61902301);陕西省科技厅自然科学基础研究重点资助项目(2022JZ-35)
作者简介: 李云红(1974—),女,教授,硕导,从事红外热像测温技术、图像处理、信号与信息处理技术的研究. orcid.org/0000-0001-8080-1040. E-mail: hitliyunhong@163.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
李云红
段姣姣
苏雪平
张蕾涛
于惠康
刘杏瑞

引用本文:

李云红,段姣姣,苏雪平,张蕾涛,于惠康,刘杏瑞. 基于改进生成对抗网络的书法字生成算法[J]. 浙江大学学报(工学版), 2023, 57(7): 1326-1334.

Yun-hong LI,Jiao-jiao DUAN,Xue-ping SU,Lei-tao ZHANG,Hui-kang YU,Xing-rui LIU. Calligraphy generation algorithm based on improved generative adversarial network. Journal of ZheJiang University (Engineering Science), 2023, 57(7): 1326-1334.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.07.007        https://www.zjujournals.com/eng/CN/Y2023/V57/I7/1326

图 1  zi2zi网络结构
图 2  改进后的网络整体框架
网络层类型 网络参数
卷积层 4×4 Conv, 64 filters, 2 strides
卷积单元层 4×4 Conv-IN-LRelu, 128 filters, 2 strides
卷积单元层 4×4 Conv-IN-LRelu, 256 filters, 2 strides
卷积单元层 4×4 Conv-IN-LRelu, 512 filters, 2 strides
卷积单元层 4×4 Conv-IN-LRelu, 512 filters, 2 strides
卷积单元层 4×4 Conv-IN-LRelu, 512 filters, 2 strides
残差单元层 Resnet Block 1×1 Conv, 512 filters,1stride
卷积单元层 4×4 Conv-IN-LRelu, 512 filters, 2 strides
残差单元层 Resnet Block 1×1 Conv, 512 filters, 1 stride
卷积层 4×4 Conv-LRelu, 512 filters, 2 strides
表 1  内容编码器的网络参数
图 3  残差单元

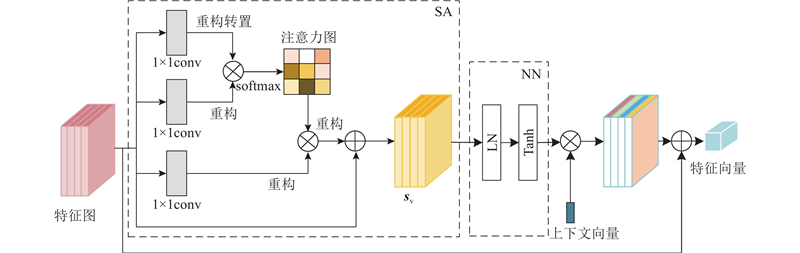

图 4  上下文感知注意力模块

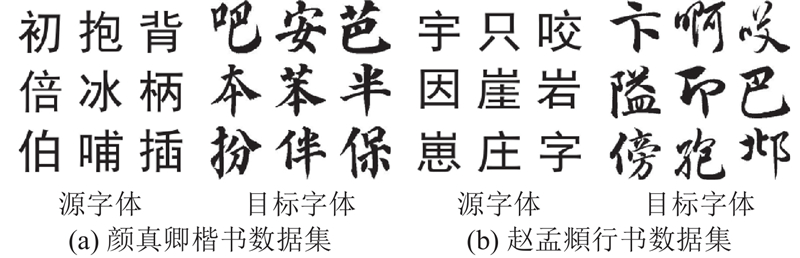

图 5  自建的2种数据集样例

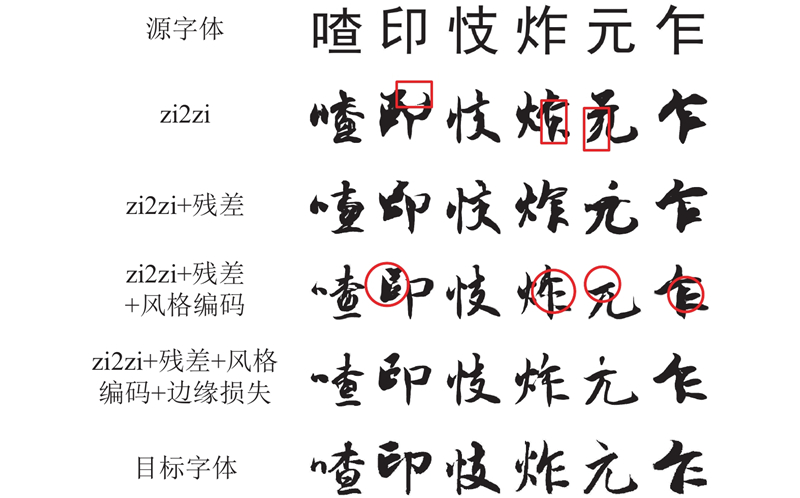

图 6  不同模块的消融实验(目标字体:颜真卿楷书)

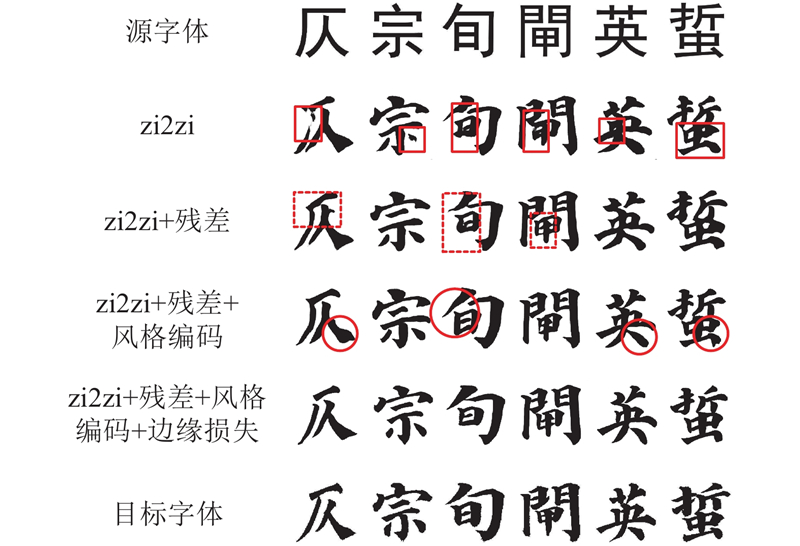

图 7  不同模块的消融实验(目标字体:赵孟頫行书)
网络模型 SSIM PSNR/dB LPIPS
zi2zi 0.6975 9.3097 0.2383
zi2zi+残差 0.7115 9.8567 0.2452
zi2zi+残差+风格编码 0.7394 10.8484 0.1842
zi2zi+残差+风格编码+边缘损失 0.7425 10.8228 0.1821
表 2  消融实验的评价指标(目标字体:颜真卿楷书)
网络模型 SSIM PSNR/dB LPIPS
zi2zi 0.6917 8.5425 0.2947
zi2zi+残差 0.6918 8.4810 0.2845
zi2zi+残差+风格编码 0.7607 10.8883 0.2177
zi2zi+残差+风格编码+边缘损失 0.7665 10.9052 0.2152
表 3  消融实验的评价指标(目标字体:赵孟頫行书)

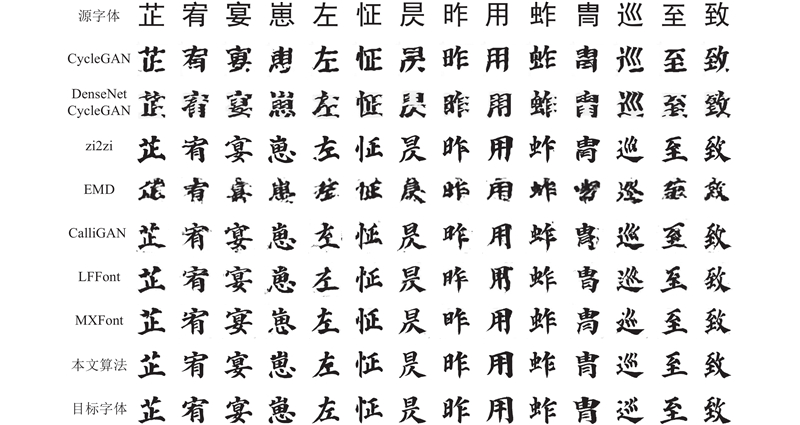

图 8  不同算法的生成结果(目标字体:颜真卿楷书)

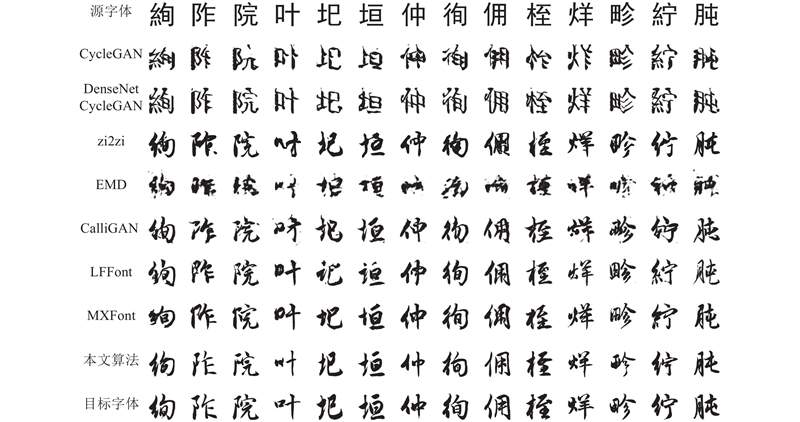

图 9  不同算法的生成结果(目标字体:赵孟頫行书)
算法 SSIM PSNR/dB LPIPS
CycleGAN 0.5492 7.2531 0.3300
DenseNet CycleGAN 0.4958 7.2698 0.3472
zi2zi 0.6728 9.0505 0.2289
EMD 0.5567 8.7037 0.3229
CalliGAN 0.6254 9.2908 0.2385
LFFont 0.6016 9.1077 0.2311
MXFont 0.6151 9.3029 0.2497
本文算法 0.7249 10.6253 0.1868
表 4  不同算法的评价指标(目标字体:颜真卿楷书)
算法 SSIM PSNR/dB LPIPS
CycleGAN 0.5617 7.1628 0.3712
DenseNet CycleGAN 0.5317 6.9037 0.3608
zi2zi 0.6348 7.7615 0.3223
EMD 0.5614 8.4337 0.3595
CalliGAN 0.5737 7.8590 0.3271
LFFont 0.5941 8.1400 0.3025
MXFont 0.6078 7.8666 0.3087
本文算法 0.7039 9.5221 0.2603
表 5  不同算法的评价指标(目标字体:赵孟頫行书)

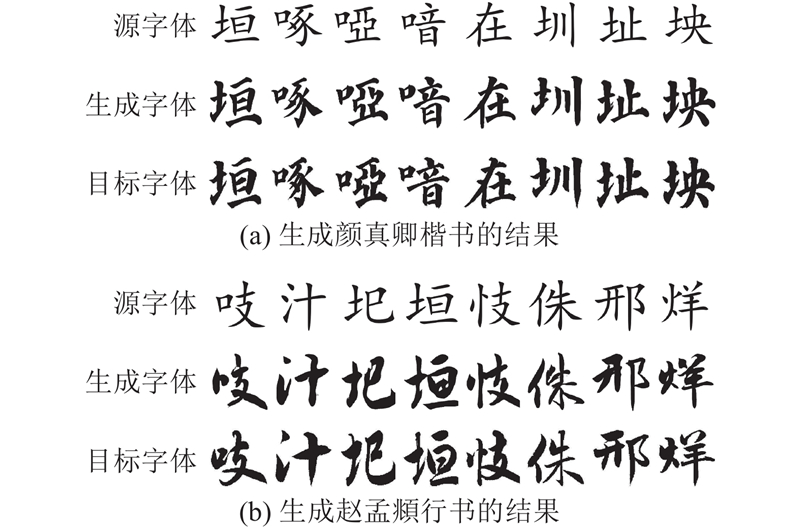

图 10  源字体为楷体的结果

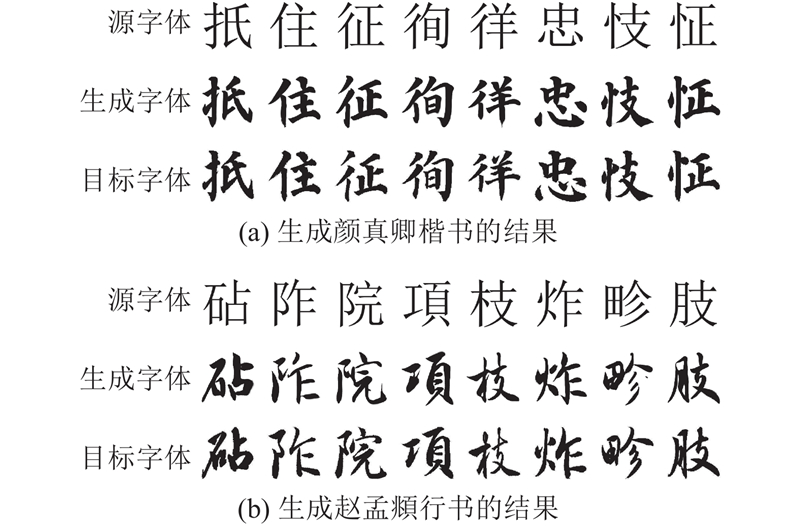

图 11  源字体为宋体的结果
源字体 目标字体 SSIM PSNR/dB LPIPS
楷体 楷书 0.7044 10.1207 0.1965
楷体 行书 0.6914 9.2937 0.2503
宋体 楷书 0.7153 10.4740 0.2042
宋体 行书 0.6971 9.5003 0.2495
表 6  不同源字体生成目标字体的评价指标

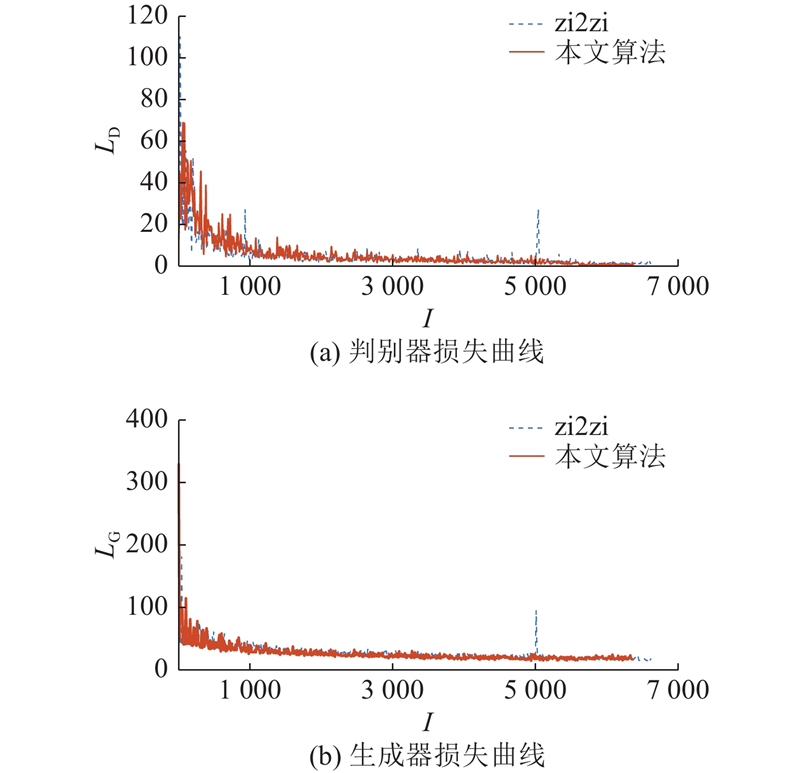

图 12  训练过程的损失曲线图
