浙江大学学报(工学版)  2023, Vol. 57 Issue (2): 415-425    DOI: 10.3785/j.issn.1008-973X.2023.02.020
电子与通信工程
无设备人体追踪系统的择优标签方法
鲁建厦(),包秦,汤洪涛,邵益平,赵文彬
浙江工业大学 机械工程学院,浙江 杭州 310023
Optimal tag selection method for device-free human tracking system
Jian-sha LU(),Qin BAO,Hong-tao TANG,Yi-ping SHAO,Wen-bin ZHAO
College of Mechanical Engineering, Zhejiang University of Technology, Hangzhou 310023, China
 全文: PDF(1716 KB)   HTML
摘要:

针对现有人体追踪系统追踪误差大、硬件部署对环境改变大和用户佩戴设备不方便等问题,提出基于择优标签的无设备人体追踪方法. 采集人体在不同位置上的射频(RF)功率信号,分析人体所在位置与功率信号之间的关系. 为了减缓信号不稳定性对系统的影响,提取射频功率信号的特征作为模型训练的数据集. 利用信号特征建立不同的深度学习模型,对比不同训练方式下的追踪效果和标签用量,选择合适的模型结构和训练方式. 分析实验结果,给出普适性意见和最优标签选择方法的具体步骤.实验表明,基于择优标签方法的定位系统是可行的,其中跟踪误差为0.19 m,与表现较好的WallSense系统相比,跟踪误差降低约5 cm,标签量降低66.7%. 基于择优标签方法的定位系统明显降低了标签部署对环境的影响,在保证精度的情况下,减少了标签冗余.

关键词: 无设备追踪信号特征标签择优深度学习射频识别
Abstract:

A device-free human tracking method based on selected tags was proposed to address the problems of existing human tracking systems, such as large tracking errors, large changes to the environment caused by hardware deployment, and inconvenience for users to wear the device. The radio frequency (RF) power signals of the human body at different positions were collected, and the relationship between the positions of the human body and the power signal was analyzed. In order to mitigate the effect of signal instability on the system, the features of the RF power signal were extracted as the dataset for model training. Different deep learning models were established by using the features of the RF power signal, and the tracking results and label usage under different training methods were compared to select the appropriate model structure and training method. The general opinion and the specific steps of the optimal tag selection method were given after analyzing the experimental results. Experimental results show that the location system based on the optimal tag selection method is feasible. The tracking error was 0.19 m, which was about 5 cm lower than that of the WallSense system, and the number of tags was reduced by 66.7%. The impact of tag deployment on the environment was obviously reduced, and the tag redundancy was reduced while the accuracy was ensured.

Key words: device-free tracking    signal feature    optimal tag selection    deep learning    radio frequency identification
收稿日期: 2021-08-09 出版日期: 2023-02-28
CLC:  TP 399
基金资助: 浙江省重点研发计划资助项目(2018C01003)
作者简介: 鲁建厦(1963—),男,教授,博导,从事智能物流、物流装备和精益生产研究. orcid.org/0000-0002-5874-338X. E-mail: ljs@zjut.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
鲁建厦
包秦
汤洪涛
邵益平
赵文彬

引用本文:

鲁建厦,包秦,汤洪涛,邵益平,赵文彬. 无设备人体追踪系统的择优标签方法[J]. 浙江大学学报(工学版), 2023, 57(2): 415-425.

Jian-sha LU,Qin BAO,Hong-tao TANG,Yi-ping SHAO,Wen-bin ZHAO. Optimal tag selection method for device-free human tracking system. Journal of ZheJiang University (Engineering Science), 2023, 57(2): 415-425.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.02.020        https://www.zjujournals.com/eng/CN/Y2023/V57/I2/415

图 1  择优标签方法流程图

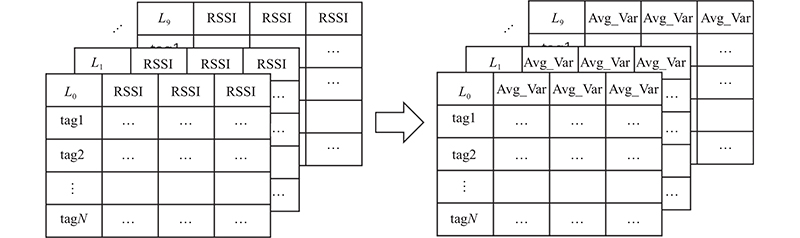

图 2  RSSI均值和方差的提取

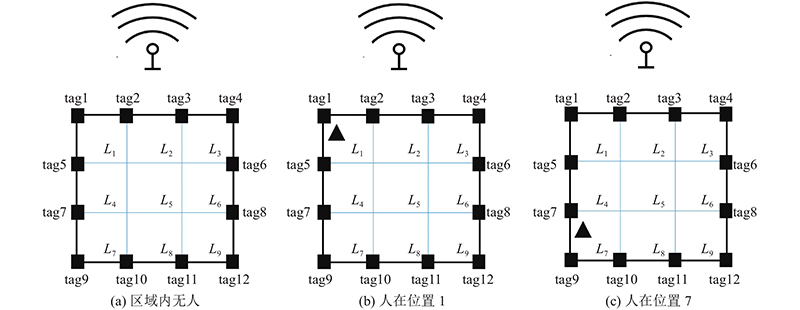

图 3  测试人员在监控区域内的信号采集

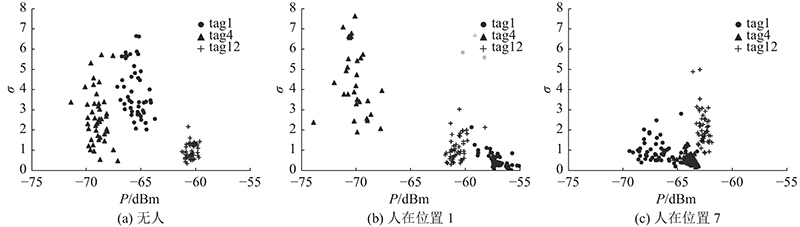

图 4  人对功率信号特征分布的影响

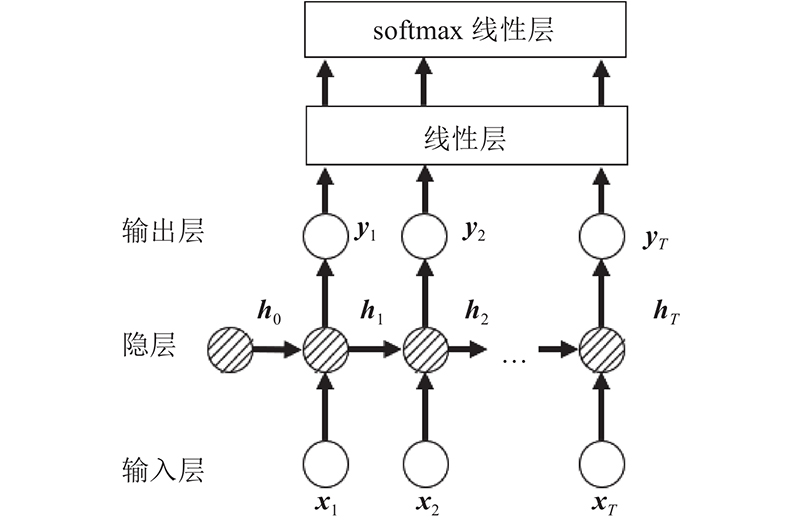

图 5  循环神经网络结构

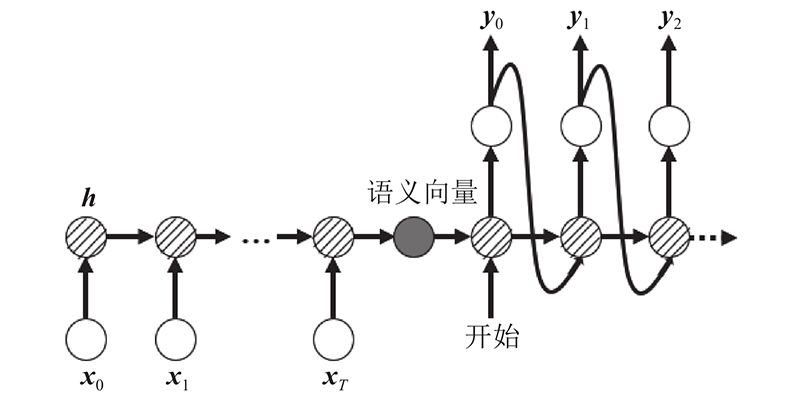

图 6  seq2seq结构示意图
图 7  额外信息与隐层拼接的添加
图 8  计算状态与权值的加权和

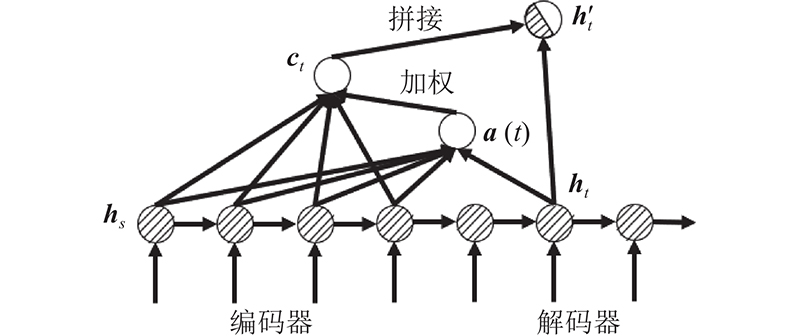

图 9  注意力计算过程

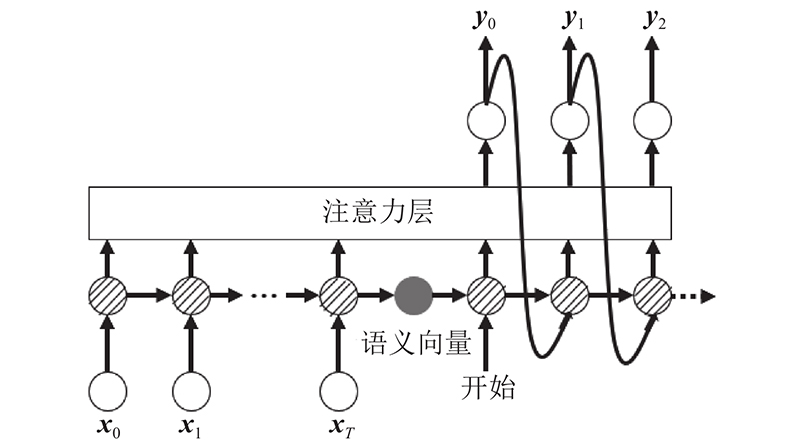

图 10  seq2seq加注意力结构

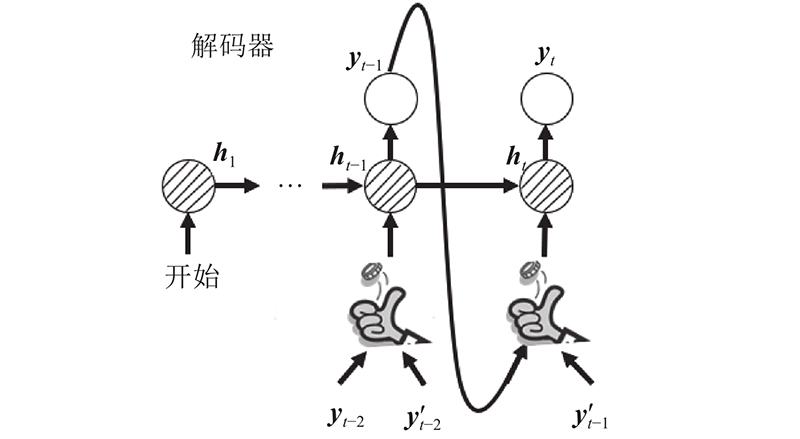

图 11  抛硬币确定输入方法的示意图
图 12  参数p的多种衰减过程
训练方式 A/% ttrain/min
自身推断 86.36 145.6
真实标签 86.60 145.6
线性衰减 88.53 123.6
指数衰减 87.25 181.4
恒定值 87.55 145.6
反向sigmoid衰减 86.23 163.5
表 1  不同训练方式的序列正确率
位置 标签
tag1 tag2 tag3 tag4 tag5 tag6
L1 97.34 98.29 99.33 99.90 85.16 99.76
L2 98.96 95.41 94.64 98.10 94.89 99.03
L3 99.32 98.59 95.19 99.61 93.49 98.40
L4 99.76 94.23 88.29 98.22 96.07 99.76
L5 100.00 95.58 93.57 99.93 99.71 98.72
表 2  所有标签的分类正确率(RNN作为结构单元)
位置 标签
tag1 tag2 tag3 tag4 tag5 tag6
L1 97.05 99.38 98.81 99.38 84.44 99.71
L2 99.17 95.79 92.68 97.79 94.72 99.55
L3 99.47 97.13 92.42 99.12 95.14 99.12
L4 99.73 95.53 90.54 97.40 96.41 99.69
L5 99.81 96.21 93.48 99.78 99.66 99.37
表 3  所有标签的分类正确率(GRU作为结构单元)
位置 标签
tag1 tag2 tag3 tag4 tag5 tag6
L1 97.05 99.38 98.81 99.38 84.44 99.71
L2 99.17 95.79 92.68 97.79 94.72 99.55
L3 99.47 97.13 92.42 99.12 95.14 99.12
L4 99.73 95.53 90.54 97.40 96.41 99.69
L5 99.81 96.21 93.48 99.78 99.66 99.37
表 4  所有标签的分类正确率(LSTM作为结构单元)
网络单元 As/% Ap/% No/个
GRU 99.55 99.93 4
LSTM 99.25 99.88 5
RNN 99.88 99.98 6
表 5  3种单元在4000条序列和24000个位置的测试结果

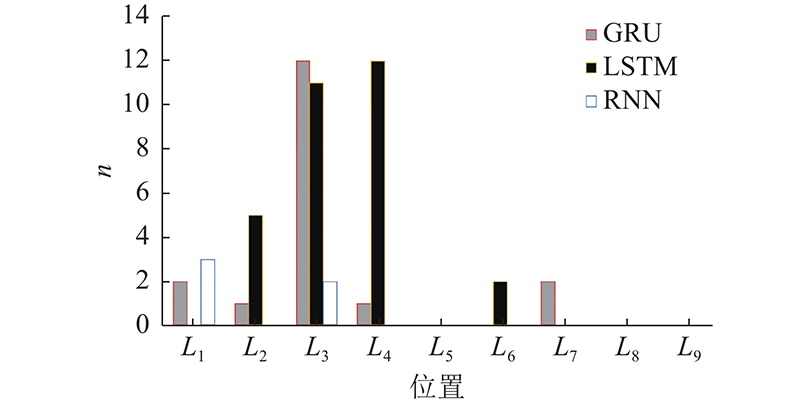

图 13  不同单元在测试集上的错误数量

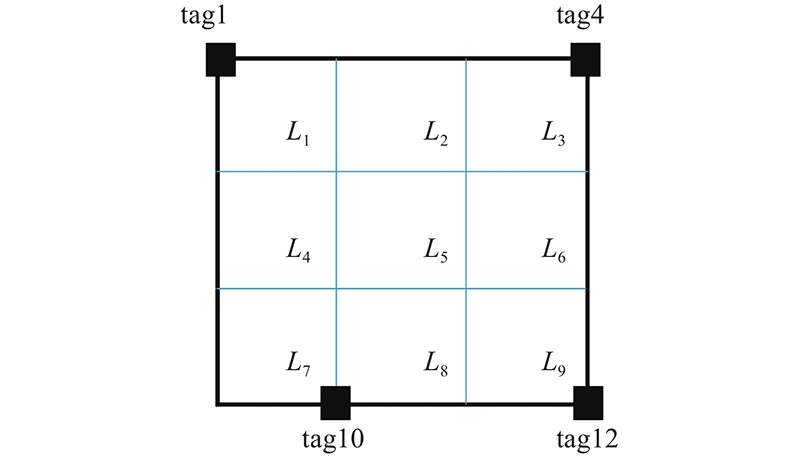

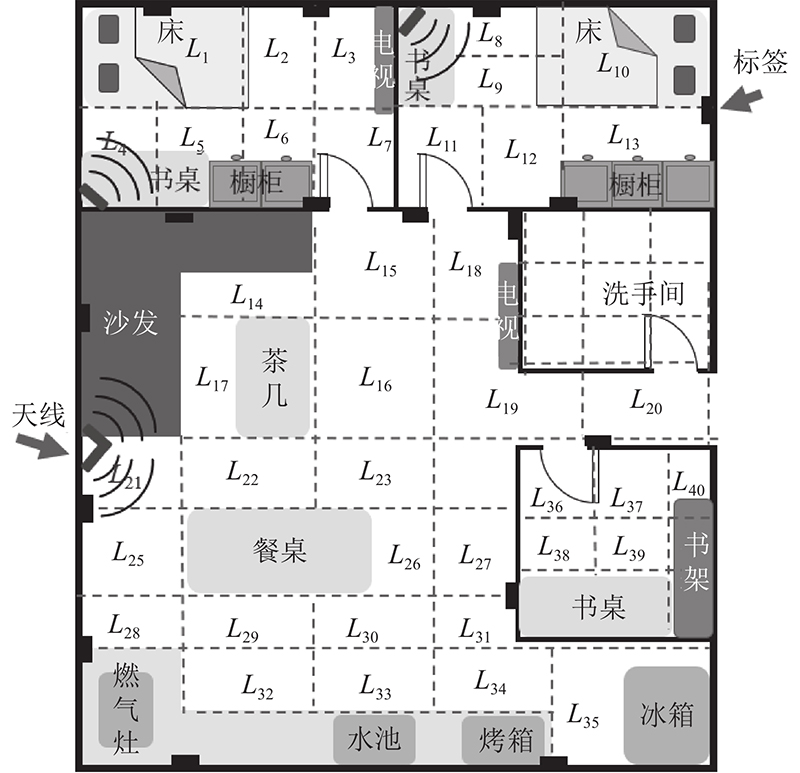

图 14  筛选后的标签布局

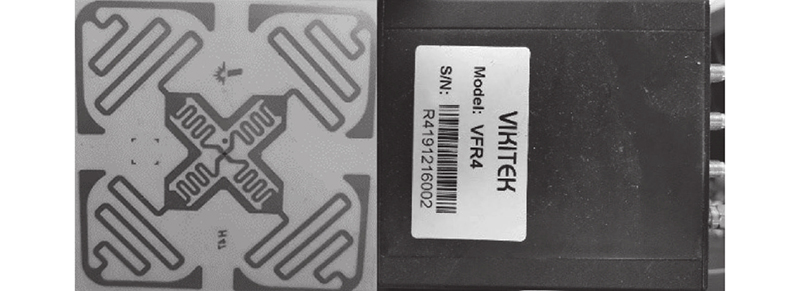

图 15  ImpinjM4无源标签和VFR4读写器
图 16  测试环境中的3条路径
图 17  标签筛选后的最优标签布局

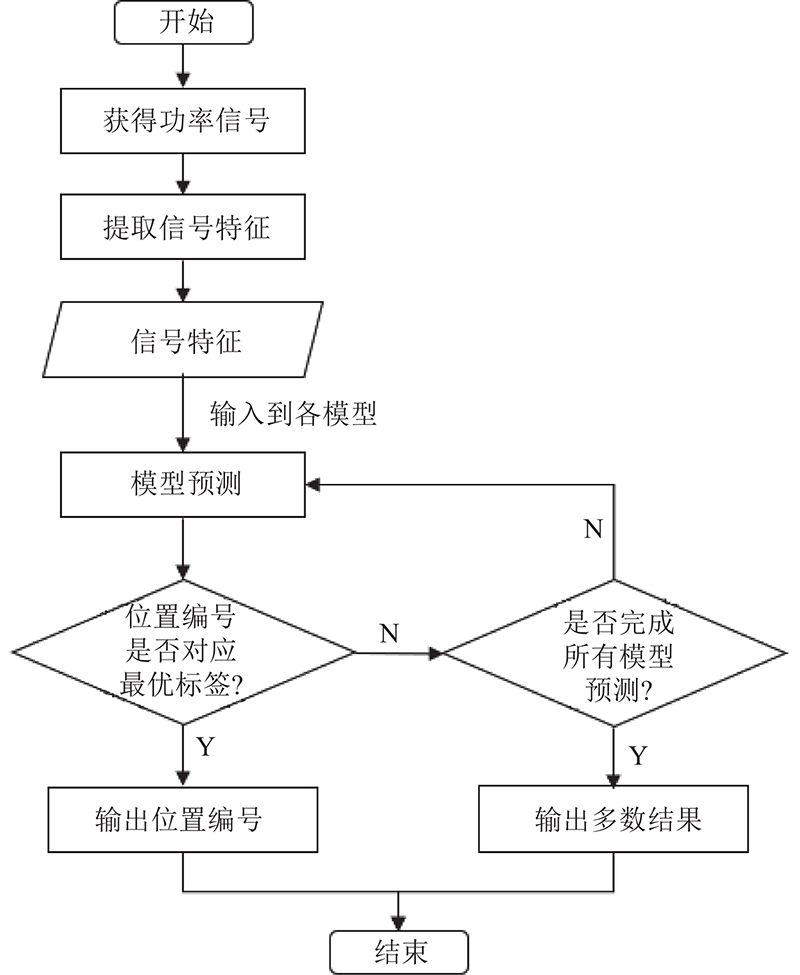

图 18  标签择优后的追踪阶段流程图
