浙江大学学报(工学版)  2024, Vol. 58 Issue (12): 2520-2530    DOI: 10.3785/j.issn.1008-973X.2024.12.011
计算机技术
B样条技术与遗传算法融合的全局路径规划
陈丽芳1(),杨火根1,*(),陈智超2,杨杰2
1. 江西理工大学 理学院,江西 赣州 341000
2. 江西理工大学 电气工程与自动化学院,江西 赣州 341000
Global path planning with integration of B-spline technique and genetic algorithm
Lifang CHEN1(),Huogen YANG1,*(),Zhichao CHEN2,Jie YANG2
1. College of Science, Jiangxi University of Science and Technology, Ganzhou 341000, China
2. College of Electrical Engineering and Automation, Jiangxi University of Science and Technology, Ganzhou 341000, China
 全文: PDF(910 KB)   HTML
摘要:

针对机器人在复杂障碍物环境下的路径规划问题,提出B样条技术与遗传算法融合的路径规划方法. 设计基于多目标A* 算法生成路径型值点以及反求控制点的策略,产生优质初始种群以增加种群多样性,提高算法早期的收敛速度;融合路径的连续性、安全性和最短性等因素设计新型适应度函数,计算每条路径的适应度;引入自适应策略调整交叉、变异算子以增加个体的多样性,避免早熟收敛至局部最优解. 基于MATLAB对所提算法进行仿真实验. 在复杂静态环境下的实验结果表明,与GABE算法、IPSO-SP算法生成的路径比较,所提算法生成的机器人行驶路径在长度上平均减少8.22%和2.15%,在早熟率上平均减少88.31%和77.08%,且路径具有二阶连续可导(即C2连续),提升了机器人的行驶稳定性. 结合机器人操作平台,通过导航实验验证了所提算法能在实际环境中完成路径规划.

关键词: B样条技术移动机器人A*算法遗传算法路径规划
Abstract:

A path planning method integrating B-spline technique and genetic algorithm was proposed, aiming at the path planning problem of robots in complex obstacle environments. Firstly, a strategy based on the multi-objective A* algorithm for generating path-type value points as well as inversing the control points was designed to generate a high-quality initial population, so as to increase the population diversity and improve the early convergence speed of the algorithm. Secondly, a novel fitness function was designed by integrating the continuity, safety and shortest of path, and the fitness value of each path was calculated. Then, the adaptive strategy was introduced to adjust the crossover and mutation operators to increase the diversity of individuals and avoid premature convergence to local optimal solutions. Finally, simulation experiments of the proposed algorithm were conducted based on MATLAB. The experimental results in complex static environment showed that the length of the robot traveling path generated by the proposed algorithm was reduced by an average of 8.22% and 2.15%, and the prematurity was reduced by an average of 88.31% and 77.08%, compared with the paths generated by GABE and IPSO-SP methods. And the paths had a second-order continuum derivability (i.e., C2 continuum), which improved the robot’s traveling stability. Simultaneously, the proposed algorithm was verified to be able to complete the path planning efficiently in real environments through navigation experiments by combining with the robot operation platform.

Key words: B-spline technique    mobile robot    A* algorithm    genetic algorithm    path planning
收稿日期: 2023-07-29 出版日期: 2024-11-25
CLC:  TP 242.6
基金资助: 国家自然科学基金资助项目(12161043);江西省研究生创新专项资金项目(YC2022-S648).
通讯作者: 杨火根     E-mail: 378201848@qq.com;yanghuogen@126.com
作者简介: 陈丽芳(1996—),女,硕士生,从事计算机辅助设计. orcid.org/0000-0002-8636-0335. E-mail:378201848@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
陈丽芳
杨火根
陈智超
杨杰

引用本文:

陈丽芳,杨火根,陈智超,杨杰. B样条技术与遗传算法融合的全局路径规划[J]. 浙江大学学报(工学版), 2024, 58(12): 2520-2530.

Lifang CHEN,Huogen YANG,Zhichao CHEN,Jie YANG. Global path planning with integration of B-spline technique and genetic algorithm. Journal of ZheJiang University (Engineering Science), 2024, 58(12): 2520-2530.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.12.011        https://www.zjujournals.com/eng/CN/Y2024/V58/I12/2520

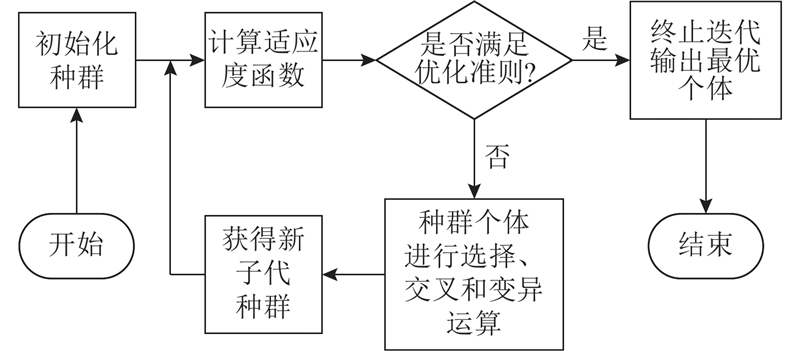

图 1  传统遗传算法流程图

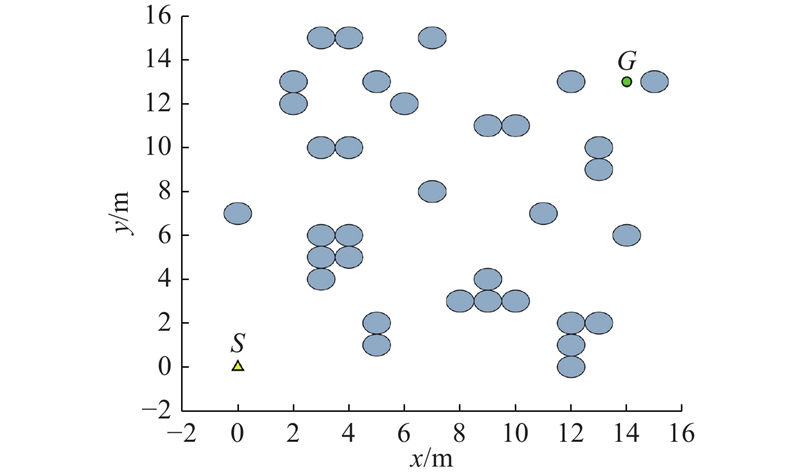

图 2  二维连续地图

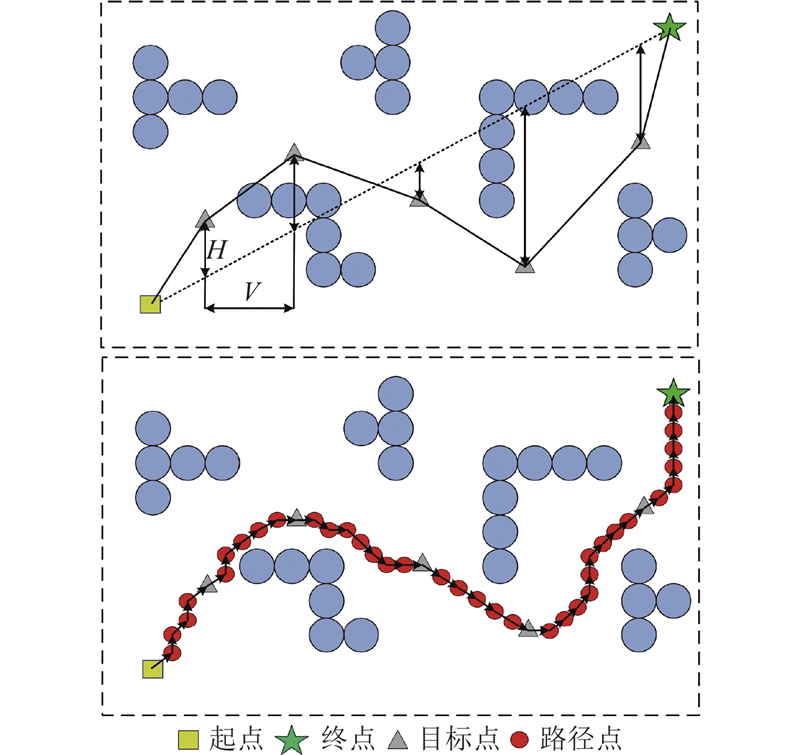

图 3  基于多目标A*算法生成路径型值点的示意图

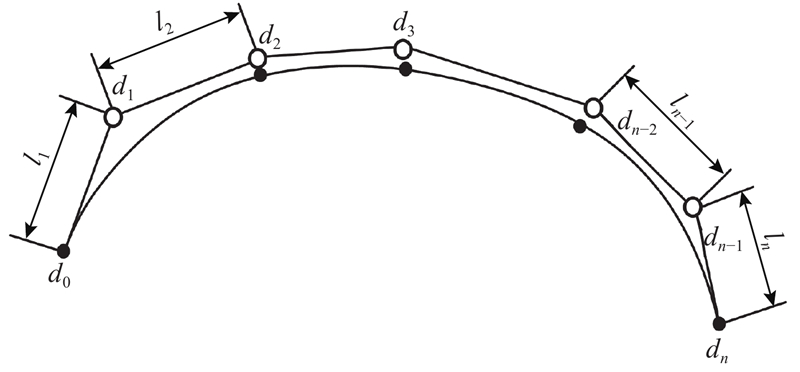

图 4  k次B样条曲线分段连接点与控制多边形的对应关系

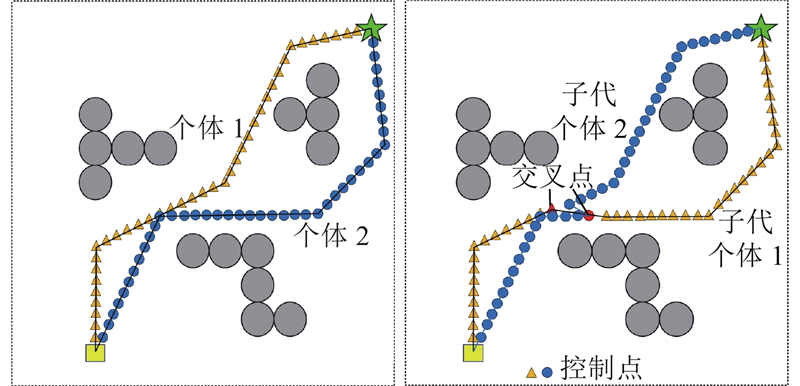

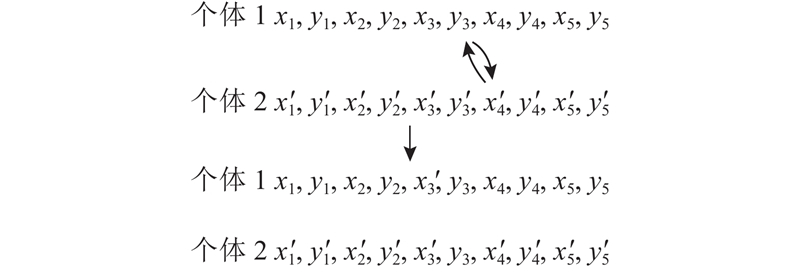

图 5  基于单点交叉方式的交叉过程示意图
图 6  基于单点变异方式的变异操作示意图

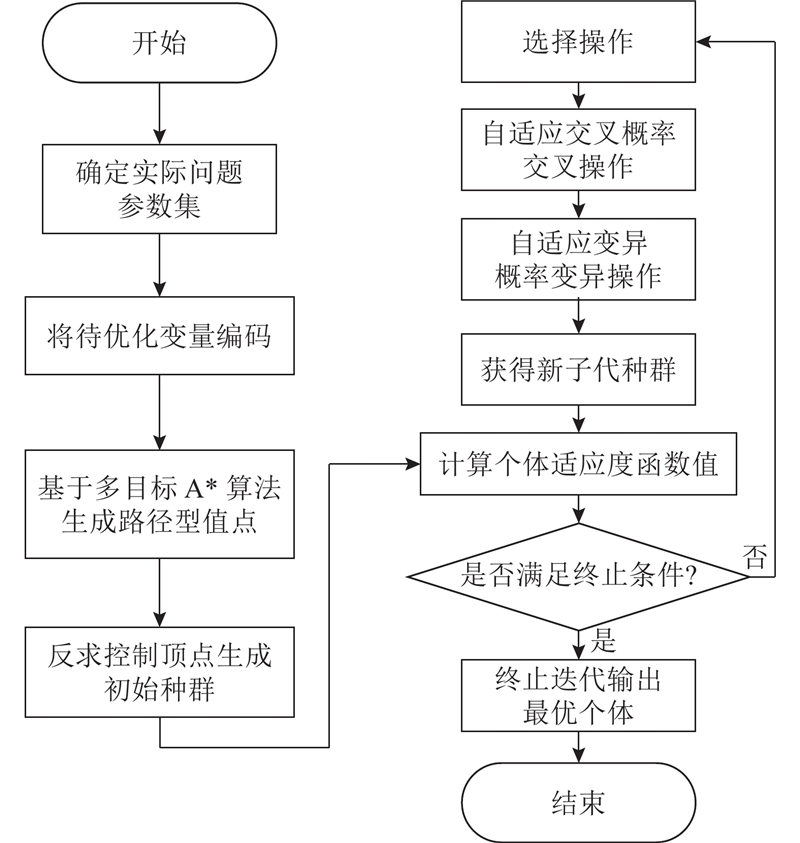

图 7  本研究算法路径规划流程图

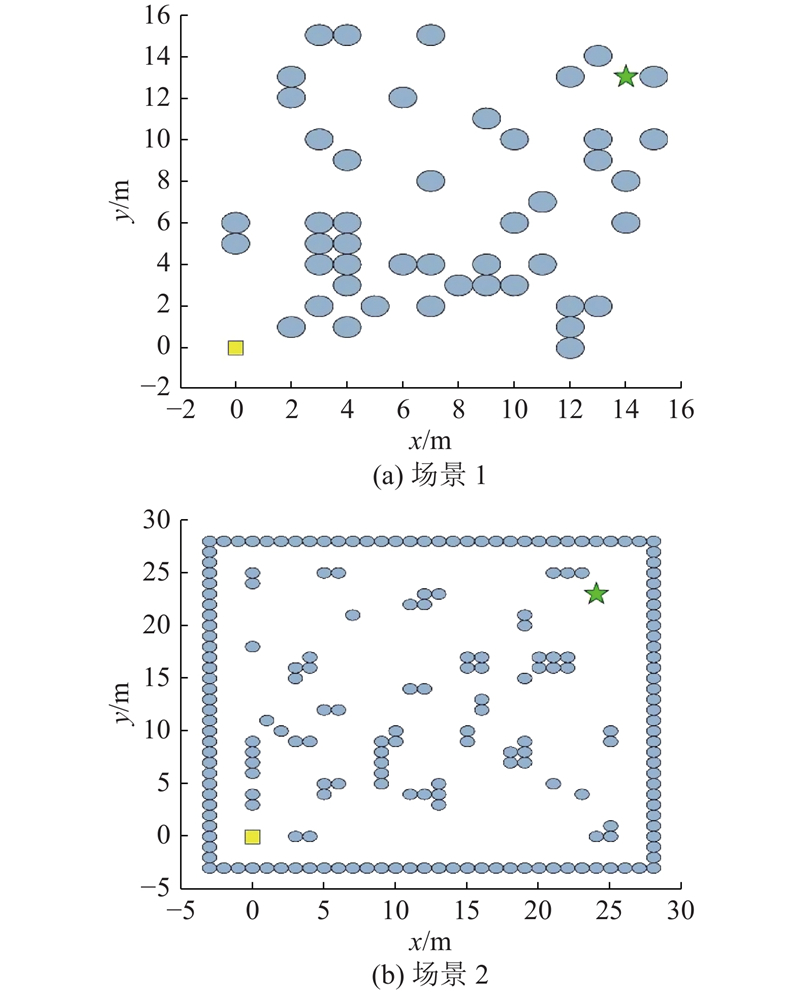

图 8  仿真实验连续地图
方法参数数值
GABE算法/本研究方法种群大小100
交叉概率0.9
变异概率0.1
迭代次数200
IPSO-SP算法种群大小150
惯性权重0.8
个体学习因子c1
全局学习因子c2
0.5
迭代次数200
表 1  各算法参数设置
地图NUM随机法随机法+筛选步骤本研究方法
Favgt/sFavgt/sFavgt/s
10×10800.0960450.10211250.356070
20×20800.04592190.06352970.0942225
30×30800.01084280.01135100.0281389
40×40800.00326200.00417130.0070519
表 2  不同初始种群生成方法的性能对比

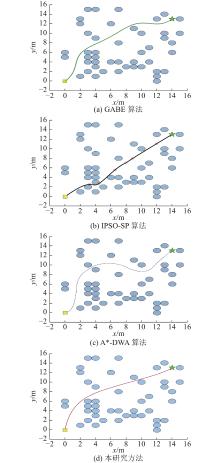

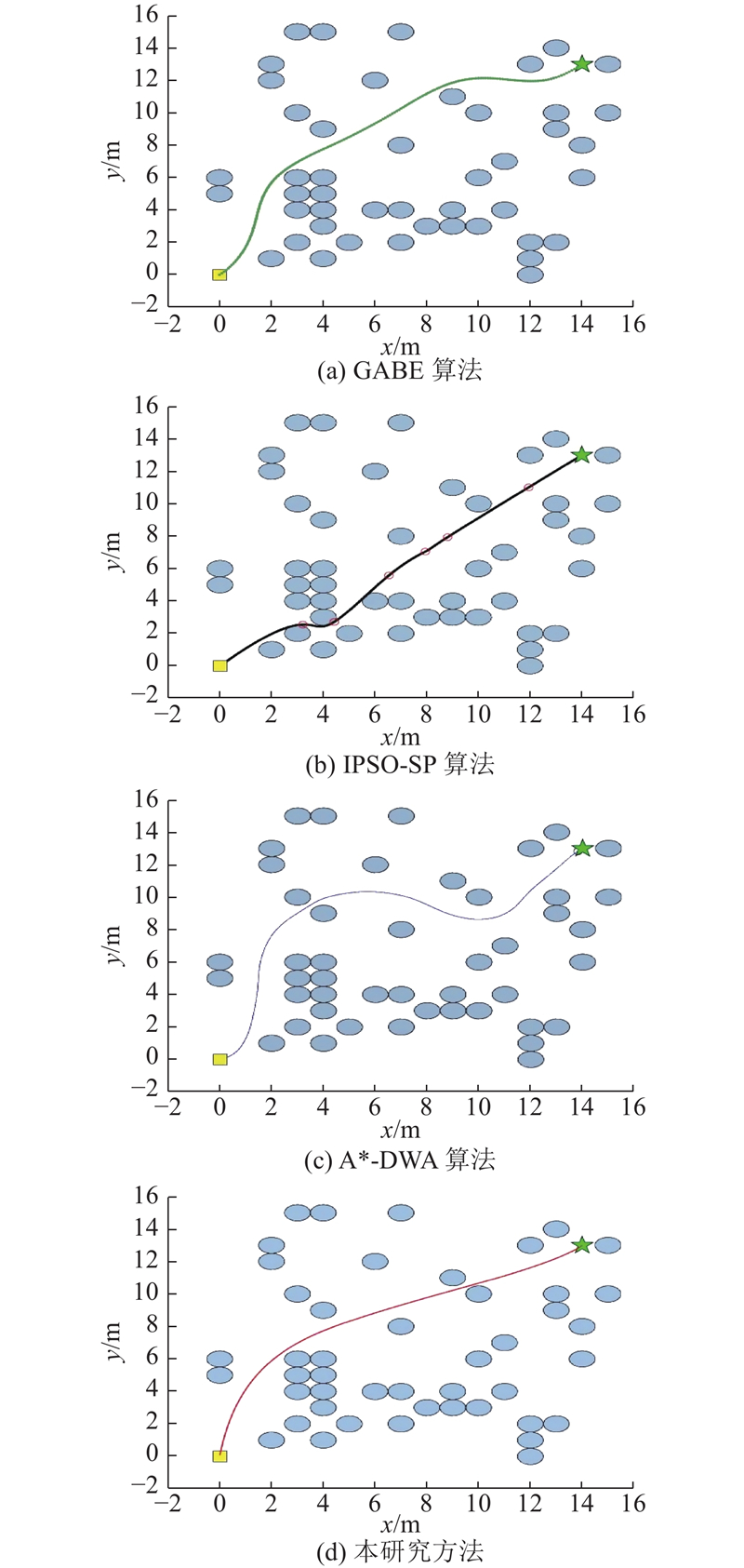

图 9  不同算法在场景1的路径规划结果对比
方法Lavg/mNavgPavg连续性
GABE算法21.39460.07G1
IPSO-SP算法19.98290.03C2
A*-DWA算法20.73C0
本研究方法19.59310.01C2
表 3  各算法在18×18地图上的实验结果对比

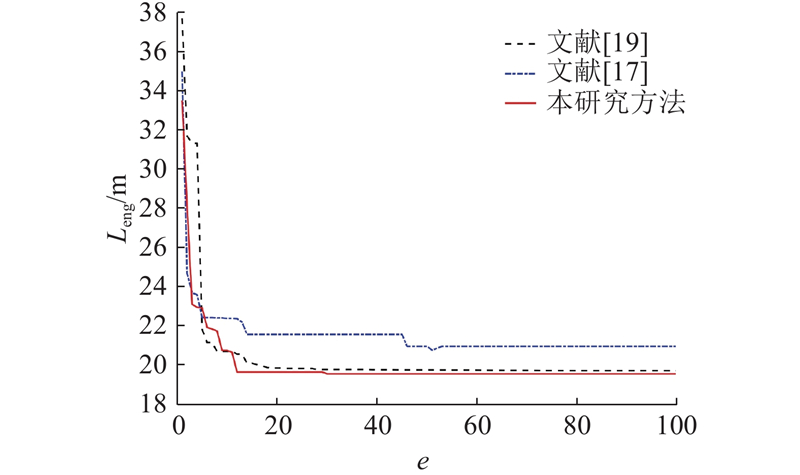

图 10  场景1下不同算法的路径长度随迭代次数变化曲线对比

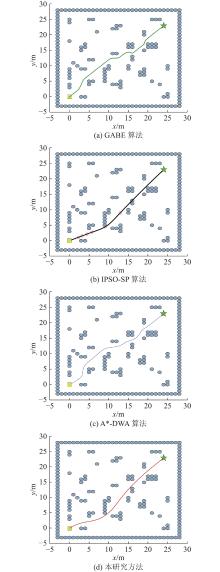

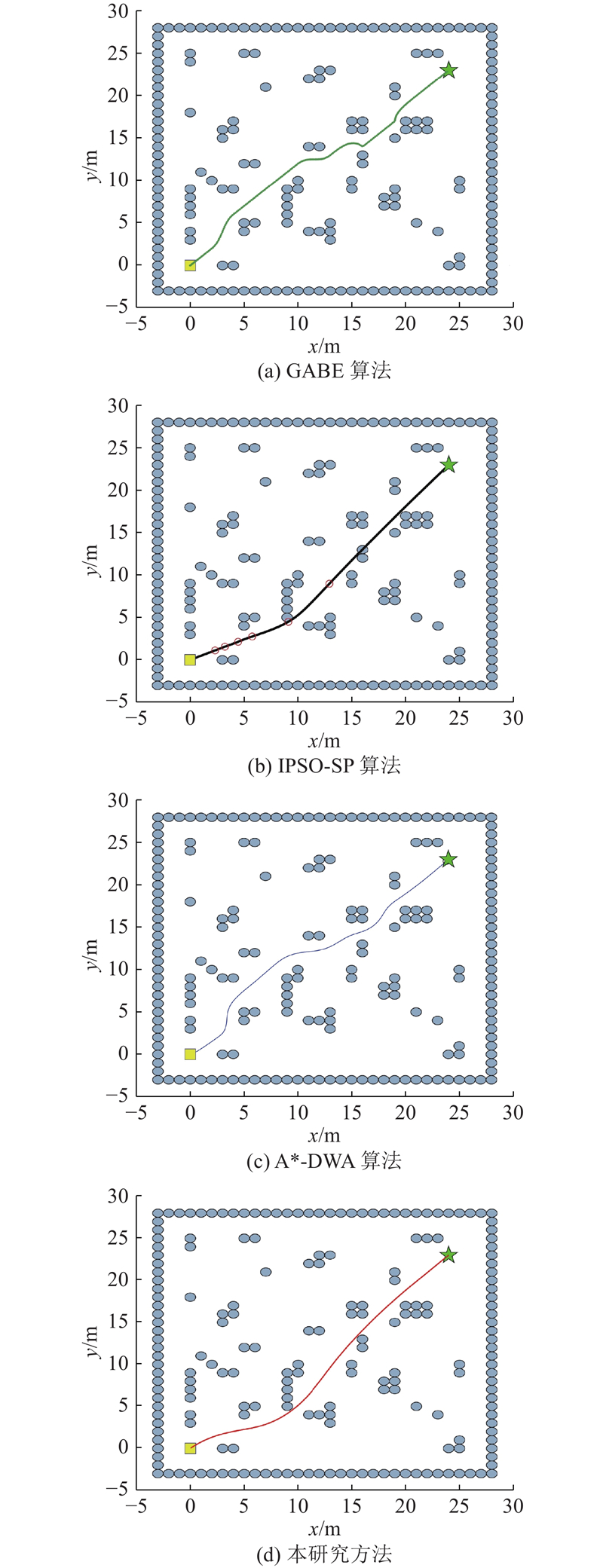

图 11  不同算法在场景2的路径规划结果对比

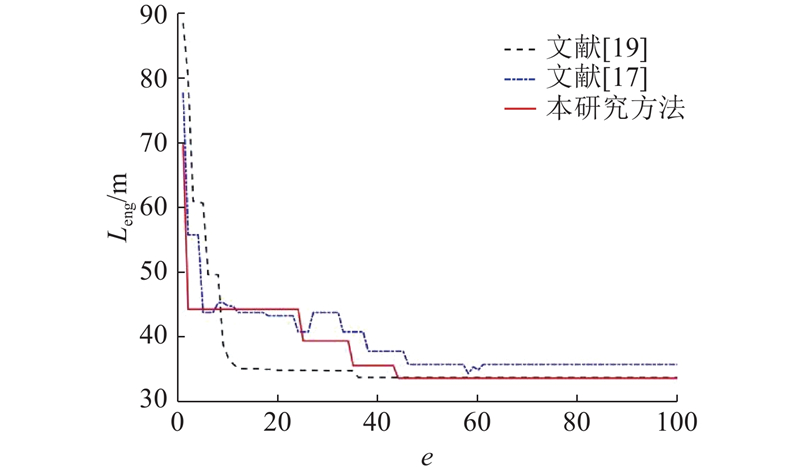

图 12  场景2下不同算法的路径长度随迭代次数变化曲线对比
方法Lavg/mNavgPavg连续性
GABE算法36.7696610.22G1
IPSO-SP算法33.9548390.16C2
A*-DWA算法34.4733C0
本研究方法33.8208440.02C2
表 4  各算法在35×35地图上的实验结果对比

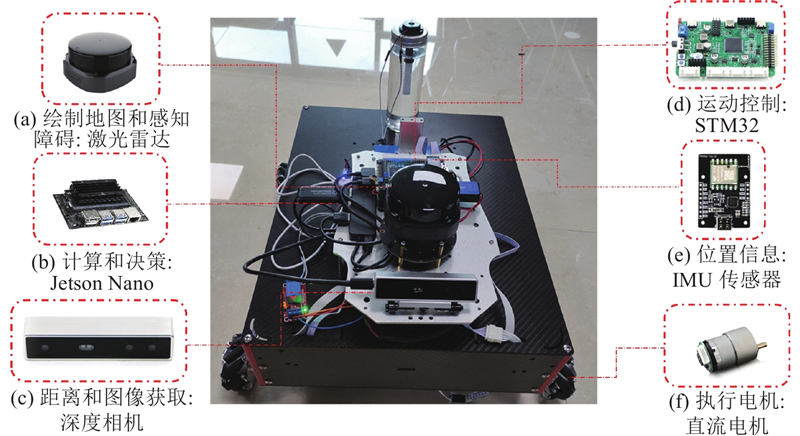

图 13  实验室前期搭建的麦克纳姆轮小车

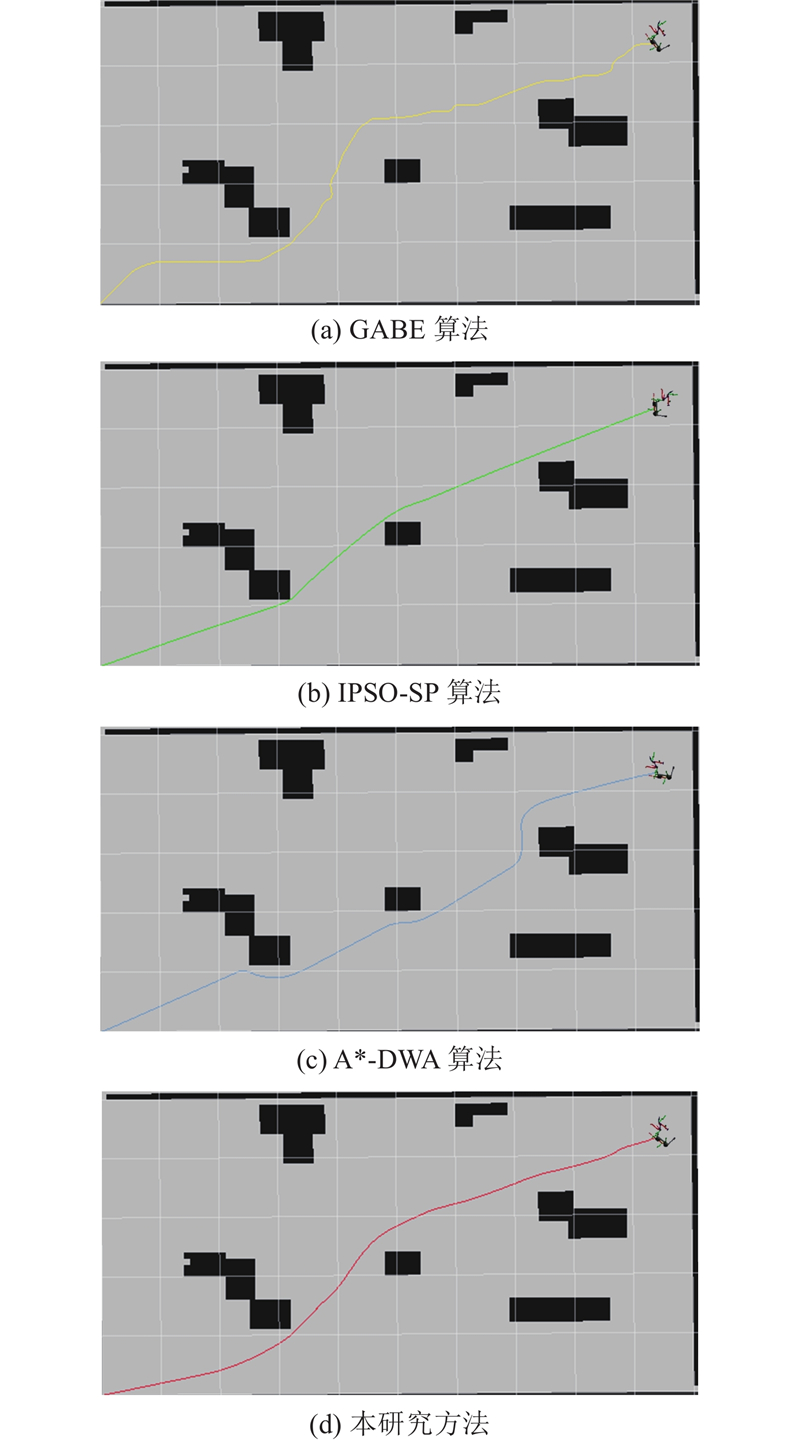

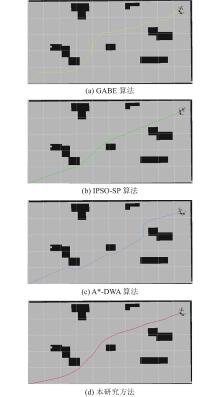

图 14  4种算法在ROS机器人上的路径可视化结果
