浙江大学学报(工学版)
浙江大学学报(工学版)  2024, Vol. 58 Issue (2): 360-369    DOI: 10.3785/j.issn.1008-973X.2024.02.014
机械工程
改进A*与ROA-DWA融合的机器人路径规划
刘宇庭1(),郭世杰1,*(),唐术锋1(),张学炜1,2,李田田1
1. 内蒙古工业大学 机械工程学院，内蒙古 呼和浩特 010051
2. 浙江大学 机械工程学院，浙江 杭州 310058
Path planning based on fusion of improved A* and ROA-DWA for robot
Yuting LIU1(),Shijie GUO1,*(),Shufeng TANG1(),Xuewei ZHANG1,2,Tiantian LI1
1. School of Mechanical Engineering, Inner Mongolia University of Technology, Hohhot 010051, China
2. School of Mechanical Engineering, Zhejiang University, Hangzhou 310058, China
 全文: PDF(2840 KB)   HTML
摘要：

为了解决机器人路径规划中传统A*算法和动态窗口法(DWA)存在的遍历节点较多、冗余点较多以及路径不平滑, 缺乏全局引导, 易陷入局部最优以及安全性低等问题, 提出融合改进A*算法和随机避障动态窗口法(ROA-DWA)的路径规划算法. 该算法通过启发式函数的权重调整、Floyd算法、冗余点删除策略、静态和动态障碍物分类处理和速度自适应因子等方式来提高搜索效率, 减少路径长度和拐点数量, 将已知障碍物对路径的影响最小化,大幅提高动态避障效率，使得机器人在平稳到达目标点的同时还提升了机器人的安全性, 更好地适应复杂的动态和静态环境. 实验结果表明, 该算法具有较好的全局最优性和局部避障能力, 在大型地图中展现出更好的优势.
关键词： 机器人路径规划;  动态避障;  改进A*算法;  随机避障动态窗口法（ROA-DWA）;  融合算法
Abstract:

A path planning algorithm based on the fusion of the improved A* algorithm and the random obstacle avoidance dynamic window method (ROA-DWA) was proposed in order to address the issues of excessive traversal nodes, redundant points, non-smooth paths, lack of global guidance, susceptibility to local optima, and low safety in traditional A* algorithm and dynamic window approach (DWA) for robot path planning. The search efficiency was improved by adjusting the weights of heuristic functions, Floyd’s algorithm, redundant point deletion strategy, static and dynamic obstacle classification, and speed adaptive factor. The length of the path and the number of inflection points were reduced, and the influence of known obstacles on the path was minimized to improve the efficiency of dynamic obstacle avoidance, which enabled the robot to smoothly arrive at the target point and improved the safety of the robot, and better adapted to complex dynamic and static environments. The experimental results show that the algorithm has better global optimality and local obstacle avoidance ability, and shows better advantages in large maps.
Key words: robot path planning    dynamic obstacle avoidance    improved A* algorithm    random obstacle avoidance dynamic window algorithm (ROA-DWA)    fusion algorithm
收稿日期: 2023-08-21 出版日期: 2024-01-23
CLC:  TP 242
基金资助: 国家自然科学基金资助项目（52065053）；科技部国家重点研发计划资助项目（2018YFB1307501）；中央引导地方科技发展专项资助项目（2020ZY0002）；内蒙古关键技术攻关资助项目（2020GG0255）；内蒙古自然科学基金资助项目（2022FX01, 2023LHMS05018）；内蒙古自治区高等学校科学研究资助项目（NJZY21308）；内蒙古自治区直属高校基本科研业务费资助项目（JY20220046）；内蒙古自治区高等学校青年科技英才支持计划资助项目（NJYT23043）；内蒙古自治区高等学校创新团队发展支持计划资助项目（NMGIRT2213）；内蒙古自治区科技计划资助项目（2021GG0259)
通讯作者: 郭世杰     E-mail: 1511260827@qq.com;sjguo@imut.edu.cn;tangshufeng@imut.edu.cn
作者简介: 刘宇庭（1998—），男，硕士生，从事路径规划和自主导航的研究. orcid.org/0009-0008-8941-8310. E-mail：1511260827@qq.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
刘宇庭
郭世杰
唐术锋
张学炜
李田田

引用本文:

刘宇庭,郭世杰,唐术锋,张学炜,李田田. 改进A*与ROA-DWA融合的机器人路径规划[J]. 浙江大学学报(工学版), 2024, 58(2): 360-369.

Yuting LIU,Shijie GUO,Shufeng TANG,Xuewei ZHANG,Tiantian LI. Path planning based on fusion of improved A* and ROA-DWA for robot. Journal of ZheJiang University (Engineering Science), 2024, 58(2): 360-369.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.02.014    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I2/360

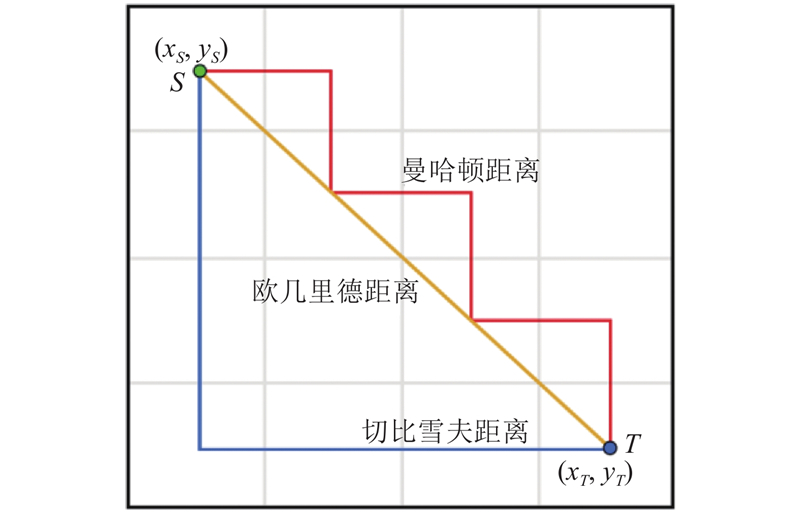

图 1  3种启发函数距离的示意图

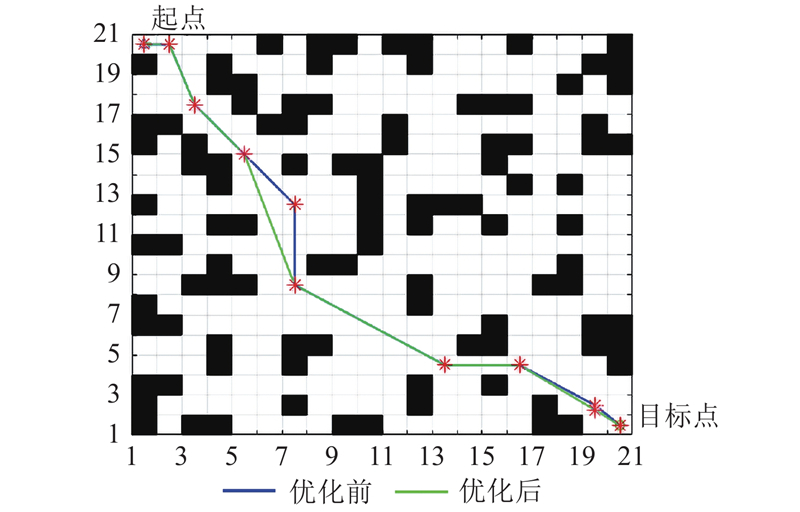

图 2  路径平滑优化策略

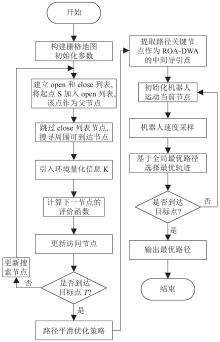

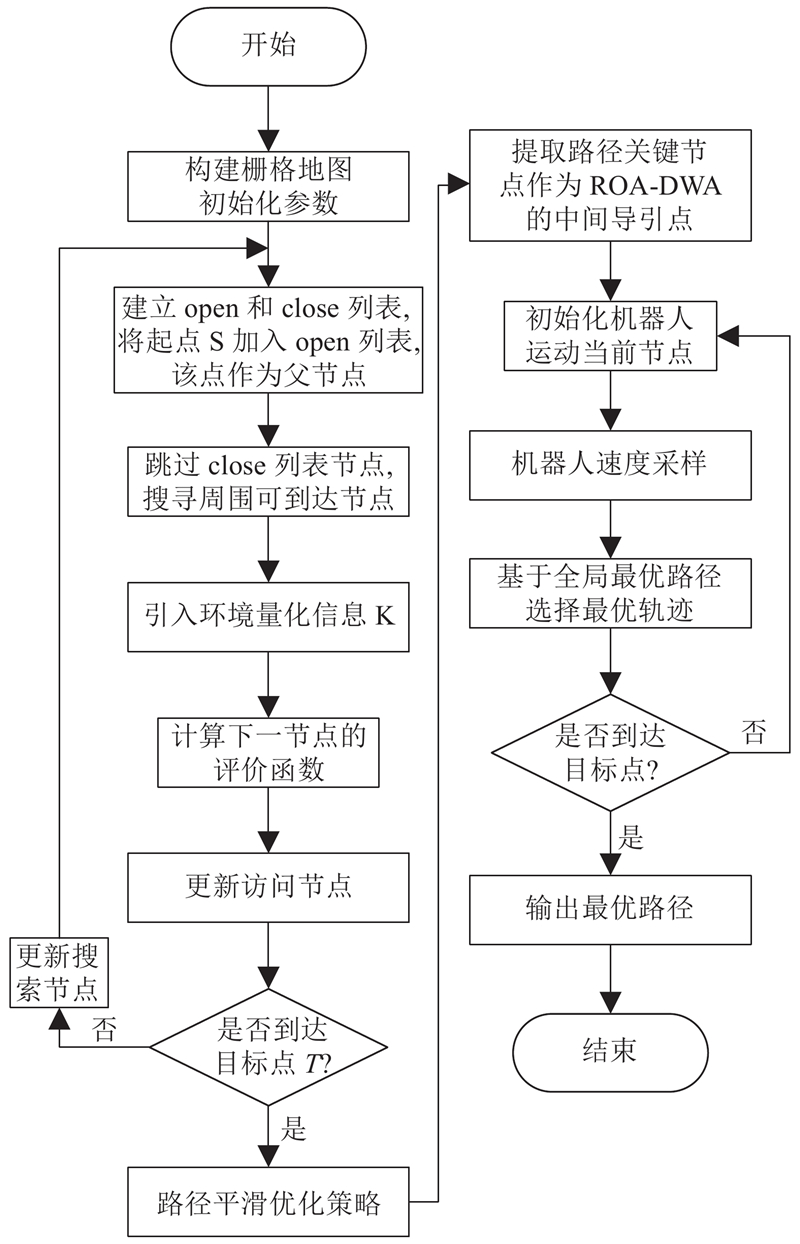

图 3  改进A*与ROA-DWA的融合流程图

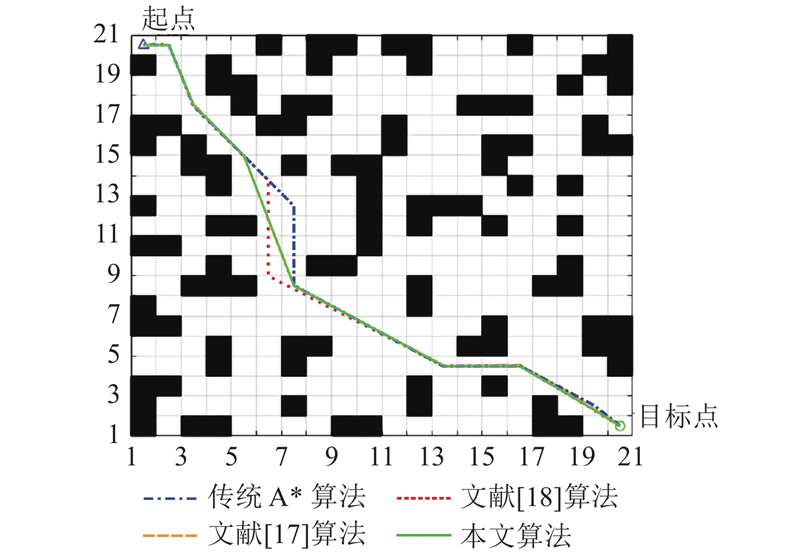

图 4  20×20栅格地图的仿真结果对比图

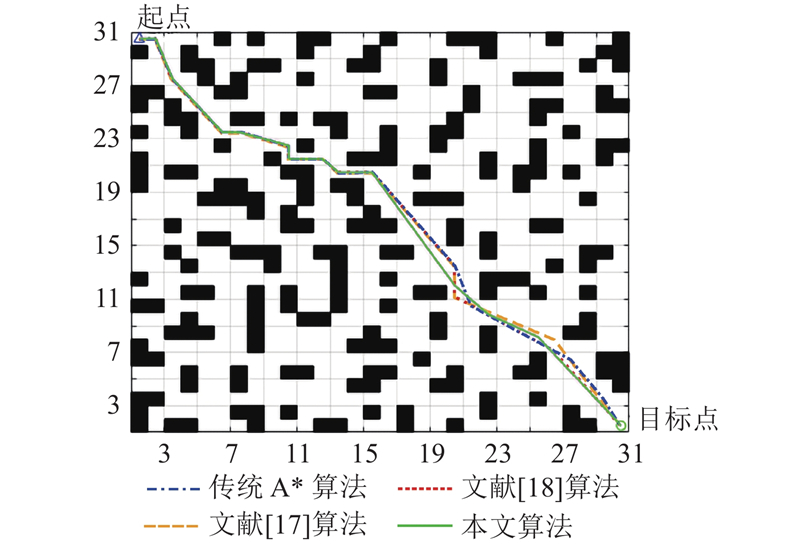

图 5  30×30栅格地图的仿真结果对比图

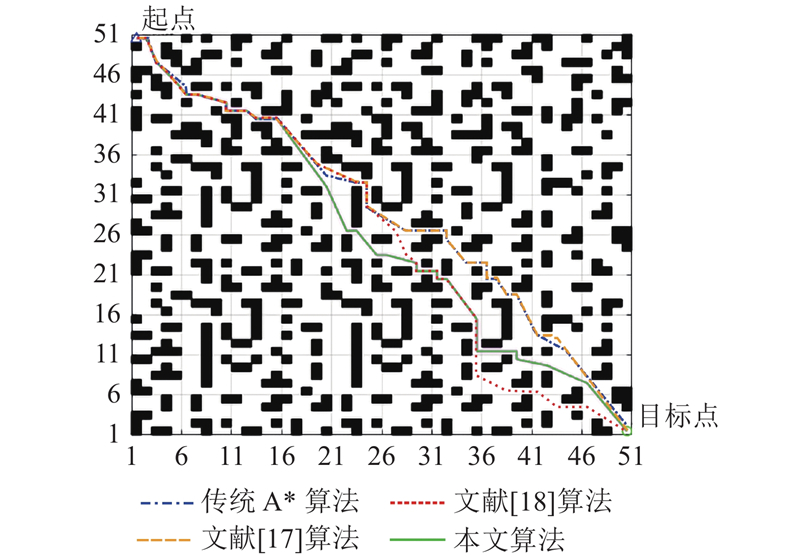

图 6  50×50栅格地图的仿真结果对比图
地图尺寸算法L/mT/sNP$\Sigma \theta $/(°)
20×20传统A*算法29.7960.5281497265.45
文献[17]算法29.3760.3251497254.85
文献[18]算法29.5830.2811218265.45
本文改进算法29.3760.1461137254.85
30×30传统A*算法44.5560.96630113627.67
文献[17]算法44.3680.74330112652.81
文献[18]算法44.2740.67721512559.44
本文改进算法44.2660.18319511544.32
50×50传统A*算法80.6363.0991087251543.96
文献[17]算法79.8682.8531087251524.61
文献[18]算法79.3741.573544281478.82
本文改进算法77.7841.379499251406.98
表 1  全局路径规划的仿真数据
参数数值参数数值
vmax/(m·s?1)2.0ωmax/(${{(^\circ) \cdot {\rm{s}}^{-1}}}$)40.0
amax/(${\text{m}}\cdot{{\text{s}}^{-\text{2}}}$)0.4βmax/(${{(^\circ) }}\cdot {{\text{s}}^{-\text{2}}}$)100.0
vres/(${\text{m}\cdot {\rm{s}}^{-1}}$)0.01ωres/(${{(^\circ) \cdot {\rm{s}^{-1}}}}$)1.0
Tres/s0.1Tpred/s3.0
表 2  机器人运动学参数

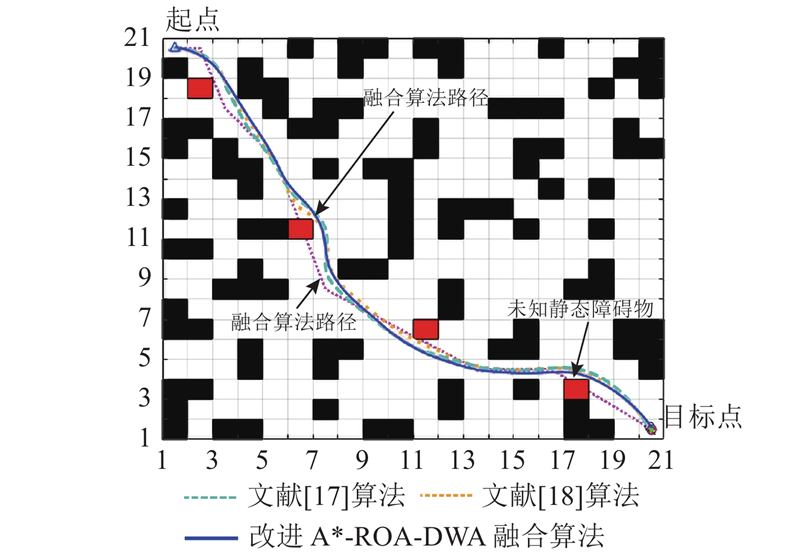

图 7  静态环境下的运动轨迹

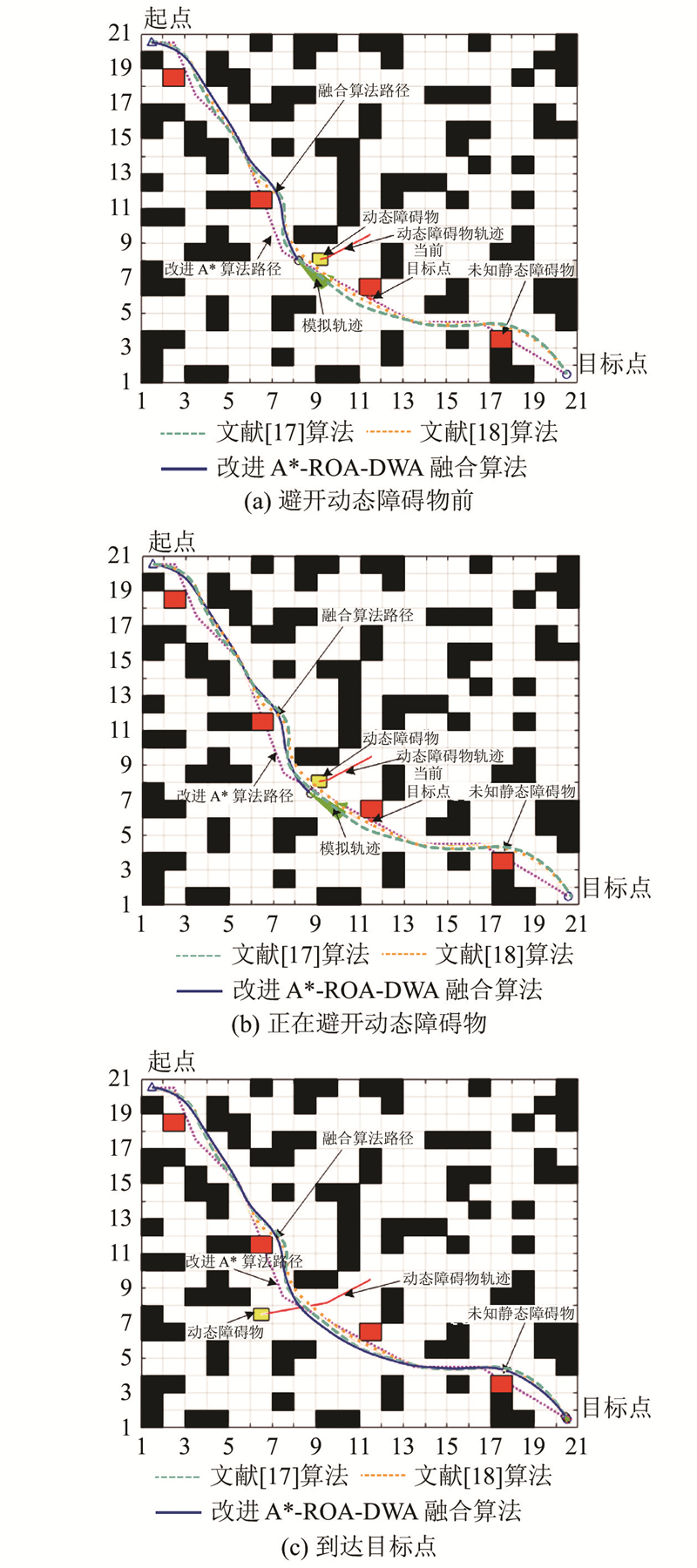

图 8  动态环境下的运动轨迹
算法L/mT/sK/m?1是否碰撞/
到达终点
文献[17]融合算法29.746183.7640.21是/是
文献[18]融合算法29.341167.2730.19是/是
改进A*-ROA-DWA融合算法29.548117.1620.16否/是
表 3  融合算法仿真数据

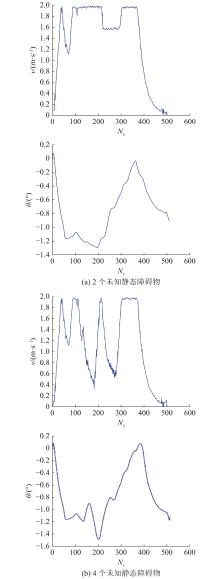

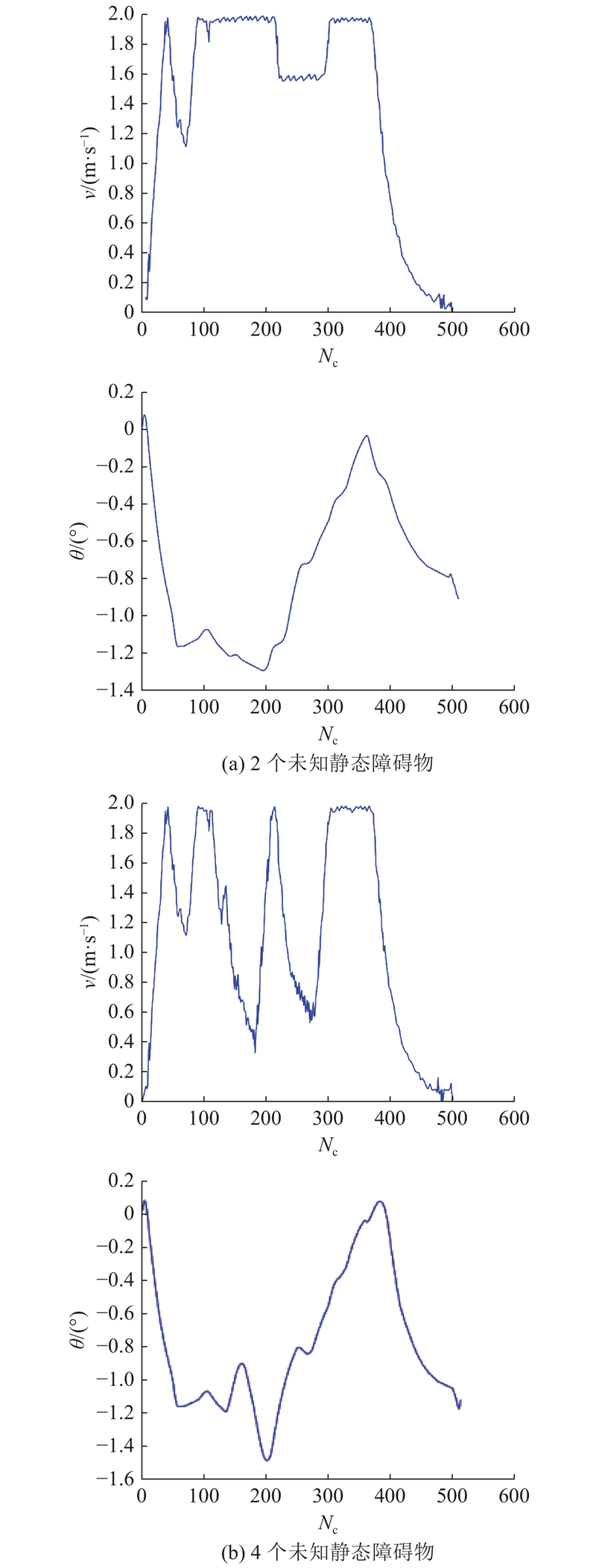

图 9  动态环境下的机器人状态

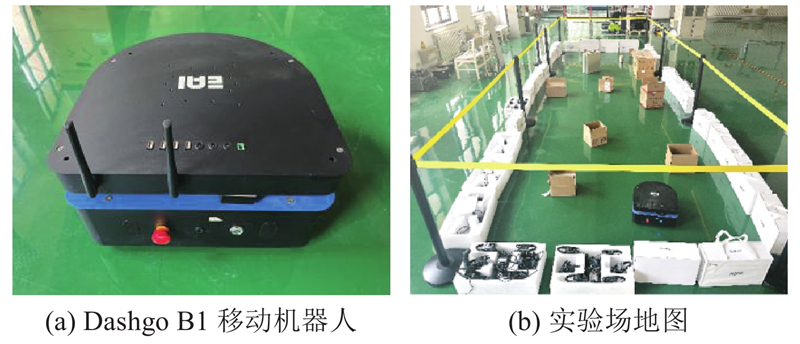

图 10  融合算法的路径规划实验设备与实验场地

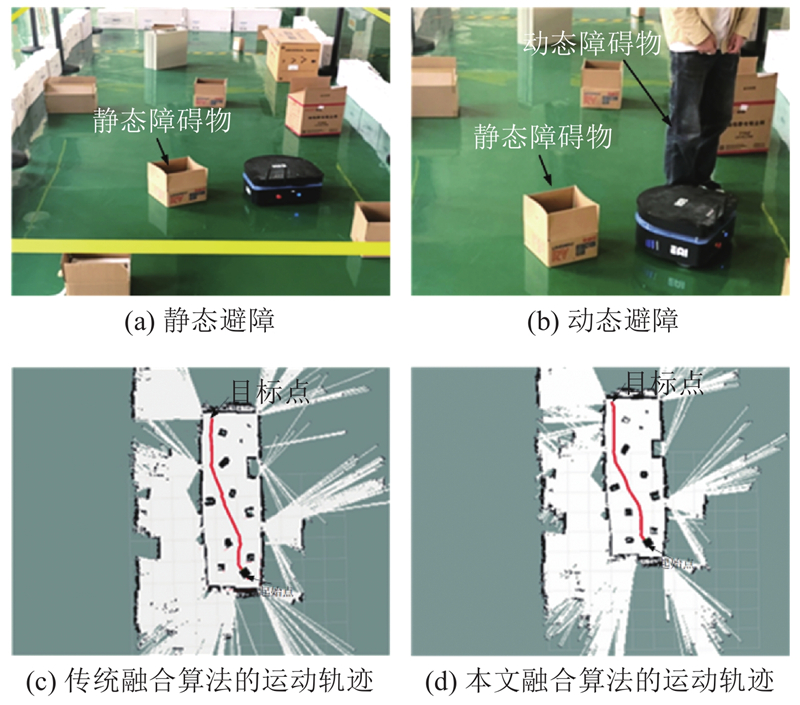

图 11  融合算法路径规划
算法L/mT/sK/m?1
传统融合算法7.26928.4690.23
本文融合算法7.17625.7240.21
表 4  传统融合算法和本文融合算法性能的对比
