基于改进强化学习的多智能体追逃对抗
薛雅丽(),叶金泽,李寒雁
南京航空航天大学 自动化学院，江苏 南京 211106
Multi-agent pursuit and evasion games based on improved reinforcement learning
Ya-li XUE(),Jin-ze YE,Han-yan LI
College of Automation Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
 全文: PDF(1158 KB)   HTML
摘要：

针对多智能体追逃问题，提出基于优先经验回放和解耦奖励函数的多智能体强化学习算法. 将多智能体深度确定性策略梯度算法（MADDPG）和双延迟-确定策略梯度算法（TD3）相结合，提出多智能体双延迟-确定策略梯度算法（MATD3）. 针对多智能体追逃问题中奖励函数存在大量稀疏奖励的问题，提出利用优先经验回放方法确定经验优先度以及采样高价值经验. 设计解耦奖励函数，将奖励函数分为个体奖励和联合奖励以最大化全局奖励和局部奖励，提出DEPER-MATD3算法. 基于此算法设计仿真实验，并与其他算法对比，实验结果表明，该算法有效解决了过估计问题，且耗时相比MATD3算法有所减少. 在解耦奖励函数环境下该算法训练的追击者的全局平均奖励升高，追击者有更大的概率追击到逃逸者.
关键词： 追逃对抗;  强化学习;  经验回放;  多智能体;  奖励函数
Abstract:

A multi-agent reinforcement learning algorithm based on priority experience replay and decomposed reward function was proposed in multi-agent pursuit and evasion games. Firstly, multi-agent twin delayed deep deterministic policygradient algorithm (MATD3) algorithm based on multi-agent deep deterministic policy gradient algorithm (MADDPG) and twin delayed deep deterministic policy gradient algorithm (TD3) was proposed. Secondly, the priority experience replay was proposed to determine the priority of experience and sample the experience with high reward, aiming at the problem that the reward function is almost sparse in the multi-agent pursuit and evasion problem. In addition, a decomposed reward function was designed to divide multi-agent rewards into individual rewards and joint rewards to maximize the global and local rewards. Finally, a simulation experiment was designed based on DEPER-MATD3. Comparison with other algorithms showed that DEPER-MATD3 algorithm solved the over-estimation problem, and the time consumption was improved compared with MATD3 algorithm. In the decomposed reward function environment, the global mean rewards of the pursuers were improved, and the pursuers had a greater probability of chasing the evader.
Key words: pursuit-evasion games    reinforcement learning    experience replay    multi agent    reward function
收稿日期: 2022-11-23 出版日期: 2023-08-31
CLC:  TP 242.6
基金资助: 国家自然科学基金资助项目（62073164）
作者简介: 薛雅丽（1974—），女，副教授，从事飞行器自适应控制、多智能体协同控制以及目标识别研究. orcid.org/0000-0002-6514-369X. E-mail： xueyali@nuaa.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
薛雅丽
叶金泽
李寒雁

引用本文:

薛雅丽,叶金泽,李寒雁. 基于改进强化学习的多智能体追逃对抗[J]. 浙江大学学报(工学版), 2023, 57(8): 1479-1486.

Ya-li XUE,Jin-ze YE,Han-yan LI. Multi-agent pursuit and evasion games based on improved reinforcement learning. Journal of ZheJiang University (Engineering Science), 2023, 57(8): 1479-1486.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.08.001    或    https://www.zjujournals.com/eng/CN/Y2023/V57/I8/1479

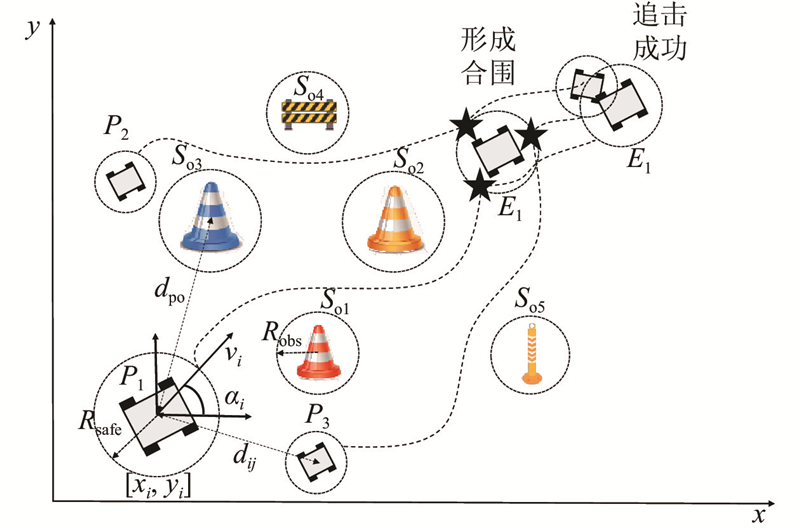

图 1  多智能体追逃问题示意图

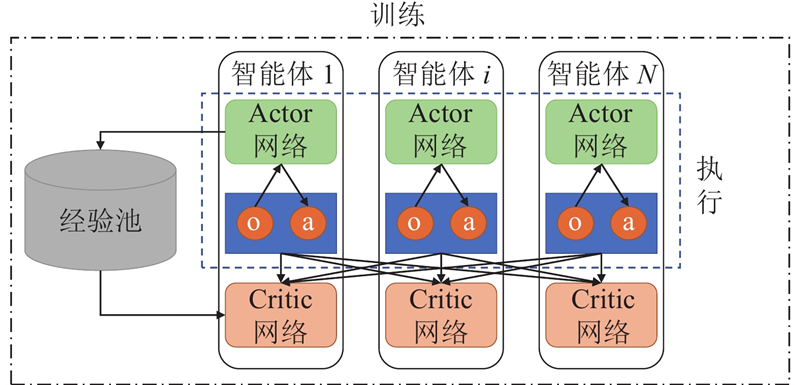

图 2  集中式训练分布式执行框架

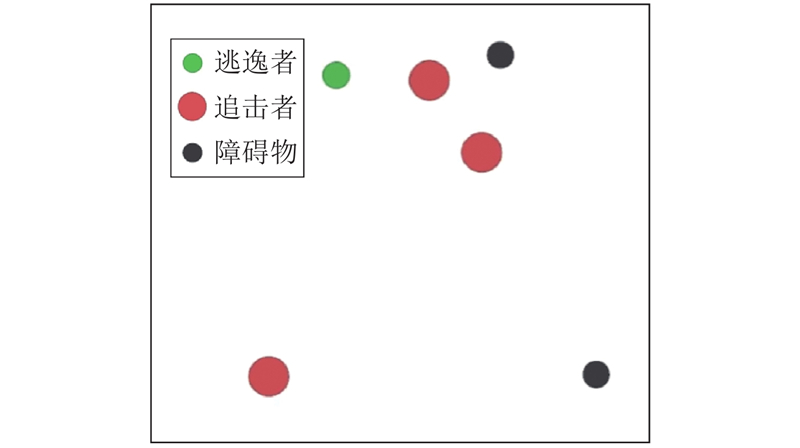

图 3  多智能体追逃仿真环境
训练超参数 超参数符号 数值
折扣因子 γ 0.95
惯性更新率 τ 0.01
经验池大小 ReplayBuffer 1×106
回放样本数 BatchSize 1024
回合数 Ep 60000
每回合时间步 Maxstep 30
神经网络学习率 ρ 0.01
更新率 UpdateFre 100
探索率 ε 0.5
权重优先级 α 0.6
重要性采样参数 β 0.5
表 1  训练超参数设定
图 4  3种强化学习算法训练的平均奖励曲线

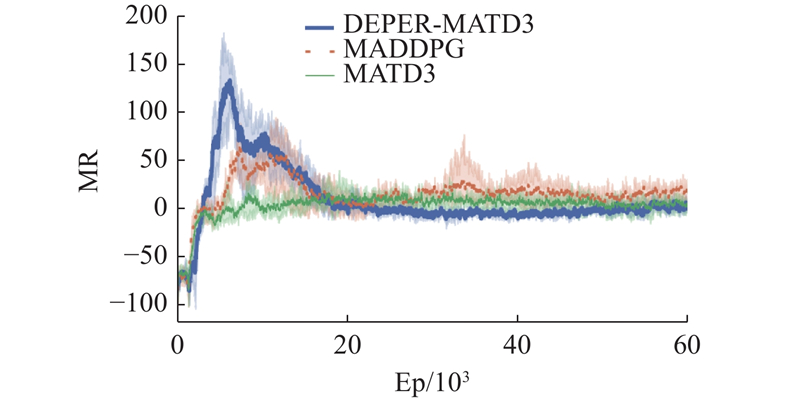

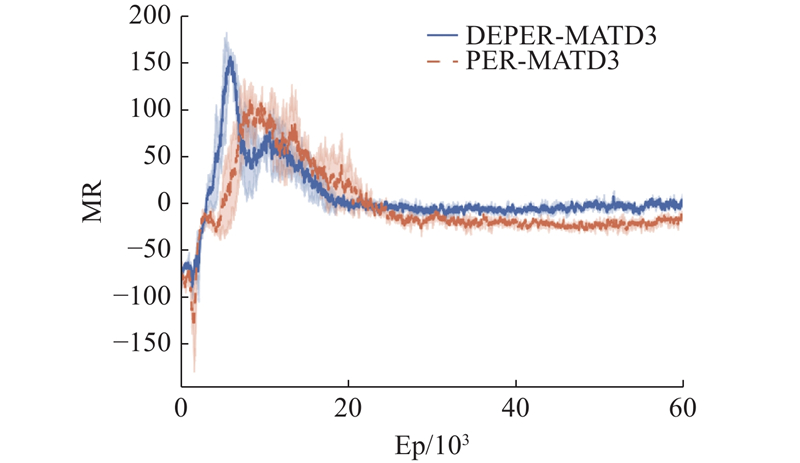

图 5  解耦奖励和非解耦奖励下的平均奖励曲线
