基于集成概率模型的变阻抗机器人打磨力控制

郭万金1,2,3(

),赵伍端1,利乾辉1,赵立军2,4,曹雏清3,4

1. 长安大学道路施工技术与装备教育部重点实验室，陕西西安 710064
2. 哈尔滨工业大学机器人技术与系统国家重点实验室，黑龙江哈尔滨 150001
3. 芜湖哈特机器人产业技术研究院有限公司，博士后工作站，安徽芜湖 241007
4. 长三角哈特机器人产业技术研究院，安徽芜湖 241007

Ensemble probabilistic model based variable impedance for robotic grinding force control

Wan-jin GUO1,2,3(

),Wu-duan ZHAO1,Qian-hui LI1,Li-jun ZHAO2,4,Chu-qing CAO3,4

1. Key Laboratory of Road Construction Technology and Equipment, Ministry of Education, Chang’an University, Xi'an 710064, China
2. State Key Laboratory of Robotics and System, Harbin Institute of Technology, Harbin 150001, China
3. Post-Doctoral Research Center, Wuhu HIT Robot Technology Research Institute Limited Company, Wuhu 241007, China
4. Yangtze River Delta HIT Robot Technology Research Institute, Wuhu 241007, China

全文: PDF(2326 KB) HTML

摘要：

工业机器人对工件柔顺打磨作业的适应性差，为此设计机器人柔顺浮动力控末端执行器，基于集成贝叶斯神经网络模型的强化学习，提出主动自适应变阻抗的机器人打磨力控制方法. 所提方法根据打磨作业的接触环境信息，利用自助法获取小量数据的多次采样样本，训练集成贝叶斯神经网络模型以描述机器人打磨系统与工况环境交互作用，采用协方差矩阵自适应进化策略（CMA-ES）求解最优阻抗参数. 构建机器人打磨系统虚拟样机平台，开展叶片工件的打磨仿真实验，验证所提方法的有效性. 实验结果表明，所提方法在十几次训练后，能够将打磨力的绝对跟踪误差减小至较小值，较好地实现了机器人打磨系统的主动自适应变阻抗打磨力控制，提高了机器人打磨力控制的柔顺性和鲁棒性.

关键词： 工业机器人; 打磨力控制; 自适应变阻抗; 强化学习; 集成贝叶斯神经网络

Abstract:

A compliant floating force-controlled end-effector was designed, in order to resolve the problem of poor adaptability of industrial robots for the compliant grinding of workpieces. A robotic grinding force control method with the active adaptive variable impedance was proposed, using the reinforcement-learning based on the ensemble Bayesian neural networks model. According to the contact environment information of the robotic grinding, the multiple sampling samples from the small amount of data were obtained by the Bootstrapping method, and the ensemble Bayesian neural network model was trained to characterize the interactions between the robotic grinding system and the grinding condition environment. The optimal impedance parameters were solved by the covariance matrix adaptation evolution strategy (CMA-ES). A virtual prototype platform of the robotic grinding system was constructed. A robotic grinding simulation experiment of a blade workpiece was conducted, and the effectiveness of the proposed method was verified. Experimental results show that the proposed method reduces the absolute tracking error of the grinding force to a small value after a dozen training, realizes the active adaptive variable impedance for the grinding force control of the robotic grinding system, and improves the flexibility and the robustness of the robotic grinding force control.

Key words: industrial robot grinding force control adaptive variable impedance reinforcement-learning ensemble Bayesian neural network

收稿日期: 2023-03-14 出版日期: 2023-12-27

CLC:

TP 242.2

基金资助: 国家自然科学基金资助项目(52275005)；中央高校基本科研业务费专项资金资助项目(300102253201)；安徽省博士后研究人员科研活动经费资助项目(2023B675)；中国博士后科学基金资助项目(2022M722435)；哈尔滨工业大学机器人技术与系统国家重点实验室开放研究项目(SKLRS-2020-KF-08)；安徽省教育厅科学研究重点项目(KJ2020A0364)；高校优秀青年人才支持计划项目(2019YQQ023)

作者简介: 郭万金（1983—），男，副教授，博导，从事工业机器人打磨技术与主动柔顺控制研究. orcid.org/0000-0001-9654-0113.E-mail： guowanjin@chd.edu.cn

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	作者相关文章
	郭万金
	赵伍端
	利乾辉
	赵立军
	曹雏清

引用本文:

郭万金,赵伍端,利乾辉,赵立军,曹雏清. 基于集成概率模型的变阻抗机器人打磨力控制[J]. 浙江大学学报(工学版), 2023, 57(12): 2356-2366.

Wan-jin GUO,Wu-duan ZHAO,Qian-hui LI,Li-jun ZHAO,Chu-qing CAO. Ensemble probabilistic model based variable impedance for robotic grinding force control. Journal of ZheJiang University (Engineering Science), 2023, 57(12): 2356-2366.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.12.002 或 https://www.zjujournals.com/eng/CN/Y2023/V57/I12/2356

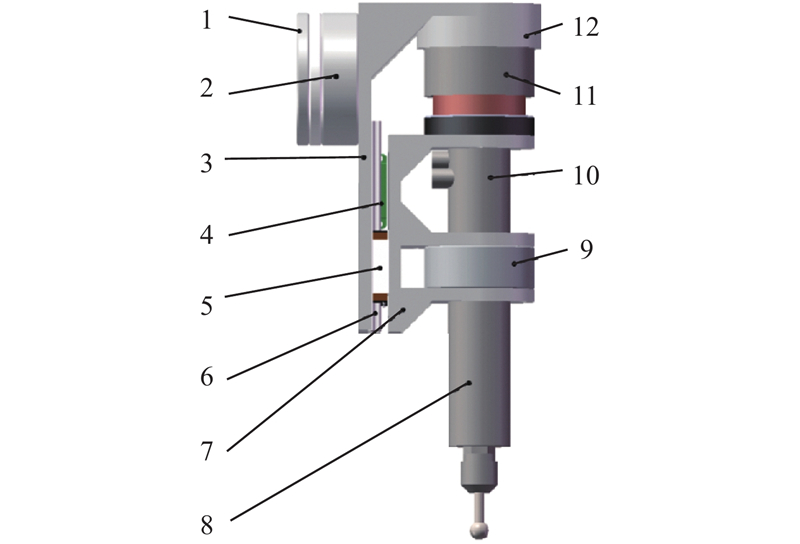

图 1 柔顺浮动力控末端执行器[14]

图 2 机器人打磨系统虚拟样机

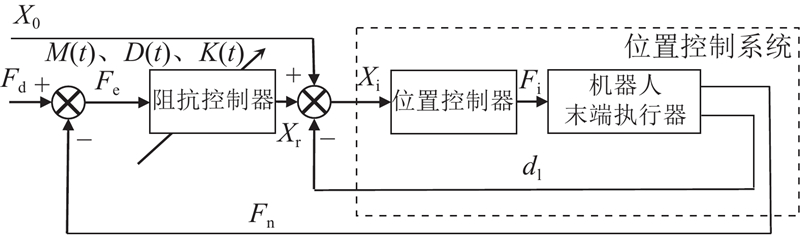

图 3 变阻抗控制的控制框图

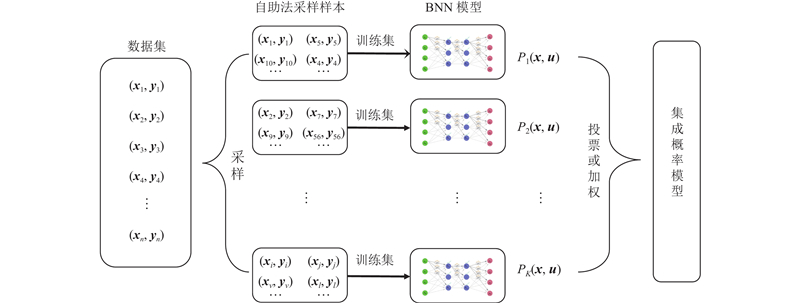

图 4 集成概率模型的训练过程

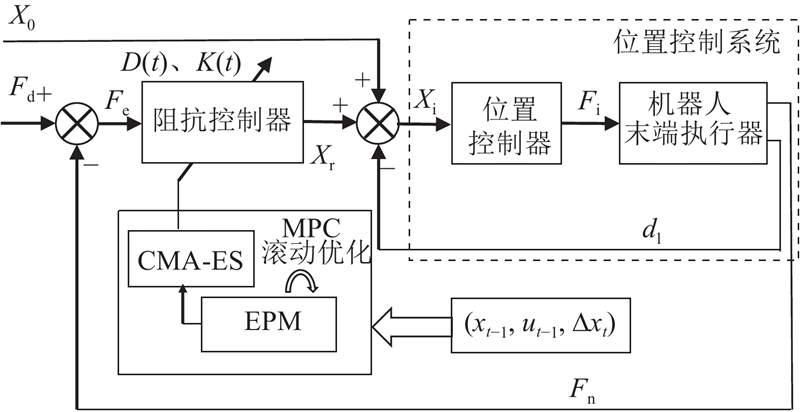

图 5 基于集成概率模型的主动自适应变阻抗的机器人打磨力控制框图

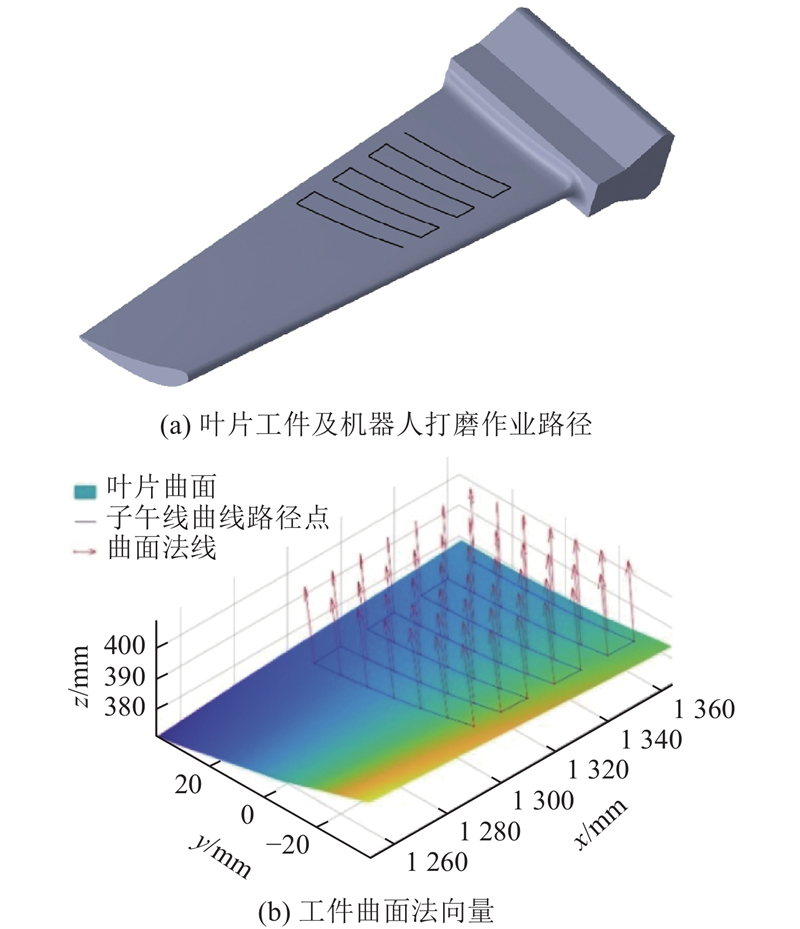

图 6 叶片工件、规划路径点和曲面法向量

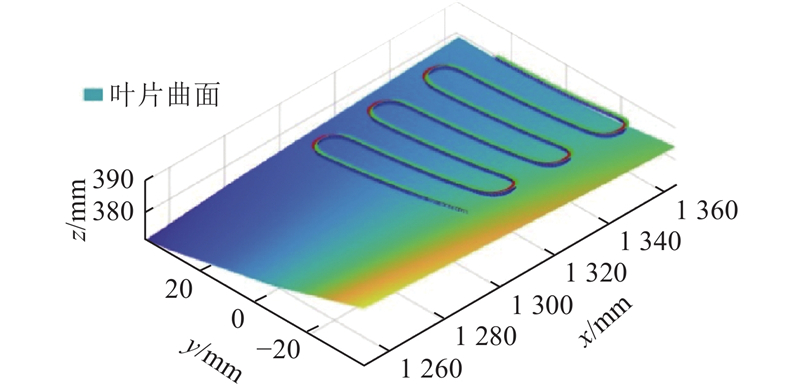

图 7 机器人打磨的工具轨迹

图 8 机器人各关节的角度、角速度、角加速度及急动度曲线

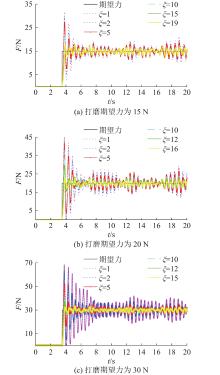

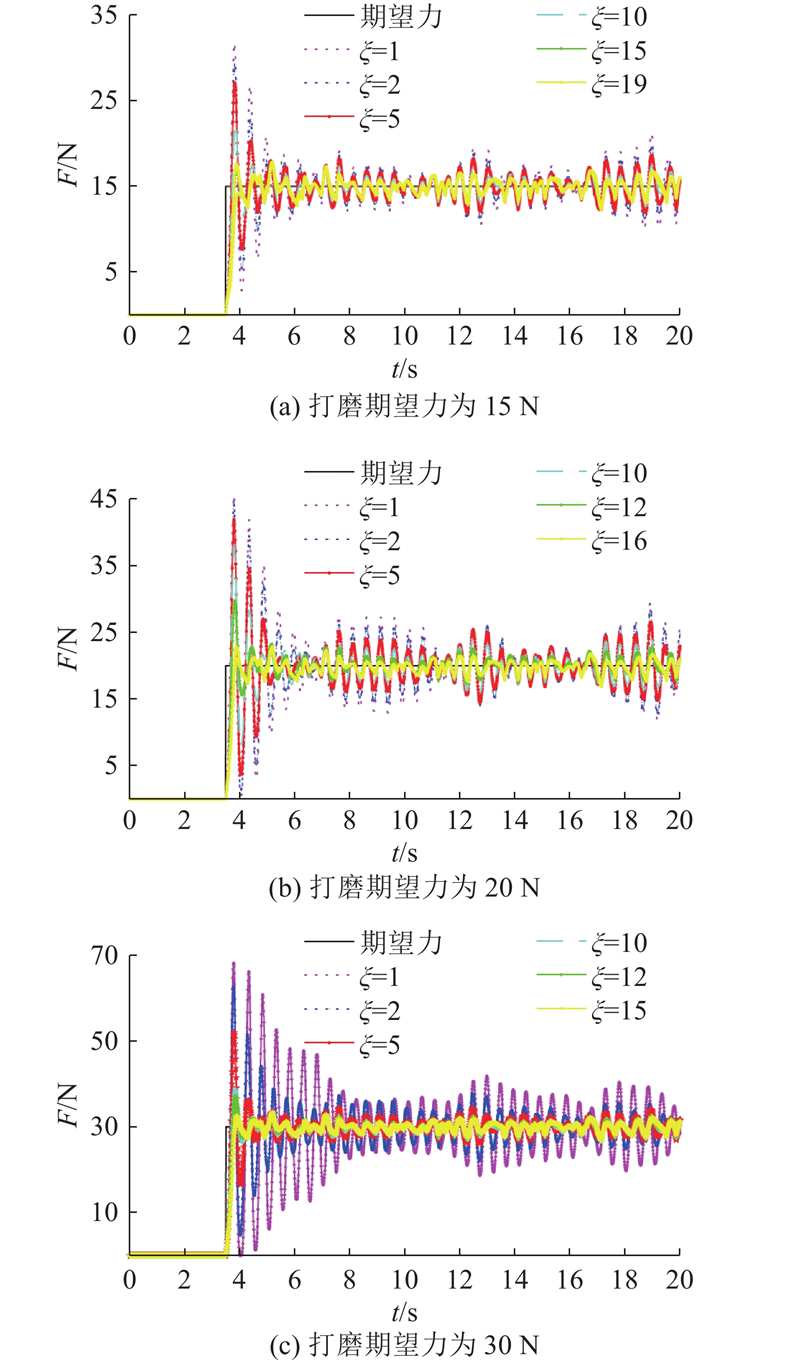

图 9 不同打磨期望力在不同训练次数下的打磨力曲线

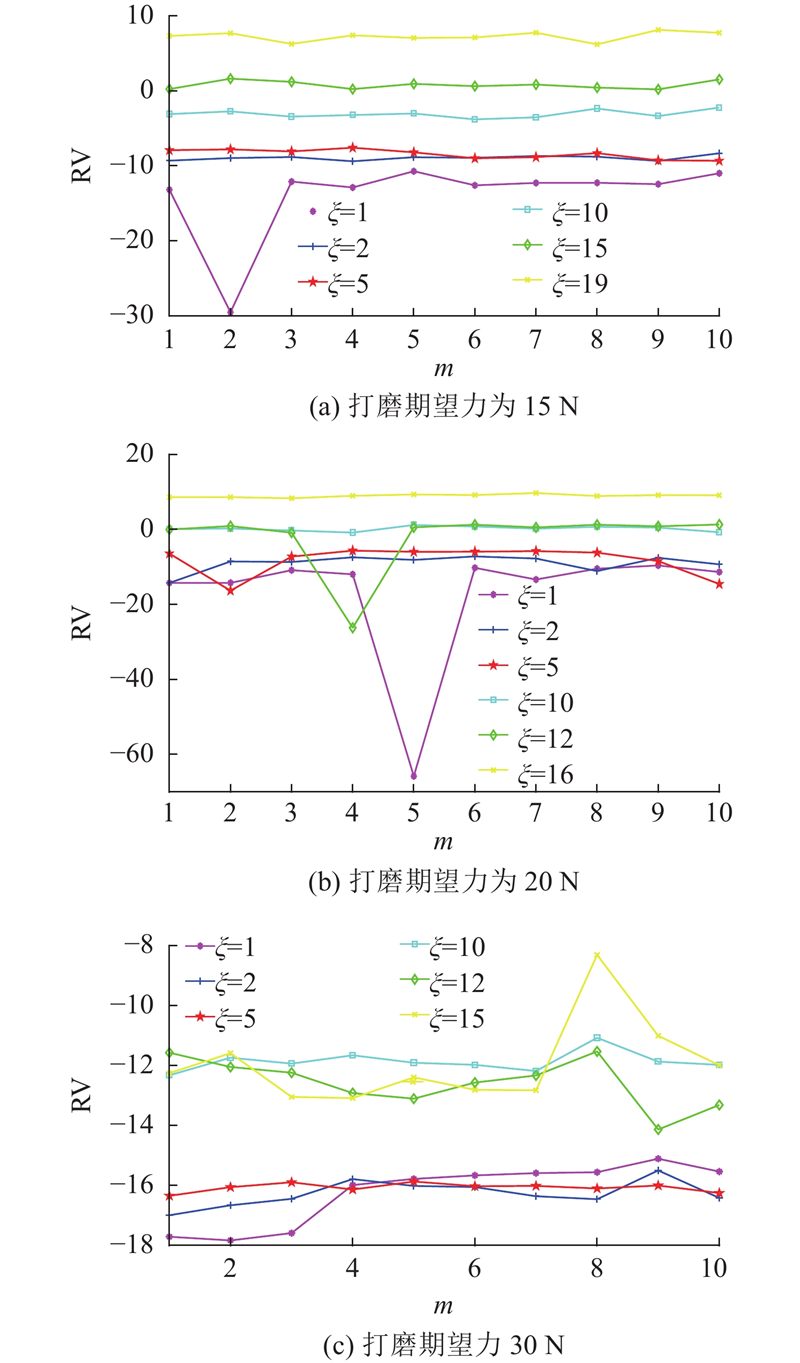

图 10 不同打磨期望力在不同训练次数下的奖励值曲线

表 1 打磨力绝对跟踪误差

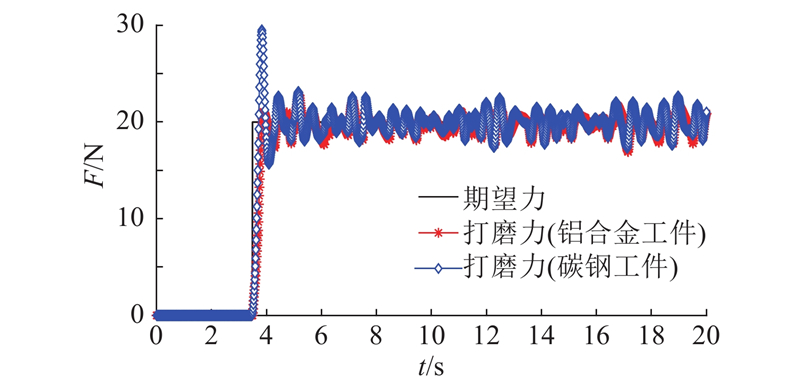

图 11 不同刚度工件的打磨力曲线
