基于改进YOLOv5的锂电池极片缺陷检测方法

doi:10.3785/j.issn.1008-973X.2024.09.006

浙江大学学报(工学版)

2024, Vol. 58

Issue (9): 1811-1821 DOI: 10.3785/j.issn.1008-973X.2024.09.006

计算机与控制工程

基于改进YOLOv5的锂电池极片缺陷检测方法

冉庆东1(

),郑力新2,*(

)

1. 华侨大学信息科学与工程学院，福建厦门 361021
2. 华侨大学工学院，福建泉州 362021

Defect detection method of lithium battery electrode based on improved YOLOv5

Qingdong RAN1(

),Lixin ZHENG2,*(

)

1. College of Information Science and Engineering, Huaqiao University, Xiamen 361021, China
2. College of Engineering, Huaqiao University, Quanzhou 362021, China

全文: PDF(2293 KB) HTML

摘要：

针对同时存在多种小目标、大长宽比目标缺陷的锂电池极片复杂表面，基于可变形卷积和YOLOv5提出DDCNet-YOLO算法模型. 在主干网络部分构建出可变形下采样卷积主干网络(DDCNet)，在特征融合部分引入上下文增强模块(CAM)，并使用构造的可变形卷积块(DCB)替换C3模块，在检测头部分设计带有注意力机制的解耦头AD-Head. 提出RIoU方法优化不同长宽比目标的损失计算. 实验表明，DDCNet-YOLO模型相较于YOLOv5s及YOLOv5m模型在mAP50上分别提高了6.2个百分点和3.7个百分点. 仅通过DDCNet和注意力机制解耦头构建了DDCNet-YOLOs轻量化模型，与YOLOv5s模型相比，参数量减少7.2个百分点，mAP50∶95提升8.9个百分点. 对2种模型通过C++的方式进行了部署. 本研究所提出的2种算法模型分别侧重于精度和轻量化，都能够在满足一定实际检测速度的条件下，达到较高的检测精度.

关键词： 极片缺陷; 可变形卷积; 小目标; 大长宽比目标; YOLOv5

Abstract:

The DDCNet-YOLO algorithm model was proposed based on the deformable convolution and YOLOv5, aiming at the complex lithium battery electrode surface with multiple small object defects and large aspect ratio object defects at the same time. The deformable downsampling convolution network (DDCNet) was constructed in the backbone. The context augmentation module (CAM) was introduced in the feature fusion part and the deformable convolution block (DCB) was used to replace the C3 module. AD-Head, a decoupling head with an attention mechanism, was designed in the head part. The RIoU method was proposed to optimize the loss calculation for different aspect ratio objects. Experiments showed that the DDCNet-YOLO model improved the mAP50 by 6.2 percentage points compared to YOLOv5s model and by 3.7 percentage points compared to YOLOv5m model. The lightweight model DDCNet-YOLOs, constructed by DDCNet and a decoupling head with an attention mechanism. The DDCNet-YOLOs improved the mAP50:95 by 8.9 percentage points and reduced the number of parameters by 7.2 percentage points, compared with the YOLOv5s model. In addition, both models were deployed based on the C++. The two algorithmic models focus on accuracy and speed respectively, but both can achieve high accuracy under the condition of meeting the actual detection speed requirement.

Key words: electrode defect deformable convolution small object large aspect ratio object YOLOv5

收稿日期: 2023-07-29 出版日期: 2024-08-30

CLC:

TP 391

基金资助: 福建省科技计划资助项目（2020Y0039）.

通讯作者: 郑力新 E-mail: jlu_rqd@163.com;zlx@hqu.edu.cn

作者简介: 冉庆东（1997—），男，硕士生，从事计算机视觉与深度学习研究. orcid.org/0009-0005-4072-3558. E-mail：jlu_rqd@163.com

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	作者相关文章
	冉庆东
	郑力新

引用本文:

冉庆东,郑力新. 基于改进YOLOv5的锂电池极片缺陷检测方法[J]. 浙江大学学报(工学版), 2024, 58(9): 1811-1821.

Qingdong RAN,Lixin ZHENG. Defect detection method of lithium battery electrode based on improved YOLOv5. Journal of ZheJiang University (Engineering Science), 2024, 58(9): 1811-1821.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.09.006 或 https://www.zjujournals.com/eng/CN/Y2024/V58/I9/1811

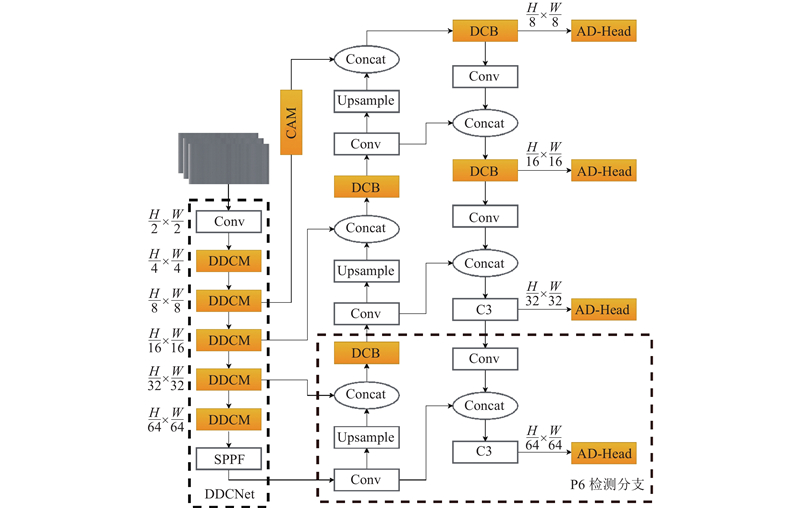

图 1 DDCNet-YOLO模型结构

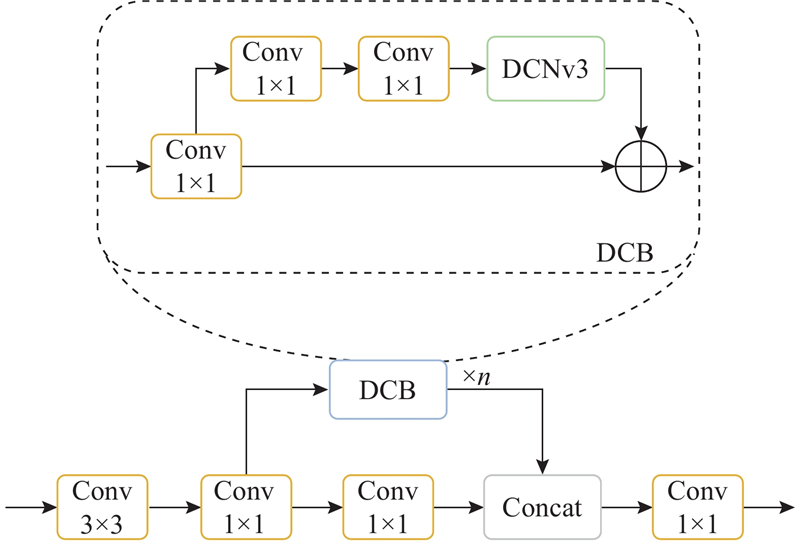

图 2 可变形下采样卷积模块

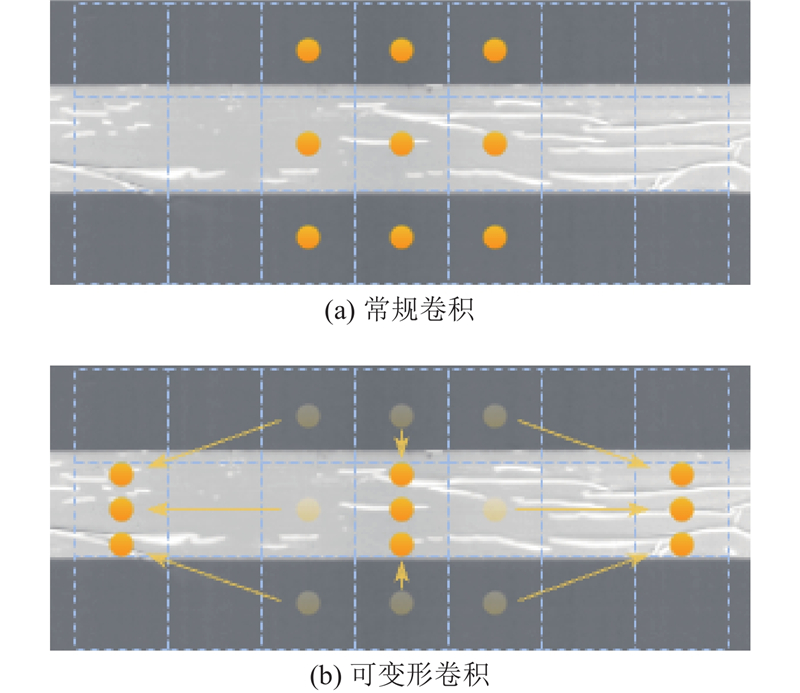

图 3 常规卷积和可变形卷积采样位置示意图

图 4 上下文增强模块

图 5 融合注意力机制的解耦头结构

图 6 不同长宽比的真实目标框和预测目标框示意图

图 7 大长宽比目标对损失函数计算的影响

图 8 十一类缺陷图像示例

表 1 各检测分支生成锚框尺寸

表 2 CAM不同融合方式对比

表 3 6种注意力机制检测头对比

表 4 消融实验结果

表 5 不同算法在锂电池极片数据集中的实验结果对比

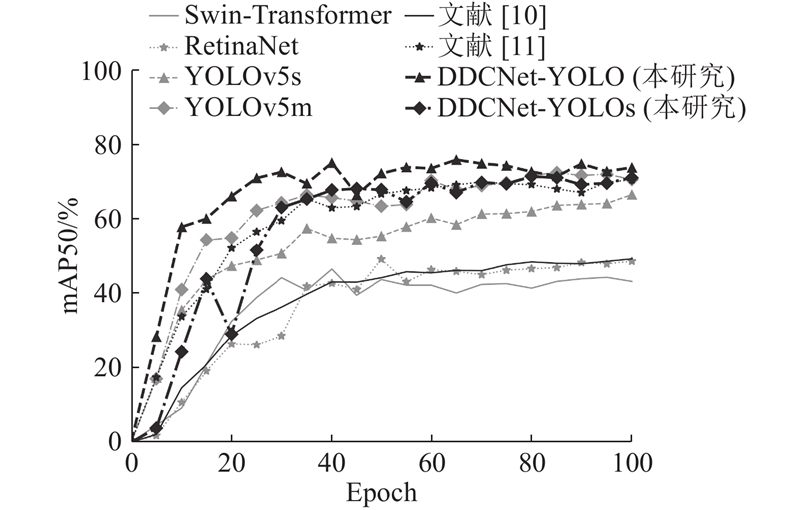

图 9 训练过程mAP50曲线

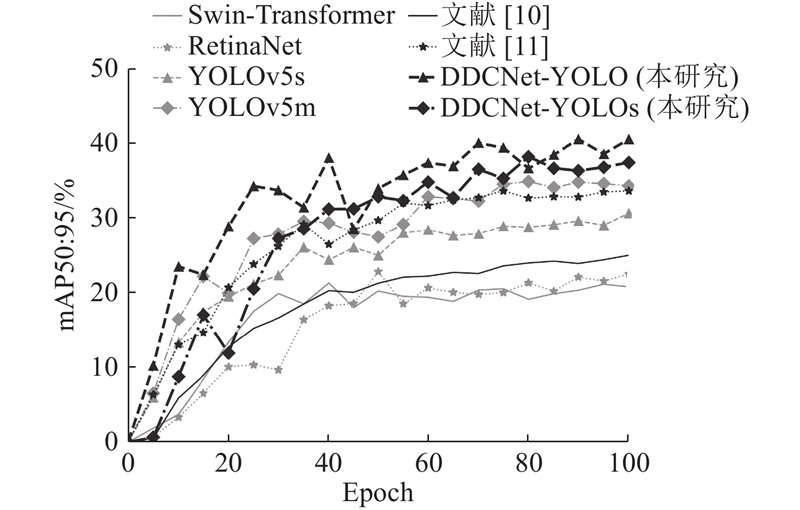

图 10 训练过程mAP50∶95曲线

图 11 训练过程损失曲线

图 12 模型特征图可视化对比

表 6 2种模型在不同硬件上平均检测时间对比

图 13 DDCNet-YOLOs和DDCNet-YOLO部署结果
