面向垃圾分类场景的轻量化目标检测方案
陈健松(),蔡艺军*()
厦门理工学院 光电与通信工程学院,福建 厦门 361024
Lightweight object detection scheme for garbage classification scenario
Jiansong CHEN(),Yijun CAI*()
School of Opto-electronic and Communication Engineering, Xiamen University of Technology, Xiamen 361024, China
 全文: PDF(1542 KB)   HTML
摘要:

针对边缘端进行垃圾检测分类实时性差的问题,提出轻量化的Yolov5垃圾检测解决方案. 引入Stem模块,增强模型对输入图像的特征提取能力. 将backbone的C3模块进行改进,提高特征提取能力. 使用深度可分离卷积替换网络中的3×3降采样卷积,实现模型轻量化. 使用K-means++算法重新计算物体的锚框值,使模型在训练过程中能够更好地预测目标框的大小. 通过实验研究对比可知,改进模型相比于Yolov5s模型,mAP_0.5提升了0.8%,mAP_0.5:0.95提升了3%,模型参数量减少到原来的77.9%,推理速度提升了21.9%,极大地提高了模型的检测性能.

关键词: 垃圾分类Yolov5深度可分离卷积K-means++算法Stem模块
Abstract:

A lightweight Yolov5 garbage detection solution was proposed aiming at the issue of poor real-time performance in garbage detection classification on edge devices. The Stem module was introduced to enhance the model’s ability to extract features from input images. The C3 module of the backbone was improved to increase feature extraction capabilities. Depthwise separable convolution was used to replace the 3×3 downsampling convolutions in the network, achieving model lightweighting. The K-means++ algorithm was employed to recompute anchor box values for objects, enabling the model to better predict target box sizes during training. Experimental research and comparisons show that the improved model achieves a 0.8% increase in mAP_0.5 and a 3% increase in mAP_0.5:0.95, while reducing model parameters by 77.9% and improving inference speed by 21.9% compared with the Yolov5s model, significantly enhancing the detection performance of the model.

Key words: garbage classification    Yolov5    depthwise separable convolution    K-means++ algorithm    Stem module
收稿日期: 2023-01-17 出版日期: 2023-11-07
CLC:  TP 391
基金资助: 国家自然科学基金青年资助项目(62005232);福建省自然科学基金面上项目(2020J01294)
通讯作者: 蔡艺军     E-mail: 1425633559@qq.com;yijuncai@foxmail.com
作者简介: 陈健松(1998—),男,硕士生,从事嵌入式AI的研究. orcid.org/0000-0002-9557-233X. E-mail: 1425633559@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
陈健松
蔡艺军

引用本文:

陈健松,蔡艺军. 面向垃圾分类场景的轻量化目标检测方案[J]. 浙江大学学报(工学版), 2024, 58(1): 71-77.

Jiansong CHEN,Yijun CAI. Lightweight object detection scheme for garbage classification scenario. Journal of ZheJiang University (Engineering Science), 2024, 58(1): 71-77.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.01.008        https://www.zjujournals.com/eng/CN/Y2024/V58/I1/71

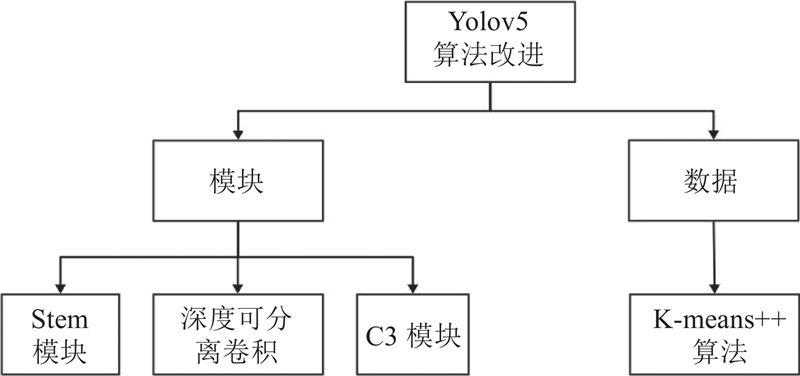

图 1  Yolov5算法的改进树状图

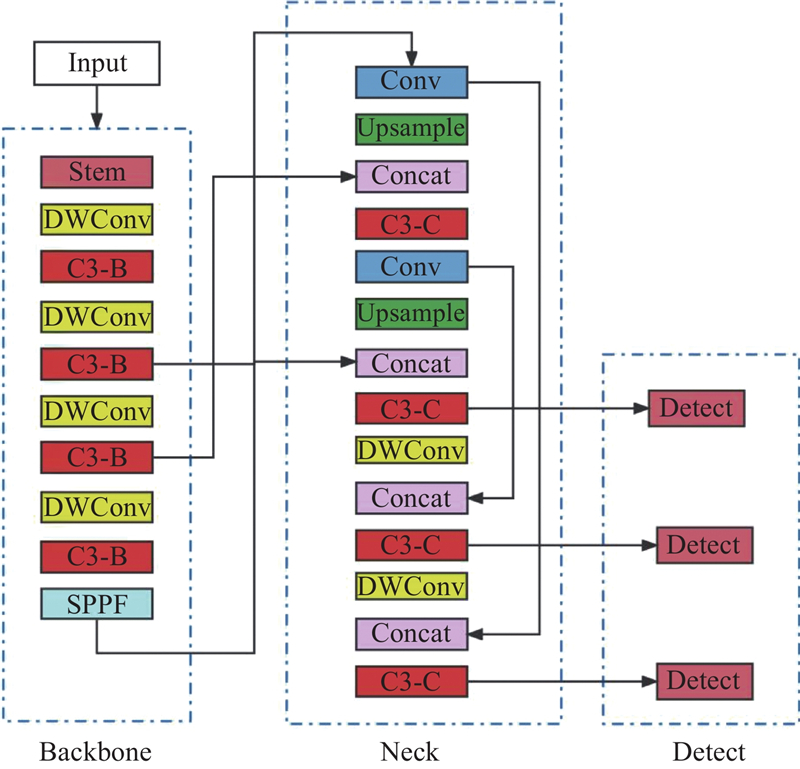

图 2  改进后的Yolov5模型结构图

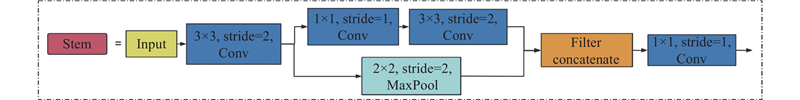

图 3  Stem模块的结构图

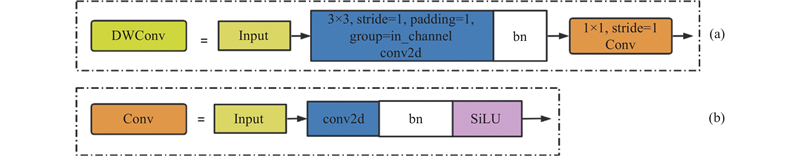

图 4  深度可分离卷积模块的结构图

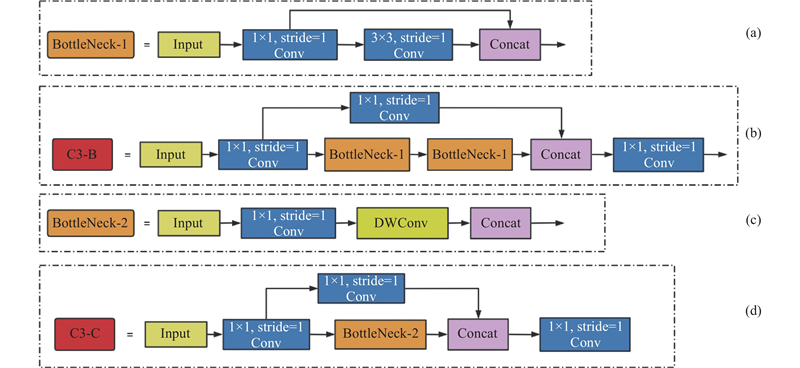

图 5  C3改进模块的结构图
训练参数 参数值 训练参数 参数值
动量 0.937 循环学习率 0.1
权重衰减率 0.0005 预热学习轮次 3
批量大小 32 预热学习动量 0.8
迭代次数 100 预热初始学习率 0.1
初始学习率 0.01
表 1  超参数设置
图 6  Yolov5s模型和改进模型的性能对比图
模型 P R mAP@0.5 mAP@0.5:0.95 Np/106 t/ms
Yolov5s 0.834 0.792 0.861 0.529 7.026307 135.9
Yolov5s+K-means++ 0.855 0.836 0.883 0.555 7.026307 135.9
改进模型 0.859 0.777 0.849 0.532 5.421475 106.1
改进模型+K-means++ 0.897 0.811 0.869 0.559 5.421475 106.1
表 2  Yolov5s模型和改进模型的实验结果对比
图 7  Yolov5s模型和改进模型的检测结果对比图
