Journal of ZheJiang University (Engineering Science)  2025, Vol. 59 Issue (9): 1784-1792    DOI: 10.3785/j.issn.1008-973X.2025.09.002

Traffic scene perception algorithm based on cross-task bidirectional feature interaction
Pengzhi LIN1(),Ming’en ZHONG1,*(),Kang FAN2,Jiawei TAN2,Zhiqiang LIN1
1. School of Mechanical and Automotive Engineering, Xiamen University of Technology, Xiamen 361024, China
2. School of Aerospace Engineering, Xiamen University, Xiamen 361005, China
Download: HTML     PDF(2358KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A traffic scene perception algorithm (SDFormer++) based on the principle of cross-task bidirectional feature interaction for autonomous driving in urban street scenarios was proposed by leveraging the explicit and implicit correlations between the semantic segmentation tasks and the depth estimation tasks to improve the overall performance of traffic scene perception algorithms. An interaction-gated linear unit was added into the cross-task feature extraction stage to form high-quality task-specific feature representations. A multi-task feature interaction module that used the bidirectional attention mechanism was constructed to enhance the initial task-specific features by utilizing the feature information of shared cross-domain tasks. A multi-scale feature fusion module was designed to integrate information at different levels to obtain fine high-resolution features. Experimental results on the Cityscapes dataset showed that the algorithm achieved a mean intersection over union (mIoU) of 82.4% for pixel segmentation, a root mean square error (RMSE) of 4.453 for depth estimation, an absolute relative error (ARE) of 0.130 for depth estimation, and an average distance estimation error of 6.0% for five typical traffic participants, all of which outperformed the existing mainstream multi-task algorithms such as InvPT++ and SDFormer.



Key wordscross-task interaction      multi-task learning      traffic environment perception      semantic segmentation      depth estimation
Received: 05 December 2024      Published: 25 August 2025
CLC:  TP 391.4
Fund:  福建省自然科学基金资助项目(2023J011439).
Corresponding Authors: Ming’en ZHONG     E-mail: 2477541661@qq.com;zhongmingen@xmut.edu.cn
Cite this article:

Pengzhi LIN,Ming’en ZHONG,Kang FAN,Jiawei TAN,Zhiqiang LIN. Traffic scene perception algorithm based on cross-task bidirectional feature interaction. Journal of ZheJiang University (Engineering Science), 2025, 59(9): 1784-1792.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.09.002     OR     https://www.zjujournals.com/eng/Y2025/V59/I9/1784


基于跨任务双向特征交互的交通场景感知算法

为了提高交通场景感知算法的整体性能,利用语义分割任务和深度估计任务之间的显式和隐式相关性,依据跨任务双向特征交互原理,提出面向城市街道自动驾驶的感知算法SDFormer++. 在跨任务特征提取阶段加入交互门控线性单元,形成高质量的特定任务特征表达;构建多任务特征交互模块,应用双向注意力机制,借助跨域共享任务的特征信息来增强初始特定任务特征;设计多尺度特征融合模块,整合不同层次的信息,以获取精细的高分辨率特征. 在Cityscapes数据集上的实验结果表明,算法的像素分割平均交并比mIoU为82.4%,深度估计平均平方根误差RMSE和绝对相对误差ARE分别为4.453和0.130,针对5类典型交通参与者的平均距离估计误差为6.0%,均超越InvPT++、SDFormer等主流多任务算法.


关键词: 跨任务交互,  多任务学习,  交通环境感知,  语义分割,  深度估计

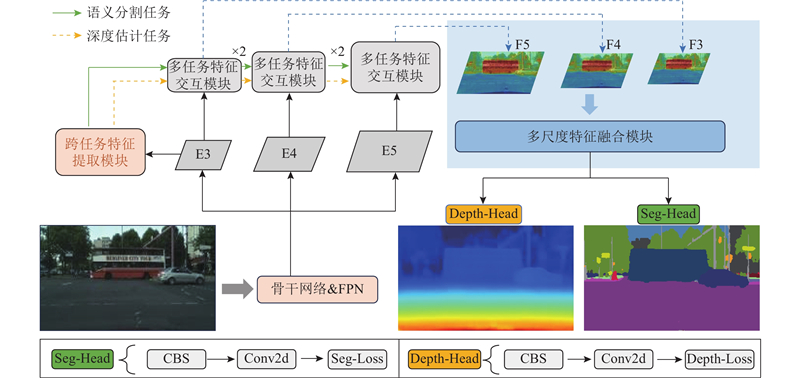

Fig.1 Overall structure of traffic scene perception algorithm SDFormer++

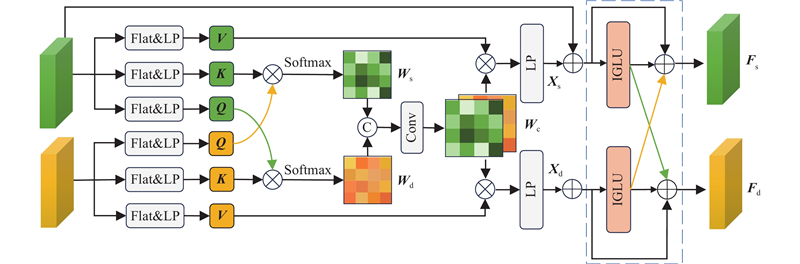

Fig.2 Structure diagram of cross-task feature extraction module

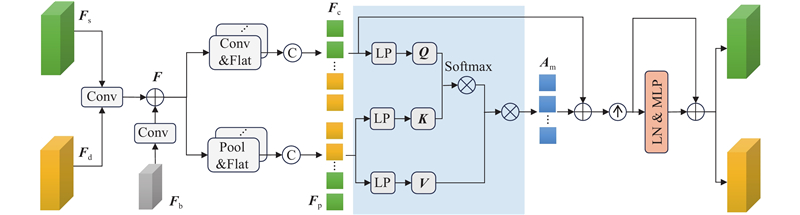

Fig.3 Structure diagram of multi-task feature interaction module

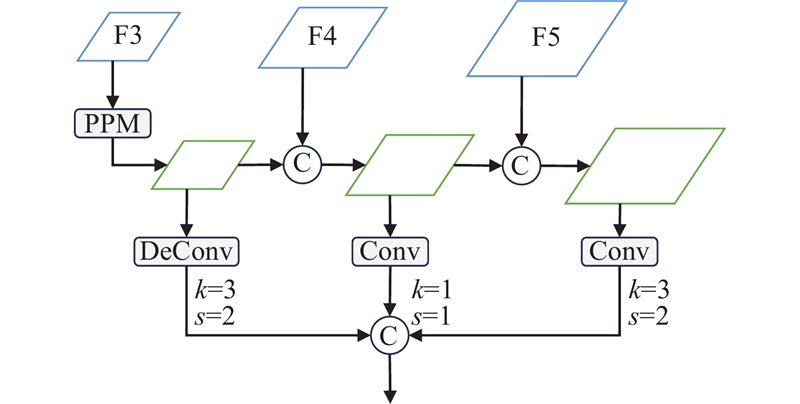

Fig.4 Structure diagram of multi-scale feature fusion module
模块mIoU/%RMSEARENp/106GFLOPs
MTL73.25.3550.22766.3131.1
+CFE77.85.0680.17974.5157.4
+MFI78.64.7900.16875.6168.4
+MFF79.34.6980.15476.1177.0
Tab.1 Ablation study results of different network components

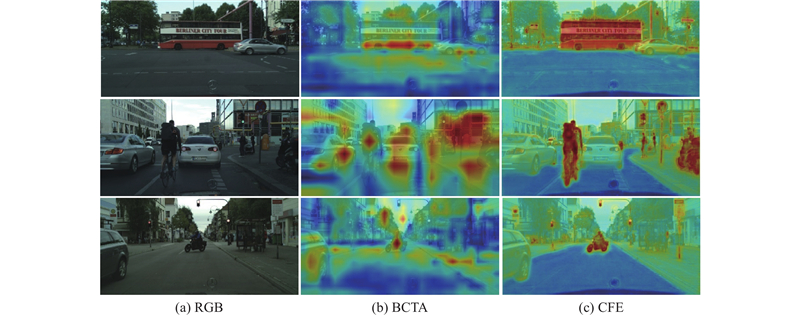

Fig.5 Visualization comparison of attention patterns in different feature extraction modules
模块骨干网络mIoU/%RMSEAREFPS
MFFSSwin-S75.84.8110.17630.8
MFFMSwin-S79.34.6980.15426.2
MFFLSwin-S79.54.6620.15110.6
Tab.2 Ablation experimental results of multi-scale feature fusion module
算法骨干网络mIoU/%RMSEARENp/106
JTRSegNet72.35.5820.16379.6
MTPSLSegNet73.65.1350.16584.5
DenseMTLResNet-10175.06.6490.194124.3
SwinMTLSwin-B76.44.4890.13465.2
SDFormerSwin-B79.24.4850.132116.7
InvPT++ViT-B82.04.5270.146156.9
SDFormer++Swin-B82.44.4530.130129.4
Tab.3 Performance comparison results of different multi-task algorithms
Fig.6 Comparison of semantic segmentation inference performance of SDFormer++, SDFormer and suboptimal algorithm

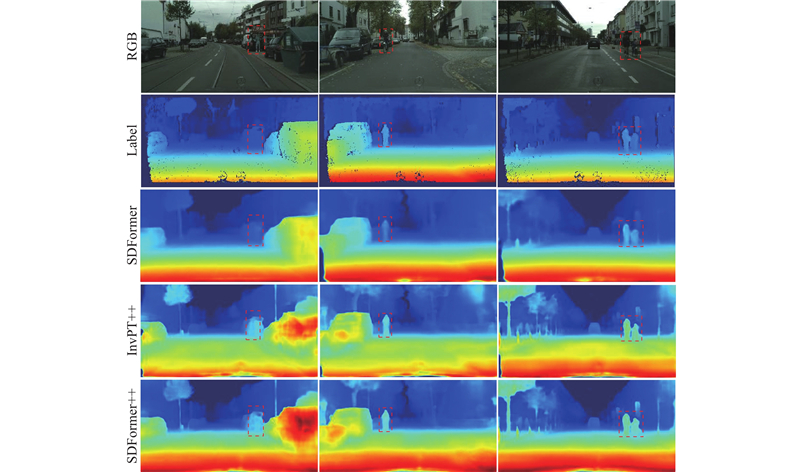

Fig.7 Comparison of depth estimation inference performance of SDFormer++, SDFormer and suboptimal algorithm
方法骨干网络mIoU/%Np/106GFLOPs
CSFNet-2STDC276.319.447.8
WaveMixWaveMix80.763.2161.5
DSNet-BaseDSNet-Base82.068.0226.6
CMX(B4)MiT-B482.6140.0134.0
EfficientViT-B3EfficientViT-L283.253.1396.2
SDFormer++Swin-B82.4129.4272.5
Tab.4 Performance comparison of SDFormer++ and single-task semantic segmentation algorithms
方法骨干网络RMSEARENp/106GFLOPs
Manydepth2HRNet 165.8270.097123.1246.4
DepthFormerSwin-B4.3260.127151.3282.0
PixelFormerSwin-B4.2580.115146.1346.4
SDFormer++Swin-B4.4530.130129.4272.5
Tab.5 Performance comparison of SDFormer++ and single-task depth estimation algorithms
方法MRE/%Avg/%
行人骑行者小车公交车卡车
DenseMTL7.78.68.86.78.28.0
JTR8.56.58.07.16.77.3
MTPSL8.66.37.75.47.37.0
SwinMTL7.36.87.06.46.76.8
InvPT++6.66.26.65.86.36.3
SDFormer6.15.47.45.26.56.1
SDFormer++5.85.57.24.96.46.0
Tab.6 Comparison of distance estimation errors for different traffic participants
距离MRE/%Avg/%
行人骑行者小车公交车卡车
3.34.75.04.13.04.0
5.25.34.55.05.45.1
11.710.29.59.39.810.1
Tab.7 Distance estimation errors under different distance ranges
Fig.8 Distance prediction performance of typical traffic participants under different lighting and weather conditions
