浙江大学学报(工学版)  2022, Vol. 56 Issue (9): 1704-1713    DOI: 10.3785/j.issn.1008-973X.2022.09.003
土木工程、交通工程
地表爆炸作用下钢筋混凝土管道裂缝扩展机制
吕国鹏1(),蒋楠1,*(),周传波1,李海波2,姚颖康3,张旭1
1. 中国地质大学(武汉) 工程学院,湖北 武汉 430074
2. 中国科学院武汉岩土力学研究所 岩土力学与工程国家重点实验室,湖北 武汉 430071
3. 江汉大学 工程爆破湖北省重点实验室,湖北 武汉 430056
Surface explosion induced crack extension mechanism of reinforced concrete pipeline
Guo-peng LYU1(),Nan JIANG1,*(),Chuan-bo ZHOU1,Hai-bo LI2,Ying-kang YAO3,Xu ZHANG1
1. Faculty of engineering, China University of Geosciences, Wuhan 430074, China
2. State key Laboratory of Geomechanics and Geotechnical Engineering, Institute of Rock and Soil Mechanics, Chinese Academy of Sciences, Wuhan 430071, China
3. Hubei Key Laboratory of Engineering Blasting, Jianghan University, Wuhan 430056, China
 全文: PDF(3914 KB)   HTML
摘要:

为了研究地表爆炸作用下埋地管道的安全性,针对城区内常见的浅埋承插式钢筋混凝土管道,设计并实施全尺寸埋地管道地面爆炸现场试验. 结合全耦合数值模拟手段及分离式钢筋混凝土建模方法,基于混凝土smeared crack模型,分析地表爆炸作用下承插式钢筋混凝土管道结构体系的动力响应特征及管道裂缝扩展机制. 研究结果表明,地表爆炸作用下,管道内壁开裂以斜向裂缝和环向裂缝为主. 斜向裂缝均出现在管道的承插接口处. 当爆源位于管道承插接口上方和管身中部正上方时,距爆源最近的管道承插接口处均产生明显的斜向裂缝. 承插接口是承插式钢筋混凝土管道体系抗爆的薄弱部位.

关键词: 地表爆炸钢筋混凝土管道现场试验数值模拟裂缝扩展
Abstract:

A full-scale surface explosion test with buried pipeline was designed and implemented for the common shallow buried reinforced concrete pipeline with bell and spigot joints in urban areas, in order to study the safety of buried pipelines under the effect of surface explosion. The dynamic response characteristics and the crack expansion mechanism of reinforced concrete pipeline with bell and spigot joints under the action of surface explosion were analyzed based on concrete smeared crack model by combining fully coupled numerical simulation means and separated reinforced concrete modeling method. Results show that under the effect of surface explosion, the pipeline cracking in the form of oblique cracking and circumferential cracking. And the oblique cracks are all generated at the bell and spigot joints of the pipe. When the detonation source is located above the bell and spigot joints of pipeline and the middle of the pipe body, obvious oblique cracks appeared in the bell and spigot joints which closest to the detonation source. Bell and spigot joints of the pipeline is the weakest part to resistant blasting in the pipeline system.

Key words: surface explosion    reinforced concrete pipeline    field test    numerical simulation    crack extension
收稿日期: 2021-10-24 出版日期: 2022-09-28
CLC:  TV 331
基金资助: 国家自然科学基金资助项目(41807265, 41972286);爆破工程湖北省重点实验室开放基金资助项目(HKLBEF202001)
通讯作者: 蒋楠     E-mail: lgp@cug.edu.cn;jiangnan@cug.edu.cn
作者简介: 吕国鹏(1996—),男,博士生,从事地下工程、爆破工程研究. orcid.org/0000-0002-7580-3129. E-mail: lgp@cug.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
吕国鹏
蒋楠
周传波
李海波
姚颖康
张旭

引用本文:

吕国鹏,蒋楠,周传波,李海波,姚颖康,张旭. 地表爆炸作用下钢筋混凝土管道裂缝扩展机制[J]. 浙江大学学报(工学版), 2022, 56(9): 1704-1713.

Guo-peng LYU,Nan JIANG,Chuan-bo ZHOU,Hai-bo LI,Ying-kang YAO,Xu ZHANG. Surface explosion induced crack extension mechanism of reinforced concrete pipeline. Journal of ZheJiang University (Engineering Science), 2022, 56(9): 1704-1713.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2022.09.003        https://www.zjujournals.com/eng/CN/Y2022/V56/I9/1704

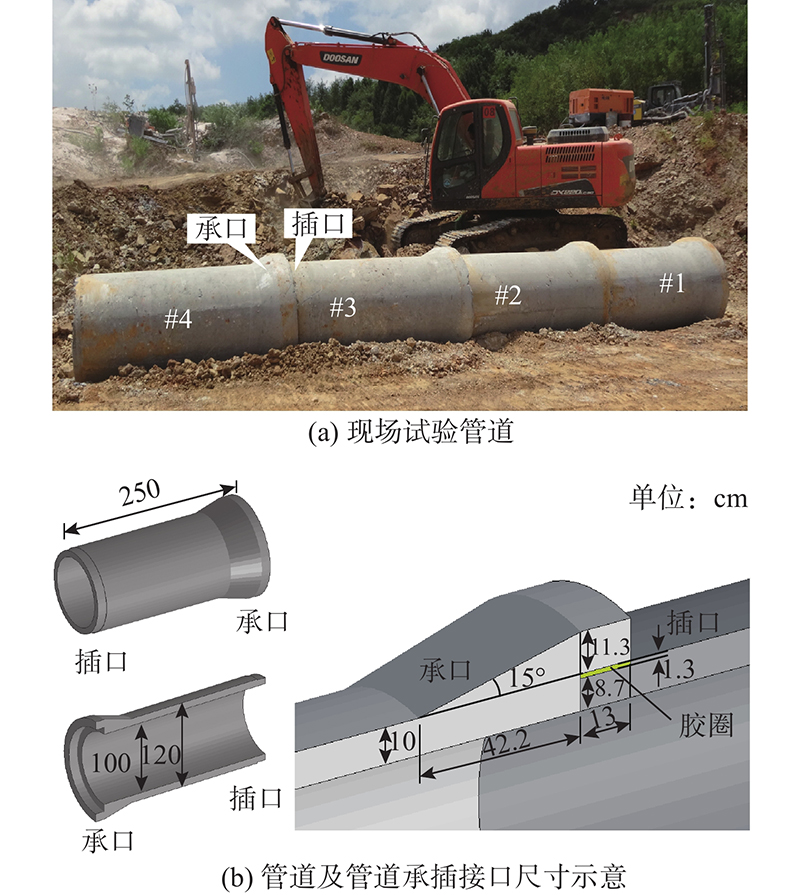

图 1  钢筋混凝土承插管道及其尺寸示意图
图 2  地表爆炸设计及监测点布置

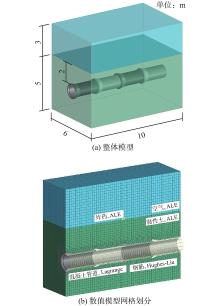

图 3  有限元数值模型
类型 ρ/(g·cm?3) E/GPa μ RS σy/MPa ET/GPa CRS PRS
纵筋 7.8 210 0.3 548 2 40 5
箍筋 7.8 210 0.3 350 2 40 5
表 1  钢筋材料参数[13]
图 4  钢筋混凝土承插管道配筋

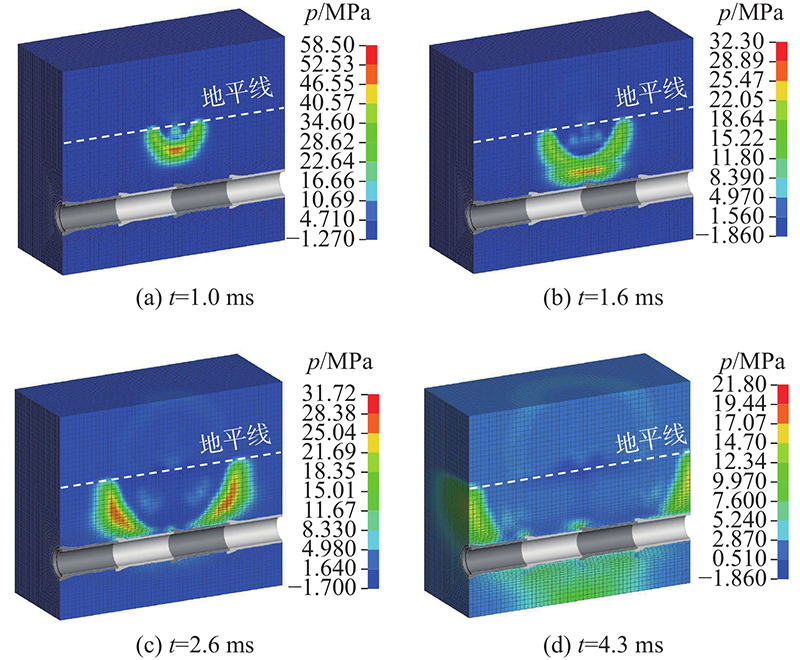

图 5  地表爆炸不同时刻土层和空气中压应力云图

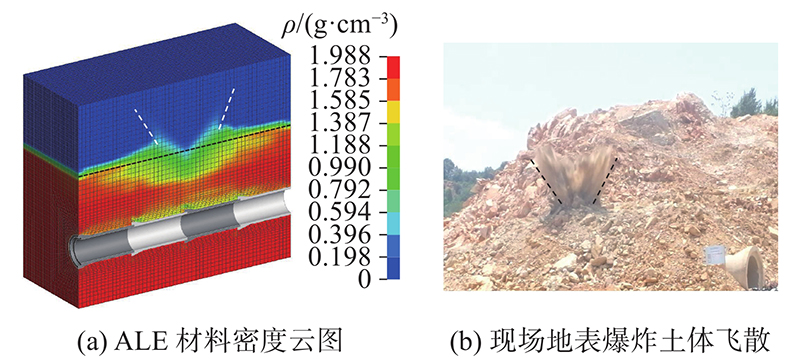

图 6  数值模拟与现场试验地表爆炸现象对比
监测点 Vf /(cm·s?1) Vn /(cm·s?1) Err/%
V1 4.05
V2 4.60 5.14 11.70
V3 11.00 10.20 7.27
V4 8.68 9.97 14.86
V5 4.70 5.09 8.30
表 2  质点振动速度峰值对比
监测部位 现场监测 数值模拟 Ea/% Eb/%
εa/10?6 εh/10?6 εa/10?6 εh/10?6 w/mm
#2管 上部 174 198 0.007
底部 434 185 495 0 9.4
左侧 68 59 186 0 13.20
#3管 上部 21174 4217 8520 3470 0.290 ?59.80 ?17.7
底部 109 1709 117 1883 0.080 7.33 10.2
左侧 1427 230 1270 217 0.093 ?11.00 ?5.7
表 3  应变峰值结果对比

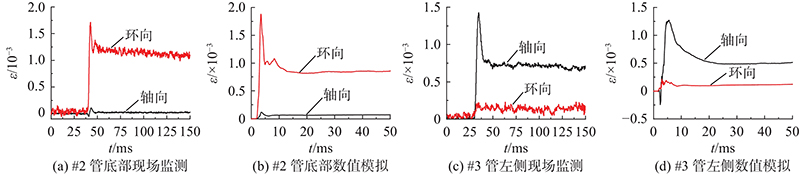

图 7  数值模拟与现场试验中管道动态应变数据对比

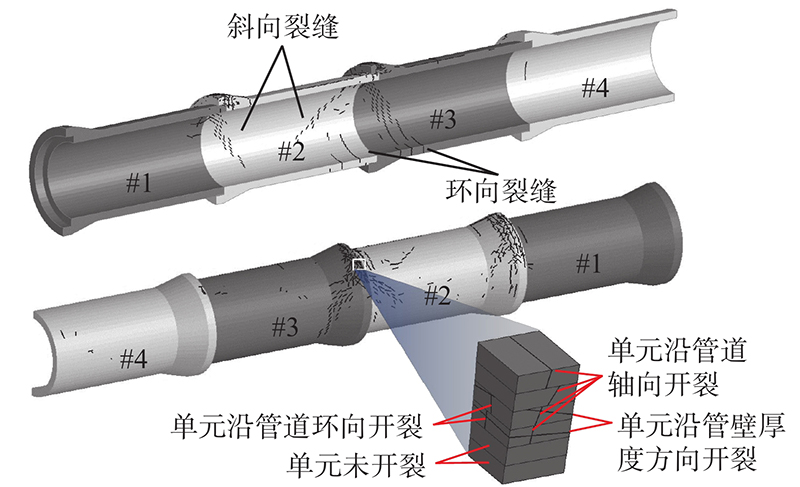

图 8  数值模拟管道裂缝分布

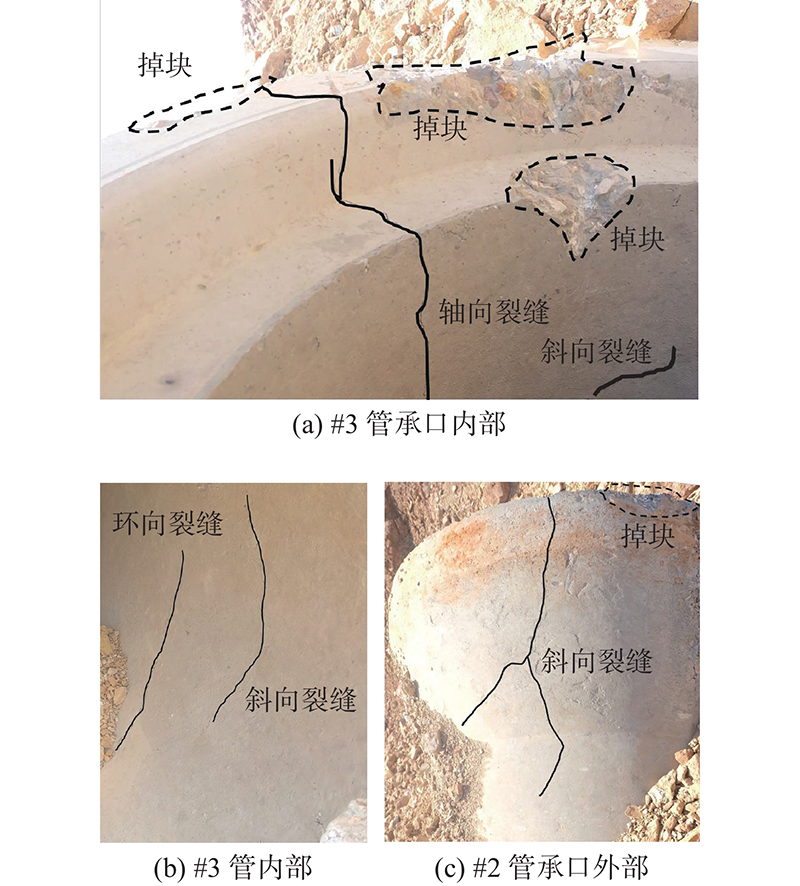

图 9  现场试验管道局部破坏情况

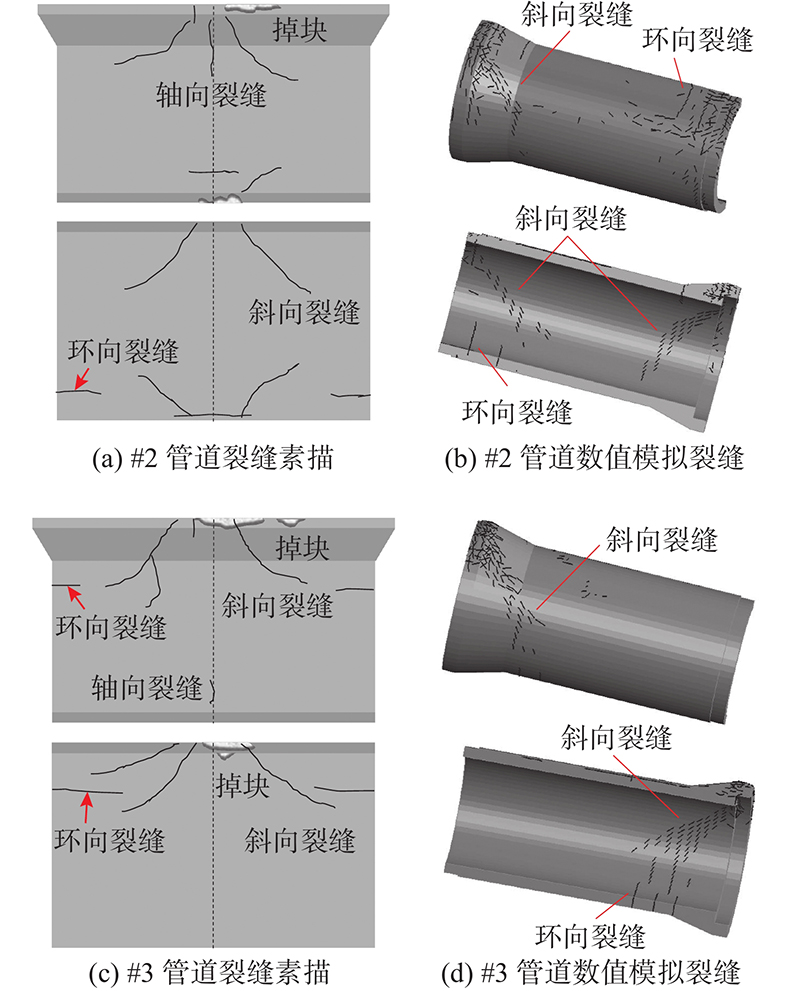

图 10  现场试验和数值模拟管道裂缝分布对比

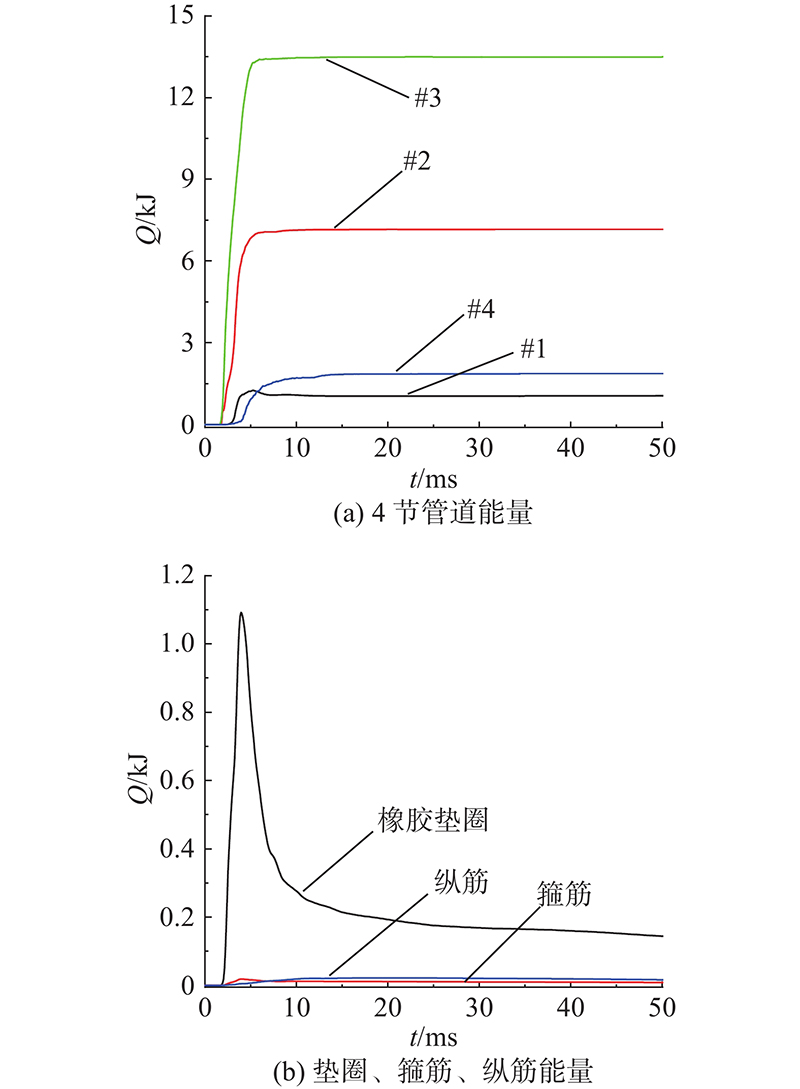

图 11  管道系统各部分总能量时程曲线

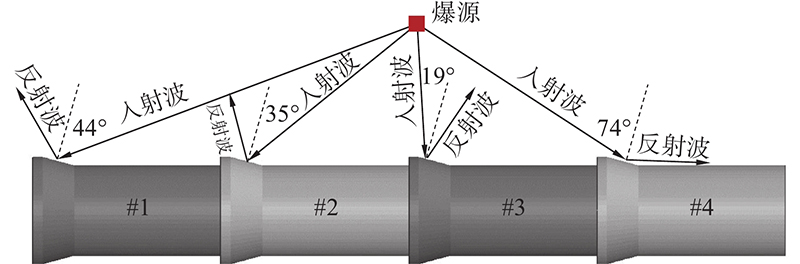

图 12  爆炸应力波与管道承口位置关系

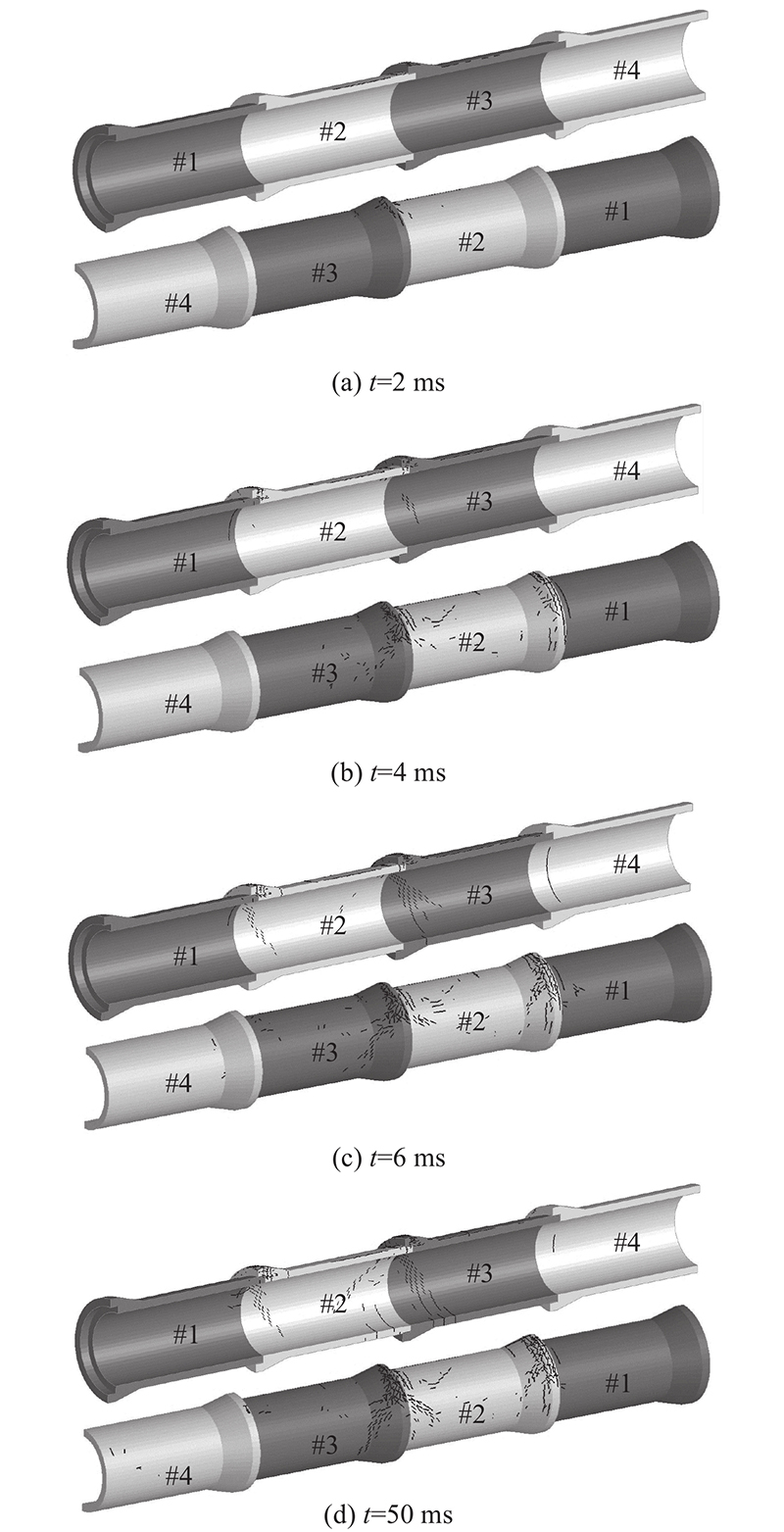

图 13  钢筋混凝土管道裂缝分布

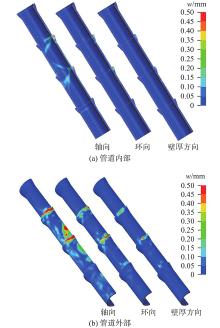

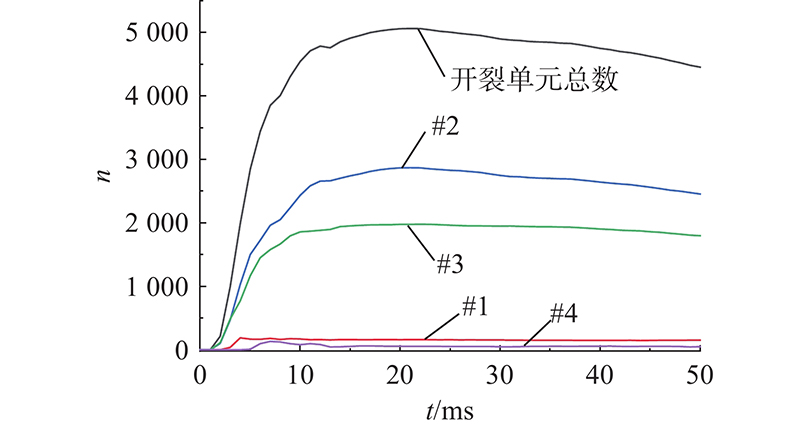

图 14  管道裂缝数随时间变化曲线

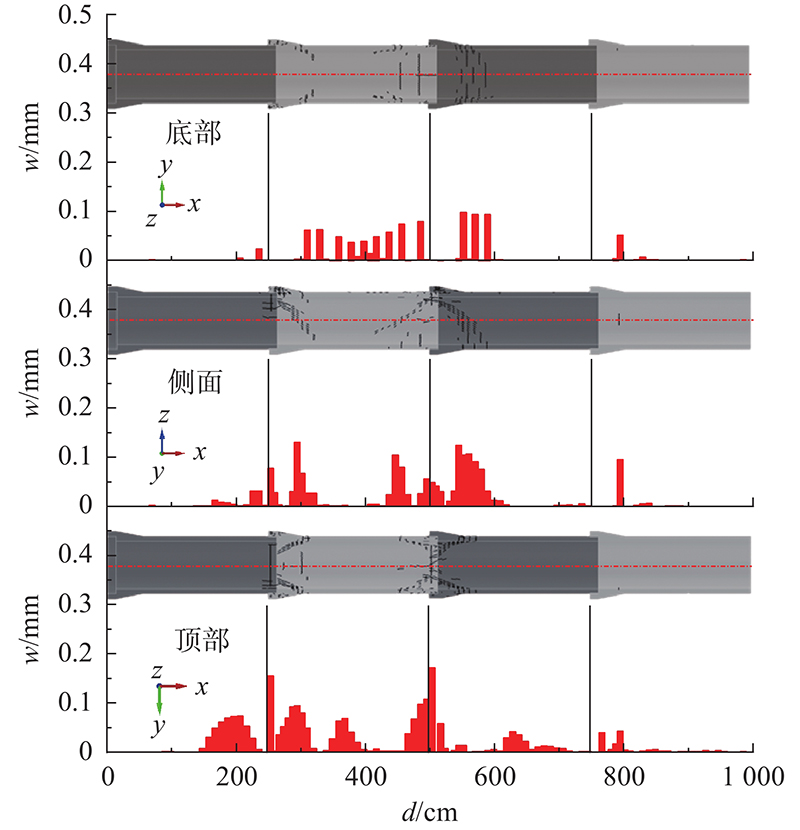

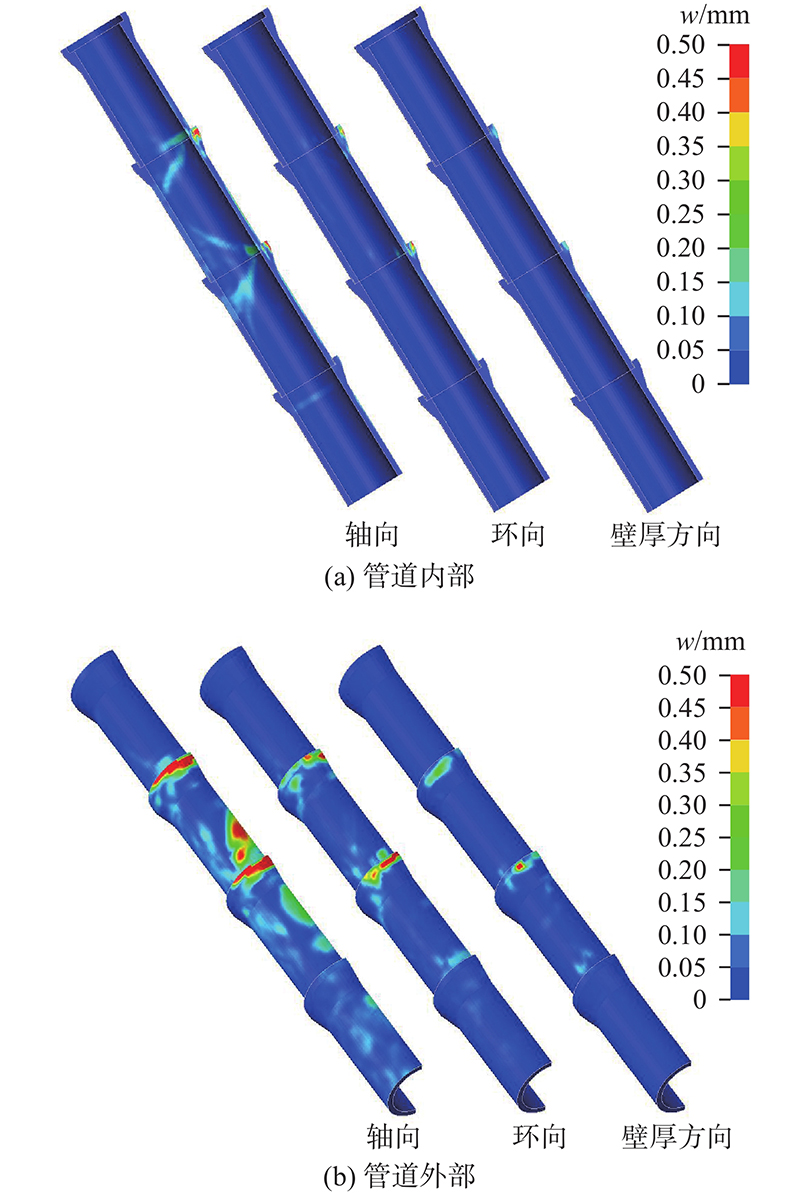

图 15  不同方向的管道裂缝宽度云图
图 16  管道内部轴向裂缝宽度分布
图 17  钢筋骨架有效应力云图

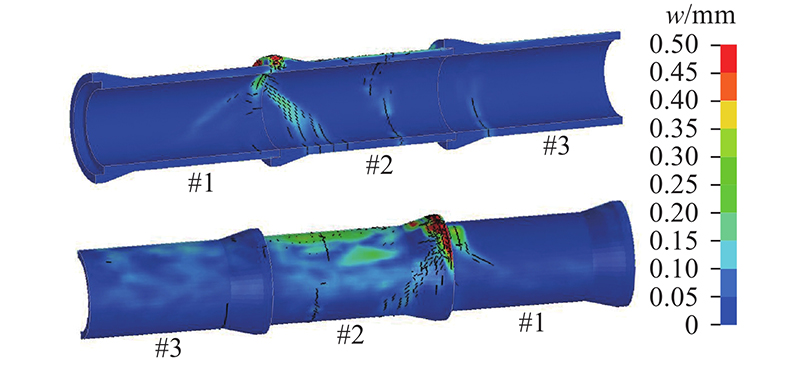

图 18  管道裂缝及轴向裂缝宽度云图分布
