韵律沙坝触发的裂流动态性研究
张尧1(),刘强1,刘旭楠1,许国栋1,洪晓2,周水华2,刘维杰3,*(),赵西增3
1. 自然资源部海洋减灾中心,北京 100000
2. 南海预报中心,广东 广州 510000
3. 浙江大学 海洋学院,浙江 舟山 316000
Variability of rip currents induced by rhythmic sandbars
Yao ZHANG1(),Qiang LIU1,Xu-nan LIU1,Guodong XU1,Xiao HONG2,Shui-hua ZHOU2,Wei-jie LIU3,*(),Xi-zeng ZHAO3
1. National Marine Hazard Mitigation Service, Ministry of Natural Resources, Beijing 100000, China
2. South China Sea Prediction Center, Guangzhou 510000, China
3. College of Ocean, Zhejiang University, Zhoushan 316000, China
 全文: PDF(1268 KB)   HTML
摘要:

基于3个华南海滩案例分析结果,采用Boussinesq相位解析水动力数值模型,模拟裂流环流,检验裂流对多沟槽浅滩沙坝和不同浪高、浪向的敏感性,计算、分析时均流速、涡量和水位的空间分布. 结果表明,裂流强度与入射波高、裂流槽宽度成正比. 在多沟槽裂流系统中,当大部分水流集中从邻近的较宽通道流出时,较窄的沟槽可能不产生裂流. 模拟结果表明:当入射角达到11° 时,沿岸流会逐渐取代离岸流而占主导地位,不利于沟槽沙坝的持续存在. 由于突变地形导致的波浪不均匀破碎,沙坝边缘附近有强涡旋现象,水流旋度随着波向偏转而明显增强,并且沿沙坝阵列拉伸. 沙坝促进了岸边的波浪增水,且堆积水量随着波角的变大而增加. 随着入射波波向的偏转,裂流槽内没有出现水面凹陷,这从机理上解释了当入射波角略微倾斜时裂流现象不能持续的原因.

关键词: 裂流韵律沙坝波向数值模拟海洋灾害
Abstract:

Base on the case study of three coastal beaches in south China, the sensitivity of multi-channel rip currents to the bathymetry and the wave conditions was checked by groups of numerical simulations using the Boussinesq phase-resolving model. The time-averaged velocity, vorticity, and surface elevation were computed and analyzed. Results indicate that the rip strength was in direct proportion to the incident wave height and the channel width. The rip current might be totally absent in small channels when the majority of water flows out through neighboring broader pathways. Alongshore currents prevailed over the rip current when the incident wave angle reached 11 degrees, which was not favorable to the existence of channeled sandbars. Vortices appeared around the edge of the bar crest due to nonuniform wave breaking over the rapid-varying bathymetry. The strong spin of the flow was significantly intensified and stretched along the sandbar array as the wave direction deflected. The setup water was held landward largely by the sandbar and substantially increased with the wave angle. There was no water surface depression in the rip channel as the angle increased, which fundamentally explained why the rip current could not persist when the incident wave became slightly oblique.

Key words: rip current    rhythmic sandbar    wave direction    numerical modelling    marine hazard
收稿日期: 2019-08-30 出版日期: 2020-09-22
CLC:  P 73
基金资助: 国家自然科学基金资助项目(51609043);自然资源部海洋减灾中心业务资助项目(2018AB005)
通讯作者: 刘维杰     E-mail: yzhang@nmhms.org.cn;weijieliu@zju.edu.cn
作者简介: 张尧(1988—),男,副研究员,博士,从事计算水动力及海洋灾害研究. orcid.org/0000-0001-8105-4091. E-mail: yzhang@nmhms.org.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
张尧
刘强
刘旭楠
许国栋
洪晓
周水华
刘维杰
赵西增

引用本文:

张尧,刘强,刘旭楠,许国栋,洪晓,周水华,刘维杰,赵西增. 韵律沙坝触发的裂流动态性研究[J]. 浙江大学学报(工学版), 2020, 54(9): 1849-1857.

Yao ZHANG,Qiang LIU,Xu-nan LIU,Guodong XU,Xiao HONG,Shui-hua ZHOU,Wei-jie LIU,Xi-zeng ZHAO. Variability of rip currents induced by rhythmic sandbars. Journal of ZheJiang University (Engineering Science), 2020, 54(9): 1849-1857.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.09.022        http://www.zjujournals.com/eng/CN/Y2020/V54/I9/1849

图 1  海滩裂流风险遥感影像分析

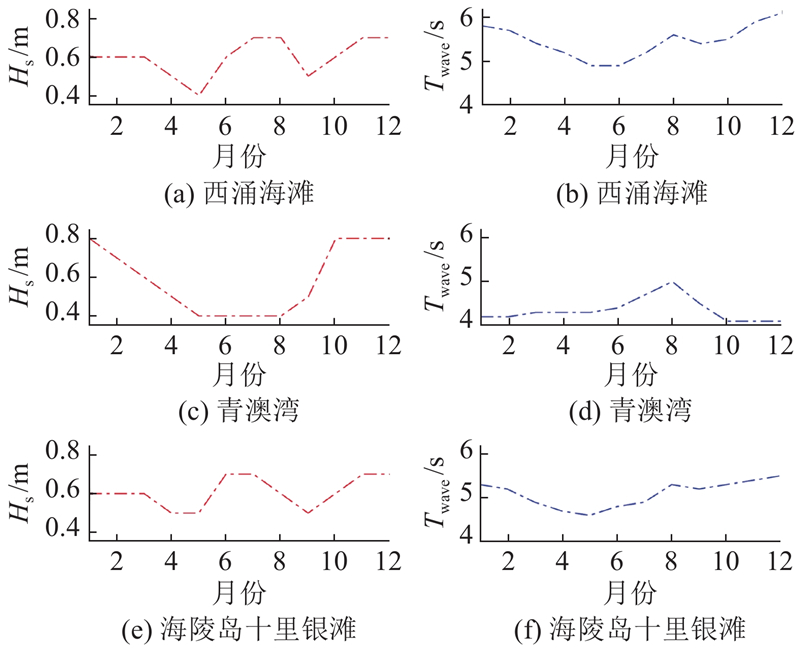

图 2  研究区域海浪观测数据统计
图 3  十里银滩航拍图
图 4  2018年7月12日海陵岛十里银滩裂流彩染示踪试验视频截图(数模案例的通道2)
模拟工况 Hs/m 波向 T/s θ/(°)
1 2.0 SE-SSE 4.9 0
2 1.4 SE-SSE 4.9 0
3 1.2 SE-SSE 4.9 0
4 0.7 SE-SSE 4.9 0
5 1.4 SSE 4.9 11.25
6 1.4 S 4.9 33.75
表 1  不同模拟工况的入射波浪条件

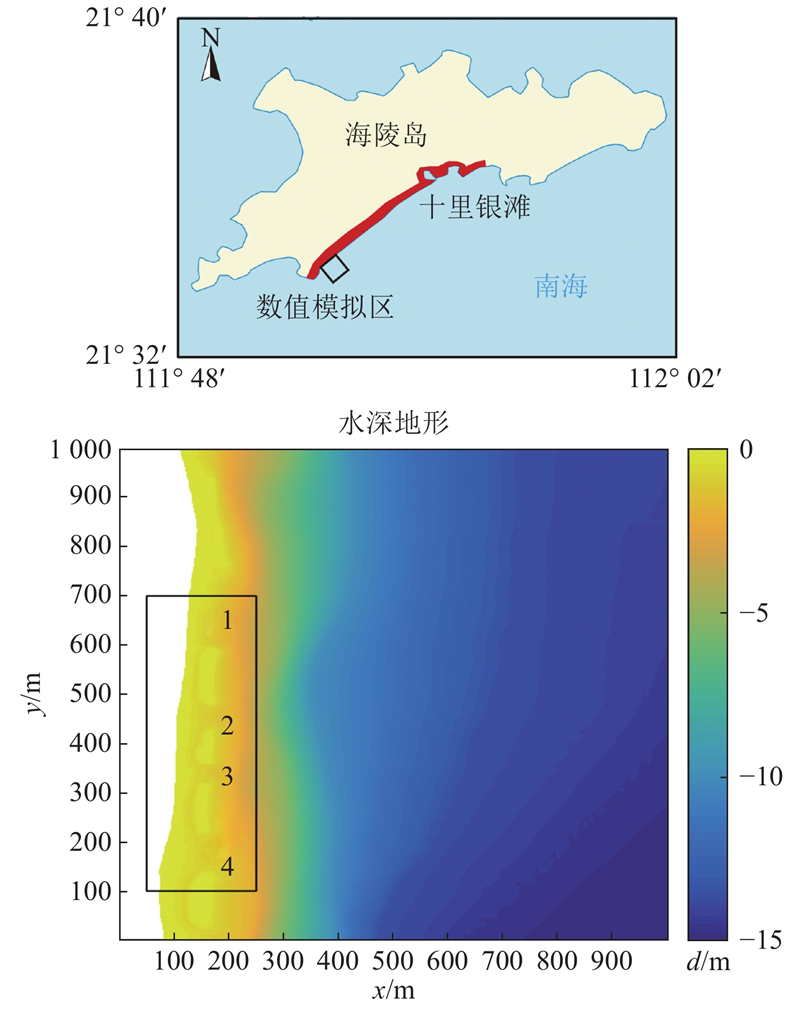

图 5  数值模拟区域的水深地形及沙坝裂流通道分布
图 6  不同入射波高下平均流速空间分布的计算结果(入射角为0°)

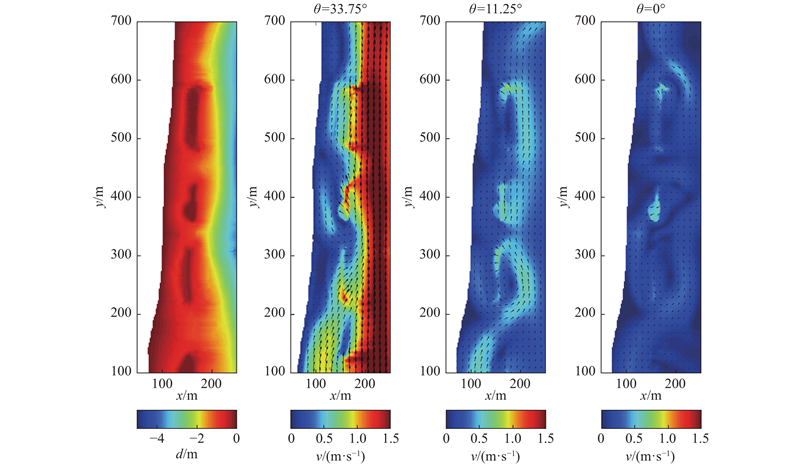

图 7  不同入射波角下平均流速空间分布的计算结果(Hs = 1.4 m)
图 8  不同入射波角下旋度(涡量)空间分布的计算结果(Hs = 1.4 m)

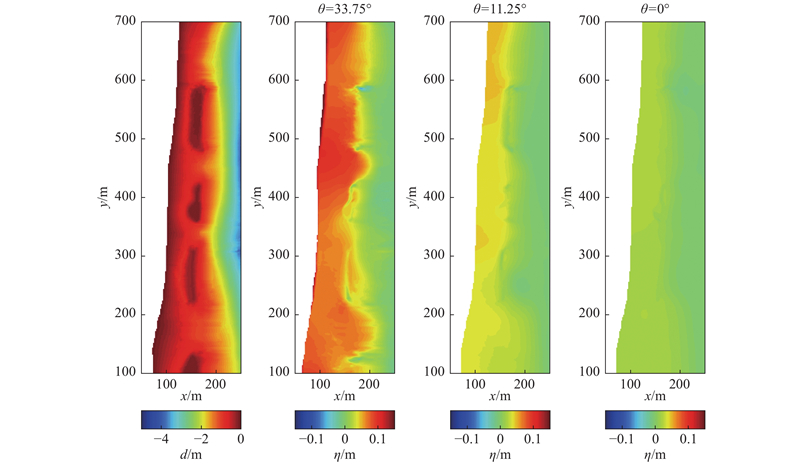

图 9  不同入射波角下平均水位空间分布的计算结果(Hs = 1.4 m)
