浙江大学学报(工学版)  2019, Vol. 53 Issue (12): 2298-2308    DOI: 10.3785/j.issn.1008-973X.2019.12.006
土木工程、水利工程
电势条件对混凝土结构电化学修复数值模拟的影响
夏晋1(),金世杰2,何晓宇3,徐小梅3,金伟良1
1. 浙江大学 结构工程研究所，浙江 杭州 310058
2. 浙江大学建筑设计研究院有限公司，浙江 杭州 310007
3. 浙江省交通规划设计研究院有限公司水运及海洋工程技术研究中心，浙江 杭州，310013
Effect of electric potential condition on numerical simulation of electrochemical rehabilitation for concrete structures
Jin XIA1(),Shi-jie JIN2,Xiao-yu HE3,Xiao-mei XU3,Wei-liang JIN1
1. Institute of Structural Engineering, Zhejiang University, Hangzhou 310058, China
2. The Architectural Design and Research institute of Zhejiang University Co. Ltd, Hangzhou 310007, China
3. Research Center for Water Transport and Marine Engineering Technology, Zhejiang Provincial Institute of Communications Planning, Design and Research Co. Ltd, Hangzhou 310013, China
 全文: PDF(1602 KB)   HTML
摘要：

通过试验研究和理论分析，对比3类电势条件（常电势条件、电中性条件和高斯定理）对混凝土结构电化学修复过程数值模拟结果的影响. 利用物质守恒定律、Nernst-Planck方程和电势条件构建电化学修复过程的数值模型，通过数值模型比较电化学修复过程电势、氯离子浓度、净电荷数和电流密度等参数在混凝土内部的分布. 结果表明，在常电势条件下，除氯前端的氯离子浓度梯度较大；当采用电中性条件与高斯定理时，模拟氯离子浓度分布和电势分布结果较为相似，混凝土分别在辅助阳极与阴极钢筋区域形成电迁移加速作用区与抑制作用区. 试验研究电化学除氯过程的氯离子浓度分布. 试验结果与数值模拟结果的对比表明，采用电中性条件或高斯定理模拟氯离子浓度分布更接近试验测试结果，适用于钢筋混凝土结构电化学修复的仿真分析.
关键词： 混凝土结构;  电化学修复;  数值模拟;  电势条件;  常电势条件;  电中性条件;  高斯定理
Abstract:

Three kinds of electric potential conditions, including constant potential condition, electro-neutrality condition and Gauss’s law, were employed to study their influence on the numerical simulation of the electrochemical rehabilitation for concrete structures. A numerical model was established based on mass conservation, Nernst-Planck and electric potential condition equations. The electric potential, chloride concentration, net charge and current density distributions in the concrete during the electrochemical rehabilitation were compared by numerical models. Results show that the chloride concentration gradient at the chloride wave front was moderately large for the constant potential condition model. Meanwhile, the modelling results of the chloride ion concentration and potential distributions from the electro-neutrality condition and the Gauss’s law models were similar. The acceleration area and the restricted area of the migration occur at the auxiliary anode and cathodic steel bars, respectively. The chloride ion concentration distribution was also experimentally obtained. The comparison of experiment results and numerically modelling results indicates that, the chloride ion concentration distribution of the electro-neutrality condition and the Gauss’s law models are more approximate to the experimental results. Therefore, the electro-neutrality condition and the Gauss’s law models are applicable for the simulation analysis of electrochemical rehabilitation for concrete structures.
Key words: concrete structure    electrochemical rehabilitation    numerical simulation    electric potential condition    constant potential condition    electro-neutrality condition    Gauss’s law
收稿日期: 2018-10-22 出版日期: 2019-12-17
CLC:  TU 528.0
基金资助: 国家重点研发计划专项资助项目（2017YFC0806100）；国家自然科学基金资助项目（51778566）；浙江省自然科学基金重点资助项目（LZ16E080002）；浙江省交通运输厅科研计划资助项目（2018016）
作者简介: 夏晋（1982—），男，副教授，从事混凝土结构耐久性研究. orcid.org/0000-0002-5569-5650. E-mail： xiajin@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
夏晋
金世杰
何晓宇
徐小梅
金伟良

引用本文:

夏晋,金世杰,何晓宇,徐小梅,金伟良. 电势条件对混凝土结构电化学修复数值模拟的影响[J]. 浙江大学学报(工学版), 2019, 53(12): 2298-2308.

Jin XIA,Shi-jie JIN,Xiao-yu HE,Xiao-mei XU,Wei-liang JIN. Effect of electric potential condition on numerical simulation of electrochemical rehabilitation for concrete structures. Journal of ZheJiang University (Engineering Science), 2019, 53(12): 2298-2308.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.12.006    或    http://www.zjujournals.com/eng/CN/Y2019/V53/I12/2298

离子 ci /（mol·m?3） ${c_{i,0}}$ /（mol·m?3） Di /（10?12 m2·s?1） zi
Cl? 0 77.40 4.00 ?1
OH? 4.48 4.48 10.36 ?1
Na+ 0 77.40 3.84 1
Ca2+ 2.24 2.24 0.64 2
表 1  电化学除氯模型对比采用的边界条件、初始条件及其他模型参数

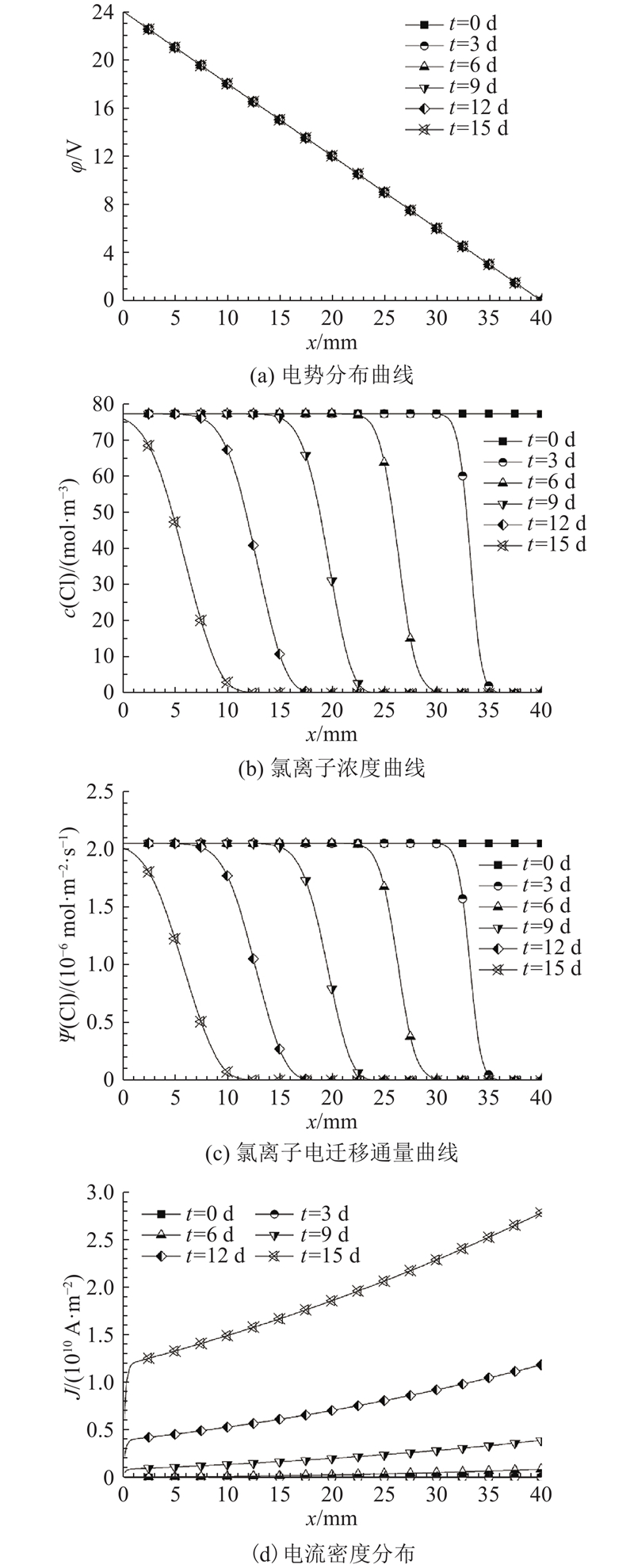

图 1  常电势条件下电化学除氯的一维模拟结果
图 2  电中性条件和高斯定理模型中电化学除氯的一维模拟结果对比

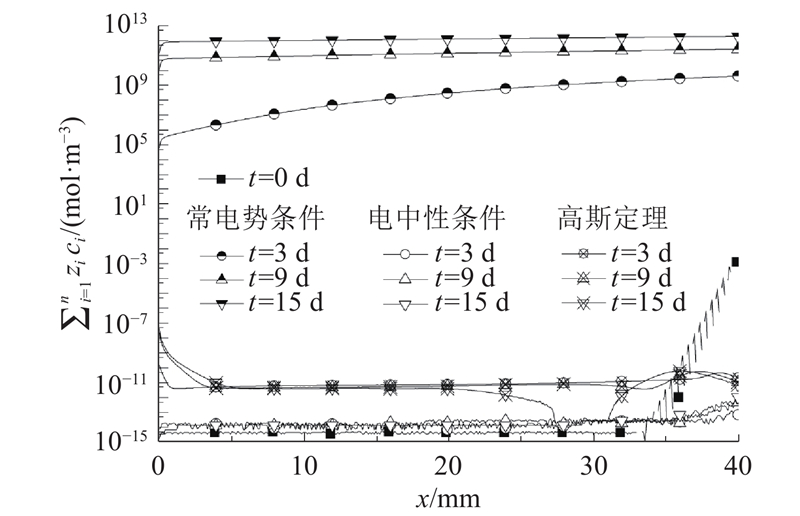

图 3  不同电势条件下模拟混凝土内的净电荷数分布

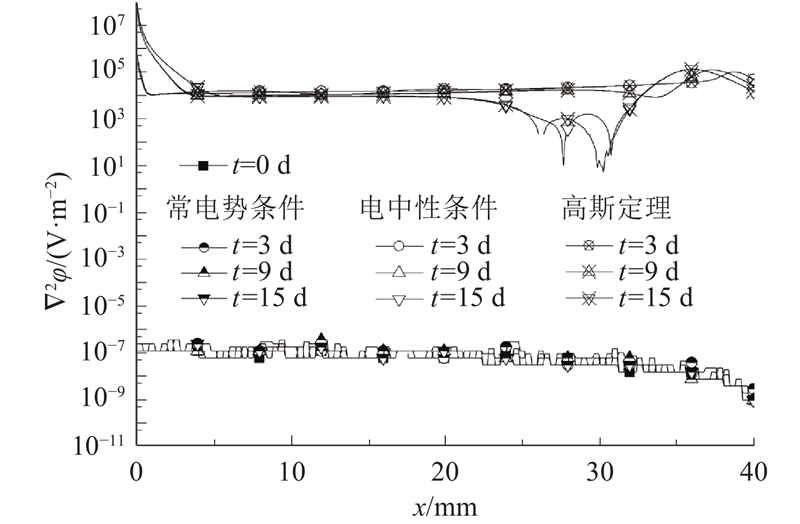

图 4  不同电势条件模拟电势的拉普拉斯算子

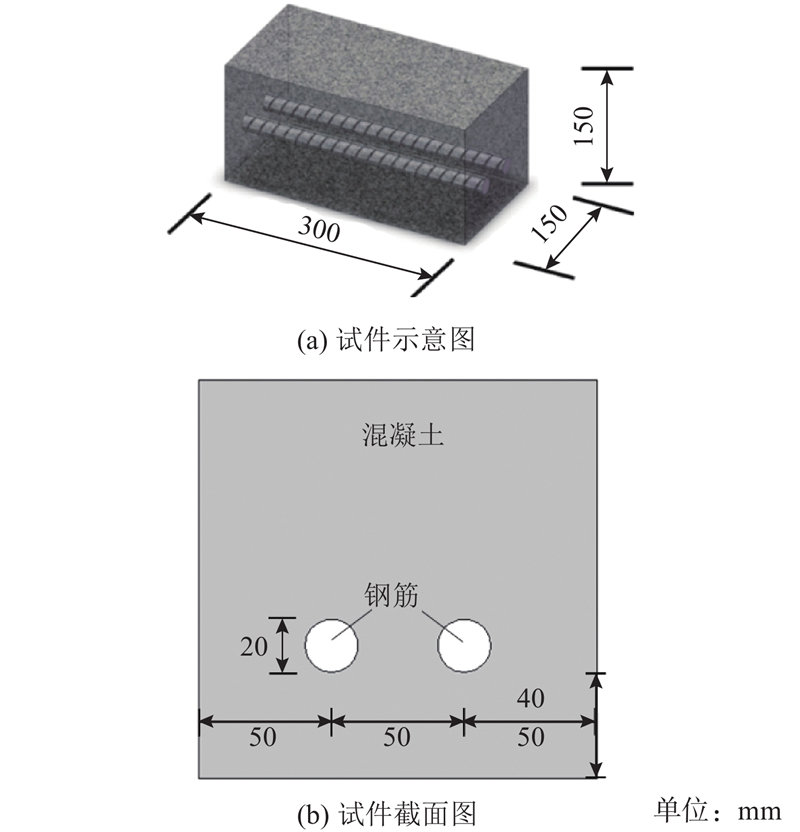

图 5  电化学除氯实验的混凝土试件尺寸示意图
m/(kg·m?3) r/%1)
水 水泥 砂 石子
　注：1) r 为混泥土中氯化钠与水泥的质量百分比
220 509 562 1 044 3
表 2  电化学除氯试件混凝土配合比

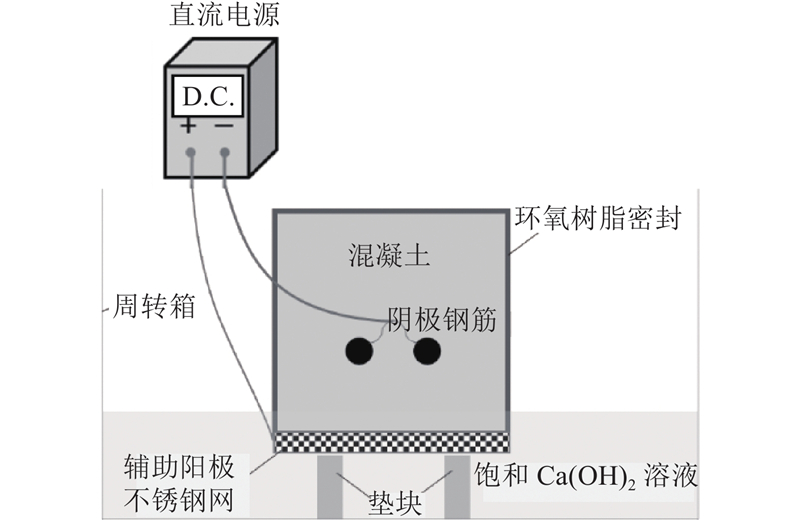

图 6  电化学除氯系统示意图
图 7  氯离子浓度检测取样方法示意图
离子 ci /（mol·m?3） ${c_{{{i}},0}}$ /（mol·m?3） Di /（10?12 m2·s?1） zi
Cl? 0 77.40 9.00 ?1
OH? 4.48 4.48 23.30 ?1
Na+ 0 77.40 8.64 1
Ca2+ 2.24 2.24 1.44 2
表 3  电化学除氯数值模拟的边界条件、初始条件及其他模型参数

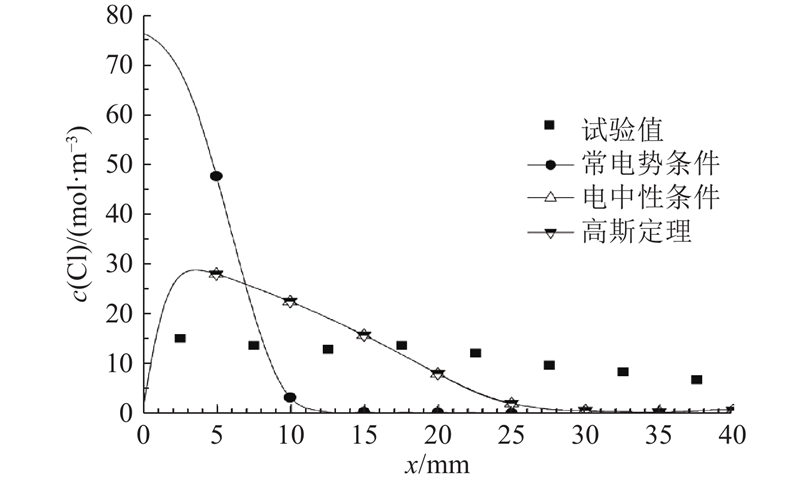

图 8  电化学除氯的一维模拟结果与试验结果对比

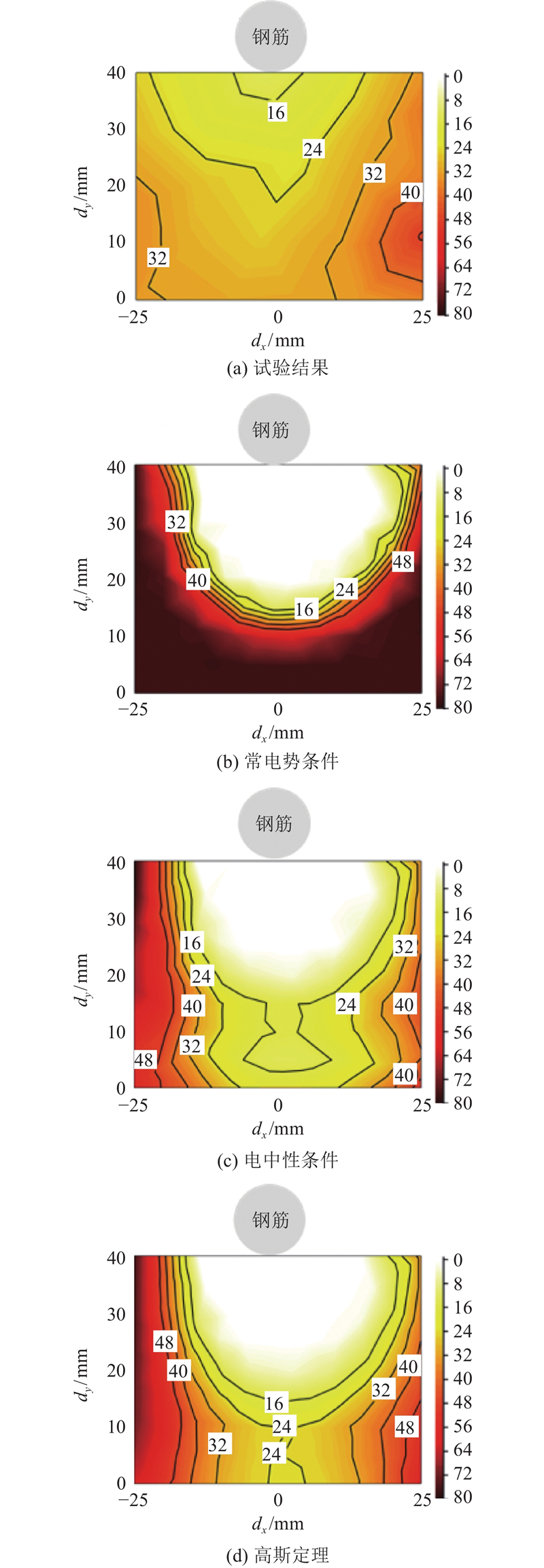

图 9  电化学除氯二维模拟结果与试验结果对比
