| Industrial image anomaly detection method based on adversarial learning of abnormal features |
Tianfei WANG1( ),Wenjun ZHOU1,*( ),Sheng XIANG2,Yuhang HE1,Bo PENG1 |
1. School of Computer Science and Software Engineering, Southwest Petroleum University, Chengdu 610500, China 2. School of Information Engineering, Zhejiang University of Technology, Hangzhou 310023, China |
|
|
|

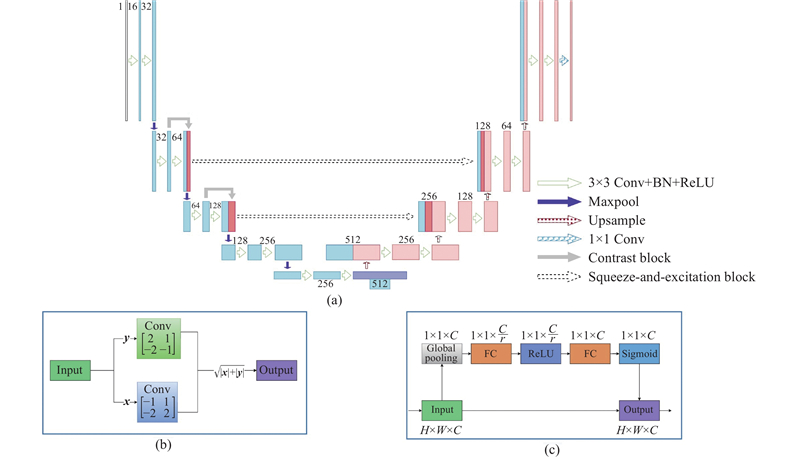

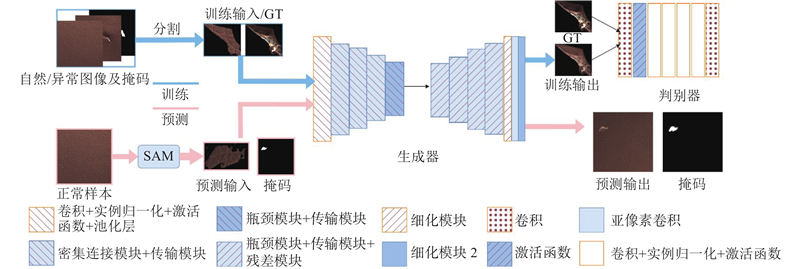

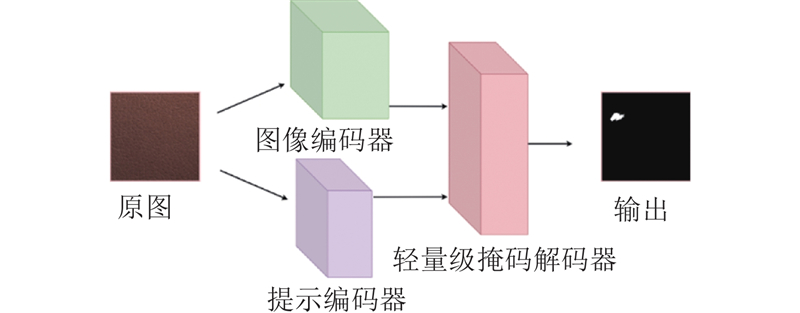

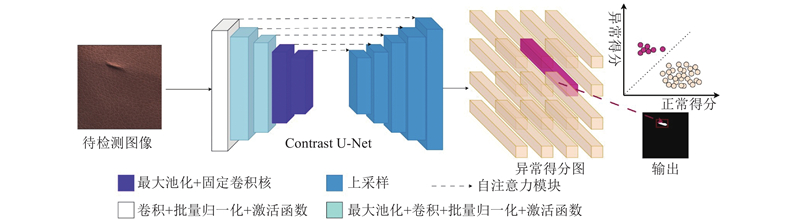

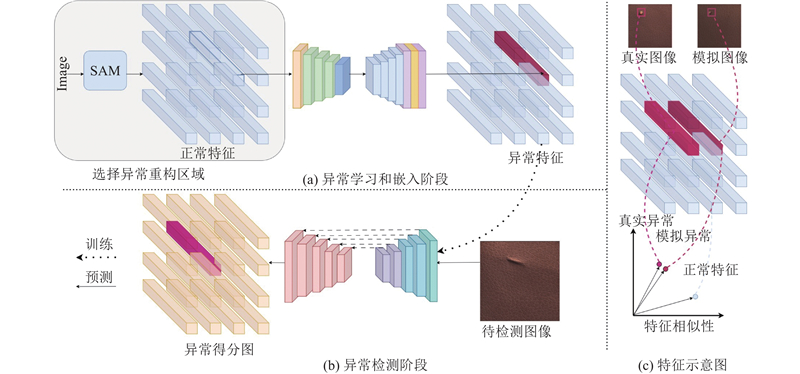

Abstract A novel anomaly detection method named EDA (enhancing anomaly detection via adversarial anomaly learning) was proposed, to address the challenges of industrial image anomaly detection, including the scarcity of anomalous samples, the complexity of annotation, and the high computational cost of deep models. The proposed approach consisted of two key stages. 1) Anomaly learning and embedding stage: a generative adversarial network (GAN) architecture was employed to learn anomalous features. The generator’s parameters were reduced to ensure lightweight design, and subpixel convolution was introduced to enhance anomalous information. Random regions were selected from normal images, refined using the SAM (segment anything) model, and then anomalous features were generated in these refined regions, providing prior anomalous features and corresponding masks for the anomaly detection stage. 2) Anomaly detection stage: a Contrast U-net network was introduced to improve sensitivity to anomalous features and enhance the accuracy of identification and localization through supervised training. Experimental results on the MVTec dataset demonstrated the superior performance of the proposed method, achieving an image-level AUROC of 98.2%, a pixel-level AUROC of 97.8%, and an AU-PR of 81.1%, showing significant advantages and outstanding performance in the field of industrial image anomaly detection and segmentation.
|
|
Received: 18 December 2024
Published: 25 November 2025
|
|
|
| Fund: 四川省自然科学基金资助项目(2023NSFSC0504). |
|
Corresponding Authors:
Wenjun ZHOU
E-mail: tianfeifeiwang@outlook.com;zhouwenjun@swpu.edu.cn
|
基于异常特征对抗学习的工业图像异常检测方法
为了解决工业图像异常检测中遇到的异常样本稀缺、标注过程复杂及深度模型计算开销大的问题,提出新的异常检测方法EDA. 该方法分为2个阶段. 1)异常学习和嵌入阶段,采用生成式对抗网络(GAN)架构来学习异常特征,通过缩减生成器参数量以保证网络轻量化,引入亚像素卷积以增强异常信息,随后在正常图像中随机选择区域,通过SAM (segment anything)模型进行区域的细化处理,在细化处理后的区域生成异常信息,为异常检测阶段提供先验异常特征及相应掩码. 2)异常检测阶段,引入Contrast U-Net网络利用有监督训练方式增强对异常特征的敏感度,并提升识别与定位的准确性. 在MVTec数据集上进行的实验结果表明,所提方法性能优异,图像级别AUROC为98.2%,像素级别AUROC为97.8%,AU-PR为81.1%,具有显著优势,在图像异常检测分割领域具有出色表现.
关键词:
异常检测,
生成对抗网络,
异常图像生成,
对比度算子,
深度学习
|
|
| [1] |
吕承侃, 沈飞, 张正涛, 等 图像异常检测研究现状综述[J]. 自动化学报, 2022, 48 (6): 1402- 1428 LV Chengkan, SHEN Fei, ZHANG Zhengtao, et al Review of image anomaly detection[J]. Acta Automatica Sinica, 2022, 48 (6): 1402- 1428
|
|
|
| [2] |
LIU J, XIE G, WANG J, et al Deep industrial image anomaly detection: a survey[J]. Machine Intelligence Research, 2024, 21 (1): 104- 135
doi: 10.1007/s11633-023-1459-z
|
|
|
| [3] |
KIRILLOV A, MINTUN E, RAVI N, et al. Segment anything [C]// IEEE/CVF International Conference on Computer Vision. Paris: IEEE, 2023: 3992–4003.
|
|
|
| [4] |
HUANG G, LIU Z, VAN DER MAATEN L, et al. Densely connected convolutional networks [C]// IEEE Conference on Computer Vision and Pattern Recognition. Honolulu: IEEE, 2017: 2261–2269.
|
|
|
| [5] |
SHI W, CABALLERO J, HUSZÁR F, et al. Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network [C]// IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas: IEEE, 2016: 1874–1883.
|
|
|
| [6] |
BERGMANN P, FAUSER M, SATTLEGGER D, et al. MVTec AD: a comprehensive real-world dataset for unsupervised anomaly detection [C]// IEEE/CVF Conference on Computer Vision and Pattern Recognition. Long Beach: IEEE, 2019: 9584–9592.
|
|
|
| [7] |
ZHOU W, WANG T, HE Y, et al Contrast U-Net driven by sufficient texture extraction for carotid plaque detection[J]. Mathematical Biosciences and Engineering, 2023, 20 (9): 15623- 15640
doi: 10.3934/mbe.2023697
|
|
|
| [8] |
HU J, SHEN L, SUN G. Squeeze-and-excitation networks [C]// IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City: IEEE, 2018: 7132–7141.
|
|
|
| [9] |
HE Y, XIANG S, ZHOU W, et al. A novel contrast operator for robust object searching [C]// 17th International Conference on Computational Intelligence and Security. Chengdu: IEEE, 2021: 309–313.
|
|
|
| [10] |
LIN T Y, GOYAL P, GIRSHICK R, et al. Focal loss for dense object detection [C]// IEEE International Conference on Computer Vision. Venice: IEEE, 2017: 2999–3007.
|
|
|
| [11] |
BERMAN M, TRIKI A R, BLASCHKO M B. The lovasz-softmax loss: a tractable surrogate for the optimization of the intersection-over-union measure in neural networks [C]// IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City: IEEE, 2018: 4413–4421.
|
|
|
| [12] |
DEFARD T, SETKOV A, LOESCH A, et al. PaDiM: a patch distribution modeling framework for anomaly detection and localization [C]// International conference on pattern recognition. Cham: Springer International Publishing, 2021: 475–489.
|
|
|
| [13] |
BERGMANN P, FAUSER M, SATTLEGGER D, et al. Uninformed students: student-teacher anomaly detection with discriminative latent embeddings [C]// IEEE/CVF Conference on Computer Vision and Pattern Recognition. Seattle: IEEE, 2020: 4182−4191.
|
|
|
| [14] |
BERGMANN P, LOWS S, FAUSER M, et al. Improving unsupervised defect segmentation by applying structural similarity to autoencoders.
|
|
|
| [15] |
ZAVRTANIK V, KRISTAN M, SKOČAJ D Reconstruction by inpainting for visual anomaly detection[J]. Pattern Recognition, 2021, 112: 107706
doi: 10.1016/j.patcog.2020.107706
|
|
|
| [16] |
LI C L, SOHN K, YOON J, et al. CutPaste: self-supervised learning for anomaly detection and localization [C]// IEEE/CVF Conference on Computer Vision and Pattern Recognition. Nashville: IEEE, 2021: 9659-9669.
|
|
|
| [17] |
张玥, 陈锡伟, 陈梦丹, 等 基于对比学习生成对抗网络的无监督工业品表面异常检测[J]. 电子测量与仪器学报, 2023, 37 (10): 193- 201 ZHANG Yue, CHEN Xiwei, CHEN Mengdan, et al Unsupervised surface anomaly detection of industrial products based on contrastive learning generative adversarial network[J]. Journal of Electronic Measurement and Instrumentation, 2023, 37 (10): 193- 201
|
|
|
| [18] |
WAN Q, GAO L, LI X, et al Unsupervised image anomaly detection and segmentation based on pretrained feature mapping[J]. IEEE Transactions on Industrial Informatics, 2023, 19 (3): 2330- 2339
doi: 10.1109/TII.2022.3182385
|
|
|
| [19] |
孔森林, 张辉, 黄镇南, 等 面向工业图像异常检测的非对称师生网络模型[J]. 计算机科学, 2024, 51 (Suppl.2): 331- 337 KONG Senlin, ZHANG Hui, HUANG Zhennan, et al Asymmetric teacher-student network model for industrial image anomaly detection[J]. Computer Science, 2024, 51 (Suppl.2): 331- 337
|
|
|
|
