Perception of distance and speed of front vehicle based on vehicle image features
Huizhi XU(),Xiuqing WANG
College of Civil Engineering and Transportation, Northeast Forestry University, Harbin 150000, China
Download: HTML     PDF(2489KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A multimodal perception method for distance and speed of front vehicle integrating vehicle image features was proposed for front vehicle detection and operational state perception in driving scenarios. The position features of vehicles in images were detected by an improved SW-YOLOv8n model, and the relative lateral and longitudinal distances to the front vehicle were calculated using geometric algorithms. A feature extraction network was designed to extract vehicle features, where image feature vectors were fused through serial concatenation, and a neural network for vehicle distance measurement was established. The multi-feature fusion module was integrated with the distance measurement neural network to construct an end-to-end front vehicle distance perception model and a vehicle tracking-based speed estimation model, which synchronously output precise distance estimations and stable speed tracking results. Experimental results demonstrated that on the test dataset, the SW-YOLOv8n model achieved improvements of 1.6 percentage points in mAP50 and 2.3 percentage points in mAP50?95 compared to the baseline YOLOv8n, while maintaining a detection speed of 260.11 frames per second. Within a lateral range of 9.5 m and a longitudinal range of 50 m, under unobstructed conditions, the preceding vehicle distance perception model exhibited an average relative error of 1.87% between predicted and actual distances, while under occluded conditions, the average relative error was 2.02%. The speed measurement results of the tracking-based model exhibited significant stability, confirming the method’s effectiveness for front vehicle distance and speed perception tasks.



Key wordsdeep learning      object detection      vehicle speed measurement      vehicle distance measurement      state perception
Received: 30 April 2024      Published: 30 May 2025
CLC:  U 495
Fund:  国家自然科学基金资助项目(62371170).
Cite this article:

Huizhi XU,Xiuqing WANG. Perception of distance and speed of front vehicle based on vehicle image features. Journal of ZheJiang University (Engineering Science), 2025, 59(6): 1219-1232.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.06.013     OR     https://www.zjujournals.com/eng/Y2025/V59/I6/1219


基于车辆图像特征的前车距离与速度感知

针对驾驶场景中的前车检测与运行状态感知任务,提出融合车辆图像特征的前车距离与速度的多模态感知方法. 通过改进的SW-YOLOv8n模型检测图像中车辆的位置特征,结合几何算法计算相对前车的横纵距离特征. 设计特征提取网络提取车辆特征,通过串联拼接融合车辆图像特征向量,并建立车辆测距神经网络. 通过集成多特征融合模块与车辆测距神经网络,构建前车距离感知模型与车辆跟踪测速模型,同步输出精确的距离估计和速度跟踪结果. 实验结果表明,在实验数据集上,SW-YOLOv8n相比于YOLOv8n模型,mAP50、mAP50?95分别提高1.6、2.3个百分点,SW-YOLOv8n 模型的检测速度为260.11 帧/s;在横向9.5 m与纵向50 m的范围内,在前车未被遮挡的条件下,前车距离感知模型的预测距离与实际距离的平均相对误差为1.87%,遮挡条件下的平均相对误差为2.02%;车辆跟踪测速模型的速度测定结果具有稳定性,适用于前车距离与速度感知任务.


关键词: 深度学习,  目标检测,  车辆测速,  车辆测距,  状态感知
Fig.1 SW-YOLOv8n vehicle target detection model
Fig.2 Tracking principle of SW-YOLOv8n-Bytetrack

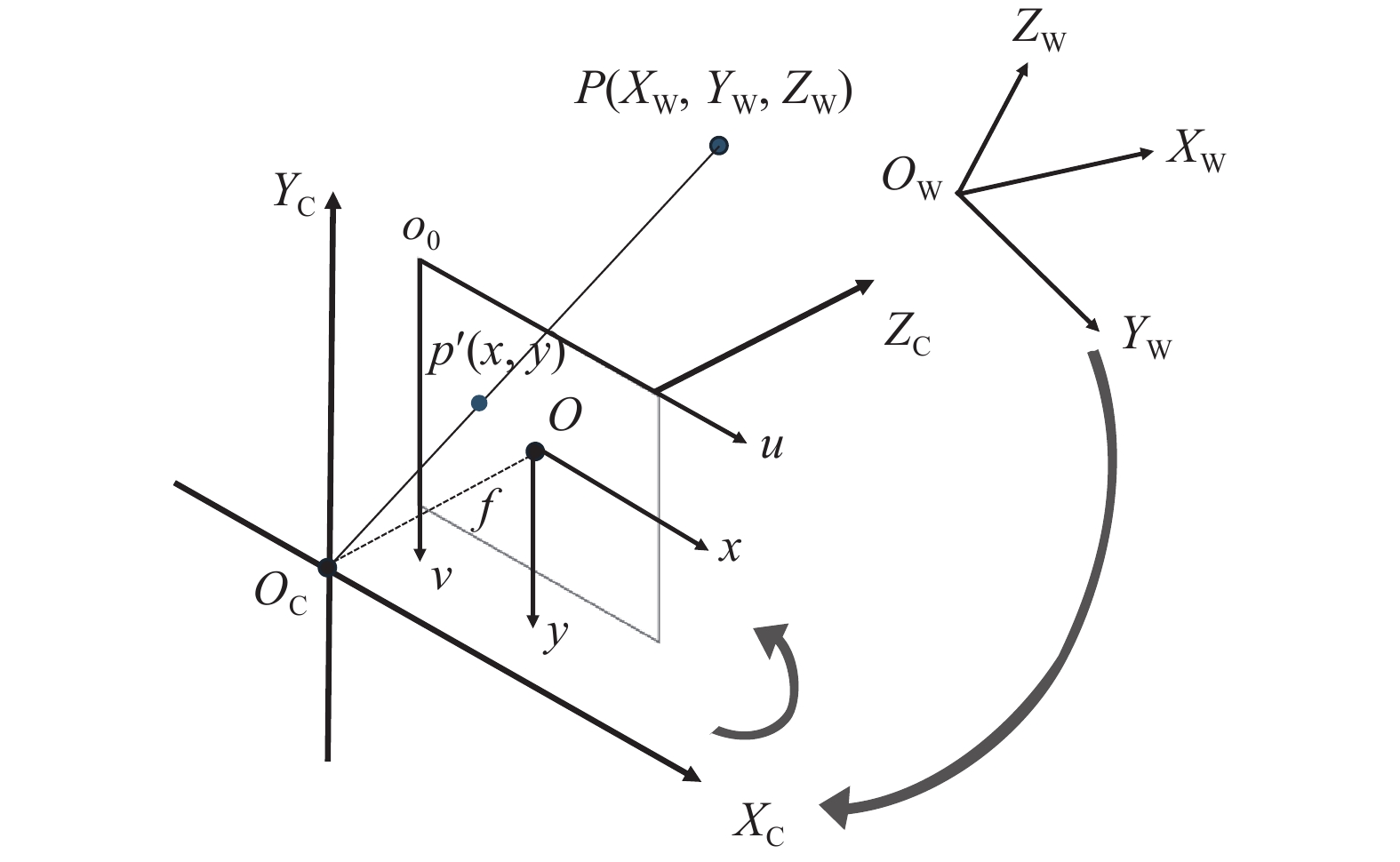

Fig.3 Camera imaging principle

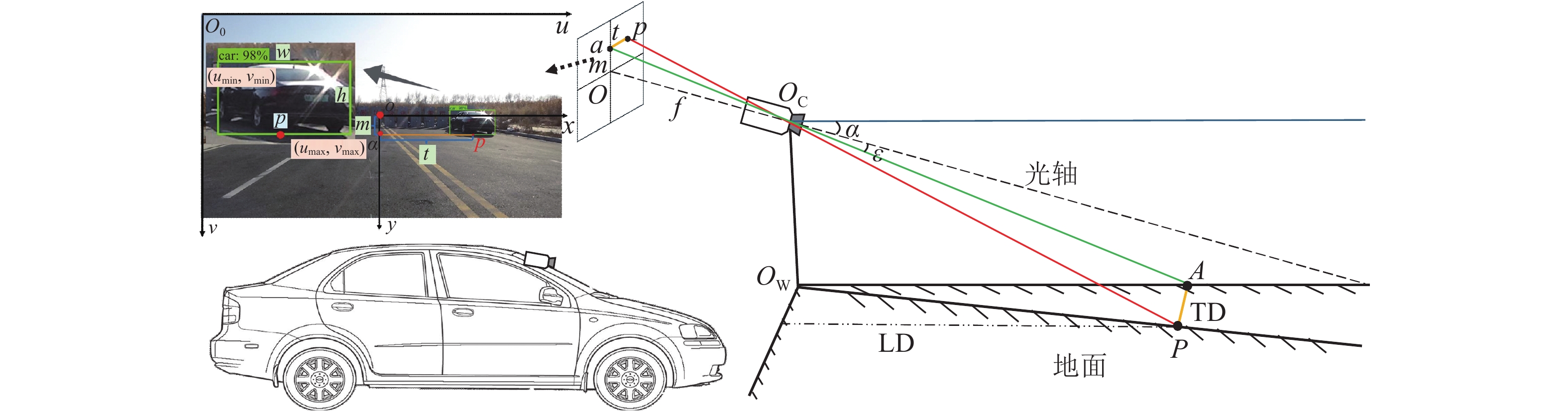

Fig.4 Geometric model of vehicle transverse and longitudinal distance
Fig.5 Process of front vehicle ranging model based on vehicle image features
Fig.6 Construction of vehicle ranging neural network

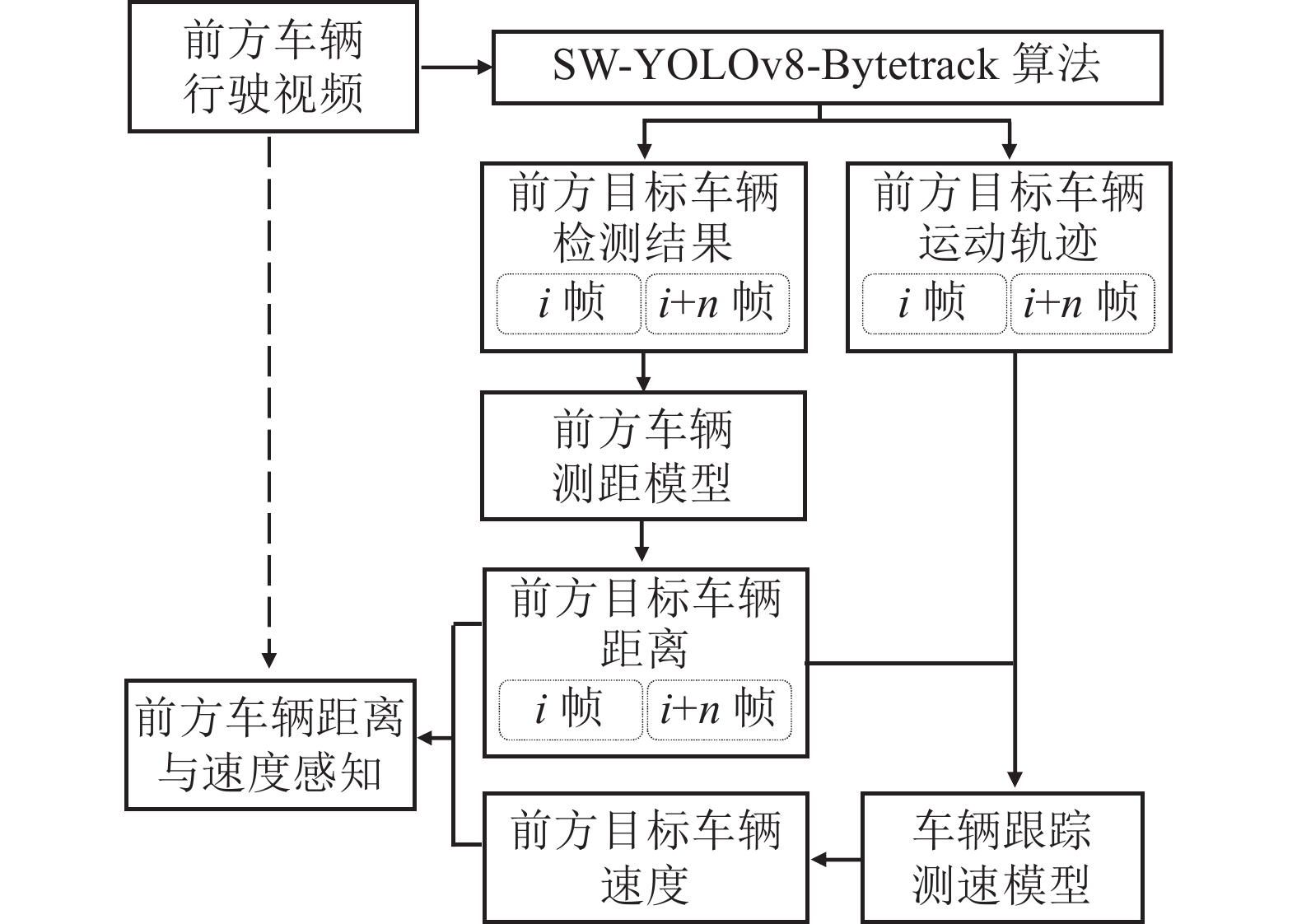

Fig.7 Process of vehicle tracking speed measurement model

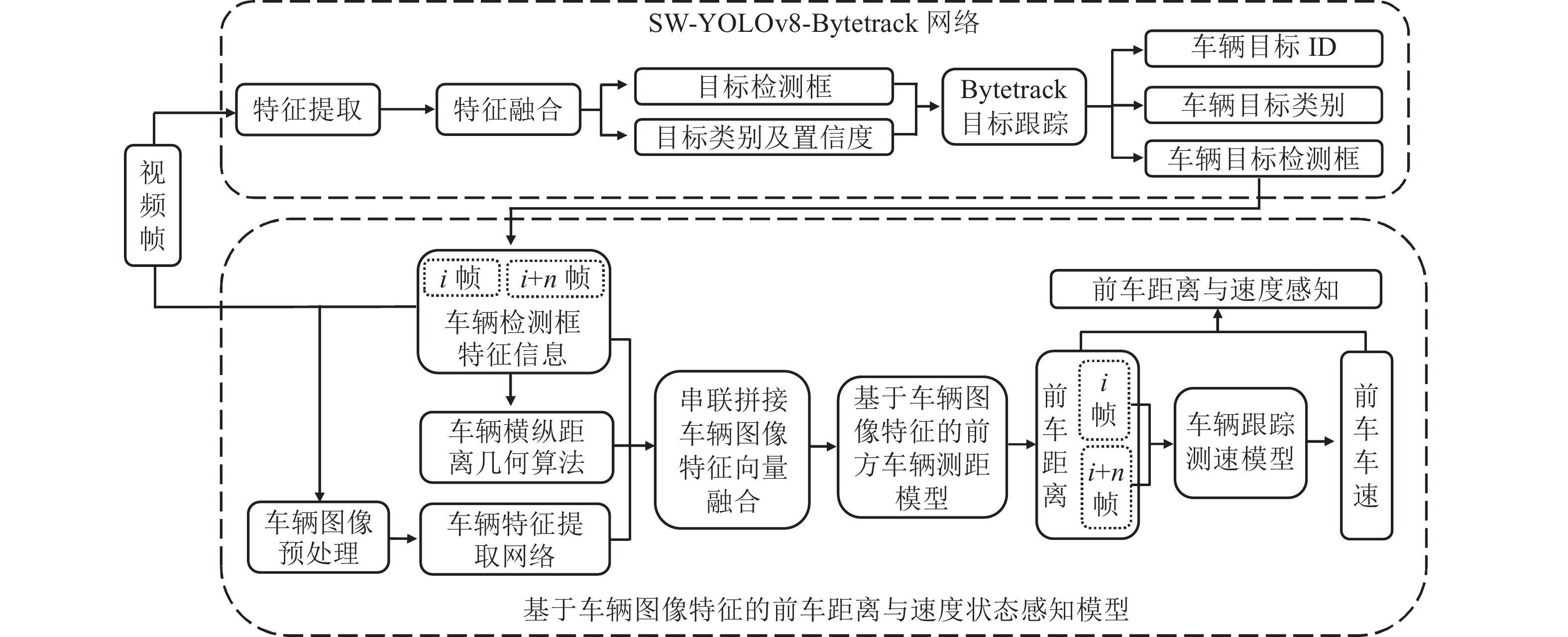

Fig.8 Process of front vehicle distance and speed perception based on vehicle image features
Fig.9 Target detection dataset
模型结构Recall/%mAP50/%mAP50?95/%FPS
YOLOv8n83.1091.2084.30226.48
YOLOv8n+WIoU84.4092.3085.40229.60
YOLOv8n+Smallobject85.3092.5086.10258.10
YOLOv8n+Smallobject+
WIoU
87.5092.8086.60260.11
Tab.1 Ablation experiment results of SW-YOLOv8n model

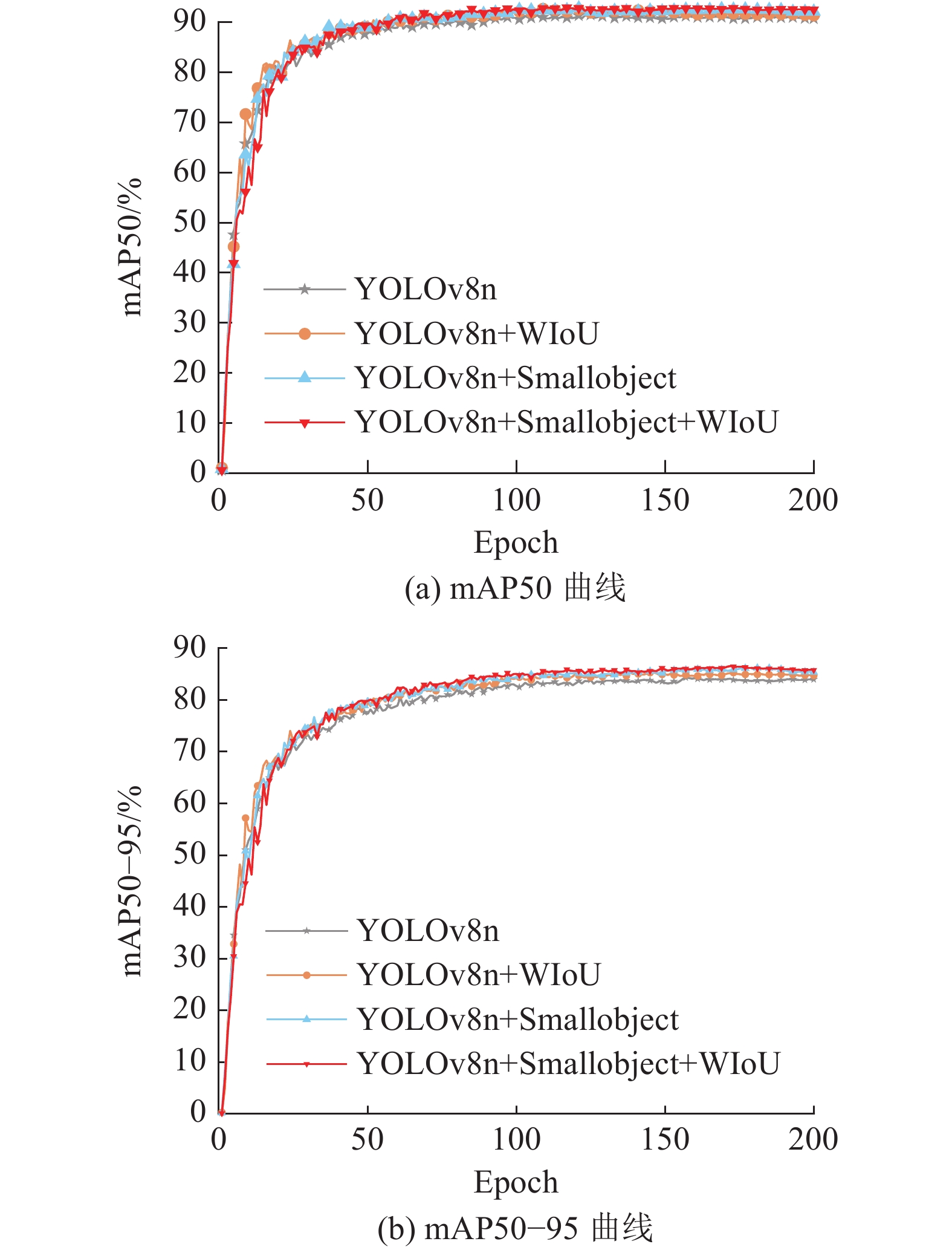

Fig.10 Model performance index of ablation experiment
模型Recall/%mAP50/%mAP50?95/%FPSM/MB
YOLOv583.8091.0081.00346.783.9
YOLOv783.9091.4084.60116.2774.8
Faster-RCNN79.7890.2072.6026.67521.0
SW-YOLOv8n87.5092.8086.60260.116.3
Tab.2 Comparison experiment results of SW-YOLOv8n model

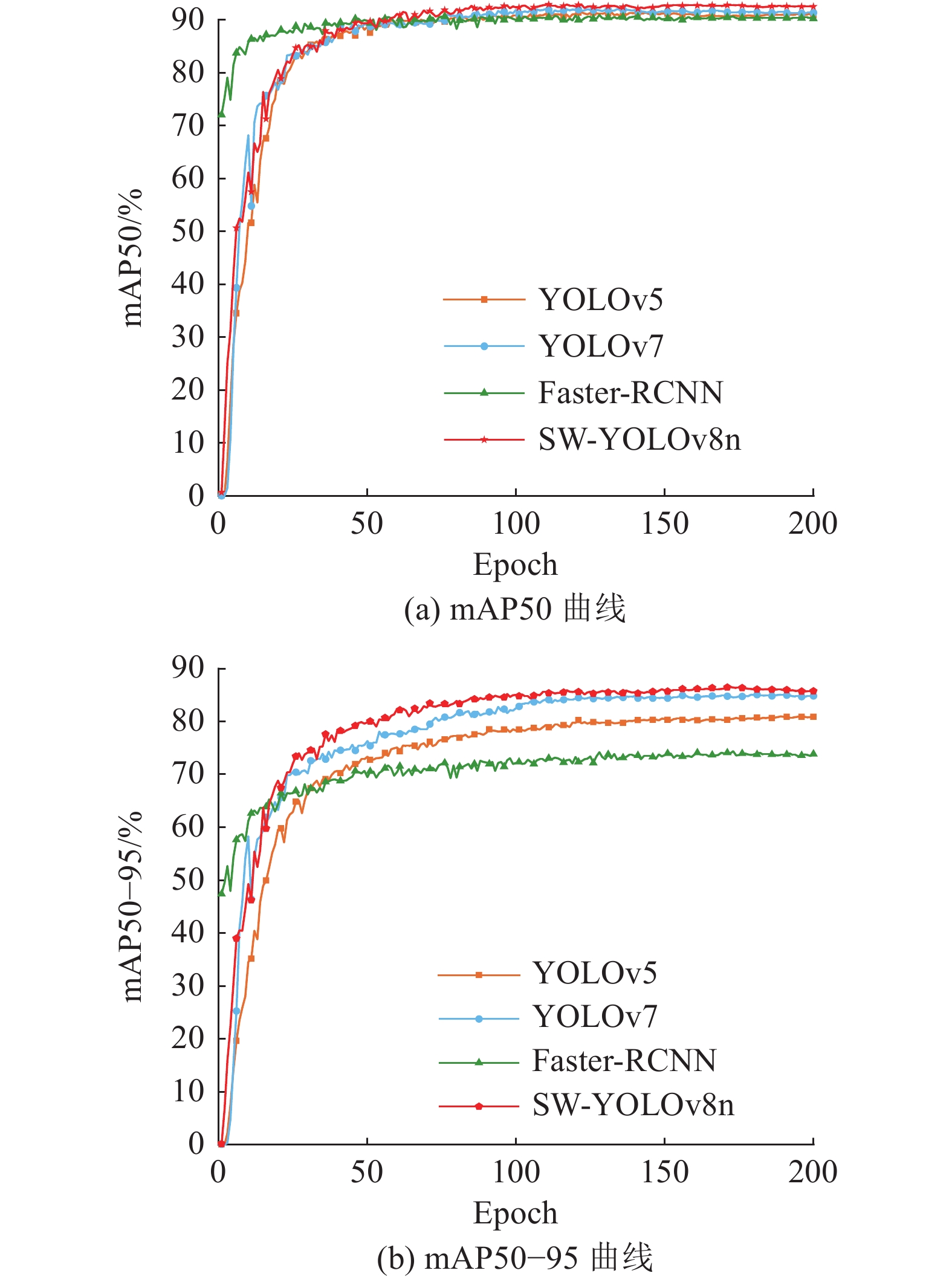

Fig.11 Model performance index of comparison experiment
Fig.12 Camera calibration
Fig.13 Exemplary video frame tracking results
Fig.14 Error between camera measurements and geometric calculations for vehicle transverse and longitudinal distances

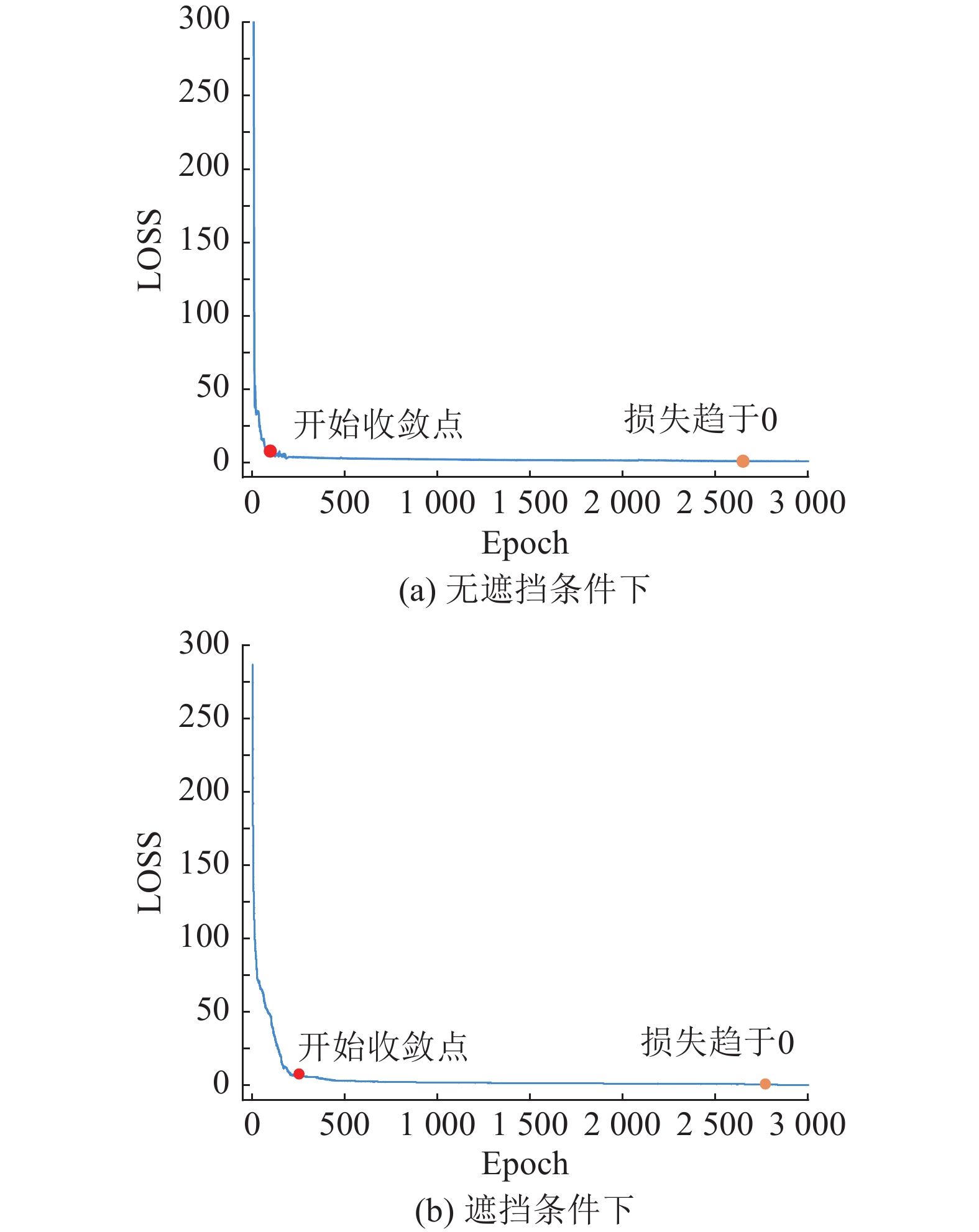

Fig.15 Train loss of vehicle ranging neural network
No.uvhwsCD/mAD/mED/mAE/mRE/%RE[24]/%
TDLD
1962.00629.00170.00206.035020.000.013012.659112.120011.30550.81456.724.45
2981.00574.5085.00102.008670.000.306624.948925.130025.20940.07940.320.71
3962.00551.0058.0076.004408.000.036135.321135.110035.68060.57061.6320.60
41323.00660.50162.00269.0043578.003.031712.008912.500012.48650.01350.110.91
51132.75547.5088.00116.5010252.002.959424.948925.360025.52880.16880.670.93
61061.25538.5048.0065.503144.003.103845.338245.170044.20350.96652.140.61
71698.50655.50167.50364.0060970.006.392512.383113.780012.84730.93276.741.13
81281.50561.0074.00114.008436.006.686130.013230.860031.56240.70242.270.36
91149.50534.5042.0064.002688.006.493449.861450.530050.24770.28230.560.49
101451.25566.0071.50157.5012836.259.539027.915029.920029.66300.25700.861.40
111323.50547.0058.00102.005916.009.582238.008939.440039.96970.52971.340.61
121233.50534.0047.0072.003384.009.544150.491051.060050.23550.82451.610.64
131321.50736.00242.00364.0088088.002.07588.24148.33008.29310.03690.442.03
141128.00605.00109.00161.0017549.002.083418.057618.200018.65370.45372.490.12
151471.00627.00137.00257.0035209.005.360615.054415.900015.91640.01640.100.51
均值0.44331.871.03
Tab.3 Measuring distance and error of distance perception model of front vehicle in unobstructed scene
No.uvhwsCD/mAD/mED/mAE/mRE/%RE[24]/%
TDLD
1982.48849.75332.68395.27131495.870.07505.58795.10005.42990.32996.088.74
2951.33597.19118.05143.4616935.640.165319.433320.090020.31010.22011.083.38
3952.24539.0556.3870.223958.950.351844.784645.060045.52510.46511.020.61
41477.91712.81239.07395.0694447.793.29919.121510.650010.44460.20541.979.80
51222.03598.12129.93187.9424419.363.495319.225125.360021.16280.74283.513.15
61062.70539.3259.1275.404457.703.092844.514945.200045.78360.58361.271.29
71619.22631.37175.29330.6157951.786.704914.572116.550016.66690.11690.703.18
81280.96562.5485.78134.8911571.086.524029.334130.740030.68010.05990.202.29
91775.10612.01137.74283.9039105.059.665016.979220.740020.04670.69333.466.16
101299.34545.3446.9871.443356.839.773048.834951.220050.74880.47120.932.84
均值0.38822.024.28
Tab.4 Measuring distance and error of distance perception model of front vehicle in obstructed scene
vc=10 km/hvc=20 km/hvc=30 km/h
LDD/mn?s/mMS/ (km·h?1)AS/ (km·h?1)LDD/mn?s/mMS/ (km·h?1)AS/ (km·h?1)LDD/mn?s/mMS/(km·h?1)AS/ (km·h?1)
0101.163012.560412.27860101.928020.822420.43310102.764229.853430.0877
1.147812.39621.916220.69502.759729.8056
1.099711.87671.826119.72192.833730.6040
010.114912.4092010.180319.4724010.280230.2612
2.0101.065411.503611.81963.5101.906720.592420.67233.5102.876531.066231.4204
1.085911.72771.957221.13782.872831.0262
1.132212.22771.878420.28672.978632.1689
2.010.107011.55603.510.200021.60003.510.289931.3092
6.5100.942710.181210.70317.0101.944521.000621.38267.0102.816230.419629.7883
0.934210.96421.949221.05142.745429.6503
1.105210.96412.045922.09572.712529.2950
6.510.102711.09167.010.198621.44887.010.273329.5164
Tab.5 Results of vehicle tracking and speed measurement model
