Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (3): 530-541    DOI: 10.3785/j.issn.1008-973X.2023.03.011

Effects of through-wall leaking during excavation in water-rich sand on lateral wall deflections and surrounding environment
Jun-cheng LIU1,2(),Yong TAN1,2,*(),Xiang-hua SONG1,2,Dong-dong FAN1,2,Tian-ren LIU1,2
1. Department of Geotechnical Engineering, Tongji University, Shanghai 200092, China
2. Key Laboratory of Geotechnical and Underground Engineering of Ministry of Education, Tongji University, Shanghai 200092, China
Download: HTML     PDF(2151KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Based on two severe through-wall leaking accidents during deep excavations in water-rich sandy strata, the deformation behaviors of the excavation during leaking were investigated and the major causes incurring the accidents were summarized by field investigation and review of measured data. To reveal the disaster-causing mechanism of leakages, a 3D fluid-solid coupled numerical model was established and several leaking scenarios were analyzed. The results indicate that the leaking accidents occur suddenly during excavation in water-rich sandy strata. When the leakage takes place at 1.075 times the final excavation depth, the total hydraulic gradient and water-earth pressure behind the wall undergo a sudden increment up to 9-12 times and 3-3.6 times those before the incident, respectively, causing a rapid increase in lateral wall displacements. Compared with the case leaking below the excavation surface, a greater increment of ground settlement, a closer distance between the location at which the maximum increment happens and the excavation pit, and a larger affected region will be incurred for the cases where the through-wall leakages are exactly at or above the excavation surface. In addition to the obvious effects of load-bearing and isolating deformation, the dynamic seepage forces during leaking can also be weakened by the isolation piles. However, when the pile length exceeds the optimal value (1.6 times the final excavation depth), the improvement on protective effects of the isolation piles is no longer obvious.



Key wordswater-rich sandy strata      deep excavation      leaking      isolation pile      numerical simulation
Received: 31 March 2022      Published: 31 March 2023
CLC:  TU 476.3
Fund:  国家自然科学基金资助项目(42177179)
Corresponding Authors: Yong TAN     E-mail: liujuncheng@tongji.edu.cn;tanyong21th@tongji.edu.cn
Cite this article:

Jun-cheng LIU,Yong TAN,Xiang-hua SONG,Dong-dong FAN,Tian-ren LIU. Effects of through-wall leaking during excavation in water-rich sand on lateral wall deflections and surrounding environment. Journal of ZheJiang University (Engineering Science), 2023, 57(3): 530-541.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.03.011     OR     https://www.zjujournals.com/eng/Y2023/V57/I3/530


富水砂土基坑渗水对侧墙变形和周边环境的影响

依托富水砂土深基坑工程2次墙体严重渗水事故,通过现场调查和实测数据回顾,分析渗水期间基坑变形特性并总结事故原因. 建立三维流固耦合数值模型揭示渗水灾变机理,对墙体渗水多种复杂工况展开研究. 结果表明,富水砂土基坑渗水事故具有突发性,墙体1.075倍最终开挖深度处发生渗水可使墙后总水力梯度和水土压力分别突增至事故前的9.0~12.0倍和3.0~3.6倍,导致地连墙侧向位移快速增长. 相较于开挖面以下渗水工况,开挖面及以上墙体渗水引起的坑外地表沉降增量更大,最大增量处距坑边更近,且影响范围更大. 除了明显的承载和阻隔变形作用,隔离桩还能有效削弱渗水时动水力的作用,但当桩长超过最优临界值(1.6倍最终开挖深度)时,隔离桩保护效果的改善将不再明显.


关键词: 富水砂层,  深基坑,  渗水,  隔离桩,  数值模拟

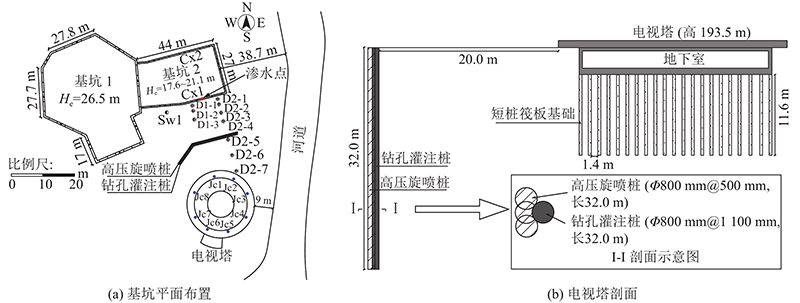

Fig.1 Plan layout of monitoring points of excavations and schematic diagram of TV tower section

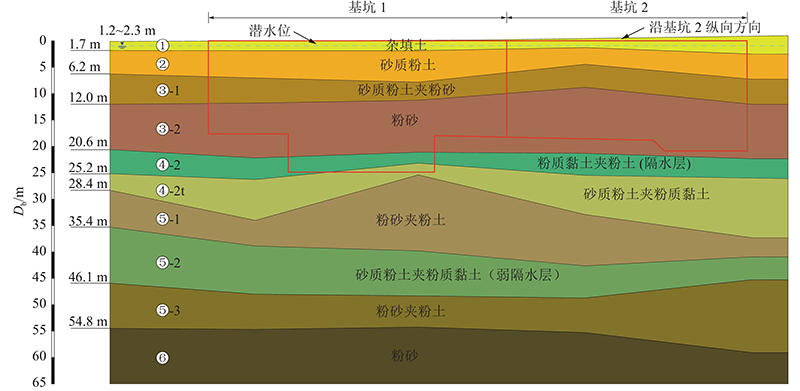

Fig.2 Hydrogeological profile of station site
土层编号 土层名称 w/% γ/(kN·m?3) e Es0.1~0.2/MPa c/kPa φ/(°) KH/(cm·s?1) KV/(cm·s?1)
砂质粉土 30.7 18.4 0.870 8.49 7.7 22.0 2.64×10?5 5.22×10?5
③-1 砂质粉土夹粉砂 30.2 18.4 0.867 11.38 4.5 27.5 1.81×10?3 3.94×10?3
③-2 粉砂 29.0 18.6 0.832 12.96 4.6 32.0 1.27×10?3 4.39×10?3
④-2 粉质黏土夹粉土 33.6 18.1 0.968 5.57 11.0 18.5 4.19×10?6 2.78×10?5
④-2t 砂质粉土夹粉质黏土 31.2 18.3 0.898 8.43 6.3 21.0 2.13×10?4 9.79×10?4
⑤-1 粉砂夹粉土 30.0 18.4 0.874 9.67 5.2 30.0 4.83×10?4 2.35×10?3
⑤-2 砂质粉土夹粉质黏土 30.6 18.3 0.893 8.69 6.6 27.0 4.60×10?4 1.75×10?3
⑤-3 粉砂夹粉土 29.9 18.5 0.855 13.69 4.9 32.0 1.69×10?3 3.39×10?3
粉砂 28.0 18.7 0.809 15.38 2.9 35.0 3.22×10?3 6.64×10?3
Tab.1 Physical and mechanical parameters of soil layers at site

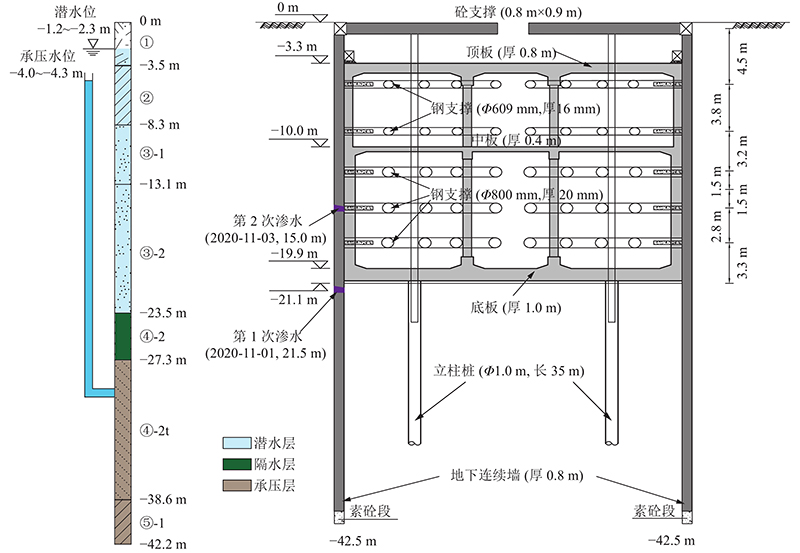

Fig.3 Typical profile of excavation at leaking spot
事故编号(埋深) 时间节点 事故描述
第1次渗水
(约21.5 m)
2020-11-01, 7:40 东侧端头井垫层下方约1.5 m处(详见图3)出现轻微冒水
2020-11-01, 8:30 冒水量突然增大但无砂土颗粒流出,施工单位立即组织抢险
2020-11-01, 9:30 坑内渗水点附近完成初步反压体堆码,坑外引孔注入聚氨酯止水
2020-11-01, 9:38 坑内出现大量聚氨酯,渗漏水得到控制
2020-11-01, 10:11 开始在坑外引孔注入水泥-水玻璃双液浆进行地层加固
2020-11-01, 12:00 渗水点停止冒水
第2次渗水
(约15.0 m)
2020-11-03, 10:00 第5道支撑预埋钢板位置(详见图3)发生渗漏水,大量清水从接缝裂隙处流出,施工单位随即采用木楔子堵漏,1 h后渗水得以控制
Tab.2 Development process of water leaking accidents at pit 2

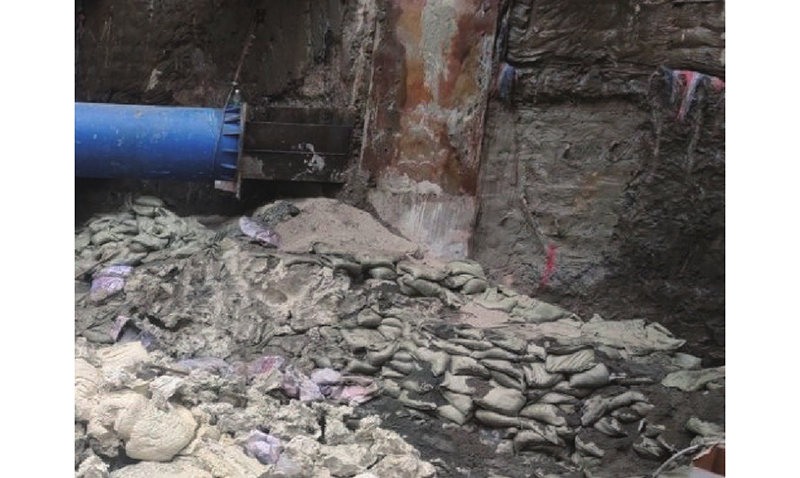

Fig.4 In-situ photo of blocking leakage after accident

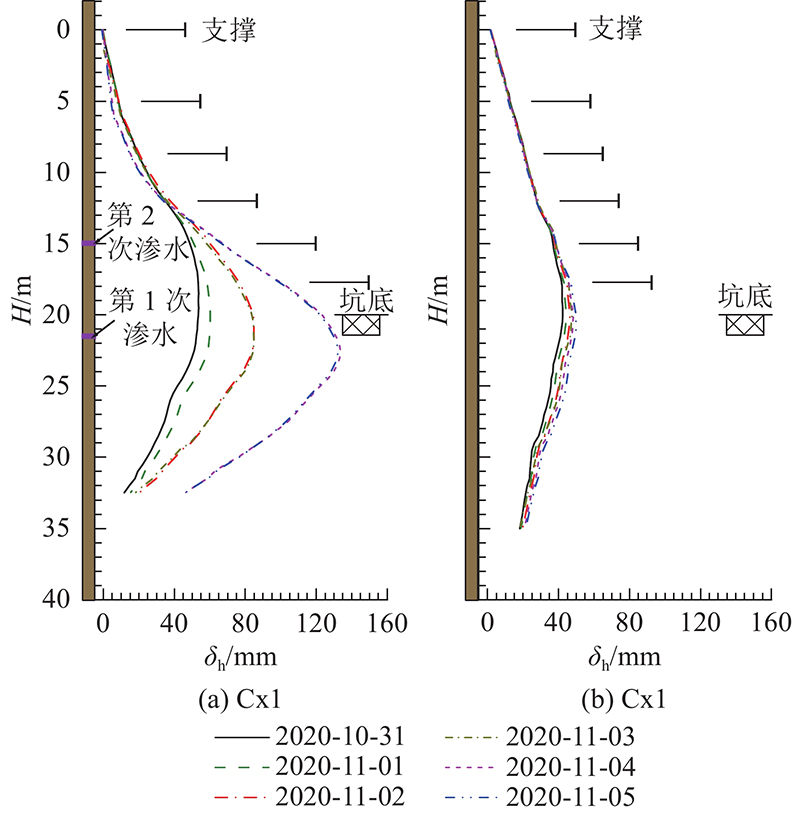

Fig.5 Lateral deflection variations of diaphragm walls

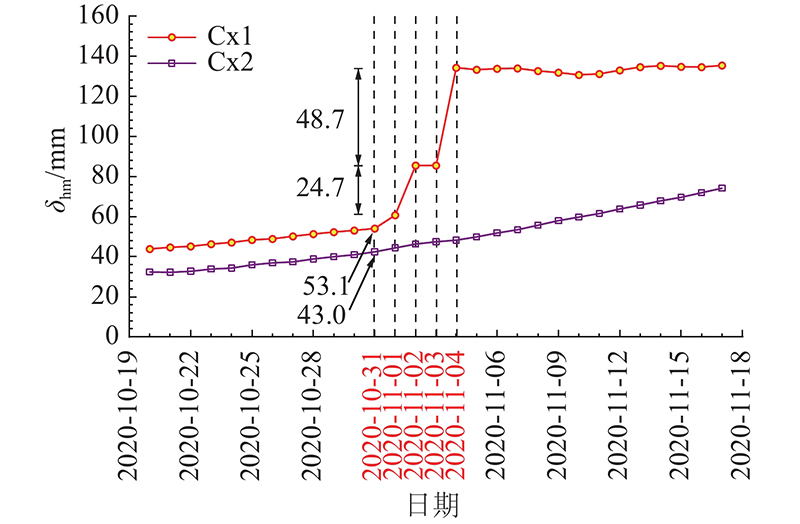

Fig.6 Maximum lateral deflection variations of diaphragm walls

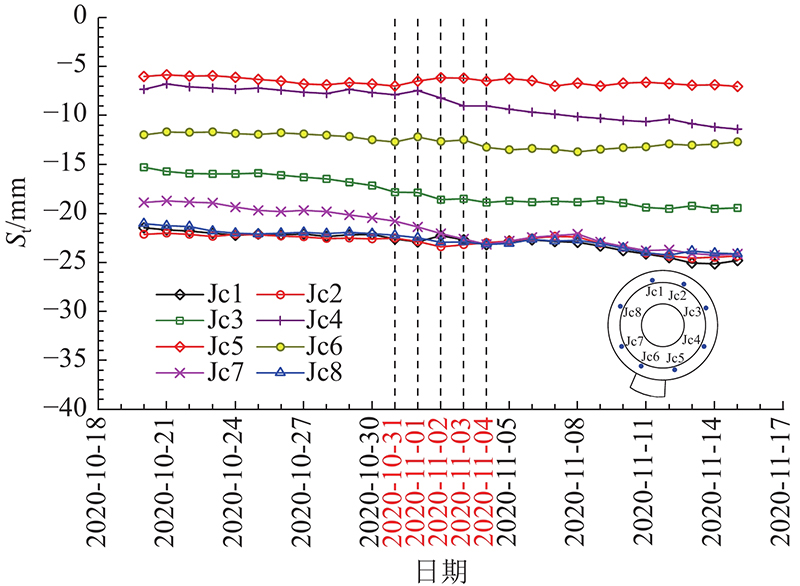

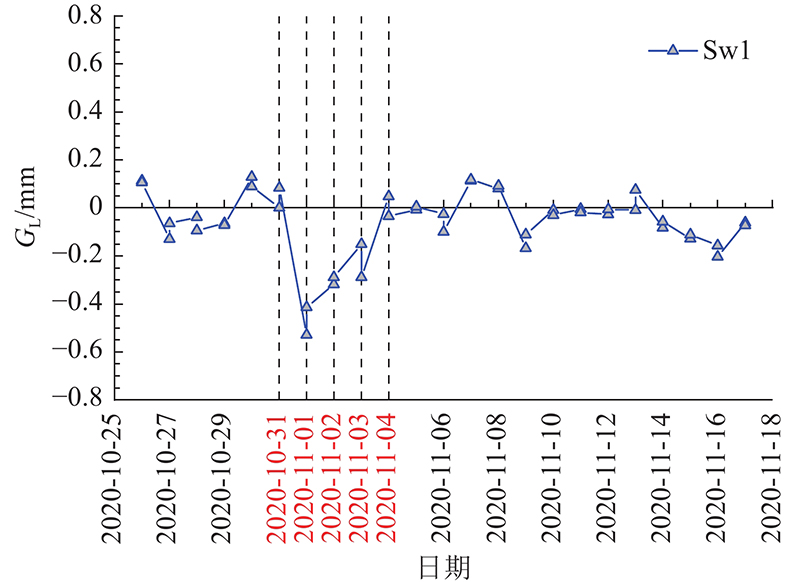

Fig.7 Variations of TV tower settlements
Fig.8 Variation in groundwater levels of observed wells at site

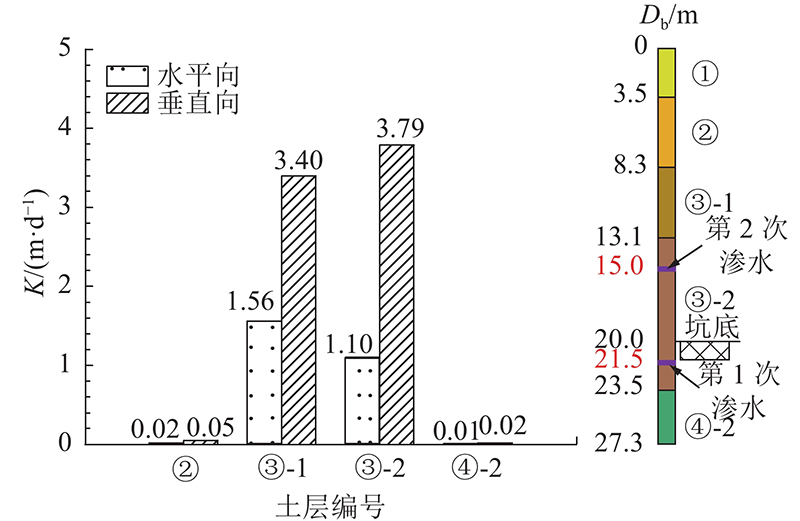

Fig.9 Distribution of permeability coefficients for each soil layer

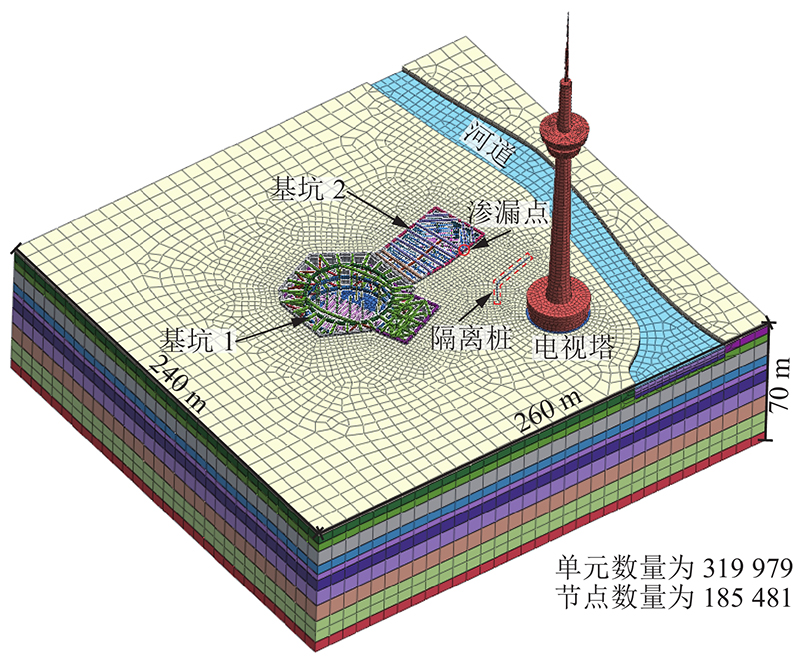

Fig.10 Schematic illustration of three dimensional numerical model of foundation pit
结构构件 $ {\gamma }_{\mathrm{s}\mathrm{e}} $/(kN·m?3) E/GPa υ
地连墙、隔离桩 25 34.5 0.22
电视塔桩、立柱桩 25 30.5 0.20
混凝土支撑 25 30.5 0.20
钢支撑 77 205 0.20
Tab.3 Parameters of structural members in numerical model
土层编号 $ {E}_{50}^{\mathrm{r}\mathrm{e}\mathrm{f}} $/MPa $ {E}_{\mathrm{o}\mathrm{e}\mathrm{d}}^{\mathrm{r}\mathrm{e}\mathrm{f}} $/MPa $ {E}_{\mathrm{u}\mathrm{r}}^{\mathrm{r}\mathrm{e}\mathrm{f}} $/MPa pref/(kN·m?2) Rf m ψ/(°) υ Rint
8.5 8.5 42.4 100 0.9 0.5 0 0.30 0.65
③-1 11.4 11.4 56.9 100 0.9 0.5 0 0.26 0.65
③-2 13.0 13.0 64.8 100 0.9 0.5 2 0.24 0.65
④-2 5.6 5.6 27.8 100 0.9 0.8 0 0.32 0.70
④-2t 8.4 8.4 42.2 100 0.9 0.5 0 0.30 0.65
⑤-1 9.7 9.7 4.8 100 0.9 0.5 0 0.25 0.65
⑤-2 8.7 8.7 43.4 100 0.9 0.8 0 0.27 0.70
⑤-3 13.7 13.7 68.4 100 0.9 0.5 2 0.26 0.65
15.4 15.4 76.9 100 0.9 0.5 5 0.23 0.65
Tab.4 Principal parameters for hardening soil constitutive model

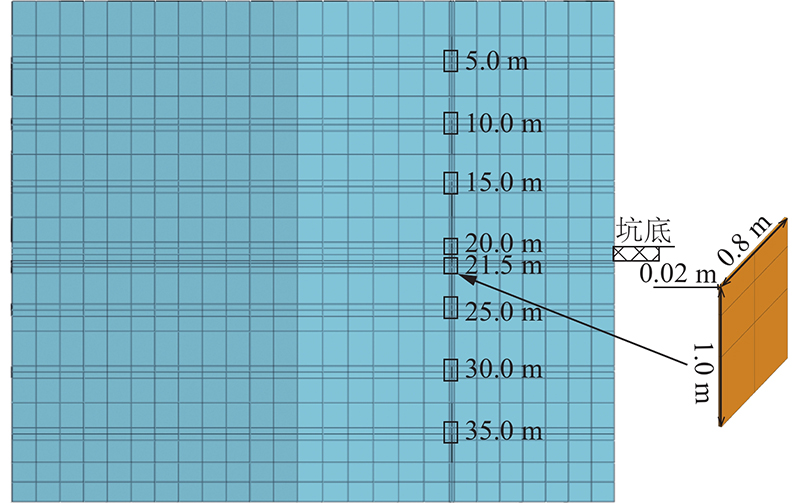

Fig.11 Schematic diagram of leaking element
Fig.12 Validation of numerical model for first through-wall leakage

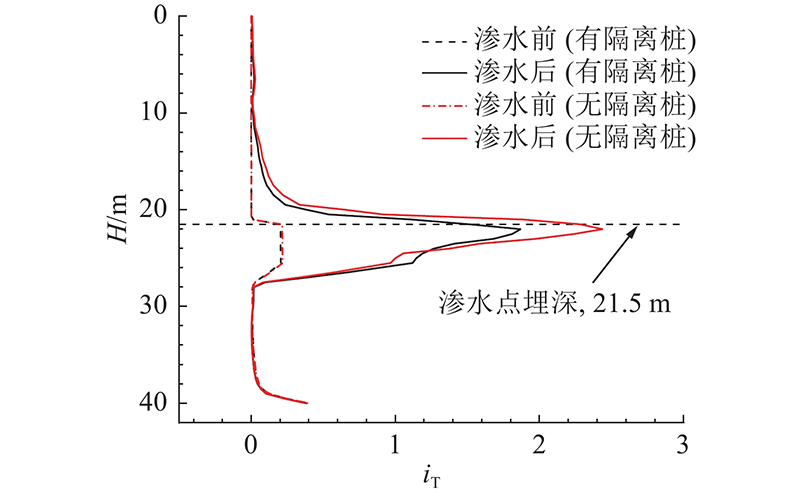

Fig.13 Total hydraulic gradient behind walls

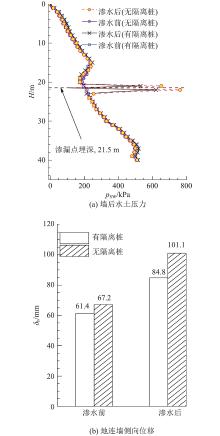

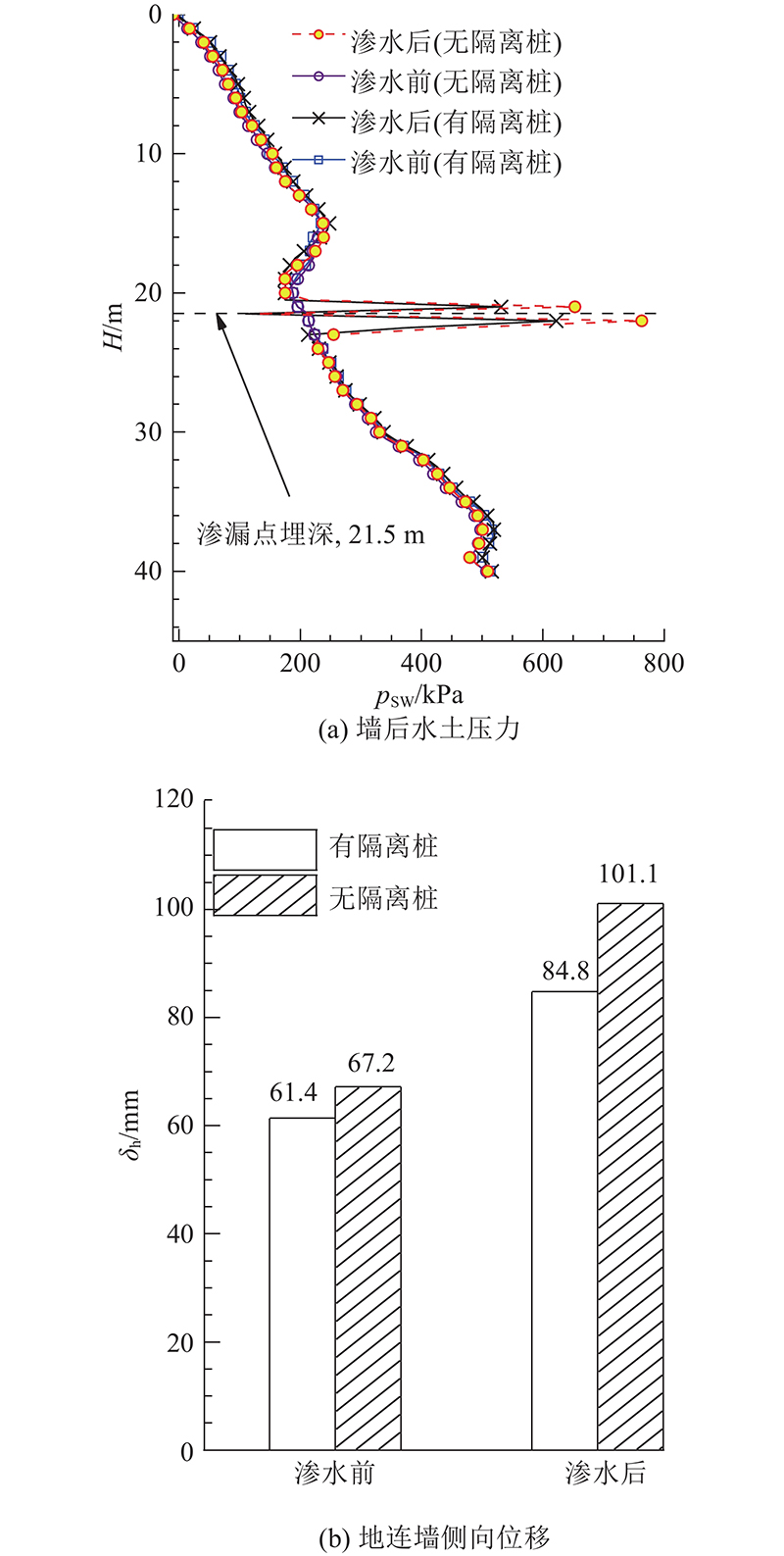

Fig.14 Water-earth pressure behind walls and lateral wall deflections

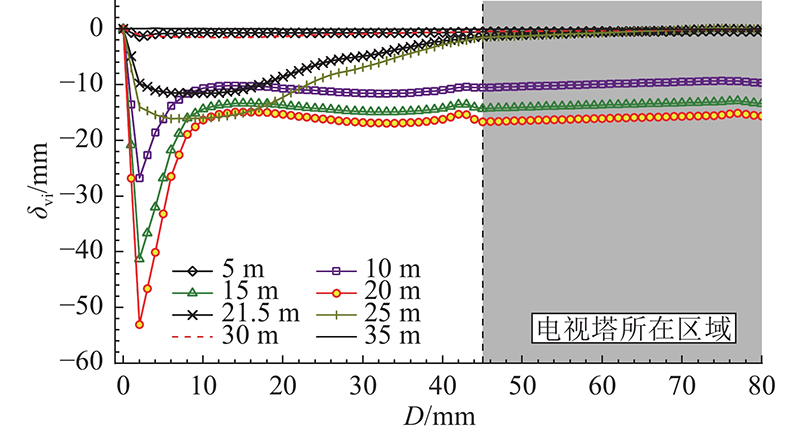

Fig.15 Effects of different leaking locations on ground settlement increment outside pit

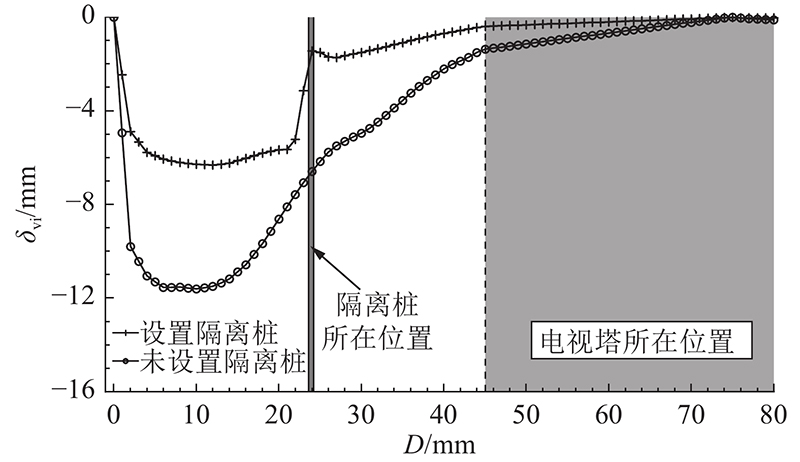

Fig.16 Variation of ground settlement increment regarding to cases with and without isolation piles

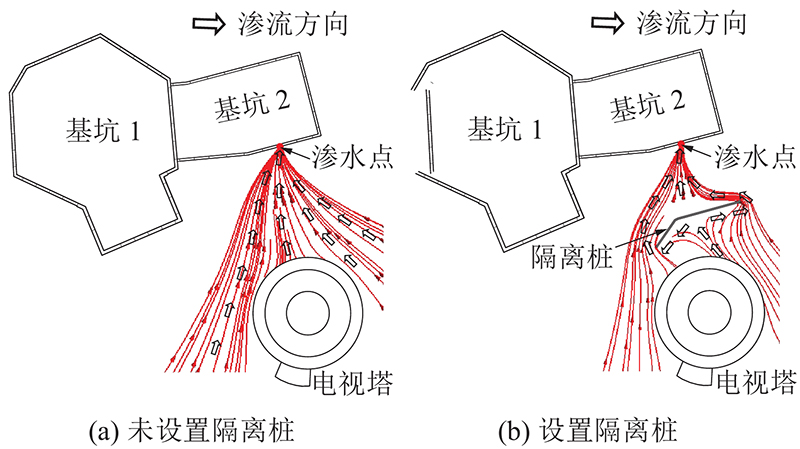

Fig.17 Distributions of groundwater flow path

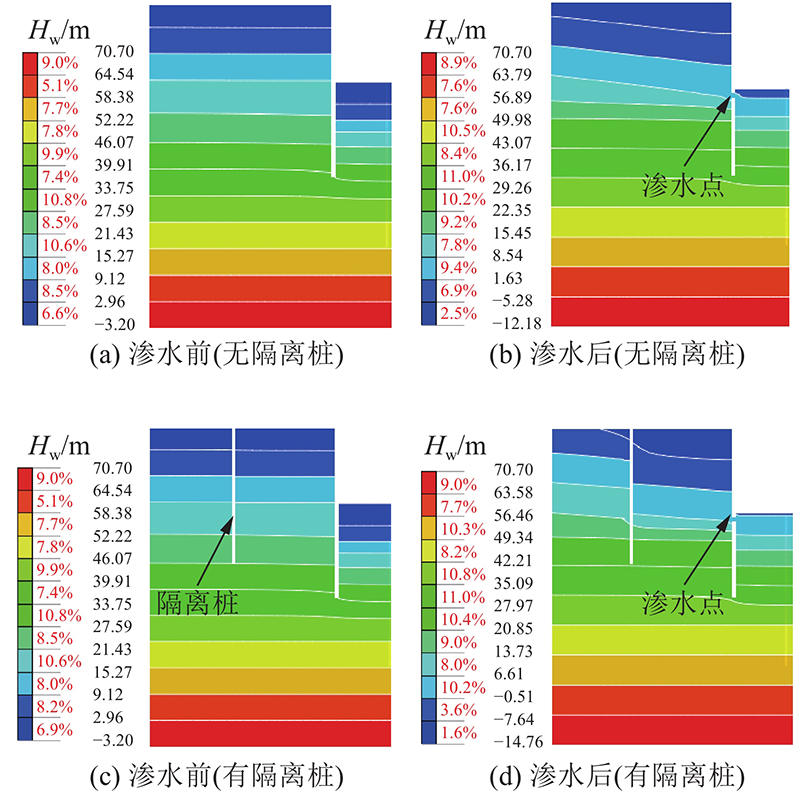

Fig.18 Distributions of piezometric heads

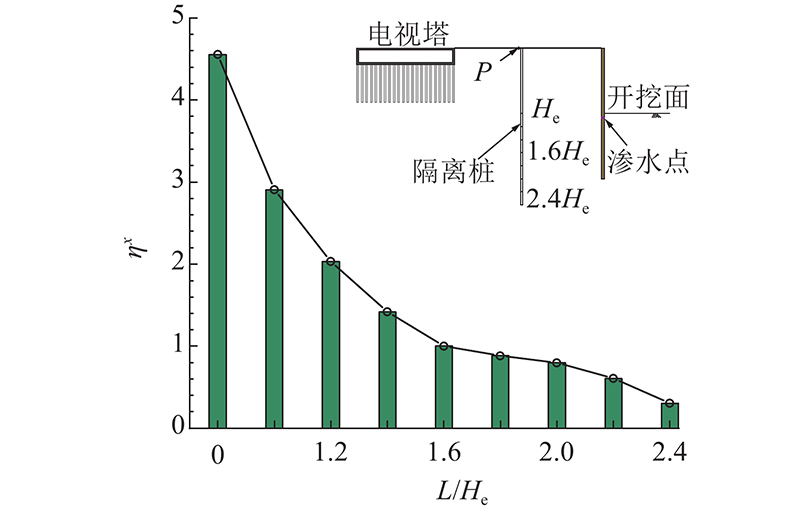

Fig.19 Relative increment at point P varies with isolation pile lengths
