浙江大学学报(工学版)  2026, Vol. 60 Issue (7): 1599-1610    DOI: 10.3785/j.issn.1008-973X.2026.07.021
交通工程
基于无人机航拍图像的实时车辆检测算法
孟昱煜(),马银宝,火久元*()
兰州交通大学 电子与信息工程学院,甘肃 兰州 730070
Real-time vehicle detection algorithm based on UAV aerial images
Yuyu MENG(),Yinbao MA,Jiuyuan HUO*()
School of Electronics and Information Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
 全文: PDF(4247 KB)   HTML
摘要:

针对无人机(UAV)航拍图像中多尺度目标,尤其是小目标,在密集、遮挡及低光照等复杂场景下检测精度较低的问题,提出卷积-小波双域下采样器RDWTConv,以保留小目标细节;设计3层跨尺度残差融合模块RCDFM,以增强多尺度特征交互;提出尺度-形状损失TSSIoU,以提升航拍视角下目标尺度与形状的边界框定位精度. 在此基础上,基于YOLOv8构建适配不同算力需求的CF-YOLOn、CF-YOLOs与CF-YOLOm模型. 实验结果显示,在VisDrone数据集上,CF-YOLOn在参数量减少23.7%、计算量仅增加22.5%的情况下,mAP@0.5和mAP@0.5:0.95较基线YOLOv8n分别提高5.5和4.0个百分点,帧率保持169.1帧/s,且在相同帧率区间内,s、m版本取得最高精度;在Drone-Vehicle数据集上重新训练后,CF-YOLOn的mAP@0.5:0.95较基线YOLOv8n提升3.0个百分点. 通过上述协同改进,所提方法不仅在轻量计算开销下保持实时检测,而且有效提升了复杂场景下的多尺度目标检测性能,达到同类方法的先进水平.

关键词: 车辆检测多尺度目标复杂场景YOLOv8下采样
Abstract:

Multi-scale targets in unmanned aerial vehicle (UAV) aerial images, especially small targets, have low detection accuracy in complex scenarios such as dense scenes, occlusions, and low illumination. Thus, a convolution-wavelet dual-domain downsampling module (RDWTConv) was proposed to preserve fine details of small targets. Additionally, a three-layer cross-scale residual fusion module (RCDFM) was designed to enhance multi-scale feature interactions. Furthermore, a scale-shape loss function (TSSIoU) was introduced to improve bounding box localization accuracy for varying object scales and shapes under aerial perspectives. On this basis, a series of CF-YOLO models, namely CF-YOLOn, CF-YOLOs, and CF-YOLOm, were constructed based on YOLOv8 to meet diverse computational requirements. Experimental results demonstrated that on the VisDrone dataset, CF-YOLOn achieved a 23.7% reduction in parameters and only a 22.5% increase in computational cost, while improving mAP@0.5 and mAP@0.5:0.95 by 5.5 and 4.0 percentage points, respectively, compared with the baseline YOLOv8n, as well as maintaining a frame rate of 169.1 frames per second. The s and m variants also achieved the highest accuracy within the same frame rate range. After retraining on the Drone-Vehicle dataset, CF-YOLOn’s mAP@0.5:0.95 improved by 3.0 percentage points compared to the baseline. Through the above synergistic improvements, the proposed method not only maintains real-time detection under lightweight computational costs but also effectively enhances multi-scale target detection performance in complex scenarios, achieving state-of-the-art results among comparable methods.

Key words: vehicle detection    multi-scale target    complex scenario    YOLOv8    downsampling
收稿日期: 2025-05-29 出版日期: 2026-05-23
CLC:  TP 391
基金资助: 国家自然科学基金资助项目(62262038);甘肃省技术创新指导计划-科技专家资助项目(25CXGA030);甘肃省重点研发计划-工业资助项目(25YFGA045).
通讯作者: 火久元     E-mail: mengyuyu@mail.lzjtu.cn;huojy@mail.lzjtu.cn
作者简介: 孟昱煜(1975—),女,副教授,硕导,从事数据挖掘研究. orcid.org/0009-0003-1310-7755. E-mail:mengyuyu@mail.lzjtu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
孟昱煜
马银宝
火久元

引用本文:

孟昱煜,马银宝,火久元. 基于无人机航拍图像的实时车辆检测算法[J]. 浙江大学学报(工学版), 2026, 60(7): 1599-1610.

Yuyu MENG,Yinbao MA,Jiuyuan HUO. Real-time vehicle detection algorithm based on UAV aerial images. Journal of ZheJiang University (Engineering Science), 2026, 60(7): 1599-1610.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.07.021        https://www.zjujournals.com/eng/CN/Y2026/V60/I7/1599

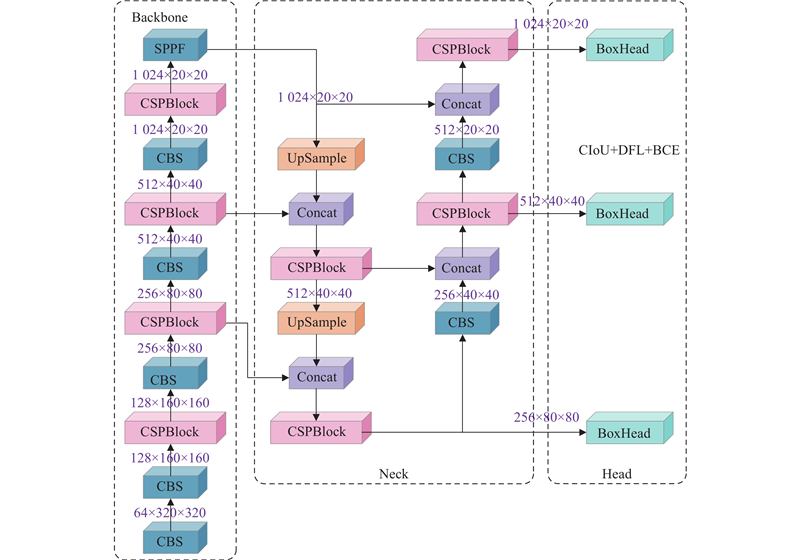

图 1  YOLOv8n网络结构图

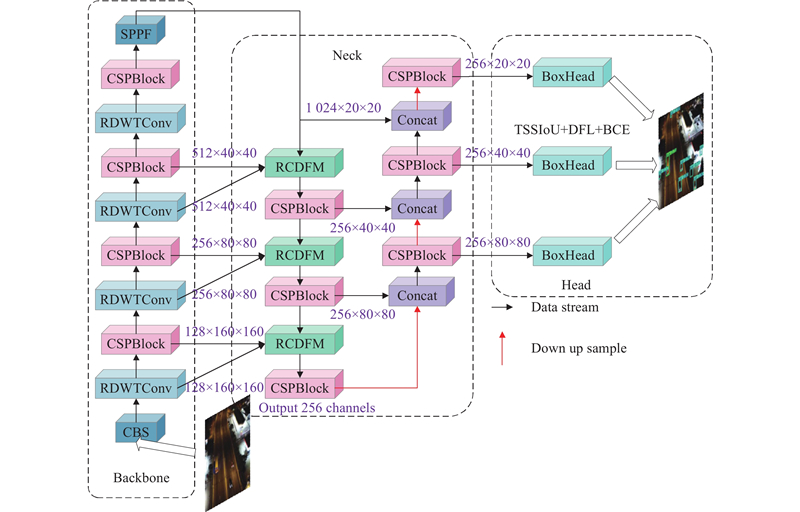

图 2  CF-YOLOn网络结构图

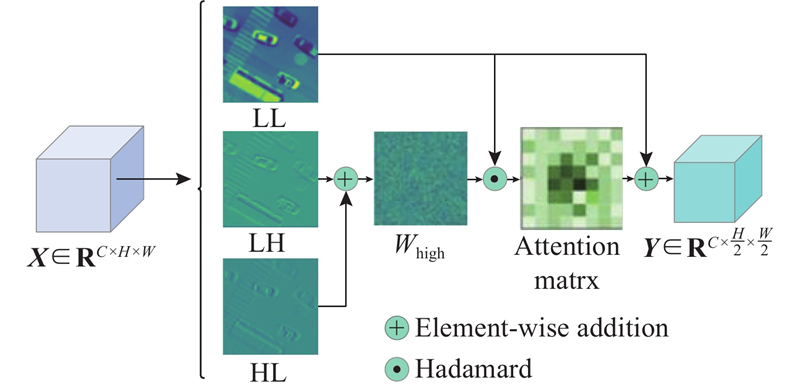

图 3  小波池化层结构图

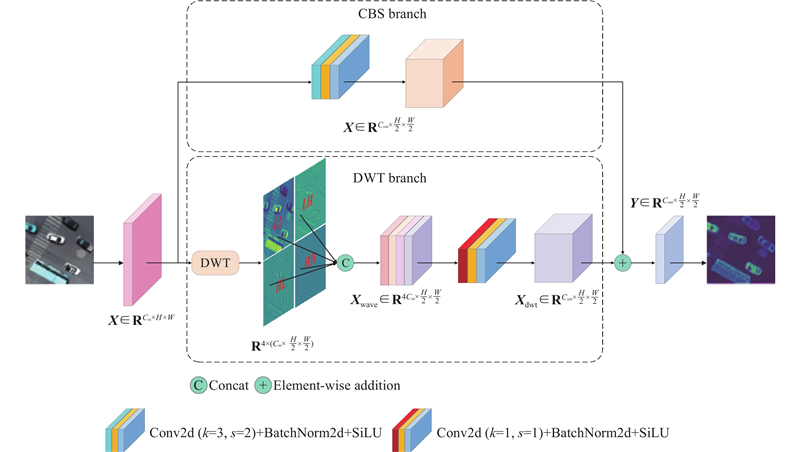

图 4  RDWTConv结构图

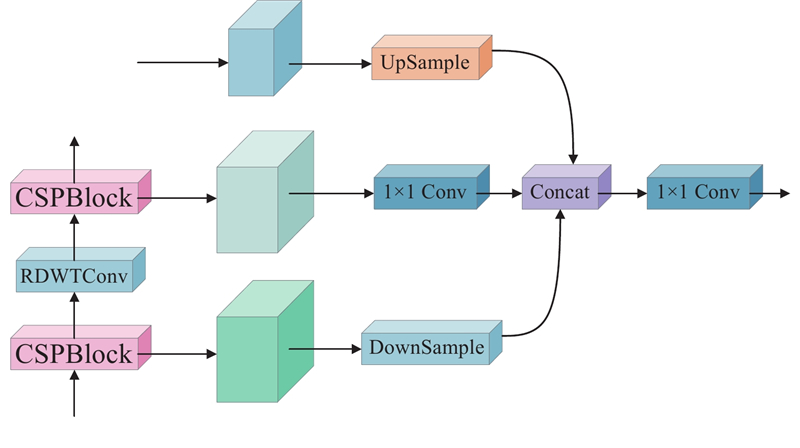

图 5  Birectional Concatenate结构图

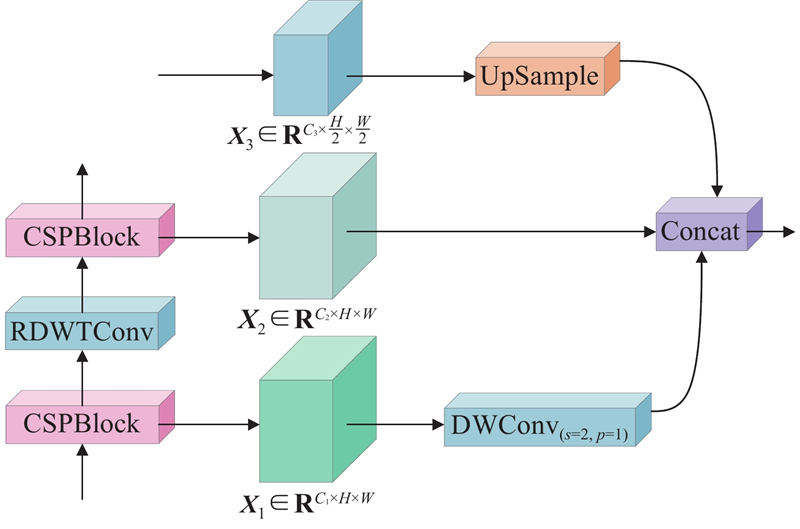

图 6  Sandwich-fusion结构图

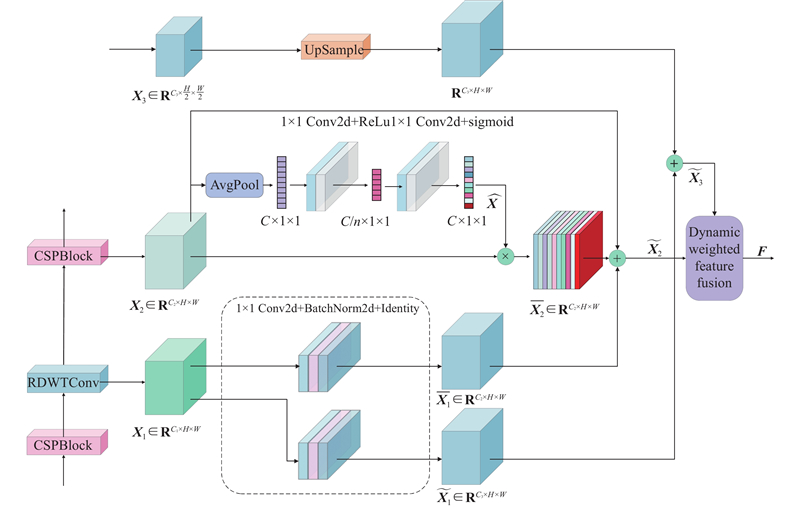

图 7  RCDFM结构图

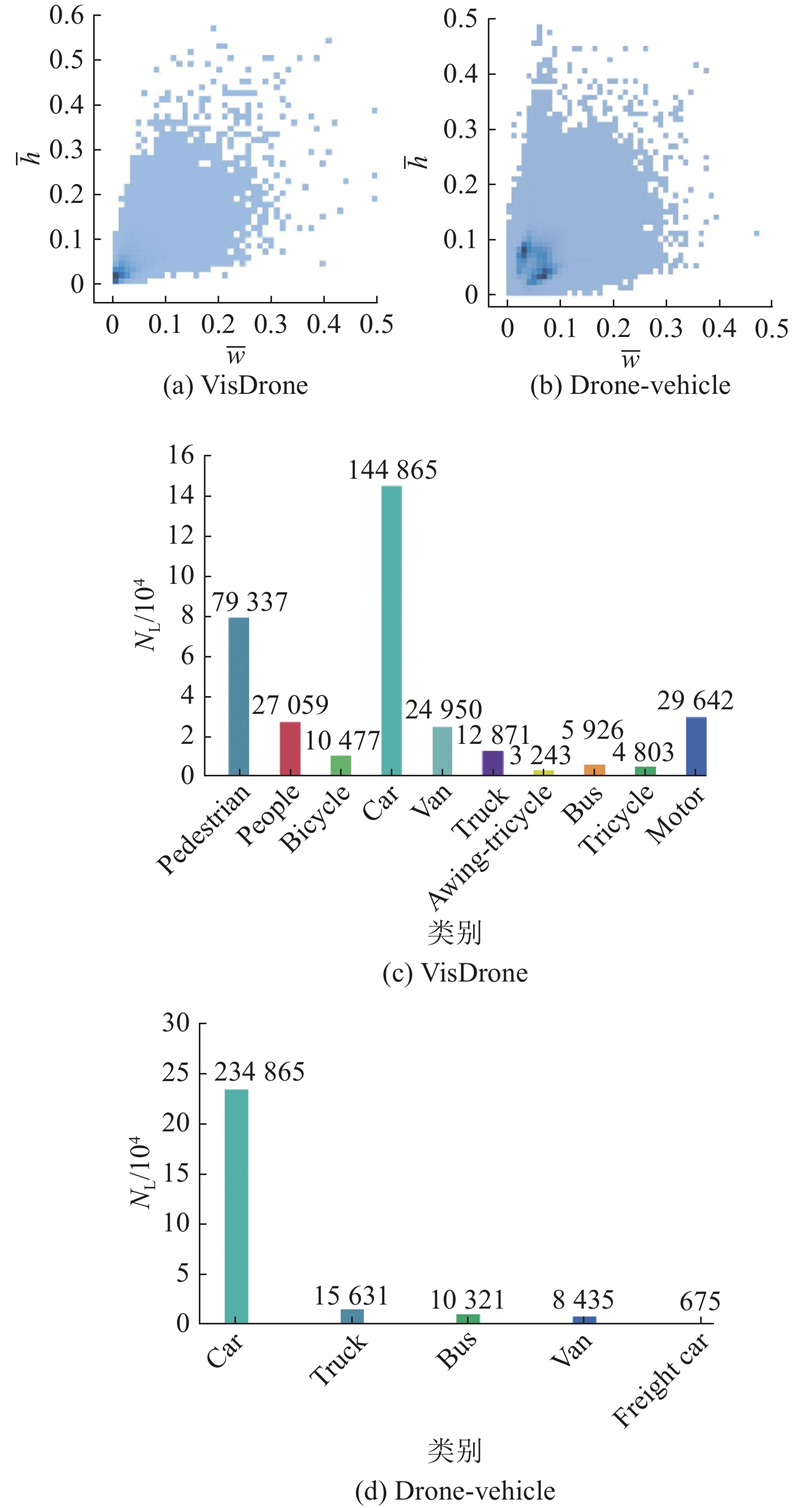

图 8  VisDrone 和 Drone-Vehicle 数据集标签数量及大小分布情况
MethodsP/%R/%mAP@
0.5/%
mAP@
0.5:0.95/%
Params/
106
GFLOPs/
109
CBS44.532.332.418.73.018.1
DWT43.432.332.318.72.797.6
RDWTConv45.133.233.719.63.188.5
ADown[23]43.430.831.117.82.727.4
SCDown[24]44.633.133.019.02.667.6
DWConv[25]43.131.231.217.82.627.2
RepVGGBlock[18]43.732.632.718.93.058.2
表 1  不同下采样模块的性能比较 (VisDrone数据集)
MethodsmAP@0.5/%mAP@0.5:0.95/%Params/106GFLOPs/109
Concat32.418.73.018.1
BiC[17]33.119.23.058.4
SF[18]32.819.03.028.3
RCDFM34.319.93.078.4
表 2  RCDFM的性能比较 (VisDrone数据集)
MethodsP/%R/%mAP@0.5/%mAP@0.5:0.95/%
CIoU44.532.332.418.7
DIoU42.832.431.918.5
SIoU42.532.832.218.5
GIoU44.332.232.818.9
EIoU43.232.832.518.8
TSSIoU44.732.933.219.2
表 3  不同边界框损失函数的性能比较 (VisDrone数据集)

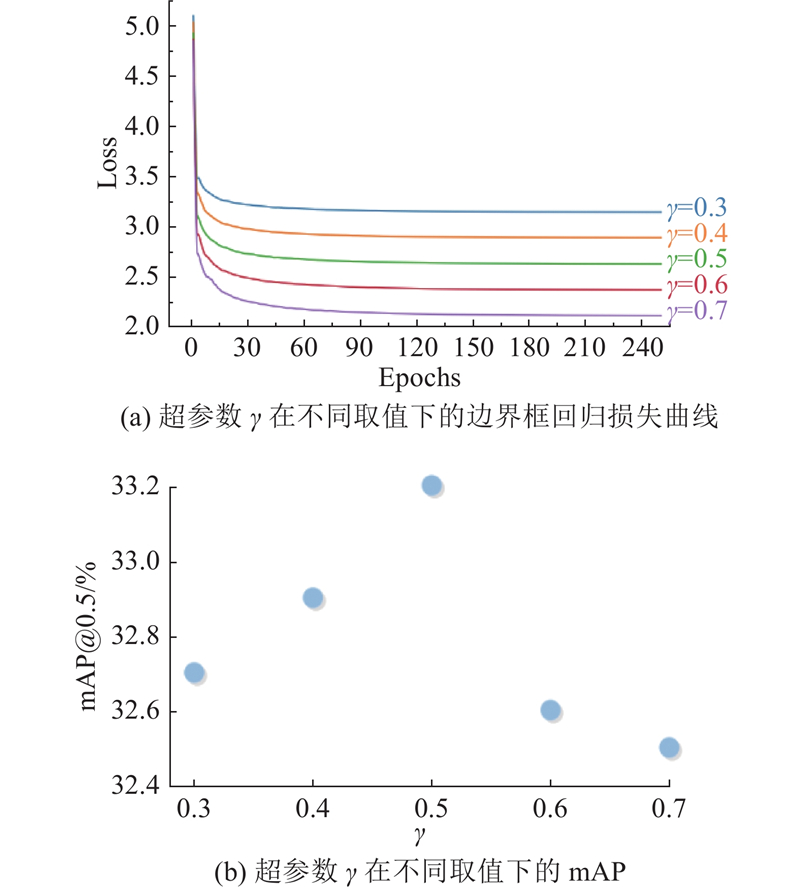

图 9  超参数$ \gamma $分析
ModelsRDWTConvRCDFMTSSIoUP/%R/%mAP@0.5/%mAP@0.5:0.95/%Params/106GFLOPs/109FPS/(帧·s?1)
YOLOv8n44.532.332.418.73.018.1209.9
M145.133.233.719.63.188.5181.3
M246.935.736.421.63.1811.1178.4
M344.732.933.219.23.018.1209.9
M448.836.937.622.43.3511.5168.5
M549.237.538.322.93.3511.5168.5
CF-YOLOn49.336.937.922.72.309.9169.1
表 4  模型消融研究 (VisDrone数据集)

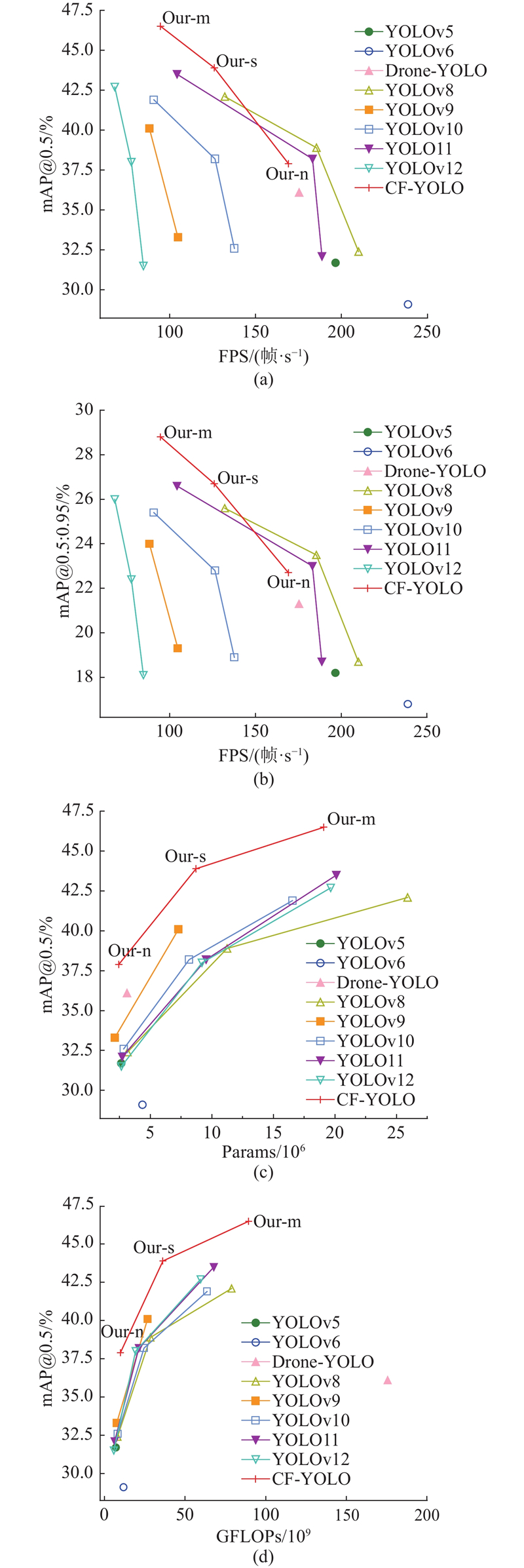

图 10  模型对比实验 (VisDrone数据集)
ModelsmAP@0.5/%mAP@0.5:0.95/%Params/106FPS/(帧·s?1)
Drone-YOLO74.550.12.97172.1
FBRT-YOLOn[26]74.650.20.90165.3
IV-YOLO[27]74.949.64.31184.7
YOLOv8n75.750.53.01205.4
YOLOv9t77.252.21.97103.2
YOLOv10n76.250.62.70136.8
YOLO11n75.450.32.58187.5
YOLO12n76.351.42.5175.9
CF-YOLOn77.853.52.30164.7
表 5  模型泛化实验 (Drone-Vehicle数据集)

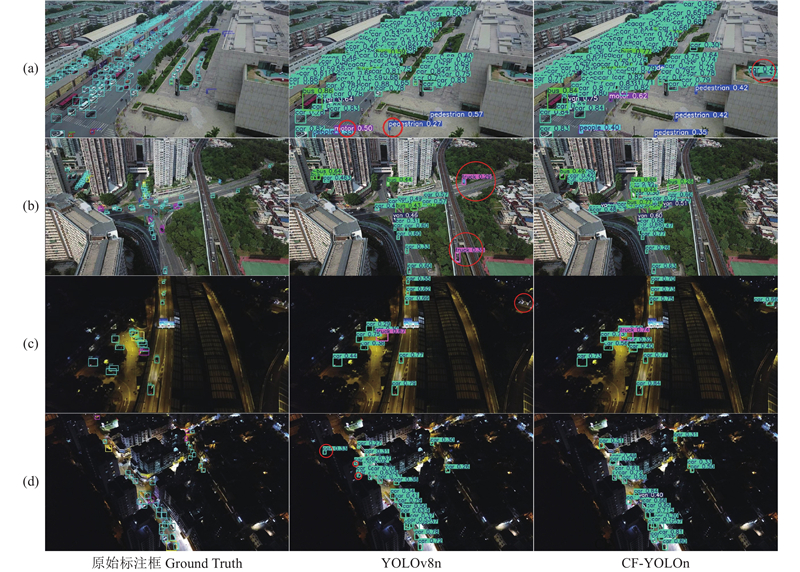

图 11  检测结果可视化 (VisDrone数据集)
