浙江大学学报(工学版)  2025, Vol. 59 Issue (4): 804-813    DOI: 10.3785/j.issn.1008-973X.2025.04.016
计算机技术与控制工程
融合SAR的光学遥感影像双激活门控卷积厚云去除
杨金辉1(),高贤君1,*(),寇媛2,5,于盛妍3,许磊4,杨元维1
1. 长江大学 地球科学学院,湖北 武汉 430100
2. 湖南省第一测绘院 创新研发部,湖南 长沙 421001
3. 内蒙古自治区测绘地理信息中心,内蒙古自治区 呼和浩特 010050
4. 中国铁路设计集团有限公司,天津 300308
5. 实景三维建设与应用技术湖南省工程研究中心,湖南 长沙 421001
Dual-activation gated convolution with SAR fusion for thick cloud removal from optical remote sensing images
Jinhui YANG1(),Xianjun GAO1,*(),Yuan KOU2,5,Shengyan YU3,Lei XU4,Yuanwei YANG1
1. School of Geosciences, Yangtze University, Wuhan 430100, China
2. Innovation and Research Department, the First Surveying and Mapping Institute of Hunan Province, Changsha 421001, China
3. Inner Mongolia Autonomous Region Surveying and Mapping Geographic Information Center, Hohhot 010050, China
4. China Railway Design Corporation, Tianjin 300308, China
5. Hunan Engineering Research Center of 3D Real Scene Construction and Application Technology, Changsha 421001, China
 全文: PDF(4312 KB)   HTML
摘要:

针对现有基于深度学习的去云方法性能不稳定、色调不均衡等问题,提出融合合成孔径雷达(SAR)和光学数据的遥感影像厚云去除网络. 利用SAR图像的真实纹理信息和光学图像的空谱特征信息,从全局和局部构建特征重建任务,引导网络重建云遮挡区域的缺失信息. 使用双激活门控卷积块和通道注意力块构建空谱特征推理重建模块,提高网络对非云区域有用信息的特征提取能力. 根据云形态和含云量不同将SEN12MS-CR-TS数据集拆分成4个子数据集进行训练和测试. 实验结果表明,此方法的峰值信噪比(PSNR)和结构相似性指数(SSIM)比去云效果最优的对比方法分别高出1.038 4 dB和0.091 5,说明融合SAR和光学数据的遥感影像厚云去除网络可有效去除影像中的云,并完成云下细节信息的重建.

关键词: 厚云去除SAR数据融合门控卷积双流引导
Abstract:

A cloud removal network for remote sensing imagery that integrated synthetic aperture radar (SAR) and optical data was proposed to address the issues of unstable performance and uneven color tones in existing deep learning-based cloud removal methods. The true texture information from SAR images and the spatial-spectral feature information from optical images were used to construct feature reconstruction tasks both globally and locally, and these tasks guided the network to rebuild missing information in cloud-covered areas. The dual-activation gated convolutional blocks and the channel attention blocks were utilized to build a spatial-spectral feature inference and reconstruction block which significantly enhanced the network’s ability to extract features from useful information in non-cloud areas. The SEN12MS-CR-TS dataset was divided into four subsets based on different cloud morphologies and cloud contents for training and testing. The experimental results showed that the peak signal-to-noise ratio (PSNR) and structural similarity index measure (SSIM) of the proposed method were 1.038 4 dB and 0.091 5, respectively, which were higher than those of the best cloud removal methods. Thus the remote sensing image thick cloud removal network, which integrates SAR and optical data, can effectively remove clouds from images and reconstruct the details beneath the clouds.

Key words: thick cloud removal    SAR    data fusion    gated convolution    dual-flow guidance
收稿日期: 2024-08-18 出版日期: 2025-04-25
CLC:  P 237
基金资助: 西藏自治区科技计划重大专项(XZ202402ZD0001);深地国家科技重大专项(2024ZD1001003);城市轨道交通数字化建设与测评技术国家工程实验室开放课题基金资助项目(2023ZH01);天津市科技计划项目(23YFYSHZ00190,23YFZCSN00280);湖南省自然科学基金项目部门联合基金资助项目(2024JJ8327).
通讯作者: 高贤君     E-mail: 2022710467@yangtzeu.edu.cn;junxgao@yangtzeu.edu.cn
作者简介: 杨金辉(1999—),男,硕士生,从事高分辨遥感影像智能解译研究. orcid.org/0009-0000-7744-2147. E-mail:2022710467@yangtzeu.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
杨金辉
高贤君
寇媛
于盛妍
许磊
杨元维

引用本文:

杨金辉,高贤君,寇媛,于盛妍,许磊,杨元维. 融合SAR的光学遥感影像双激活门控卷积厚云去除[J]. 浙江大学学报(工学版), 2025, 59(4): 804-813.

Jinhui YANG,Xianjun GAO,Yuan KOU,Shengyan YU,Lei XU,Yuanwei YANG. Dual-activation gated convolution with SAR fusion for thick cloud removal from optical remote sensing images. Journal of ZheJiang University (Engineering Science), 2025, 59(4): 804-813.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2025.04.016        https://www.zjujournals.com/eng/CN/Y2025/V59/I4/804

图 1  遥感影像厚云去除网络总体结构图

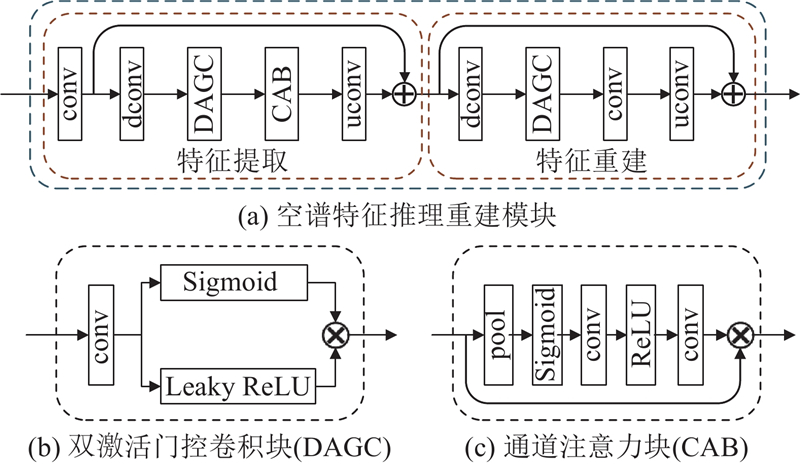

图 2  空谱特征推理重建模块结构图
数据集类别x/%N
Thin_CI薄云x $< $ 104 849
Brok_CI碎云10 $\leqslant $ x $< $ 307 718
LBrok_CI大范围碎云30 $\leqslant $ x $< $ 605 823
Thick_CI厚云x $\geqslant $ 607 429
表 1  不同数据集的详细信息
图 3  不同方法在不同数据集上的去云结果对比
数据集方法PSNR/dBRMSESSIM
Thin_CISAR-opt-cGAN28.157 70.084 10.650 3
McGAN28.143 10.072 20.640 3
USSRN-CR29.195 50.073 80.706 4
本文方法29.880 30.068 40.793 4
Brok_CISAR-opt-cGAN28.157 60.105 20.629 8
McGAN28.291 60.098 20.634 7
USSRN-CR29.898 10.068 90.721 1
本文方法31.499 80.059 60.812 7
LBrok_CISAR-opt-cGAN28.105 90.087 80.566 4
McGAN28.200 40.100 10.560 8
USSRN-CR29.556 60.108 70.646 3
本文方法30.833 90.079 80.746 0
Thick_CISAR-opt-cGAN28.059 90.071 40.474 8
McGAN28.040 60.085 60.409 7
USSRN-CR28.846 40.077 90.583 7
本文方法29.436 40.072 90.671 3
表 2  不同方法在不同数据集上的定量评价结果
结构数据集PSNR/dBRMSESSIM
无全局特征引导Thin_CI29.132 10.076 40.755 0
Brok_CI30.210 10.079 20.780 1
LBrok_CI29.615 80.097 60.718 2
Thick_CI28.895 30.101 50.634 4
有全局特征引导Thin_CI29.880 30.068 40.793 4
Brok_CI31.499 80.059 60.812 7
LBrok_CI30.833 90.079 80.746 0
Thick_CI29.436 40.072 90.671 3
表 3  全局特征引导对去云效果的定量评价
数据集结构PSNR/dBRMSESSIM
Thin_CIA29.293 50.072 40.732 9
B28.737 00.095 20.689 1
C29.398 50.071 30.775 9
SSFIRB29.880 30.068 40.793 4
Brok_CIA30.362 10.064 00.726 2
B29.023 10.078 90.694 2
C30.646 70.069 10.793 0
SSFIRB31.499 80.059 60.812 7
LBrok_CIA29.983 10.087 60.676 2
B28.826 50.137 10.623 8
C29.728 60.136 00.721 4
SSFIRB30.833 90.079 80.746 0
Thick_CIA28.431 20.115 20.569 6
B28.219 80.111 60.575 2
C28.953 90.076 00.635 8
SSFIRB29.436 40.072 90.671 3
表 4  双激活门控卷积与通道注意力机制对云去除效果的定量评价

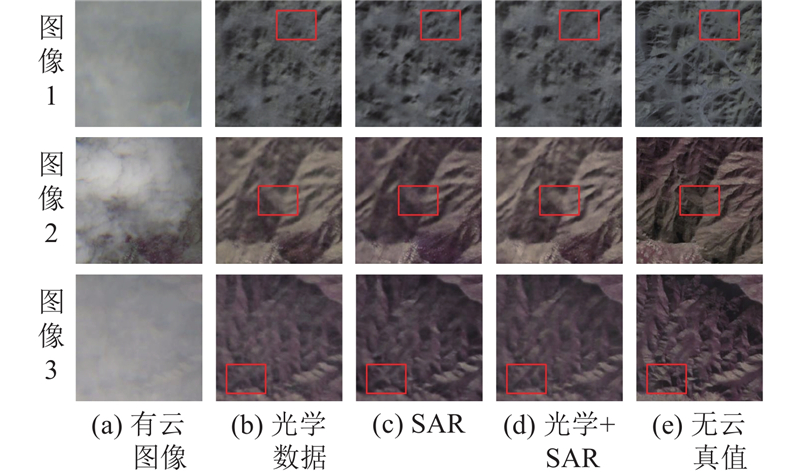

图 4  不同数据搭配方案对去云效果的影响
特征来源PSNR/dBRMSESSIM
光学数据29.205 70.083 60.574 9
SAR29.436 40.072 90.671 3
SAR+光学29.256 80.077 80.580 2
表 5  不同数据搭配方案对图像恢复的影响
特征提取结构MIoUAPR
CNN0.895 90.959 20.883 80.949 4
GC0.906 10.960 40.909 00.938 9
DAGC0.907 70.964 80.915 50.934 7
表 6  不同特征提取结构对云和非云的提取分析
图 5  本文方法在不同数据集上的迁移效果
训练集测试集ΔPSNR/dBΔRMSEΔSSIM
Thin_
CI
Thin_CI
Brok_CI?1.394 3+0.004 3?0.105 4
LBrok_CI?1.637 0+0.030 1?0.189 4
Thick_CI?1.545 9+0.014 4?0.226 0
Brok_
CI
Thin_CI?3.350 4+0.056 1?0.144 8
Brok_CI
LBrok_CI?2.764 5+0.044 0?0.154 2
Thick_CI?3.264 4+0.040 9?0.230 9
LBrok_
CI
Thin_CI?2.699 2+0.040 3?0.123 4
Brok_CI?2.021 1+0.012 7?0.050 8
LBrok_CI
Thick_CI?2.542 9+0.037 8?0.167 2
Thick_
CI
Thin_CI?0.760 6+0.010 1?0.000 4
Brok_CI?0.677 3+0.033 5?0.001 4
LBrok_CI?0.633 6+0.084 1?0.012 6
Thick_CI
表 7  本文方法在不同数据集上迁移效果定量评价
