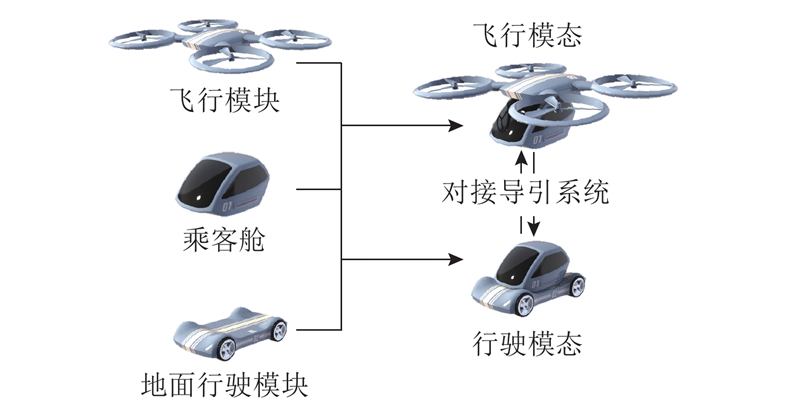

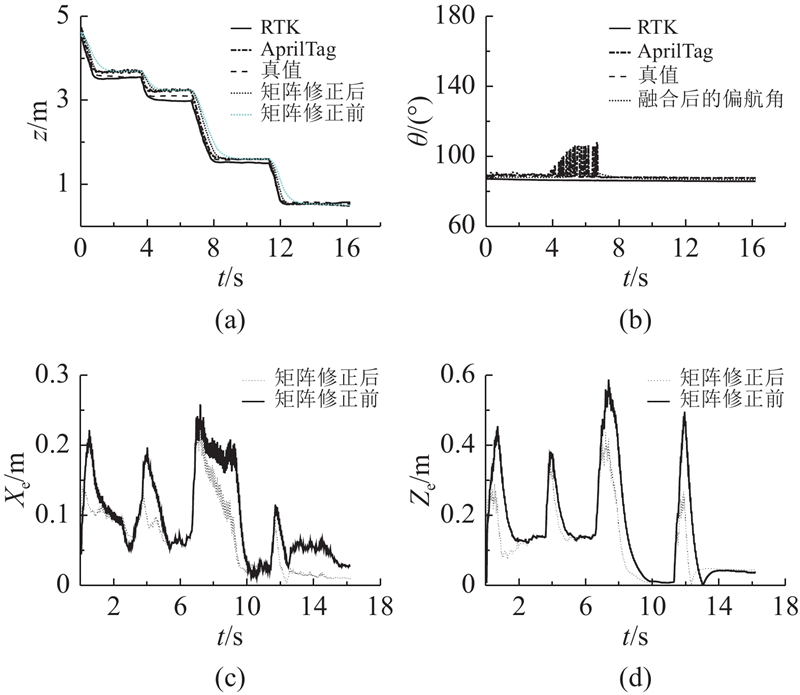

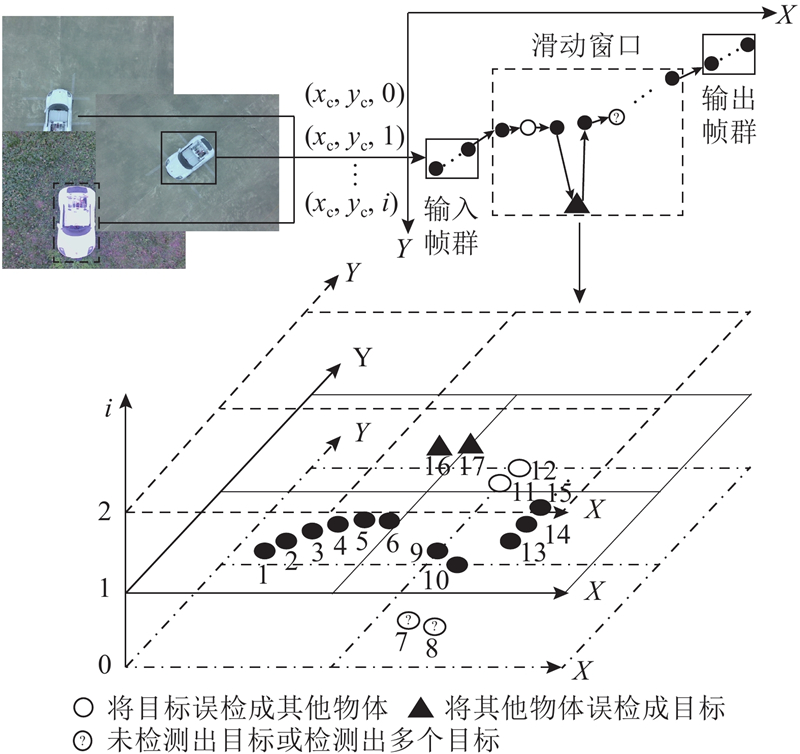

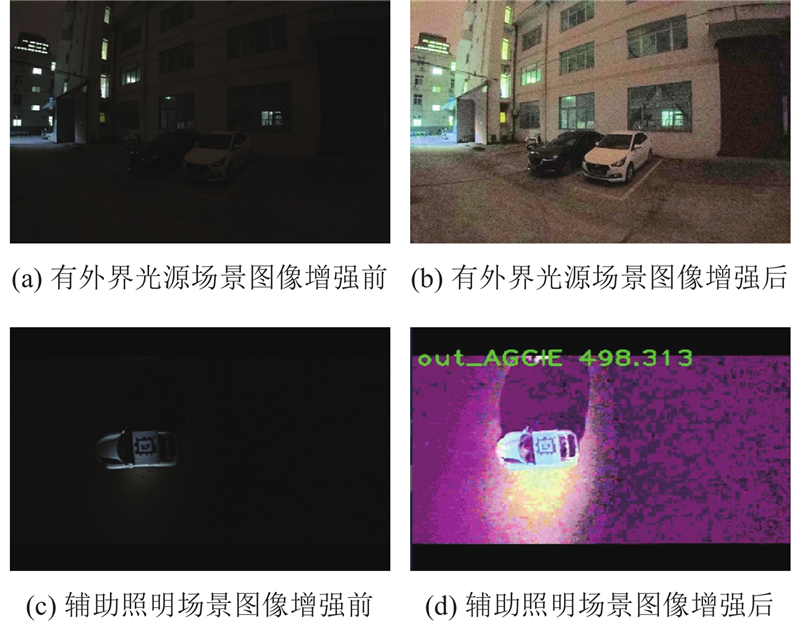

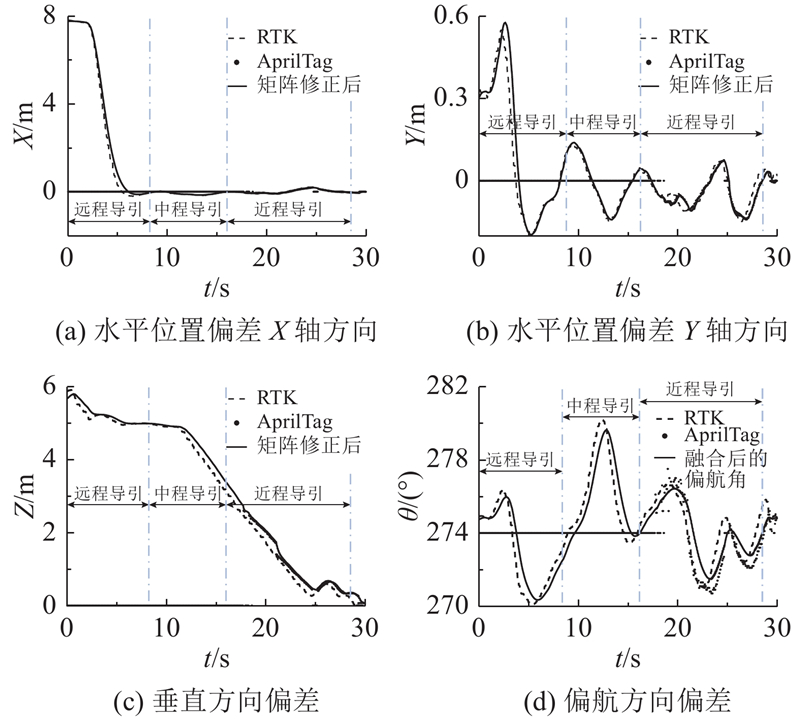

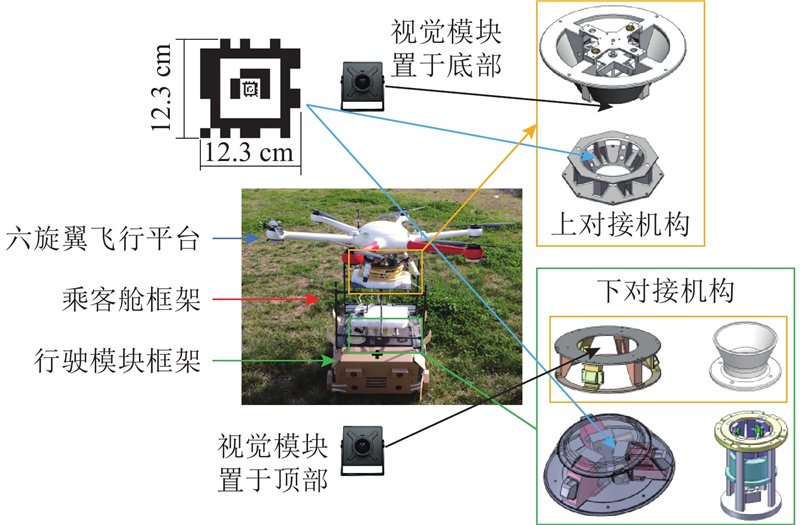

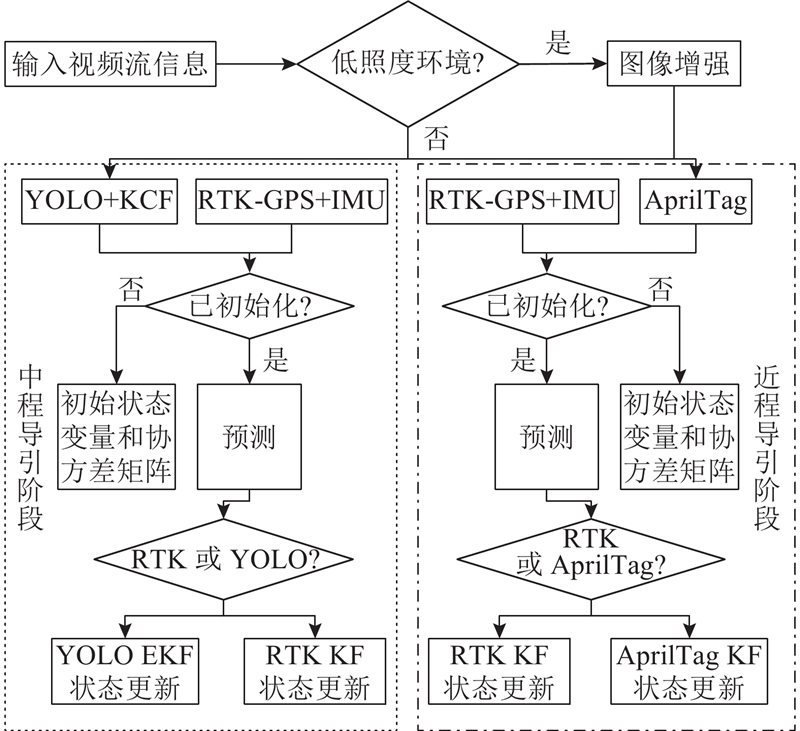

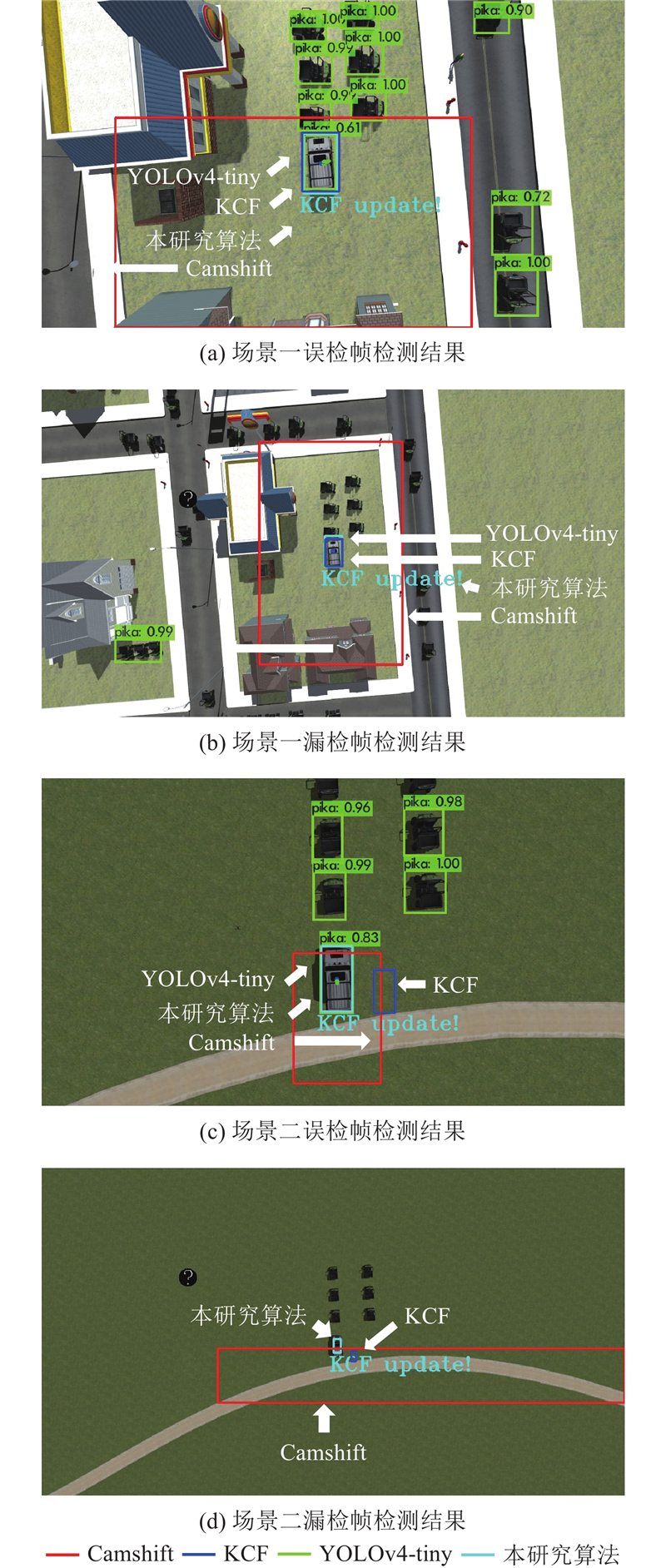

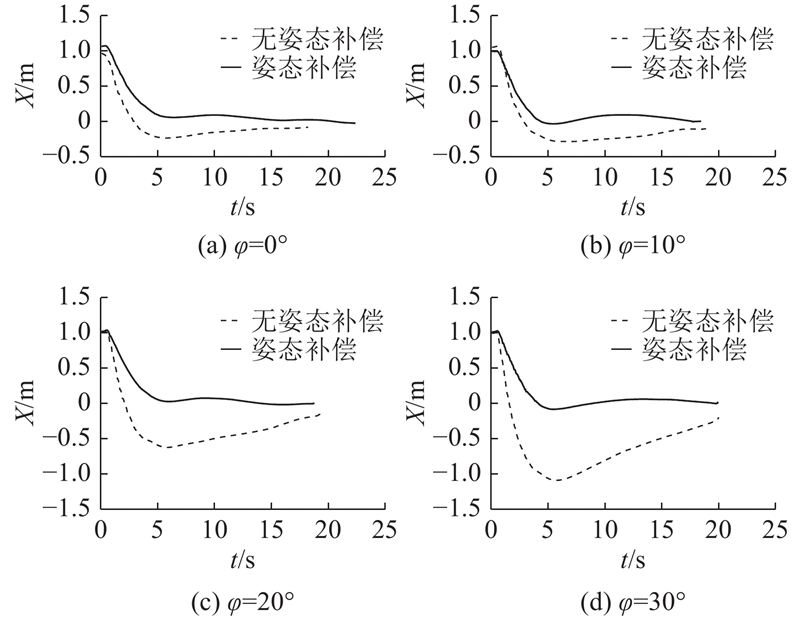

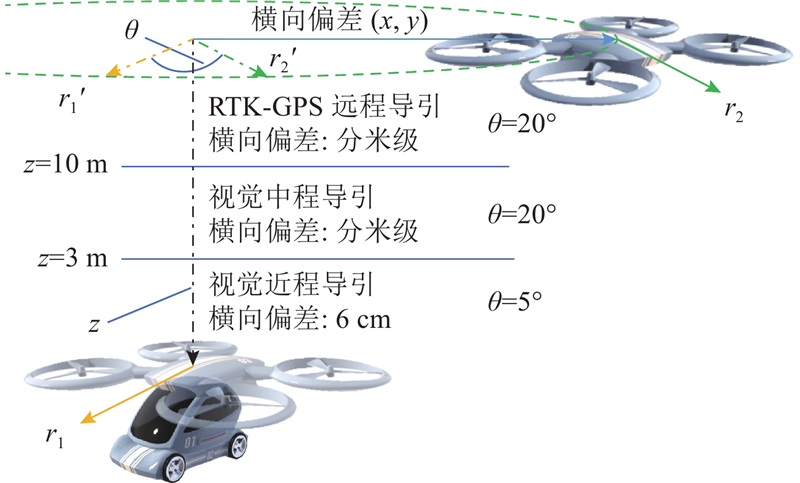

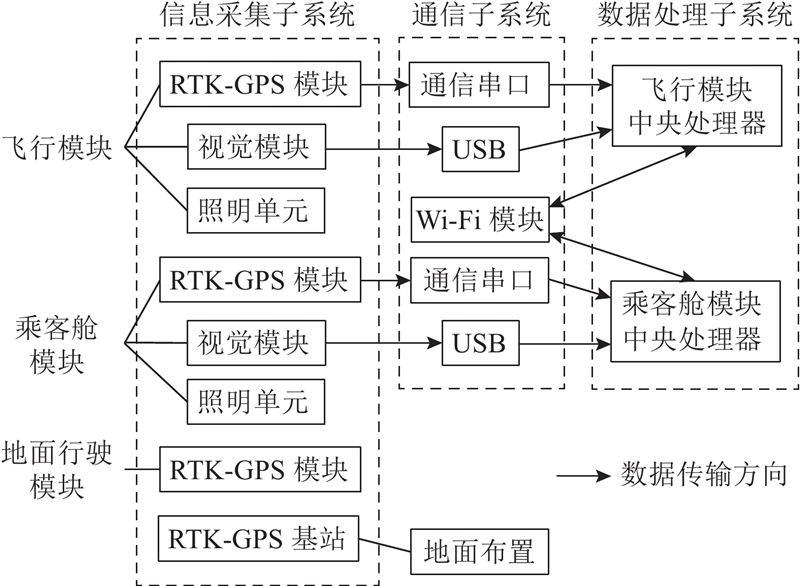

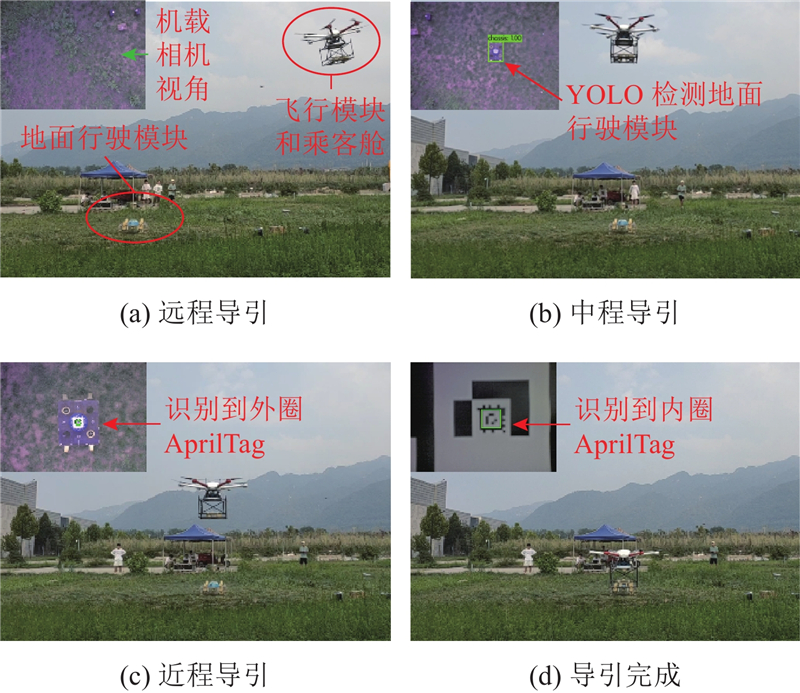

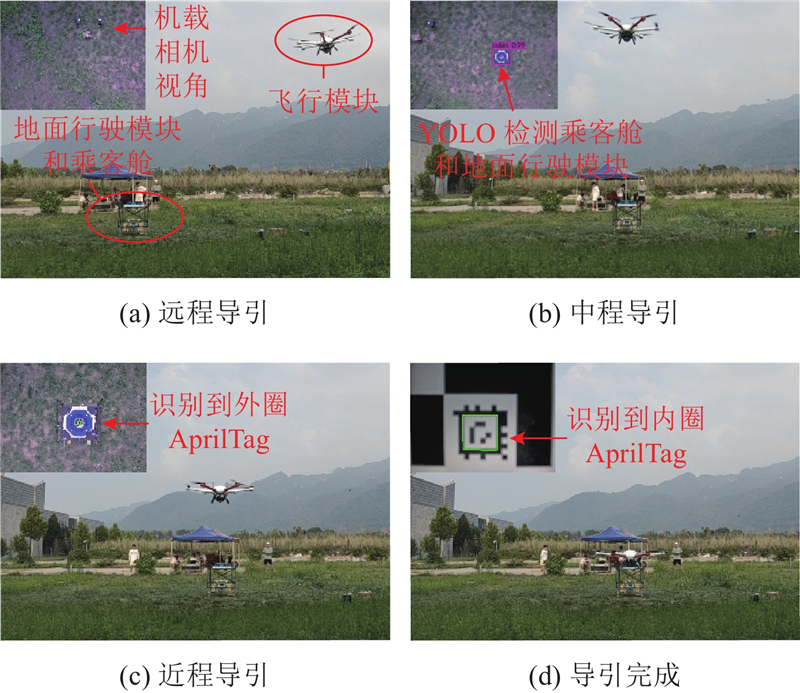

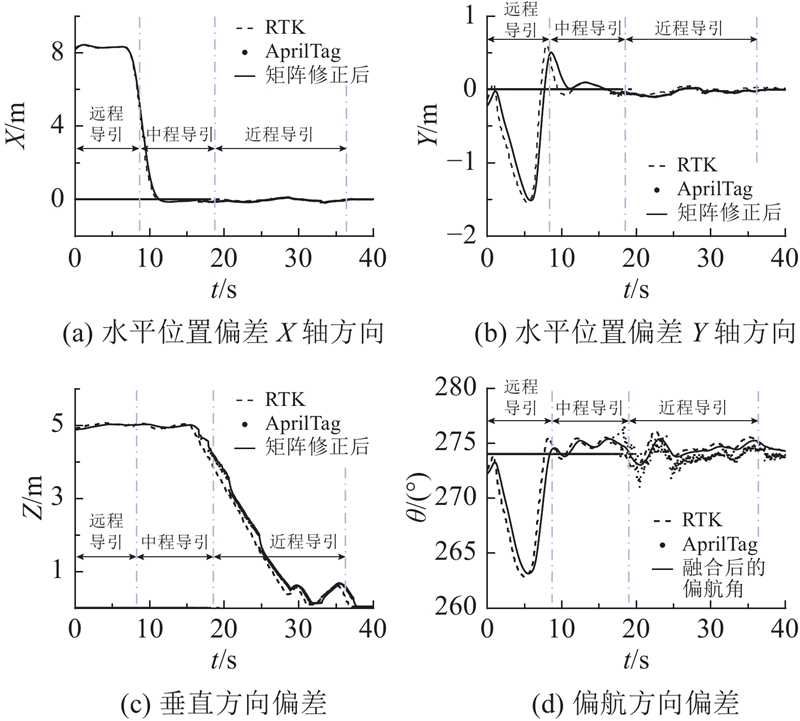

The process architecture, software and hardware systems, core algorithms, and the validation of the autonomous docking guidance system for a modular flying vehicle were investigated. The remote, medium range, and short range multi segment fusion guidance was adopted based on the transition of guidance methods. The point density clustering algorithm and the kernel correlation filter algorithm were used to provide smooth fusion information in response to the false detections and missed detections in the actual use of YOLOv4-tiny. A correction factor method was proposed to achieve fusion correction of AprilTag measurement data in the short range guidance stage, and the pose compensation algorithm was used to solve the camera pose problem of fixed connection between the camera and the drone. The dark light image enhancement algorithm was introduced and combined with the visual guidance algorithm to meet the docking requirements in low-light environment. A simulation platform and an engineering application platform were built, and the process, the system architecture and the algorithms were verified step by step. Experimental results showed that the engineering application flight platform could safely, stably and accurately guide the landing into a conical docking mechanism with an allowable error of only 6 cm and an angle error of 5°. The results prove that the developed autonomous docking technology has good accuracy and reliability.
