浙江大学学报(工学版)  2024, Vol. 58 Issue (10): 2062-2068    DOI: 10.3785/j.issn.1008-973X.2024.10.009
计算机与控制工程
基于双向自举蒸馏的异质云-端医疗对话联邦
刘宇鹏(),林明豪,张江,姚登举
哈尔滨理工大学 计算机科学与技术学院,黑龙江 哈尔滨 150080
Heterogeneous cloud-end medical dialogue federation based on bi-directional bootstrapping distillation
Yupeng LIU(),Minghao LIN,Jiang ZHANG,Dengju YAO
School of Computer Science and Technology, Harbin University of Science and Technology, Harbin 150080, China
 全文: PDF(721 KB)   HTML
摘要:

医疗对话场景下的数据/模型异质、数据类型不同,为此提出新的联邦学习方法. 云模型和端模型以相互自举蒸馏的方式进行知识递进传递. 端到云的自举蒸馏过程为多教师-单学生模式,知识被从多个局部模型蒸馏统一到全局模型;云到端的自举蒸馏过程为单教师-多学生模式,知识被从全局模型蒸馏回多个局部模型. 在医疗对话ReMeDi和MedDG数据集上,所提方法与经典基线相比通过文本生成指标评价获得了显著提高,训练速度有所提升.

关键词: 自举蒸馏异质数据异质模型结构正则医疗对话
Abstract:

A new federated learning method was proposed in the medical dialogue scene for the heterogeneous data/models and different types of data. The cloud model and the end model transferred knowledge by mutual bootstrapping distillation. The end-to-cloud bootstrapping distillation process was a multi-teacher-single-student model, and knowledge was distilled from multiple local models to a global model. The cloud-to-end bootstrapping distillation process was a single-teacher-multi-student model, and knowledge was distilled from the global model back to multiple local models. On the medical dialogue ReMeDi and MedDG data sets, the proposed method is significantly improved compared with the classical baseline by the text generation evaluation criterion, and the training speed has also been improved.

Key words: bootstrapping distillation    heterogenous data    heterogenous model    structure regularization    medical dialogue
收稿日期: 2023-07-29 出版日期: 2024-09-27
CLC:  TP 393
基金资助: 国家自然科学基金资助项目(61300115, 62172128).
作者简介: 刘宇鹏(1978—),男,博士,教授,从事自然语言处理研究. orcid.org/0000-0002-8437-6894. E-mail:flyeaglelyp@hrbust.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
刘宇鹏
林明豪
张江
姚登举

引用本文:

刘宇鹏,林明豪,张江,姚登举. 基于双向自举蒸馏的异质云-端医疗对话联邦[J]. 浙江大学学报(工学版), 2024, 58(10): 2062-2068.

Yupeng LIU,Minghao LIN,Jiang ZHANG,Dengju YAO. Heterogeneous cloud-end medical dialogue federation based on bi-directional bootstrapping distillation. Journal of ZheJiang University (Engineering Science), 2024, 58(10): 2062-2068.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.10.009        https://www.zjujournals.com/eng/CN/Y2024/V58/I10/2062

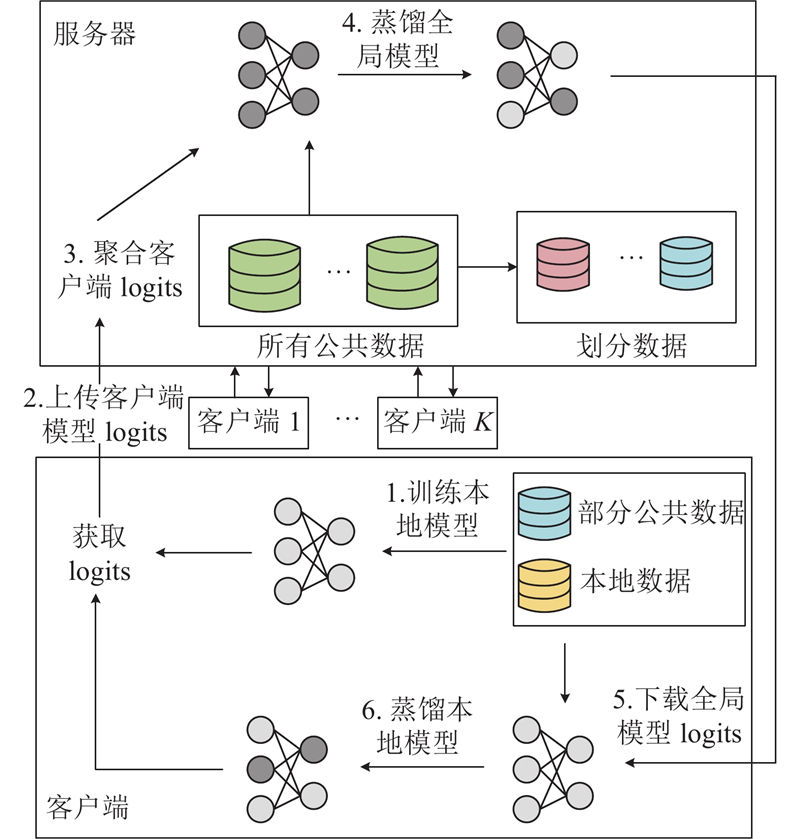

图 1  基于双向自举蒸馏的联邦学习方法
方法ReMeDiMedDG
BLEU-1BLEU-4ROGUE-1ROGUE-2Distinct-1Distinct-2BLEU-1BLEU-4ROGUE-1ROGUE-2Distinct-1Distinct-2
中心化训练27.866.5950.3632.250.728.5930.4714.2153.9735.730.8710.92
FedAvg18.374.8338.6422.450.505.3219.899.6239.7125.870.587.06
FedMD21.415.7941.9226.930.637.5423.7411.8443.7630.210.639.14
FedDF21.685.4640.4526.640.628.0624.2611.0343.8929.510.779.25
FedGen24.086.3842.6427.680.657.9226.1013.0546.1732.040.699.87
FedBiD25.016.3245.7628.190.688.3226.7513.1646.8331.630.789.98
表 1  不同联邦学习方法在2个数据集上的性能比较

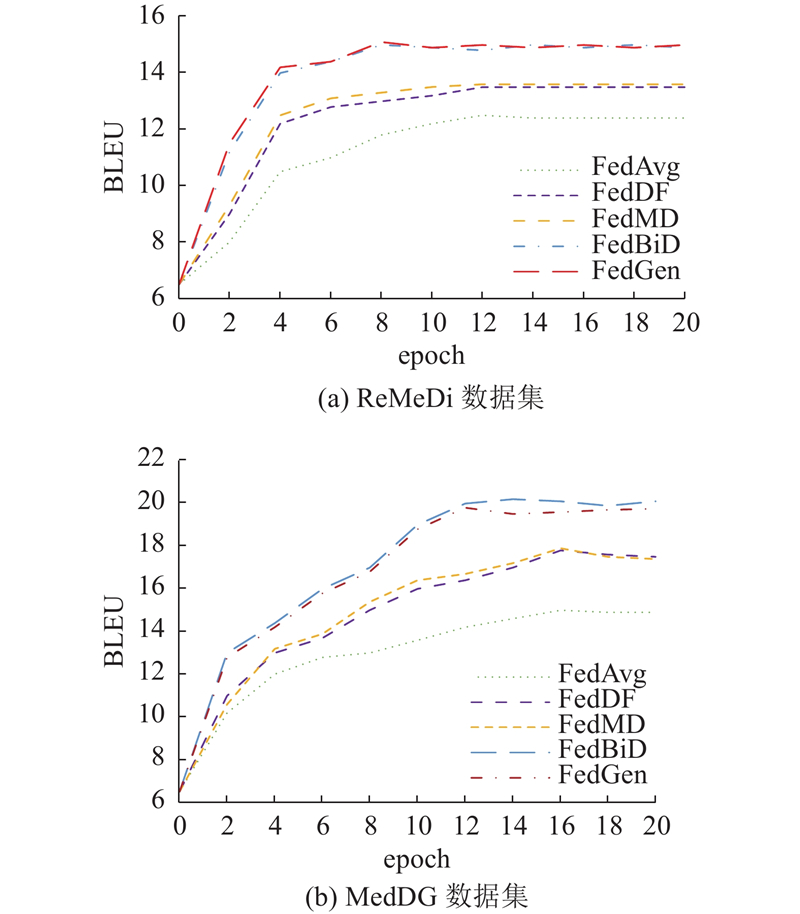

图 2  同质数据下的模型表现

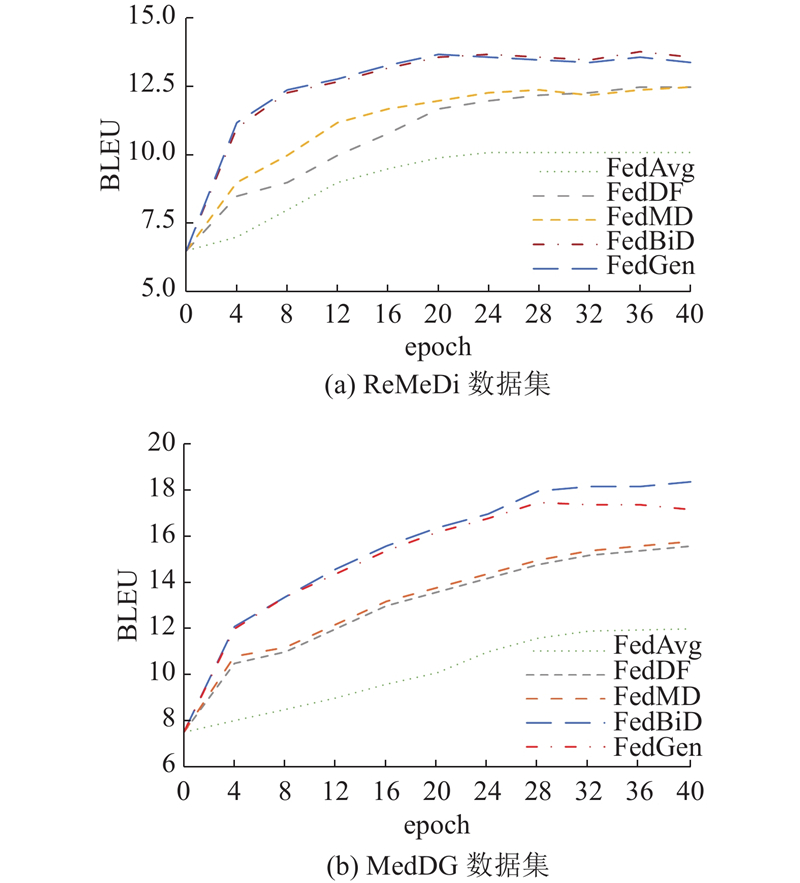

图 3  异质数据下的模型表现
客户端模型层数隐层维度np/106
1GPT-2-small12768117
2GPT-2241024345
3BART-base12768130
4BART241024374
表 2  各客户端的模型参数

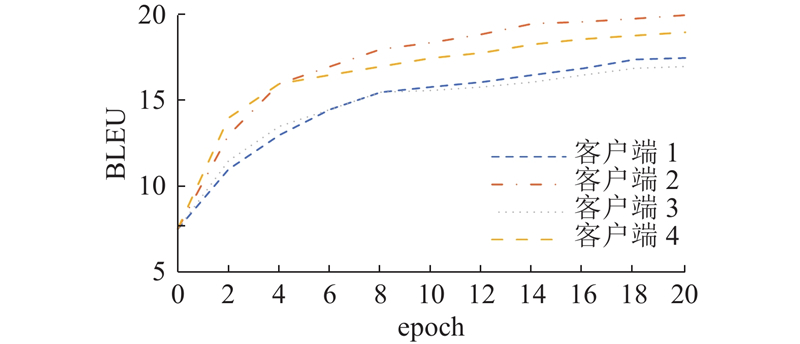

图 4  各客户端的模型性能变化
数据集BLEU
T1=1T1=10T1=20T1=30T2=0.1T2=1.0T2=2.0T2=5.0
ReMeDi11.8514.3715.7113.9212.1715.7114.8512.46
MedDG13.7918.0219.9117.6815.8819.9118.3816.25
表 3  温度对模型性能的影响
模型层数隐藏层维度np/106BLEU
GPT-2-small1276811716.75
GPT-224102434519.91
GPT-2-large36128076220.62
GPT-2-max481600154222.03
表 4  不同模型参数对模型性能的影响
1 YAO A C. Protocols for secure computations [C]// Proceedings of 23rd Annual Symposium on Foundations of Computer Science . Chicago: IEEE, 1982: 160–164.
2 GOLDREICH O, MICALI S, WIGDERSON A. How to play any mental game [C]// Proceedings of the Nineteenth Annual ACM Symposium on Theory of Computing . New York: [s.n.], 1987: 218–229.
3 SHAMIR A How to share a secret[J]. Communications of the ACM, 1979, 22 (11): 612- 613
doi: 10.1145/359168.359176
4 KONEČNÝ J, MCMAHAN H B, RAMAGE D, et al. Federated optimization: distributed machine learning for on-device intelligence [EB/OL]. (2016−10−08) [2022−12−01]. https://arxiv.org/pdf/1610.02527.
5 TAN Y, LONG G, LIU L, et al. FedProto: federated prototype learning across heterogeneous clients [C]// Proceedings of the AAAI Conference on Artificial Intelligence . [S.l.]: AAAI Press, 2022: 8432−8440.
6 LI D, WANG J. FedMD: heterogenous federated learning via model distillation [EB/OL]. (2019−10−08)[2022−12−01]. https://arxiv.org/pdf/1910.03581.
7 MCMAHAN H B, MOORE E, RAMAGE D, et al. Communication-efficient learning of deep networks from decentralized data [EB/OL]. (2023−01−26) [2023−12−01]. https://arxiv.org/pdf/1602.05629.
8 HANZELY F, RICHTÁRIK P. Federated learning of a mixture of global and local models [EB/OL]. (2021−02−12)[2022−12−01]. https://arxiv.org/pdf/2002.05516.
9 HUANG L, YIN Y, FU Z, et al. LoAdaBoost: loss-based AdaBoost federated machine learning with reduced computational complexity on IID and non-IID intensive care data [J]. PLoS ONE , 2020, 15(4): e0230706.
10 HINTON G, VINYALS O, DEAN J. Distilling the knowledge in a neural network [EB/OL]. (2015−03−09)[2022−12−01]. https://arxiv.org/pdf/1503.02531.
11 FURLANELLO T, LIPTON Z C, TSCHANNEN M, et al. Born-again neural networks [EB/OL]. (2018−06−29)[2022−12−01]. https://arxiv.org/pdf/1805.04770.
12 KIMURA A, GHAHRAMANI Z, TAKEUCHI K, et al. Few-shot learning of neural networks from scratch by pseudo example optimization [EB/OL]. (2018−07−05)[2022−12−01]. https://arxiv.org/pdf/1802.03039.
13 LOPES R G, FENU S, STARNER T. Data-free knowledge distillation for deep neural networks [EB/OL]. (2017−11−23)[2022−12−01]. https://arxiv.org/pdf/1710.07535.
14 NAYAK G K, MOPURI K R, SHAJ V, et al. Zero-shot knowledge distillation in deep networks [EB/OL]. (2019−05−20) [2022−12−01]. https://arxiv.org/pdf/1905.08114.
15 CHEN H, WANG Y, XU C, et al. Data-free learning of student networks [C]// Proceedings of the IEEE/CVF International Conference on Computer Vision . Seoul: IEEE, 2019: 3514–3522.
16 FANG G, SONG J, SHEN C, et al. Data-free adversarial distillation [EB/OL]. (2020−03−02) [2022−12−01]. https://arxiv.org/pdf/1912.11006.
17 JEONG E, OH S, KIM H, et al. Communication-efficient on-device machine learning: federated distillation and augmentation under non-IID private data [EB/OL]. (2023−10−19)[2023−12−01]. https://arxiv.org/pdf/1811.11479.
18 ITAHARA S, NISHIO T, KODA Y, et al Distillation-based semi-supervised federated learning for communication-efficient collaborative training with non-IID private data[J]. IEEE Transactions on Mobile Computing, 2021, 22 (1): 191- 205
19 LIN T, KONG L, STICH S U, et al. Ensemble distillation for robust model fusion in federated learning [C]// Proceedings of the 34th International Conference on Neural Information Processing Systems . [S.l.]: CAI, 2020: 2351−2363.
20 CHANDRAKALA S, JAYALAKSHMI S L Generative model driven representation learning in a hybrid framework for environmental audio scene and sound event recognition[J]. IEEE Transactions on Multimedia, 2019, 22 (1): 3- 14
21 ARIVAZHAGAN M G, AGGARWAL V, SINGH A K, et al. Federated learning with personalization layers [EB/OL]. (2019−12−02) [2022−12−01]. https://arxiv.org/pdf/1912.00818.
22 ZHU Z, HONG J, ZHOU J. Data-free knowledge distillation for heterogeneous federated learning [EB/OL]. (2021−06−09) [2022−12−01]. https://arxiv.org/pdf/2105.10056.
23 RADFORD A, WU J, CHILD R, et al. Language models are unsupervised multitask learners [EB/OL]. [2022−12−01]. https://cdn.openai.com/better-language-models/language_models_are_unsupervised_multitask_learners.pdf.
24 YAN G, PEI J, REN P, et al. ReMeDi: resources for multi-domain, multi-service, medical dialogues [EB/OL]. (2022−03−01) [2022−12−01]. https://arxiv.org/pdf/2109.00430.
25 LIU W, TANG J, CHENG Y, et al. MedDG: an entity-centric medical consultation dataset for entity-aware medical dialogue generation [C]// Natural Language Processing and Chinese Computing . [S.l.]: Springer, 2022: 447−459.
