结合领域经验的深度强化学习信号控制方法
张萌(),王殿海,金盛*()
浙江大学 建筑工程学院,浙江 杭州 310058
Deep reinforcement learning approach to signal control combined with domain experience
Meng ZHANG(),Dian-hai WANG,Sheng JIN*()
College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
 全文: PDF(1262 KB)   HTML
摘要:

针对深度强化学习信号控制方法存在训练不稳定、收敛慢以及相位频繁改变的问题,基于双决斗深度Q网络(3DQN)算法引入预训练模块和相位绿灯时间计算模块,提出结合领域经验的信号控制方法. 通过优化双重Q学习损失、监督式边际分类损失和正则化损失,使预训练模块引导3DQN智能体模仿Max-Pressure方法的策略,以稳定并加快智能体的训练过程. 相位绿灯时间计算模块基于平均车头时距和排队长度动态调整相位绿灯时间以减少绿灯损失. 以杭州市萧山区机场城市大道和博奥路交叉口为例,在仿真平台SUMO上对所提方法进行验证. 实验结果表明,所提方法能有效改进传统3DQN算法的训练速度. 相比于传统控制方法,所提方法明显缩短了车辆平均旅行时间,提高了交叉口运行效率.

关键词: 交通信号控制强化学习深度强化学习监督学习预训练
Abstract:

To address the problems of unstable training, slow convergence and frequent phase changes of signal control methods based on deep reinforcement learning, a signal control method that integrates domain expertise was proposed by incorporating a pre-training module and a phase green time calculation module based on the double-dueling deep Q network (3DQN) algorithm. The pre-training module was introduced to guide the 3DQN agent to mimic the strategy of Max-Pressure method by optimizing the dual Q learning loss, supervised marginal classification loss and regularization loss, whereby the training process was stabilized and accelerated. The phase green light time calculation module dynamically adjusted the phase green light time to reduce green light loss based on the average time headway and queue length of the current phase. The intersection of Airport City Avenue and Boao Road in Xiaoshan District, Hangzhou was used as an example to verify the algorithm on the simulation platform SUMO. The simulation test results show that the proposed method can not only effectively improve the training speed of the traditional 3DQN algorithm, but also significantly reduce the average vehicle travel time and improve the intersection operation efficiency compared with the traditional control method.

Key words: traffic signal control    reinforcement learning    deep reinforcement learning    supervised learning    pre-training
收稿日期: 2023-03-16 出版日期: 2023-12-27
CLC:  U 491.4
基金资助: 国家自然科学基金资助项目(52131202,52072340,71901193);浙江省杰出青年科学基金资助项目(LR23E080002)
通讯作者: 金盛     E-mail: 22112093@zju.edu.cn;jinsheng@zju.edu.cn
作者简介: 张萌(1998—),男,硕士生,从事交通信息工程与控制研究. orcid.org/0000-0003-3270-1920. E-mail: 22112093@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
张萌
王殿海
金盛

引用本文:

张萌,王殿海,金盛. 结合领域经验的深度强化学习信号控制方法[J]. 浙江大学学报(工学版), 2023, 57(12): 2524-2532.

Meng ZHANG,Dian-hai WANG,Sheng JIN. Deep reinforcement learning approach to signal control combined with domain experience. Journal of ZheJiang University (Engineering Science), 2023, 57(12): 2524-2532.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.12.019        https://www.zjujournals.com/eng/CN/Y2023/V57/I12/2524

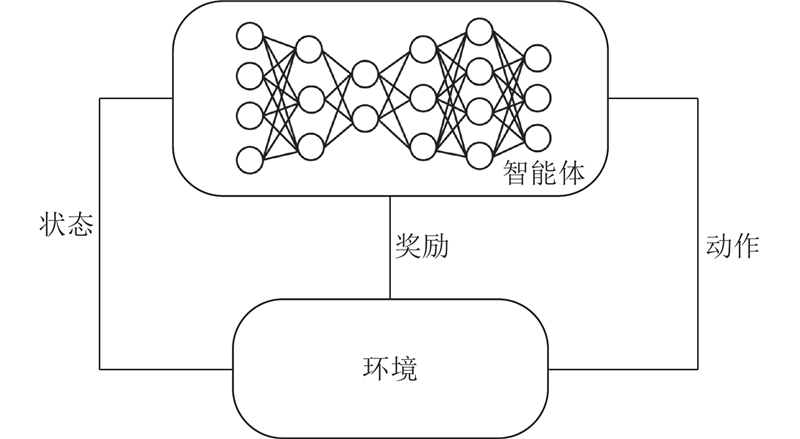

图 1  深度强化学习模型示意图
图 2  状态向量表

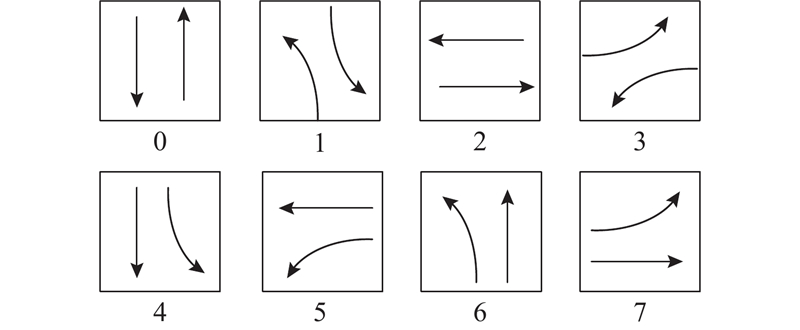

图 3  交叉口相位方案集合

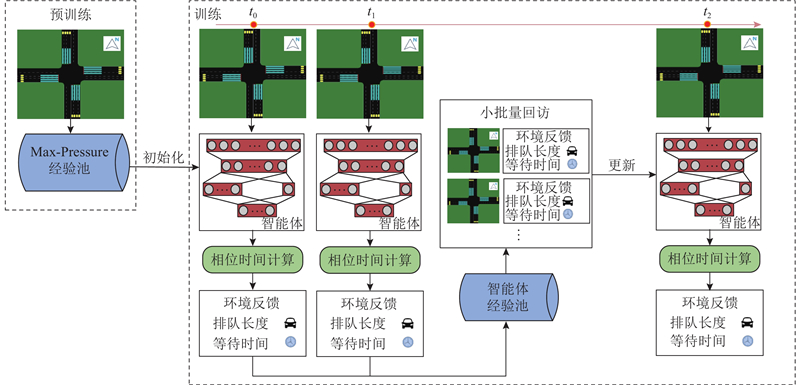

图 4  基于双决斗深度Q网络的信号控制模型框架

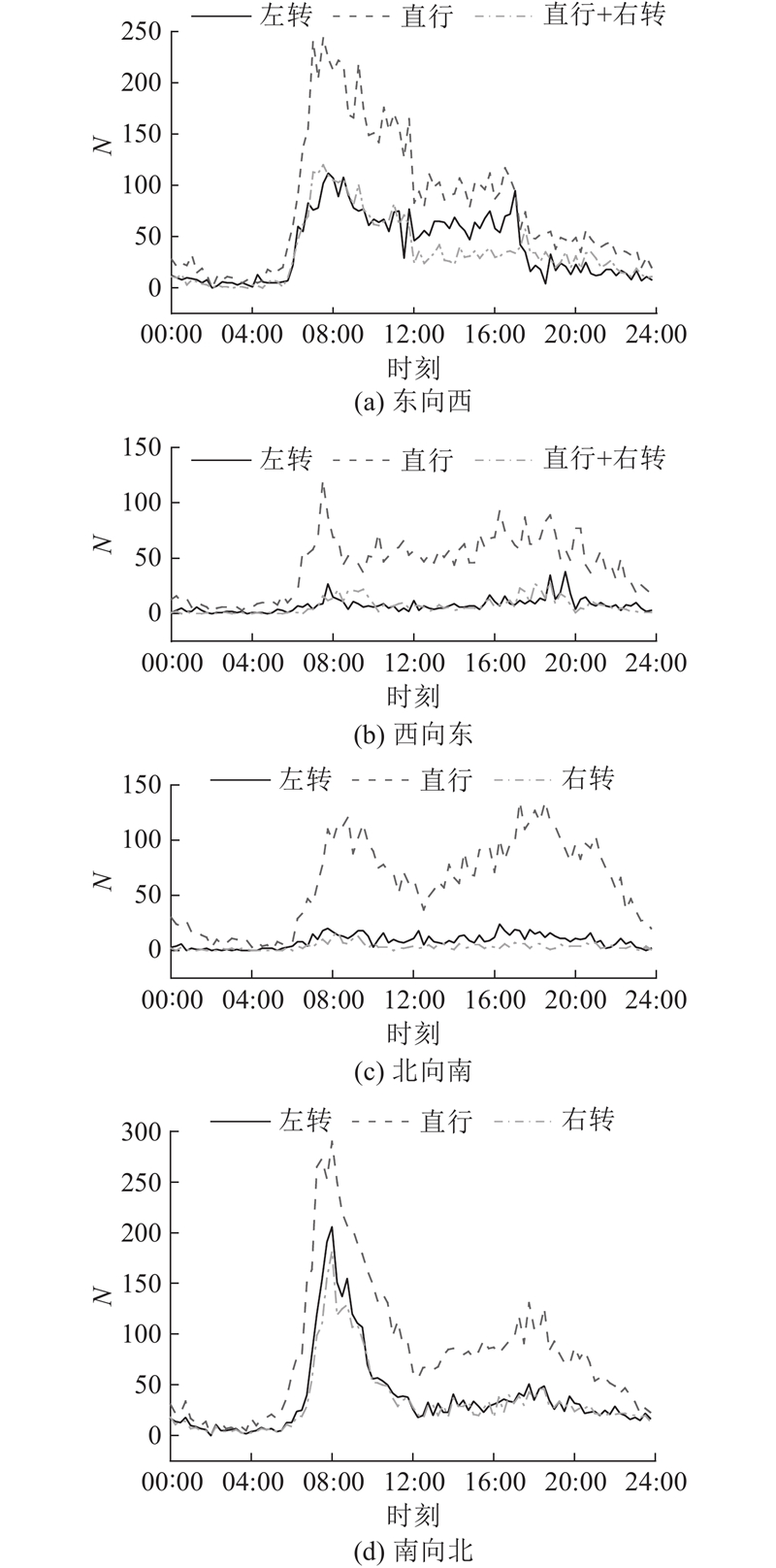

图 5  交叉口全天的流量分布图
车辆类型 N P/%
小轿车 2 606 63.07
小客车 1 440 34.85
大客车 22 0.53
公交车 5 0.12
出租车 7 0.17
货车 48 1.16
工程车 4 0.10
表 1  高峰时期交叉口过车车辆类型分布
车辆类型 L/m D
小轿车 5.0 Normc (1,0.1,0.5,2)
小客车 6.5 Normc (1,0.1,0.5,2)
大客车 14.0 Normc (1,0.05,0.5,2)
公交车 12.0 Normc (1,0.05,0.5,2)
出租车 5.0 Normc (1,0.1,0.5,2)
货车 7.1 Normc (1,0.05,0.5,2)
工程车 16.5 Normc (1,0.05,0.5,2)
表 2  仿真实验车辆类型设置
算法 tw/s tt/s v/(m·s?1)
Webster 35.89 113.46 7.45
Actuated 33.77 110.04 7.70
Delay-Based 64.85 142.52 6.36
3DQN 15.01 90.75 8.96
本研究 13.00 87.39 9.30
表 3  不同方法的控制效果对比
m
算法 Ln Ls Le Lw
Webster 18.73 33.02 37.06 10.77
Actuated 16.66 26.11 22.85 9.70
Delay-Based 21.58 68.22 62.01 14.50
3DQN 10.53 19.81 19.85 8.29
本研究 9.90 17.80 16.81 9.32
表 4  不同方法下各进口道的平均排队长度

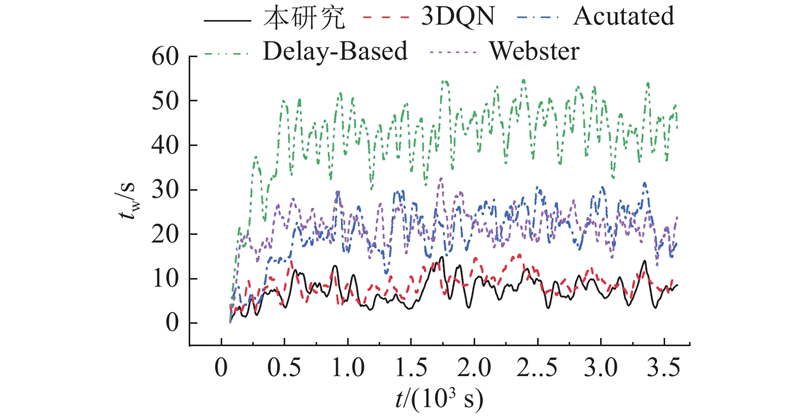

图 6  不同方法下路网内车辆平均等待时间变化

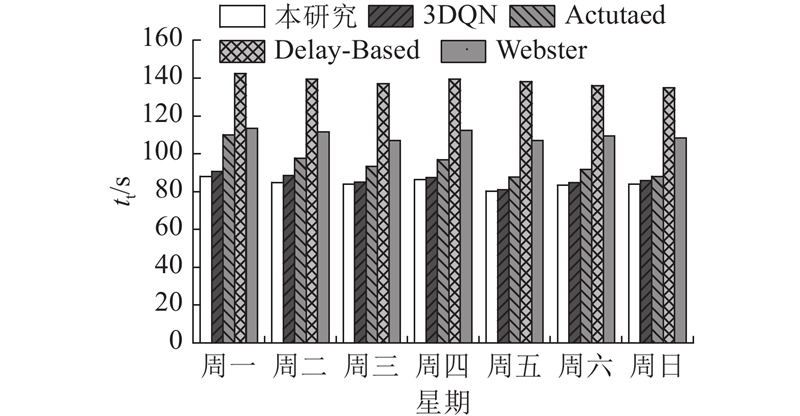

图 7  不同方法下早高峰时段一周的平均旅行时间变化

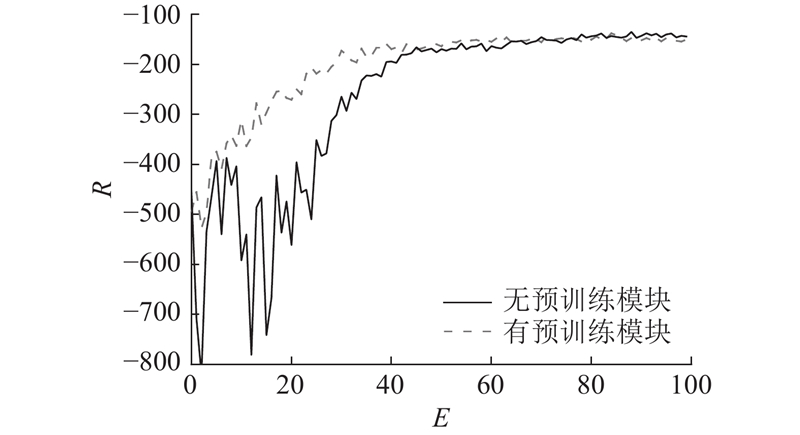

图 8  加入预训练模块与未加入预训练模块的双决斗深度Q网络算法收敛速度情况

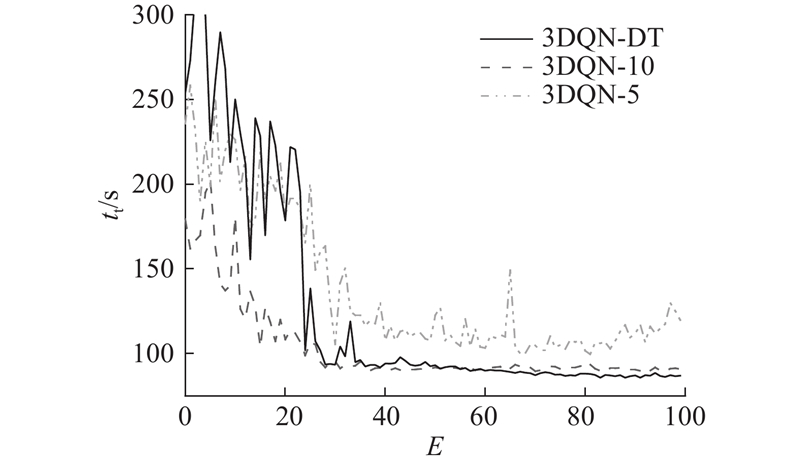

图 9  加入相位持续时间模块的双决斗深度Q网络(3DQN)算法与传统3DQN算法在平均旅行时间上的收敛情况
图 10  不同间隔时间设置下的模型动作策略示意图

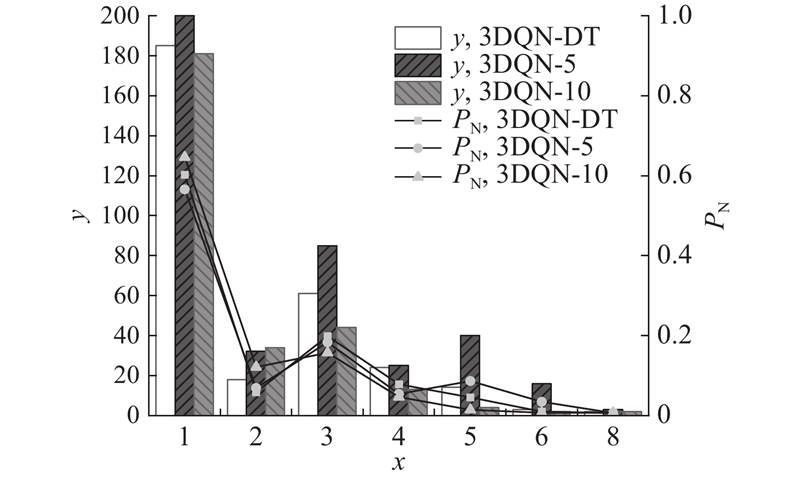

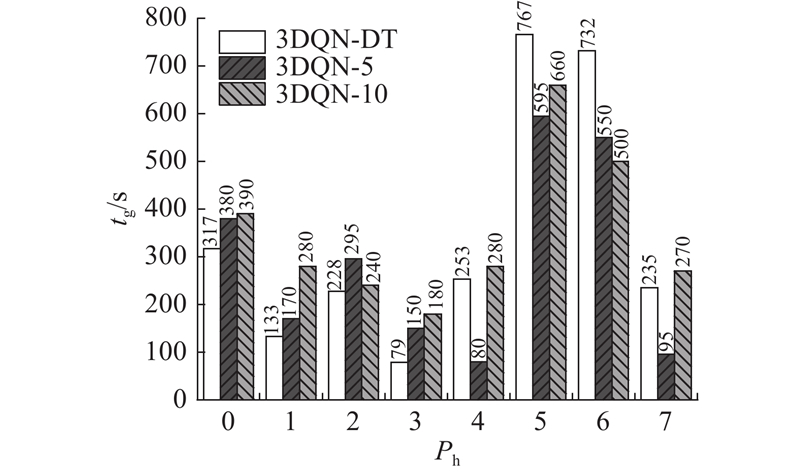

图 11  不同双决斗深度Q网络算法的各相位绿灯总时长对比图
