浙江大学学报(工学版)
浙江大学学报(工学版)  2022, Vol. 56 Issue (9): 1693-1703    DOI: 10.3785/j.issn.1008-973X.2022.09.002
土木工程、交通工程
纤维织物增强高延性混凝土加固RC梁的受弯性能
张敏(),邓明科*(),智奥龙,宋诗飞,陈晖
西安建筑科技大学 土木工程学院，陕西 西安 710055
Flexural behavior of RC beams strengthened by textile-reinforced highly ductile concrete
Min ZHANG(),Ming-ke DENG*(),Ao-long ZHI,Shi-fei SONG,Hui CHEN
School of Civil Engineering, Xi’an University of Architecture and Technology, Xi’an 710055, China
 全文: PDF(2049 KB)   HTML
摘要：

为了提高钢筋混凝土（RC）梁的受弯承载力，采用纤维织物增强高延性混凝土（TRHDC）对RC梁进行受弯加固，设计2个对比试件和8个TRHDC加固试件. 通过四点弯曲试验，研究纵筋配筋率、织物层数和持载水平对RC梁受弯性能的影响. 试验结果表明：TRHDC加固梁均发生纵筋屈服、织物被拉断、受压区混凝土被压碎的弯曲破坏；纵筋配筋率为0.93%的TRHDC加固梁在纵筋与混凝土界面出现脱黏裂缝. 与RC梁相比，TRHDC加固使梁的开裂荷载、屈服荷载和峰值荷载显著提高，最大提高幅度分别为1.61倍、65.9%和39.2%，裂缝发展被有效限制，但RC梁的位移延性系数降低2.6%~74.5%. 增加织物层数将使加固梁的屈服荷载和峰值荷载的提高幅度非线性增加，该变化与纵筋配筋率有关；当持载水平由对比梁屈服荷载的50%升至80%时，加固梁的屈服荷载减小8.6%，峰值荷载及相应挠度分别增大3.2%和13.9%. 提出TRHDC加固层滞后应变和TRHDC加固梁受弯承载力的计算方法，所得计算结果与试验结果吻合良好.
关键词： 纤维织物增强高延性混凝土(TRHDC);  钢筋混凝土(RC)梁;  受弯加固;  二次受力;  受弯承载力
Abstract:

Textile-reinforced highly ductile concrete (TRHDC) was used to strengthen the reinforced concrete (RC) beams, to improve the flexural capacity of RC beams. Two control beams and eight TRHDC-strengthened beams were designed. And the effect of the longitudinal reinforcement ratio, the number of textile layers, and the level of sustained load on the flexural behavior of RC beams were investigated using the four-point bending test. Experimental results showed that TRHDC-strengthened beams failed in flexural with the longitudinal reinforcement yielding, textile fracturing, and compressive concrete crushing. The debonding cracks at the surface between the longitudinal rebar and the concrete were observed in TRHDC-strengthened beams with a longitudinal reinforcement ratio of 0.93%. Compared with RC beams, TRHDC strengthening method significantly improved the cracking load, yielding load, and peak load of beams, with the highest increase rates reaching 1.61 times, 65.9%, and 39.2%, respectively. Furthermore, this method effectively limited the development of cracks while decreasing the displacement ductility index of RC beams in the range of 2.6%-74.5%. The improvement in the yielding load and peak load of the strengthened beam nonlinearly increased with the number of textile layers, which depends on the longitudinal reinforcement ratio. When the sustained load level increased from 50% to 80% of the yielding load of the control beam, the yielding load of the strengthened beam was decreased by 8.6%, and the peak load and the corresponding deflection were increased by 3.2% and 13.9%, respectively. The calculation method for the lag strain of the TRHDC strengthening layer and the flexural capacity of TRHDC-strengthened beams was proposed, and the results was in good agreement with the experimental results.
Key words: textile-reinforced highly ductile concrete(TRHDC)    reinforced concrete (RC) beam    flexural strengthening    secondary load    flexural capacity
收稿日期: 2021-08-27 出版日期: 2022-09-28
CLC:  TU 375
基金资助: 国家自然科学基金资助项目(51878545); 西安市科技创新计划项目(20191522415KYPT015JC017)
通讯作者: 邓明科     E-mail: zhang_miner@126.com;dengmingke@126.com
作者简介: 张敏（1992―），女，博士生，从事土木工程新材料研究. orcid.org/0000-0002-2460-3493. E-mail： zhang_miner@126.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
张敏
邓明科
智奥龙
宋诗飞
陈晖

引用本文:

张敏,邓明科,智奥龙,宋诗飞,陈晖. 纤维织物增强高延性混凝土加固RC梁的受弯性能[J]. 浙江大学学报(工学版), 2022, 56(9): 1693-1703.

Min ZHANG,Ming-ke DENG,Ao-long ZHI,Shi-fei SONG,Hui CHEN. Flexural behavior of RC beams strengthened by textile-reinforced highly ductile concrete. Journal of ZheJiang University (Engineering Science), 2022, 56(9): 1693-1703.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2022.09.002    或    https://www.zjujournals.com/eng/CN/Y2022/V56/I9/1693

试件编号 纵向受拉钢筋/mm ρs/% 加固材料 SL/%
L 基体
B1 2Φ14 0.93 — — —
B2 2Φ14 0.93 1 HDC —
B3 2Φ14 0.93 2 HDC —
B4 2Φ14 0.93 3 HDC —
B5 2Φ18 1.55 — — —
B6 2Φ18 1.55 1 HDC —
B7 2Φ18 1.55 2 HDC —
B8 2Φ18 1.55 3 HDC —
B9 2Φ18 1.55 2 HDC 50
B10 2Φ18 1.55 2 HDC 80
表 1  梁试件设计参数

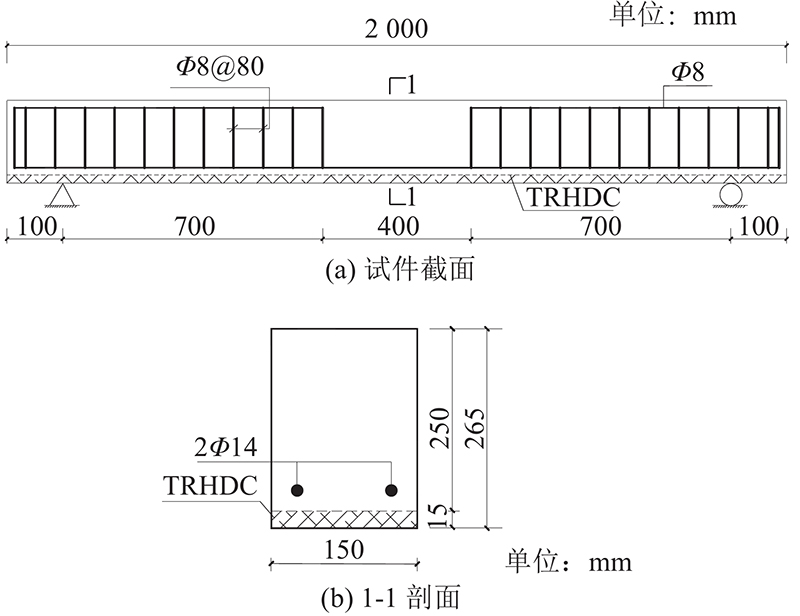

图 1  纤维织物增强高延性混凝土加固试件截面尺寸及配筋图

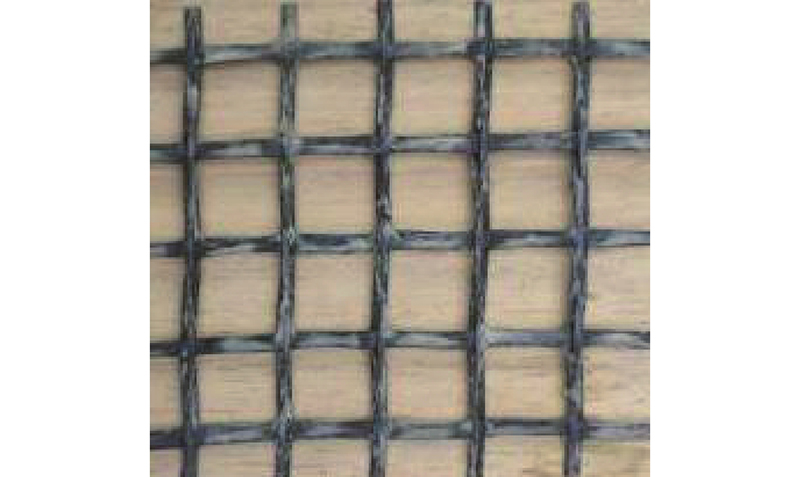

图 2  碳纤维织物
参数 数值 参数 数值
网格间距sct/mm 20 密度ρct/(g·cm?3) 1.74
抗拉强度fct,t/MPa 3600 束截面积Act,0/mm2 0.94
弹性模量Ect/GPa 230 伸长率λct/% 1.5
单束承载力Fct,0/N 3200 — —
表 2  碳纤维织物力学性能指标
参数 数值 参数 数值
纤维类型 PVA 弹性模量Ef/GPa 40
直径Df/μm 39 密度ρf/(g·cm?3) 1.3
长度Lf/mm 12 伸长率λf/% 7
抗拉强度ff,t/MPa 1600 — —
表 3  PVA短纤维各项力学性能指标

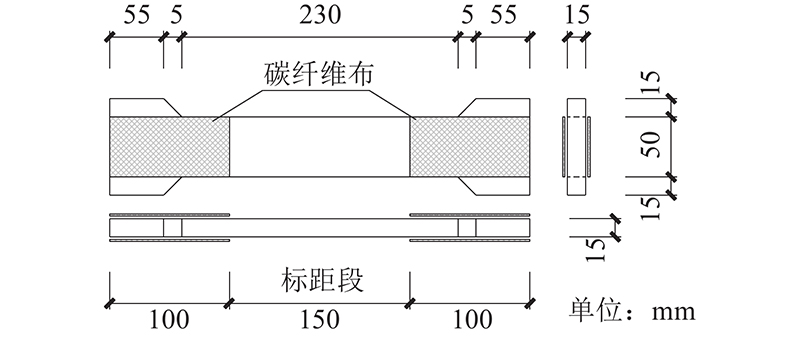

图 3  纤维织物增强高延性混凝土拉伸试件尺寸

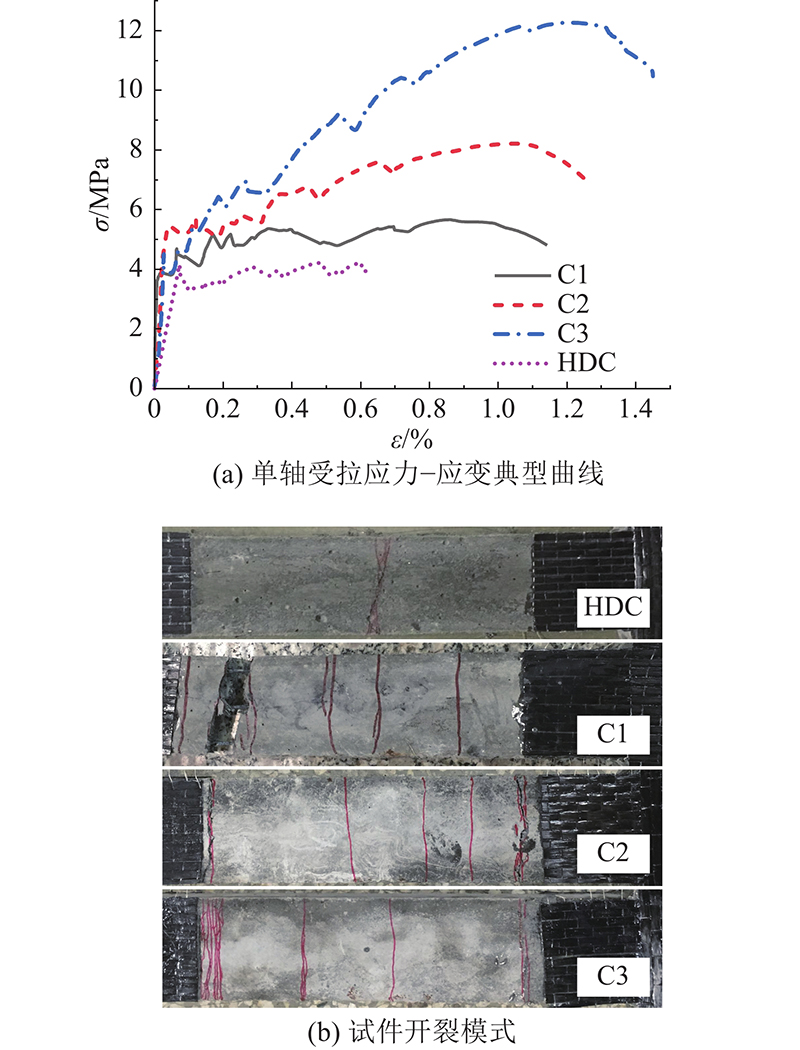

图 4  高延性混凝土与纤维织物增强高延性混凝土单轴受拉应力−应变典型曲线和开裂模式
钢筋类型 D/mm fy/MPa σsu/MPa
HRB400 8 432 612
HRB400 14 430 592
HRB400 18 430 605
表 4  钢筋的力学性能

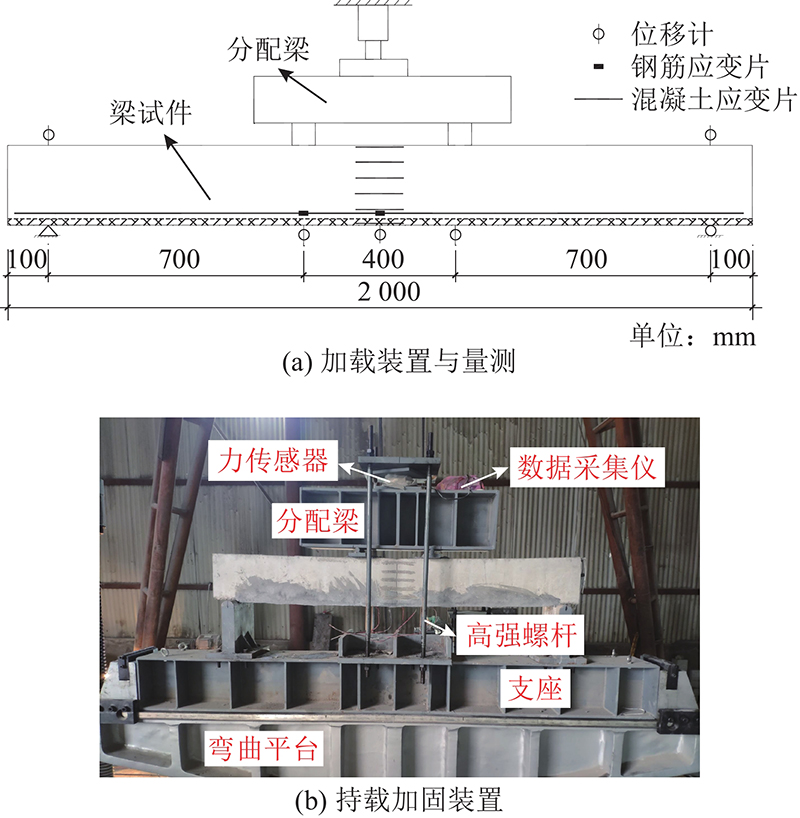

图 5  受弯试验加载装置与量测

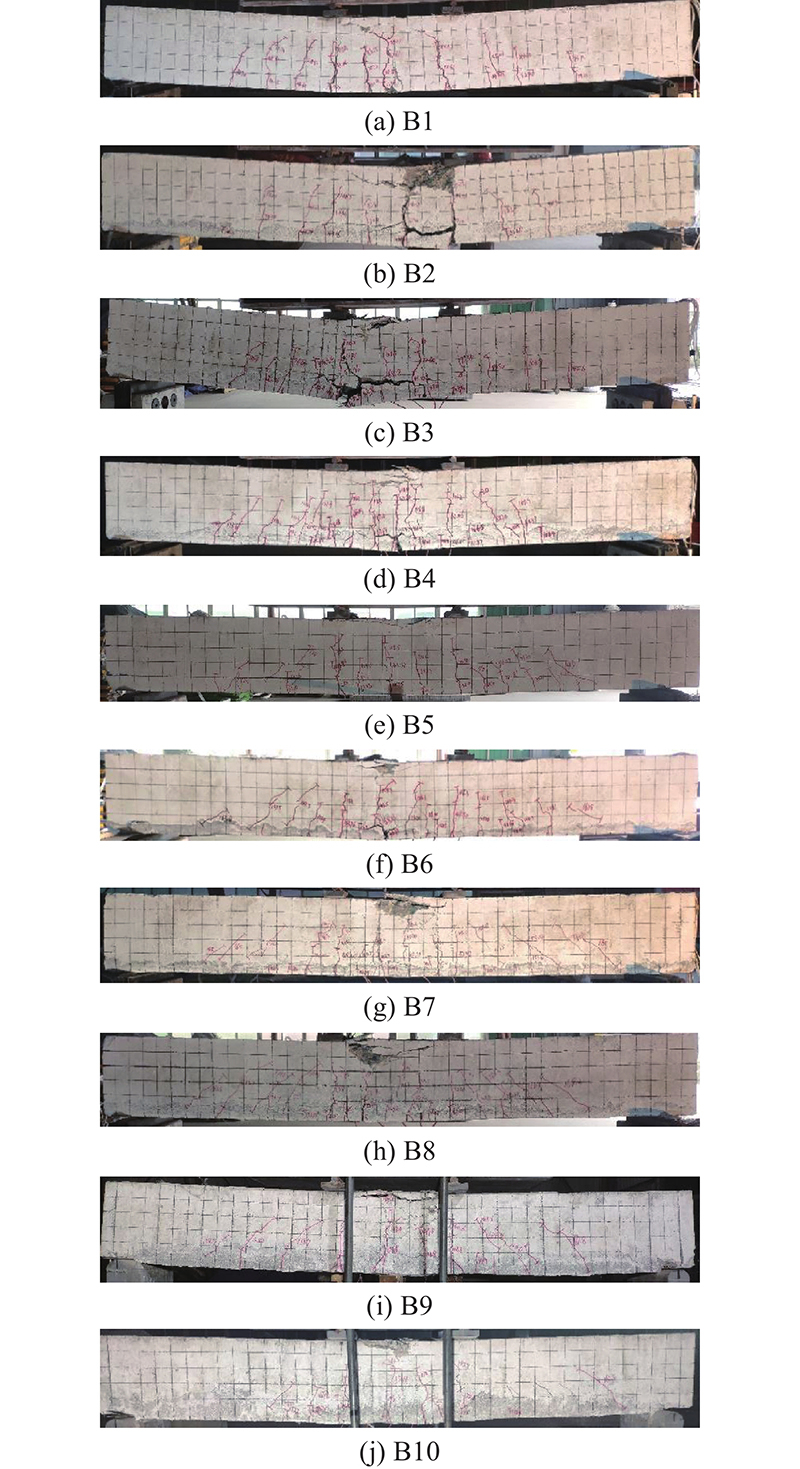

图 6  梁试件裂缝分布及破坏形态

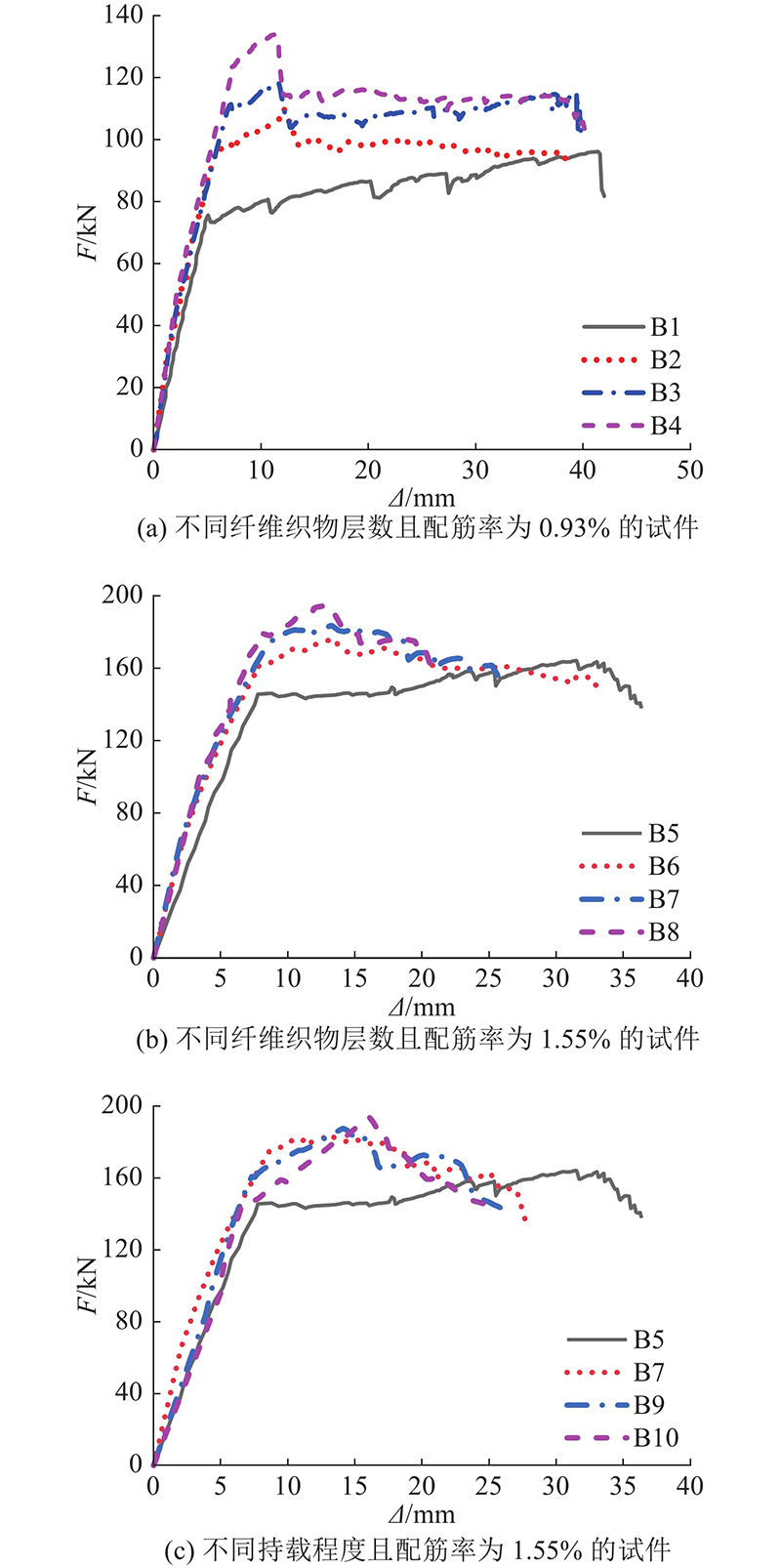

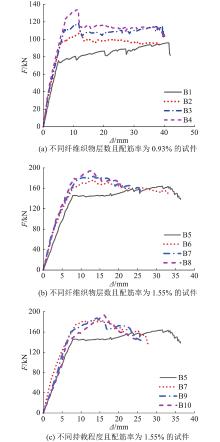

图 7  梁试件的荷载−挠度曲线
试件编号 开裂点 纵筋屈服点 峰值点 极限点 $\dfrac{ { {P_{\text{m} } } }}{ { {P_{ {\text{m,0} } } } } }$ $ \mu $ 破坏形态
$ {P_{{\text{cr}}}} $/ kN Δcr/ mm $ {P_{\text{y}}} $/ kN Δy/ mm $ {P_{\text{m}}} $/ kN Δm/ mm $ {P_{\text{u}}} $/ kN Δu/ mm
B1 17.15 1.13 73.14 6.11 96.15 41.40 81.73 41.98 — 6.87 A
B2 37.74 1.79 96.57 5.74 109.72 12.17 93.26 38.41 1.141 6.69 B
B3 37.83 1.70 111.38 7.22 118.79 11.60 100.97 39.80 1.235 5.51 B
B4 36.05 1.54 121.31 7.29 133.87 11.46 113.79 12.73 1.392 1.75 B
B5 18.75 0.94 145.64 7.77 164.10 31.39 139.49 36.29 — 4.67 A
B6 40.61 1.37 160.89 7.80 175.52 13.48 149.19 33.00 1.070 4.23 B
B7 43.97 1.37 174.82 8.62 183.64 13.26 156.09 25.64 1.119 2.97 C
B8 48.97 1.67 177.94 8.67 194.30 12.64 165.16 20.47 1.184 2.36 C
B9 — — 160.92 7.32 187.66 14.13 159.51 23.36 1.143 3.19 C
B10 — — 147.14 6.79 193.72 16.09 164.66 19.41 1.180 2.86 C
表 5  梁试件受弯试验的主要结果

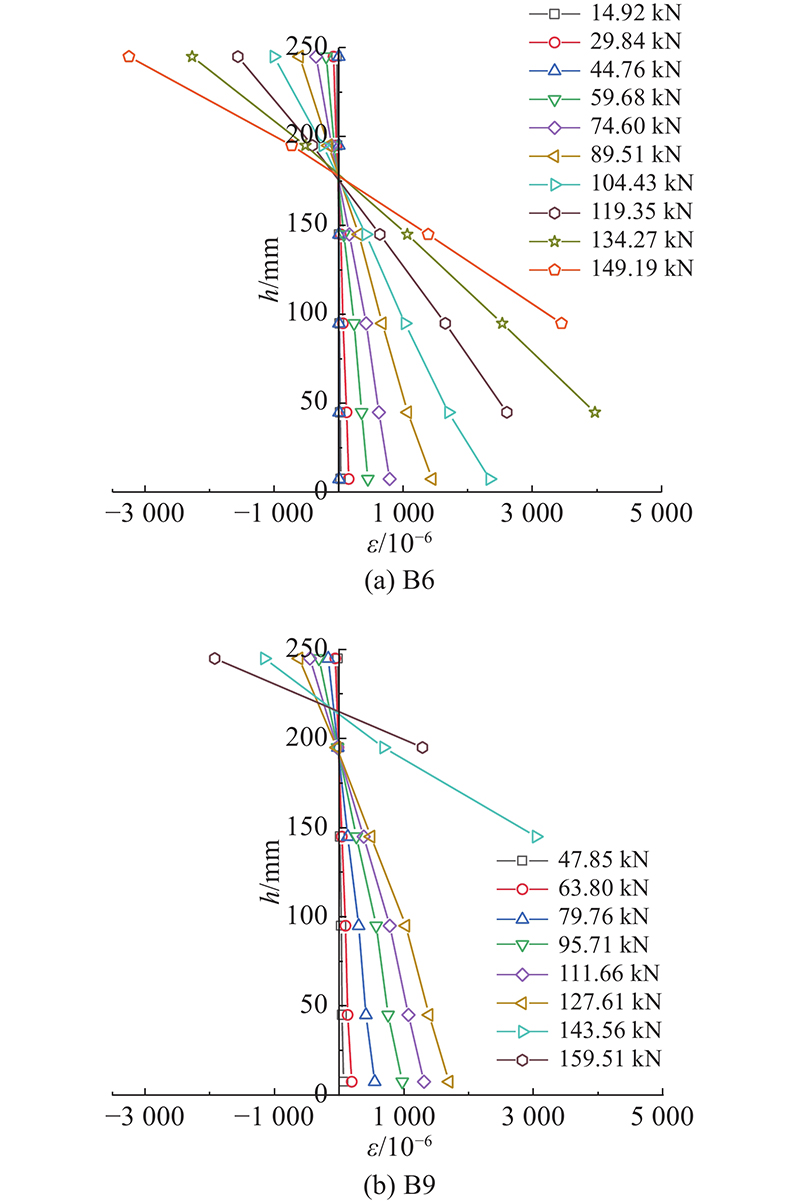

图 8  纤维织物增强高延性混凝土加固梁截面应变沿梁高分布

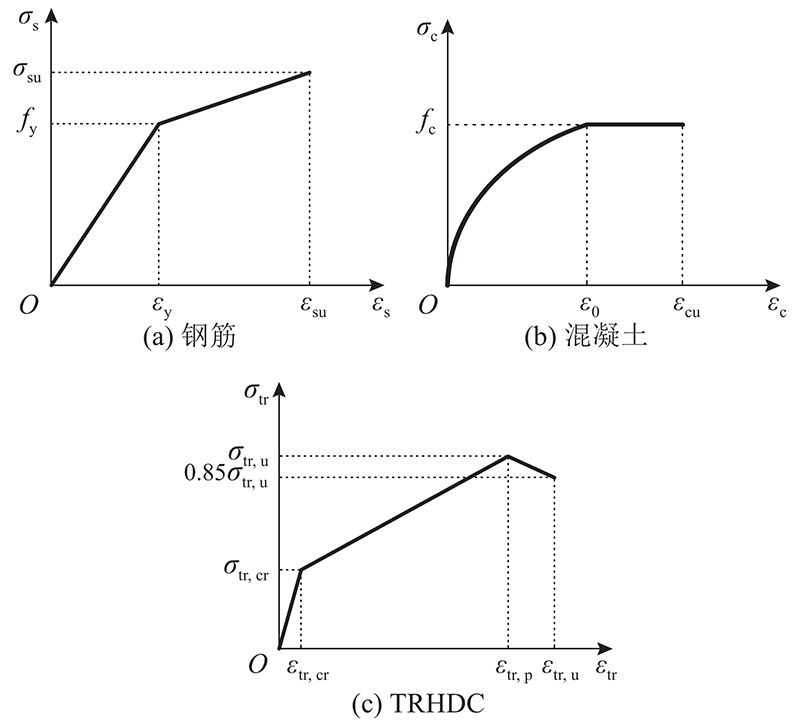

图 9  钢筋、混凝土和纤维织物增强高延性混凝土的应力−应变曲线
图 10  纤维织物增强高延性混凝土加固层滞后应变计算简图

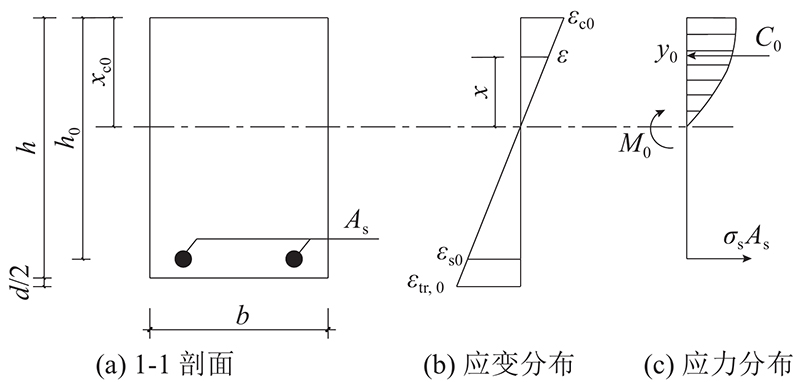

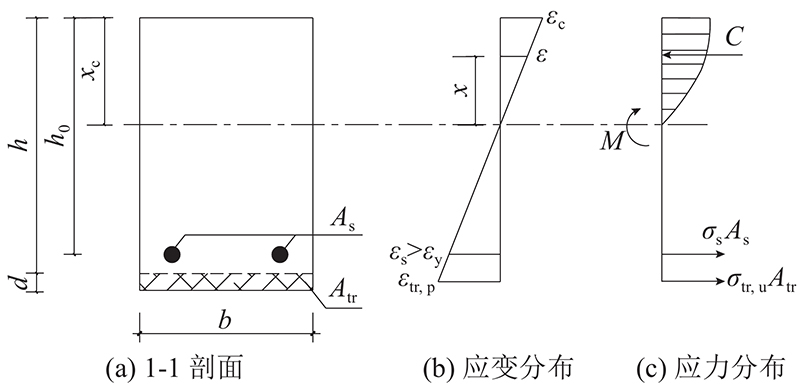

图 11  第1种破坏模式梁1-1剖面的应力与应变分布

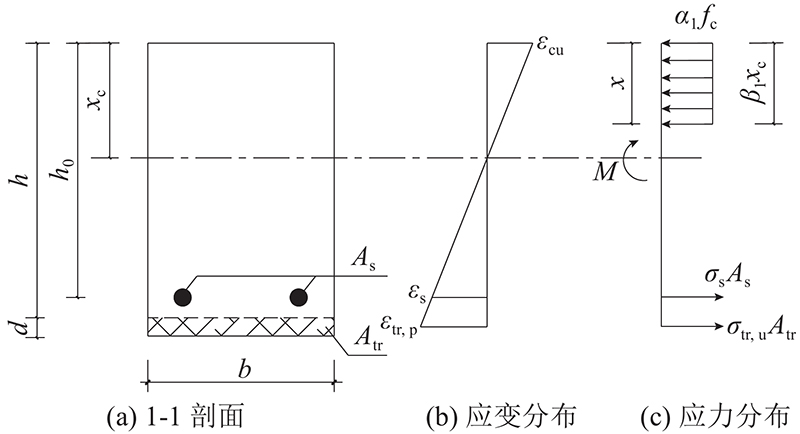

图 12  第2种破坏模式梁1-1剖面的应力与应变分布
试件编号 $ {P_{{\text{u,t}}}} $/ kN $ {P_{{\text{u,cal}}}} $/ kN ${ {P_{ {\text{u,cal} } } } } /{ {P_{ {\text{u,t} } } } }$
B1 96.15 107.32 1.12
B2 109.72 115.43 1.05
B3 118.79 119.12 1.00
B4 133.87 124.76 0.93
B5 164.10 158.89 0.97
B6 175.52 164.46 0.94
B7 183.64 167.03 0.91
B8 194.30 170.99 0.88
B9 187.66 167.03 0.89
B10 193.72 167.03 0.86
表 6  梁试件受弯承载力计算结果与试验结果比较
1 AWANI O, EL-MAADDAWY T, ISMAIL N Fabric-reinforced cementitious matrix: a promising strengthening technique for concrete structures[J]. Construction and Building Materials, 2017, 132: 94- 111
doi: 10.1016/j.conbuildmat.2016.11.125
2 BOURNAS D A Concurrent seismic and energy retrofitting of RC and masonry building envelopes using inorganic textile-based composites combined with insulation materials: a new concept[J]. Composite Part B: Engineering, 2018, 148: 166- 179
doi: 10.1016/j.compositesb.2018.04.002
3 李赫, 徐世烺 纤维编织网增强混凝土薄板力学性能的研究[J]. 建筑结构学报, 2007, 28 (4): 117- 122
LI He, XU Shi-lang A study on thin concrete plate reinforced with textile[J]. Journal of Building Structures, 2007, 28 (4): 117- 122
doi: 10.3321/j.issn:1000-6869.2007.04.016
4 徐世烺, 阎轶群 低配网率纤维编织网增强混凝土轴拉力学性能[J]. 复合材料学报, 2011, 28 (5): 206- 213
XU Shi-lang, YAN Yi-qun Mechanical properties of textile reinforced concrete plate at low textile ratios[J]. Acta Materiae Compositae Sinica, 2011, 28 (5): 206- 213
5 D'ANTINO T, PAPANICOLAOU C Mechanical characterization of textile reinforced inorganic-matrix composites[J]. Composite Part B: Engineering, 2017, 127 (15): 78- 91
6 BRUCKNER A, ORTHLEPP R, CURBACH M Textile reinforced concrete for strengthening in bending and shear[J]. Materials and Structures, 2006, 39 (8): 741- 748
doi: 10.1617/s11527-005-9027-2
7 LARBI A S, AGBOSSOU A, HAMELIN P Experimental and numerical investigations about textile-reinforced concrete and hybrid solutions for repairing and/or strengthening reinforced concrete beams[J]. Composite Structures, 2013, 99: 152- 162
doi: 10.1016/j.compstruct.2012.12.005
8 ELSANADEDY H M, ABBAS H, ALMUSALLAM T H, et al Organic versus inorganic matrix composites for bond-critical strengthening applications of RC structures: state-of-the-art review[J]. Composite Part B: Engineering, 2019, 174: 106947
doi: 10.1016/j.compositesb.2019.106947
9 RAOOF S M, BOURNAS D A TRM versus FRP in flexural strengthening of RC beams: behaviour at high temperatures[J]. Construction and Building Materials, 2017, 154: 424- 437
doi: 10.1016/j.conbuildmat.2017.07.195
10 D'AMBRISI A, FOCACCI F Flexural strengthening of RC beams with cement-based composites[J]. Journal of Composite Construction, 2011, 15: 707- 20
doi: 10.1061/(ASCE)CC.1943-5614.0000218
11 ESCRIG C, GIL L, BERNAT-MASO E Experimental comparison of reinforced concrete beams strengthened against bending with different types of cementitious-matrix composite materials[J]. Construction and Building Materials, 2017, 137: 317- 29
doi: 10.1016/j.conbuildmat.2017.01.106
12 RAOOF S M, KOUTAS L N, BOURNAS D A Textile-reinforced mortar (TRM) versus fibre-reinforced polymers (FRP) in flexural strengthening of RC beams[J]. Construction and Building Materials, 2017, 151: 279- 91
doi: 10.1016/j.conbuildmat.2017.05.023
13 YIN S P, CONG X, WANG C Y, et al Research on flexural performance of composited RC beams with different forms of TRC permanent formwork[J]. Structures, 2021, 29: 1424- 1434
doi: 10.1016/j.istruc.2020.12.034
14 YU Y L, YIN S P, NA M W Bending performance of TRC-strengthened RC beams with secondary load under chloride erosion[J]. Journal of Central South University, 2019, 26 (1): 196- 206
doi: 10.1007/s11771-019-3993-y
15 徐世烺, 尹世平, 蔡新华 纤维编织网增强混凝土加固钢筋混凝土梁受弯性能研究[J]. 土木工程学报, 2011, 44 (4): 23- 34
XU Shi-lang, YIN Shi-ping, CAI Xin-hua Investigation on the flexural behavior of reinforced concrete beam strengthened with textile-reinforced concrete[J]. China Civil Engineering Journal, 2011, 44 (4): 23- 34
16 徐世烺, 尹世平 纤维编织网增强细粒混凝土加固RC受弯构件的正截面承载性能研究[J]. 土木工程学报, 2012, 45 (1): 1- 7
XU Shi-lang, YIN Shi-ping Investigation on the bearing capacity of the normal section of RC flexural component strengthened with textile-reinforced concrete[J]. China Civil Engineering Journal, 2012, 45 (1): 1- 7
17 董志芳, 邓明科, 张聪 纤维织物增强高延性混凝土单轴拉伸性能试验研究[J]. 土木工程学报, 2020, 53 (10): 13- 25
DONG Zhi-fang, DENG Ming-ke, ZHANG Cong Experimental investigation on uniaxial tension behavior of textile-reinforced highly ductile concrete[J]. China Civil Engineering Journal, 2020, 53 (10): 13- 25
18 WEI L Z, WANG Y C, YU J T, et al Feasibility study of strain hardening magnesium oxychloride cement-based composites[J]. Construction and Building Materials, 2018, 165: 750- 760
doi: 10.1016/j.conbuildmat.2018.01.041
19 LI B B, XIONG H, JIANG J F, et al Tensile behavior of basalt textile grid reinforced engineering cementitious composite[J]. Composites Part B: Engineering, 2019, 156: 185- 200
doi: 10.1016/j.compositesb.2018.08.059
20 HINZEN M, BRAMESHUBER W. Improvement of serviceability and strength of textile reinforced concrete by using short fibres [C]// 4th Colloquium on Textile Reinforced Structures. Dresden: [s. n.], 2009: 261–272.
21 BARHUM R, MECHTCHERINE V Effect of short, dispersed glass and carbon fibres on the behaviour of textile-reinforced concrete under tensile loading[J]. Engineering Fracture Mechanics, 2012, 92: 56- 71
doi: 10.1016/j.engfracmech.2012.06.001
22 沈玲华, 王激扬, 徐世烺 掺入短切纤维的纤维编织网增强混凝土薄板弯曲力学性能试验研究[J]. 建筑结构学报, 2016, 37 (10): 98- 107
SHEN Ling-hua, WANG Ji-yang, XU Shi-lang Experimental study on bending mechanical behavior of textile reinforced concrete thin-plates with short dispersed fibers[J]. Journal of Building Structures, 2016, 37 (10): 98- 107
23 LI V C, LEUNG C K Y Steady-state and multiple cracking of short random fiber composites[J]. Journal of Engineering Mechanics, 1992, 188 (11): 2246- 2264
24 寇佳亮, 邓明科, 梁兴文 延性纤维增强混凝土单轴拉伸性能试验研究[J]. 建筑结构, 2013, 43 (1): 59- 64
KOU Jia-liang, DENG Ming-ke, LIANG Xing-wen Experimental study of uniaxial tensile properties of ductile fiber reinforced concrete[J]. Building Structure, 2013, 43 (1): 59- 64
25 代洁, 邓明科, 陈佳莉 基于材料延性的高延性混凝土无腹筋梁受剪性能试验研究[J]. 工程力学, 2018, 35 (2): 124- 132
DAI Jie, DENG Ming-ke, CHEN Jia-li Influence of matrix ductility on shear behavior of high ductile fiber reinforced concrete beams[J]. Engineering Mechanics, 2018, 35 (2): 124- 132
26 DENG M K, DONG Z F, ZHANG C Experimental investigation on tensile behavior of carbon textile reinforced mortar (TRM) added with short polyvinyl alcohol (PVA) fibers[J]. Construction and Building Materials, 2020, 235: 117801
doi: 10.1016/j.conbuildmat.2019.117801
27 ICC-Evaluation Service. Acceptance criteria for masonry and concrete strengthening using fiber-reinforced cementitious matrix (FRCM) composite systems: AC434 [S]. Whittier: [s. n.], 2013: 14–15.
28 KOUTAS L N, TETTA Z, BOURNAS D A, et al Strengthening of concrete structures with textile reinforced mortars: state-of-the-art review[J]. Journal of Composites for Construction, 2019, 23 (1): 03118001
doi: 10.1061/(ASCE)CC.1943-5614.0000882
29 邓明科, 马向琨. 一种梁式构件持载加固用试验装置: CN202021687914.7 [P]. 2021-04-20.
30 过镇海. 钢筋混凝土原理 [M]. 北京: 清华大学出版社, 2013: 122.
31 郑宇宙, 王文炜 复材网格-UHTCC复合增强钢筋混凝土梁抗弯性能试验研究[J]. 土木工程学报, 2017, 50 (6): 23- 32
ZHENG Yu-zhou, WANG Wen-wei Experimental research on flexural behavior of RC beams strengthened with FRP grid-UHTCC composite[J]. China Civil Engineering Journal, 2017, 50 (6): 23- 32
