Simplified analysis method for evaluating horizontal deformation of single pile due to adjacent foundation pit excavation
Kang CHENG1,2,3(),Ri-qing XU1,2,*(),Cun-gang LIN4,5,Nuo DUAN3,6,Su-yang FENG1,2,Rong-zhu LIANG3
1. Research Center of Coastal and Urban Geotechnical Engineering, Zhejiang University, Hangzhou 310058, China
2. Engineering Research Center of Urban Underground Development of Zhejiang Province, Zhejiang University, Hangzhou 310058, China
3. Engineering Research Center of Rock and Soil Drilling and Excavation and Protection of Ministry of Education, China University of Geosciences, Wuhan 430074, China
4. Norwegian Geotechnical Institute, Oslo 0806, Norway
5. Department of Geotechnical Engineering, Tongji University, Shanghai 200092, China
6. School of Civil Engineering and Architecture, Zhejiang Sci-Tech University, Hangzhou 310018, China
 全文: PDF(1892 KB)   HTML
摘要：

为了探究既有单桩在邻近基坑开挖作用下的水平向响应规律，提出基于虚拟镜像技术的基坑开挖引起邻近单桩水平向响应解析解. 发挥基坑围护结构变形易于实测的优势，借鉴虚拟镜像技术，考虑土体位移的实际情况，修正土体的等量径向移动模式，推导出土体非等量径向移动模式下基坑开挖引起的坑外土体水平位移场. 基于Pasternak双参数地基，引入修正地基反力模量以考虑埋深效应，利用两阶段法，将土体水平自由位移场视为外荷载施加于邻近单桩，建立在邻近基坑开挖扰动下既有单桩的水平向位移控制方程. 与三维有限元数值模型、既有理论解及已发表案例的工程实测数据的对比，验证该方法的正确性及适用性. 参数分析表明：提高地基反力系数和单桩抗弯刚度有助于减小单桩最大水平位移；当桩与基坑间距较远时，单桩最大水平位移几乎不再受自身抗弯刚度的影响.
关键词： 虚拟镜像技术;  土体径向移动;  非等量性;  两阶段法;  地基反力模量
Abstract:

A new simplified analytic solution considering the actual state of ground displacement was proposed based on the virtual mirror technology in order to estimate the response of the existing single pile due to adjacent basement excavation. The virtual mirror technology was used, and the measured deformation of the basement maintenance structures provided easily by the in-situ monitoring technique was utilized. The analytic solution of the greenfield ground movement was developed based on the non-equivalence of the radial movement of the ground. Then the greenfield ground movement was imposed on the pile with the two-stage method by introducing the modified foundation reaction modulus to consider the depth effect of ground. The control differential equation of horizontal displacement of the pile based on Pasternak foundation was established. The feasibility and effectiveness of the proposed method was verified by comparison with three-dimensional finite element method analysis and the existed theoretical solution as well as field measured data. The parametric analysis show that increasing the coefficient of subgrade reaction and the bending stiffness of the pile can decrease the maximum horizontal displacement of the pile. When the pile is far from the foundation pit, the maximum horizontal displacement is essentially immune from the bending stiffness of the pile.
Key words: virtual mirror technology    radial movement of ground    non equivalence    two-stage method    foundation reaction modulus
收稿日期: 2019-01-16 出版日期: 2020-01-05
CLC:  TU 375
基金资助: 国家自然科学基金资助项目（41702313，41807262）；浙江省重点研发计划资助项目（2018C03G2010707）；岩土钻掘与防护教育部工程研究中心开放基金资助项目（201706）
通讯作者: 徐日庆     E-mail: chengkang@zju.edu.cn;xurq@zju.edu.cn
作者简介: 程康（1994—），男，博士生，从事土与结构相互作用的研究. orcid.org/0000-0001-6518-8866. E-mail： chengkang@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
程康
徐日庆
林存刚
段诺
冯苏阳
梁荣柱

引用本文:

程康,徐日庆,林存刚,段诺,冯苏阳,梁荣柱. 既有单桩在邻近基坑开挖下的水平向响应简化分析[J]. 浙江大学学报(工学版), 2020, 54(1): 91-101.

Kang CHENG,Ri-qing XU,Cun-gang LIN,Nuo DUAN,Su-yang FENG,Rong-zhu LIANG. Simplified analysis method for evaluating horizontal deformation of single pile due to adjacent foundation pit excavation. Journal of ZheJiang University (Engineering Science), 2020, 54(1): 91-101.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.01.011    或    http://www.zjujournals.com/eng/CN/Y2020/V54/I1/91

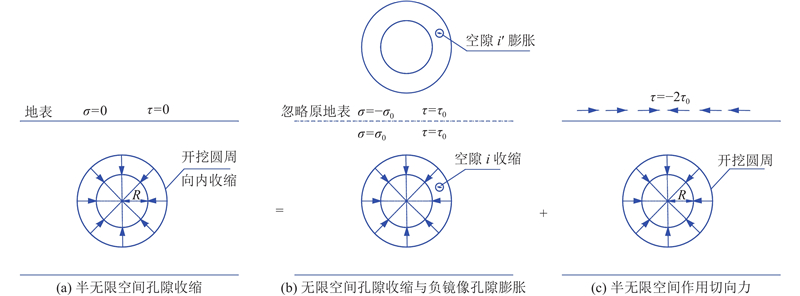

图 1  边界土层等量径向移动模型[9]
图 2  边界土层非等量径向移动模型

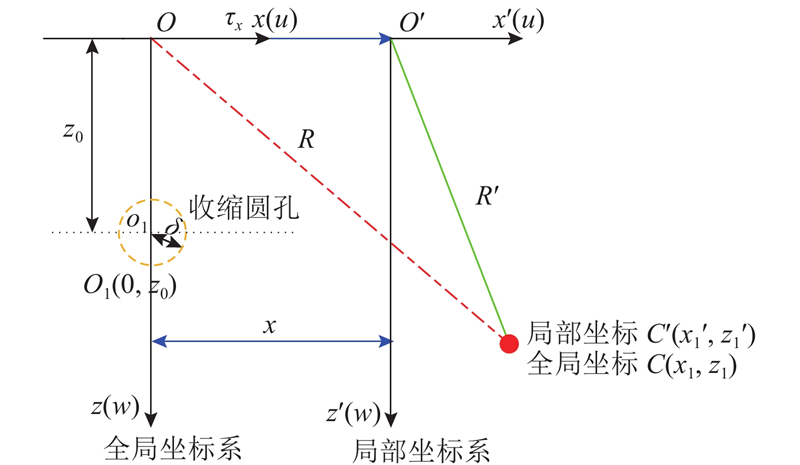

图 3  非等量径向模式下土层位移计算模型
图 4  Cerrutti 解示意图

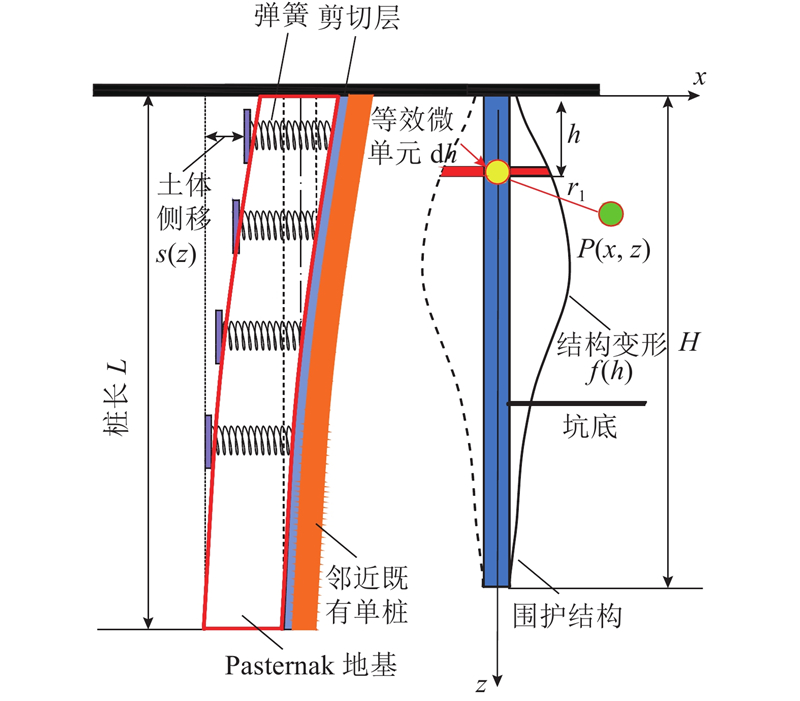

图 5  邻近桩–土相互作用模型

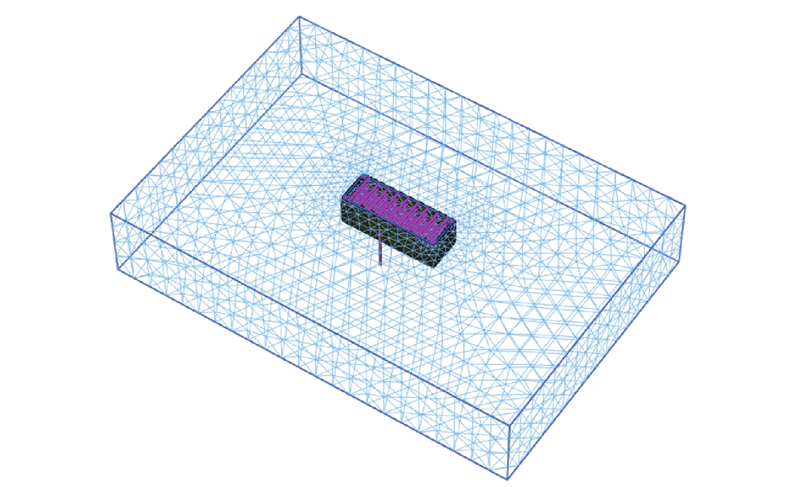

图 6  三维有限元模型与网格
土层 $E_{50}^{{\rm{ref}}}/{\rm{MPa} }$ $E_{\rm{oed}}^{\rm{ref} }/{\rm{MPa} }$ $E_{ {\rm{ur} } }^{\rm{ref}}/{\rm{MPa} }$ $G_0^{\rm{ref}}/{\rm{MPa} }$ γ0.7 Rf c′/kPa φ′/(°) t/m
粉质黏土 8 8 32 80 0.000 1 0.75 28 22 50
表 1  土层的物理力学参数
图 7  单桩水平位移对比曲线

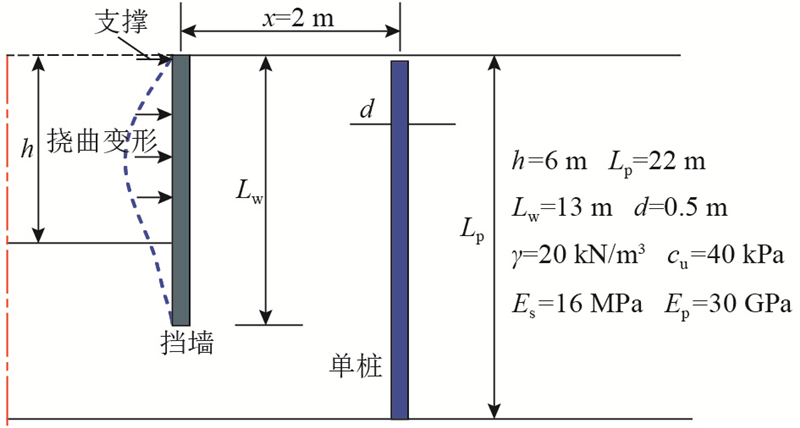

图 8  单桩在邻近基坑开挖下的计算模型及参数

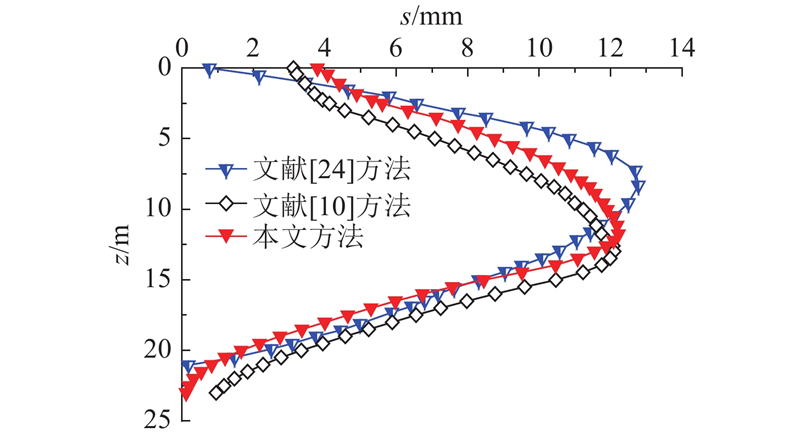

图 9  单桩水平位移对比曲线

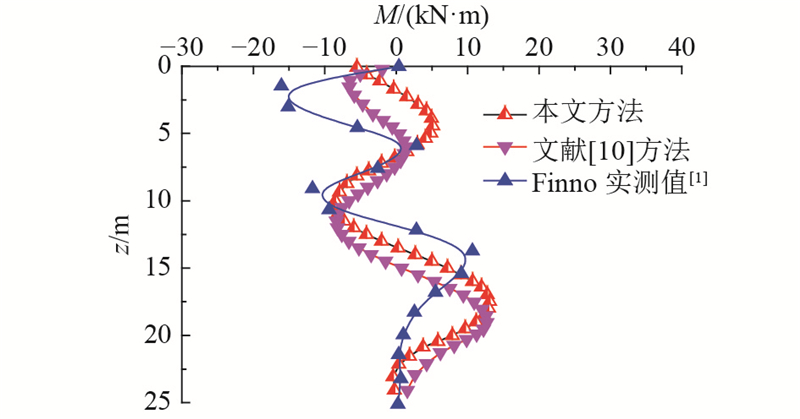

图 10  单桩弯矩对比曲线

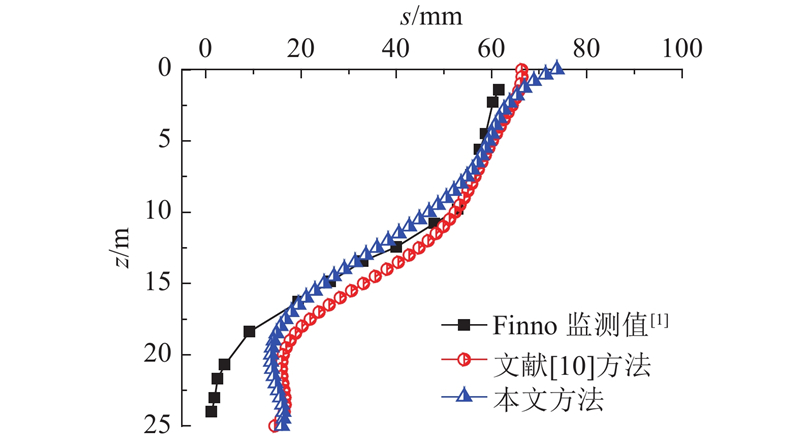

图 11  单桩水平位移对比曲线

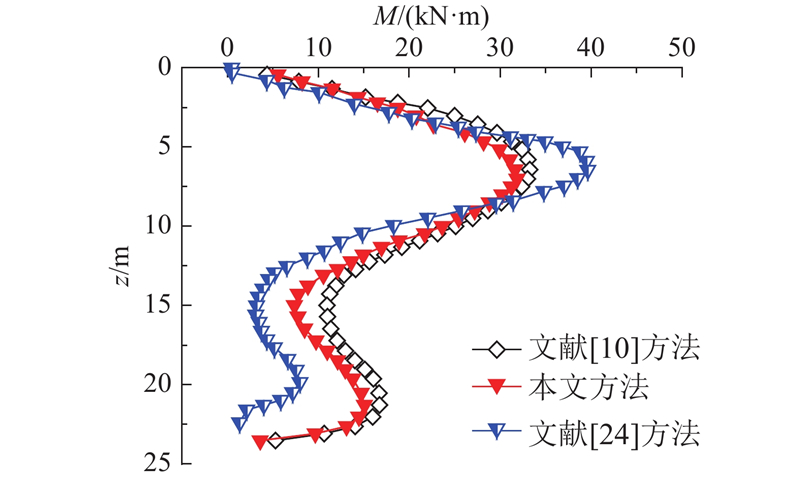

图 12  单桩弯矩对比曲线

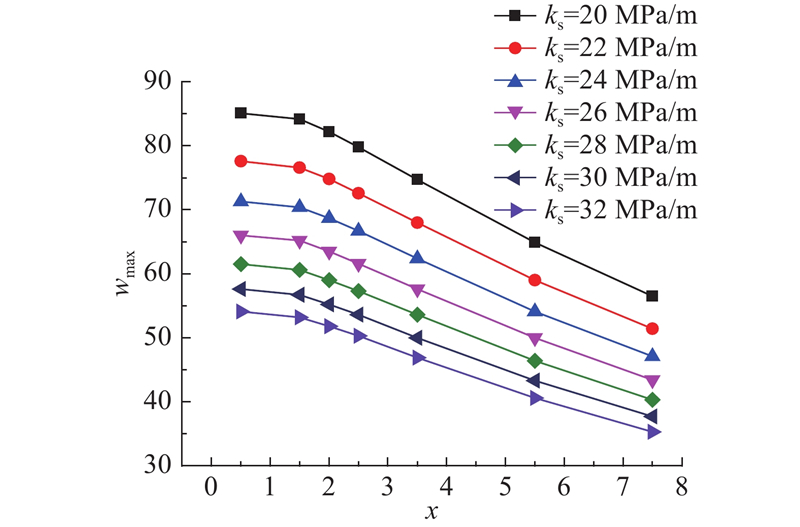

图 13  桩-基坑距离和地基反力系数对单桩最大水平位移的影响
图 14  桩-基坑距离和单桩抗弯刚度对单桩最大水平位移的影响
