浙江大学学报(工学版)
浙江大学学报(工学版)  2021, Vol. 55 Issue (2): 318-329    DOI: 10.3785/j.issn.1008-973X.2021.02.012
土木工程、交通工程
考虑地基变形连续的基坑开挖诱发邻近盾构隧道位移预测
应宏伟1,2,3(),程康1,2,4,俞建霖1,2,*(),徐日庆1,2,裘志坚5,詹晓波6,秦建设5,楼春晖1,2
1. 浙江大学 滨海和城市岩土工程研究中心，浙江 杭州 310058
2. 浙江省城市地下空间开发工程技术研究中心，浙江 杭州 310058
3. 河海大学 岩土工程科学研究所，江苏 南京 210098
4. 中铁十一局集团有限公司，湖北 武汉 430061
5. 杭州地铁集团有限责任公司，浙江 杭州 310020
6. 中天建设集团有限公司，浙江 杭州 310020
Prediction of shield tunnel displacement due to adjacent basement excavation considering continuous deformation of ground
Hong-wei YING1,2,3(),Kang CHNEG1,2,4,Jian-lin YU1,2,*(),Ri-qing XU1,2,Zhi-jian QIU5,Xiao-bo ZHAN6,Jian-she QIN5,Chun-hui LOU1,2
1. Research Center of Coastal and Urban Geotechnical Engineering, Zhejiang University, Hangzhou 310058, China
2. Engineering Research Center of Urban Underground Development of Zhejiang Province, Hangzhou 310058, China
3. Institue of Geotechnical Engineering Science, Hohai University, Nanjing 210098, China
4. China Railway 11th Bureau Group Co. Ltd, Wuhan 430061, China
5. Hangzhou Metro Group Co. Ltd, Hangzhou 310020, China
6. Zhongtian Construction Group Co. Ltd, Hangzhou 310008, China
 全文: PDF(2682 KB)   HTML
摘要：

从工程实际出发，建立考虑基坑坑底及侧壁卸荷作用的基坑开挖引起的附加荷载计算模型；基于Mindlin解给出由基坑开挖所引起的邻近隧道处的竖向附加荷载；引入能考虑隧道任意埋深效应的修正基床反力系数, 将既有隧道简化为搁置于Pasternak地基上的Euler-Bernoulli梁，进而提出基坑开挖下邻近既有隧道响应的简化计算方法. 所提方法能考虑隧道埋深效应以及地基剪切效应，与工程实际更为接近. 通过与三维有限元以及2组已发表工程实测数据的对比，验证所提简化计算方法的合理性与适用性. 针对地基弹性模量、地基剪切模量、隧道纵向等效抗弯刚度、隧道-基坑夹角、隧道埋深、隧道-基坑间距以及基坑几何形状等主要参数对隧道纵向位移的影响进行系统分析. 结果表明：隧道与基坑平行工况下的隧道最大位移是垂直工况下的1.60倍；提高隧道纵向抗弯刚度可以有效减小隧道的最大位移，但这种“削弱作用”会随隧道-基坑间距的增大而减小；随着隧道埋深、隧道-基坑间距的增大，隧道最大位移呈非线性递减规律；基坑的“长开挖”会影响隧道的位移和隧道隆起范围，而“短开挖”则主要影响隧道的位移. 研究成果可以为较为合理地预测既有盾构隧道在邻近基坑开挖下的响应规律提供理论支持.
关键词： 基坑开挖;  隧道竖向位移;  任意埋深;  剪切效应;  长开挖;  短开挖
Abstract:

A simplified vertical additional load calculation model of basement excavation, considering the unloading effect of bottom as well as sidewalls, was established based on the engineering practice. The vertical additional load at adjacent tunnel caused by basement excavation was given based on the Mindlin solution. A simplified calculation method was proposed for the response of tunnel subjected to an adjacent basement excavation, by introducing a modified subgrade reaction coefficient which could consider the arbitrary tunnel buried depth and regarding the existing tunnel as a continuous Euler-Bernoulli beam resting on Pasternak foundation. The proposed method could consider the effect of tunnel buried depth as well as the ground shear effect, closer to the engineering practice. The rationality and the applicability of the proposed method were verified by comparing it with the three-dimensional finite element method, as well as two groups of published engineering measured data. The main parameters such as elastic modulus and shear modulus of ground, the longitudinal equivalent bending stiffness of tunnel, the angle between tunnel and excavation, the embedded depth of the tunnel, the distance between tunnel and excavation as well as the geometric shape of excavation were all systematically studied. Results indicate that the maximum tunnel vertical displacement, when the tunnel was parallel to the excavation, was 1.60 times of that when the tunnel was perpendicular to the excavation. The maximum displacement of the tunnel can be effectively reduced by increasing the longitudinal bending rigidity of the tunnel, but this “reducing effect” will decrease with the increasing distance between the excavation and the tunnel. The maximum displacement of the tunnel exhibits a non-linear decreasing law with the increase of the tunnel buried depth and the distance between tunnel and excavation. The "long excavation" will affect the displacement and the uplift range of the tunnel, while the "short excavation" mainly affects the tunnel displacement. Results could provide some theoretical support for reasonably predicting the response of existing tunnel due to adjacent excavation.
Key words: basement excavation    tunnel vertical displacement    arbitrary depth    shear effect    long excavation    short excavation
收稿日期: 2019-11-29 出版日期: 2021-03-09
CLC:  TU 375.2
基金资助: 国家自然科学基金资助项目（41672264，51678523）；浙江省重点研发计划资助项目（2019C03103）
通讯作者: 俞建霖     E-mail: ice898@zju.edu.cn;yujianlin72@126.com
作者简介: 应宏伟（1971—），男，教授，从事土与结构相互作用研究. orcid.org/0000-0003-2079-6504. E-mail： ice898@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
应宏伟
程康
俞建霖
徐日庆
裘志坚
詹晓波
秦建设
楼春晖

引用本文:

应宏伟,程康,俞建霖,徐日庆,裘志坚,詹晓波,秦建设,楼春晖. 考虑地基变形连续的基坑开挖诱发邻近盾构隧道位移预测[J]. 浙江大学学报(工学版), 2021, 55(2): 318-329.

Hong-wei YING,Kang CHNEG,Jian-lin YU,Ri-qing XU,Zhi-jian QIU,Xiao-bo ZHAN,Jian-she QIN,Chun-hui LOU. Prediction of shield tunnel displacement due to adjacent basement excavation considering continuous deformation of ground. Journal of ZheJiang University (Engineering Science), 2021, 55(2): 318-329.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.02.012    或    http://www.zjujournals.com/eng/CN/Y2021/V55/I2/318

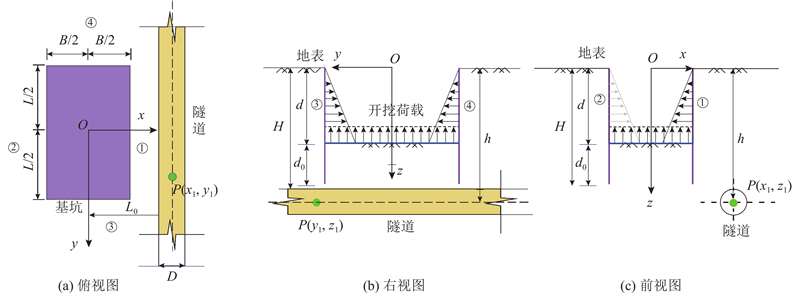

图 1  基坑开挖对邻近隧道影响计算模型

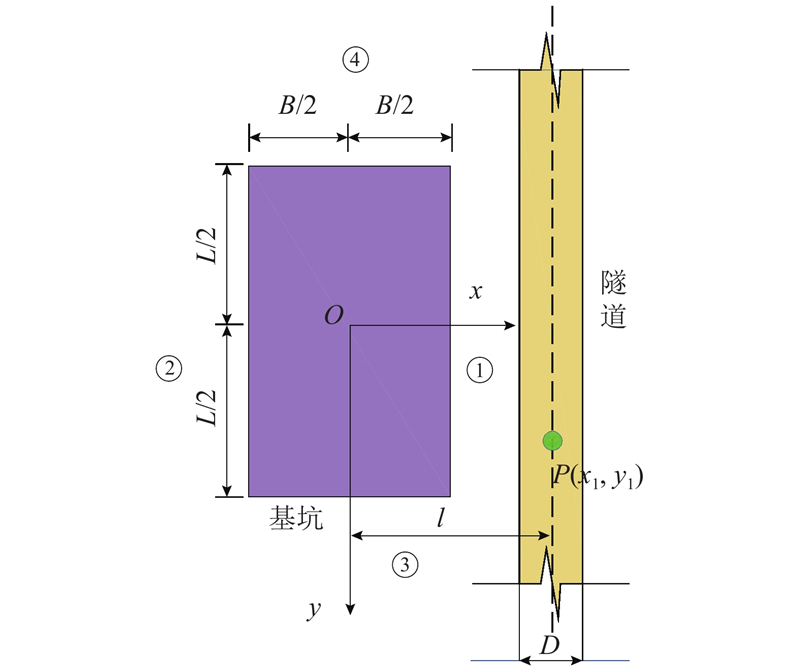

图 2  基坑与下卧隧道相对位置平面图

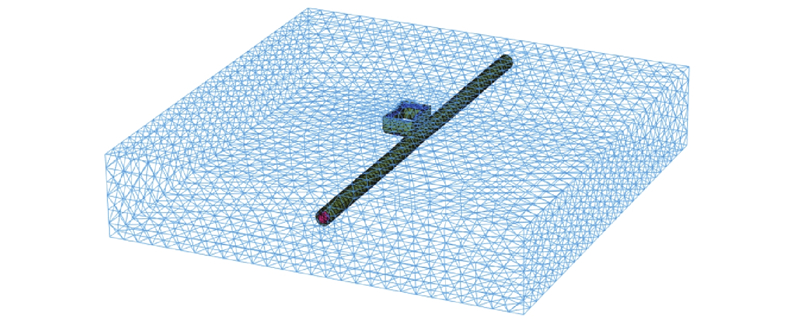

图 3  基坑-隧道相互作用的三维有限元模型
D /mm ls /m t /m Ec /MPa m lb /mm Eb /MPa (EI)eq /(MN·m2)
6200 1.2 0.35 3.45×104 17 400 20.6×105 78000
表 1  隧道管片参数
土层 $E_{50}^{{\rm{ref}}}/{\rm{MPa} }$ $E_{{\rm{oed}}}^{{\rm{ref}}}\;/{\rm{MPa} }$ $E_{ {\rm{ur} } }^{{\rm{ref}}}/{\rm{MPa} }$ $G_0^{{\rm{ref}}}/{\rm{MPa} }$ γ0.7 Rf c′ /kPa φ′ /(°) D0 /m
黏土 4 4 12 36 0.0001 0.9 6 20 50
表 2  土层物理力学参数
图 4  有限元与本研究方法计算位移对比

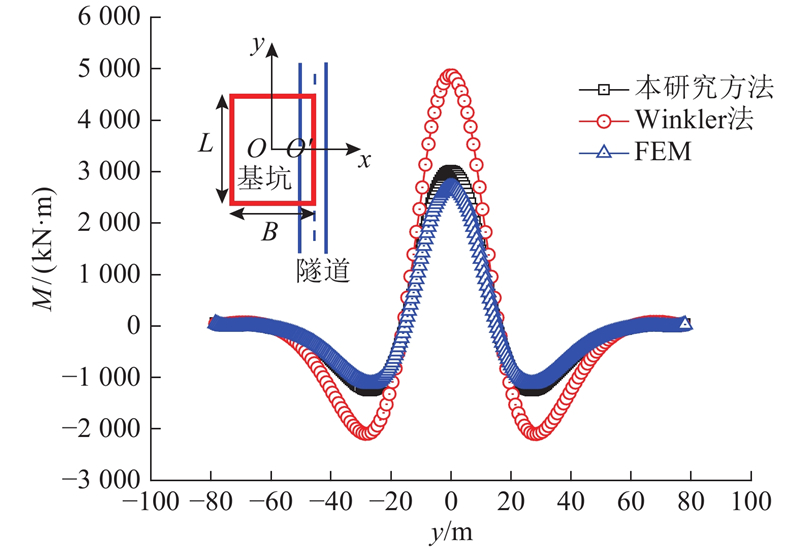

图 5  有限元与本研究方法计算弯矩对比

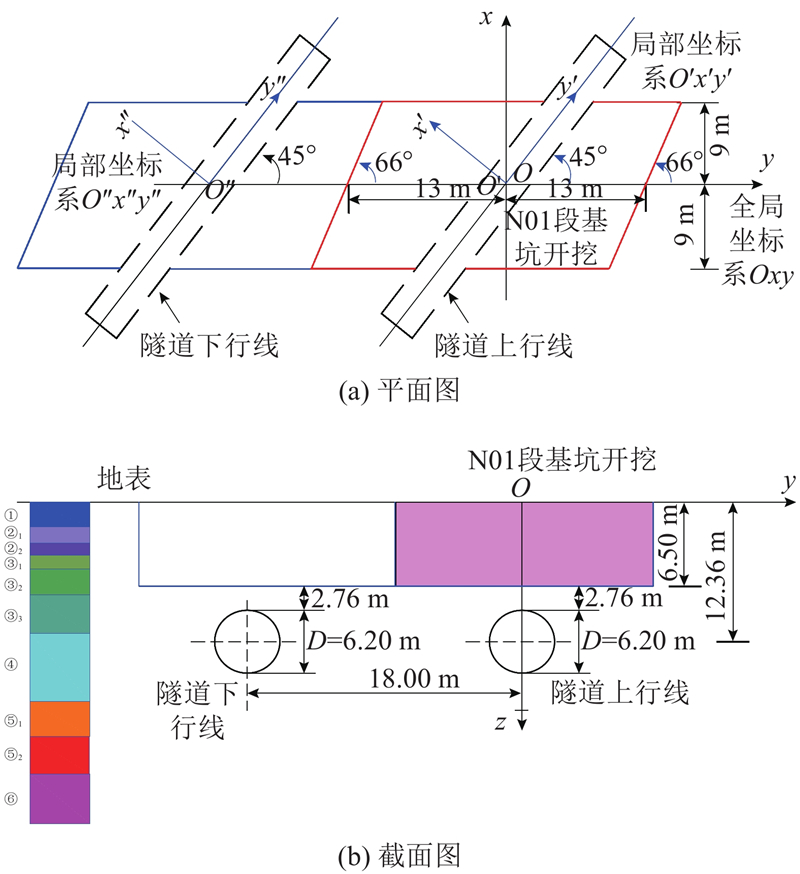

图 6  隧道-基坑相对位置示意图
土层 h /m γ /(kN?m?3) Es0.1?0.2 /MPa $\nu $
①人工填土 1.82 18.5 ? ?
②-1褐黄色粉质黏土 1.13 18.4 6.34 0.40
②-2灰黄色粉质黏土 0.82 17.7 4.43 0.30
③-1灰色淤泥质粉质黏土 1.08 17.7 4.43 0.30
③-2灰色砂质粉土 2.28 18.3 9.72 0.35
③-3灰色淤泥质粉质黏土 2.46 17.2 3.63 0.35
④灰色淤泥质黏土 8.70 16.6 2.27 0.35
⑤-1 灰色黏土 2.41 17.9 4.07 0.40
⑤-2灰色粉质黏 3.89 18.1 4.55 0.40
⑥暗绿草黄色粉质黏土 4.25 19.4 6.09 0.35
表 3  场地土层参数

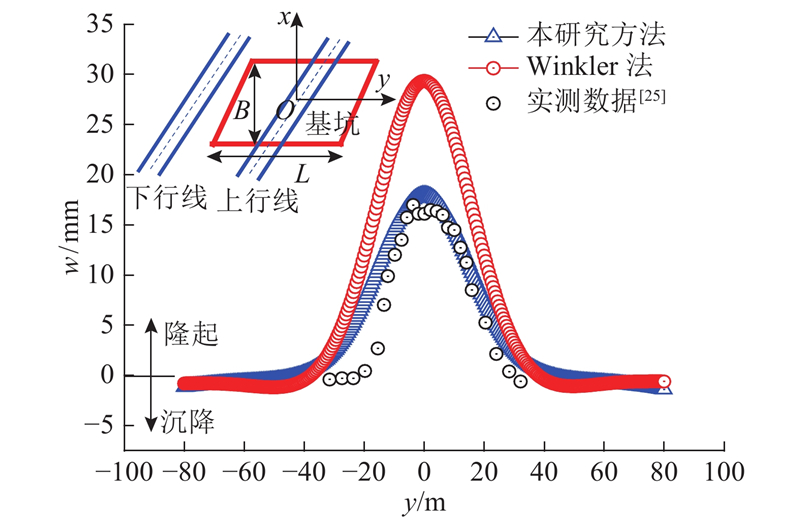

图 7  上行线位移实测结果及计算结果对比曲线

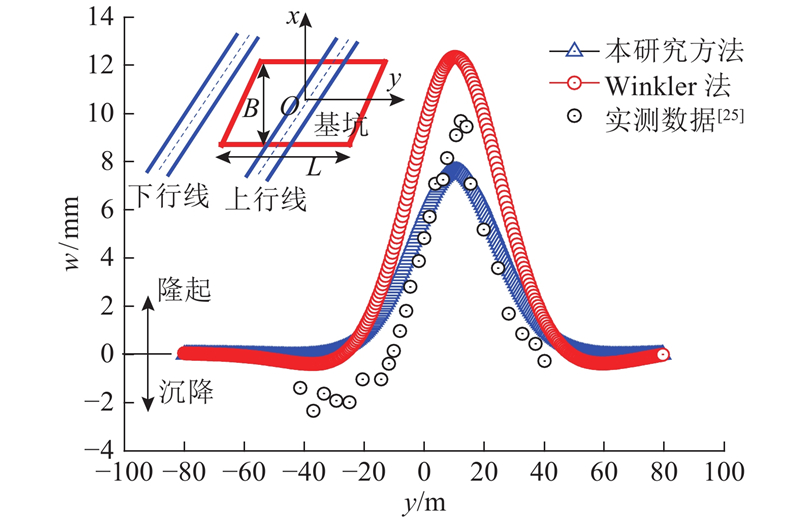

图 8  下行线位移实测结果及计算结果对比曲线
图 9  隧道-基坑相对位置示意图
图 10  基坑与下卧隧道不同交角下隧道位移变化曲线

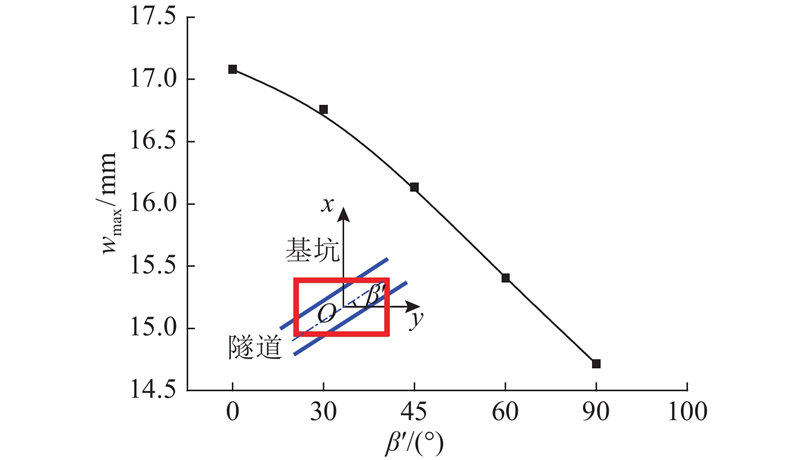

图 11  基坑与下卧隧道不同交角下隧道最大位移变化曲线
图 12  不同埋深下的隧道位移曲线

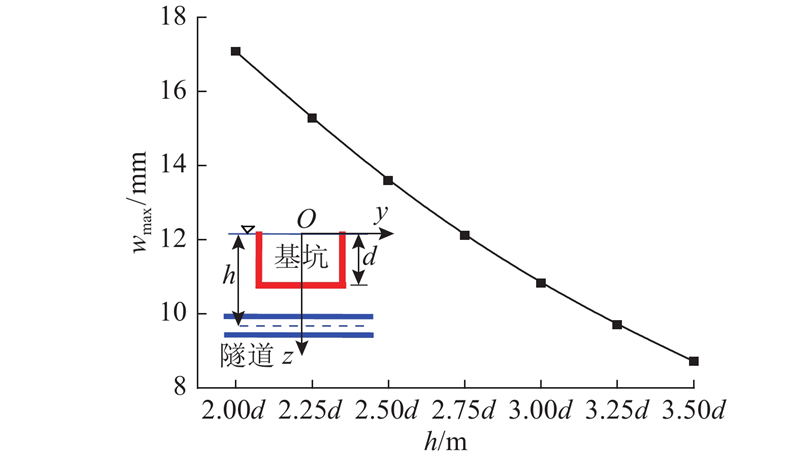

图 13  不同埋深下隧道最大位移曲线图

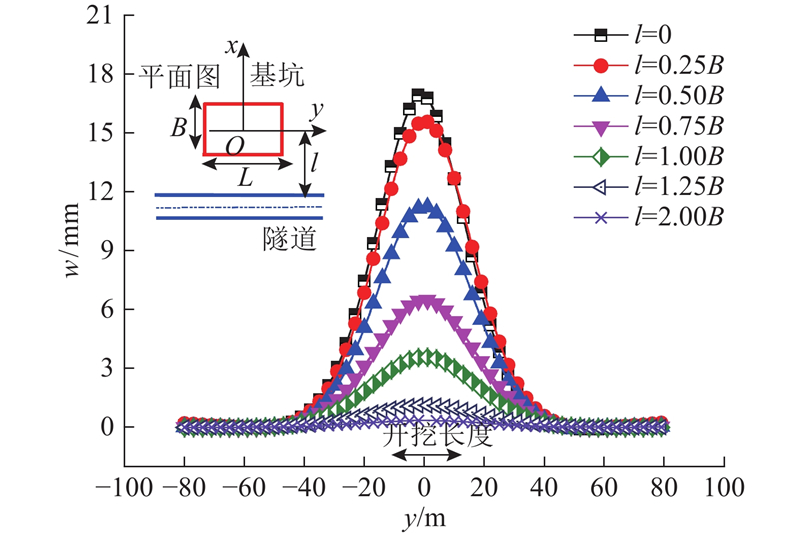

图 14  隧道与基坑不同间距下的隧道位移曲线

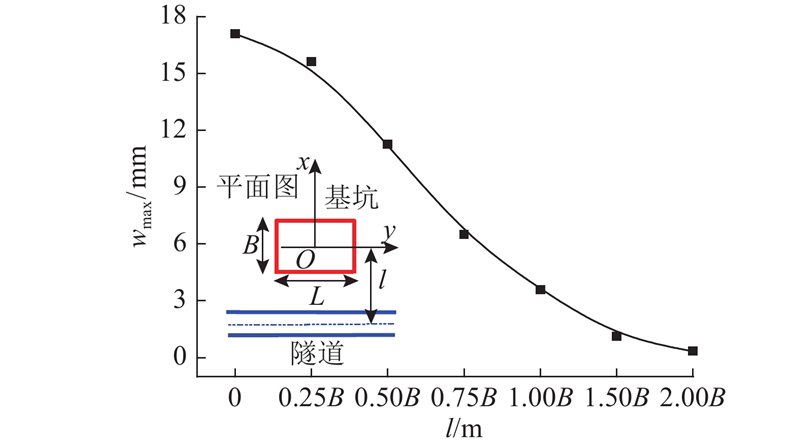

图 15  隧道与基坑不同间距下的隧道最大位移曲线

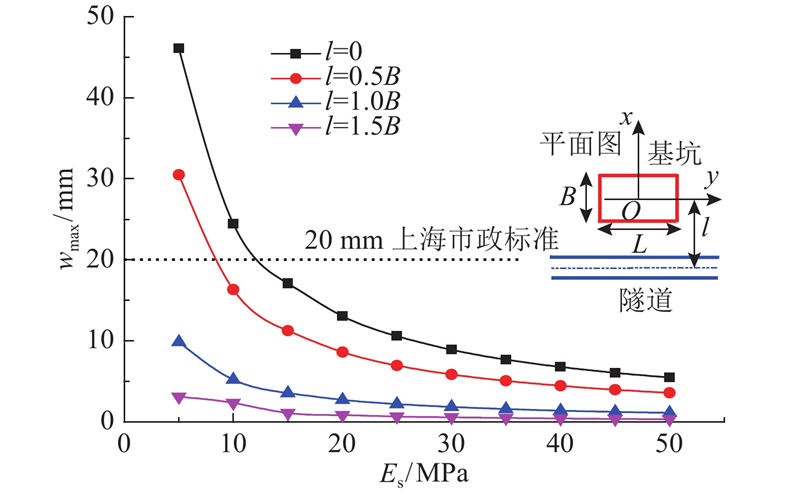

图 16  地基不同弹性模量下的隧道最大位移曲线

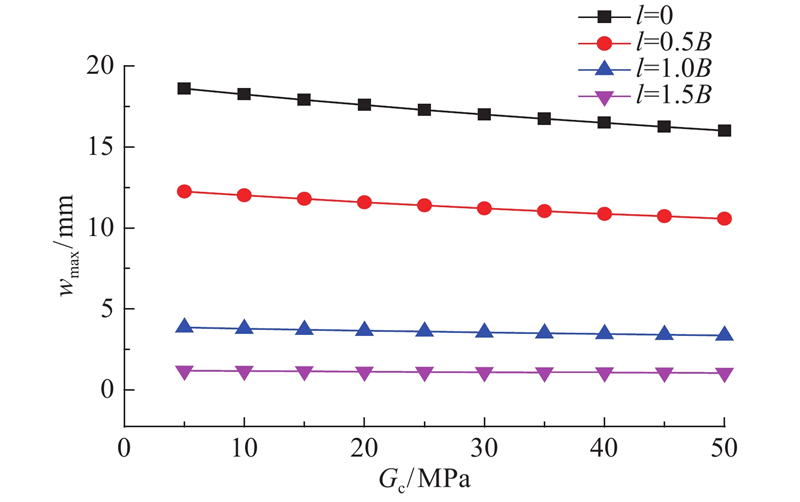

图 17  地基剪切层不同剪切刚度下隧道最大位移曲线
图 18  不同等效抗弯刚度下的隧道最大位移曲线

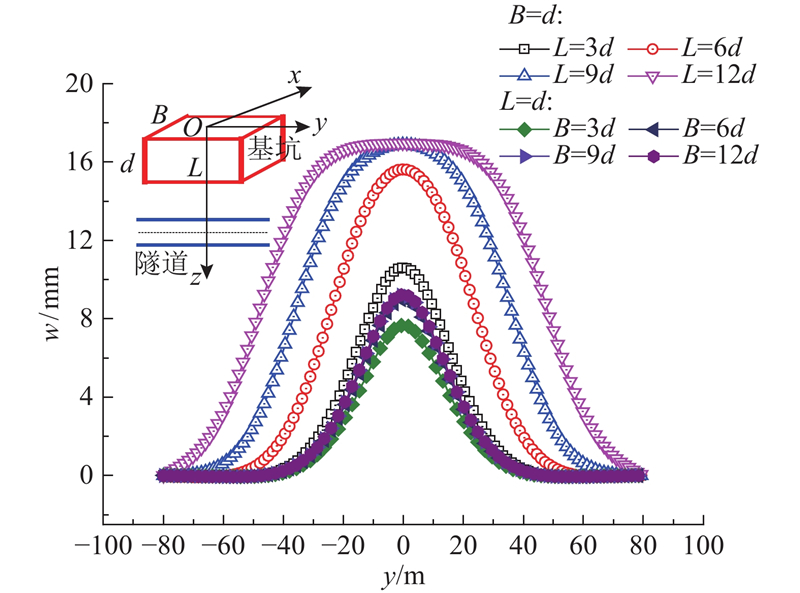

图 19  不同基坑开挖形状下的隧道位移曲线

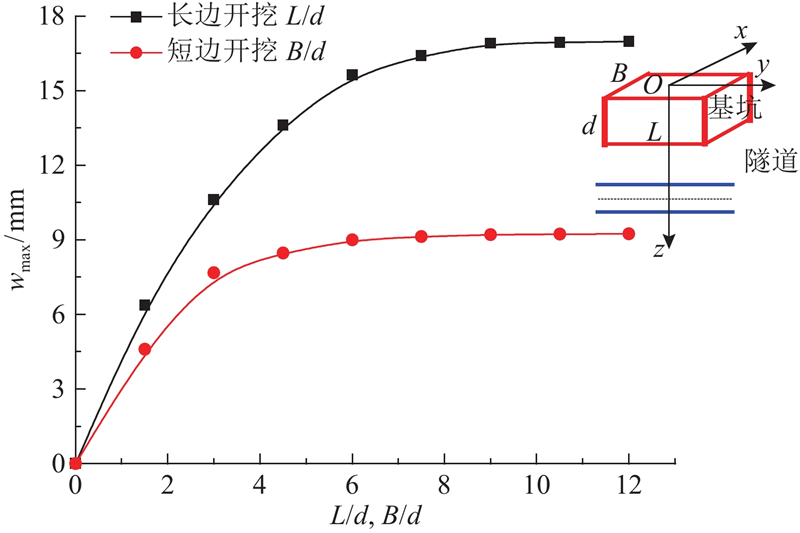

图 20  基坑不同开挖形状下的隧道最大位移曲线
