基于迁移学习的机械制图智能评阅方法
高一聪1(),王彦坤1,费少梅1,林琼2,*()
1. 浙江大学 流体动力与机电系统国家重点实验室，浙江 杭州 310027
2. 浙江工业大学 机械工程学院，浙江 杭州 310014
Intelligent proofreading method of engineering drawing based on transfer learning
Yi-cong GAO1(),Yan-kun WANG1,Shao-mei FEI1,Qiong LIN2,*()
1. State Key Laboratory of Fluid Power and Mechatronic Systems, Zhejiang University, Hangzhou 310027, China
2. College of Mechanical Engineering, Zhejiang University of Technology, Hangzhou 310014, China
 全文: PDF(2419 KB)   HTML
摘要：

针对机械图样几何特征种类多、线条线型易混淆、人工制图风格多样导致校对效率低、误检、漏检等问题，提出基于迁移学习的机械制图智能评阅方法. 对机械图样进行预处理，采用改进的阀值迭代算法去除背景、噪点和干扰，完成图样图像的分割，提取机械图样的特征投影图像. 通过训练源领域图片的特征提取器，将特征提取器的网络权值迁移到机械图样评阅模型中，完成相似领域的知识迁移. 训练逻辑回归分类器，建立基于神经网络权重参数自适应的智能评阅模型，对几何特征、投影特征、图线、剖面符号等机械图样的制图标准要素进行识别. 实验结果表明，所提出的机械制图智能评阅方法具有较高的错误识别率和鲁棒性能，单个测试样本平均评阅时间为0.95 s，机械图样的平均评阅正确率为98.82%；与人工评阅相比，所提方法能够在提高评阅效率的同时具有较高准确率.
关键词： 智能评阅;  仪器制图;  迁移学习;  机械图样;  机器学习
Abstract:

There are many problems in mechanical drawings, such as thousands of geometric features, confusing line styles and various manual drawing styles, which lead to low proofreading efficiency, false picking and missing inspection. Aiming at the above problem, an intelligent proofreading method of mechanical drawings based on transfer learning was presented. Firstly, the mechanical drawings were preprocessed, an improved threshold iterative algorithm was used to remove the background, noise and interference, and then the projections of mechanical drawings were obtained by segmentation operations. Secondly, by training the feature extractor of the source domain image, the network weight of the feature extractor was transferred to the mechanical drawing evaluation model and the knowledge transfer of similar domain was completed. Finally, the logistic regression classifier was trained and the intelligent evaluation model was established based on self-adjustment of neural network weight parameter. The standard elements of a mechanical drawing such as geometric feature, projection feature, line and section plane symbols were recognized. Experimental results show that the average proofreading time was 0.95 s, and the average judgement accuracy of engineering drawing was 98.82%. Compared with human proofreading of mechanical drawings, the proposed method has higher efficiency and accuracy.
Key words: intelligent proofreading    instrument tool drawing    transfer learning    mechanical drawing    machine learning
收稿日期: 2021-06-08 出版日期: 2022-05-31
CLC:  TN 911.73
基金资助: 国家自然科学基金资助项目(51975386)；浙江省自然科学基金资助项目(LS18G03006)；中国博士后科学基金资助项目（2021M690312）；浙江大学本科教学研究项目(zdjg21052)；湖州市自然科学基金资助项目(2019YZ09)
通讯作者: 林琼     E-mail: gaoyicong@zju.edu.cn;waglin@zjut.edu.cn
作者简介: 高一聪（1982—），男，副教授，博士，从事产品正向设计理论与方法，智能结构创新设计研究. orcid.org/0000-0002-1987-0431. E-mail: gaoyicong@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
高一聪
王彦坤
费少梅
林琼

引用本文:

高一聪,王彦坤,费少梅,林琼. 基于迁移学习的机械制图智能评阅方法[J]. 浙江大学学报(工学版), 2022, 56(5): 856-863, 889.

Yi-cong GAO,Yan-kun WANG,Shao-mei FEI,Qiong LIN. Intelligent proofreading method of engineering drawing based on transfer learning. Journal of ZheJiang University (Engineering Science), 2022, 56(5): 856-863, 889.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2022.05.002    或    https://www.zjujournals.com/eng/CN/Y2022/V56/I5/856

图 1  机械图样的原始图像与预处理

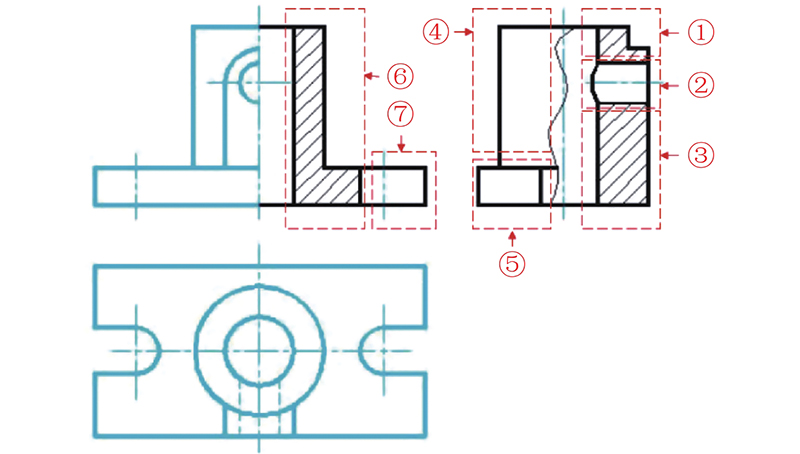

图 2  机械制图的评阅标准
图 3  机械图样的特征分割

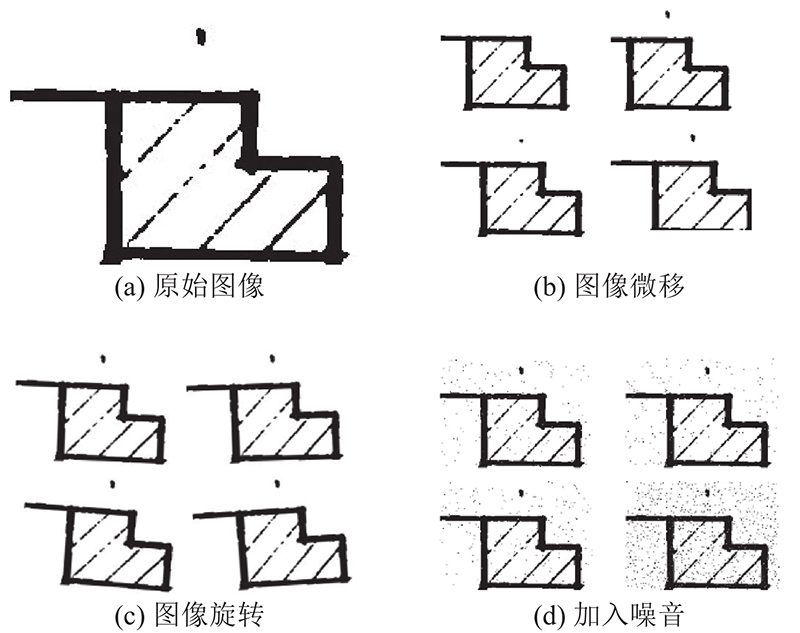

图 4  数据增强操作后的样本

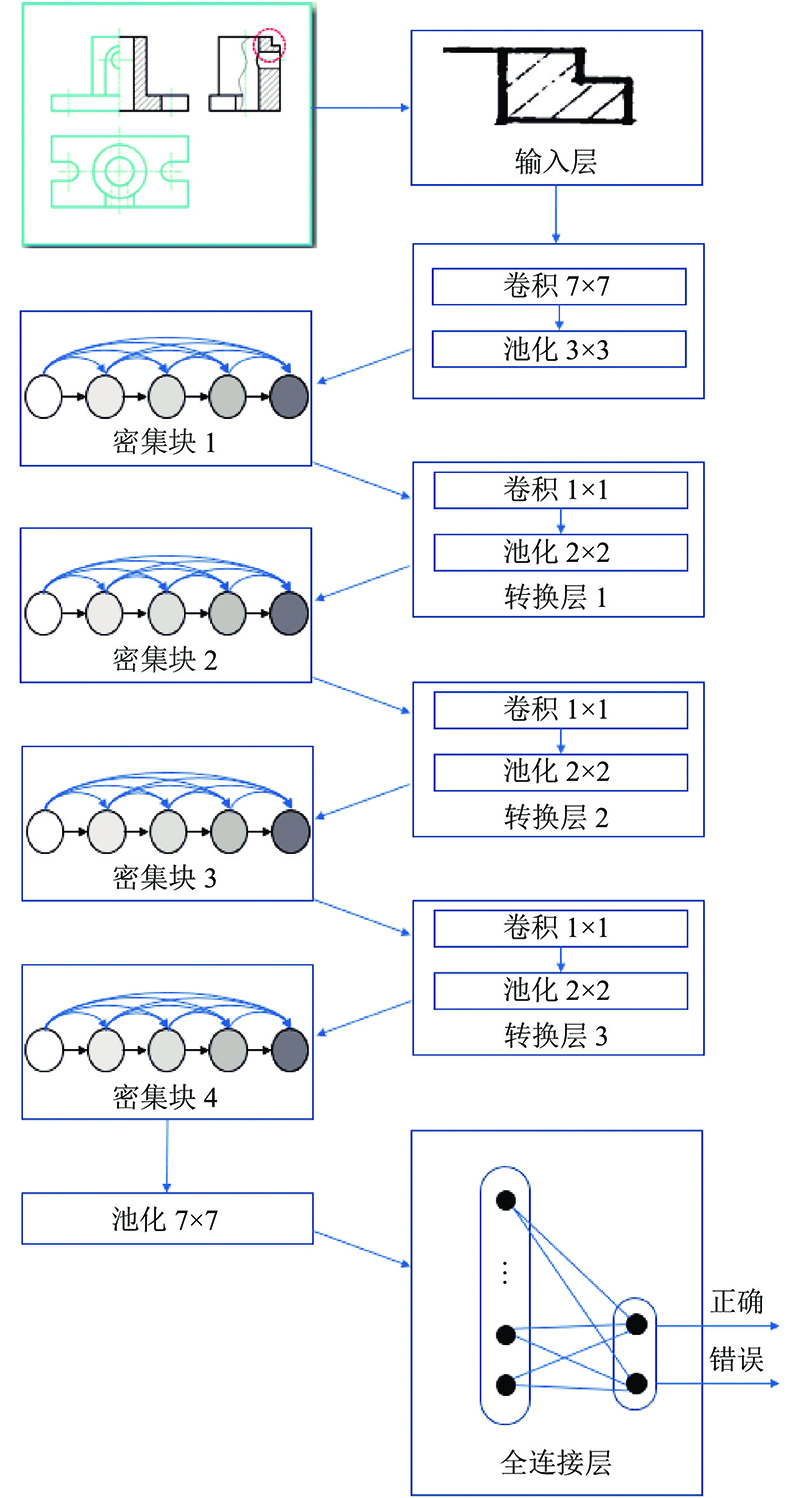

图 5  DenseNet121模型结构图

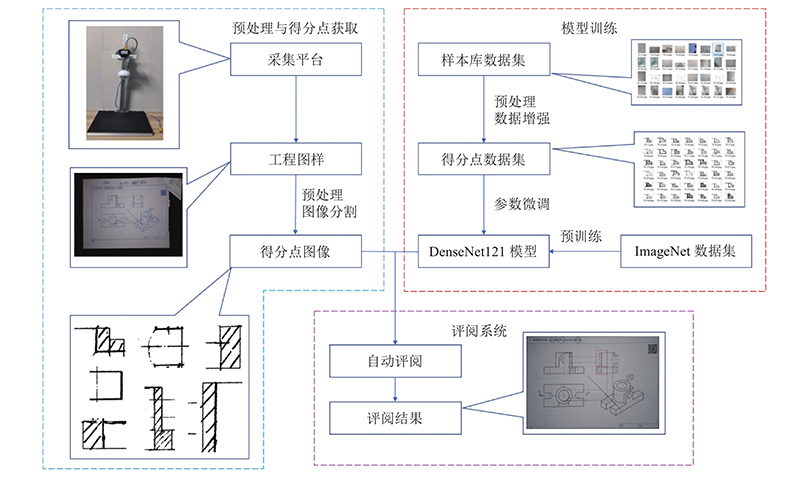

图 6  基于迁移学习的机械制图智能评阅方法流程图

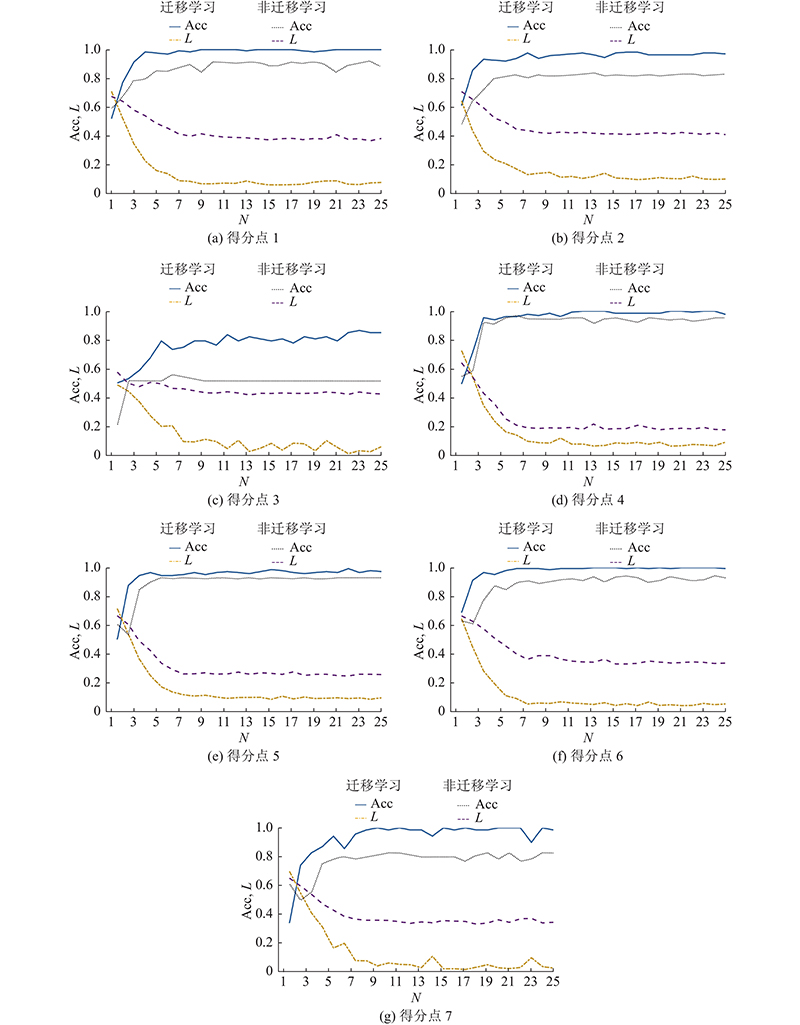

图 7  使用迁移学习和非迁移学习的损失值和准确率对比
得分
点编号 		ntra Acc/%
DenseNet121
（无迁移
学习） 		VGG16
（使用迁
移学习） 		ResNet18
（使用迁
移学习） 		DenseNet121
（使用迁
移学习）
1 80 81.11 95.56 94.44 94.44
150 88.10 95.56 97.78 97.78
2 80 77.78 90.85 89.63 91.64
150 81.25 97.48 93.71 98.11
3 80 75.00 82.89 76.32 84.21
150 75.68 83.67 86.49 89.19
4 80 94.32 95.45 93.18 97.73
150 95.83 95.83 97.22 98.61
5 80 88.89 95.15 96.12 95.15
150 93.07 97.03 97.03 97.03
6 80 91.21 96.04 94.06 98.90
150 97.80 100.00 100.00 100.00
7 80 82.91 91.45 90.60 94.02
150 84.42 98.29 97.44 97.44
表 1  4种模型无迁移学习和使用迁移学习的识别结果对比

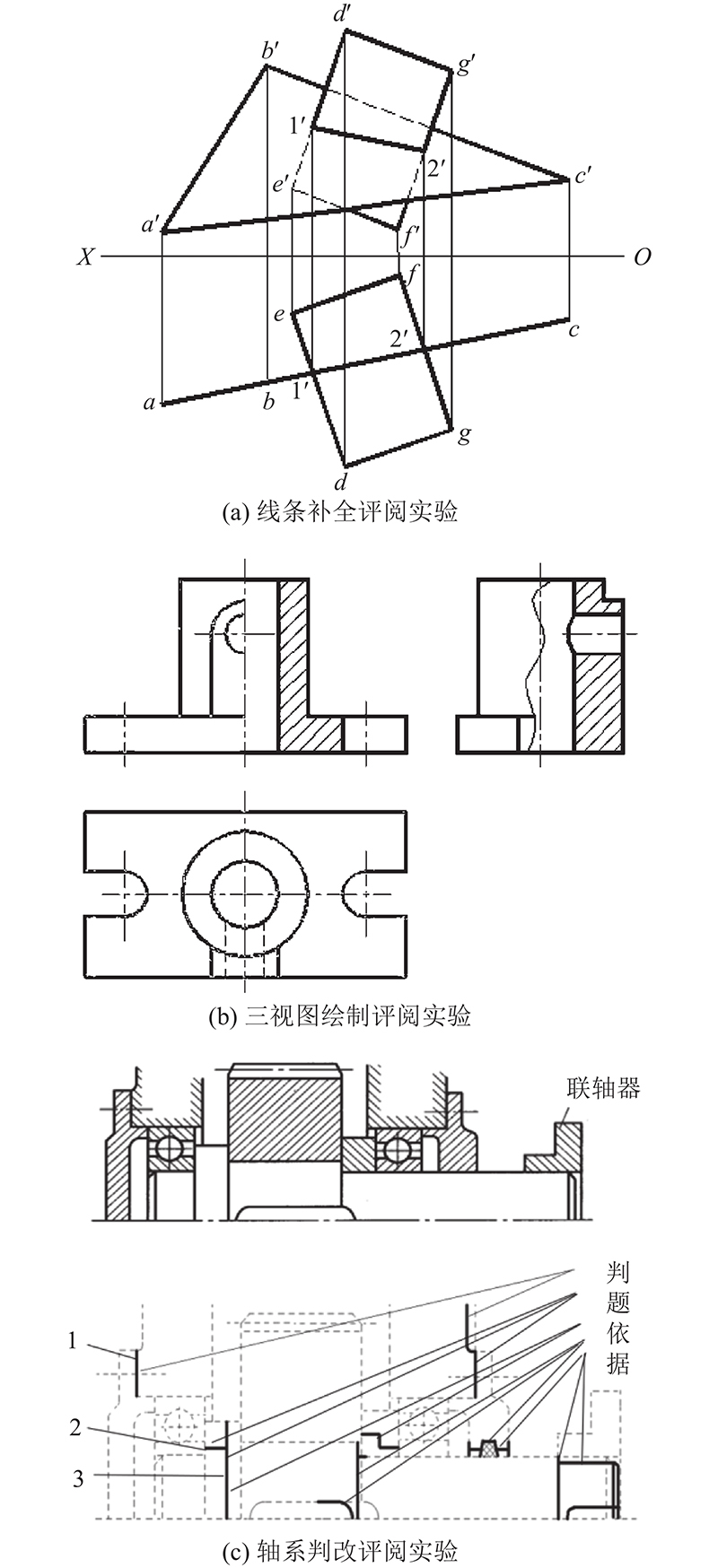

图 8  评阅实验缩略图
