基于迁移学习与深度森林的晶圆图缺陷识别
沈宗礼(),余建波*()
同济大学 机械与能源工程学院，上海 201804
Wafer map defect recognition based on transfer learning and deep forest
Zong-li SHEN(),Jian-bo YU*()
School of Mechanical Engineering, Tongji University, Shanghai 201804, China
 全文: PDF(1461 KB)   HTML
摘要：

为了有效识别晶圆图缺陷模式并及时诊断制造过程的故障源，提出基于迁移学习和深度森林集成的DenseNet-GCForest晶圆图缺陷模式识别模型. 为了解决深度学习模型训练困难和晶圆图缺陷类型数目不平衡的问题，利用迁移学习将深度卷积神经网络DenseNet在ImageNet上预训练的网络权重参数迁移至本模型并重新设计分类层，以减少深度网络模型的训练时间并提高模型的特征提取能力；基于DenseNet网络提取的高维抽象晶圆图特征，引入深度森林模型进行晶圆图特征缺陷模式识别. 工业案例的实验验证结果表明，该方法的识别准确率达到了96.8%，并提高了识别效率，其性能优于典型的卷积神经网络以及其他常用识别方法.
关键词： 半导体制造;  晶圆缺陷;  迁移学习;  卷积神经网络;  深度森林
Abstract:

A wafer map pattern recognition (WMPR) model was proposed based on transfer learning and deep forest, in order to identify the defect pattern of the wafer maps and to timely diagnose the source of the fault in the manufacturing process. Transfer learning was used to migrate the network weight parameters of the deep CNN DenseNet pre-trained on ImageNet to this model, and the classification layer of the model was redesigned, in order to solve the problems of difficulties of deep learning model training and imbalance in the number of defect types in wafer maps. Thus, the training time of the model was reduced and the feature extraction ability was improved. Deep forest model was introduced to identify the wafer defect pattern, based on the abstract features of the wafer maps extracted by DenseNet. The experimental results on an industrial case demonstrated that the average recognition rate was about 96.8%. This method can improve the recognition efficiency and its performance is better than those well-known CNNs and other typical classifiers.
Key words: semiconductor manufacturing    wafer defect    transfer learning    CNN    deep forest
收稿日期: 2019-04-30 出版日期: 2020-07-06
CLC:  TP 391.41
基金资助: 国家自然科学基金资助项目 (71777173)；上海科委“科技创新行动计划”高新技术领域资助项目（19511106303）；中央高校基本科研业务费资助项目（22120180068，22120190196）
通讯作者: 余建波     E-mail: 979949752@qq.com;jbyu@tongji.edu.cn
作者简介: 沈宗礼(1996—)，男，硕士生，从事深度学习与故障诊断研究. orcid.org/0000-0002-0503-1709. E-mail： 979949752@qq.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
沈宗礼
余建波

引用本文:

沈宗礼,余建波. 基于迁移学习与深度森林的晶圆图缺陷识别[J]. 浙江大学学报(工学版), 2020, 54(6): 1228-1239.

Zong-li SHEN,Jian-bo YU. Wafer map defect recognition based on transfer learning and deep forest. Journal of ZheJiang University (Engineering Science), 2020, 54(6): 1228-1239.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.06.021    或    http://www.zjujournals.com/eng/CN/Y2020/V54/I6/1228

图 1  Dense Block 密集连接模块框架

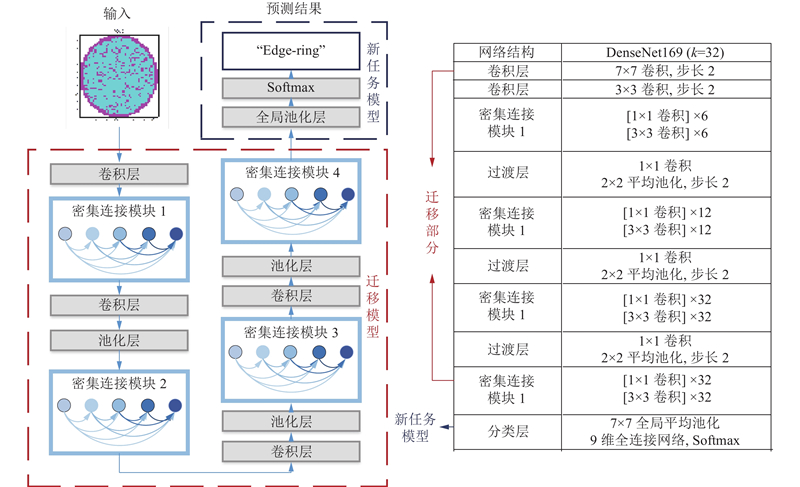

图 2  基于迁移学习的DenseNet网络结构
图 3  GCForest的类向量生成

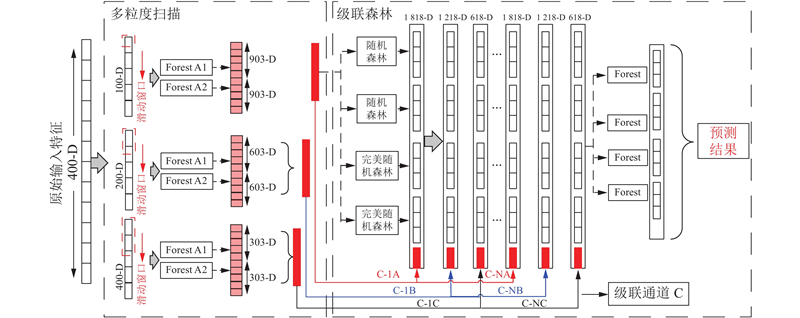

图 4  深度森林网络结构（以400维输入为例）

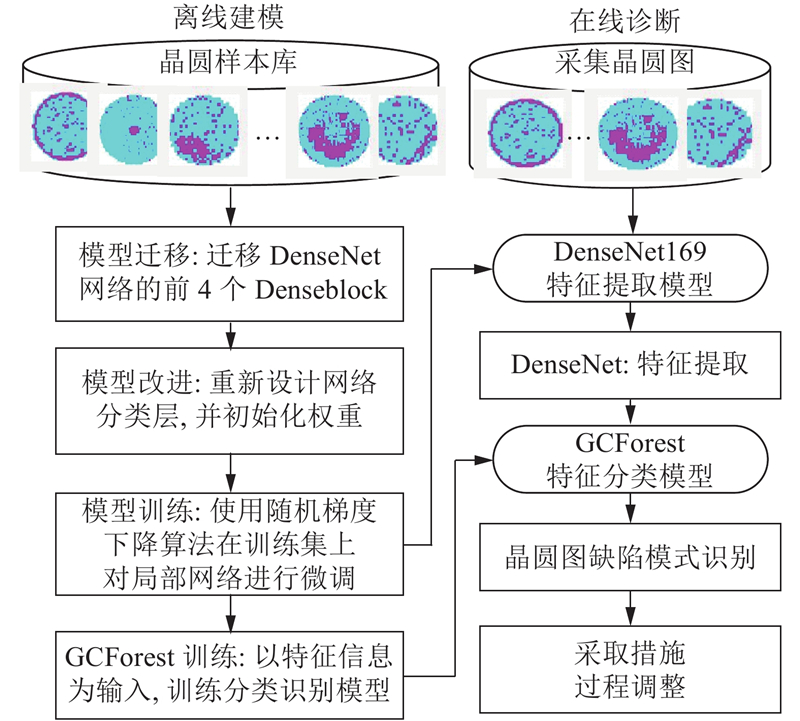

图 5  DenseNet-GCForest晶圆图缺陷识别流程
图 6  正常晶圆图模式与8种缺陷模式
图 7  晶圆缺陷类型数量统计

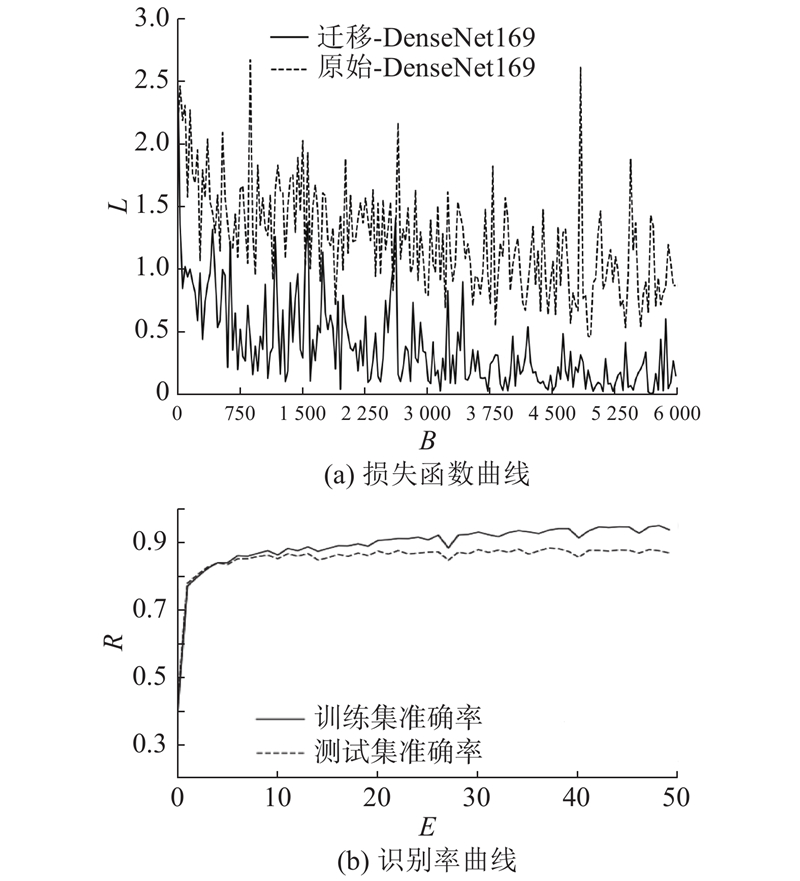

图 8  基于迁移学习的DenseNet169的训练过程
图 9  晶圆图多级网络输出特征

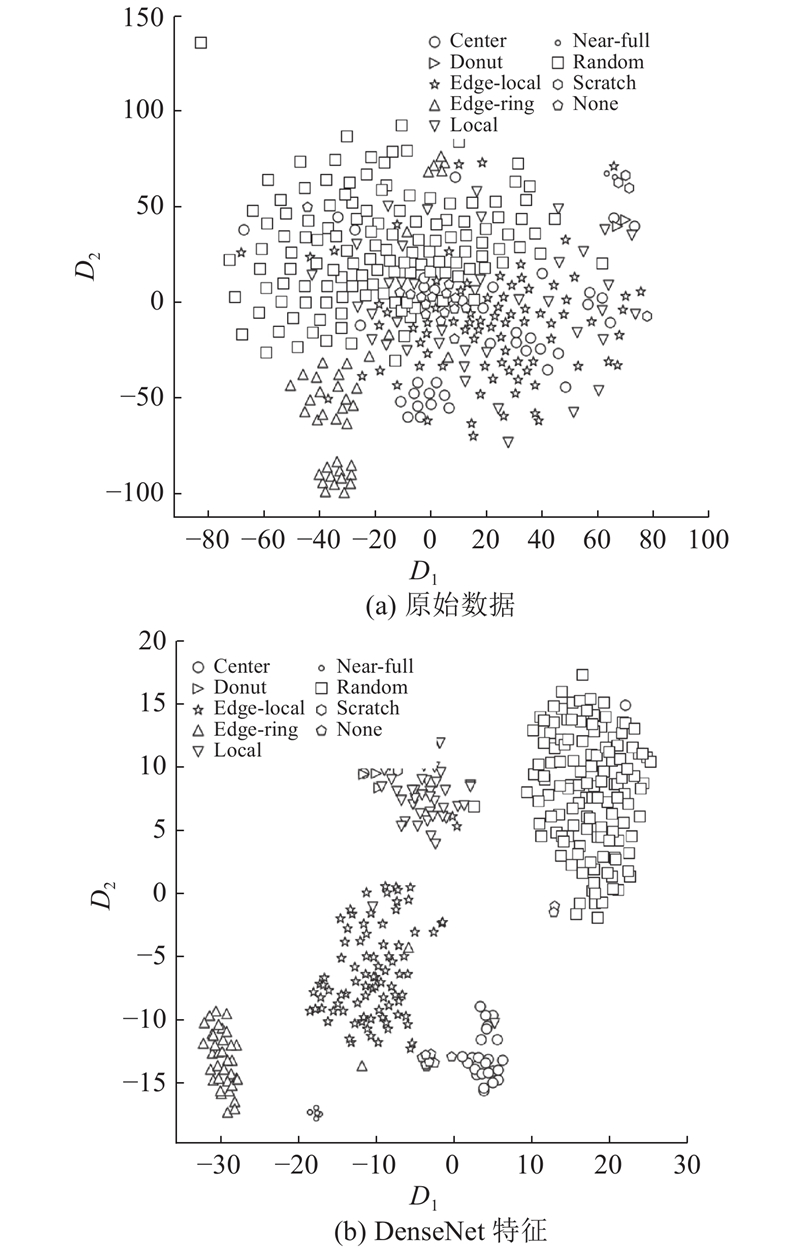

图 10  原始数据和DenseNet特征的可视化分析
%
预测真实 None Center Donut Edge-local Edge-ring Local Near-full Random Scratch
None 99.59 0.00 0 0.28 0 0 0 0 0.14
Center 0.83 97.52 0 0.83 0 0 0 0 0.83
Donut 0 0 94.74 0 0 5.26 0 0 0
Edge-local 0.86 0.29 0 96.83 0.29 1.44 0 0.29 0
Edge-ring 0 0 0 4.91 95.09 0 0 0 0
Local 0.75 0.38 0 1.51 0 96.23 0 0.75 0.38
Near-full 0 0 0 0 0 0 94.12 5.88 0
Random 0 2.56 0 0 2.56 5.13 2.56 87.18 0
Scratch 1.25 0 0 1.25 0 3.75 0 0 93.75
表 1  Densenet-GCForest晶圆缺陷识别率混淆矩阵

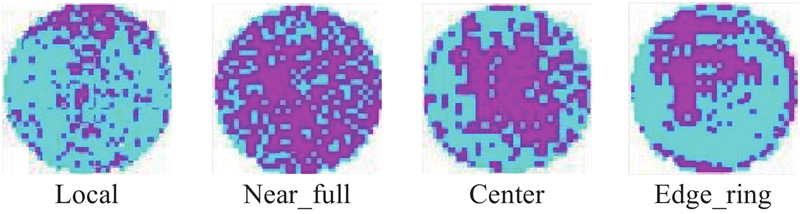

图 11  Random类的误识别情况
参数名称 参数大小 Racc/%
滑动窗口大小 400 97.31
700 96.7
1 000 96.2
1 300 96.4
1 664 96.2
决策树生成的
最小样本数 		0 96.2
0.1 96.7
0.2 96.2
0.3 95.8
0.4 95.4
决策树生成的
允许误差 		0 96.2
0.1 96.7
0.2 96.2
0.3 95.8
0.4 95.4
扫描层随机森林的
决策树数量 		200 96.9
400 95.8
600 97.0
800 96.7
1 000 96.0
表 2  GCForest识别器参数灵敏度分析
%
实验方法 缺陷类别 Racc Rrec F
DenseNet-GCForest Center 97.5 97.5 97.5
Donut 100 94.7 97.3
Edge_local 95.5 96.8 96.1
Edge_ring 98.7 95.1 96.9
Local 95.9 96.2 96.0
Near_full 94.1 94.1 94.1
None 99.0 99.6 99.3
Random 89.5 87.2 88.3
Scratch 96.2 93.8 94.9
GoogleNet Center 72.2 34.5 46.7
Donut 59.1 43.3 50.0
Edge_local 63.9 79.8 71.0
Edge_ring 93.4 87.6 90.4
Local 57.3 48.8 52.7
Near_full 93.3 93.3 93.3
None 90.6 92.9 91.7
Random 85.4 92.1 88.6
Scratch 81.7 81.7 81.7
ResNet Center 85.0 77.1 80.9
Donut 47.2 81.0 59.6
Edge_local 87.6 81.4 84.4
Edge_ring 94.3 86.6 90.3
Local 81.7 68.6 74.6
Near_full 75.0 75.0 75.0
None 89.9 99.3 94.4
Random 88.2 73.2 80.0
Scratch 59.5 71.0 64.4
DenseNet Center 76.4 85.5 80.7
Donut 95.2 64.5 76.9
Edge_local 79.7 91.2 85.0
Edge_ring 96.1 81.5 88.2
Local 82.1 66.8 73.6
Near_full 91.7 100 95.7
None 95.2 99.3 97.2
Random 86.4 65.5 74.5
Scratch 81.5 72.6 76.8
Decision TreeEnsemble Center 95.6 93.75 94.7
Donut 92.6 92.3 92.4
Edge_local 83.5 87.3 85.4
Edge_ring 86.8 91.1 88.9
Local 83.5 82.3 82.9
Near_full 89.4 91.7 90.5
None 100 99.5 99.7
Random 91.7 87.3 88.4
Scratch 86.0 88.5 87.2
SDAE Center 98.5 87.3 92.6
Donut 87.6 89.1 88.4
Edge_local 87.5 85.4 86.4
Edge_ring 98.8 94.7 96.7
Local 83.5 55.8 66.9
Near_full 85.3 96.2 90.4
None 99.0 98.7 98.9
Random 93.3 89.3 91.2
Scratch 81.7 39.6 53.3
表 3  DenseNet-GCForest算法的对比实验结果
分类器 Racc/% 分类器 Racc/%
DenseNet-GCForest 96.8 GCForest 73.7
C4.5 Ensemble 90.8 RF 68.9
SDAE 89.4 SVML 72.5
DenseNet 88.6 SVMG 40.2
GoogleNet 74.3 KNN 30.1
ResNet 86.5 C4.5 62.4
表 4  五折交叉识别率对比
分类器 Racc/% 分类器 Racc/%
GCForest 96.8 SVMG 95.5
BPN 85.1 KNN 92.6
RF 95.1 C4.5 87.2
SVML 95.6 ? ?
表 5  基于DenseNet特征的多种识别器五折交叉识别率对比
