浙江大学学报(工学版)  2019, Vol. 53 Issue (9): 1728-1740    DOI: 10.3785/j.issn.1008-973X.2019.09.012
计算机科学与人工智能
采用卷积自编码器网络的图像增强算法
王万良(),杨小涵,赵燕伟,高楠,吕闯,张兆娟
浙江工业大学 计算机科学与技术学院,机械工程学院,浙江 杭州 310023
Image enhancement algorithm with convolutional auto-encoder network
Wan-liang WANG(),Xiao-han YANG,Yan-wei ZHAO,Nan GAO,Chuang LV,Zhao-juan ZHANG
School of Computer Science and Technology, College of Mechanical Engineering, Zhejiang University of Technology, Hangzhou 310023, China
 全文: PDF(2256 KB)   HTML
摘要:

将图像增强方法低光网络(LLNet)应用于实际场景下的彩色图像时会产生大量冗余参数,为此基于LLNet提出卷积自编码器网络(CAENet)的图像增强方法. 将LLNet方法中的低光处理模块与网络训练衔接在一起;采用卷积网络代替传统自编码器的编码和解码方式. 实验结果表明:CAENet能够有效节约时间成本,减少网络参数,使网络训练更加高效,得到更好的图像低维表示. 在Corel5k数据集上的实验效果表明,CAENet在减少网络参数的同时,能有效提高图像光感和色感;在高分辨率数据集上的实验结果表明,针对图像细节方面,CAENet能够保留细节不失真;针对含噪低光图像,CAENet能在增强图像的同时达到去噪的效果,证明CAENet具有较强的鲁棒性.

关键词: 图像处理图像增强深度学习卷积神经网络降噪自编码器
Abstract:

When the image enhancement method LLNet (the low-light net) was applied to three-channel images, there're a lot of redundant parameters. To solve this problem, a framework called CAENet (convolutional auto-encoder network) was proposed. Firstly, CAENet combined a low light processing module with a network training module. Secondly, in the encoding and decoding stages, CAENet used a convolutional network to replace the traditional fully connected network. The experimental results show that connecting low-light processing modules with network training can effectively save time costs. At the same time, the use of convolutional networks can reduce network parameters, making network training more efficient, and obtain better low-dimensional representation of images. The experimental results on the Corel5k dataset show that CAENet can effectively improve the image light perception and color perception while reducing network parameters. The experimental results on high-resolution datasets show that CAENet can preserve details for image details without distortion. In addition, for the noisy low-light image, CAENet can enhance the image while achieving the denoising effect, which proves that CAENet has strong robustness.

Key words: image processing    image enhancement    deep learning    convolutional neural network    denoising auto-encoder
收稿日期: 2019-01-24 出版日期: 2019-09-12
CLC:  TP 311.1
作者简介: 王万良(1957—),男,教授,从事人工智能、机器自动化、网络控制研究. orcid.org/0000-0002-1552-5075. E-mail: zjutwwl@zjut.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
王万良
杨小涵
赵燕伟
高楠
吕闯
张兆娟

引用本文:

王万良,杨小涵,赵燕伟,高楠,吕闯,张兆娟. 采用卷积自编码器网络的图像增强算法[J]. 浙江大学学报(工学版), 2019, 53(9): 1728-1740.

Wan-liang WANG,Xiao-han YANG,Yan-wei ZHAO,Nan GAO,Chuang LV,Zhao-juan ZHANG. Image enhancement algorithm with convolutional auto-encoder network. Journal of ZheJiang University (Engineering Science), 2019, 53(9): 1728-1740.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.09.012        http://www.zjujournals.com/eng/CN/Y2019/V53/I9/1728

图 1  低光网络(LLNet)结构图
图 2  LLNet模型结构示意图

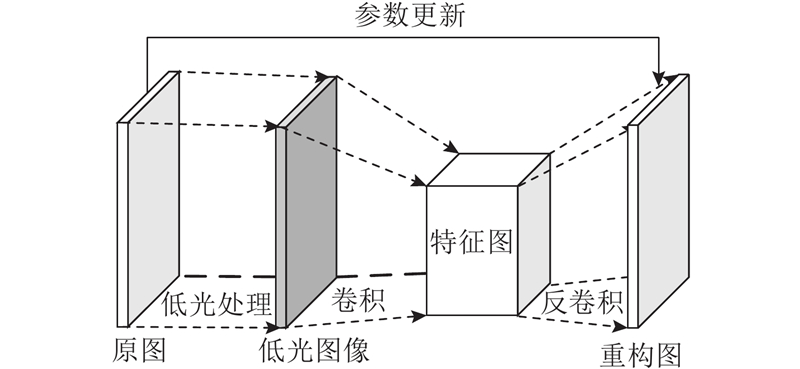

图 3  采用卷积自编码器的图像增强网络(CAENet)结构示意图
图 4  流形学习方法下的图像增强原理图

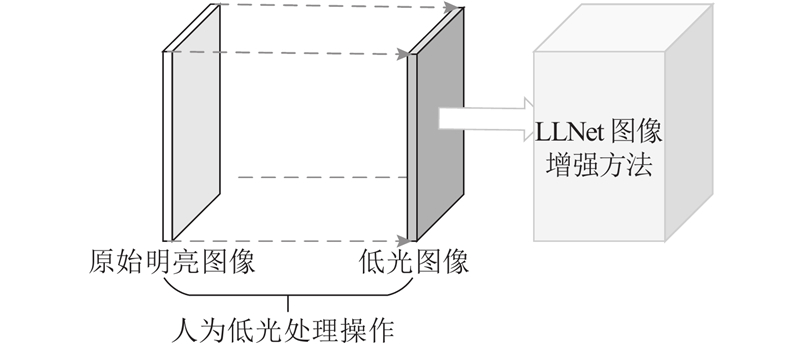

图 5  LLNet低光处理阶段示意图

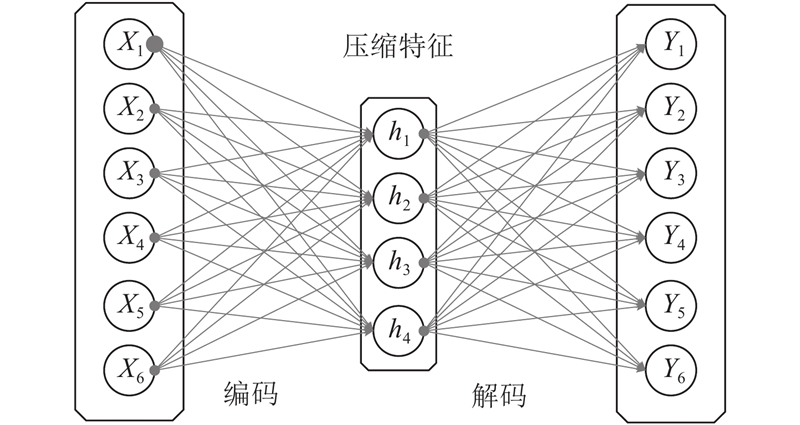

图 6  传统自编码器神经元全连接方式示意图
图 7  三通道彩色图像的卷积过程示意图

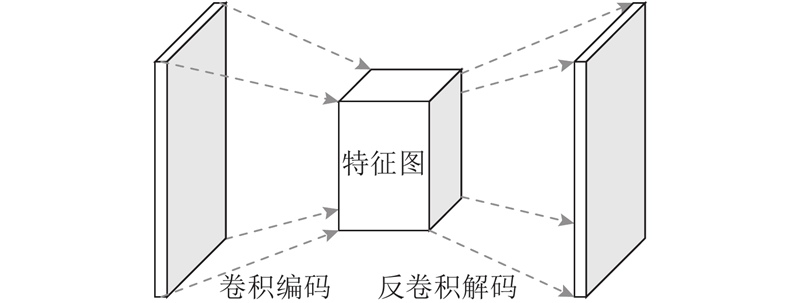

图 8  卷积编码以及反卷积解码示意图

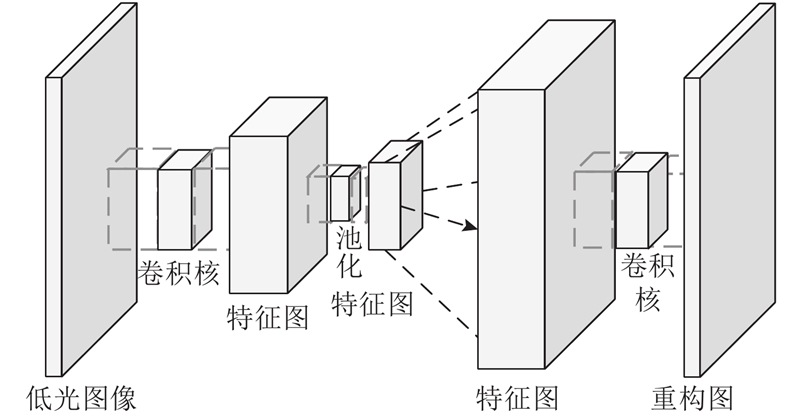

图 9  CAENet训练过程

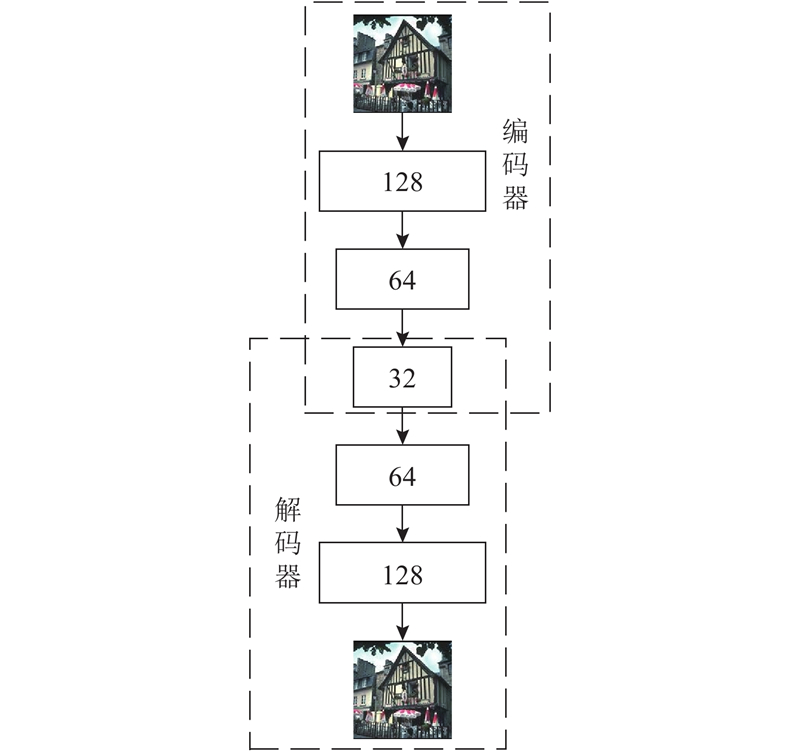

图 10  图像维度变换过程
图 11  CAENet伪代码流程图
图 12  CAENet训练中的图片特征逐步提取
图 13  不同算法在Corel5k数据集上的处理效果对比

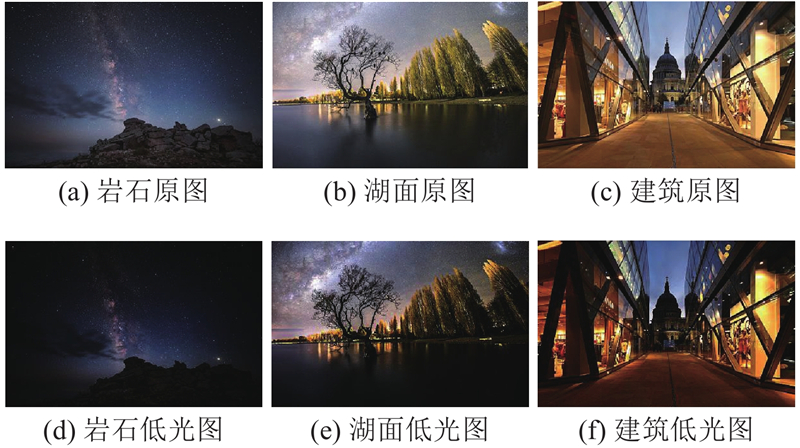

图 14  细节增强测试实验中的原始图像与低光图像
图 15  不同算法对岩石低光图像中岩石细节的增强效果对比

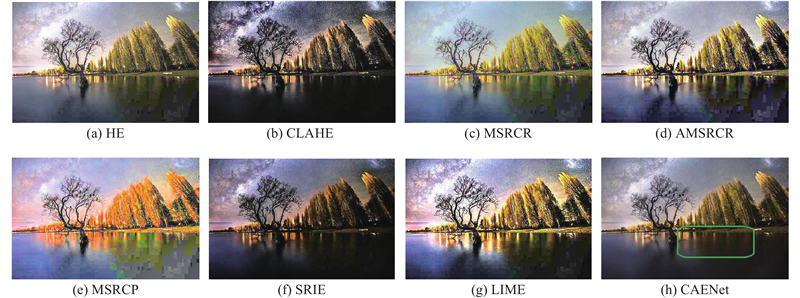

图 16  不同算法对湖面低光图像中水面倒影细节的增强效果对比
图 17  不同算法对建筑低光图像中门窗细节的增强效果对比
SSIM HE CLAHE MSRCR AMSRCR MSRCP SRIE LIME CAENet
岩石细节图像 0.412 4 0.659 6 0.546 8 0.398 9 0.370 7 0.734 5 0.545 1 0.875 9
湖面细节图像 0.804 3 0.689 2 0.701 3 0.725 6 0.600 8 0.775 3 0.700 0 0.827 8
建筑细节图像 0.703 9 0.758 5 0.622 3 0.633 8 0.555 1 0.645 6 0.694 3 0.835 8
表 1  不同图像增强算法与CAENet算法的结构相似度指标对比
NIQE HE CLAHE MSRCR AMSRCR MSRCP SRIE LIME CAENet
岩石细节图像 7.900 6 8.459 4 8.163 6 7.825 8 7.179 6 8.970 7 8.259 4 7.428 4
湖面细节图像 4.687 2 5.135 0 5.317 0 4.610 2 4.665 8 4.151 3 5.714 1 4.526 7
建筑细节图像 5.086 8 5.061 9 5.357 1 5.603 4 5.186 1 4.827 3 5.681 6 3.864 8
表 2  不同图像增强算法与CAENet算法的自然图像质量评价指标对比
图 18  低光含噪图像

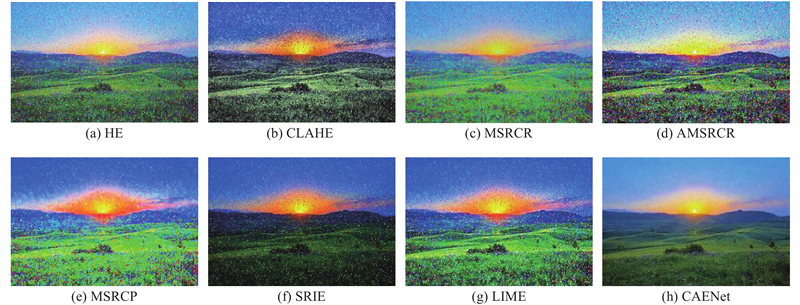

图 19  不同算法对高斯噪声的处理效果
图 20  不同算法对椒盐噪声的处理效果
图 21  不同算法对斑点噪声的处理效果
图 22  不同算法对泊松噪声的处理效果
图 23  不同图像增强算法评价指标的对比
