浙江大学学报(工学版)  2019, Vol. 53 Issue (10): 2013-2023    DOI: 10.3785/j.issn.1008-973X.2019.10.019
自动化技术、计算机技术
基于随机森林算法的Android恶意行为识别与分类方法
柯懂湘(),潘丽敏*(),罗森林,张寒青
北京理工大学 信息系统及安全对抗实验中心,北京 100081
Android malicious behavior recognition and classification method based on random forest algorithm
Dong-xiang KE(),Li-min PAN*(),Sen-lin LUO,Han-qing ZHANG
Information System and Security Countermeasure Experimental Center, Beijing Institute of Technology, Beijing 100081, China
 全文: PDF(693 KB)   HTML
摘要:

针对当前Android恶意软件检测方法对检测出的恶意行为无法进行识别和分类的问题,提出基于随机森林(RF)算法的Android恶意行为的识别与分类方法. 该方法在对Android恶意软件的类型进行定义的基础上,利用融合多种触发机制的Android恶意行为诱导方法触发软件的潜在恶意行为;通过Hook关键系统函数对Android软件行为进行采集并生成行为日志,基于行为日志提取软件行为特征集;使用随机森林算法,对行为日志中的恶意行为进行识别与分类. 实验结果表明,该方法对Android恶意软件识别的准确率达到91.6%,对恶意行为分类的平均准确率达到96.8%.

关键词: Android安全机器学习随机森林(RF)恶意软件检测恶意行为分类
Abstract:

An Android malware behavior identification and classification method was proposed based on random forest (RF) algorithm aiming at the problem that the existing Android malware detection method cannot identify or classify the detected malicious behavior. The types of Android malware behavior were defined, and the potentially malicious behavior was triggered with a complex Android malicious behavior induction method. Application behavior can be captured by system function hook and transformed into behavior log. Then application behavioral feature set can be extracted from behavior log. The random forest algorithm was used to identify and classify the malicious behavior from the behavior log. The experimental results showed that proposed method had 91.6% accuracy in malware behavior identification and 96.8% accuracy in malicious behavior classification.

Key words: Android security    machine learning    random forest (RF)    malware detection    malicious behavior classification
收稿日期: 2018-11-15 出版日期: 2019-09-30
CLC:  TP 399
通讯作者: 潘丽敏     E-mail: 384209891@qq.com;panlimin@bit.edu.cn
作者简介: 柯懂湘(1997—),男,硕士生,从事Android安全的研究. orcid.org/0000-0002-4424-6286. E-mail: 384209891@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
柯懂湘
潘丽敏
罗森林
张寒青

引用本文:

柯懂湘,潘丽敏,罗森林,张寒青. 基于随机森林算法的Android恶意行为识别与分类方法[J]. 浙江大学学报(工学版), 2019, 53(10): 2013-2023.

Dong-xiang KE,Li-min PAN,Sen-lin LUO,Han-qing ZHANG. Android malicious behavior recognition and classification method based on random forest algorithm. Journal of ZheJiang University (Engineering Science), 2019, 53(10): 2013-2023.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.10.019        http://www.zjujournals.com/eng/CN/Y2019/V53/I10/2013

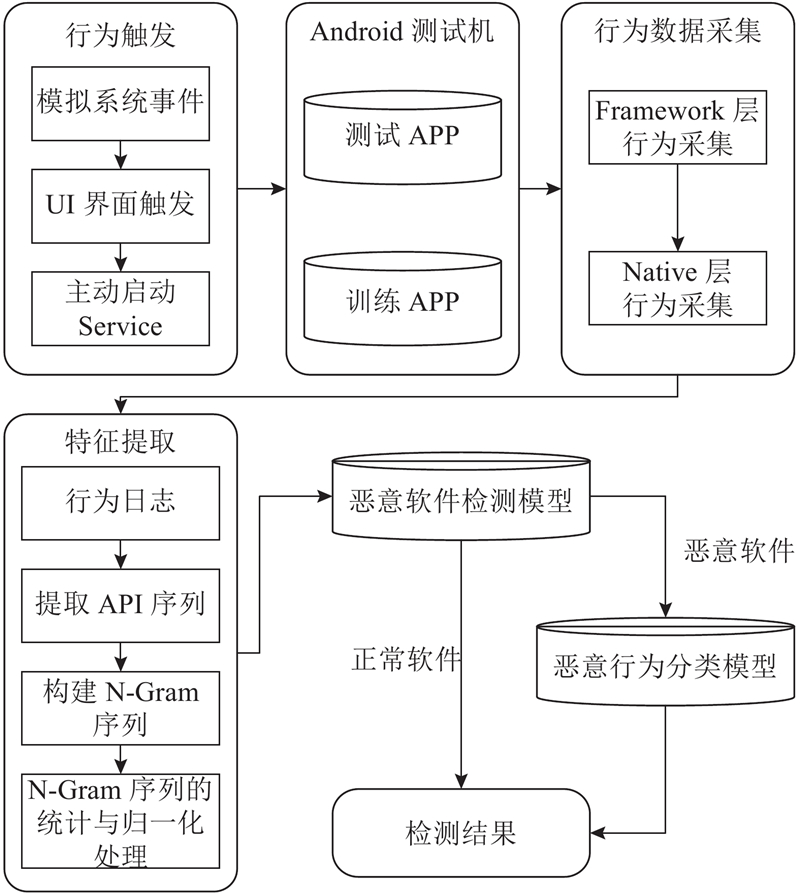

图 1  Android恶意行为识别与分类框架结构图

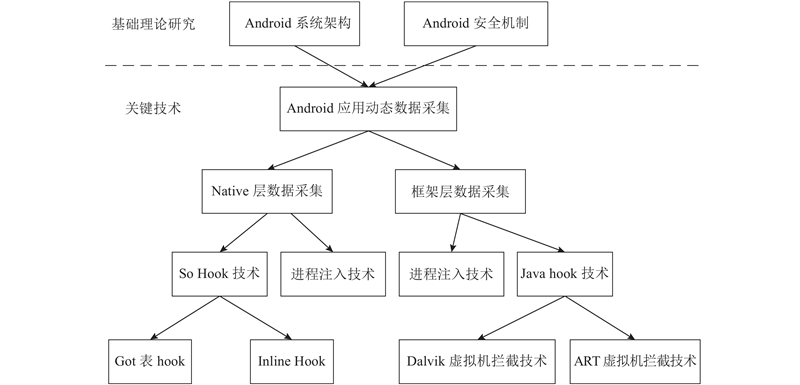

图 2  多层次行为数据采集原理图
日志条目 说明
Date 软件调用该函数的时间
Package Name 被检测软件所对应的完整应用名称
Method Name 所调用函数的名称以及该函数所属包的包名
Arguments 调用函数时所传递的参数
表 1  行为日志条目说明
Code:窃取用户地理位置信息
1:public void leakInfo(String url,String info){
2:  URL url=new URL(url);
3:  connection=url.openConnection();
4:  DataOutputStream wr=new DataOutputStream(connection.
5:  getOutputStream());
6:  wr.writeBytes(info);
7:  wr.flush();wr.close();connection.disconnect();
8:}
9:public void leakLocation(String url){
10:  locationProvider=LocationManager.GPS_PROVIDER;
11:  Location location=locationManager.getLastKnowLocation
12:  (locationProvider);
13:  String loc=location.getLatitude()+“:”+
14:  location.getLongitude();
15:  leakInfo(url,loc);
16:}
表 2  地理位置信息窃取代码

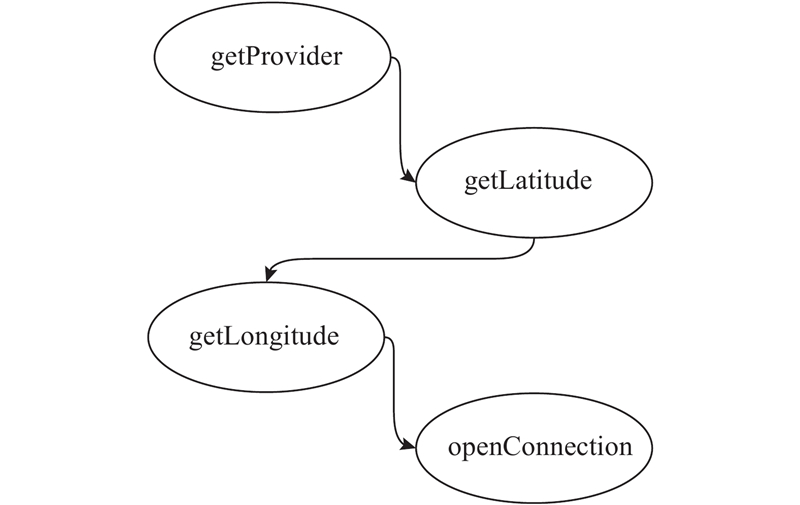

图 3  隐私窃取行为API序列
监控函数列表 备注
ContentResolver.query 根据参数不同可用于获取短信,通讯录,照片等隐私
LocationManager.getProvider 用于获取地理位置信息
Location.getLatitude
Location.getLongitude
PackageManager.getInstalledPackages 获取已安装应用
PackageManager.getInstalledApplications
TelePhonyManager.getSubscriberId 获取手机IMSI号码
TelePhonyManager.getDeviceId 获取手机设备号
SmsManager.sendTextMessage 可用于将窃取的隐私通过短信发送出去
DefaultHttpClient.execute 可用于将窃取的隐私通过网络发送
URL.openConnection
AbstractHttpClient.execute
表 3  与隐私窃取相关系统函数条目
恶意行为 监控函数列表 备注
恶意扣费 SmsManager.sendTextMessage 可用于发送sp短信,订购附加服务
BroadcastReceiver.abortBroadcast
ContentResolve.delete
资费消耗 DefaultHttpClient.execute 通过网络接收数据,消耗流量
AbstractHttpClient.execute
Socket.getInputStream
Socket.getOutputStream
URL.openConnection
OutputStream.write 用于保存从网络接受的数据
InputStream.read 读取从网络接收的数据
隐私窃取 ContentResolver.query 根据参数不同,可用于获取短信,通讯录,照片等隐私
LocationManager.getProvider 用于获取地理位置信息
Location.getLatitude
Location.getLongitude
PackageManager.getInstalledPackages 获取已安装应用
PackageManager.getInstalledApplications
TelePhonyManager.getSubscriberId 获取手机IMSI号码
TelePhonyManager.getDeviceId 获取手机设备号
SmsManager.sendTextMessage 可用于将窃取的隐私通过短信发送出去
DefaultHttpClient.execute 可用于将窃取的隐私通过网络发送
URL.openConnection
AbstractHttpClient.execute
流氓行为 Runtime.exec("su") 可用于获取root权限
DevicePolicyManager.isAdminActive 获取设备管理员权限
ApplicationPackageManager.setComponentEnabledSetting 隐藏应用图标
ApplicationPackageManager.installPackage 静默安装
ShortcutIconResource.fromContext 创建快捷方式
Dialog.onCreate 可用于广告弹窗
java.lang.Runtime.exec("mount") 将应用设置为系统应用
java.lang.Runtime.exec("cp")
java.lang.Runtime.exec("chmod")
系统破坏 Runtime.exec("su") 可用于获取root权限
DevicePolicyManager.isAdminActive 用于获取设备管理员权限
ActivityManager.getRunningAppProcesses 用于查看现有进程信息
ActivityManager.killBackgroundProcesses 用于终止其他进程
ActivityManager.forceStopPackage 用于终止其他应用
ApplicationPackageManager.deletePackage 用于卸载其他应用
File.delete 用于删除用户文件
Cipher.getInstance 用于加密用户文件
MessageDigest.getInstance
ApplicationPackageManager.setComponentEnabledSetting 可用于终止其他组件
android.app.admin.DevicePolicyManager.resetPassword 可用于修改锁屏密码,并锁屏
android.app.admin.DevicePolicyManager.lockNow
权限提升 Runtime.exec("su") 可用于获取root权限
DevicePolicyManager.isAdminActive 用于获取设备管理员权限
mmap 通过脏牛、Futex、zergRush等漏洞进行权限提升攻击时所需使用的native函数
madvise
malloc
phtread_create
getgid
futex_lock_pi
futex_lock_pi_atomic
mount
fopen("/proc/mounts","r")
setresuid 设置文件的S权限位
附表 1  动态数据采集模块监控函数列表

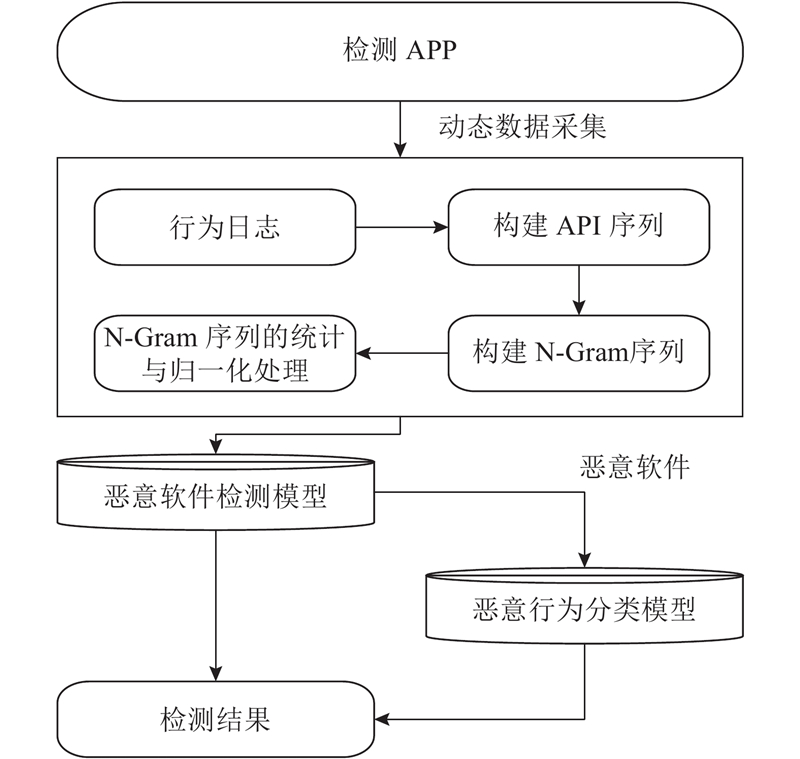

图 4  恶意行为检测过程
项目 操作系统 CPU型号
华为荣耀4A手机 Android5.1 四核 1.1 GHz
Dell 390台式机 windows7 i7-6700 CPU 3.4 GHz
表 4  恶意软件识别实验环境
实验方法 PD/% PF/%
Avira AntiVirus 92.7 0.6
本方法 91.6 0.7
表 5  恶意软件识别实验结果
恶意行为 Nps Nns
恶意扣费 763 562
资费消耗 635 623
隐私窃取 1 203 1 106
流氓行为 351 423
系统破坏 576 524
权限提升 241 324
表 6  恶意行为的样本数量
项目 操作系统 CPU型号
华为荣耀4A手机 Android5.1 四核 1.1 GHz
Dell 390台式机 windows7 i7-6700 CPU 3.4 GHz
表 7  恶意行为分类实验环境
真实值 良性行为 恶意行为
良性行为 TN FP
恶意行为 FN TP
表 8  恶意行为分类混淆矩阵
恶意行为 P R F Ns
恶意扣费 0.96 0.98 0.98 1 325
资费消耗 0.98 0.99 0.97 1 258
隐私窃取 0.99 0.98 0.98 2 309
流氓行为 0.95 0.97 0.94 774
系统破坏 0.94 0.96 0.95 1 100
权限提升 0.99 0.97 0.96 565
表 9  恶意行为分类的实验结果
1 EGHAM. Gartner says worldwide sales of smartphones recorded 1st ever decline during the 4th quarter of 2017 [EB/OL].[2018-05-01]. https://www.gartnner.com/newsroom/id/3859963.
2 FENG Y, ANAND S, DILLIG I, et al. Apposcopy: semantics-based detection of Android malware through static analysis [C] // ACM Sigsoft International Symposium on Foundations of Software Engineering. Hong Kong: ACM, 2014: 576-587.
3 MOUHEB D, MOUHEB D, MOUHEB D, et al. Cypider: building community-based cyber-defense infrastructure for android malware detection [C] // Conference on Computer Security Applications. Atlanta: ACM, 2016: 348-362.
4 FELDMAN S, STADTHER D, WANG B. Manilyzer: automated Android malware detection through manifest analysis [C] // IEEE International Conference on Mobile Ad Hoc and Sensor Systems. Dallas: IEEE, 2015: 767-772.
5 LI J, SUN L, YAN Q, et al Significant permission identification for machine-learning-based Android malware detection[J]. IEEE Transactions on Industrial Informatics, 2018, 14 (7): 3216- 3225
doi: 10.1109/TII.2017.2789219
6 TALHA K A, ALPER D I, AYDIN C APK auditor: permission-based Android malware detection system[J]. Digital Investigation, 2015, 13 (10): 1- 14
7 SUN L, LI Z, YAN Q, et al. SigPID: significant permission identification for android malware detection [C] // International Conference on Malicious and Unwanted Software. Fajardo: IEEE, 2017: 1-8.
8 MASSARELLI L, ANIELLO L, CICCOTELLI C, et al. Android malware family classification based on resource consumption over time [C] // International Conference on Malicious and Unwanted Software. Fajardo: IEEE, 2017: 31-38.
9 MALIK J, KAUSHAL R. CREDROID: Android malware detection by network traffic analysis [C] // ACM Workshop on Privacy-Aware Mobile Computing. Paderborn: ACM, 2016: 28-36.
10 ZULKIFLI A, HAMID I R A, SHAH W M, et al. Android malware detection based on network traffic using decision tree algorithm [C] // International Conference on Soft Computing and Data Mining. Cham: Springer, 2018: 485-494.
11 SUN Y S, CHEN C C, HSIAO S W, et al. ANTSdroid: automatic malware family behaviour generation and analysis for Android apps [C] // Australasian Conference on Information Security and Privacy. Cham: Springer, 2018: 796-804.
12 HUANG J, ZHANG X, TAN L, et al. AsDroid: detecting stealthy behaviors in Android applications by user interface and program behavior contradiction [C] // International Conference on Software Engineering. Zurich: ACM, 2014: 1036-1046.
13 DAMOPOULOS D, KAMBOURAKIS G, PORTOKALIDIS G. The best of both worlds: a framework for the synergistic operation of host and cloud anomaly-based IDS for smartphones [C] // European Workshop on System Security. Amsterdam: ACM, 2014: 6.
14 ENCK W, GILBERT P, CHUN B G, et al. TaintDroid: an information-flow tracking system for realtime privacy monitoring on smartphones [C] // Usenix Conference on Operating Systems Design and Implementation. Broomfield: ACM, 2014: 393-407.
15 ZHANG Y, YANG M, XU B, et al. Vetting undesirable behaviors in android apps with permission use analysis [C] // ACM Sigsac Conference on Computer and Communications Security. Berlin: ACM, 2013: 611-622.
16 中国反病毒联盟. 移动互联网恶意程序描述格式[EB/OL].[2018-05-01]. https://white.anva.org.cn/rel/file/ydwj.pdf.
