Seizure prediction method based on multi-domain feature and GATv2 network

doi:10.3785/j.issn.1008-973X.2026.08.015

Journal of ZheJiang University (Engineering Science)

2026, Vol. 60

Issue (8): 1760-1769 DOI: 10.3785/j.issn.1008-973X.2026.08.015

Seizure prediction method based on multi-domain feature and GATv2 network

Zhe HAN1,2(

),Qingfang MENG1,2,*(

),Qiang ZHANG3,Xianglong ZHANG1,2,Yaou ZHAO1,2

1. School of Information Science and Engineering, University of Jinan, Jinan 250022, China
2. Shandong Key Laboratory of Ubiquitous Intelligent Computing, University of Jinan, Jinan 250022, China
3. Jinan Jingheng Electronics Limited Company, Jinan 250014, China

Download:

HTML

PDF(1818KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

To reduce seizure-related injury risks for seizure patients and optimize treatment strategies, an seizure prediction method based on multi-domain feature fusion and a graph attention network was proposed. Multi-dimensional features were extracted from the time domain, the frequency domain, and the complex network domain. A novel triple attention mechanism was employed for deep feature fusion, constructing node feature representations. Additionally, by modeling the spatial topological relationships between electrodes, an adjacency matrix was generated. The node feature matrix, together with the generated adjacency matrix, was then fed into a GATv2 model for deep analysis, achieving accurate seizure prediction. Experimental results on the CHB-MIT dataset demonstrate that the proposed method achieves a classification accuracy of 97.58% in seizure prediction tasks.

Key words： seizure prediction EEG complex network multi-domain feature graph attention network

Received: 18 July 2025 Published: 16 July 2026

CLC:

TP 391

Fund: 山东省自然科学基金资助项目（ZR2024MF124）；济南大学学科交叉融合建设项目 2023（XKJC-202308）；济南市高校创新团队项目（2019GXRC015）.

Corresponding Authors: Qingfang MENG E-mail: 202321100407@stu.ujn.edu.cn;ise_mengqf@ujn.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zhe HAN
	Qingfang MENG
	Qiang ZHANG
	Xianglong ZHANG
	Yaou ZHAO

Cite this article:

Zhe HAN,Qingfang MENG,Qiang ZHANG,Xianglong ZHANG,Yaou ZHAO. Seizure prediction method based on multi-domain feature and GATv2 network. Journal of ZheJiang University (Engineering Science), 2026, 60(8): 1760-1769.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2026.08.015 OR https://www.zjujournals.com/eng/Y2026/V60/I8/1760

基于多域特征和GATv2网络的癫痫发作预测方法

为了降低癫痫患者的发作伤害风险并优化治疗策略，提出基于多域特征融合和图注意力网络的癫痫发作预测方法. 提取时域、频域和复杂网络域的特征，采用新颖的三元注意力机制对特征进行深度融合，构建节点特征表示. 建模电极间的空间拓扑关系生成邻接矩阵，节点特征矩阵与邻接矩阵联合输入GATv2模型进行深度分析，实现癫痫发作的精准预测. 基于CHB-MIT数据集的实验结果表明，所提方法在癫痫发作预测任务中的分类准确率达到97.58%.

关键词： 癫痫发作预测, 脑电图, 复杂网络, 多域特征, 图注意力网络

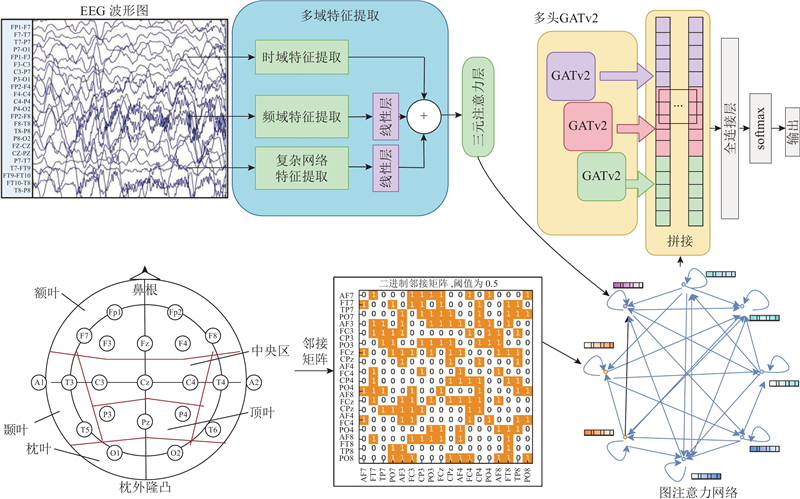

Fig.1 Overall workflow of proposed seizure prediction method

Tab.1 Statistical characteristics of time domain

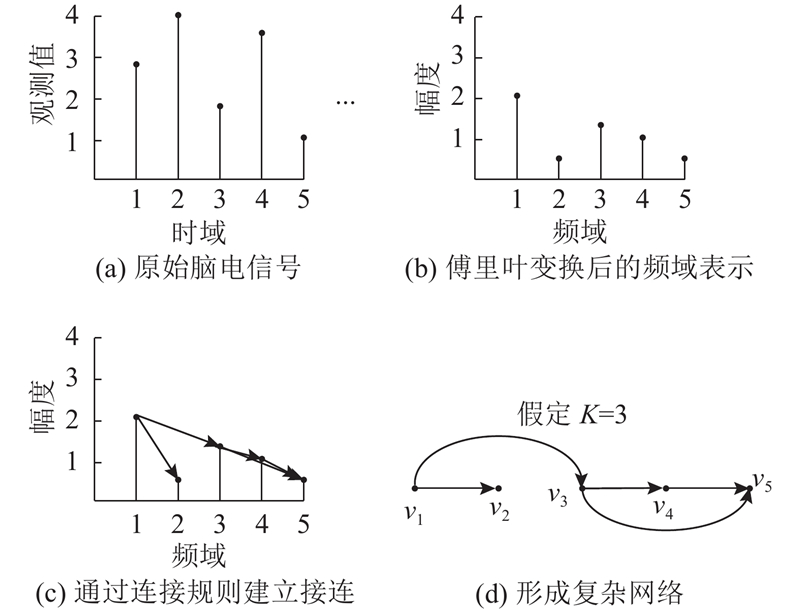

Fig.2 Flowchart of weighted neighborhood field graph construction for EEG signal complex network

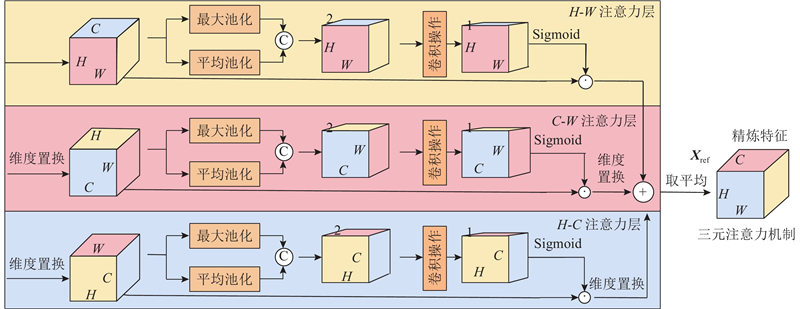

Fig.3 Structure diagram of triple attention mechanism

Tab.2 Evaluation results of proposed seizure prediction method on CHB-MIT dataset %

Tab.3 Evaluation results of proposed seizure prediction method on TUSZ dataset %

Tab.4 Cross-subject experimental results %

Tab.5 Comparison of evaluation results among different prediction methods %

Tab.6 Comparison of evaluation results among different learning methods %

Tab.7 Impact of multi-dimensional features on model performance %

Tab.8 Impact of decay parameters on model performance %

Tab.9 Module ablation study results %


[3]	NISO G, ROMERO E, MOREAU J T, et al Wireless EEG: a survey of systems and studies[J]. NeuroImage, 2023, 269: 119774 doi: 10.1016/j.neuroimage.2022.119774

[4]	ZHANG H, ZHOU Q Q, CHEN H, et al The applied principles of EEG analysis methods in neuroscience and clinical neurology[J]. Military Medical Research, 2023, 10 (1): 67 doi: 10.1186/s40779-023-00502-7

[5]	XIANG J, LI Y, WU X, et al Synchronization-based graph spatio-temporal attention network for seizure prediction[J]. Scientific Reports, 2025, 15: 4080 doi: 10.1038/s41598-025-88492-5

[6]	LI C, DENG Z, SONG R, et al EEG-based seizure prediction via model uncertainty learning[J]. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 2023, 31: 180- 191 doi: 10.1109/TNSRE.2022.3217929

[7]	GAO Y, CHEN X, LIU A, et al Pediatric seizure prediction in scalp EEG using a multi-scale neural network with dilated convolutions[J]. IEEE Journal of Translational Engineering in Health and Medicine, 2022, 10: 4900209 doi: 10.1109/jtehm.2022.3144037

[8]	张培玲, 候康基于多尺度自适应残差网络的癫痫检测方法[J]. 中国医学物理学杂志, 2025, 42 (3): 381- 387 ZHANG Peiling, HOU Kang Epilepsy detection method based on multi-scale adaptive residual network[J]. Chinese Journal of Medical Physics, 2025, 42 (3): 381- 387 doi: 10.3969/j.issn.1005-202X.2025.03.015

[9]	张喜珍, 张晓莉, 吕洋, 等基于2D-CNN和Cox-Stuart早停机制的癫痫预测模型[J]. 中国医学物理学杂志, 2025, 42 (1): 82- 94 ZHANG Xizhen, ZHANG Xiaoli, LÜYang, et al Epilepsy prediction model based on 2D-CNN and Cox-Stuart early stopping mechanism[J]. Chinese Journal of Medical Physics, 2025, 42 (1): 82- 94

[10]	SHARMILA A, GEETHANJALI P Evaluation of time domain features on detection of epileptic seizure from EEG signals[J]. Health and Technology, 2020, 10 (3): 711- 722 doi: 10.1007/s12553-019-00363-y

[11]	SHAKER H, LI J, KOBAYASHI M, et al Is high-frequency activity at seizure onset inhibitory? A stereoelectroencephalographic study of motor cortex seizures[J]. Annals of Neurology, 2024, 95 (6): 1127- 1137 doi: 10.1002/ana.26883

[12]	DONG X, HE L, LI H, et al Deep learning based automatic seizure prediction with EEG time-frequency representation[J]. Biomedical Signal Processing and Control, 2024, 95: 106447 doi: 10.1016/j.bspc.2024.106447

[1]	MAIMAITI B, MENG H, LV Y, et al An overview of EEG-based machine learning methods in seizure prediction and opportunities for neurologists in this field[J]. Neuroscience, 2022, 481: 197- 218 doi: 10.1016/j.neuroscience.2021.11.017

[2]	SHOKA A A E, DESSOUKY M M, EL-SAYED A, et al EEG seizure detection: concepts, techniques, challenges, and future trends[J]. Multimedia Tools and Applications, 2023, 82 (27): 42021- 42051 doi: 10.1007/s11042-023-15052-2

[13]	YU X, WU Y, MENG F, et al A review of graph and complex network theory in water distribution networks: mathematical foundation, application and prospects[J]. Water Research, 2024, 253: 121238 doi: 10.1016/j.watres.2024.121238

[14]	LIU Y, ZHOU H, GUAN M, et al Scalp EEG-based automatic detection of epileptiform events via graph convolutional network and bi-directional LSTM co-embedded broad learning system[J]. IEEE Signal Processing Letters, 2023, 30: 448- 452 doi: 10.1109/LSP.2023.3263433

[15]	CHEN X, ZHENG Y, NIU Y, et al. Epilepsy classification for mining deeper relationships between EEG channels based on GCN [C]// Proceedings of the International Conference on Computer Vision, Image and Deep Learning. Chongqing: IEEE, 2020: 701–706.

[16]	WANG J, GAO R, ZHENG H, et al SSGCNet: a sparse spectra graph convolutional network for epileptic EEG signal classification[J]. IEEE Transactions on Neural Networks and Learning Systems, 2024, 35 (9): 12157- 12171 doi: 10.1109/TNNLS.2023.3252569

[17]	HUANG Z, SU L, WU J, et al Rock image classification based on EfficientNet and triplet attention mechanism[J]. Applied Sciences, 2023, 13 (5): 3180 doi: 10.3390/app13053180

[18]	CHANG W, LIU W SAT-GATv2: a dynamic attention-based graph neural network for solving Boolean satisfiability problem[J]. Electronics, 2025, 14 (3): 423 doi: 10.3390/electronics14030423

[19]	MAIWALD T, WINTERHALDER M, ASCHENBRENNER-SCHEIBE R, et al Comparison of three nonlinear seizure prediction methods by means of the seizure prediction characteristic[J]. Physica D: Nonlinear Phenomena, 2004, 194 (3/4): 357- 368 doi: 10.1016/j.physd.2004.02.013

[20]	ZHANG Y, GUO Y, YANG P, et al Epilepsy seizure prediction on EEG using common spatial pattern and convolutional neural network[J]. IEEE Journal of Biomedical and Health Informatics, 2020, 24 (2): 465- 474 doi: 10.1109/JBHI.2019.2933046

[21]	YANG X, ZHAO J, SUN Q, et al An effective dual self-attention residual network for seizure prediction[J]. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 2021, 29: 1604- 1613 doi: 10.1109/TNSRE.2021.3103210

[22]	GUO L, YU T, ZHAO S, et al CLEP: contrastive learning for epileptic seizure prediction using a spatio-temporal-spectral network[J]. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 2023, 31: 3915- 3926 doi: 10.1109/TNSRE.2023.3322275

[23]	JEMAL I, MEZGHANI N, ABOU-ABBAS L, et al An interpretable deep learning classifier for epileptic seizure prediction using EEG data[J]. IEEE Access, 2022, 10: 60141- 60150 doi: 10.1109/ACCESS.2022.3176367

[24]	ZHU R, PAN W X, LIU J X, et al Epileptic seizure prediction via multidimensional Transformer and recurrent neural network fusion[J]. Journal of Translational Medicine, 2024, 22 (1): 895 doi: 10.1186/s12967-024-05678-7
