Journal of ZheJiang University (Engineering Science)  2026, Vol. 60 Issue (8): 1650-1661    DOI: 10.3785/j.issn.1008-973X.2026.08.004

Identification of core driving factors for product architecture design based on dual-layer complex network
Shifeng LIU1(),Jianning SU2,*(),Shutao ZHANG2,Shijie WANG1,Kai QIU2,Wenjin YANG2
1. School of Mechanical and Electrical Engineering, Lanzhou University of Technology, Lanzhou 730050, China
2. School of Architecture and Art Design, Lanzhou University of Technology, Lanzhou 730050, China
Download: HTML     PDF(1993KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A method based on a dual-layer complex network was proposed to resolve two problems in product design: the difficulty in synergizing functional structure solutions with aesthetic appearance solutions, and the ambiguous and complex many-to-many mappings between multi-source driving factors and physical components. First, based on the ontological characteristics of product architecture and the natural language processing techniques, a physical component network was constructed to represent the topological relationships among physical components, and a driving factor network was built to reflect the semantic relationships among multi-source driving factors. Then, based on design cognitive characteristics, a dual-layer complex network was established to map the relationships between physical components and driving factors, enabling the quantitative representation of the complex influence of multi-source driving factors on physical components under design cognitive constraints. Finally, through multi-dimensional topological feature fusion analysis, the core driving factors and their weights for physical components were identified under the combined effects of intra-layer and inter-layer nodes on physical components. The results indicate that the influence of multi-source driving factors on the product architecture design exhibits characteristics of multi-level chain effects and synergistic interactions. Additionally, the synergistic relationship between functional structure and aesthetic appearance should be considered. A case study on automotive architecture demonstrates the feasibility of the proposed method.



Key wordsproduct architecture      multi-source driving factor      physical component      design cognition      dual-layer complex network
Received: 10 July 2025      Published: 16 July 2026
CLC:  TB 472
Fund:  国家自然科学基金资助项目(52165033);甘肃省青年科技计划资助项目(24JRRA968);甘肃省教育厅高校教师创新基金资助项目(2023A-024).
Corresponding Authors: Jianning SU     E-mail: liusf@lut.edu.cn;sujn@lut.edu.cn
Cite this article:

Shifeng LIU,Jianning SU,Shutao ZHANG,Shijie WANG,Kai QIU,Wenjin YANG. Identification of core driving factors for product architecture design based on dual-layer complex network. Journal of ZheJiang University (Engineering Science), 2026, 60(8): 1650-1661.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2026.08.004     OR     https://www.zjujournals.com/eng/Y2026/V60/I8/1650


基于双层复杂网络的产品架构设计核心驱动因素识别

为了解决产品设计中物理组件的功能结构解与外观美学解难协同、多源驱动因素与物理组件之间“多对多”复杂映射关系不清晰的问题,提出双层复杂网络分析多源驱动因素对产品架构设计的复杂影响关系. 基于产品架构本体特性和自然语言处理技术,分别构建表征物理组件之间拓扑关联的物理组件网络和反映多源驱动因素之间语义关系的驱动因素网络;基于设计认知特性建立“物理组件-驱动因素”映射的双层复杂网络,定量表征设计认知约束下多源驱动因素对物理组件的复杂作用关系;通过多维拓扑特征融合分析,识别物理组件在层内与层间节点双重作用下的核心驱动因素及其权重. 结果表明,多源驱动因素对产品架构设计的影响具有多层级链式驱动和协同交互驱动的特征;应该关注功能结构和外观美学关系的协同作用. 以汽车架构为例进行分析,验证了提出方法的可行性.


关键词: 产品架构,  多源驱动因素,  物理组件,  设计认知,  双层复杂网络

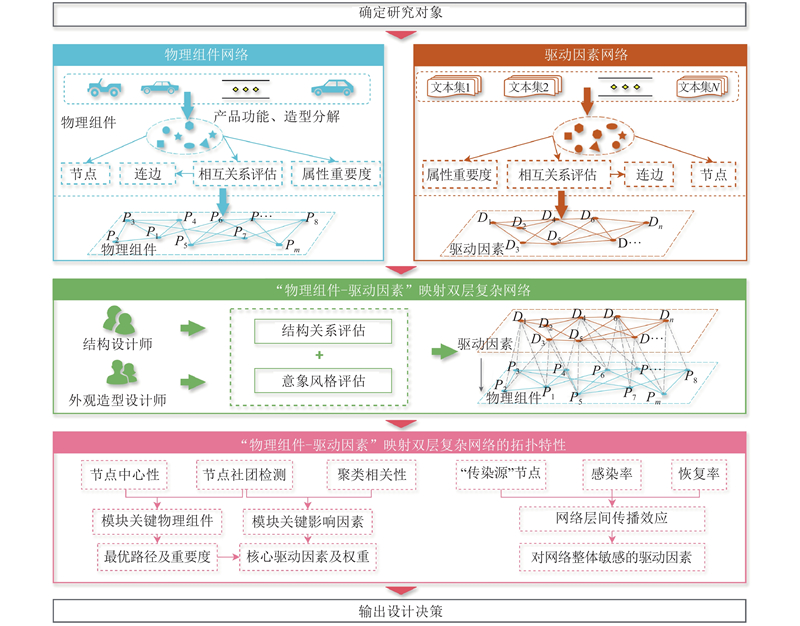

Fig.1 Analysis framework for complex impact of multi-source driving factors on product architecture design
关联关联描述$ w_{ij}^{{\mathrm{P}},{\mathrm{F}}}$
组件ij共同完成某一功能,缺一不可1.0
较强组件i对组件j完成某一功能具有较强的协同作用0.8
一般组件i对组件j完成某一功能具有一般的协同作用0.5
组件i对组件j完成某一功能具有较弱的协同作用0.3
组件i对组件j不存在功能关联,功能相互独立0
Tab.1 Functional structure relationship evaluation criteria[34]
关联关联描述$ w_{ij}^{{\mathrm{P}},{\mathrm{I}}}$
组件ij在意象风格表达时存在非常强的关联性1.0
较强组件ij在意象风格表达时存在较强的关联性0.8
一般组件ij在意象风格表达时存在关联性,但不强0.5
组件ij在意象风格表达时可能存关联性0.3
组件ij没有意象风格关联,或组件无意象风格0
Tab.2 Image style relationship evaluation criteria
节点P1P2$\cdots $P39
P10.40$\cdots $0.25
P20.400.40
$\vdots $$\vdots $$\vdots $$\vdots $
P390.250.40$\cdots $
Tab.3 Comprehensive correlation strength between physical components
节点E1E2E3$\cdots $E20
E10.058 80.061 0$\cdots $0.063 9
E20.058 80.096 60.141 2
$\vdots $$\vdots $$\vdots $$\vdots $$\vdots $
E200.063 90.141 20.066 0$\cdots $
Tab.4 Correlation between driving factors
节点P1P2P3$\cdots $P39
E10.146 00.283 00.416 5$\cdots $0.396 0
E20.583 00.491 50.437 50.357 5
$\vdots $$ \vdots$$ \vdots $$\vdots $$\vdots $
E200.458 50.354 50.687 5$\cdots $0.458 5
Tab.5 Mapping relationship between physical components and driving factors

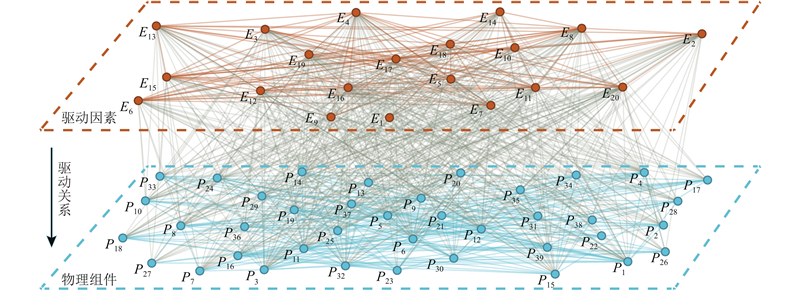

Fig.2 Two-layer network of physical components and driving factors

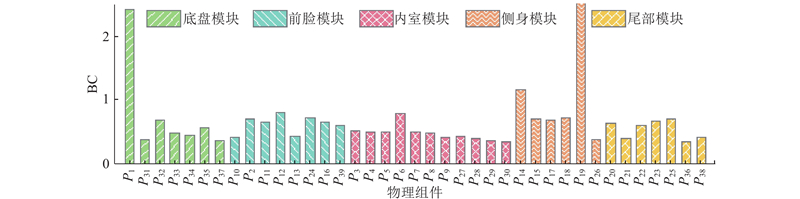

Fig.3 Comprehensive importance of physical components

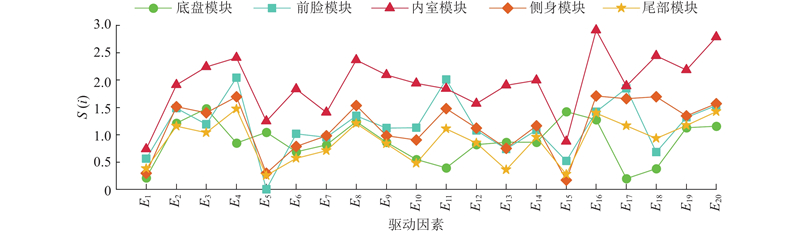

Fig.4 Influence strength of driving factors on modules
模块组件驱动因素1的路径驱动因素2的路径驱动因素3的路径驱动因素4的路径驱动因素5的路径驱动因素6的路径
底盘模块P1E3E10E7P1
权重:0.156 8
E15P8P1
权重:0.189 0
E16P24P1
权重:0.181 8
E8E9E7P1
权重:0.178 2
E2E5P1
权重:0.156 2
E20E5P1
权重:0.138 0
P32E3E10P32
权重:0.154 6
E15P32
权重:0.194 5
E16E18P32
权重:0.174 0
E8P26P32
权重:0.180 5
E2P32
权重:0.155 5
E20E5P32
权重:0.140 9
P35E3E10P35
权重:0.145 8
E15P12P4P35
权重:0.180 8
E16P35
权重:0.177 7
E8P35
权重:0.162 3
E2E9P35
权重:0.163 5
E20E5E10P35
权重:0.169 9
前脸模块P12E4E1P12
权重:0.158 7
E11E1P12
权重:0.169 0
E17E5E1P12
权重:0.198 2
E20E5E1P12
权重:0.184 0
E2E1P12
权重:0.157 3
E16E15P12
权重:0.132 9
P24E4E10P24
权重:0.156 2
E11E10P24
权重:0.156 0
E17P24
权重:0.191 7
E20E5E10P24
权重:0.182 7
E2P24
权重:0.156 8
E16P24
权重:0.156 8
P10E4P10
权重:0.142 9
E11E10P10
权重:0.160 1
E17P10
权重:0.151 9
E20P10
权重:0.178 7
E2P10
权重:0.169 7
E16P10
权重:0.196 6
内室模块P6E16P2P4P6
权重:0.199 2
E20E5P19P6
权重:0.168 0
E18E10E7P6
权重:0.164 2
E4P28P6
权重:0.147 4
E8P30P6
权重:0.161 9
E3P6
权重:0.159 3
P3E16P37P3
权重:0.170 3
E20P37P3
权重:0.170 1
E18P32P3
权重:0.162 9
E4E10E7P3
权重:0.167 1
E8P29P3
权重:0.162 9
E3E10E7P3
权重:0.166 6
P5E16E18E12P5
权重:0.199 5
E20E5P5
权重:0.172 7
E18E12P5
权重:0.148 8
E4E10E7P5
权重:0.156 6
E8P20P5
权重:0.166 3
E3E10E7P5
权重:0.156 1
侧身模块P19E16P2P19
权重:0.183 5
E4E1P19
权重:0.160 8
E18E1P19
权重:0.160 0
E17E5P19
权重:0.159 4
E20E5P19
权重:0.145 7
E8E9E7P19
权重:0.190 6
P14E16P39P14
权重:0.190 6
E4E10E7P14
权重:0.152 8
E18E10E7P14
权重:0.152 3
E17E9E7P14
权重:0.165 9
E20E5E10E7P14
权重:0.174 1
E8E13P14
权重:0.164 4
P18E16P11P18
权重:0.187 6
E4E10P18
权重:0.148 4
E18E10P18
权重:0.147 9
E17E9E7P18
权重:0.168 7
E20E5E10P18
权重:0.171 0
E8E9E7P18
权重:0.176 4
尾部模块P25E4P25
权重:0.170 7
E20E5E9P25
权重:0.181 8
E16P25
权重:0.170 7
E8E9P25
权重:0.169 5
E19E9P25
权重:0.146 1
E17E9P25
权重:0.161 2
P23E4E10E7P23
权重:0.185 3
E20P23
权重:0.161 6
E16P23
权重:0.161 6
E8P23
权重:0.170 0
E19E9P23
权重:0.152 9
E17E9P23
权重:0.168 6
P20E4E10P20
权重:0.161 2
E20E5E14P20
权重:0.176 7
E16E18E10P20
权重:0.214 8
E8P20
权重:0.124 9
E19P20
权重:0.139 6
E17E14P20
权重:0.182 8
Tab.6 Key drive paths and weights

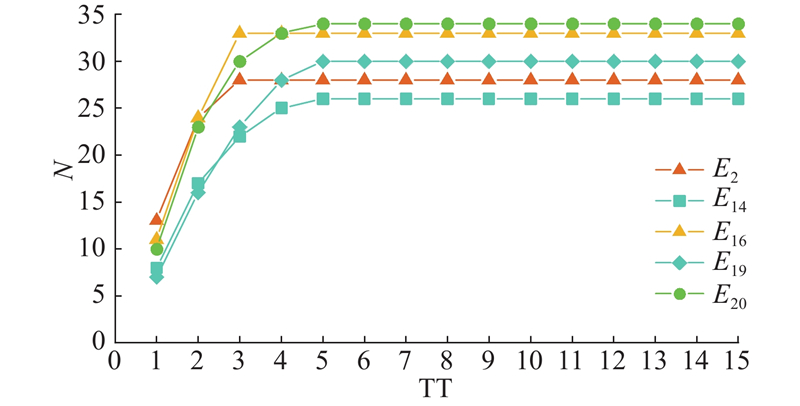

Fig.5 Change of cumulative number of infected nodes over time

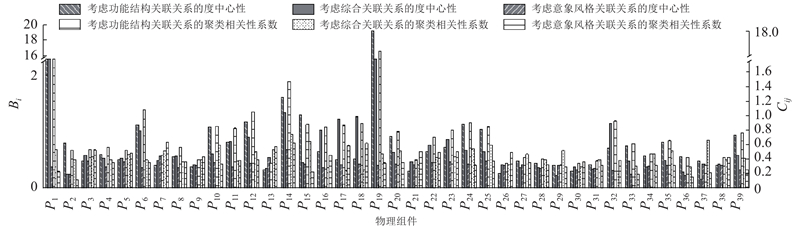

Fig.6 Degree centrality and cluster correlation coefficient of physical components
类型模块度模块数模块划分结果
综合关联关系0.431 55模块1:{P1,P31,P32,P33,P34,P35,P37};模块2:{P2,P10,P11,P12,P13,P16,P39};
模块3:{P3,P4,P5,P6,P7,P8,P9,P27,P28,P29,P30};模块4:{P14,P15,P17,P18,P19,P26};
模块5:{P20,P21,P22,P23,P25,P36,P38}.
功能结构关联关系0.417 24模块1:{P1,P3,P4,P7,P9,P31,P32,P33,P34,P35,P37};模块2:{P2,P10,P11,P12,P13,P16,P24,P39};
模块3:{P5,P6,P8,P14,P15,P17,P18,P26,P27,P28,P29,P30,P38};模块4:{P19,P20,P21,P22,P23,P25,P36}.
意象风格关联关系0.434 910模块1:{P1,P10,P11,P12,P13,P16,P24,P38,P39 };模块2:{P2};模块3:{P3,P4,P5,P6,P7,P8,P9,P29,P30};
模块4:{P14,P15,P17,P18,P19,P26,P31,P32,P33};模块5:{P20,P21,P22,P23,P25,P36 };模块6:{P27};
模块7:{P28};模块8:{P34};模块9:{P35};模块10:{P37}.
Tab.7 Partition results of physical component modules based on three types of association relationships
