Solar cell defect segmentation model based on improved SegFormer
Wei LUO1,2(),Zuotao YAN1,Jiahao GUAN1,Jian HAN1,3
1. School of Physics and Electronic Engineering, Northeast Petroleum University, Daqing 163318, China 2. Heilongjiang Province University and Enterprise Joint Construction of Testing and Measurement Technology and Instrument Engineering R&D Center, Daqing 163318, China 3. Sanya Marine Oil and Gas Research Institute of Northeast Petroleum University, Sanya 572024, China
A multi-scale defect segmentation model, EL-SegFormer, was proposed based on an improved SegFormer architecture, aiming at the defects affecting the lifetime and efficiency in solar cell manufacturing. The model was specifically designed to segment defects in solar cells, providing a reliable detection tool for manufacturers. A lightweight modulation module was incorporated in the shallow layers of the network, and multi-head hybrid convolutions were used to capture defect features across various scales. Fixed-scale convolutions and receptive fields were employed to effectively capture early local information in the network. Diverse defects in solar cells can be accurately located by aggregating the extracted features. A hierarchical encoder structure was employed to integrate multi-scale contextual information from shallow to deep layers into the decoder. The decoder utilized a lightweight multi-layer perceptron to consolidate feature information from different levels and generate segmentation masks. The model was loaded and traversed to compute the mean intersection over union (MIoU) using the defect image segmentation masks and label masks. Experimental results indicated that EL-SegFormer, with only 68.2 M parameters, achieved the MIoU of 67.60% on the Buerhop2018 dataset, surpassing recent state-of-the-art models. This outstanding performance indicates the model’s strong potential for addressing complex solar cell defect segmentation tasks, opening up promising avenues for its application in the solar cell manufacturing industry.
Wei LUO,Zuotao YAN,Jiahao GUAN,Jian HAN. Solar cell defect segmentation model based on improved SegFormer. Journal of ZheJiang University (Engineering Science), 2024, 58(12): 2459-2468.
Fig.1Overall framework and intermediate layers of EL-SegFormer

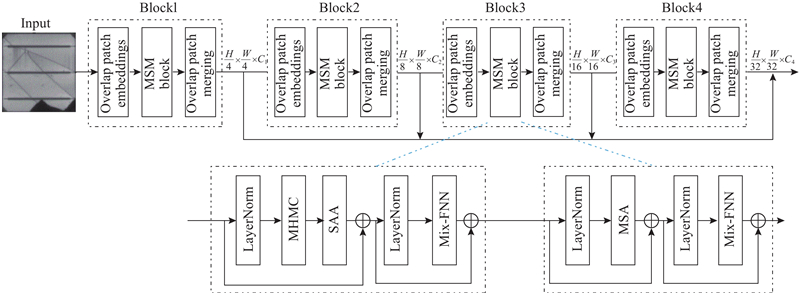

Fig.2EL-SegFormer encoder
Fig.3MHMC module
Fig.4SAA module
Fig.5Feature maps before and after using SAA

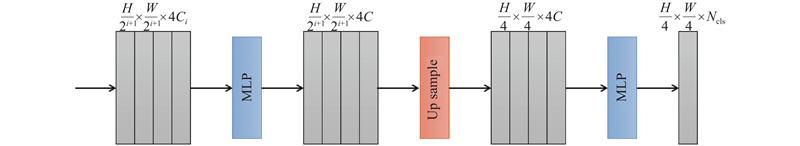

Fig.6EL-SegFormer decoder

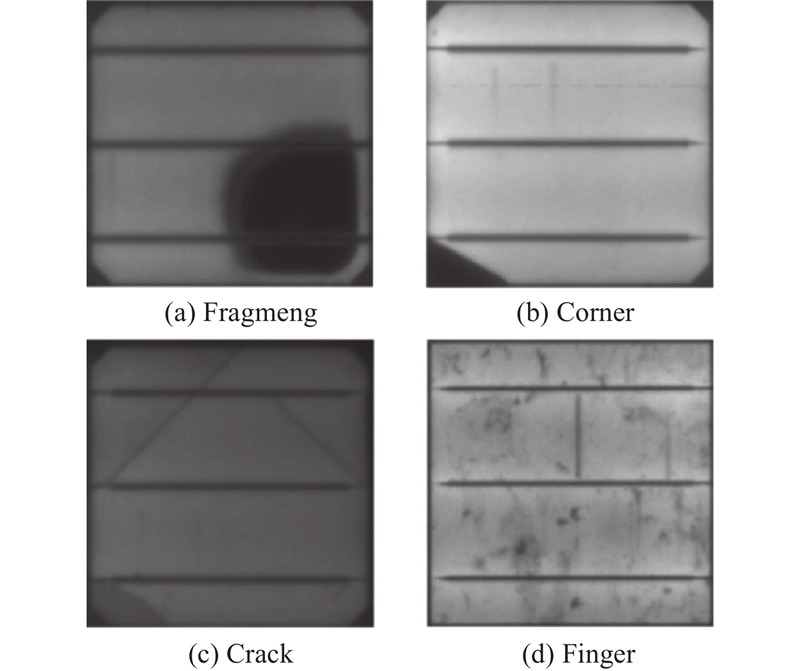

Fig.7Electroluminescence image defects of solar cells
n
MIoU/%
FLOPs/G
Params/M
T/(张·s?1)
1
66.50
102.3
68.2
621.0
2
67.00
102.5
68.3
547.4
4
67.60
102.60
68.2
519.2
8
67.20
102.6
69.1
413.5
Tab.1Effect of different number of heads in MHMC on network
编码方式
尺寸
FLOPs/G
Params/M
MIoU/%
Mix-FFN
300$ \times $300
36.0
67.9
67.90
512$ \times $512
102.6
67.9
67.60
PE
300$ \times $300
40.56
68.5
66.70
512$ \times $512
106.2
68.5
63.20
Tab.2Performance comparison between Mix-FFN and PE
添加策略
FLOPs/G
Params/M
MIoU/%
S
96.4
85.0
63.40
S+A
96.4
84.6
62.00
S+M
99.8
76.6
65.80
S+A+M
102.6
68.2
67.60
Tab.3Effect of MHMC and SAA on model performance
堆叠策略
FLOPs/G
Params/M
MIoU/%
T/(张·s?1)
MSM+MSM+ MSM+MSA
103.2
69.8
66.90
503.6
MSM+MSM+ MSA+MSA
102.0
66.5
67.00
525.0
MSM+MSA+ MSA+MSA
100.7
65.9
66.30
539.0
MSM+MIX+MSA+ MSA
102.6
68.1
66.80
518.9
MSM+MSM+ MIX+MSA
102.6
68.2
67.60
519.2
Tab.4Impact of stacking strategies on performance and latency

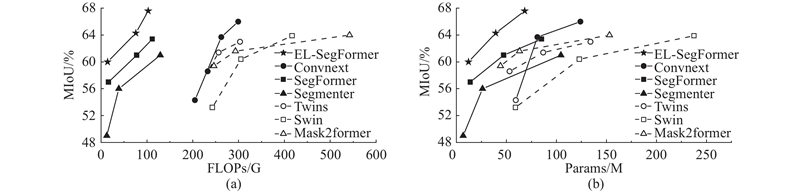

Fig.8Comparison of MIoU and performance of SOTA model in data set of defection in recent years

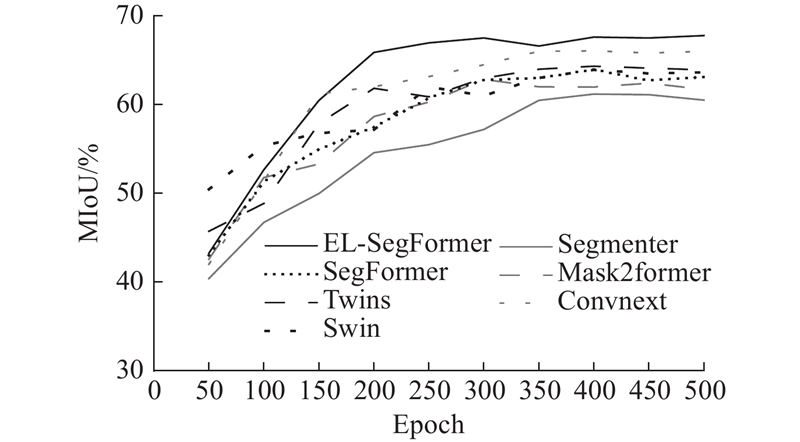

Fig.9Relationship between MIoU and Epoch for different models
模型
MIoU/%
Fragment
Crack
Corner
Finger
FCN[28]
53.10
51.30
49.50
12.30
U-Net[29]
60.20
55.30
33.06
46.10
DeepLabv3[30]
62.10
62.00
42.34
52.17
PSPNet[31]
61.40
49.13
62.00
39.00
Convnext
63.75
62.31
50.40
55.26
Mask2former
62.33
62.97
31.90
54.08
Swin
61.13
62.66
43.03
54.32
Twins
59.30
61.02
44.27
51.79
Segmenter
69.16
56.25
44.64
37.58
SegFormer
68.42
58.27
45.06
51.00
EL-SegFormer（本研究）
69.00
61.26
56.19
54.38
Tab.5Comparison of segmentation MIoU under different models and defects
大小类别
模型
尺寸
FLOPs/G
Params/M
MIoU/%
mPA/%
小
Segmenter-T
512×512
12.3
6.7
49.00
55.87
Swin-T
512×512
242.7
59.0
53.20
65.59
Convnext-T
512×512
204.6
59.3
54.30
69.28
SegFormer-b1
512×512
16.0
13.7
57.00
66.46
Twins-S
512×512
232.4
53.1
58.60
66.26
Mask2former-S
512×512
246.0
44.0
59.40
69.37
EL-SegFormer-S(本研究)
512×512
14.0
12.0
60.49
70.45
基本
Segmenter-S
512×512
38.5
26.0
56.00
68.63
Swin-B
512×512
305.0
122.9
60.40
75.16
SegFormer-b3
512×512
77.5
47.2
61.00
71.54
Twins-B
512×512
256.2
86.7
61.40
72.27
Mask2former-B
512×512
293.0
63.0
61.60
74.03
Convnext-S
512×512
262.1
80.9
63.70
74.35
EL-SegFormer-B(本研究)
512×512
75.6
39.2
64.30
75.36
大
Segmenter-B
512×512
129.0
104.4
61.00
68.68
Twins-L
512×512
303.0
134.0
63.00
75.91
SegFormer-b5
512×512
111.5
85.0
63.40
78.43
Swin-L
512×512
416.8
237.6
63.90
66.43
Mask2former-L
512×512
542.0
153.0
64.00
74.29
Convnext-B
512×512
299.0
123.9
66.00
76.38
EL-SegFormer-L(本研究)
512×512
102.6
68.2
67.60
79.85
Tab.6Comparison of indexes of each model

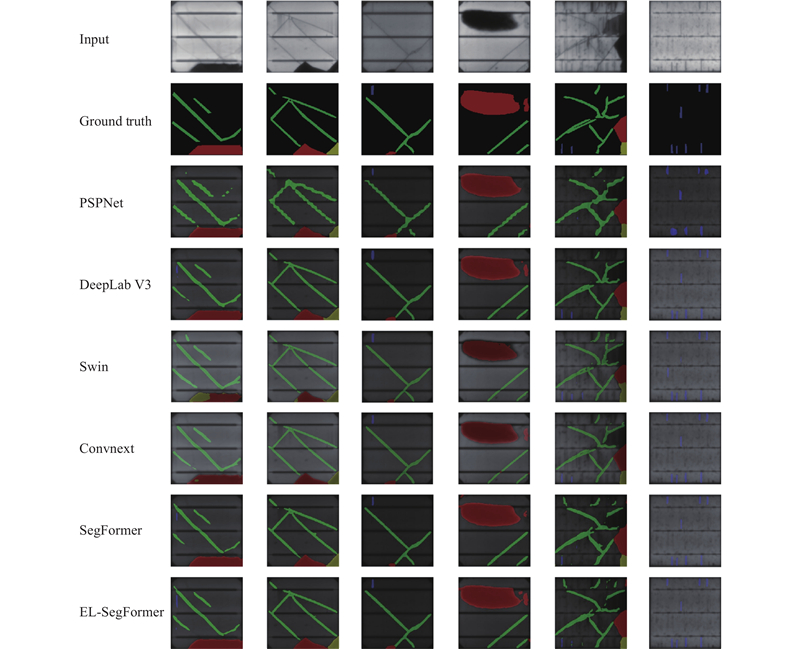

Fig.10Comparison of segmentation results of each model
