Journal of ZheJiang University (Engineering Science)  2024, Vol. 58 Issue (11): 2199-2207    DOI: 10.3785/j.issn.1008-973X.2024.11.001

Three-dimensional target inversion algorithm based on multi-feature reconstruction
Yali XUE1(),Lizun ZHOU1,Linfei WANG2,Quan OUYANG1
1. College of Automation Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
2. China Aero Geophysical Survey and Remote Sensing Center for Natural Resources, Beijing 100000, China
Download: HTML     PDF(2281KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A 3D target inversion algorithm based on multi-feature reconstruction was proposed in order to solve the problems of large memory occupation and time-consuming training in deep learning-based three-dimensional inversion methods. Four types of features, horizontal area, center depth, vertical thickness and residual density of the target were extracted by feature decomposition to realize the compression of the three-dimensional model and reduce the memory occupation. The multi-feature reconstruction of inversion network (MRNet) was designed to realize the prediction of the four types of target features by different Decoder, and the four types of features were used to reconstruct the three-dimensional model to realize the inversion of the 3D target. The gradient union was introduced at the input of the network to realize the enhancement of target boundary information. The CA attention mechanism was introduced at the cross-layer connection to realize the differentiation of Decoder’s prediction function and optimize the inversion effect. The simulation results showed that the local relative accuracy of MRNet was improved by more than 30% compared with 3D U-Net, reaching 88.91%, and the training time per round was only 1/13 of 3D U-Net. MRNet was applied to Vinton Salt Mound, and the distribution of caprocks was obtained more accurately, which verified that MRNet had certain generalizability.



Key wordsthree-dimensional target inversion      multi-feature reconstruction      attention mechanism      deep learning      multitask learning
Received: 16 November 2023      Published: 23 October 2024
CLC:  TP 39
  P 31
Fund:  国家自然基金资助项目(62073164);上海航天科技创新基金资助项目(SAST2022-013).
Cite this article:

Yali XUE,Lizun ZHOU,Linfei WANG,Quan OUYANG. Three-dimensional target inversion algorithm based on multi-feature reconstruction. Journal of ZheJiang University (Engineering Science), 2024, 58(11): 2199-2207.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.11.001     OR     https://www.zjujournals.com/eng/Y2024/V58/I11/2199


基于多特征重构的三维目标反演算法

为了解决基于深度学习的三维反演方法中存在的内存占用大、训练耗时久的问题,提出基于多特征重构的三维目标反演算法. 通过特征分解提取目标的水平区域、中心深度、垂直厚度和剩余密度4类特征,实现对三维模型的压缩,降低内存占用. 设计多特征重构反演网络(MRNet),通过不同的Decoder实现对目标4类特征的预测,利用4类特征重构三维模型,实现对三维目标的反演. 在网络输入端引入梯度联合实现对目标边界信息的增强. 在跨层连接处引入CA注意力机制,实现对Decoder预测功能的分化,优化反演效果. 模拟实验结果显示,MRNet的局部相对准确度相对于3D U-Net提升了30%以上,达到88.91%,每轮训练时间仅为3D U-Net的1/13. 将MRNet应用于Vinton盐丘地区,较准确地得到了盖岩的分布情况,验证了MRNet具备一定的泛化性.


关键词: 三维目标反演,  多特征重构,  注意力机制,  深度学习,  多任务学习

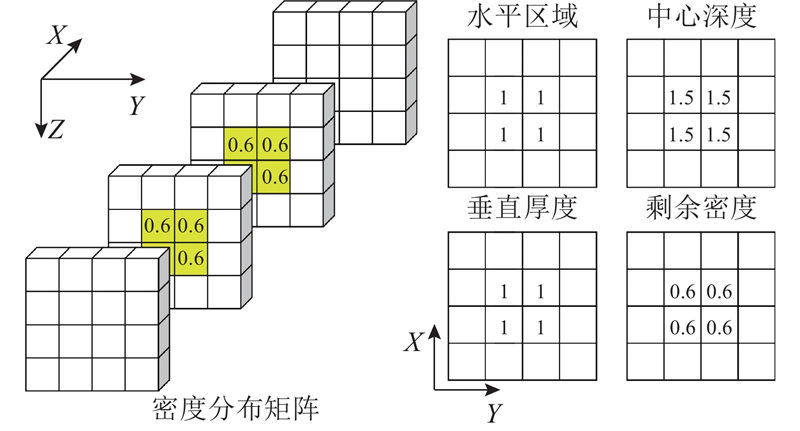

Fig.1 Diagram of feature decomposition

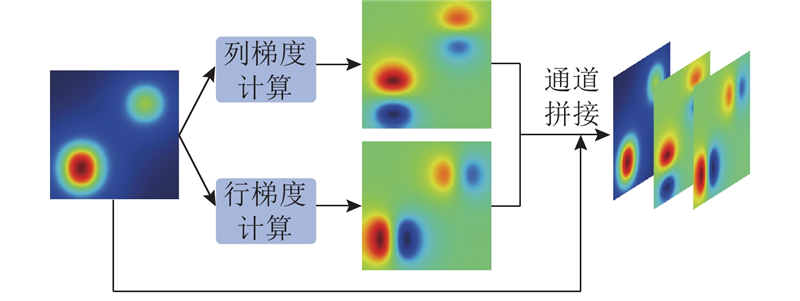

Fig.2 Flowchart of gradient data fusion

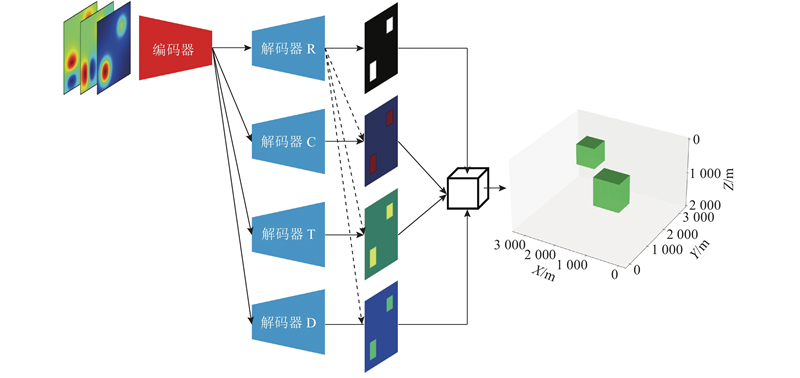

Fig.3 MRNet network structure

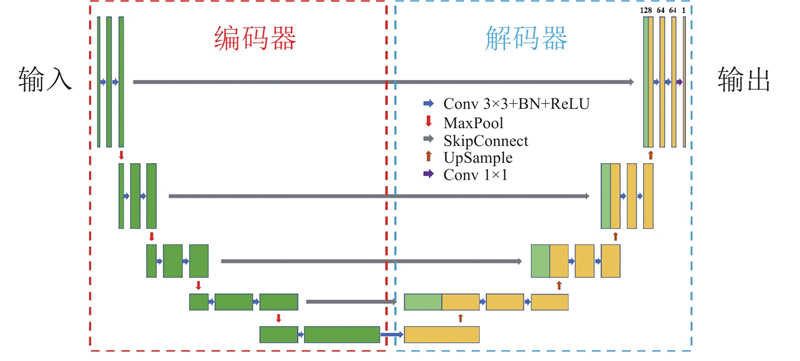

Fig.4 Structural details of encoder-decoder

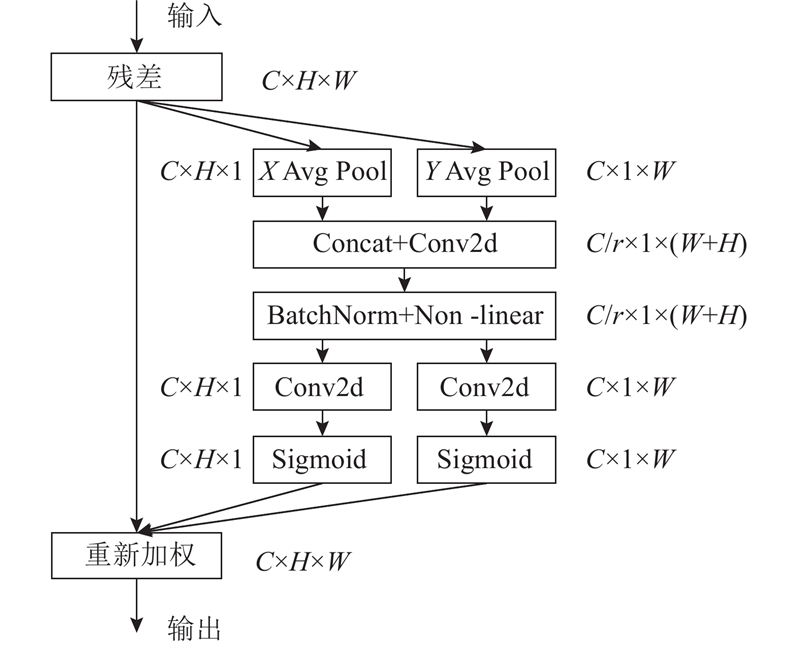

Fig.5 Structure diagram of coordinate attention module
Fig.6 Diagram of partial simulated anomalous body
异常体类型X/gridY/gridZ/grid
图6(a)、(b){8,12,16,20,24}{8,12,16,20,24}{8,12,16,20,24}
图6(c)16162(3层)
图6(d)10101(5层)
Tab.1 Dimensional parameters of anomalies in all directions

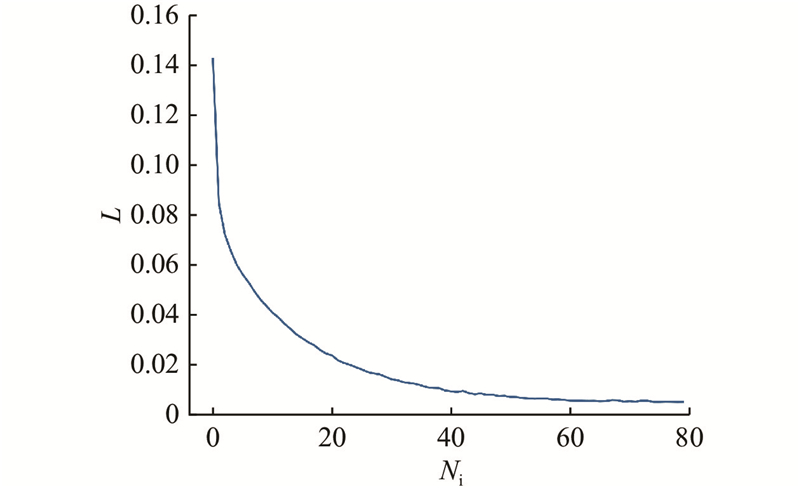

Fig.7 MRNet loss function decline curve

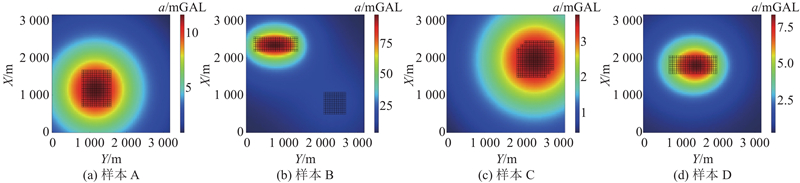

Fig.8 Gravity anomaly of test sample

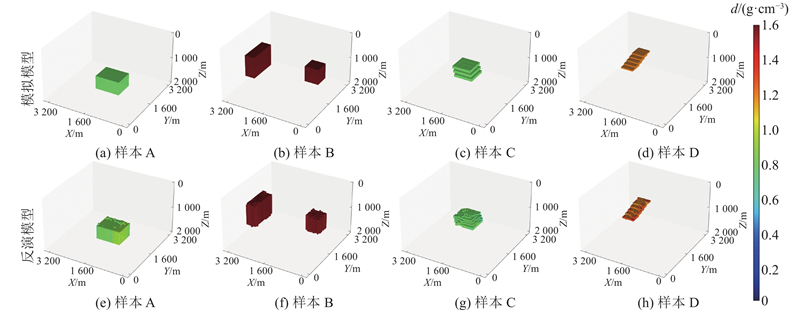

Fig.9 Simulation model of test sample and inverse model of MRNet
样本${e_{\text{r}}}$/grid${e_{\text{c}}}$/grid${e_{\text{t}}}$/grid${e_{\text{d}}}$/(g?cm?3)
A00.731.490.19
B00.981.480.07
C01.362.220.01
D01.071.320.18
Tab.2 Maximum absolute error in test sample feature predictions

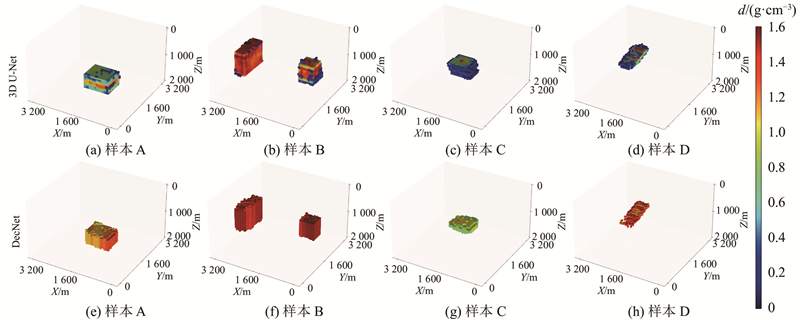

Fig.10 Inverse model of 3D U-Net and DecNet
网络MAE/10?3Eacc/%Racc/%
t1 = 0.001t1 = 0.01t1 = 0.1t2 = 1.05t2 = 1.10t2 = 1.15t2 = 1.20
3D U-Net1.1098.8698.9899.6121.4337.5549.5158.33
DecNet1.70(+0.60)98.84(?0.01)98.95(?0.03)99.60(?0.01)20.92(?0.51)37.34(?0.21)48.97(?0.54)56.83(?1.50)
MRNet0.78(?0.32)98.93(+0.08)99.25(+0.27)99.88(+0.27)53.00(+31.58)75.27(+37.71)84.67(+35.16)88.91(+30.58)
Tab.3 Mean absolute error, global absolute accuracy, and local relative accuracy of three inversion networks

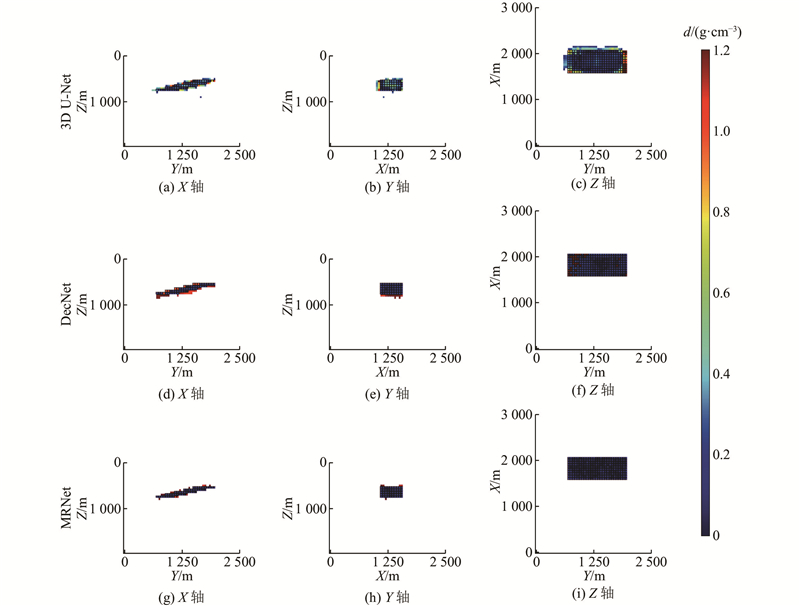

Fig.11 Projection result for three error models of sample D

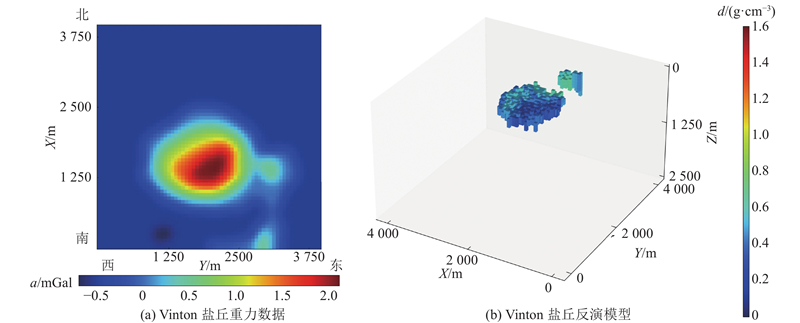

Fig.12 Gravity data from Vinton salt dome and MRNet inversion result

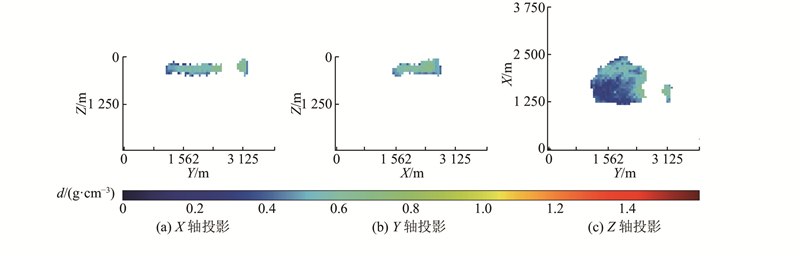

Fig.13 Triaxial projection of Vinton salt dome inversion result

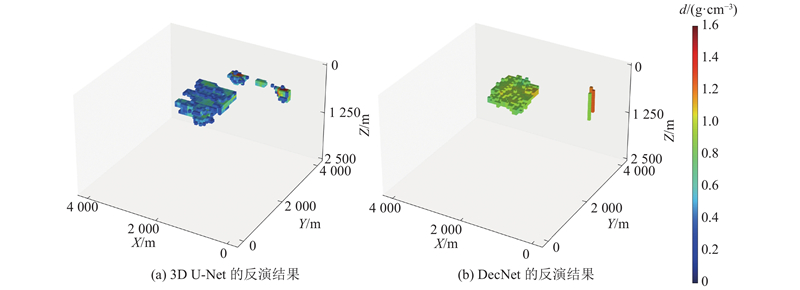

Fig.14 Inverse result of 3D U-Net and DecNet
[1]   ZHDANOV M S. Inverse theory and applications in geophysics [M]. Netherlands: Elsevier, 2015.
[2]   LAST B J, KUBIK K Compact gravity inversion[J]. Geophysics, 1983, 48 (6): 713- 721
doi: 10.1190/1.1441501
[3]   LI Y, OLDENBURG D W 3-D inversion of gravity data[J]. Geophysics, 1998, 63 (1): 109- 119
doi: 10.1190/1.1444302
[4]   PORTNIAGUINE O, ZHDANOV M S Focusing geophysical inversion images[J]. Geophysics, 1999, 64 (3): 874- 887
doi: 10.1190/1.1444596
[5]   师学明, 王家映, 张胜业, 等 多尺度逐次逼近遗传算法反演大地电磁资料[J]. 地球物理学报, 2000, 43 (1): 122- 130
SHI Xueming, WANG Jiaying, ZHANG Shengye, et al Multiscale genetic algorithm and its application in magnetotelluric sounding data inversion[J]. Chinese Journal of Geophysics, 2000, 43 (1): 122- 130
[6]   罗红明, 王家映, 朱培民, 等 量子遗传算法在大地电磁反演中的应用[J]. 地球物理学报, 2009, 52 (1): 260- 267
LUO Hongming, WANG Jiaying, ZHU Peimin, et al Quantum genetic algorithm and its application in magnetotelluric data inversion[J]. Chinese Journal of Geophysics, 2009, 52 (1): 260- 267
doi: 10.1002/cjg2.1347
[7]   陈华根, 李嘉虓, 吴健生, 等 MT-重力模拟退火联合反演研究[J]. 地球物理学报, 2012, 55 (2): 663- 670
CHEN Huagen, LI Jiaxiao, WU Jiansheng, et al Study on simulated-annealing MT-gravity joint inversion[J]. Chinese Journal of Geophysics, 2012, 55 (2): 663- 670
[8]   邱宁, 刘庆生, 曾佐勋, 等 基于混沌-粒子群优化的磁法数据非线性反演方法[J]. 地球物理学进展, 2010, (6): 2150- 2155
QIU Ning, LIU Qingsheng, ZENG Zuoxun, et al Nonlinear inversion of magnetic data based on chaotic and particle swarm optimization[J]. Progress in Geophysics, 2010, (6): 2150- 2155
[9]   刘双, 刘天佑, 冯杰, 等 蚁群算法在磁测资料反演解释中的应用[J]. 物探与化探, 2013, 37 (1): 150- 154
LIU Shuang, LIU Tianyou, FENG Jie, et al The application of ant colony algorithm to the inversion and interpretation of magnetic data[J]. Geophysical and Geochemical Exploration, 2013, 37 (1): 150- 154
[10]   王逸宸, 柳林涛, 许厚泽 基于卷积神经网络识别重力异常体[J]. 物探与化探, 2020, 44 (2): 394- 400
WANG Yichen, LIU Lintao, XU Houze The identification of gravity anomaly body based on the convolutional neural network[J]. Geophysical and Geochemical Exploration, 2020, 44 (2): 394- 400
[11]   阳前果. 基于深度学习的重磁数据处理研究[D]. 武汉: 中国地质大学, 2021.
YANG Qianguo. Research on gravity and magnetic data processing based on deep learning [D]. Wuhan: China University of Geosciences, 2021.
[12]   RONNEBERGER O, FISCHER P, BROX T. U-net: convolutional networks for biomedical image segmentation [C]// Medical Image Computing and Computer-Assisted Intervention: 18th International Conference. Munich: Springer, 2015: 234−241.
[13]   WANG Yufeng, ZHANG Yujie, FU Lihua, et al Three-dimensional gravity inversion based on 3D U-Net++[J]. Applied Geophysics, 2021, 18 (4): 451- 460
doi: 10.1007/s11770-021-0909-z
[14]   ZHANG L, ZHANG G, LIU Y, et al Deep learning for 3-D inversion of gravity data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2021, 60: 1- 18
[15]   ZHANG S, YIN C, CAO X, et al DecNet: decomposition network for 3D gravity inversion[J]. Geophysics, 2022, 87 (5): G103- G114
doi: 10.1190/geo2021-0744.1
[16]   RUDER S. An overview of gradient descent optimization algorithms [EB/OL]. (2016-09-01) [2023-10-01]. https://arxiv.org/pdf/1609.04747.pdf.
[17]   HOU Q, ZHOU D, FENG J. Coordinate attention for efficient mobile network design [C]// Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition . Piscataway: IEEE, 2021: 13713-13722.
[18]   KINGMA D P, BA J L. ADAM: a method for stochastic optimization [EB/OL]. (2014-12-01) [2023-10-01]. https://arxiv.org/pdf/1412.6980.pdf.
[19]   ENNEN C. Mapping gas-charged fault blocks around the Vinton Salt Dome [D]. Houston: University of Houston, 2012.
[20]   OLIVEIRA JR V C, BARBOSA V C F 3-D radial gravity gradient inversion[J]. Geophysical Journal International, 2013, 195 (2): 883- 902
doi: 10.1093/gji/ggt307
[21]   高秀鹤, 曾昭发, 孙思源, 等 基于阈值约束的协克里金法联合反演重力与重力梯度数据[J]. 地球物理学报, 2019, 62 (3): 1037- 1045
GAO Xiuhe, ZENG Zhaofa, SUN Siyuan, et al Joint inversion of gravity and gravity gradient data based on Cokriging method with the threshold constrain[J]. Chinese Journal of Geophysics, 2019, 62 (3): 1037- 1045
[22]   侯振隆, 王恩德, 周文纳, 等 重力梯度欧拉反褶积及其在文顿岩丘的应用[J]. 石油地球物理勘探, 2019, 54 (2): 472- 479
HOU Zhenlong, WANG Ende, ZHOU Wenna, et al Gravity gradient Euler deconvolution and its application to Vinton Salt Dome[J]. Oil Geophysical Prospecting, 2019, 54 (2): 472- 479
