Journal of ZheJiang University (Engineering Science)  2024, Vol. 58 Issue (4): 696-707    DOI: 10.3785/j.issn.1008-973X.2024.04.005

Global guidance multi-feature fusion network based on remote sensing image road extraction
Hai HUAN1(),Yu SHENG2,Chenxi GU1
1. School of Artificial Intelligence, Nanjing University of Information Science and Technology, Nanjing 210044, China
2. School of Integrated Circuit Science and Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210003, China
Download: HTML     PDF(2780KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Due to the high similarity between buildings and roads in remote sensing images, as well as the existence of shadows and occlusion, the existing deep learning semantic segmentation network generally has a high false segmentation rate when it comes to road segmentation. A global guide multi-feature fusion network (GGMNet) was proposed for road extraction in remote sensing images. To reduce the network’s misjudgment rate of similar features around the road, the feature map was divided into several local features, and then the features were multiplied by the global context information to strengthen the extraction of various features. The method of integrating multi-stage features was used to accurate spatial positioning of roads and reduce the probability of identifying other ground objects as roads. An adaptive global channel attention module was designed, and the global information was used to guide the local information, so as to enrich the context information of each pixel. In the decoding stage, a multi-feature fusion module was designed to make full use of the location information and the semantic information in the feature map of the four stages in the backbone network, and the correlations between layers were uncovered to improve the segmentation accuracy. The network was trained and tested using CITY-OSM dataset, DeepGlobe Road extraction dataset and CHN6-CUG dataset. Test results show that GGMNet has excellent road segmentation performance, and the ability to reduce the false segmentation rate of road segmentation is better than comparing networks.



Key wordsremote sensing image      deep learning      road extraction      attention mechanism      context information
Received: 20 March 2023      Published: 27 March 2024
CLC:  TP 751.1
Cite this article:

Hai HUAN,Yu SHENG,Chenxi GU. Global guidance multi-feature fusion network based on remote sensing image road extraction. Journal of ZheJiang University (Engineering Science), 2024, 58(4): 696-707.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.04.005     OR     https://www.zjujournals.com/eng/Y2024/V58/I4/696


基于遥感图像道路提取的全局指导多特征融合网络

在遥感图像中,建筑与道路的类间相似度高,且存在阴影和遮挡,使得现有深度学习语义分割网络在分割道路时误分割率高,为此提出全局指导多特征融合网络(GGMNet)用于提取遥感图像中的道路. 将特征图分为若干个局部特征,再将全局上下文信息与局部特征相乘,强化各类别特征的提取,以降低网络对道路周边相似地物的误判率. 采用融合多阶段特征的方法准确定位道路空间,降低将其余地物识别为道路的概率. 设计自适应全局通道注意力模块,利用全局信息指导局部信息,丰富每个像素的上下文信息. 在解码阶段,设计多特征融合模块,充分利用并融合骨干网络4个阶段的特征图中的位置信息与语义信息,发掘层与层之间的关联性以提升分割精度. 使用CITY-OSM数据集、DeepGlobe道路提取数据集和CHN6-CUG数据集对网络进行训练和测试. 测试结果表明,GGMNet具有优秀的道路分割性能,降低道路误分割率的能力比对比网络强.


关键词: 遥感图像,  深度学习,  道路提取,  注意力机制,  上下文信息

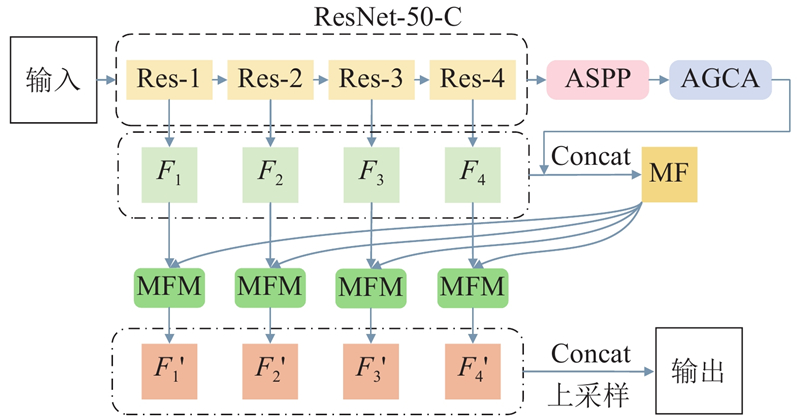

Fig.1 Overall structure of global guide multi-feature fusion network

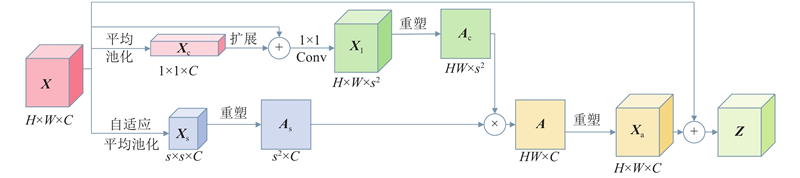

Fig.2 Overall structure of adaptive globe channel attention module

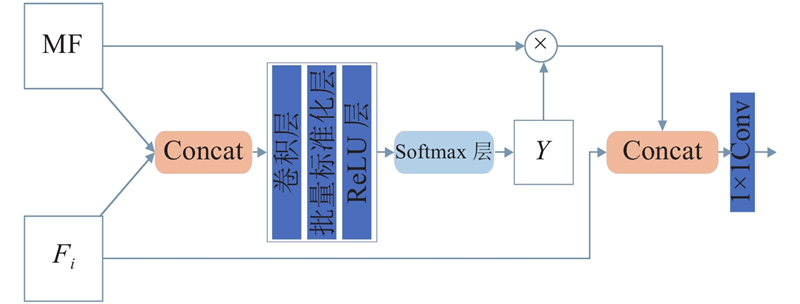

Fig.3 Overall structure of multi-feature fusion module
%
方法IoUMIoU
背景建筑物道路
基准网络83.4448.6176.3069.45
$ s=1 $83.8651.3677.0670.76
$ s=2 $83.7851.8276.8870.83
$ s=3 $83.7150.4377.0670.40
$ s=4 $84.0353.0277.1671.40
$ s=5 $83.6552.6476.5170.94
Tab.1 Comparison of hyperparameter values for adaptive globe channel attention module based on CITY-OSM dataset

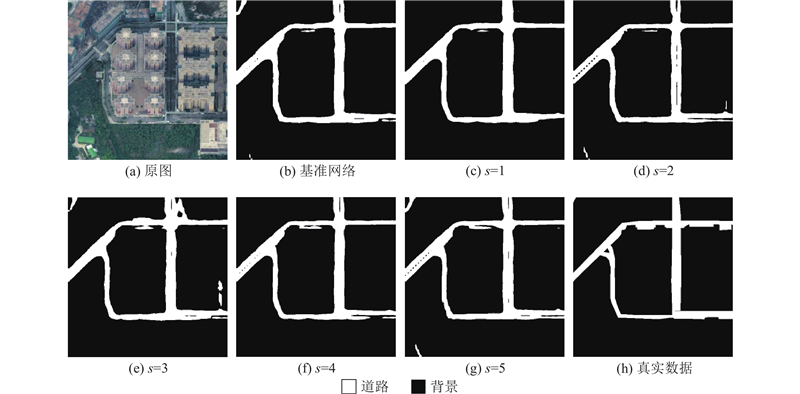

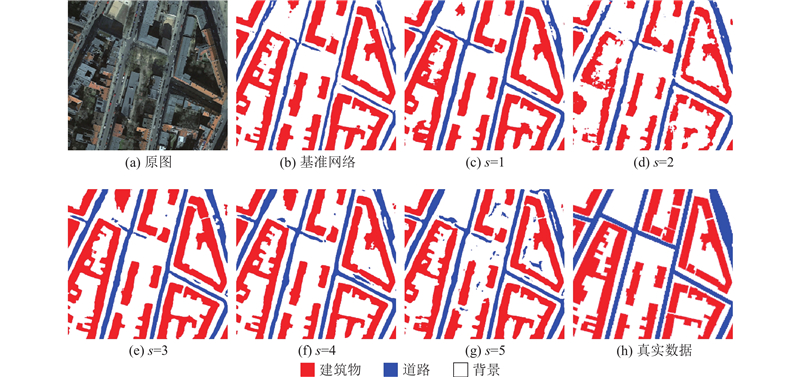

Fig.4 Comparison of hyperparameter-value visualization results based on CITY-OSM dataset
%
方法IoUMIoU
背景道路
基准网络98.0662.2480.15
$ s=1 $98.0662.3780.22
$ s=2 $98.0862.5880.33
$ s=3 $98.1062.4580.28
$ s=4 $98.1062.8080.45
$ s=5 $98.0662.4480.25
Tab.2 Comparison of hyperparameter values for adaptive globe channel attention module based on DeepGlobe dataset

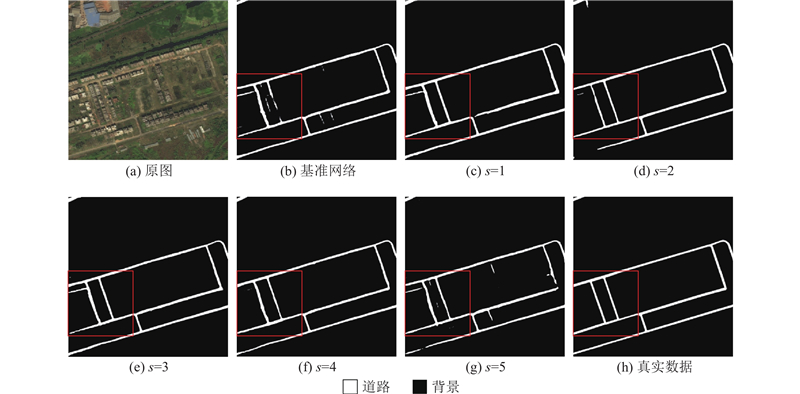

Fig.5 Comparison of hyperparameter-value visualization results based on DeepGlobe dataset
%
方法IoUMIoU
背景道路
基准网络97.1260.1378.63
$ s=1 $97.1660.2278.69
$ s=2 $97.2460.6278.93
$ s=3 $97.2560.5278.86
$ s=4 $97.2961.9479.62
$ s=5 $97.1660.3778.77
Tab.3 Comparison of hyperparameter values for adaptive globe channel attention module based on CHN6-CUG dataset
Fig.6 Comparison of hyper parameter-value visualization results based on CHN6-CUG dataset
%
方法IoUMIoU
背景建筑物道路
基准网络83.4448.6176.3069.45
+AGCA84.0353.0277.1671.40
+AGCA+MFM(Res-1,Res-4)84.1253.7677.1871.69
+AGCA+MFM84.3154.9977.6872.33
Tab.4 Module validity analysis based on CITY-OSM dataset

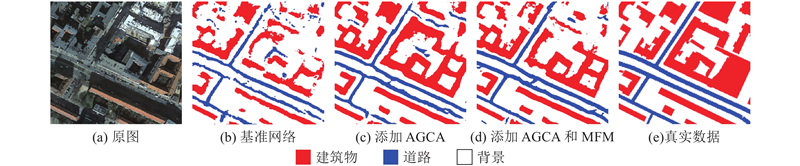

Fig.7 Comparison of visualization results for module validity analysis based on CITY-OSM dataset
%
方法IoUMIoU
背景道路
基准网络98.0662.2480.15
+AGCA98.1062.8080.45
+AGCA+MFM(Res-1, Res-4)98.1062.9280.51
+AGCA+MFM98.1463.1180.63
Tab.5 Module validity analysis based on DeepGlobe dataset
%
方法IoUMIoU
背景道路
基准网络97.1260.1378.63
+AGCA97.2961.9479.62
+AGCA+MFM(Res-1, Res-4)97.2862.1679.72
+AGCA+MFM97.3763.2180.29
Tab.6 Module validity analysis based on CHN6-CUG dataset

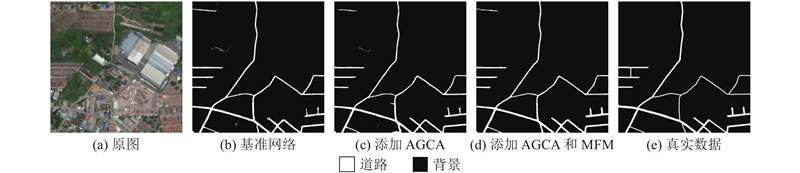

Fig.8 Comparison of visualization results for module validity analysis based on DeepGlobe dataset

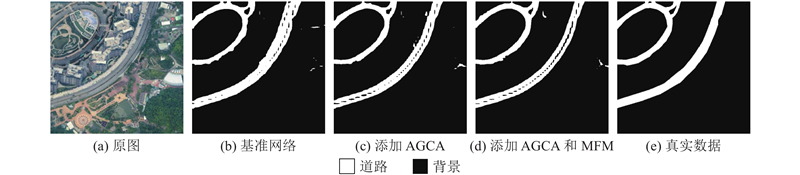

Fig.9 Comparison of visualization results for module validity analysis based on CHN6-CUG dataset
%
网络IoUMIoU
背景建筑物道路
DeepLabV383.4448.6176.3069.45
APCNet83.7549.4276.7769.98
CCNet83.3252.7676.5070.86
DANet81.7647.6173.0467.47
EMANet83.7653.3477.0371.38
DNLNet83.9553.0077.1271.36
CRANet83.2951.3576.8470.49
SANet84.2654.7877.5572.20
GGMNet84.3154.9977.6872.33
Tab.7 Segmentation performance comparison of different networks based on CITY-OSM dataset
Fig.10 Segmentation results comparison of different networks based on CITY-OSM dataset
%
网络IoUMIoU
背景道路
DeepLabV398.0662.2480.15
APCNet98.0359.7878.91
CCNet98.0961.7779.93
DANet97.9861.7779.88
EMANet98.0661.4579.76
DNLNet98.1062.1980.15
CRANet98.0562.0480.04
SANet98.1563.0580.60
GGMNet98.1463.1180.63
Tab.8 Segmentation performance comparison of different networks based on DeepGlobe dataset

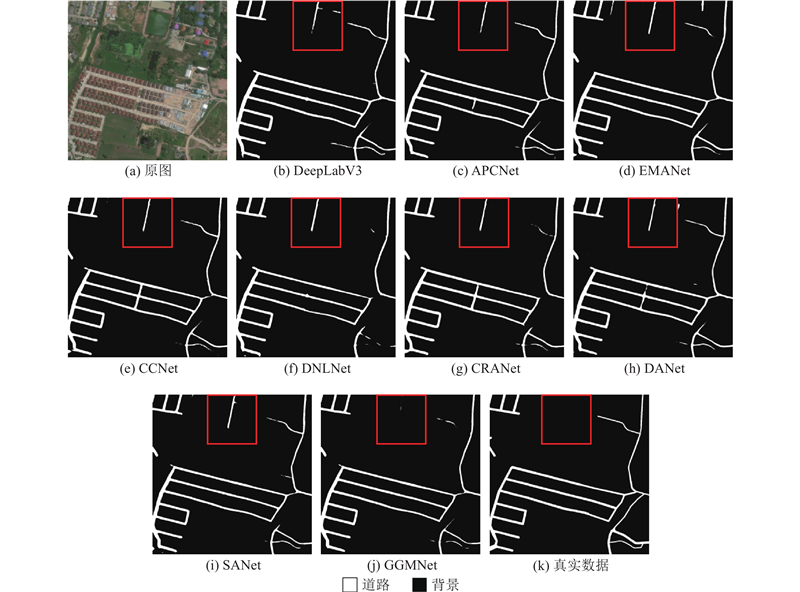

Fig.11 Segmentation results comparison of different networks based on DeepGlobe dataset
%
网络IoUMIoU
背景道路
DeepLabV397.1260.1378.63
APCNet97.2461.9079.57
CCNet97.2661.5879.42
DANet97.2360.4478.83
EMANet97.1862.0479.61
DNLNet97.3262.5079.91
CRANet97.3262.8880.10
SANet97.3563.0880.22
GGMNet97.3763.2180.29
Tab.9 Segmentation performance comparison of different networks based on CHN6-CUG dataset

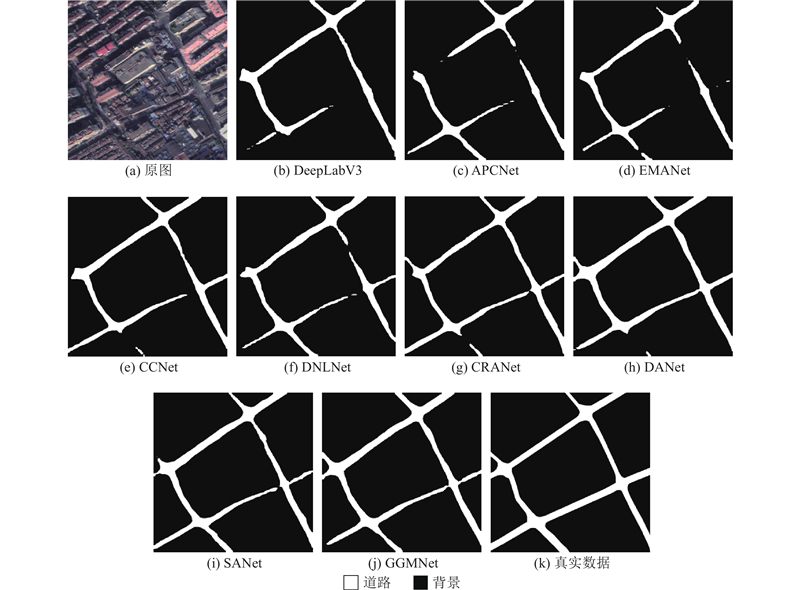

Fig.12 Segmentation results comparison of different networks based on CHN6-CUG dataset
[1]   QUAN B, LIU B, FU D, et al. Improved DeepLabV3 for better road segmentation in remote sensing images [C]// 2021 International Conference on Computer Engineering and Artificial Intelligence . Shanghai: IEEE, 2021: 331–334.
[2]   ZHANG J, LI Y, SI Y, et al A low-grade road extraction method using SDG-DenseNet based on the fusion of optical and SAR images at decision level[J]. Remote Sensing, 2022, 14 (12): 2870
doi: 10.3390/rs14122870
[3]   胡春安, 陈玉玲 基于Gabor和改进 LDA的人耳识别[J]. 计算机工程与科学, 2015, 37 (7): 1355- 1359
HU Chun’an, CHEN Yuling An ear recognition algorithm based on gabor features and improved LDA[J]. Computer Engineering and Science, 2015, 37 (7): 1355- 1359
[4]   邢军 基于Sobel算子数字图像的边缘检测[J]. 微机发展, 2005, 15 (9): 48- 49
XING Jun Edge detection of Sobel-based digital image[J]. Microcomputer Development, 2005, 15 (9): 48- 49
[5]   SUN Q, LIU Q. The target fish’s population detection based on the improved watershed algorithm [C]// 2022 7th International Conference on Intelligent Computing and Signal Processing (ICSP) . Xi’an: IEEE, 2022: 507-510.
[6]   QIN J, HE Z S. A SVM face recognition method based on Gabor-featured key points [C]// 2005 International Conference on Machine Learning and Cybernetics . Guangzhou: IEEE, 2005: 5144–5149.
[7]   董师师, 黄哲学 随机森林理论浅析[J]. 集成技术, 2013, 2 (1): 1- 7
DONG Shishi, HUANG Zhexue A brief theoretical overview of random forests[J]. Journal of Integration Technology, 2013, 2 (1): 1- 7
[8]   GU J, WANG Z, KUEN J, et al Recent advances in convolutional neural networks[J]. Pattern Recognition, 2018, 77: 354- 377
doi: 10.1016/j.patcog.2017.10.013
[9]   ZHANG Z, LIU Q, WANG Y Road extraction by deep residual U-Net[J]. IEEE Geoscience and Remote Sensing Letters, 2018, 15 (5): 749- 753
doi: 10.1109/LGRS.2018.2802944
[10]   LONG J, SHELHAMER E, DARRELL T. Fully convolutional networks for semantic segmentation [C]// 2015 IEEE Conference on Computer Vision and Pattern Recognition . Boston: IEEE, 2015: 3431–3440.
[11]   LIN G, MILAN A, SHEN C, et al. RefineNet: multi-path refinement networks for high-resolution semantic segmentation [C]// 2017 IEEE Conference on Computer Vision and Pattern Recognition . Honolulu: IEEE, 2017: 1925–1934.
[12]   HE K, ZHANG X, REN S, et al. Deep residual learning for image recognition [C]// 2016 IEEE Conference on Computer Vision and Pattern Recognition . Las Vegas: IEEE, 2016: 770–778.
[13]   ZHAO H, SHI J, QI X, et al. Pyramid scene parsing network [C]// 2017 IEEE Conference on Computer Vision and Pattern Recognition . Honolulu: IEEE, 2017: 2881–2890.
[14]   CHEN L C, ZHU Y, PAPANDREOU G, et al. Encoder-decoder with atrous separable convolution for semantic image segmentation [C]// European Conference on Computer Vision . [S. l.]: Springer, 2018: 833–851.
[15]   HU J, SHEN L, SUN G. Squeeze-and-excitation networks [C]// 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition . Salt Lake City: IEEE, 2018: 7132–7141.
[16]   WOO S, PARK J, LEE J Y, et al. CBAM: convolutional block attention module [C]// European Conference on Computer Vision . [S. l.]: Springer, 2018: 3–19.
[17]   FU J, LIU J, TIAN H, et al. Dual attention network for scene segmentation [C]// 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition . Long Beach: IEEE, 2019: 3146–3154.
[18]   ZHANG W, HUANG Z, LUO G, et al. TopFormer: token pyramid transformer for mobile semantic segmentation [C]// 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition . New Orleans: IEEE, 2022: 12083–12093.
[19]   KAISER P, WEGNER J D, LUCCHI A, et al Learning aerial image segmentation from online maps[J]. IEEE Transactions on Geoscience and Remote Sensing, 2017, 55 (11): 6054- 6068
doi: 10.1109/TGRS.2017.2719738
[20]   DEMIR I, KOPERSKI K, LINDENBAUM D, et al. Deepglobe 2018: a challenge to parse the earth through satellite images [C]// 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops . Salt Lake City: IEEE, 2018: 172-181.
[21]   ZHU Q, ZHANG Y, WANG L, et al A global context-aware and batch-independent network for road extraction from VHR satellite imagery[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2021, 175: 353- 365
doi: 10.1016/j.isprsjprs.2021.03.016
[22]   HE T, ZHANG Z, ZHANG H, et al. Bag of tricks for image classification with convolutional neural networks [C]// 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition . Long Beach: IEEE, 2019: 558–567.
[23]   CHEN L C, PAPANDREOU G, SCHROFF F, et al. Rethinking atrous convolution for semantic image segmentation [EB/OL]. (2017-12-05)[2023-05-10]. https://arxiv.org/pdf/1706.05587.pdf.
[24]   HE J, DENG Z, ZHOU L, et al. Adaptive pyramid context network for semantic segmentation [C]// 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition . Long Beach: IEEE, 2019: 7519–7528.
[25]   HUANG Z, WANG X, HUANG L, et al. CCNet: criss-cross attention for semantic segmentation [C]// 2019 IEEE/CVF International Conference on Computer Vision . Seoul: IEEE, 2019: 603–612.
[26]   LI X, ZHONG Z, WU J, et al. Expectation-maximization attention networks for semantic segmentation [C]// 2019 IEEE/CVF International Conference on Computer Vision . Seoul: IEEE, 2019: 9167–9176.
[27]   YIN M, YAO Z, CAO Y, et al. Disentangled non-local neural networks [C]// European Conference on Computer Vision . [S. l.]: Springer, 2020: 191–207.
[28]   LI S, LIAO C, DING Y, et al Cascaded residual attention enhanced road extraction from remote sensing images[J]. ISPRS International Journal of Geo-Information, 2022, 11 (1): 9
