Vibration-shear equivalent theory based on rheological property of cement slurry
Xiao-tian LI(),Guang-nian XIE,Zhu-rui GAO,Sheng-jun ZHANG,Jun-shi LI
School of Mechanical Engineering, Tongji University, Shanghai 201804, China
Download: HTML     PDF(907KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The transformation mechanism of the rheological model of cement slurry was explained in order to analyze the rheological properties of cement slurry under excitation. The vibration-shear equivalent theory was proposed for the rheological analysis of cement slurry under excitation. The shear rate of the flow field of cement paste in the rotary viscometer under the excitation condition was calculated according to the modified HI theory and the radial stratification algorithm of rotary viscometer. The sinusoidal vibration process of the shaking table was transformed into the shear process of cement paste. The HI parameter calibration test under the vibration frequency of 20 Hz and the viscosity test of cement paste under the vibration frequency of 30 Hz were conducted by using the self-made rotary viscometer. Results showed that the error between HI parameter calibration results and numerical calculation results was about 7%, and the error between test viscosity and numerical calculation viscosity of cement paste was 8%, which tended to converge. The viscosity of cement paste gradually decreased and reached a peak by increasing the vibration frequency. The rheological model gradually changed from Bingham model to Hershel-Bulkley model, which was transformed into Power-Law model.

Key words： cement slurry      vibration-shear equivalent theory      rheological property      vibration      HI theory
Received: 11 July 2021      Published: 26 July 2022
CLC:  TU 528
Fund:  国家“十三五”重点研发计划资助项目（2017YFC0704004）；山东省重点研发计划资助项目（2020CXGC011005）
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Xiao-tian LI
Guang-nian XIE
Zhu-rui GAO
Sheng-jun ZHANG
Jun-shi LI
Cite this article:

Xiao-tian LI,Guang-nian XIE,Zhu-rui GAO,Sheng-jun ZHANG,Jun-shi LI. Vibration-shear equivalent theory based on rheological property of cement slurry. Journal of ZheJiang University (Engineering Science), 2022, 56(7): 1336-1341.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.07.009     OR     https://www.zjujournals.com/eng/Y2022/V56/I7/1336


基于水泥净浆流变性的振动-剪切等效理论

为了分析振动条件下水泥净浆的流变特性，解释水泥净浆流变性模型的转化机制，提出适用于振动条件下水泥净浆流变性分析的振动-剪切等效理论. 根据修正HI理论和回转黏度仪径向分层算法，计算振动条件下回转黏度仪内水泥净浆流场的剪切速率，将振动台正弦振动过程转化为对水泥净浆的剪切过程. 采用自制回转黏度仪，开展20 Hz振动频率下的HI参数标定试验和30 Hz振动频率下的水泥净浆黏度试验. 结果表明，HI参数标定结果与数值计算结果之间的误差约为7%，水泥净浆的试验黏度与数值计算的黏度之间的误差为8%并趋于收敛状态. 增大振动频率，水泥净浆的黏度逐渐减小并达到峰值，流变性模型逐渐由Bingham模型转变为Hershel-Bulkley模型，最后转变为Power-Law模型.


关键词： 水泥净浆,  振动-剪切等效理论,  流变特性,  振动,  HI理论

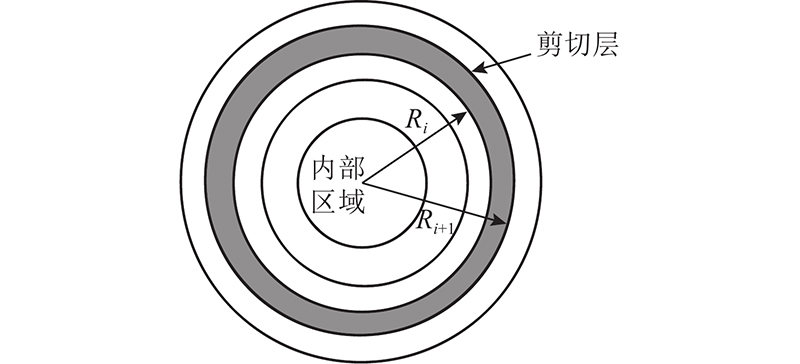

Fig.1 Schematic diagram of radial stratification in flow field area of rotary viscometer

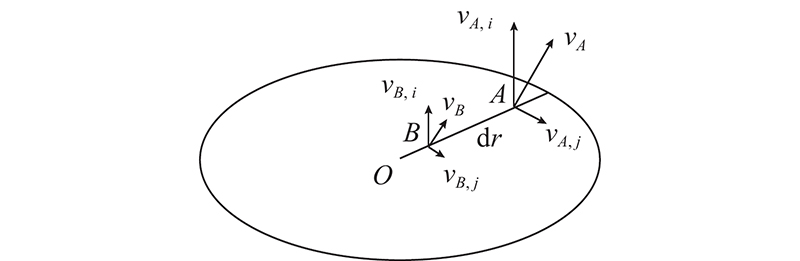

Fig.2 Schematic diagram of velocity distribution of flow field at section A-A of rotary viscometer under excitation

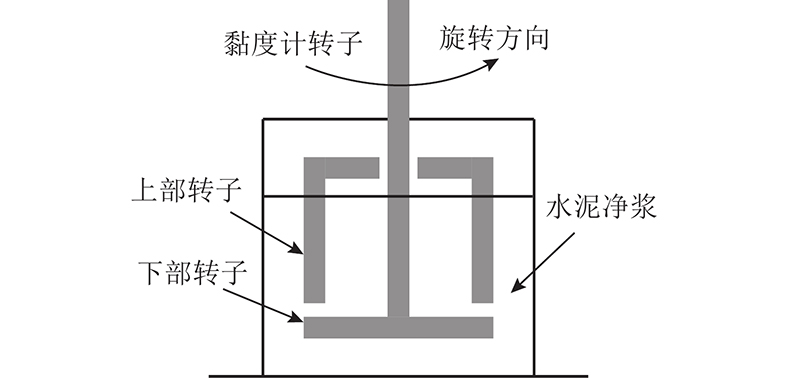

Fig.3 Structure diagram of rotary viscometer

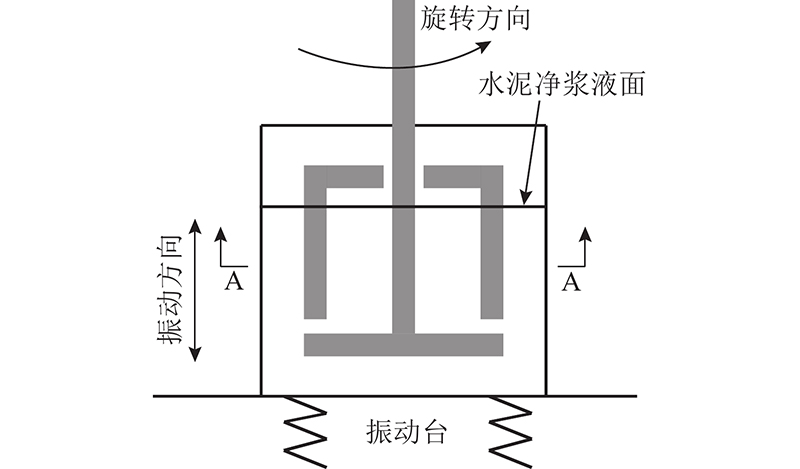

Fig.4 Schematic diagram of cement paste viscosity measuring device under vibration
参数 参数值 参数 参数值
${m_{\rm{a} } }/{\rm{s}}$ 30 ${\tau _0}/{\rm{Pa}}$ 1
${m_{\rm{b} } }/{\rm{s}}$ 0 $\mu/({\rm{Pa} }\cdot{\rm{s} })$ 6
$ {a_1}$ 530 ${\dot \gamma _{ {\rm{vib} } } }/{\rm{s} }^{-1}$ 10
$ {a_2} $ 300 ${R_1}/{\rm{m}}$ 0.1
$ {U_0} $ 0.9 ${R_2} /{\rm{m}}$ 0.16
Tab.1 Calibration results of HI parameters under 20 Hz excitation

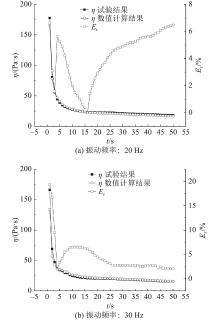

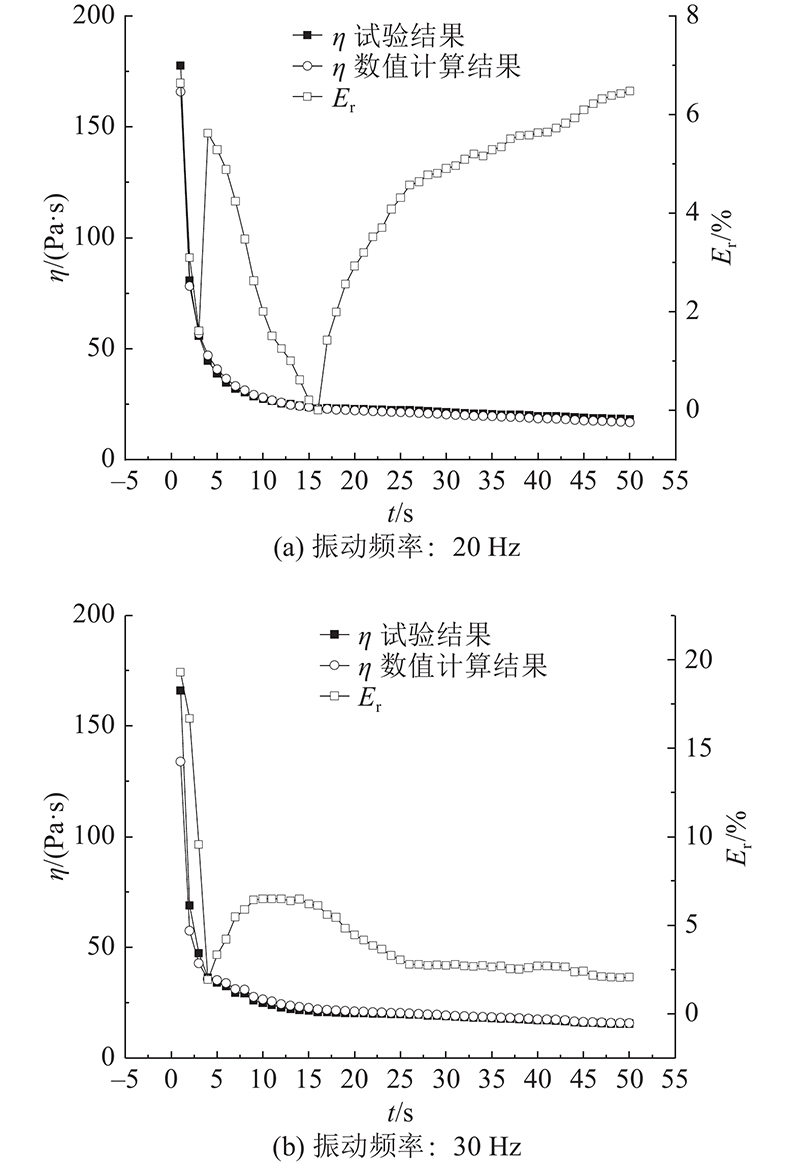

Fig.5 Comparison between experimental viscosity and numerical viscosity of cement slurry under different vibration frequencies
Fig.6 Diagram of viscosity change of cement net slurry under different shear rates caused by shaking table vibration
${\dot \gamma _{{\rm{vib}}} }$ 拟合表达式
0 $T = 1.842 + 0.022 \; 72\varOmega$
3 $T = 0.718 \; 4 + 0.151 \; 9{\varOmega ^{0.678 \; 2} }$
5 $T = 0.313 \; 1 + 0.209 \; 4{\varOmega ^{0.629 \; 4} }$
7 $T = 0.251{\varOmega ^{0.603 \; 6} }$
10 $T = 0.204 \; 8{\varOmega ^{0.640 \; 6} }$
Tab.2 Fitting expression of torque and speed of rotary viscometer at different shear rates caused by shaking table vibration
Fig.7 Schematic diagram of torque variation with rotation speed of rotary viscosimeter at different shear rates caused by shaking table vibration
