Droplet transfer behavior in fused-deposition of 45 steel/tin lead alloy bimetallic structures

doi:10.3785/j.issn.1008-973X.2020.11.018

Journal of ZheJiang University (Engineering Science)

2020, Vol. 54

Issue (11): 2224-2232 DOI: 10.3785/j.issn.1008-973X.2020.11.018

Droplet transfer behavior in fused-deposition of 45 steel/tin lead alloy bimetallic structures

Si-yuan XU(

),Jun DU,Guang-xi ZHAO,Zheng-ying WEI*(

)

State Key Laboratory for Manufacturing Systems Engineering, Xi’an Jiaotong University, Xi’an 710049, China

Download:

HTML

PDF(2222KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A numerical calculation model for the morphological evolution process of micro-droplet ejection was established by the method of volume of fluid (VOF), in order to meet the requirements of tungsten inert gas welding (TIG) welding pool and tin-lead alloy droplet matching in 45 steel/tin lead alloy bimetallic structures fused-deposition fabrication process. The effects and the change rules of driving parameters of piezoelectric vibration and internal structural parameters of nozzle on the size and velocity of the droplet were described in the process of piezoelectric driven droplet micro-ejection. Results showed that the droplets had a high sphericity and good controllability in the case of 0.5~0.6 mm nozzle diameter, 5~6 mm nozzle depth, and 4~5 mm annular gap. The influence of excitation frequency and driving amplitude on droplet size was not obvious, and the droplet velocity increased with the increase of excitation frequency and driving amplitude. Comparison between numerical and experimental results showed that the maximum error of droplet size and droplet velocity was less than 10%, indicating that the numerical model is reliable to analyze the droplet micro-ejection process.

Key words： piezoelectric driven micro-droplet ejection finite difference method numerical simulation dissimilar metal

Received: 26 November 2019 Published: 15 December 2020

CLC:	TG 142
	TG 47
	TB 31

Corresponding Authors: Zheng-ying WEI E-mail: 594579561@qq.com;zywei@mail.xjtu.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Si-yuan XU
	Jun DU
	Guang-xi ZHAO
	Zheng-ying WEI

Cite this article:

Si-yuan XU,Jun DU,Guang-xi ZHAO,Zheng-ying WEI. Droplet transfer behavior in fused-deposition of 45 steel/tin lead alloy bimetallic structures. Journal of ZheJiang University (Engineering Science), 2020, 54(11): 2224-2232.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.11.018 OR http://www.zjujournals.com/eng/Y2020/V54/I11/2224

45钢/锡铅合金复合结构熔融沉积中熔滴过渡行为

面向45钢/锡铅合金复合结构熔融沉积过程中的锡铅合金熔滴与钨极惰性气体保护焊（TIG）焊接熔池的匹配性需求，基于有限差分方法，采用流体体积法（VOF）建立微喷熔滴形态演变过程数值计算模型，分别研究压电驱动式熔滴微喷过程中压电激振驱动参数和喷头内结构参数对于产生熔滴的尺寸及速度的作用和变化规律. 研究发现，当喷孔直径为0.5~0.6 mm，喷孔深度为5~6 mm，环隙为4~5 mm时，锡铅合金熔滴具有较高的球形度，熔滴可控性较好. 压电陶瓷激振频率和驱动行程对于锡铅合金熔滴尺寸影响不明显，熔滴速度随激振频率和驱动行程的增大而增大. 对比数值计算结果与实验结果，发现锡铅合金熔滴尺寸与熔滴速度最大误差均小于10%，表明利用数值计算模型对熔滴微喷过程进行分析较可信.

关键词： 压电驱动式, 微滴喷射, 有限差分, 数值仿真, 异种金属

Tab.1 Geometric parameters of numerical model

Tab.2 Physical property parameters of Sn40Pb60 and initial conditions of model

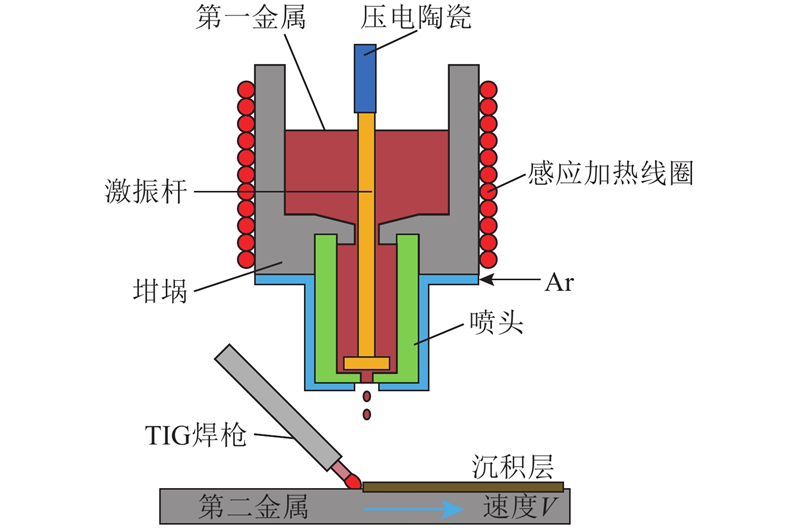

Fig.1 Diagram of dissimilar metals recombine forming system

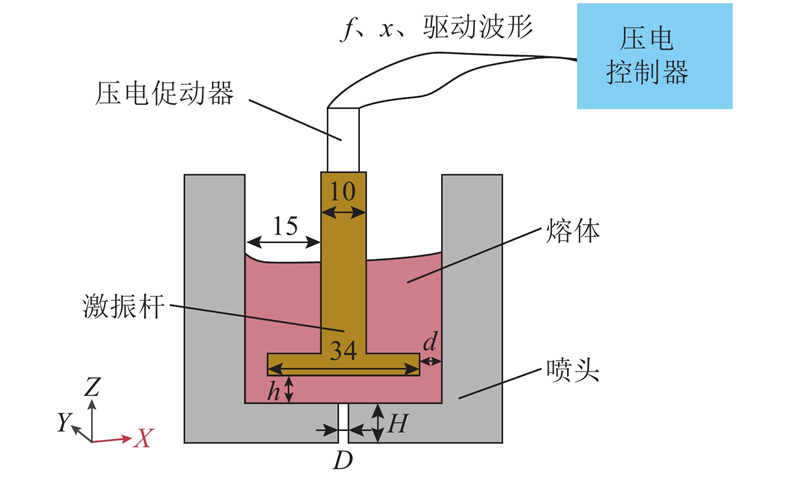

Fig.2 Two-dimensional diagram of numerical calculation model of droplet micro-ejection process

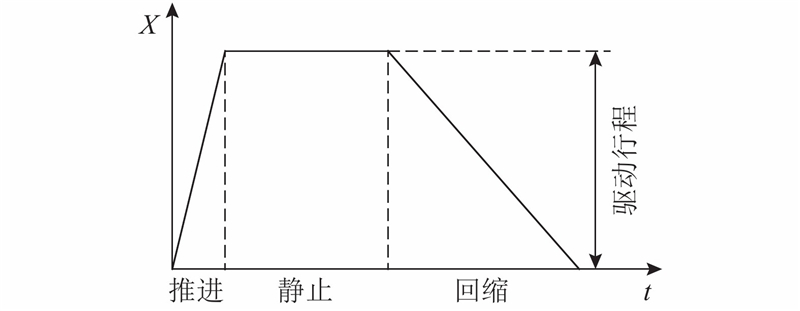

Fig.3 Displacement-time graph of exciting rod under trapezoidal wave

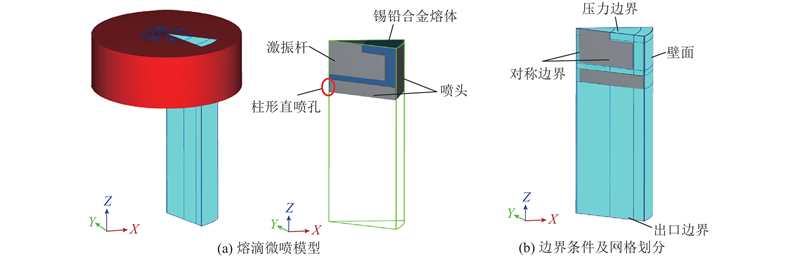

Fig.4 Piezoelectric actuated micro-droplet injection model and mesh generation

Tab.3 Value of each parameter in single factor test

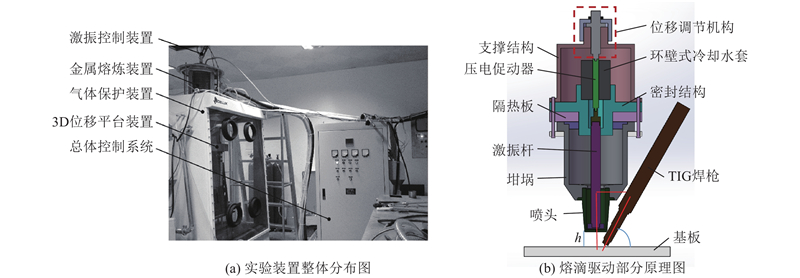

Fig.5 Overall distribution diagram of experimental device and schematic diagram of droplet driving part

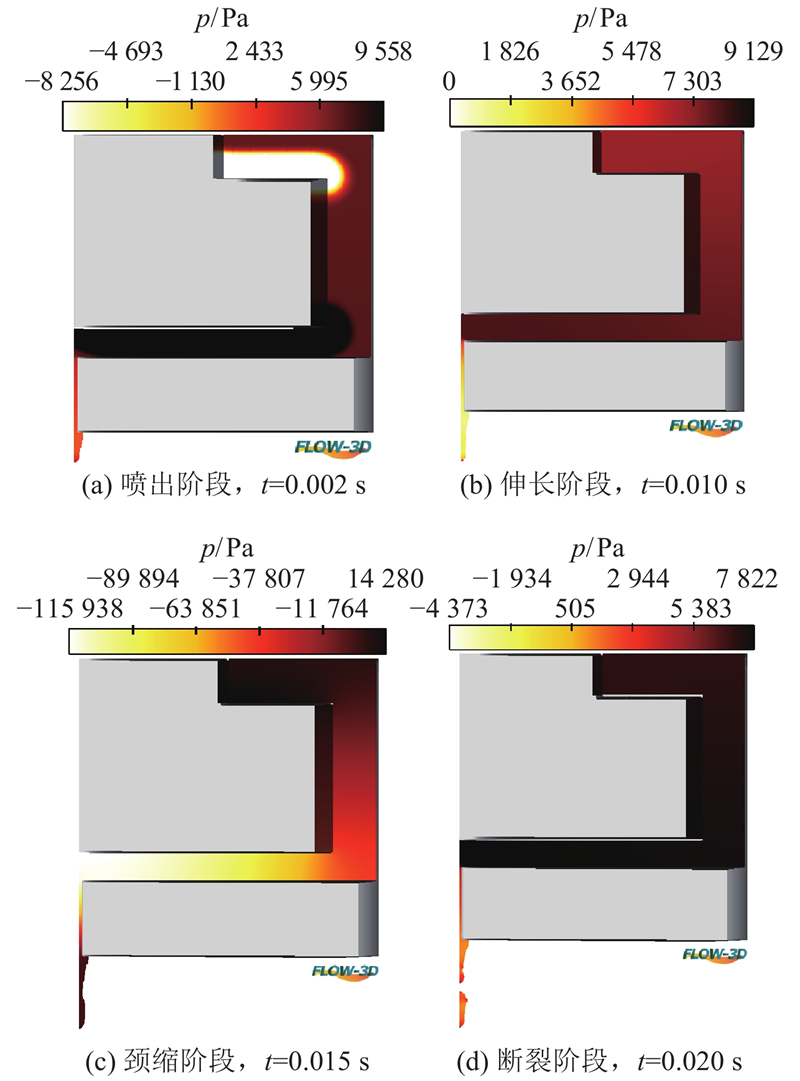

Fig.6 Pressure field nephogram at each stage of droplet generation

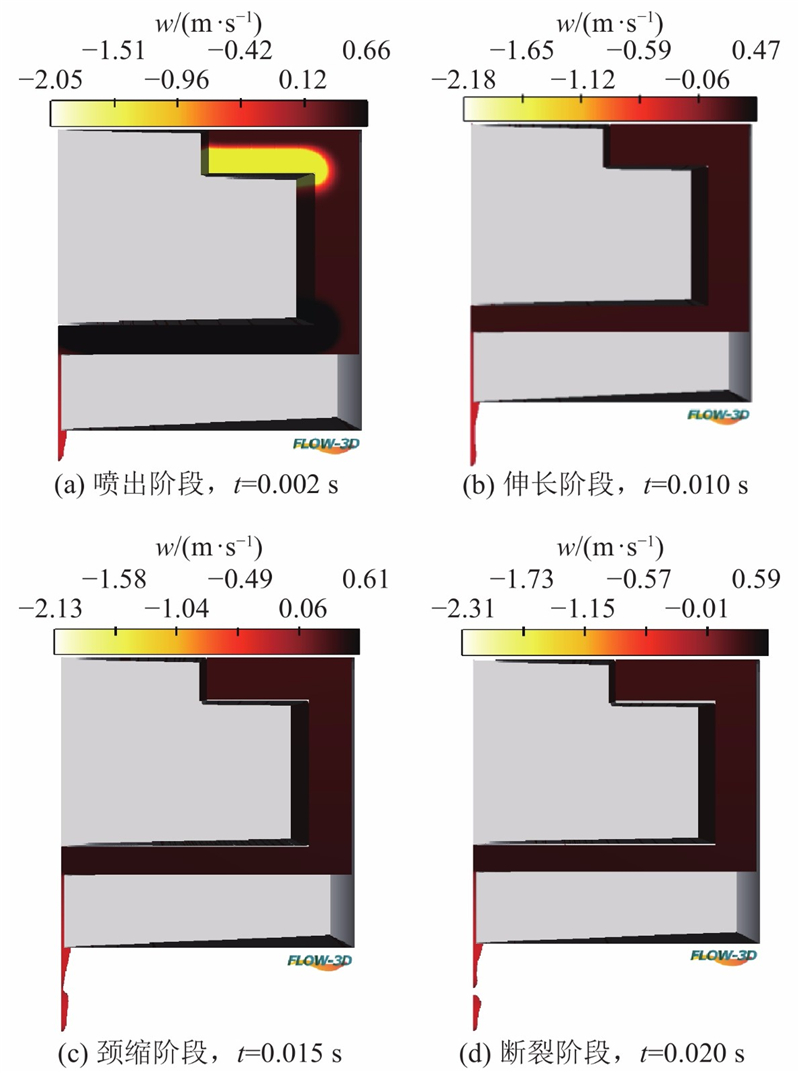

Fig.7 Velocity field nephogram at each stage of droplet generation

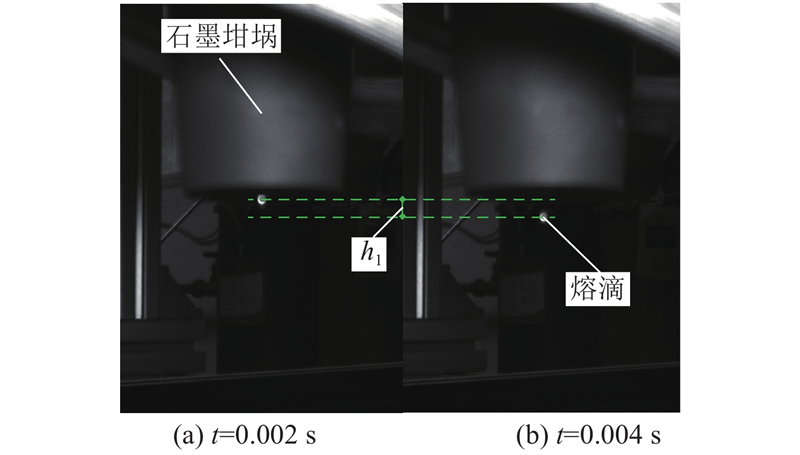

Fig.8 CCD capture of droplet flight process

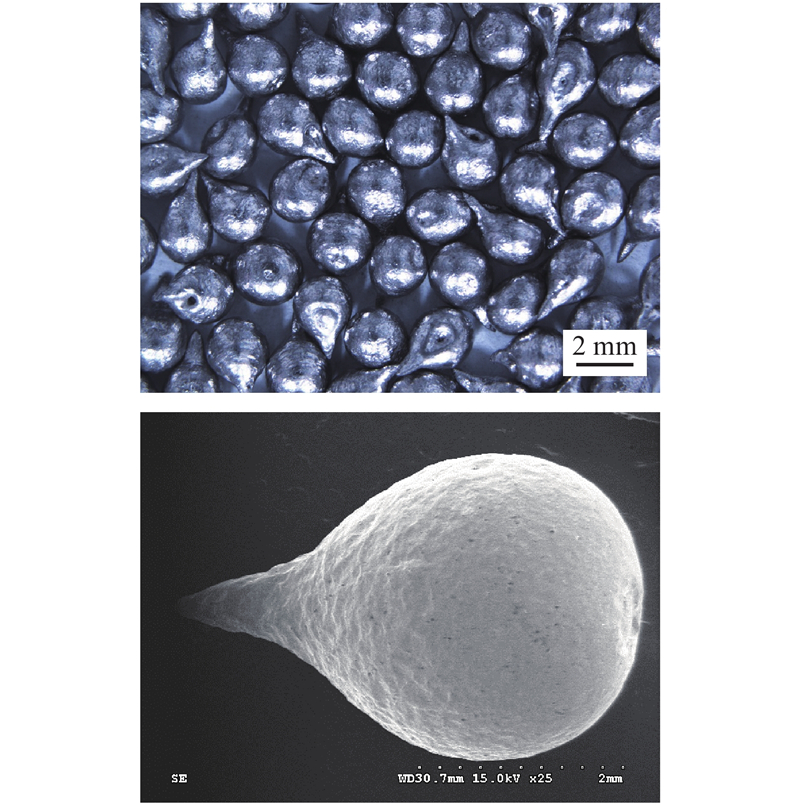

Fig.9 Macroscopic morphology and SEM diagram of droplet

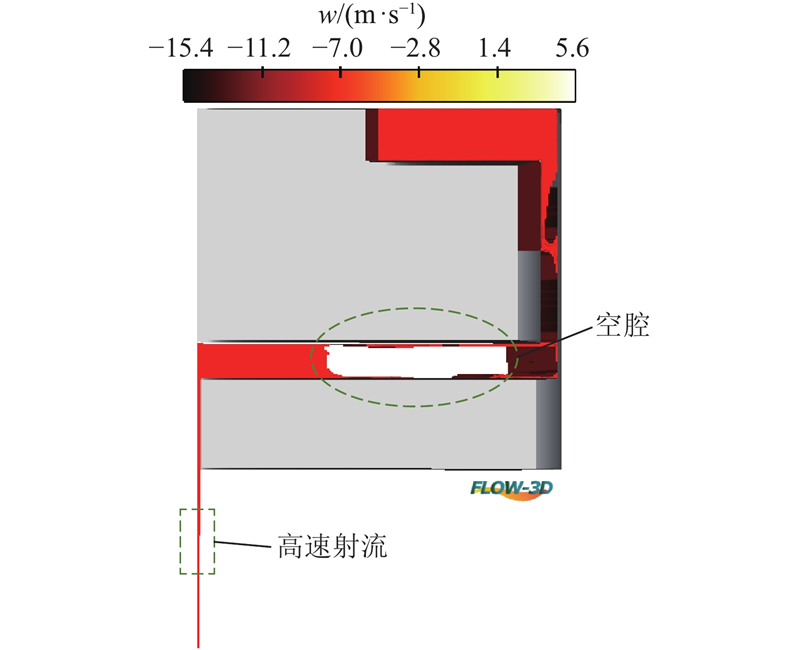

Fig.10 Velocity cloud chart with annular gap of 1 mm

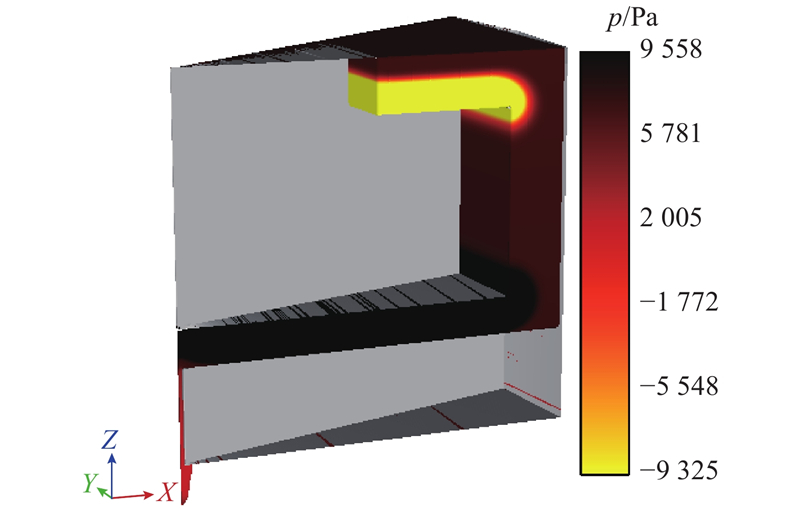

Fig.11 Pressure cloud chart with annular gap of 2 mm

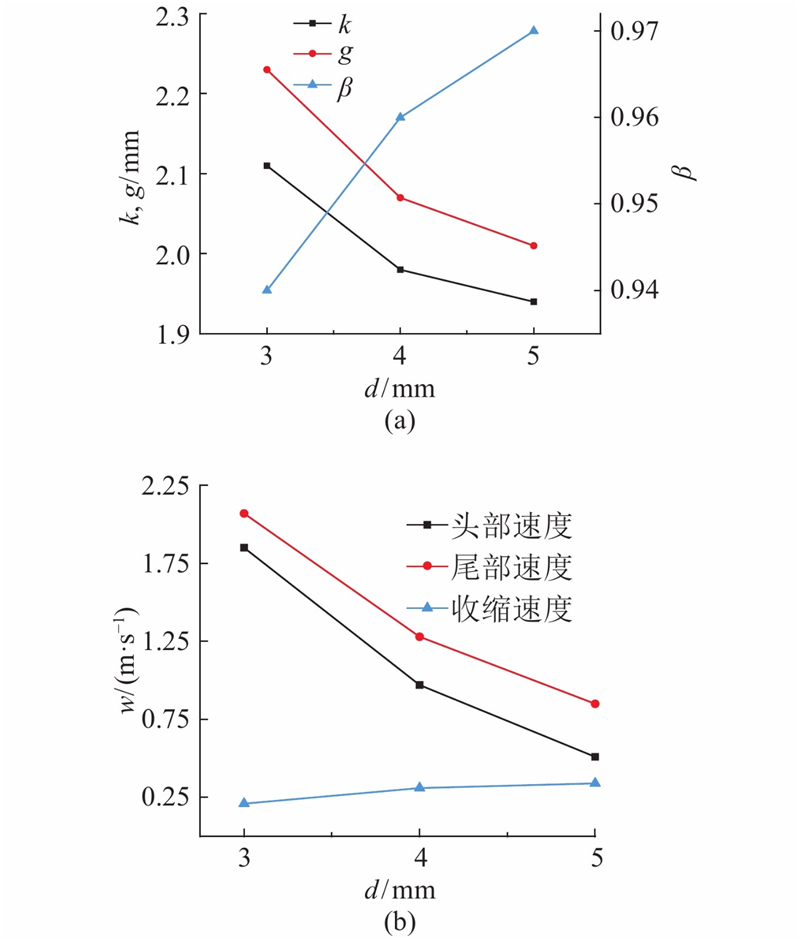

Fig.12 Droplet size and droplet velocity under different annular gaps

Fig.13 Melt's back-flow along annular gap

Fig.14 Droplet size and droplet velocity under different nozzle diameters

Fig.15 Droplet size and droplet velocity at different hole depths

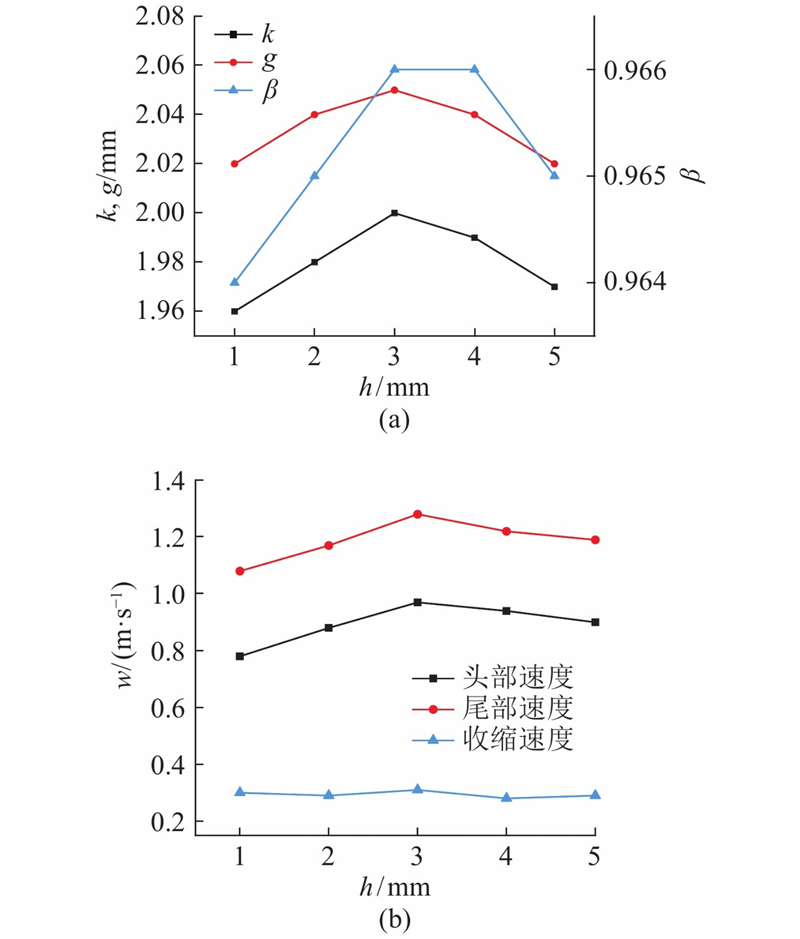

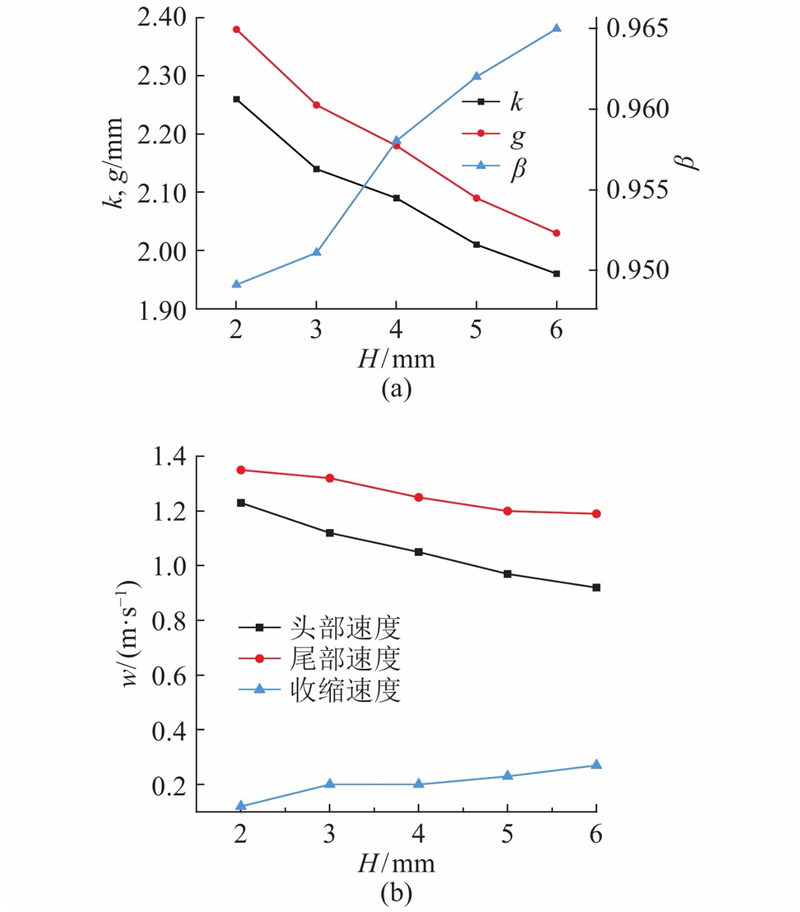

Fig.16 Droplet size and droplet velocity at different heights between bottom surface of exciting rod and nozzle

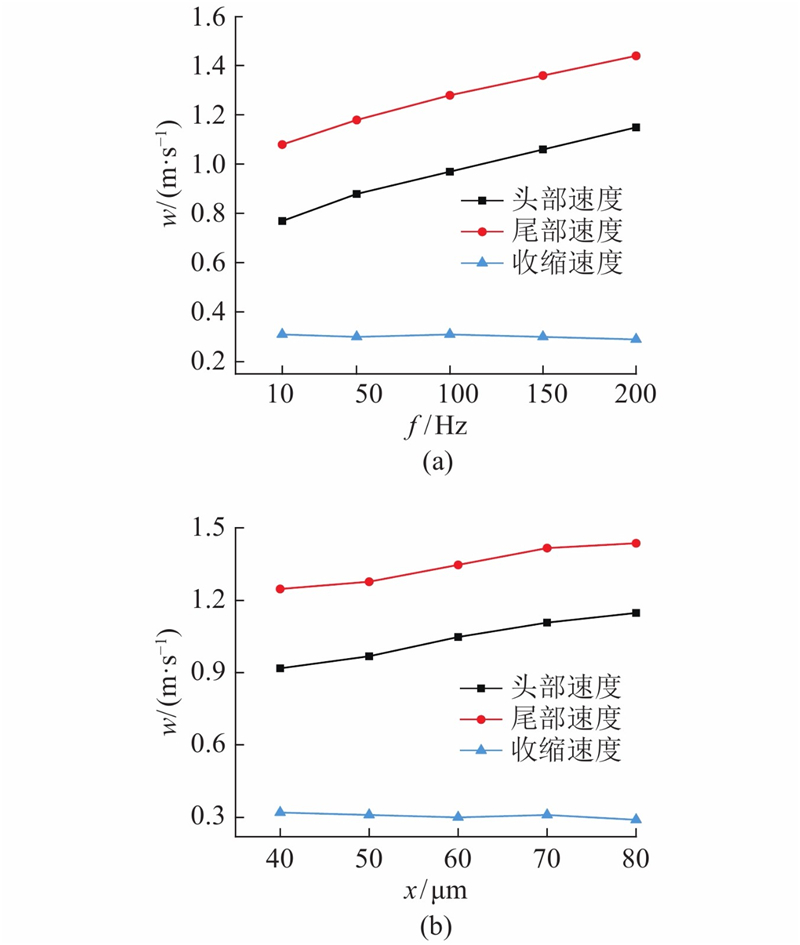

Fig.17 Droplet velocity under different excitation frequencies and driving amplitudes


[1]	冯吉才, 王廷, 张秉刚, 等异种材料真空电子束焊接研究现状分析[J]. 焊接学报, 2009, 30 (10): 108 FENG Ji-cai, WANG Ting, ZHANG Bing-gang, et al Analysis on research status of vacuum electron beam welding of heterogeneous materials[J]. Journal of Welding, 2009, 30 (10): 108

[2]	吕攀, 王克鸿, 朱和国钛合金与不锈钢异种金属焊接的研究现状[J]. 热加工工艺, 2017, (13): 26- 32 LV Pan, WANG Ke-hong, ZHU He-guo Research status of welding of titanium alloy and stainless steel[J]. Thermal Processing Technology, 2017, (13): 26- 32

[3]	李涵嫣. 铜/铝固-液瞬时结合及热处理对界面连接的影响[D]. 西安: 西安理工大学, 2018. LI Han-yan. Effect of instantaneous solid-liquid bonding of copper/aluminum and heat treatment on interface connection [D]. Xi'an: Xi'an University of Technology, 2018.

[4]	张温馨, 姚渭, 刘莹莹, 等异种合金的连接工艺特征及其界面的组织性能[J]. 材料导报, 2015, (17): 98- 102 ZHANG Wen-xin, YAO Wei, LIU Ying-ying, et al Properties of different alloys and their interfacial microstructure[J]. Material Guide, 2015, (17): 98- 102

[5]	高波爆炸焊接的研究进展[J]. 安徽化工, 2017, 43 (3): 19- 22 GAO Bo Development of explosive welding[J]. Anhui Chemical Industry, 2017, 43 (3): 19- 22

[6]	秦国梁, 武传松铝合金/钢异种材料熔钎焊接工艺及其研究现状[J]. 机械工程学报, 2016, (24): 24- 35 QIN Guo-liang, WU Chuan-song Research status of brazing technology for different materials of aluminum alloy/steel[J]. Chinese Journal of Mechanical Engineering, 2016, (24): 24- 35

[7]	张学军, 唐思熠, 肇恒跃, 等 3D打印技术研究现状和关键技术[J]. 材料工程, 2016, 44 (2): 122- 128 ZHANG Xue-jun, TANG Si-yi, ZHAO Heng-yue, et al Research status and key technologies of 3D printing[J]. Materials Engineering, 2016, 44 (2): 122- 128

[8]	MA M, WANG Z, ZENG X A comparison on metallurgical behaviors of 316L stainless steel by selective laser melting and laser cladding deposition[J]. Materials Science and Engineering: A, 2017, 685: 265- 273 doi: 10.1016/j.msea.2016.12.112

[9]	杨胜. 热处理工艺对ZTC18钛合金组织和性能的影响[D]. 南昌: 南昌航空大学, 2010. YANG Sheng. Effect of heat treatment on microstructure and properties of ZTC18 titanium alloy [D]. Nanchang: Nanchang Aeronautical University, 2010.

[10]	YAO C, XU B, ZHANG X, et al Interface microstructure and mechanical properties of laser welding copper-steel dissimilar[J]. Optics and Laser in Engineering, 2009, 47 (7/8): 807- 814

[11]	韦亚辉. 45钢/锡铅合金异种金属复合结构熔融涂覆成形工艺与界面结合性能研究[D]. 西安: 西安交通大学, 2019. WEI Ya-hui. Investigation on the fused-coating AM process and interfacial properties in dissimilar metal 45 steel/tin-lead alloy [D]. Xi’an: Xi’an Jiaotong University, 2019.

[12]	HIRT C W, NICHOLS B D Volume of fluid (VOF) method for the dynamics of free boundaries[J]. Journal of Computational Physics, 1981, 39 (1): 201- 225 doi: 10.1016/0021-9991(81)90145-5

[13]	张健, 方杰, 范波芹 VOF方法理论与应用综述[J]. 水利水电科技进展, 2005, 25 (2): 67- 70 ZHANG Jian, FANG Jie, FAN Bo-qin A review of the theory and application of VOF method[J]. Advances in Water Conservancy and Hydropower Technology, 2005, 25 (2): 67- 70

[14]	归柯庭, 汪军, 王秋颖. 工程流体力学[M]. 北京: 科学出版社, 2003. GUI Ke-ting, WANG Jun, WANG Qiu-ying. Engineering fluid mechanics [M]. Beijing: Science press, 2003.

[15]	肖渊. 面向微小金属件成形的气动式金属熔滴可控喷射研究[D]. 西安: 西北工业大学, 2012. XIAO Yuan. Research on controlled injection of pneumatic metal melt droplet for micro-metal forming [D]. Xi’an: Northwestern Polytechnical University, 2012.

[16]	BARTH T, HERBIN R, OHLBERGER M Finite volume methods: foundation and analysis[J]. Encyclopedia of Computational Mechanics Second Edition, 2018, 1- 60

[17]	LIU Z L. Finite volume method [M]// Multiphysics in porous materials. Cham: Springer International Publishing, 2018: 385-395.

[18]	RIEFLER N, WRIEDT T Generation of monodisperse micro-sized droplets using free adjustable signals[J]. Particle and Particle Systems Characterization, 2008, 25 (2): 176- 182 doi: 10.1002/ppsc.200700038

[19]	刘丹丹. 基于Plateau-Rayleigh不稳定性的微液滴生成方法及应用研究[D]. 杭州: 浙江大学, 2015. LIU Dan-dan. Research on the formation method and application of microdroplets based on Plateau-Rayleigh instability [D]. Hangzhou: Zhejiang University, 2015.
